Description
Luminance/ Brightness Meter
OHSP-350 series handheld spectral colorimeter illuminance meter set of measurement function Spectrum, illumination, chromaticity, light flicker in one. Using 5 inch screen, the measurement parameters and curves are displayed in real time. It is convenient to use and can be directly tested in the lighting field.,Not only measurable LED wide spectrum light source, but also can measure the narrow spectrum light sources, such as CFL, HID, and so on.,It can also be used to test the environmental light of stage design, building light, plant growth lamp, engineering application and so on.
OHSP-350C: Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation. etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves, use convenient and fast, not only measure LED wide spectrum light source, but also measure CFL, HID narrow spectrum light source.

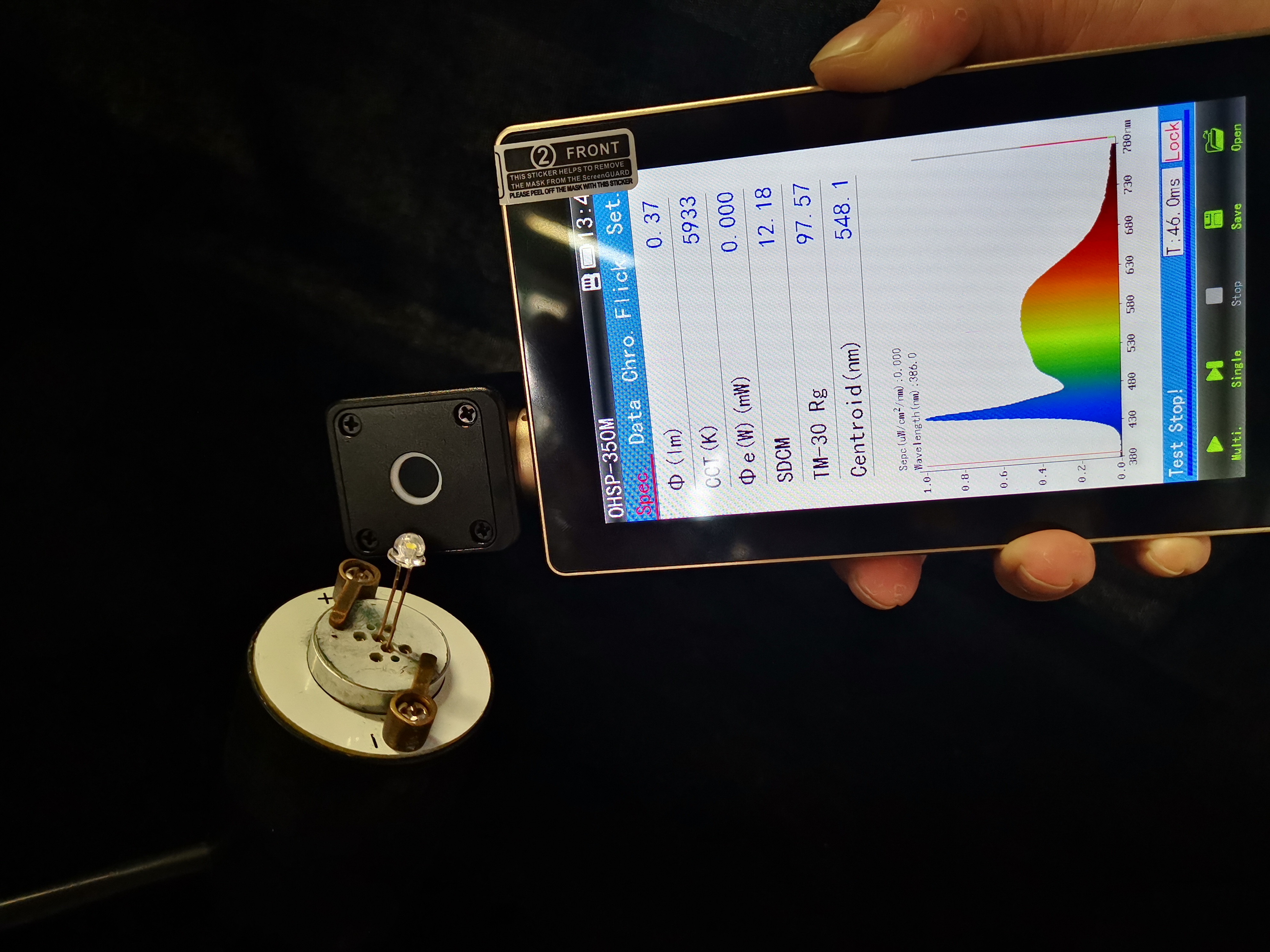

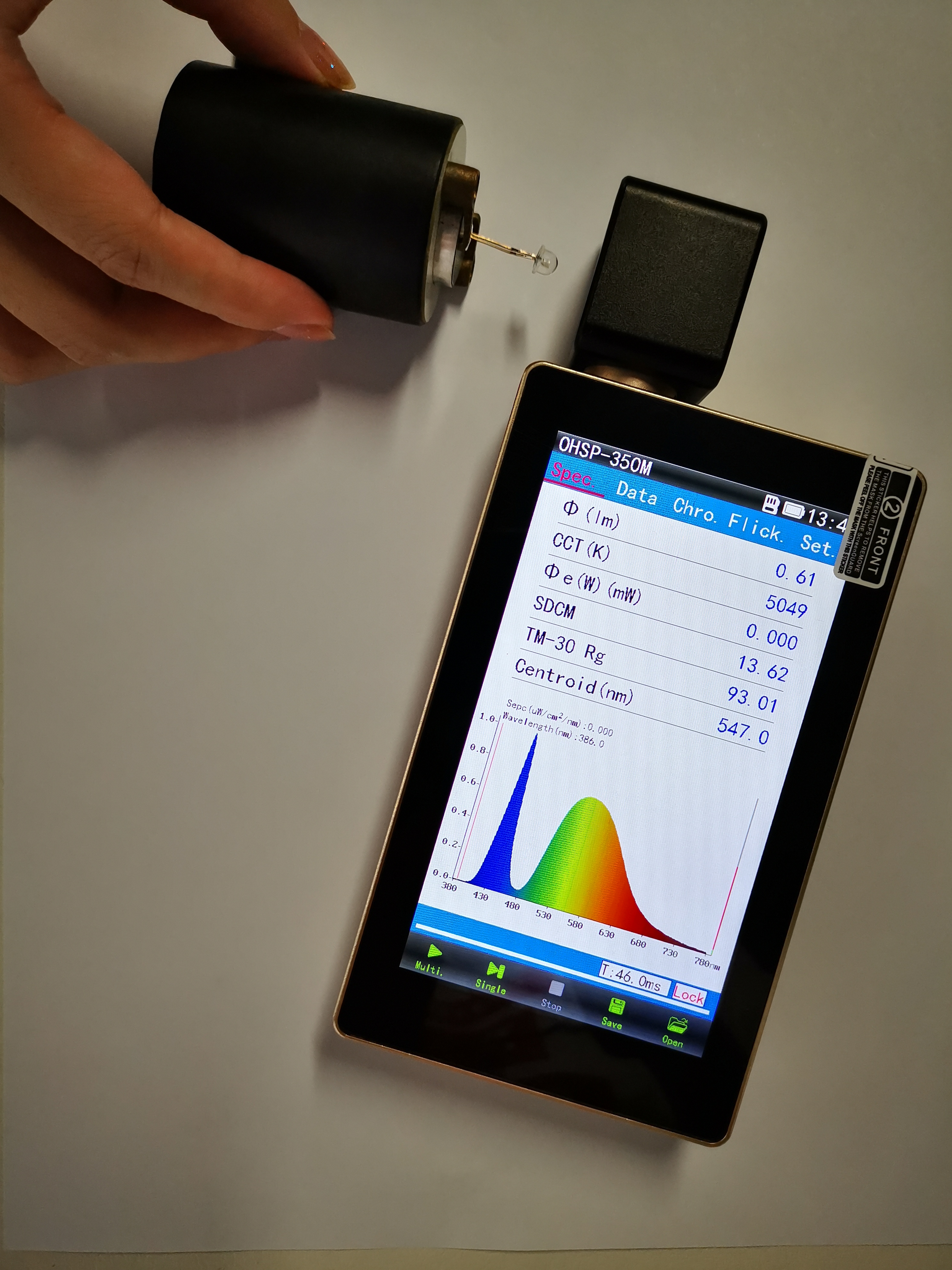

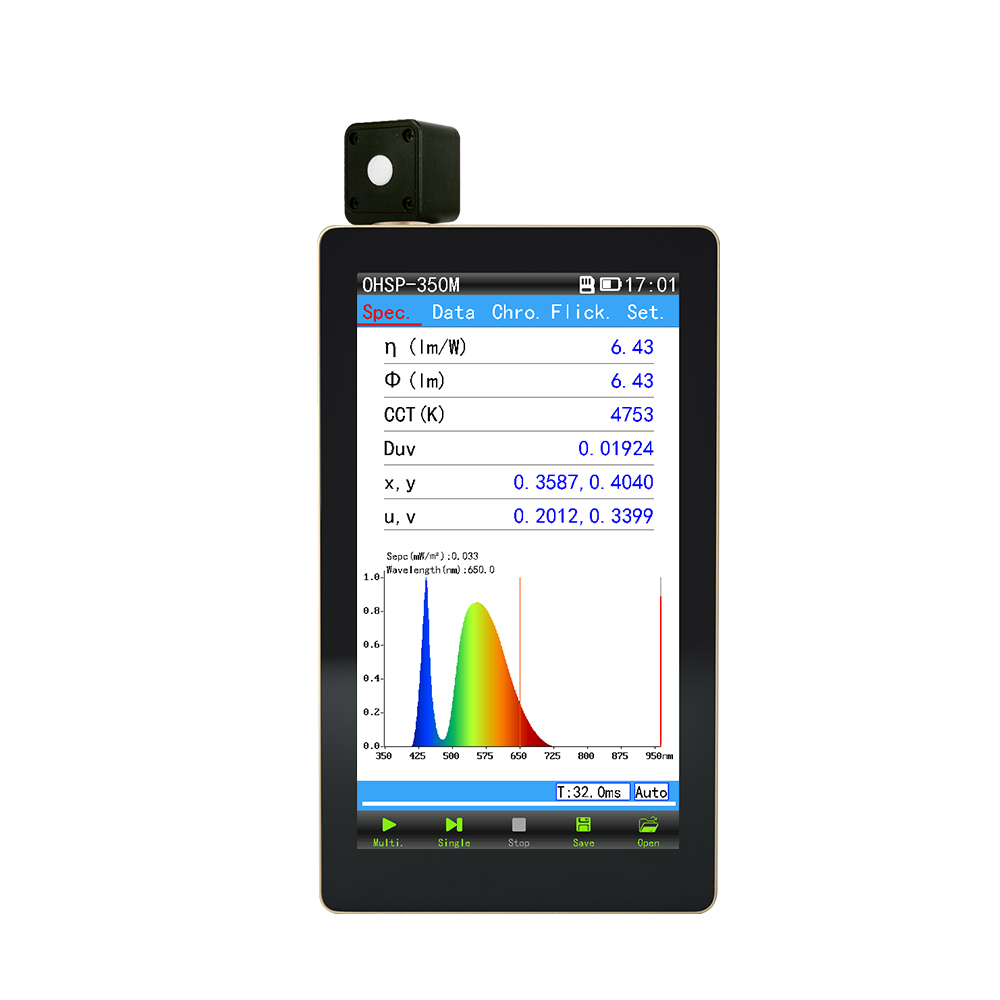

OHSP-350M: Spectral Irradiance Colorimeter , it can test Lux and Luminous flux in one, Suitable for measuring the luminous flux of single light source or whole LED lamp. Also good for field test .
OHSP-660T: Spectral Transmittance Tester, integrated Spectrum, Transmittance, L*A*B in one, can test material and lens immediately.
Meas parameters Wave range:380-780nm
| Luminous flux(lm) | CRI Ra | Flicker index | Flicker freq (Hz) |
| illuminance E(lx) | CCT(K) | Spectral Distribution | S/P |
| irradiance Ee(W) | TM-30-2015 Rf | modulation depth(%) | Grow light parameters par ppfd |
| PPF(umol/s) | TM-30-2015 Rg | Flicker percent(%) | OHSP350 basic paramters |
Application
TEST PARAMETER
| Model | OHSP350 M Luminous Flux Version |
| Wavelength range |
380nm ~780nm |
| Light Splitting Mode |
long focal cross section |
| Sensor |
High precision CCD |
| Spectral Bandwidth (FWHM) |
2nm |
| Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy |
+ 0.5nm |
| Illuminantion Accuracy |
(±4% Reading +1 Digital) |
| Lighting Area |
10mm |
| Integrating Time |
50μs~10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
TEST INTERFACE
