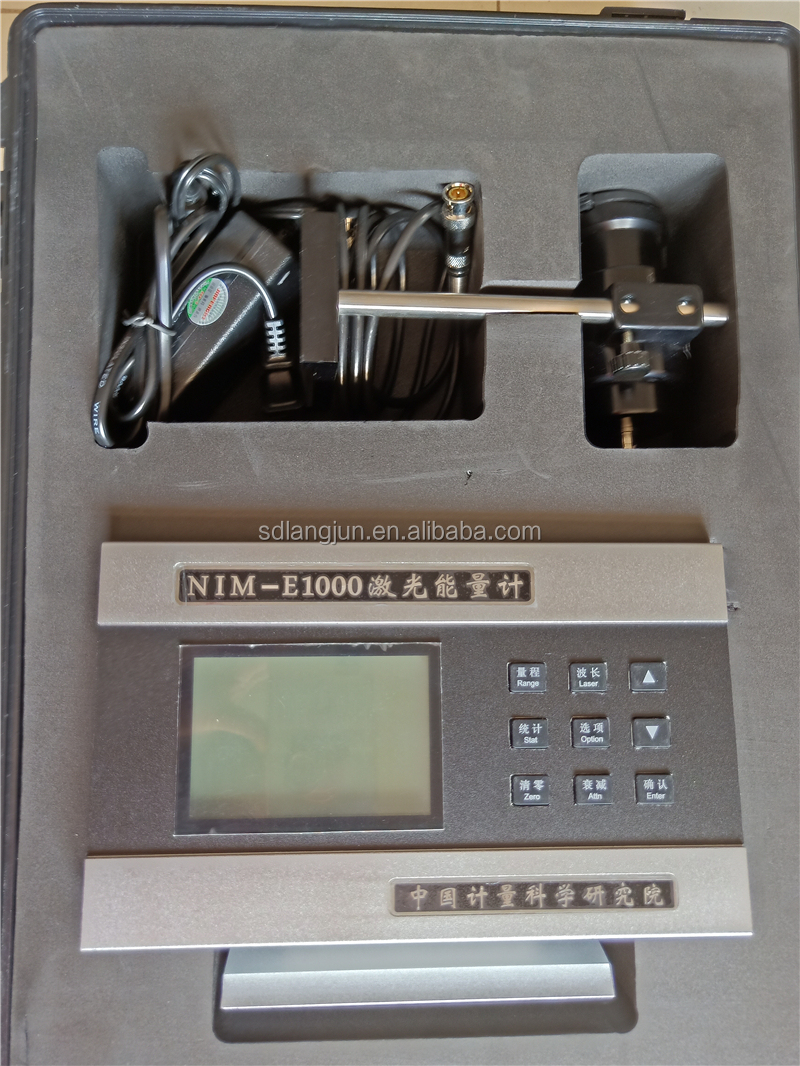

Product Description





Feature:

1. The entire test equipment uses silicon diodes as light detectors

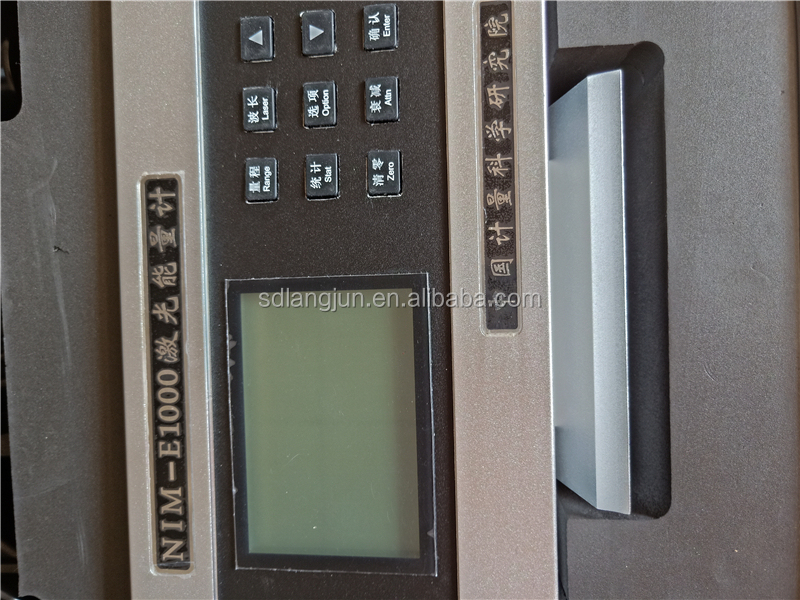

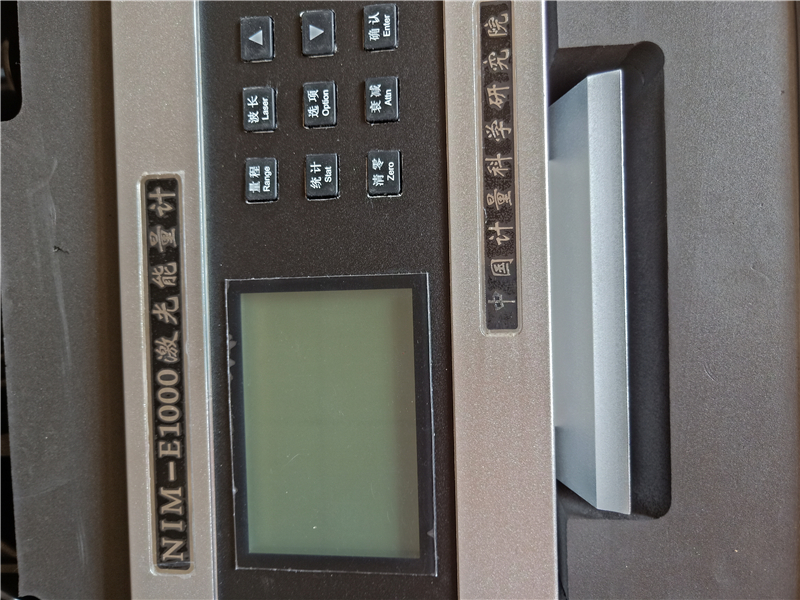

2. The display adopt a single-chip microcomputer control the entire measurement process, and the graphic LCD and matrix keyboard serve as user input interfaces.

3. The display has 100 measurement data storage spaces, with measurement data statistics and echo functions.

4. It supports up to 20HZ repetitive frequency pulsed laser output energy measurement,  repetitive frequency laser average power, pulse repetition rate, and pulse interval measurement.

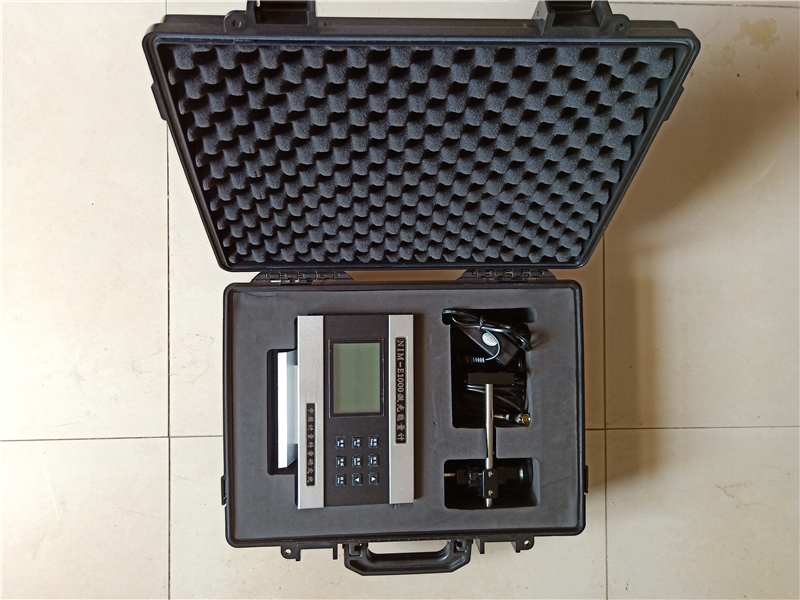

5. The whole test system is light and portable, and the user interface is good.

6. Energy Measurements for Free Space and Fiber Applications

7. Designed for high accuracy, reliability, and easy of use

8. Over 23 compatible sensors



Technical Parameter:



Measurement error	5%(k=2)
Spectrum response	400-1100nm(calibrate on 1064nm and 532nm)
Sensitive area of detector	30mm
supports repetitive frequency pulsed laser output energy measurement	up to 20HZ
measurement data storage spaces	100 pieces
Measurement range	500mj,1j……100j
Input voltage	AC80-260V 50HZ
Power consumption	<10W
Pulse repetition frequency	1-100hz
RS232 remote measurement	Support



Precautions:

The probe and meter should be shielded from stray radiation, vibration and strong electromagnetic interference sources when in use.

The data on the probe label is the responsiveness at the calibrated wavelength point, such as 1.00E0/2.00E0, which means that the responsivity of 1064nm is 1.00E0V/J, and the responsivity of 532nm is 2.00E0V/J.

When the meter crashes or the screen is faulty during normal use, it can be turned off and then turned back on.

1. Maximum energy density: 2J/cm2 (10ns@1064), 0.3J/cm2 (10ns@532)

2. Maximum peak power density: 100MW/cm2 (10ns)

3. Maximum average power: 20W, short time 50W (less than 30 seconds)

4. Maximum pulse width: 400μs

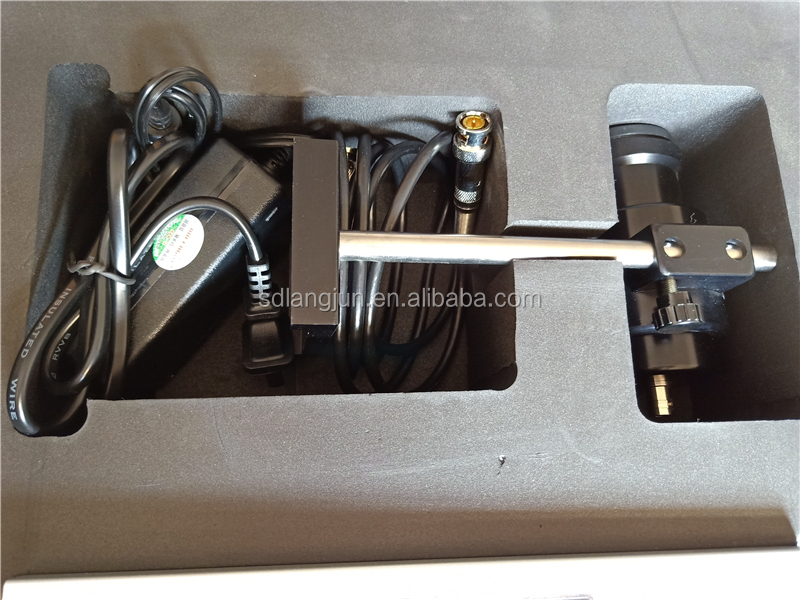

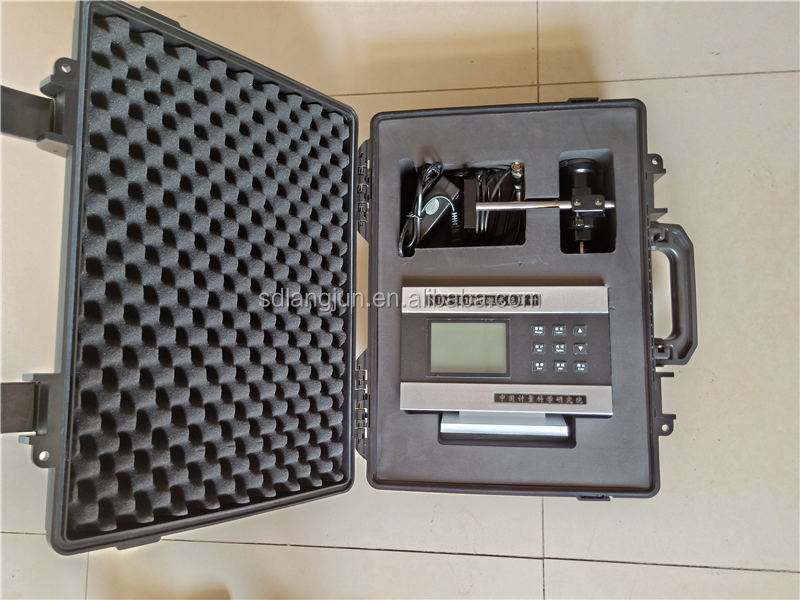

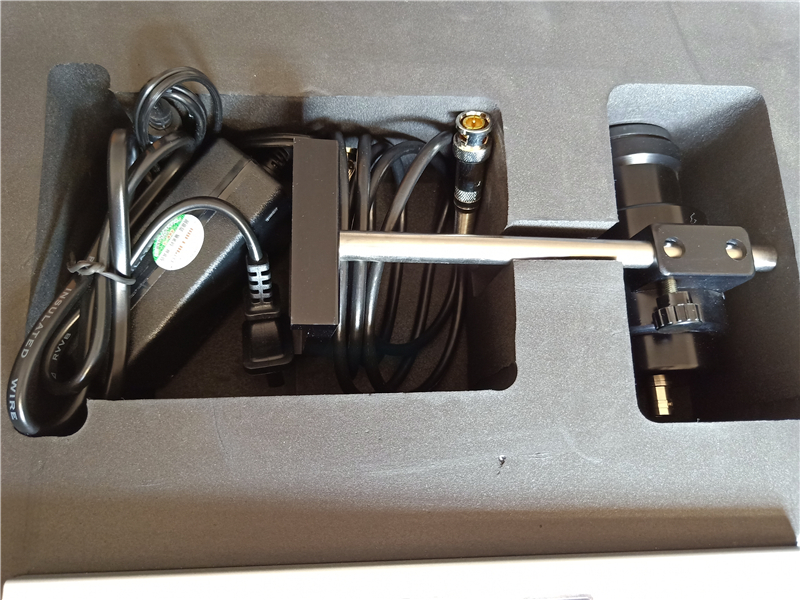

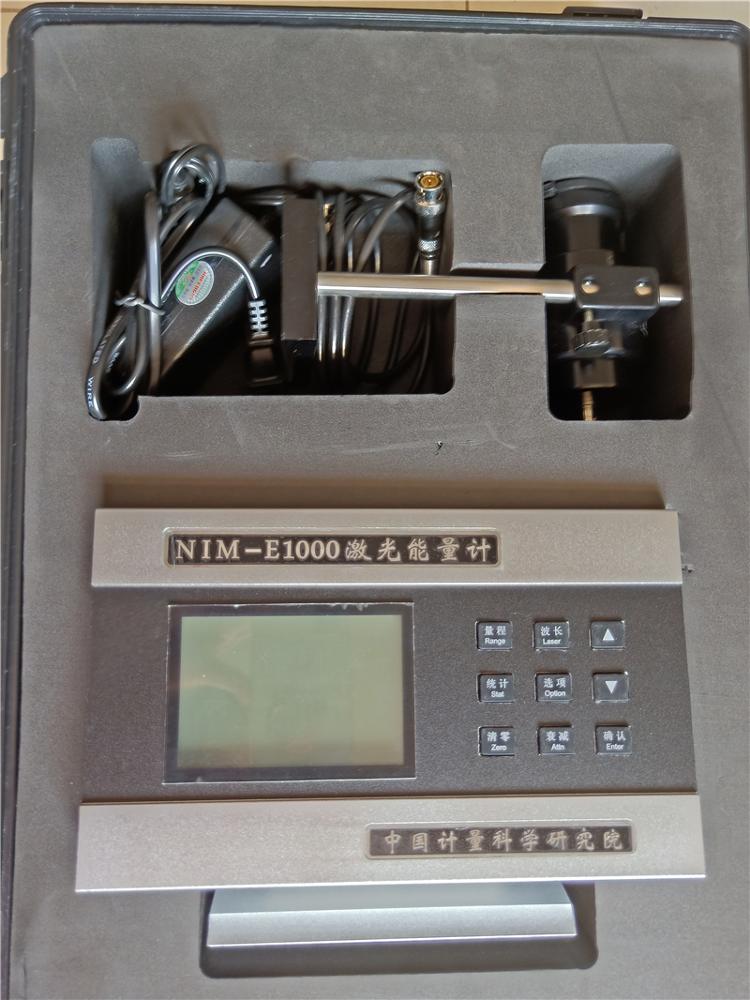

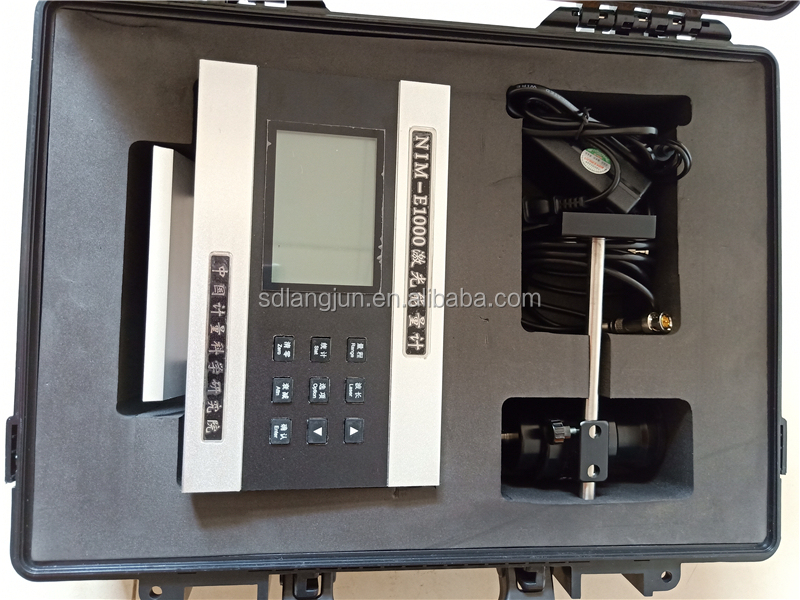

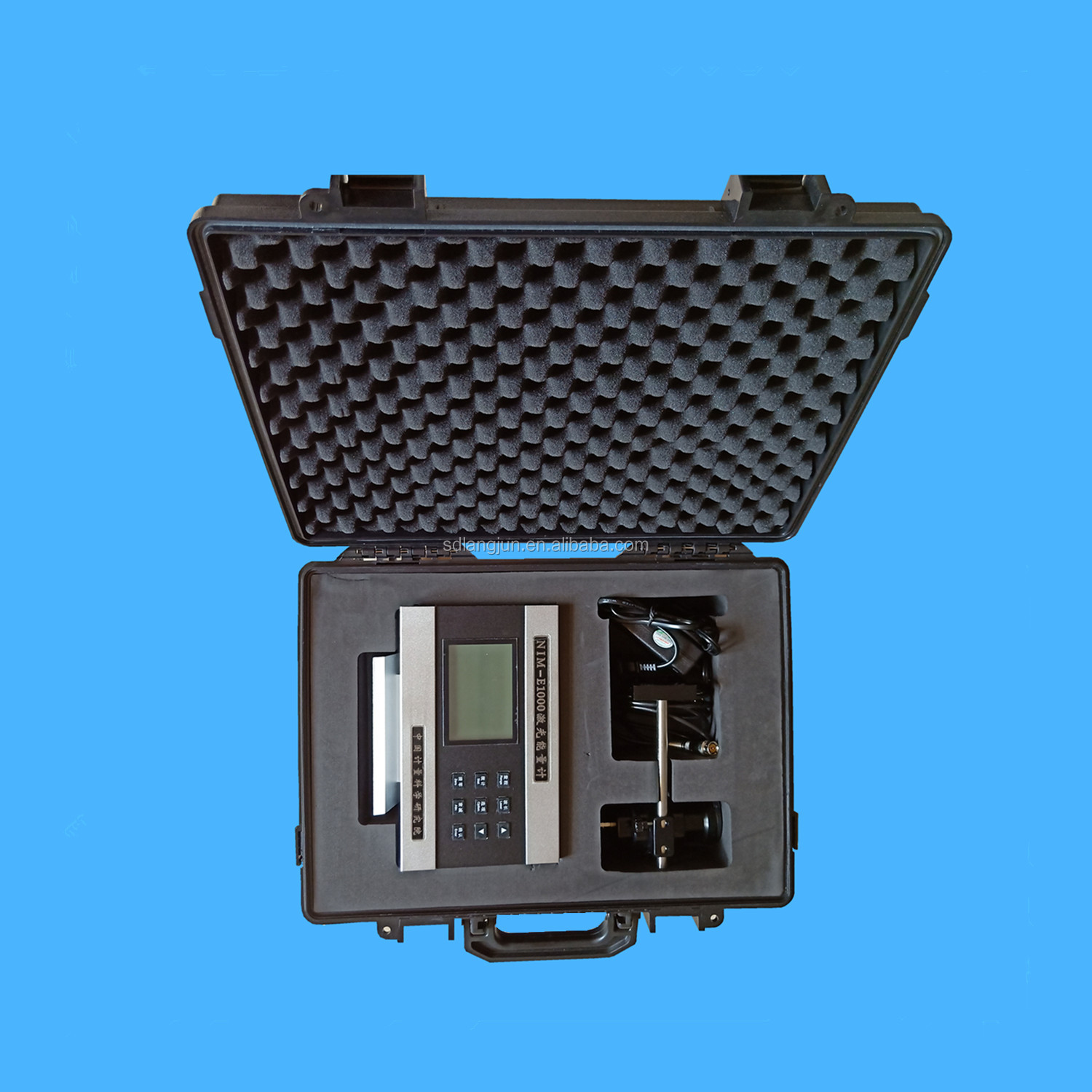

Pictures:

production process

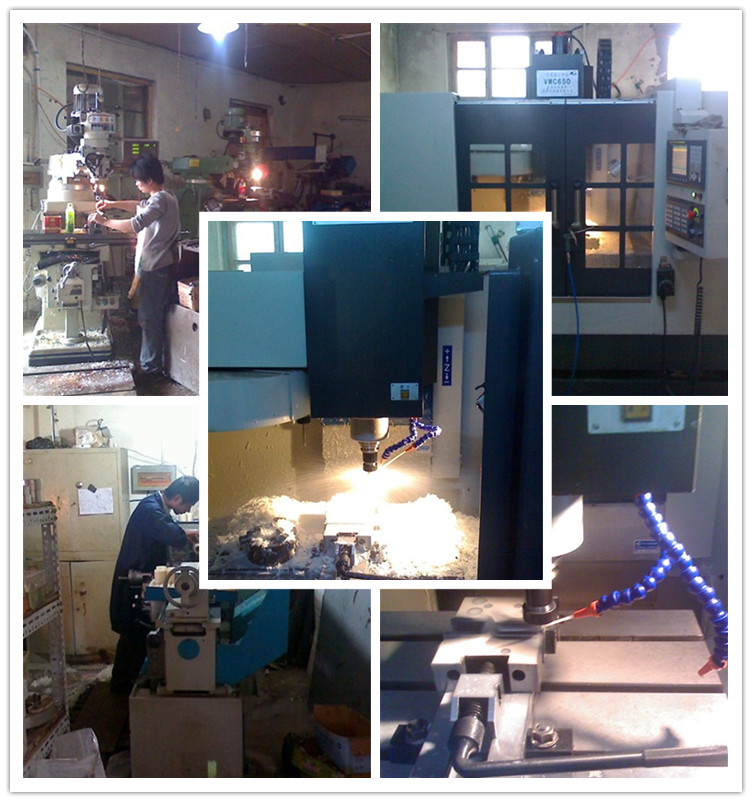

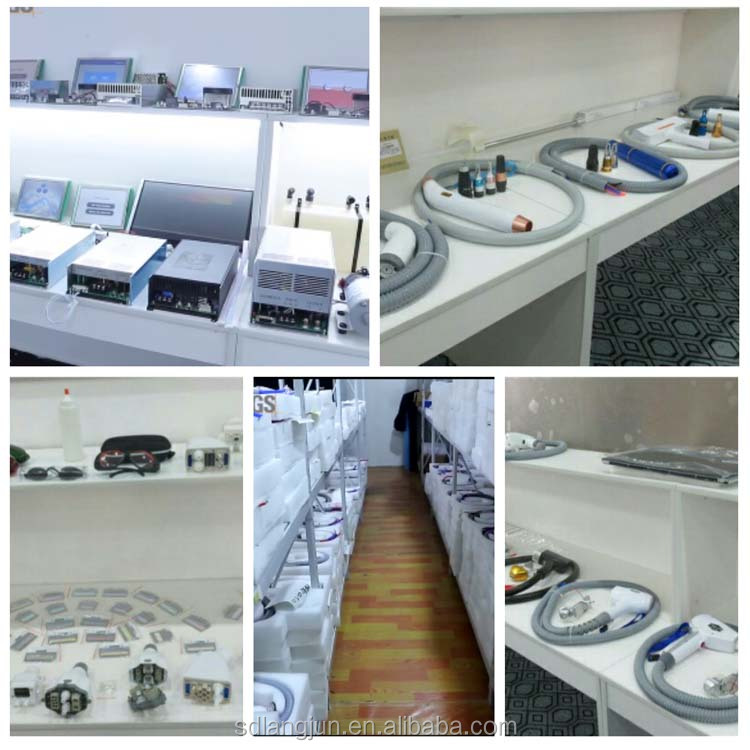

Our Workshop



Our Services



Packaging & Shipping

Packaging Details:

Accessory packed in carton



Shipping:

By door to door service, say DHL,UPS,TNT,FEDEX,etc ,Or air cargo.



Delivery Time:

 7 Within 7 working days after receiving the payment

FAQ

1.  Payment terms:

T/T, L/C, West Union which is negotiable.

Then 30% deposit, 70% balance payment before shipment.

2.  Delivery method

By door to door service, say DHL,UPS,TNT,FEDEX,etc ,Or air cargo.

3. OEM service

Available

4.  Guarantee

1 year since you get the products.

5.  After sales service

24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.

Whole lifetime technical support.

 6.  Advantage

A.Experienced Staff and R&D

B.Competitive Price with high quality

C.Delivery in time.

D.Superior Service and be at service at any time

E.Small orders welcome and hope to build long term business relationship
