OEM Laser Module High Power 12W RGB Diode CW Laser Modules with Cooling Module and Power Adapter for Stage Light ILDA Laser Show

  • Home
  • OEM Laser Module High Power 12W RGB Diode CW Laser Modules with Cooling Module and Power Adapter for Stage Light ILDA Laser Show

OEM Laser Module High Power 12W RGB Diode CW Laser Modules with Cooling Module and Power Adapter for Stage Light ILDA Laser Show

$12,150.00

SKU: 33018215755 Category:

Description

  • Item Type: Stage Lighting Effect
  • Voltage: 90-240V
  • Occasion: Professional Stage & DJ
  • Style: DMX Stage Light
  • Power: 100W
  • Brand Name: DYUE
  • Model Number: LM12WRGB
  • Laser Name: 12W RGB Laser Module
  • Color: RGB Color
  • Guaranteed Power: 12W
  • Power Red: more than 3.4 W / 635 nm
  • Power Green: more than 2.5 W / 520 nm
  • Power Blue: more than 6 W / 447 nm
  • Beam Specifications: ca. 6 mm / 2 mrad
  • Laser Sources: Diode, DPSS Laser
  • Laser Class: 4
  • Power Supply: 85V – 250V AC
  • CW Laser: ILDA Laser Show
  • Main Feature: 12W RGB Laser Modules with Cooling Module

OEM Laser Module High Power 12W RGB Diode CW Laser Modules with Cooling Module and Power Adapter for Stage Light ILDA Laser Show

Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show

Wavelength: 635/520/447nm ( error range 5mm)

Operating mode: CW

Output power:12W

Ratio power: Red laser more than 3.4W, Green laser more than 2.5W, Blue laser more than 6W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)

Beam divergence: 1.9X2.3, less than 1.4X0.8, less than 1.4X0.2 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

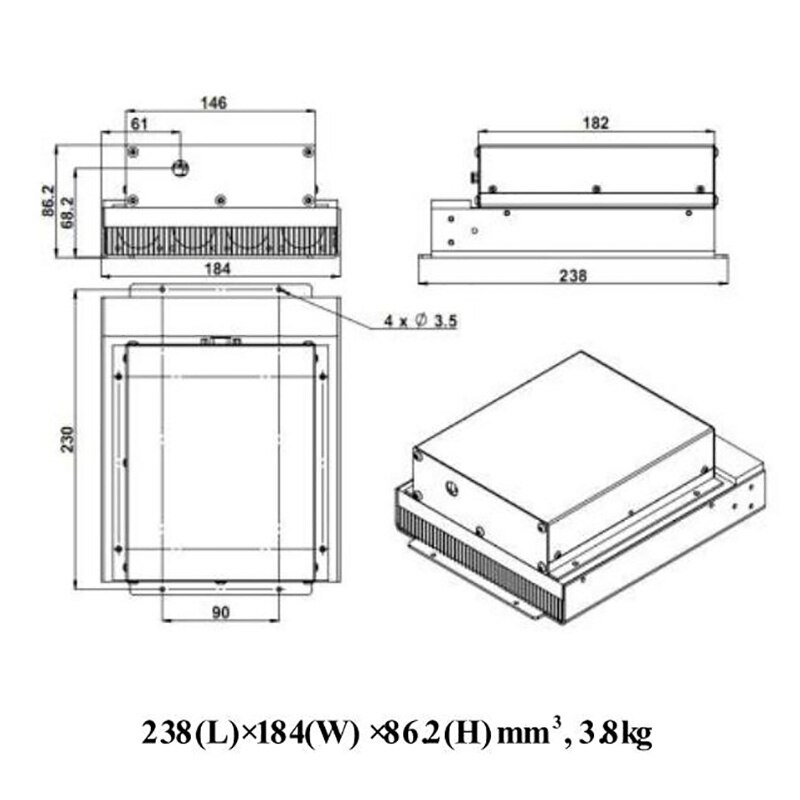

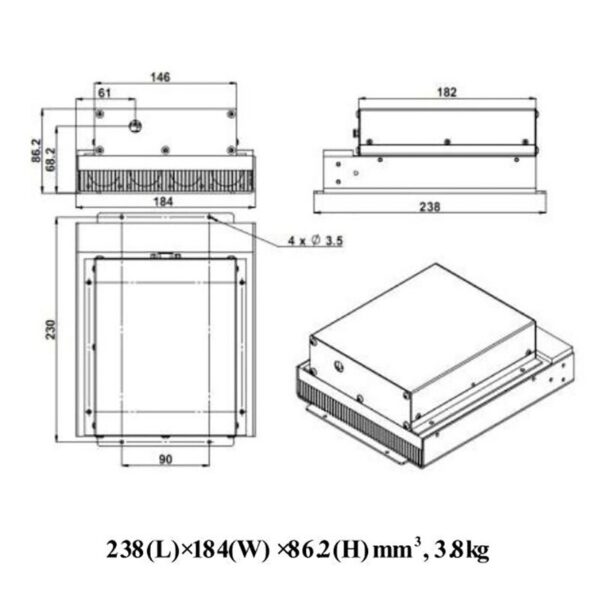

Beam height from base plate: 68.2mm

Operating temperature: 10-35 degrees celsius (error range 3)

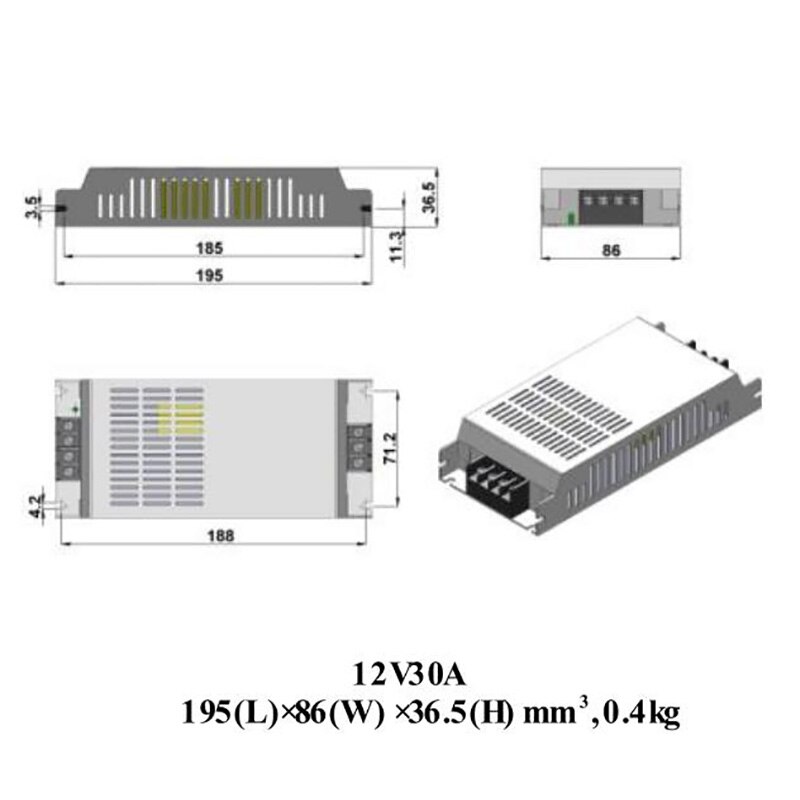

Power supply: 100-240V AC (12V 20A)

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year
