OEM 35W Laser Module High Power RGB All-in-One Laser Modules Top Quality CW Diode Laser For High-End Show Laser Light Projectors

  • Home
  • OEM 35W Laser Module High Power RGB All-in-One Laser Modules Top Quality CW Diode Laser For High-End Show Laser Light Projectors

OEM 35W Laser Module High Power RGB All-in-One Laser Modules Top Quality CW Diode Laser For High-End Show Laser Light Projectors

$27,810.00

SKU: 33018555558 Category:

Description

  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Model Number: 35W RGB Laser Module
  • Power: 125W
  • Voltage: 90-240V
  • Brand Name: DYUE
  • Laser Name: 35W Laser Module
  • Color: RGB Laser Modules
  • Guaranteed Power: 35W
  • Power Red: 8W / 635nm
  • Power Green: 10W / 520nm
  • Power Blue: 18W / 455nm
  • Beam Specifications: ca. 7.5mm / 1.2mrad
  • Laser Sources: Diode, DPSS Laser
  • Laser Class: 4
  • Main Feature: High Power Laser
OEM 35W Laser Module High Power RGB All-in-One Laser Modules Top Quality CW Diode Laser For High-End Show Laser Light Projectors

Main Features:
Color diode laser at 635,520,455nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show


Specifications:
Wavelength: 635/520/445nm ( error range 5nm)

Operating mode: CW

Output power:35W

Ratio power: Red laser 8W, Green laser 10W, Blue laser 18W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X7.5, 5X5.5, 6X7.5 (mm, at the aperture)

Beam divergence: 1.2 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 30mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year
Packing Lists:

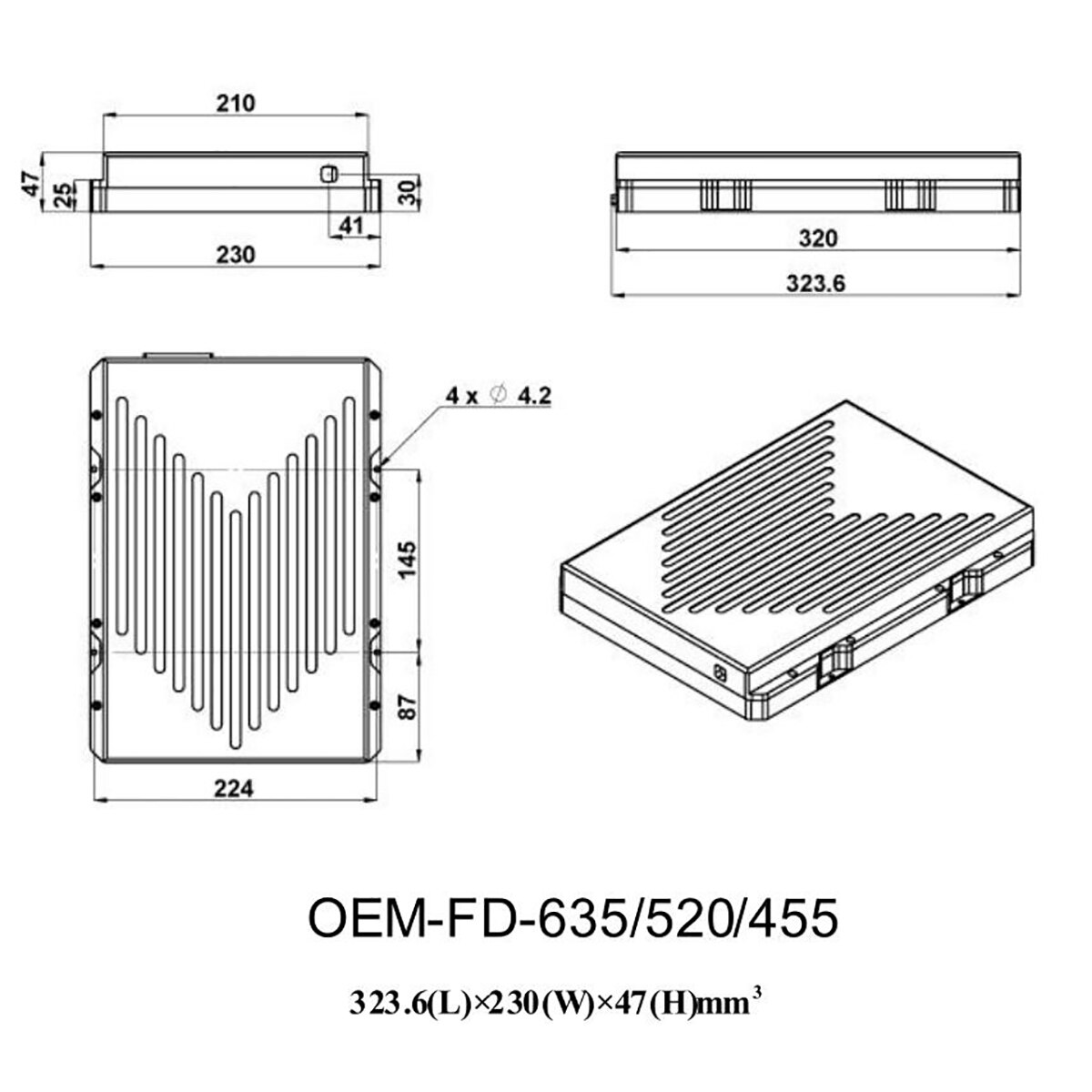

1pcs 35W RGB Laser Head

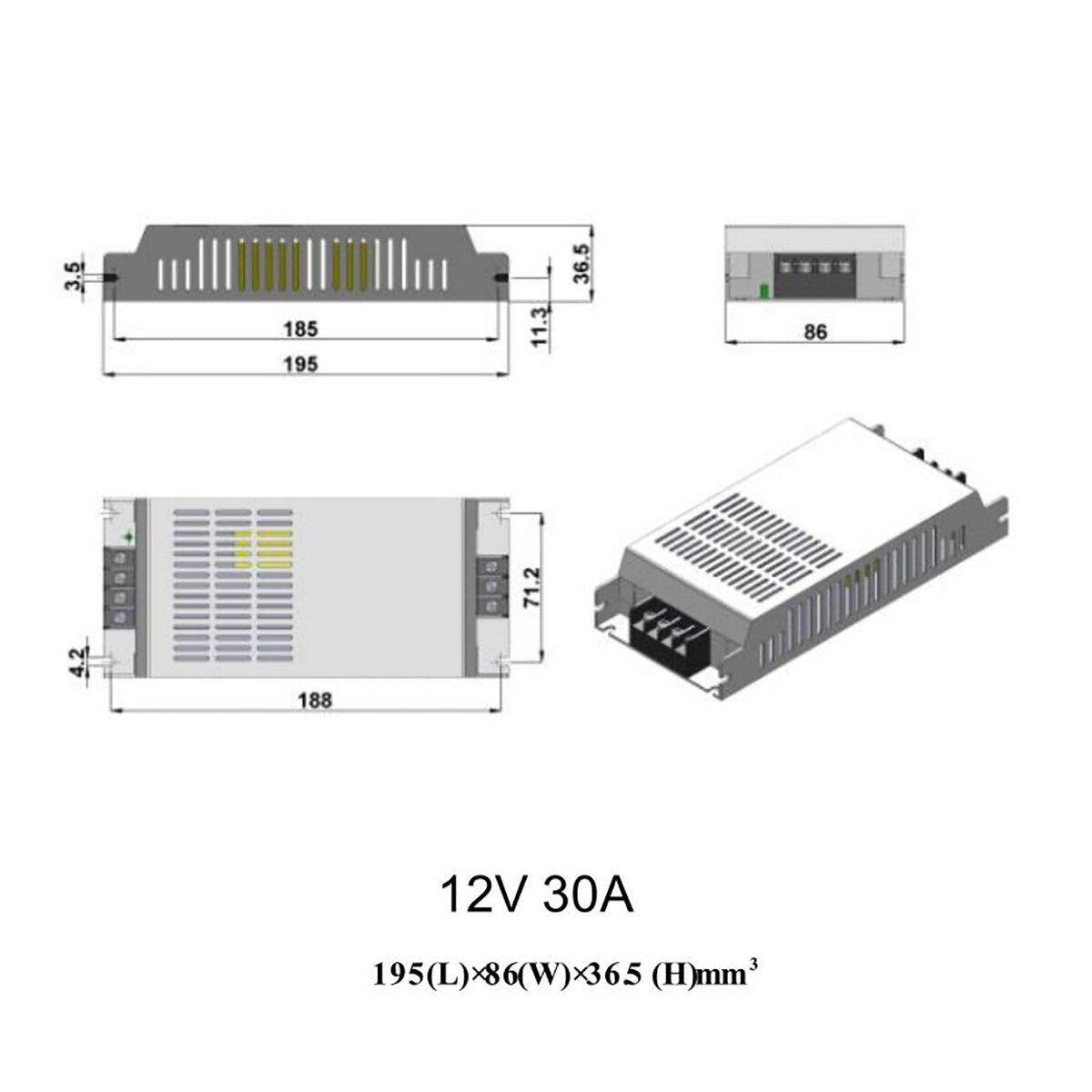

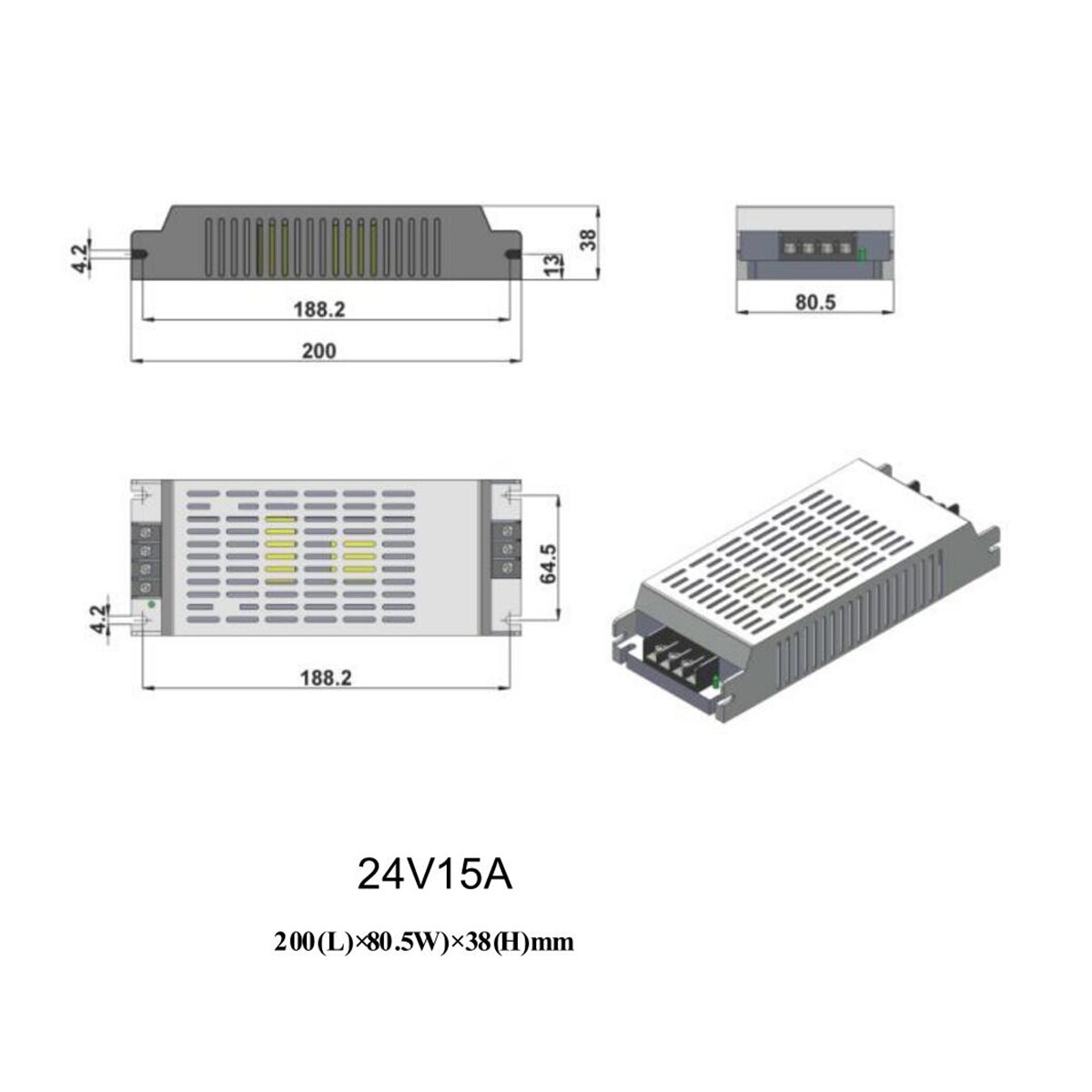

2pcs  Power Supply

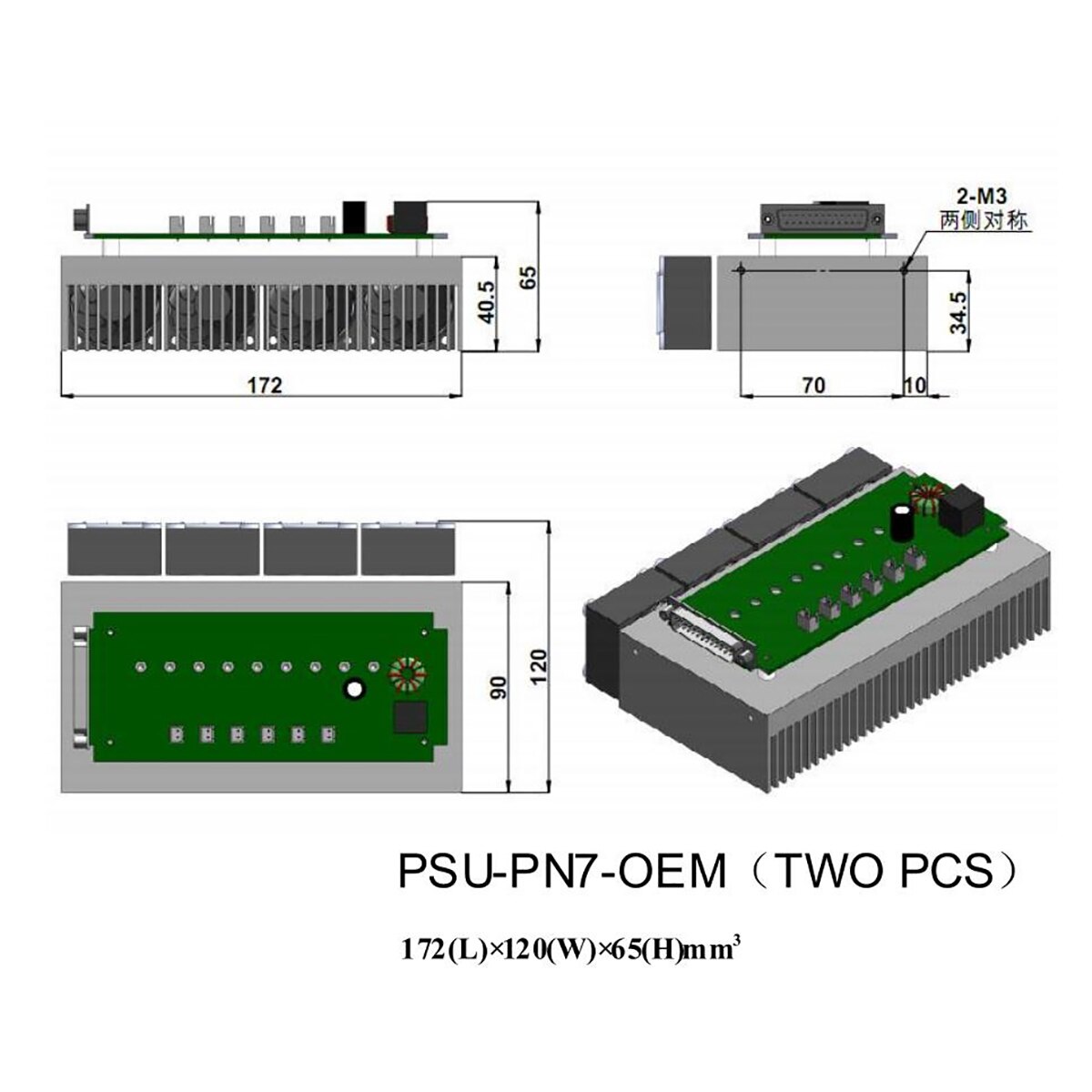

2pcs  Driver Board
