Description
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: 20W RGB Laser Module
- Power: 100W
- Voltage: 90-240V
- Brand Name: DYUE
- Laser Name: 20W Laser Module
- Color: RGB Laser Modules
- Guaranteed Power: 20W
- Power Red: 5.5 / 635nm
- Power Green: 5W / 520nm
- Power Blue: 10W / 455nm
- Beam Specifications: ca. 7.5mm / 1.2mrad
- Laser Sources: CW Diode, DPSS Laser
- Laser Class: 4
- Main Feature: High Power Laser Diode
OEM 20W Laser Modules High Power RGB All-in-One Laser Module Top Quality CW Diode Laser For High-End Show Laser Light Projectors
Main Features:
Color diode laser at 635,520,455nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show
Specifications:
Wavelength: 635/520/445nm ( error range 5nm)
Operating mode: CW
Output power:20W
Ratio power: Red laser 5.5W, Green laser 5W, Blue laser 10W
Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)
Beam diameter: 6X7.5, 5X5.5, 6X7.5 (mm, at the aperture)
Beam divergence: 1.2 (full angle, mrad)
Polarization direction: Horizontal + Vertical
Warm-up time: less than 5 minutes
Beam height from base plate: 30mm
Operating temperature: 25 degrees celsius (error range 3)
Power supply: 90-240V AC
Modulaton option: TTL / Analog
Expected liftetime: 10000 hours
Warranty: 1 year

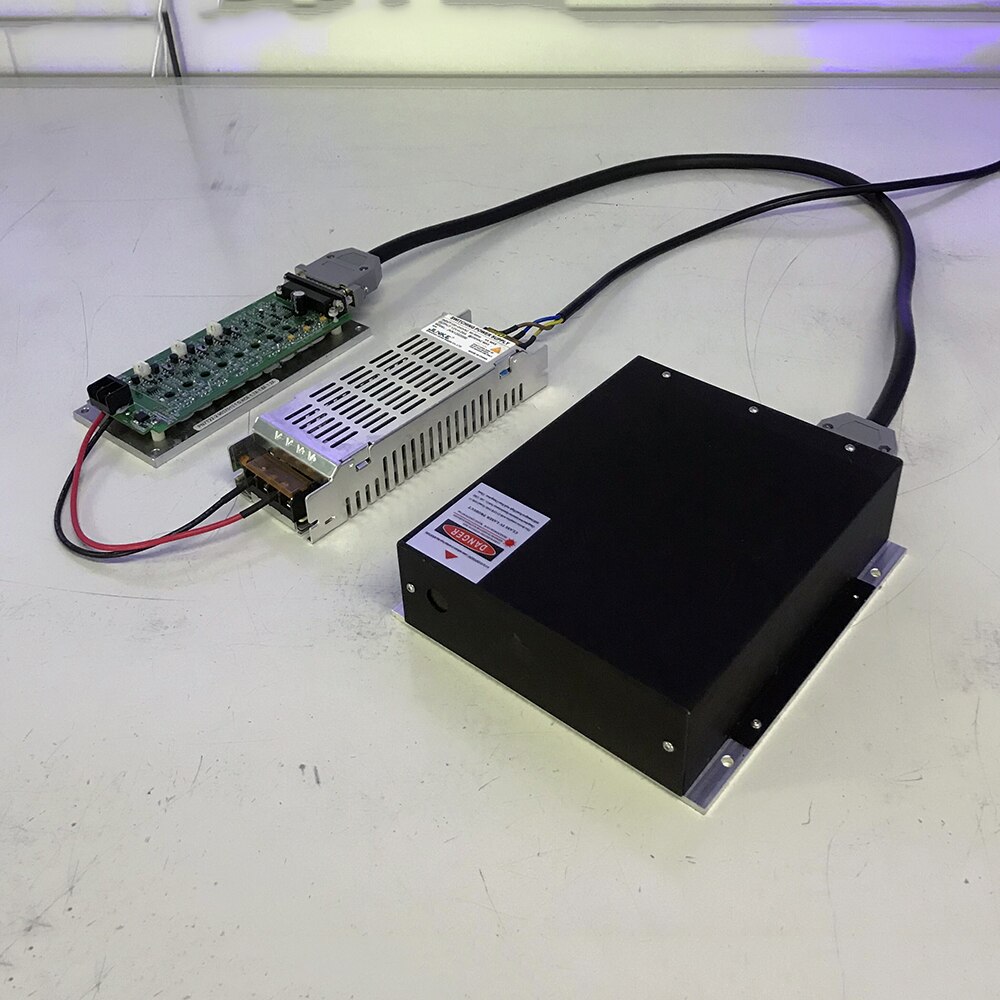

Packing Lists:
1pcs 20W RGB Laser Head
1pcs Power Supply
1pcs Driver Board
