OEM 12W RGB Laser Module Red 3.4W Green 2.5W Blue 6W Full Color High Power Laser Diode For Advertising Laser Projection Display

  • Home
  • OEM 12W RGB Laser Module Red 3.4W Green 2.5W Blue 6W Full Color High Power Laser Diode For Advertising Laser Projection Display

OEM 12W RGB Laser Module Red 3.4W Green 2.5W Blue 6W Full Color High Power Laser Diode For Advertising Laser Projection Display

$22,500.00

SKU: 33014857911 Category:

Description

  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Model Number: 12W RGB Laser Module
  • Power: 100W
  • Voltage: 90-240V
  • Brand Name: DYUE
  • Laser Name: 12W Laser Module
  • Color: RGB Laser Modules
  • Guaranteed Power: 12W
  • Power Red: 3.4W / 635nm
  • Power Green: 2.5W / 520nm
  • Power Blue: 6W / 447nm
  • Beam Specifications: ca. 6mm / 2.3mrad
  • Laser Sources: CW Diode, DPSS Laser
  • Laser Class: 4
  • Main Feature: High Power Laser Diode

OEM 12W RGB Laser Module Red 3.4W Green 2.5W Blue 6W Full Color High Power Laser Diode For Advertising Laser Projection Display

Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show

Specifications:
Wavelength: 635/520/447nm ( error range 5nm)

Operating mode: CW

Output power:12W

Ratio power: Red laser 3.4W, Green laser 2.5W, Blue laser 6W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)

Beam divergence: less than 2.3 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 30mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year

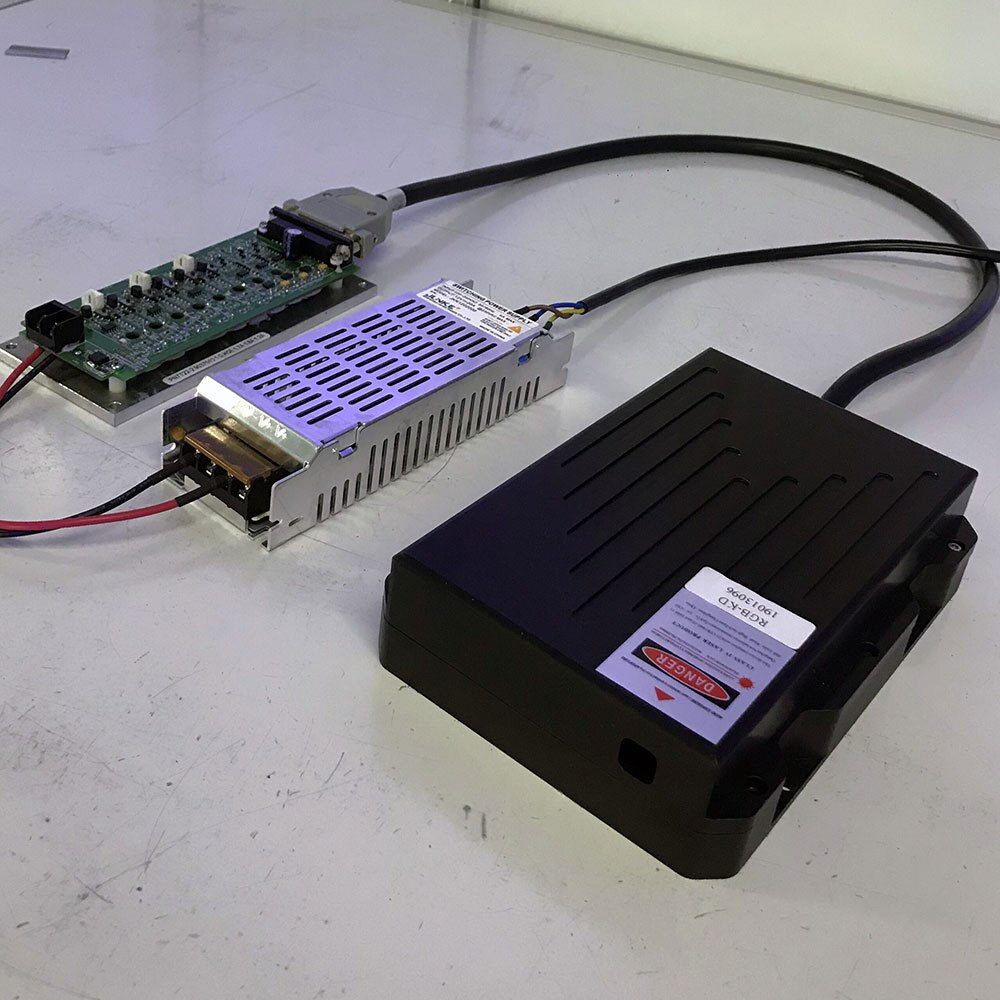

Packing Lists:

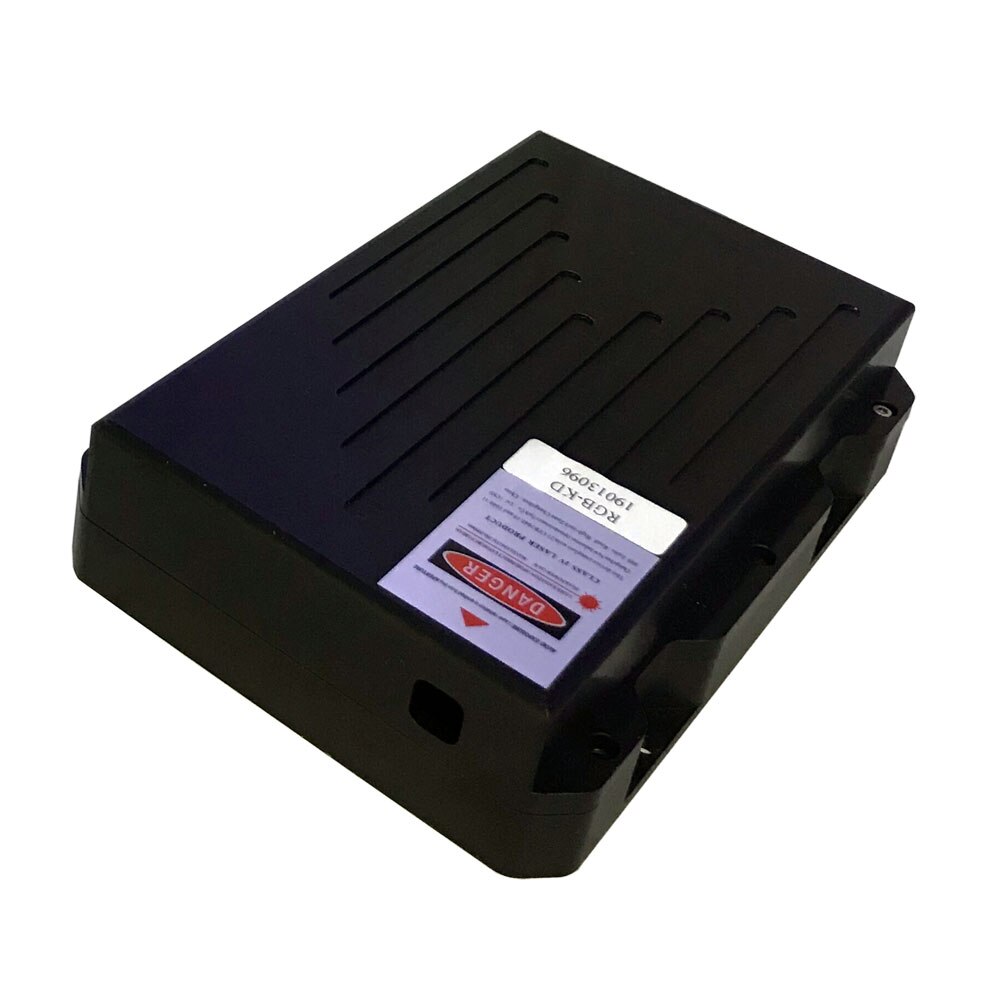

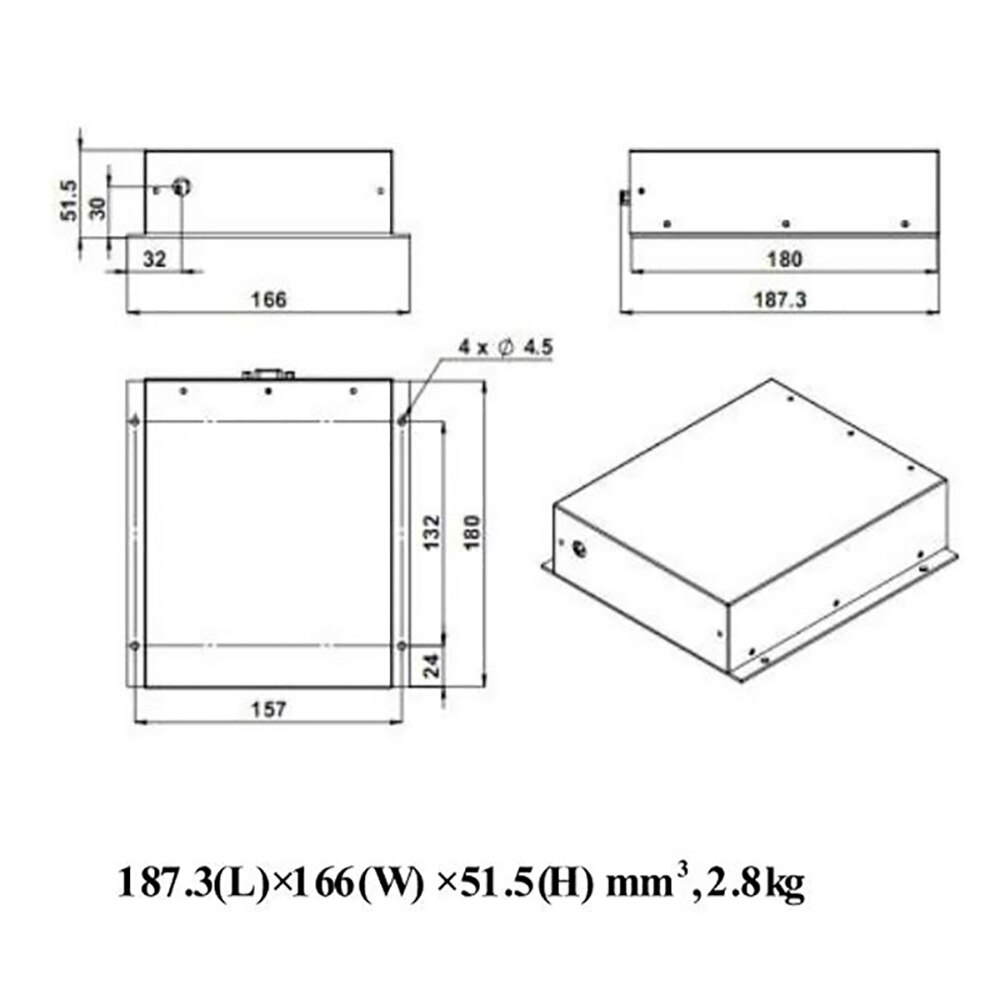

1pcs 12W RGB Laser Head

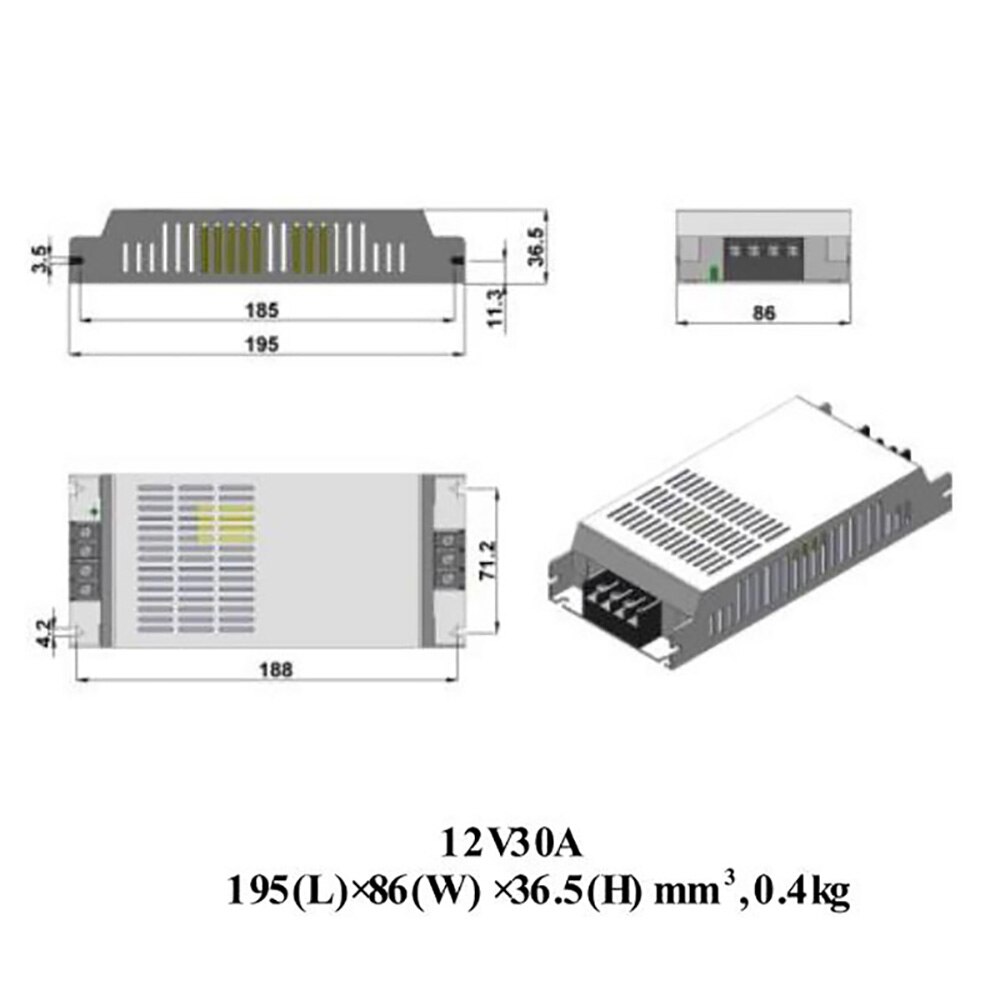

1pcs  Power Supply

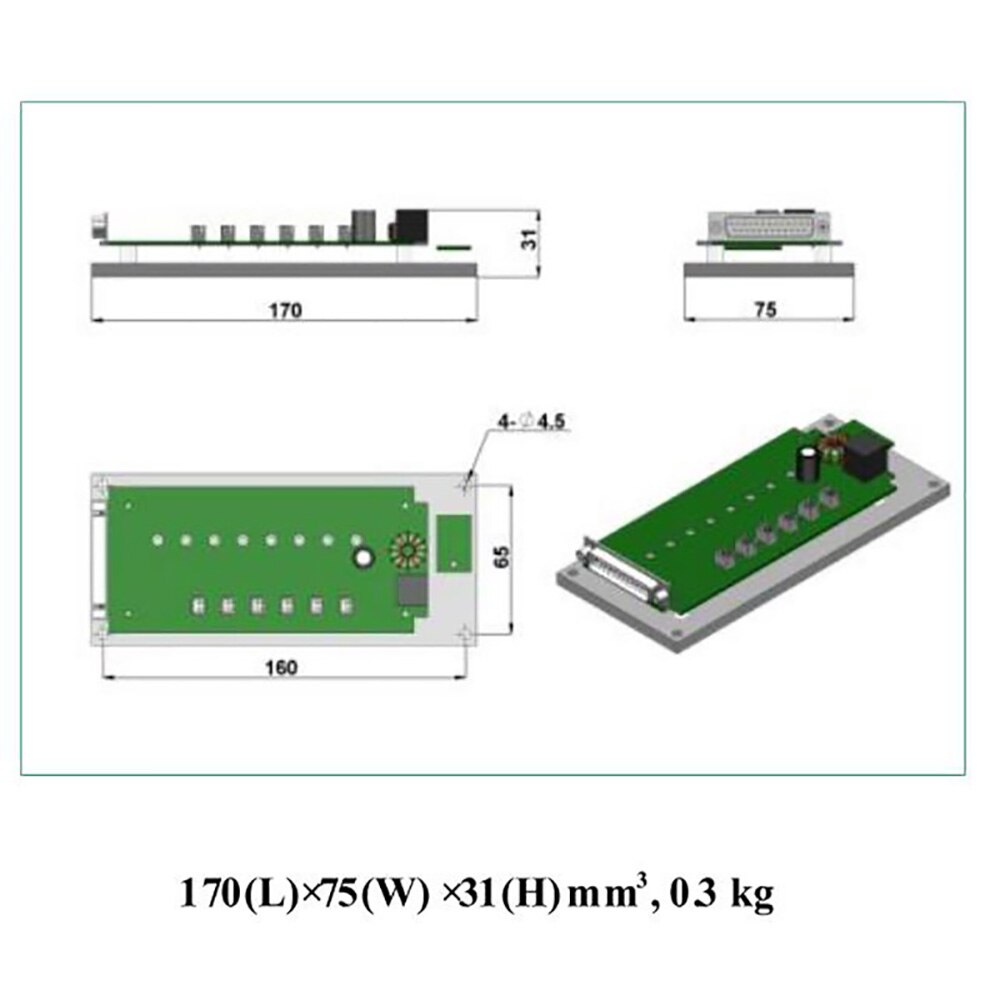

1pcs  Driver Board
