Description
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: LD10WRGB
- Power: 100W
- Voltage: 90-240V
- Brand Name: DYUE
- Laser Name: 10W RGB Laser Module
- Color: RGB Color Laser Modules
- Guaranteed Power: 10W
- Power Red: 635
- Power Green: 520
- Power Blue: 447
- Laser Sources: Diode, DPSS Laser
- Laser Class: 4
- Power supply: 85V – 240V AC
- CW Laser: ILDA Laser Light Show

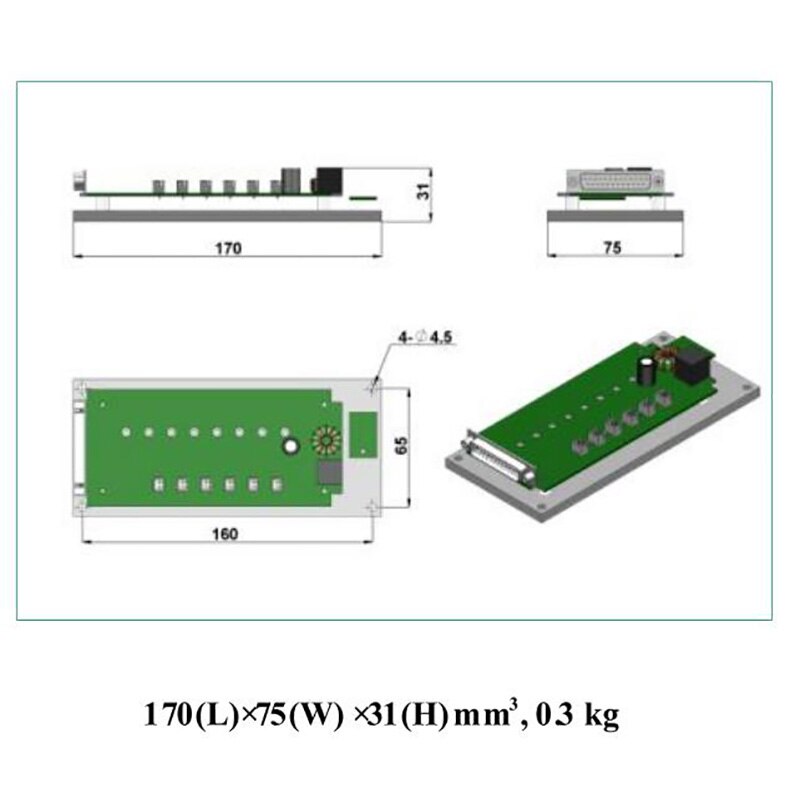

2pcs/lot OEM 10W RGB Laser Module High Power CW Laser Diode LD Optics with Driver Board for DJ Club Stage Light ILDA Laser Light Show
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show
Wavelength: 635/520/447nm ( error range 5mm)
Operating mode: CW
Output power:10W
Ratio power: Red laser more than 3.4W, Green laser more than 2.5W, Blue laser more than 6W
Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)
Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)
Beam divergence: 1.9X2.3, less than 1.4X0.8, less than 1.4X0.2 (full angle, mrad)
Polarization direction: Horizontal + Vertical
Warm-up time: less than 5 minutes
Beam height from base plate: 30mm
Operating temperature: 25 degrees celsius (error range 3)

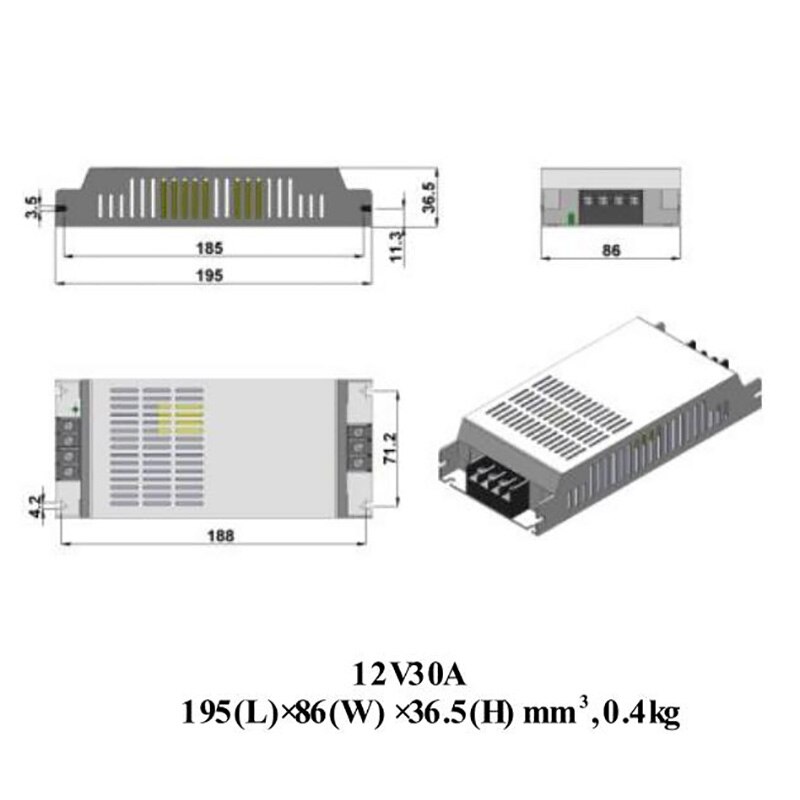

Power supply: 100-240V AC (12V 20A)
Modulaton option: TTL / Analog
Expected liftetime: 10000 hours
Warranty: 1 year
