Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: China
- Brand Name: Oceanus
- Model Number: OC-905

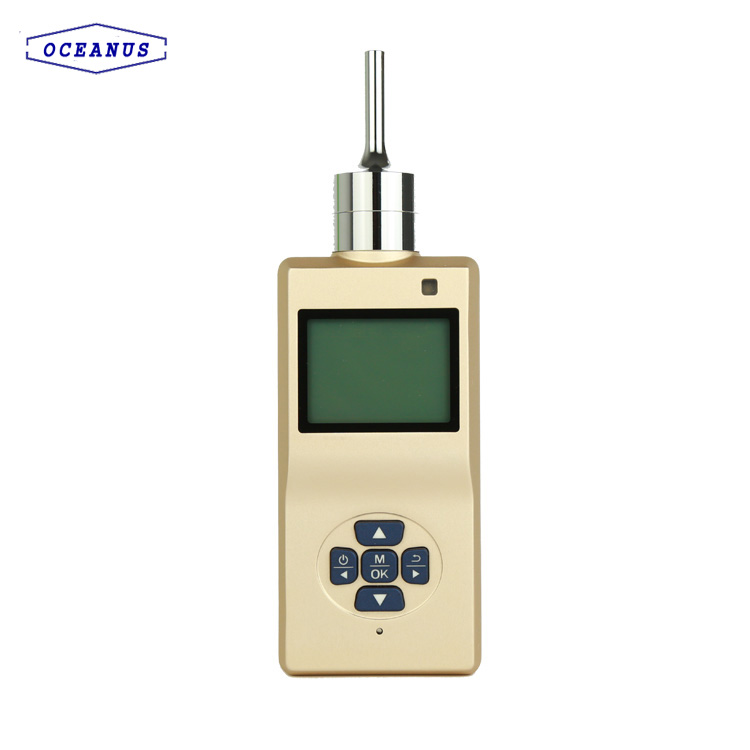

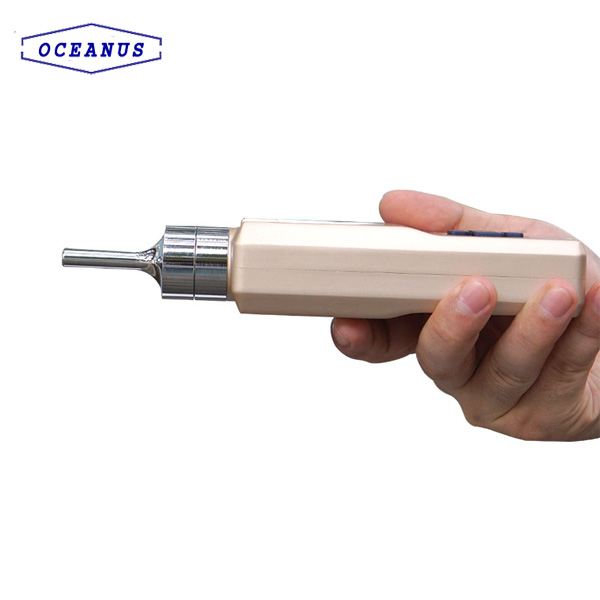

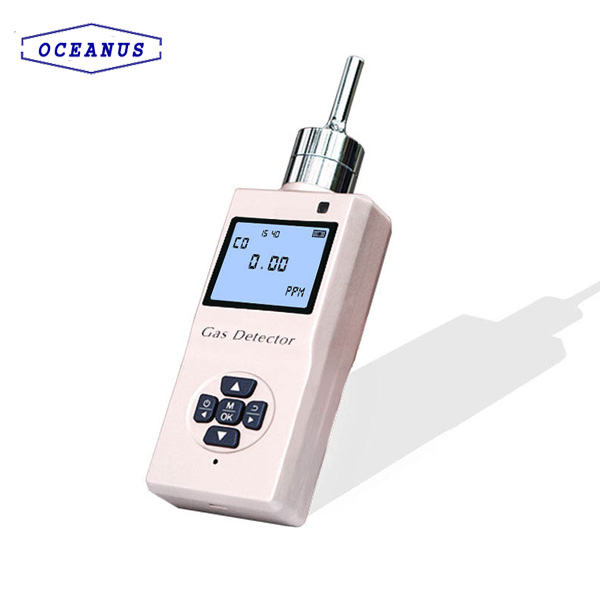

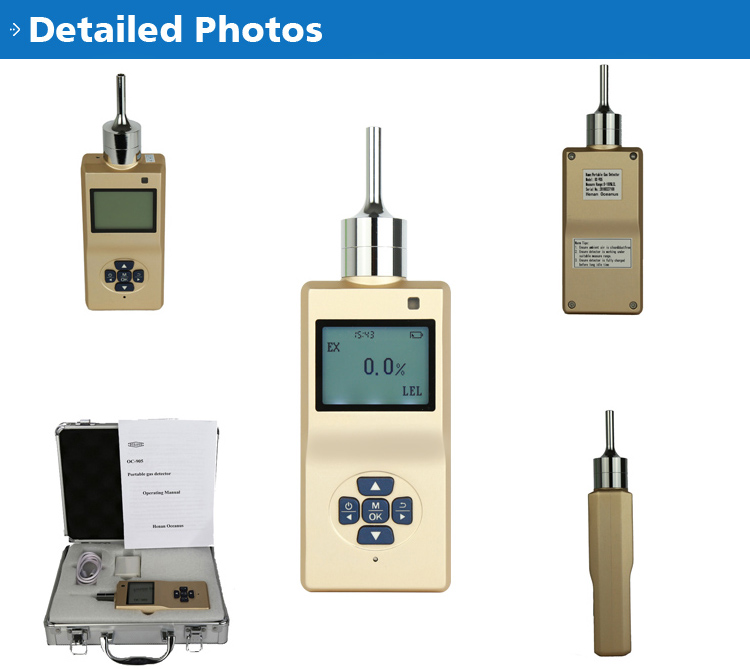

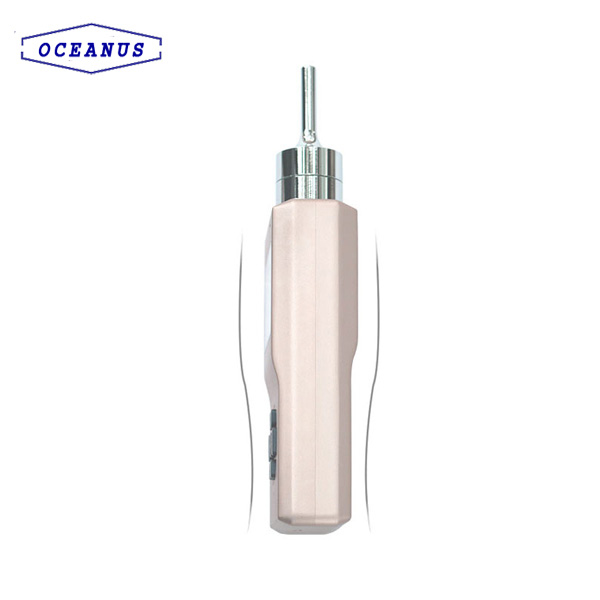

- Product name: Portable Hydrogen Peroxide H2O2 gas detector
- Measuring range: 0~10ppm, 20ppm, 50ppm, 100ppm, 1000ppm or Customized
- Working principle: Electrochemical sensor
- Resolution: 0.01ppm, 1ppm
- Sampling mode: Pump-suction sampling (Flow rate of 300ml/minute)
- Data storage: Can record 300000 group of measuring data
- Alarm mode: Audible, visual
- Explosion-proof Grade: Ex ib IIC T4 Gb
- Protection grade: IP66
- Warranty: 12 months
Description:

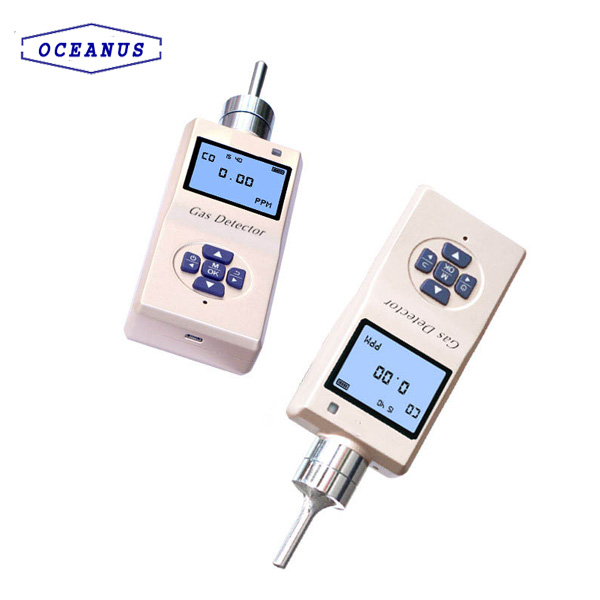

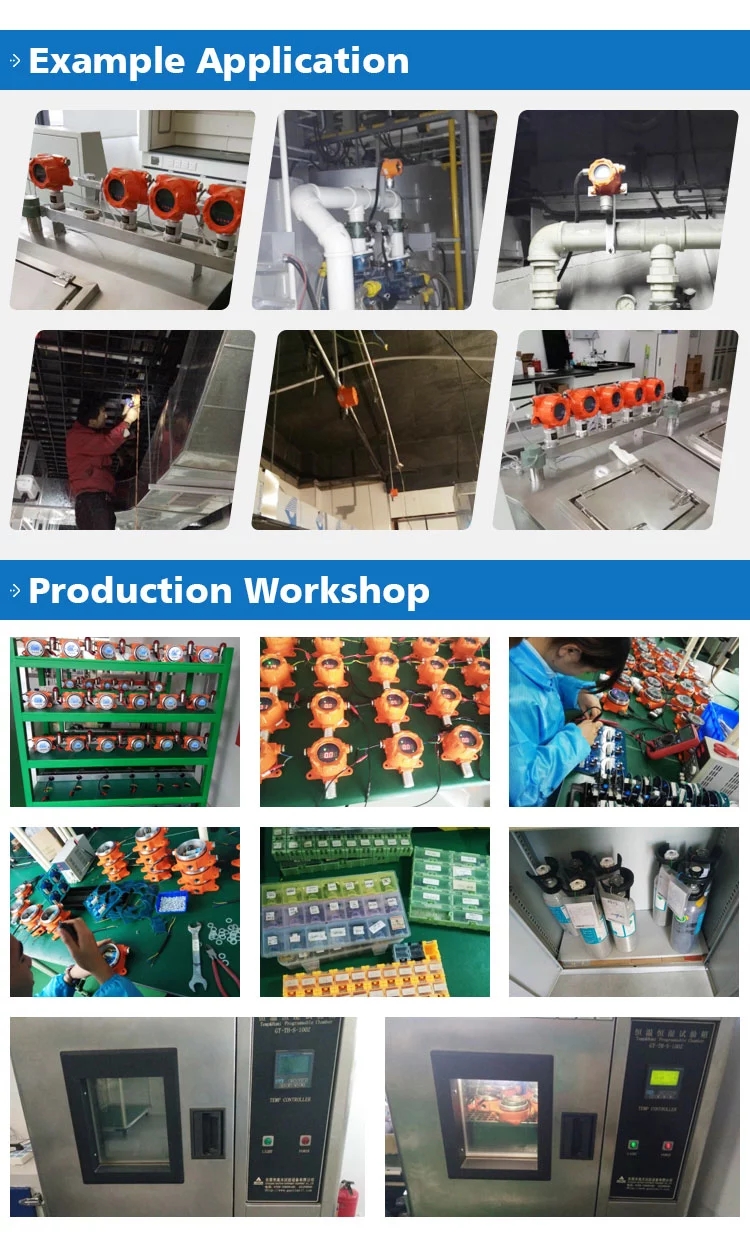

OC-905 Portable H2O2 gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable. For the portable H2O2 gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the H2O2 gas concentration. |
Technical Parameter:
Gas type |
Hydrogen Peroxide (H2O2) |
Measuring range |
0~10ppm, 20ppm, 50ppm, 100ppm, 1000ppm or Customized. |
Working principle |
Electrochemical sensor |
Resolution |
0.01ppm, 1ppm |
Precision |
±≤3%FS or Customized |
Repeatability |
≤±1% |
Zero drift |
≤±1%(F.S/year) |
Sampling mode |
Pump-suction sampling (Flow rate of 300ml/minute) |
Data storage |
Can record 300000 group of measuring data |
Response time |
T90≤20s |
Recovery time |
≤20s |
Pre-heating time |
≤60s |
Display |
LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
Concentration unit |
ppm,mg/m3 |
Working environment |
Working temperature: -20℃~60℃ Working humidity: 10%-95%RH(non-condensing) Working pressure: 86Kpa ~ 106Kpa |
Explosion-Proof grade |
Ex ib IIC T4 Gb |
Protection grade |
IP66 |
Alarm mode |
Audible, visual |
Shell material |
Metal |
Power supply |
3.7VDC, 2800mAh,Rechargeable lithium battery DC5V USB charger |
Charge time |
≤6 hours |
Working time |
≥24 hours |
Dimensions |
135*65*35mm |
Weight |
0.5KG |

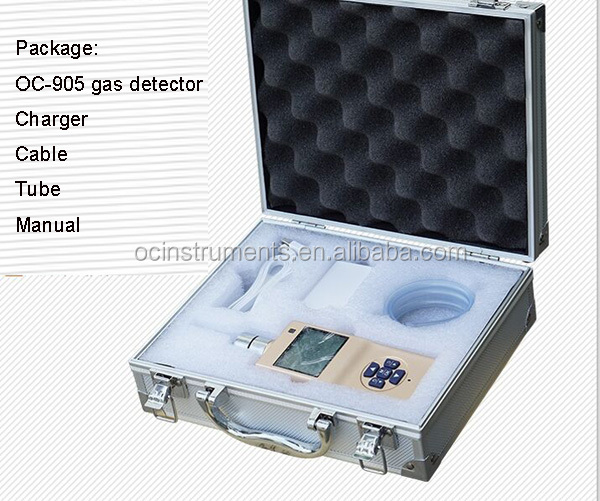

Accessory |
Box, instruction, USB charger , data line |
Quality standard |
GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
