NVUM 4 Axis Mach3 USB Card 300KHz CNC router 3 4 5 6 Axis Motion Control Card Breakout Board for diy engraver engraving machine

$109.01$147.51

SKU: 4000071486025 Category:

Description

  • Motor Type: Stepper Motor
  • Origin: CN(Origin)
  • Power Supply: DC
  • Model Number: NVUMV2.1
  • Certification: NONE
  • Type: mach3 software: Interface: USB

product content:

Control card*1
USB cable*1
CD*1

Product introduction:

NVUMV2.1 is the 3-6 axis motion controller we spend 4 years to design.
NVUMV2.1 support Mach3 software and standard MPG,through Ethernet to
communicate with computer,just use the Twine to connect directly or transfer with router.
NVUMV2.1 motion controller adopts the ARM design framework.The ARM design
includes communication,codeanalytic,underlying algorithm and pulse gerneration. Rational
design,reliablecontrol,convenient operation.

Performance parameters:

Support Ethernet;
 12 ports photoelectric isolated input interface for ordinary digital data;
 10 ports photoelectric isolated output interface for ordinary digital data;
 1 port 0-10V spindle speed analog output interface(can change to PWM output);
 can support 3-6 axis stepper systems,200KHz pulse output for every axis;
 ARM motion control chip;
 main device is 12V-32VDC power supply input,current should higher than 0.5A;
 Compatible with MPG input,support the digital display MPG from our company.

Appearance and size:

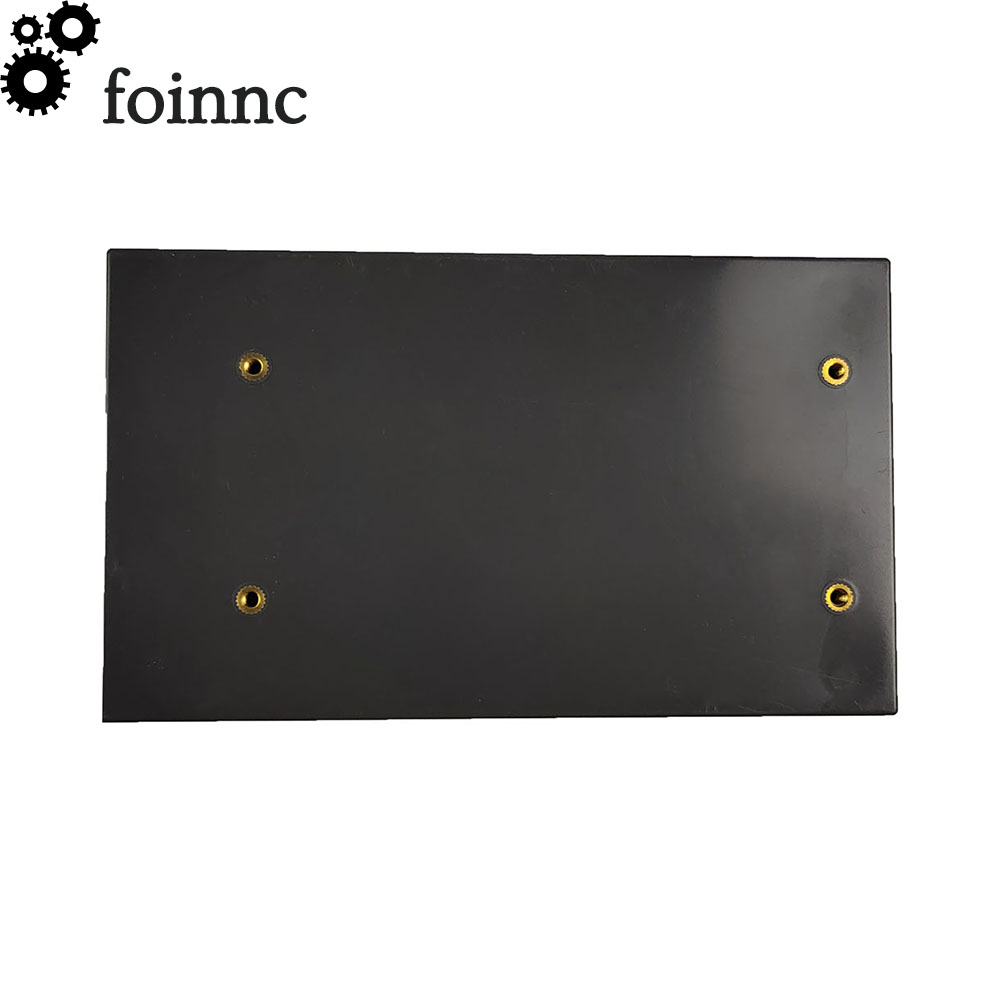

NVUMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes
at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into
the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:

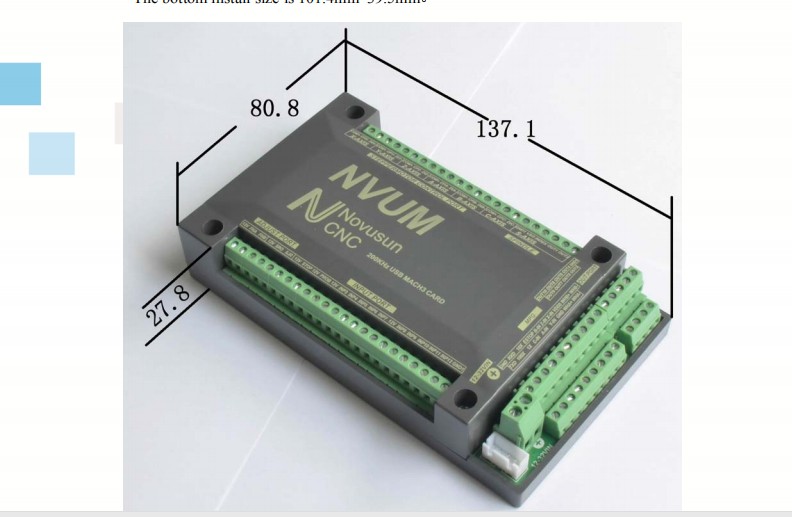

The products overall size is 137.1mm*80.8mm*27.8mm;
The bottom install size is 101.4mm*39.5mm

Power scheme:

Wiring definition:

The controller connection includes:
1. Power interface,
2. Ethernet connection interface,
3.MPG interface,
4. Step/servo control output interface,
5. Spindle control output interface,
6.Estop and limit switch and tool setting input interface
and so on. Now we descript them in details as below.
