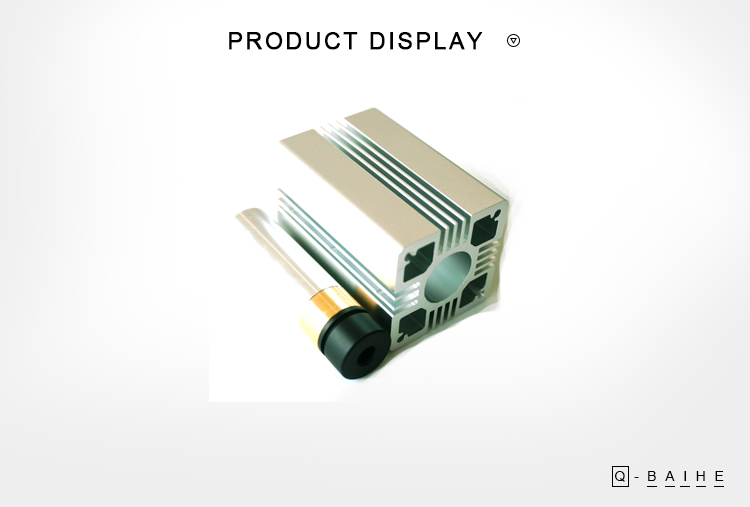

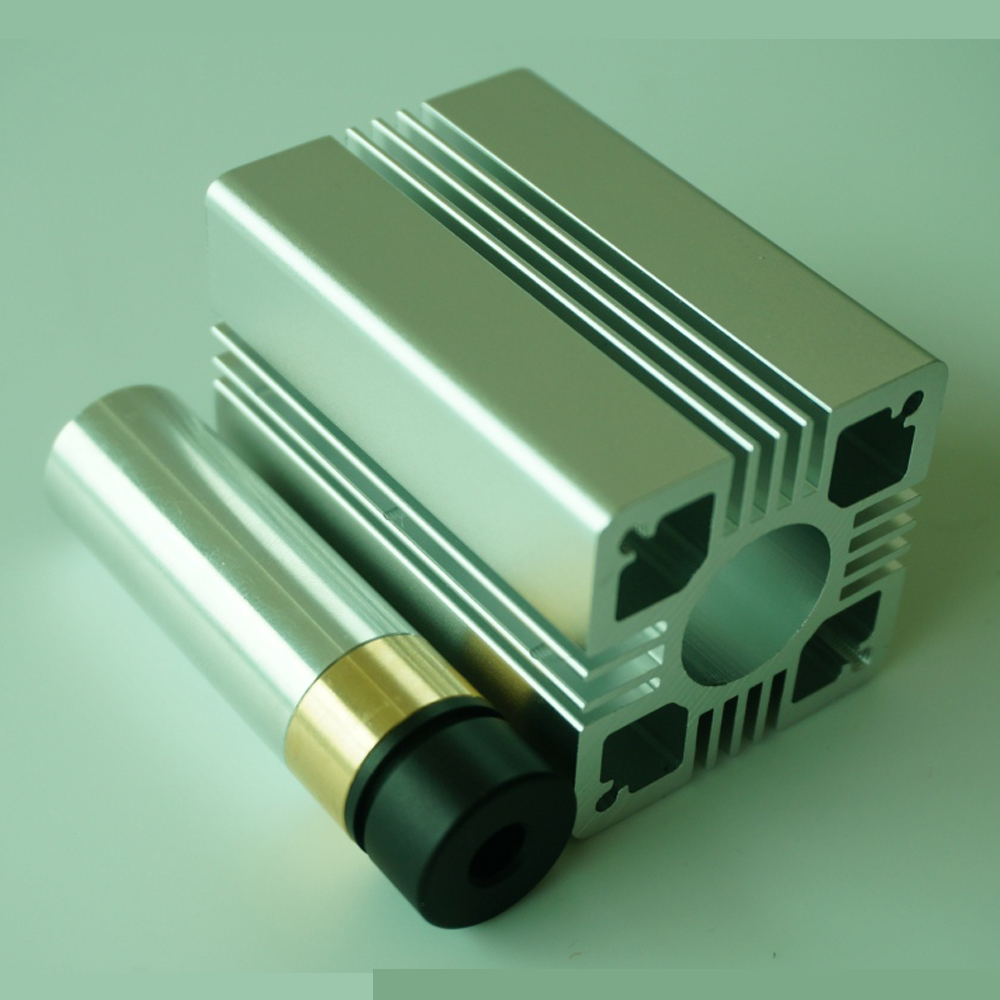

NUBM08 Red Green And Blue High-Power DIY Module Assembly 40X40mm Aluminum Radiator

$11.00$26.76

SKU: 1005003504572028 Category:

Description

  • Brand Name: Q-BAIHE
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: Housing(17.5mm) Case(40*40*60mm)

NUBM08 Red Green And Blue High-Power DIY Module Assembly 40X40mm Aluminum Radiator

Title:

NUBM08 Red Green And Blue High-Power DIY Module Assembly 40X40mm Aluminum Radiator

Specification:

Applicable type: laser tube diode with 9mm size package

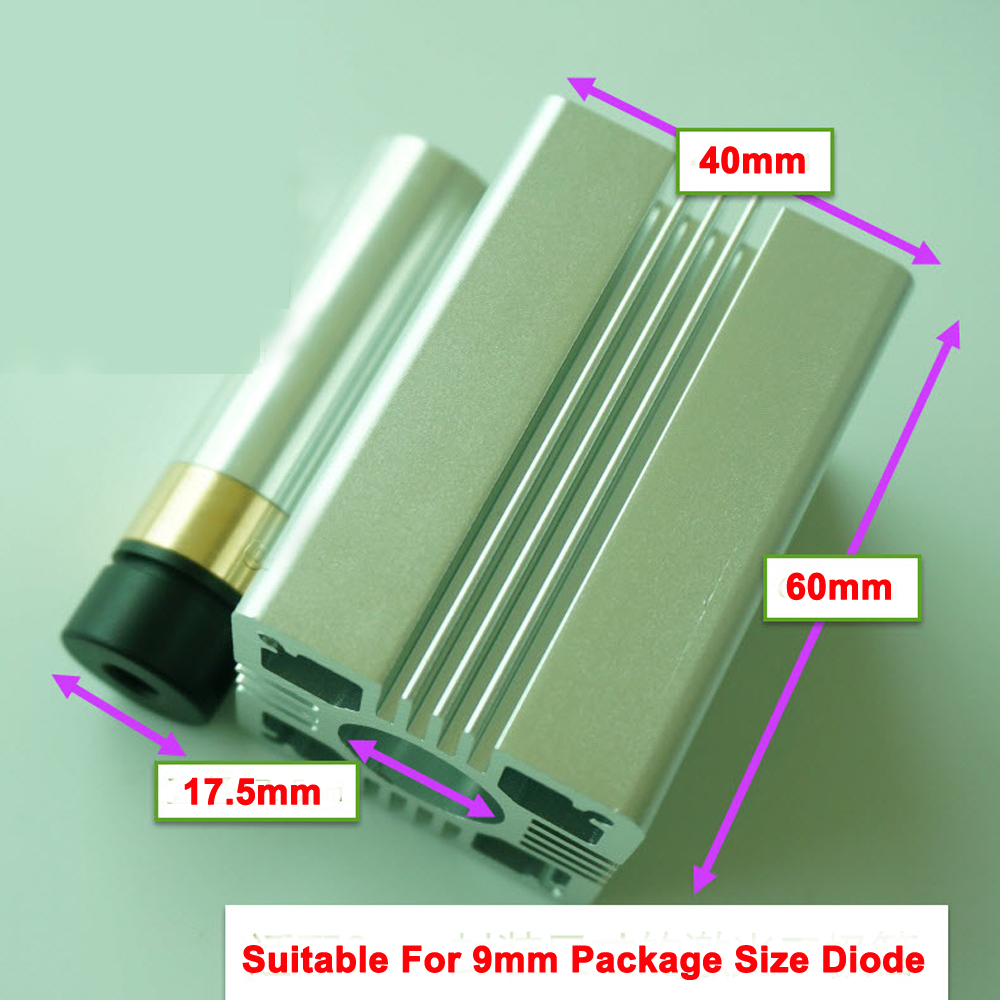

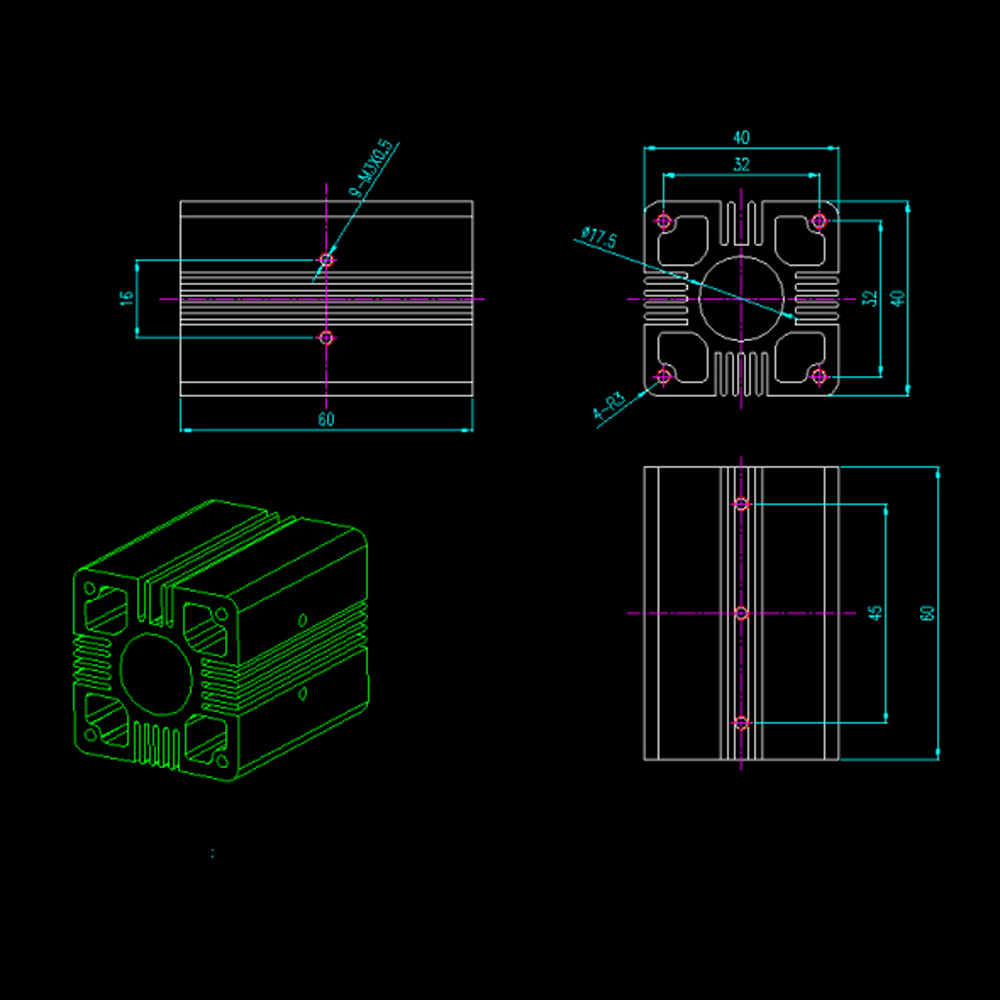

Radiator size: 40*40*60mm square
Module size: 17.5*65mm (diameter * length)
Product material: radiator is aviation aluminum, module components are aviation aluminum + brass LD seat

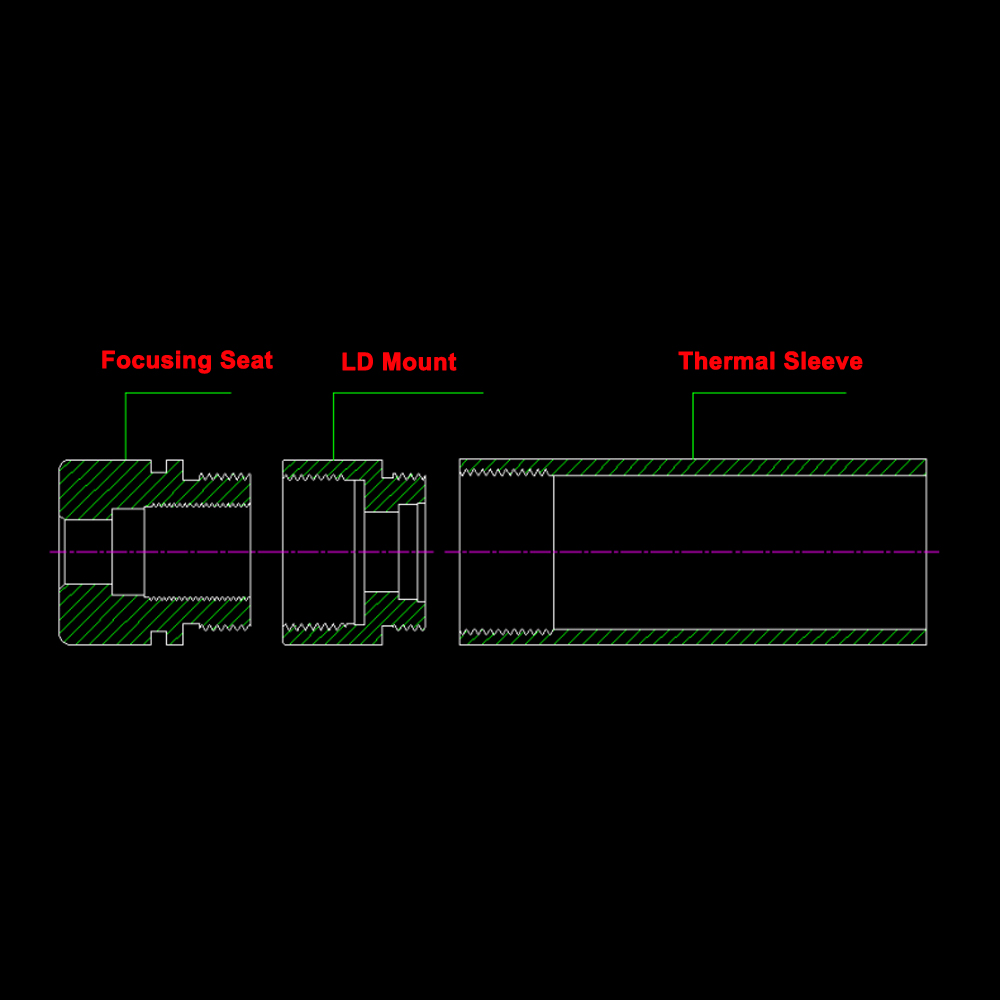

Structure description: LD fixing seat + lens fixing seat + lens cover + optical lens + circuit warehouse protection copper tube

Note:

This model is a complete set of module hardware components including optical lenses, only need to be equipped with a laser tube and a circuit board to form a complete module.

Packing:

1*DIY Module Assembly
