NUBM08 flat cap 450nm 455nm 4.35W 4.75W Laser diode Nichia single tube LD move collimator lens with flat window package

$63.07

SKU: 1005003214412446 Category:

Description

  • Brand Name: FLDJL
  • Certification: None
  • Origin: JP(Origin)
  • Item Type: Stage Lighting Effect
  • Power: 4.75W
  • Model Number: NUBM08
  • Voltage: 3.6-4.8V
  • Occasion: Home Entertainment

Specification:

  • Brand: Nichia

  • Model No.: NUBM08

  • Center wavelength: 455nm

  • Output power: 5W

  • Can type: TO5-9mm

  • Operating current: 3A

  • Operating voltage: 3.6-4.8V

  • Operating temperature: 0 ~ +65 ℃

  • Storage temperature: -40 ~ +85 ℃

Note:

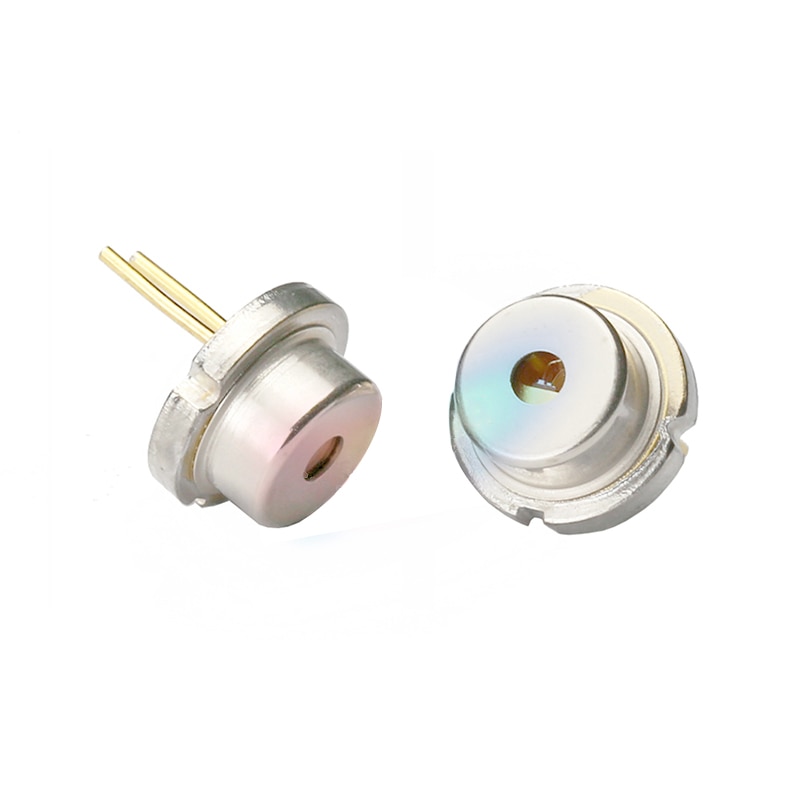

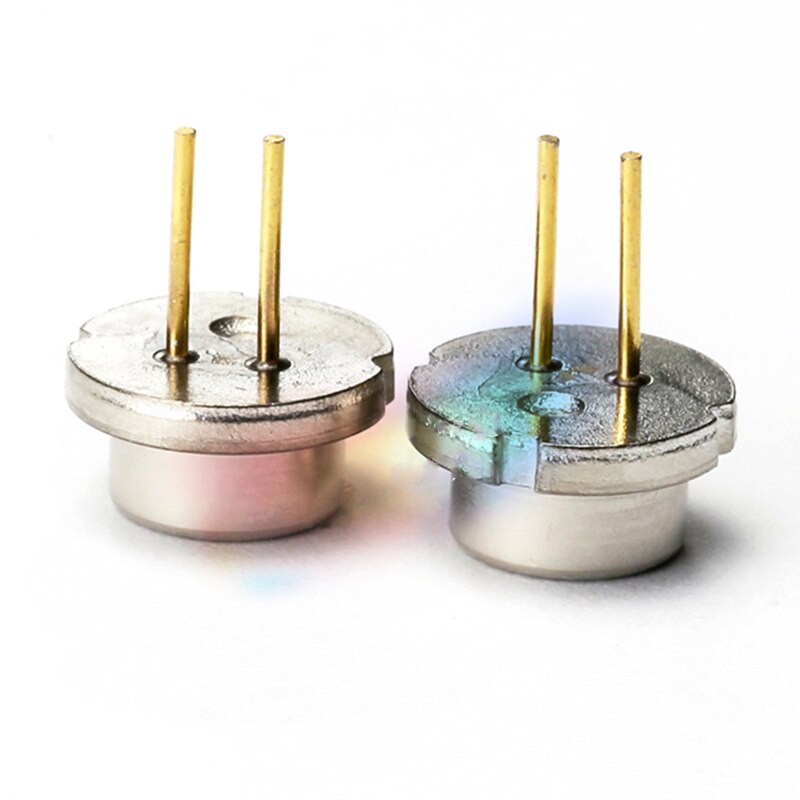

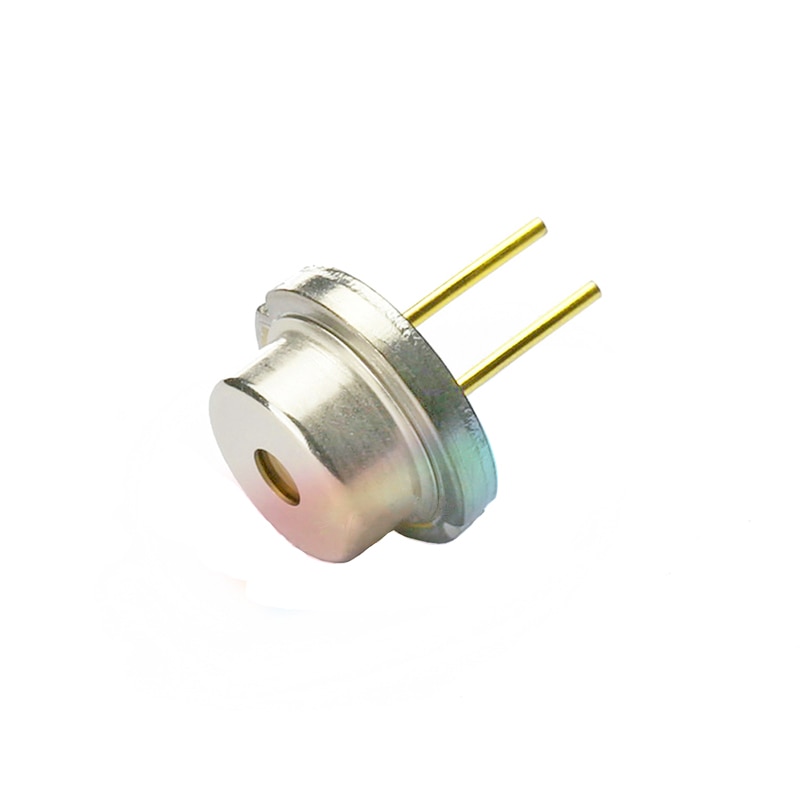

  • This is a NUBM08 laser diode which have removed collimator lens and package with flat window cap.

  • This component is sensitive to static electricity. Do not touch the laser tube body directly without anti-static measures.

    In addition, this product must have a qualified drive circuit to work normally. The voltage of different powers is the same, but the working current is different.
    The circuit is opposite to the tube. The drive current needs to be controlled within a safe range, otherwise it will affect the life.er

Package include: 1PCS NUBM08 laser diode with flate window package
