Description
- Origin: CN(Origin)
- Model Number: NUBM08 44 Red Green Blue High Power DIY Module Assembly

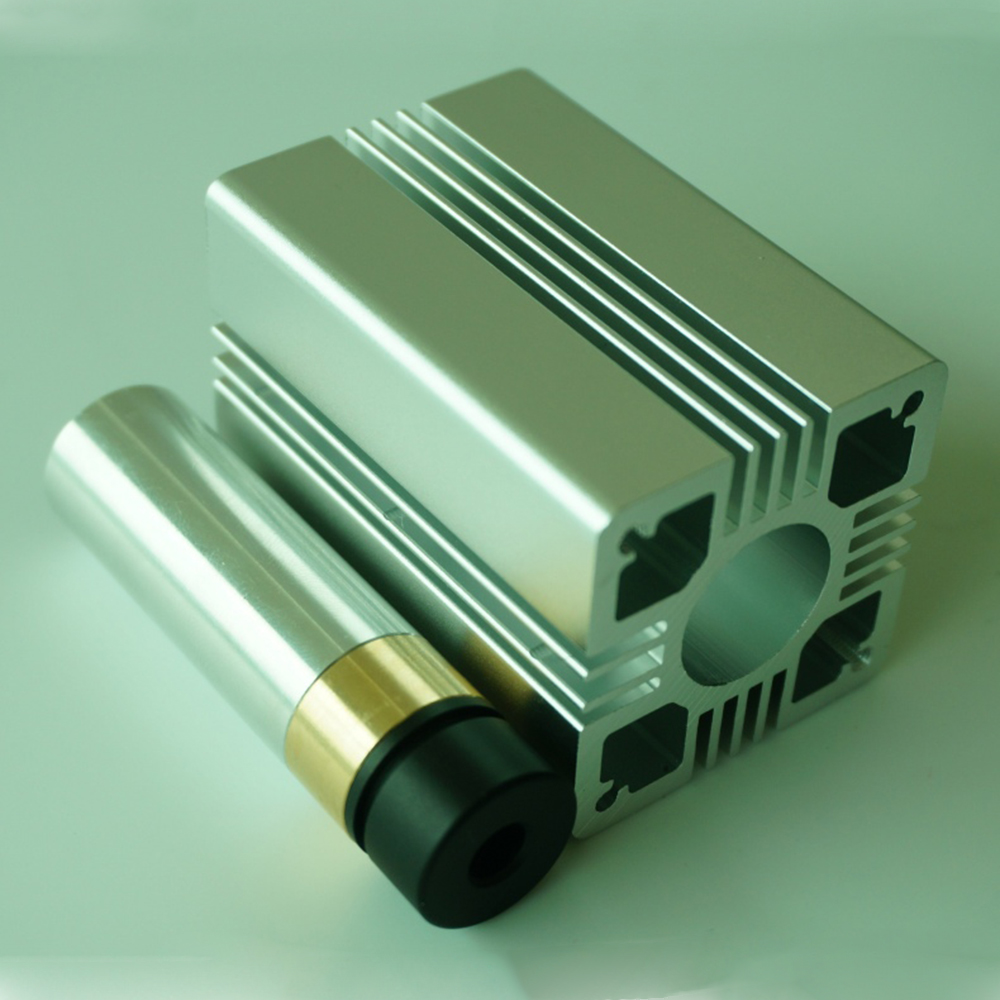

This product contains the hardware components required for the laser. As shown in the figure below, it contains an ordinary M9 plastic focusing lens set, which is suitable for general power below 500mW. For example, a laser with a few watts is recommended.
Specification Description:
Applicable Type: Laser tube diode with 9mm size package

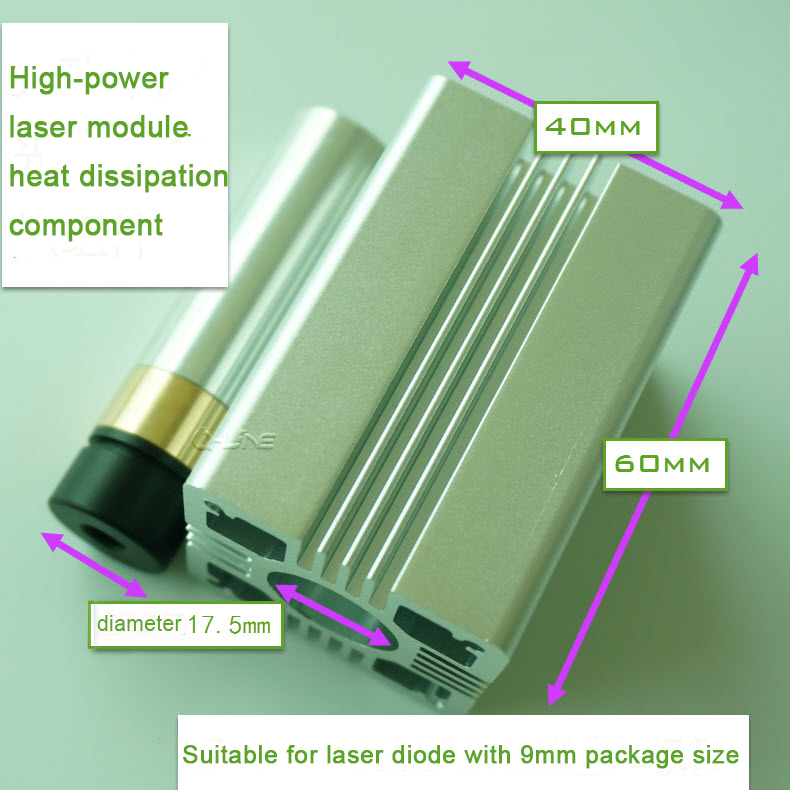

Radiator size: 40mm*40mm*60mm (square)
Module size: 17.5*65mm (diameter* length)
Product material: the radiator is aviation aluminum, the module assembly is aviation aluminum + brass LD seat

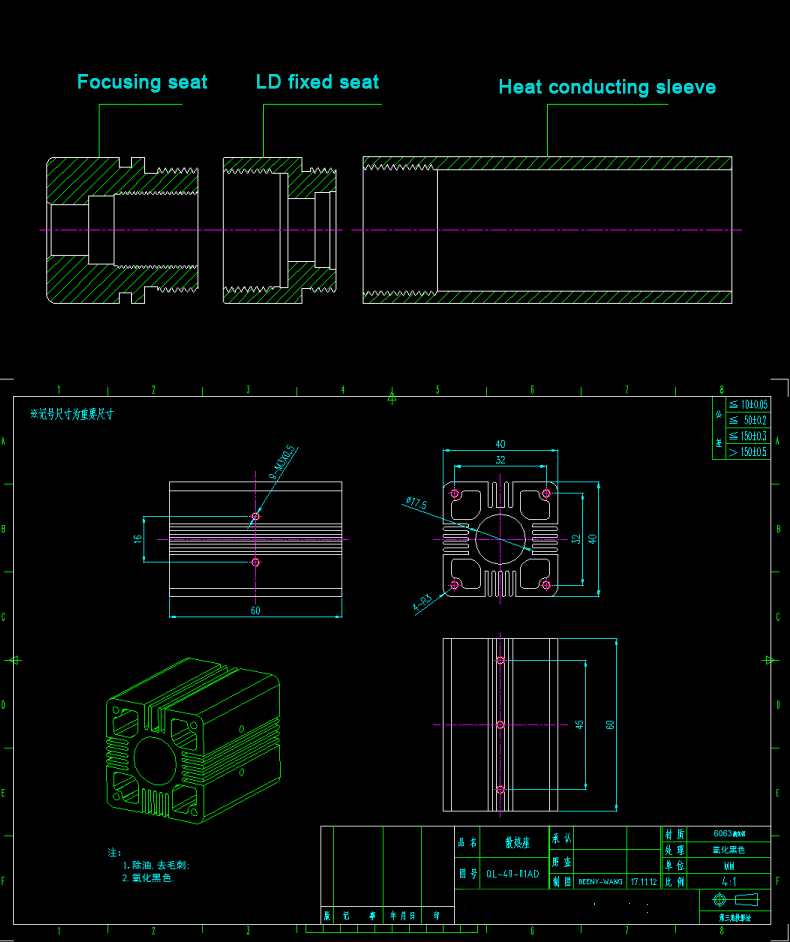

Structure Description: LD mount + lens mount + lens cover + optical lens + circuit compartment protection copper tube
