NUBM08 44 0A 07 05 02 03 Blue and green light circuit 24V boost 36V 3A constant current and constant voltage drive

  • Home
  • NUBM08 44 0A 07 05 02 03 Blue and green light circuit 24V boost 36V 3A constant current and constant voltage drive
Sale!

NUBM08 44 0A 07 05 02 03 Blue and green light circuit 24V boost 36V 3A constant current and constant voltage drive

$27.50

68 in stock

SKU: 1005001521404423 Category:

Description

  • Brand Name: MXRSDF
  • Origin: CN(Origin)
  • Compatible Brand/Model: None
  • With USB: 5
  • is_customized: 5
  • Model Number: 5

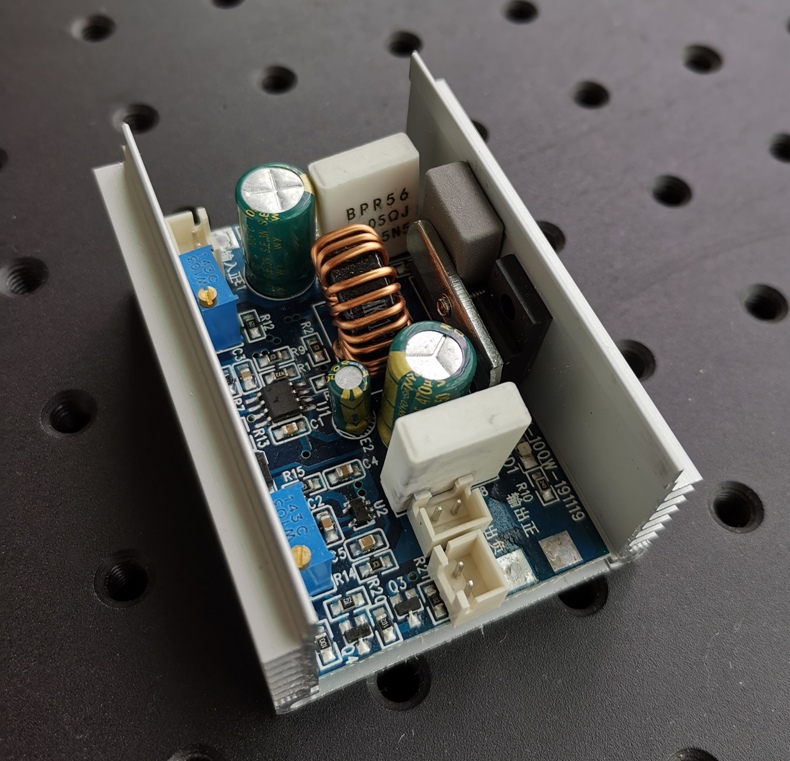

NUBM08 44 0A 07 05 02 03 Blue and green light circuit 24V boost 36V 3A constant current and constant voltage drive




One circuit to drive 8 laser tubes, the fiber green is now available, the price is very high, mass production, stock supply. This circuit uses a boost circuit, the input is a 24V universal power supply, which is very well adapted to the power supply. Compared with the step-down circuit, it is an advantage. The default is to drive the NUBM08 module (8 in a group), the wiring is very simple, input and output Two lines each are sufficient. Other applications: If you want to drive 3 NUBM08 diodes, you can change the input voltage to 12V input and the output voltage to 13.5V 3A; If you want to drive 4 NUBM08 diodes, you can change the input voltage to 12V input and the output voltage to 18V 3A. Specification Description: Circuit control: 24V boost circuit, constant current and constant voltage input Output specifications: Max 4A Shell material: aluminum (oxidized natural color) Scope of application: 445/450/455/465/520/525nm green and blue laser module drive circuit Size specification: 65*48.5*30.5mm (length*width*height) Frequency control:  0-20Khz Modulation voltage: 0-5V (0V off, 5V on) Input voltage:  24V (18-26V) TTL modulation description: 0-5V voltage signal (0 is off, 5 is on, the frequency determines how fast the laser light flashes)
