Description
- Type: Hand Tool Parts

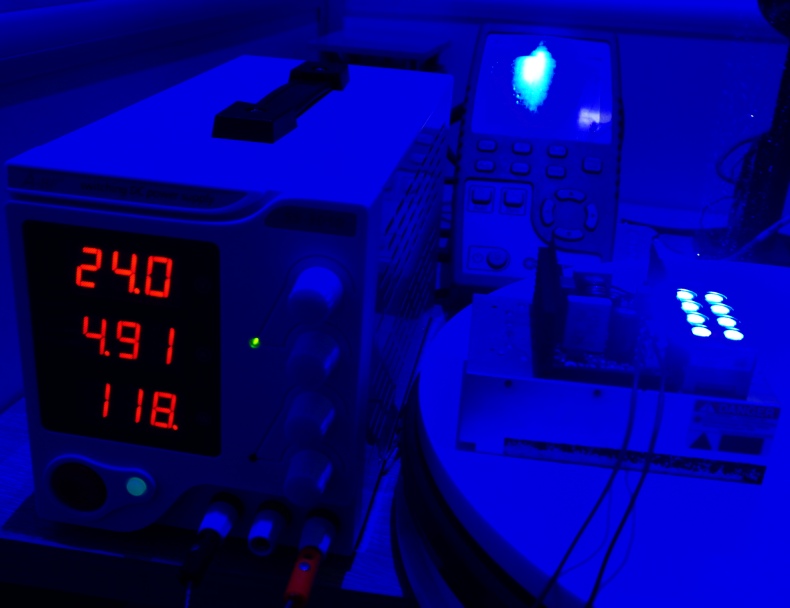

A circuit to drive 8 laser diodes, This circuit uses boost circuit, input is 24V general power supply, very well adapted to the power supply, relative to the boost circuit is an advantage, the default is to drive NUBM08 module (8 groups), the wiring is very simple, input and output can be two lines.Other applications
If three NUBM08 diodes are to be driven, the input voltage can be changed to 12V and the output voltage can be adjusted to 13.5V 3A.To drive four NUBM08 diodes, the input voltage can be changed to 12V and the output voltage to 18V 3A

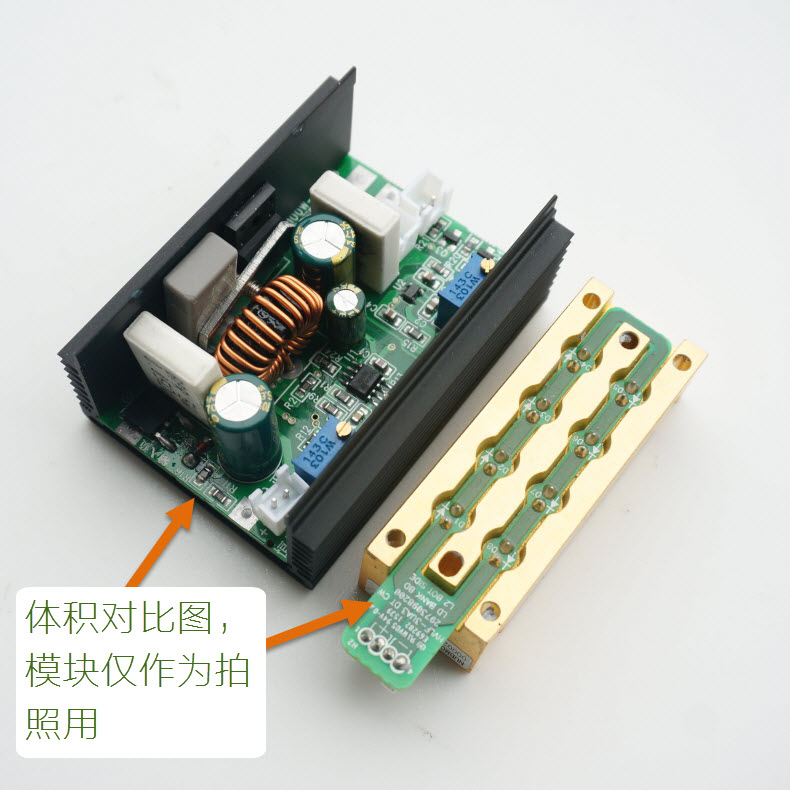

.Specification description:Circuit Control: 24V Boost Circuit, Constant Current and Constant Voltage InputOutput Specification: Max 4AScope of application: Driving circuit of 445/450/455/465/520/525 nm green and blue laser moduleDimension specification: 65 * 48.5 * 30.5mm (length * width * height)Frequency control: 0-20KhzModulation voltage: 0-5V (0V off, 5V on)Input voltage: 24V (18-26V)TTL modulation instructions: 0-5V voltage signal (0 is off, 5 is on, frequency determines the speed of laser flashing). Positive and negative poles are as follows
