Description
- Certification: NONE
- Origin: CN(Origin)
- Item: Laser Module Head
- Type: Engraving Machine Accessories
- Name: Woodworking Tools
- Power: 7W/20w
- Wavelength: 450nm
- Dropshipping: Support

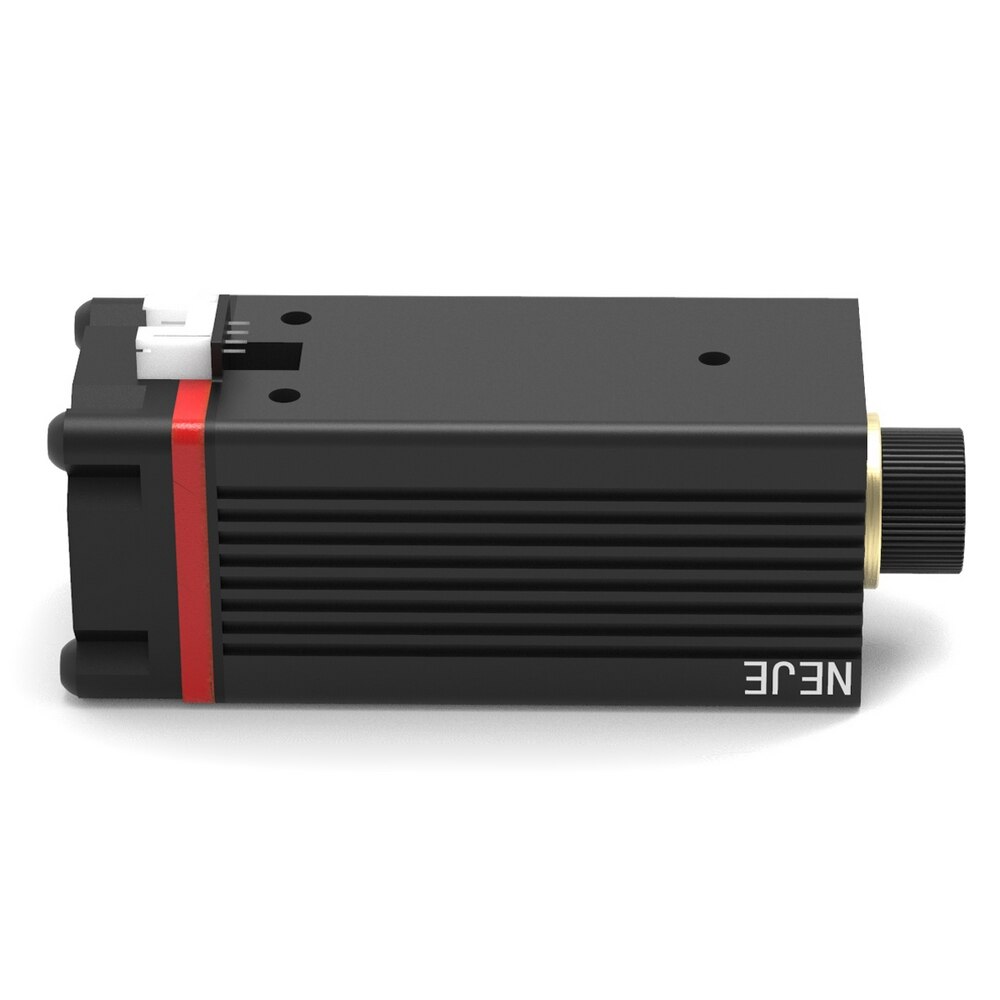

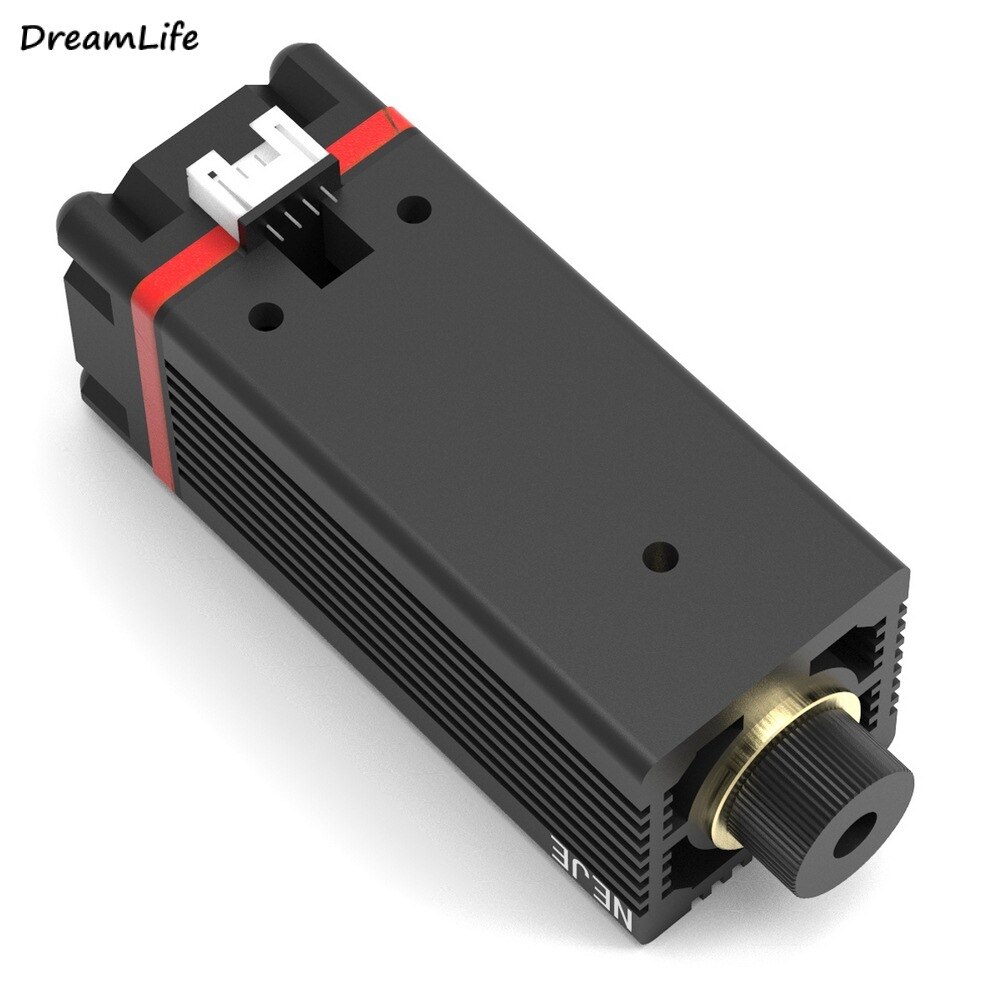

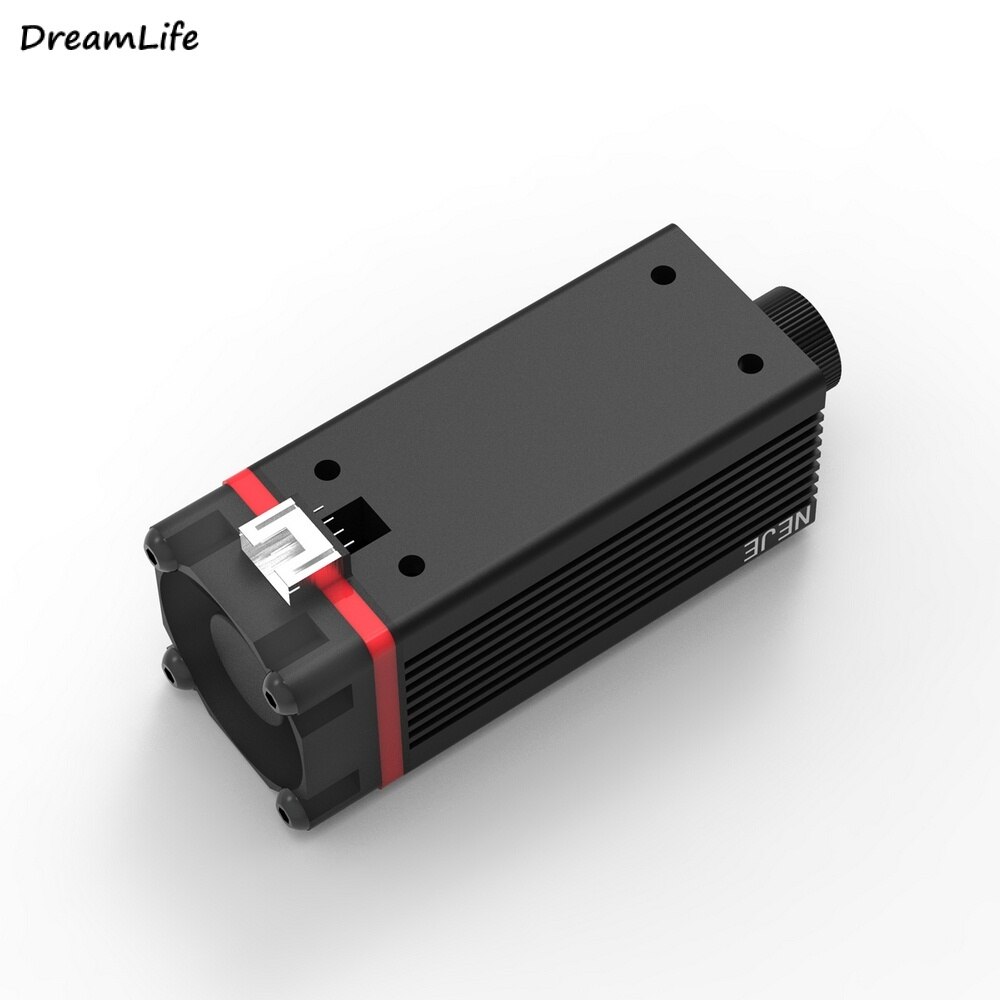

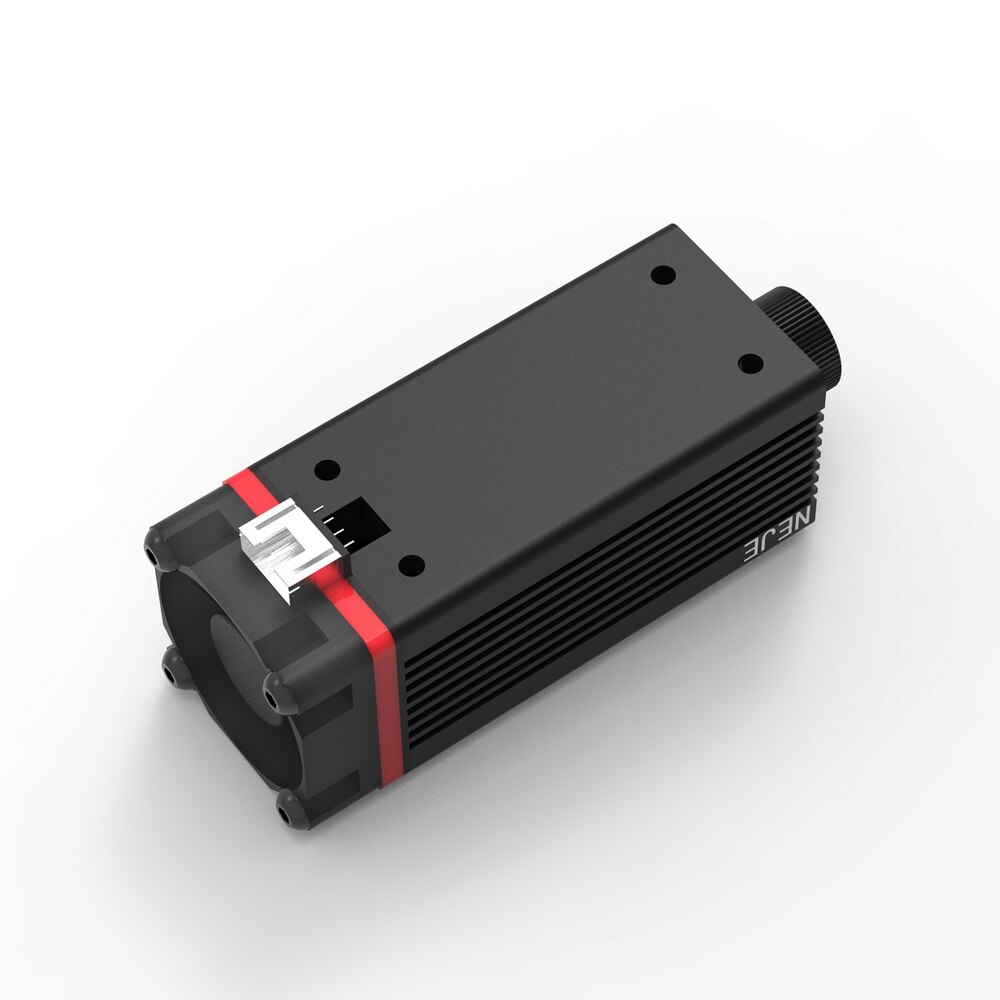

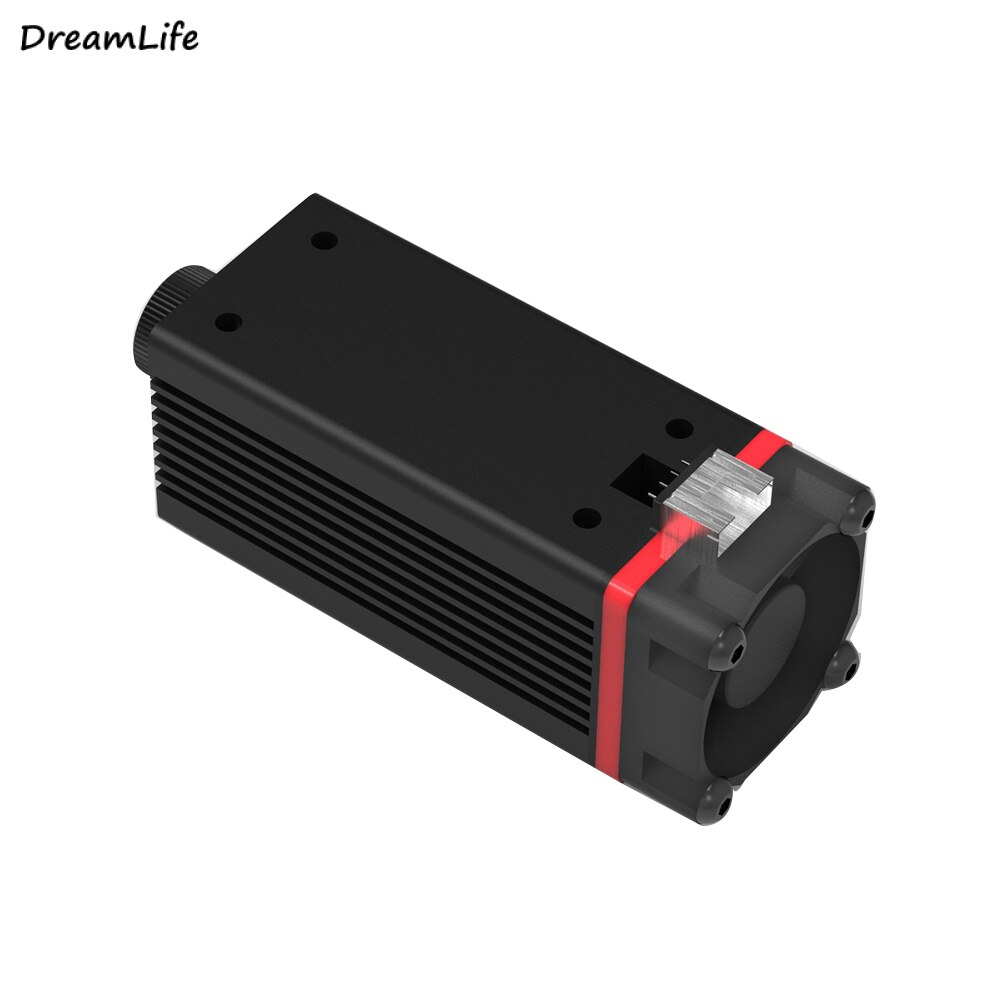

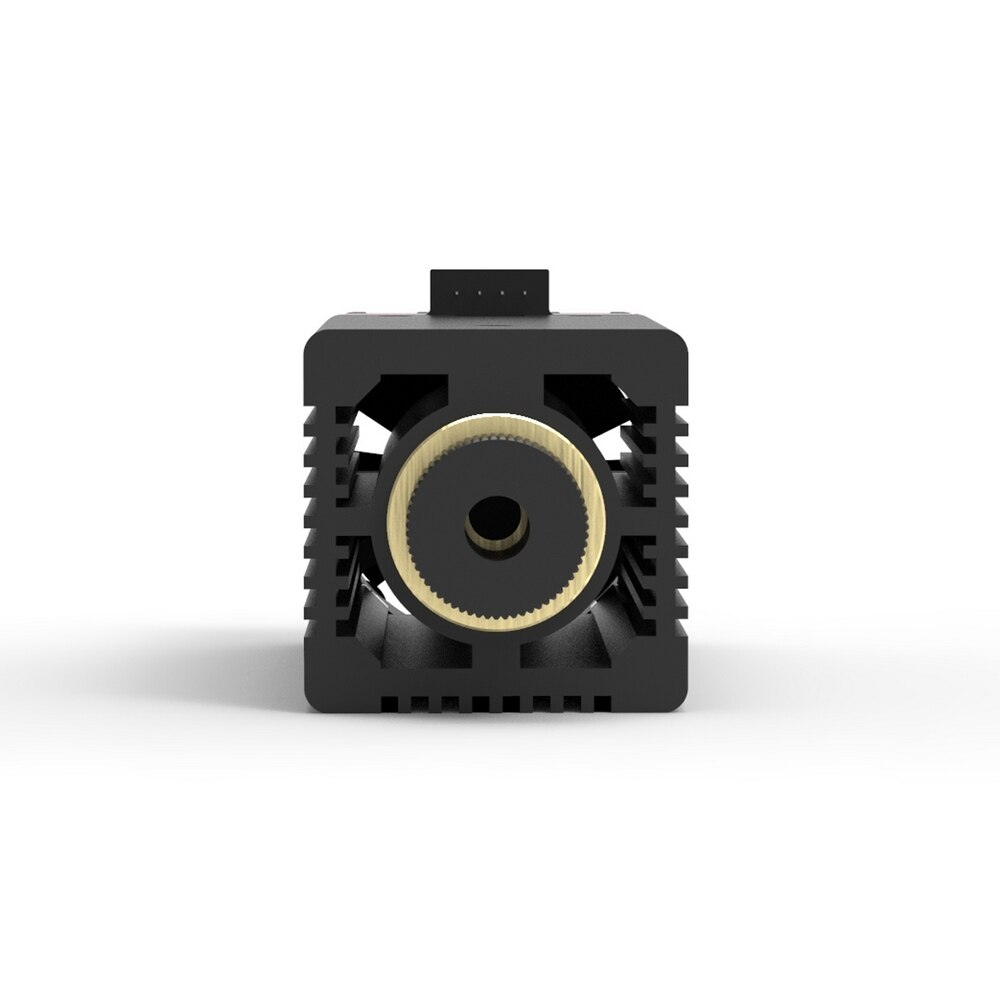

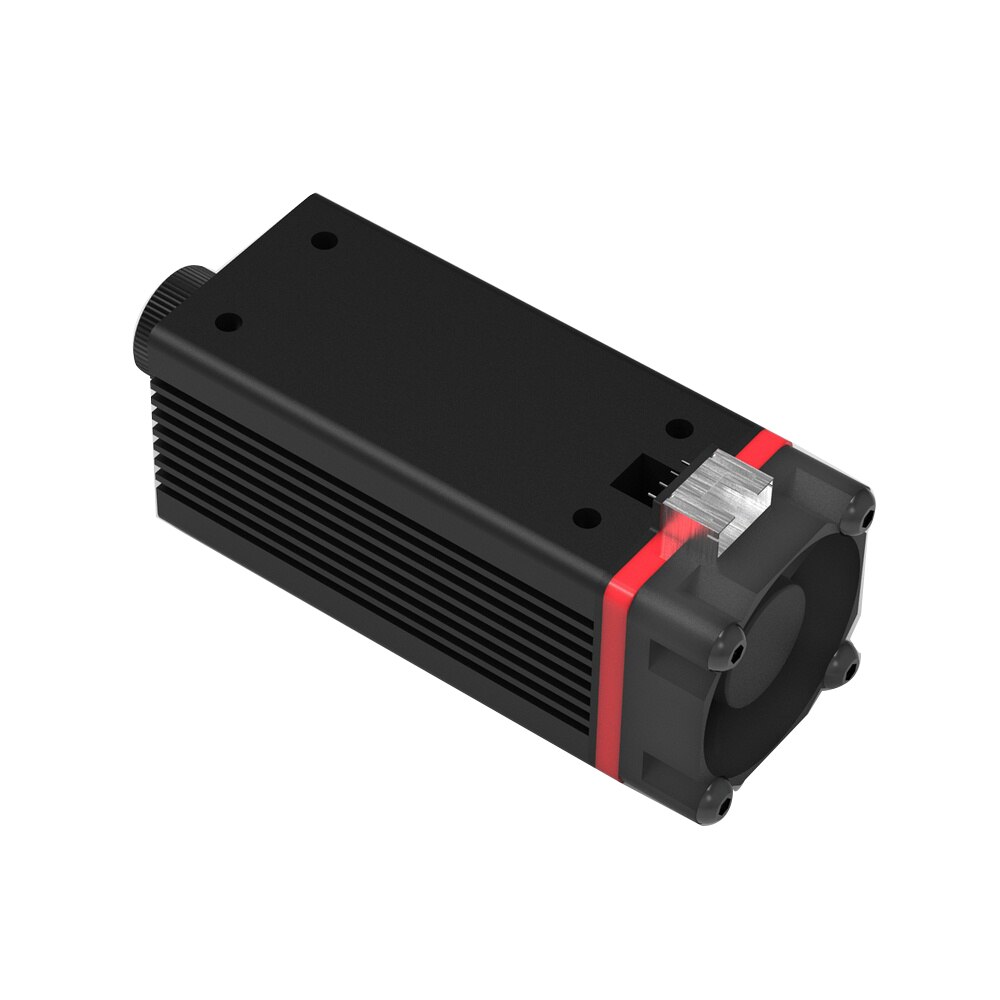

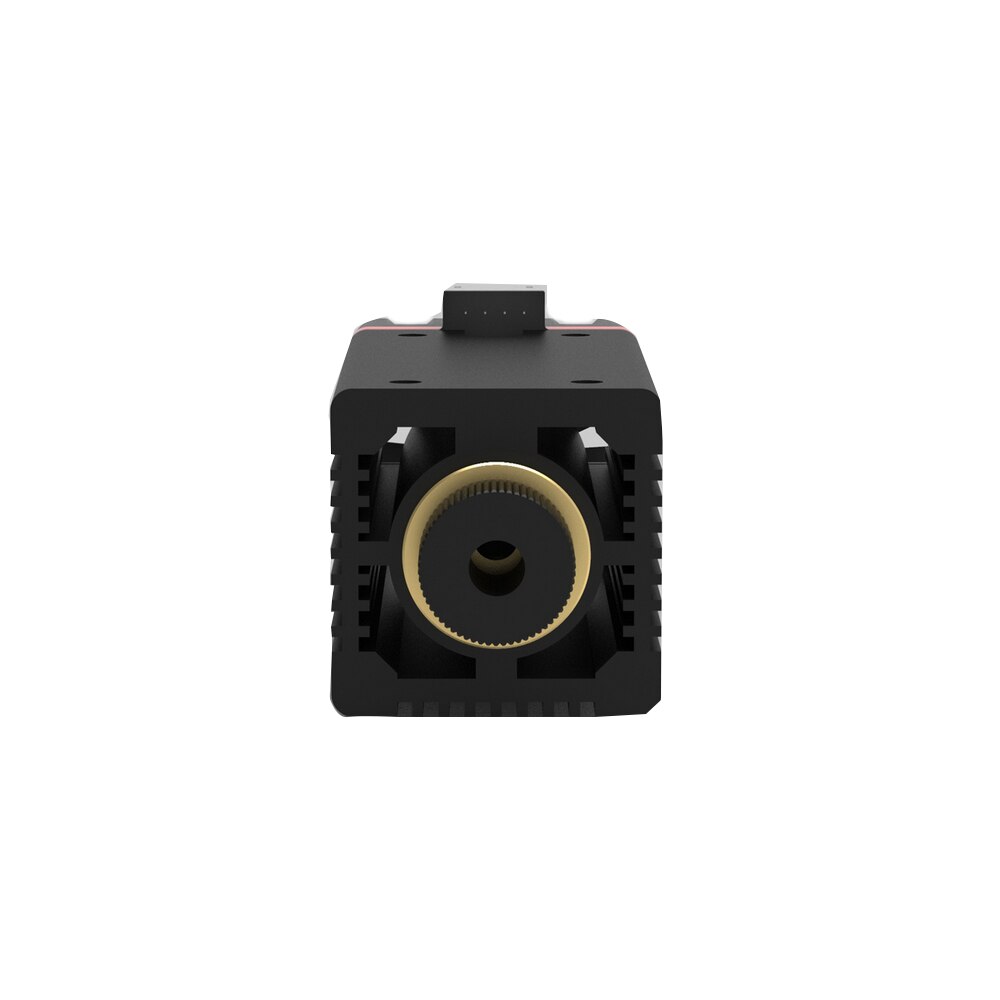

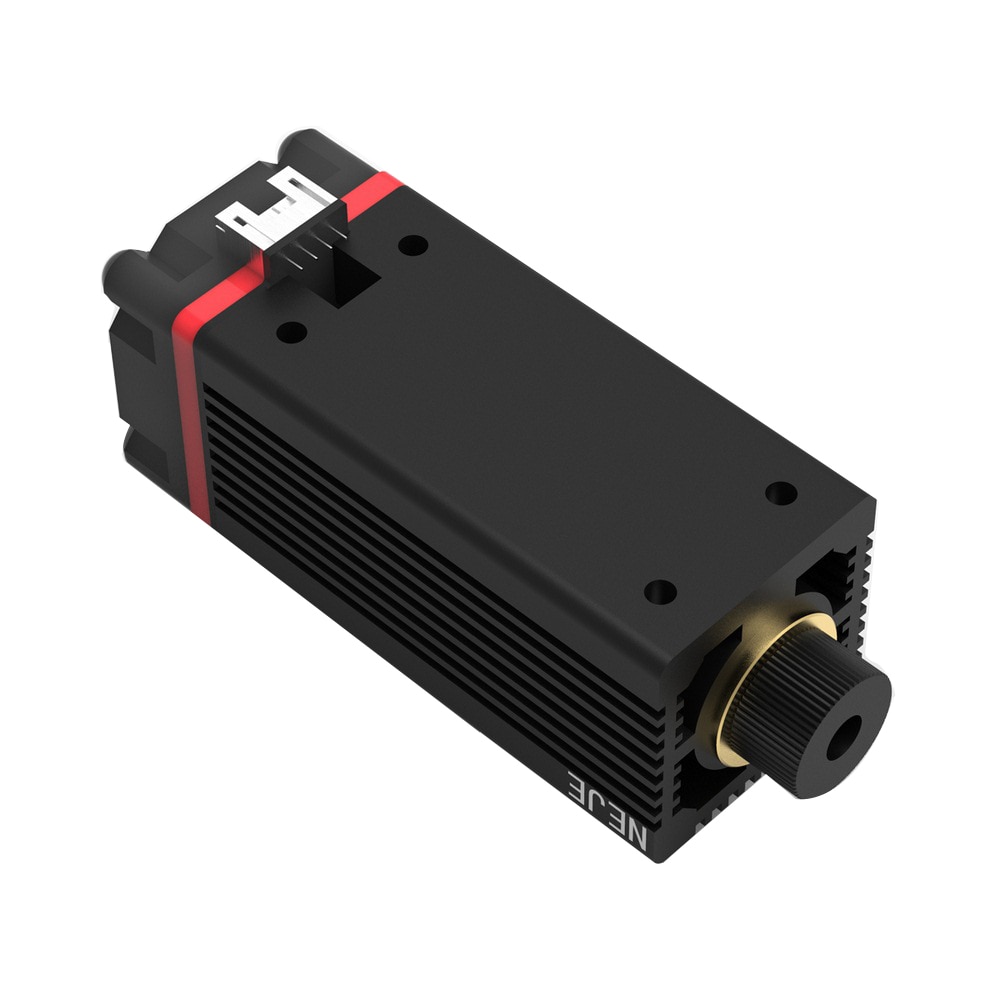

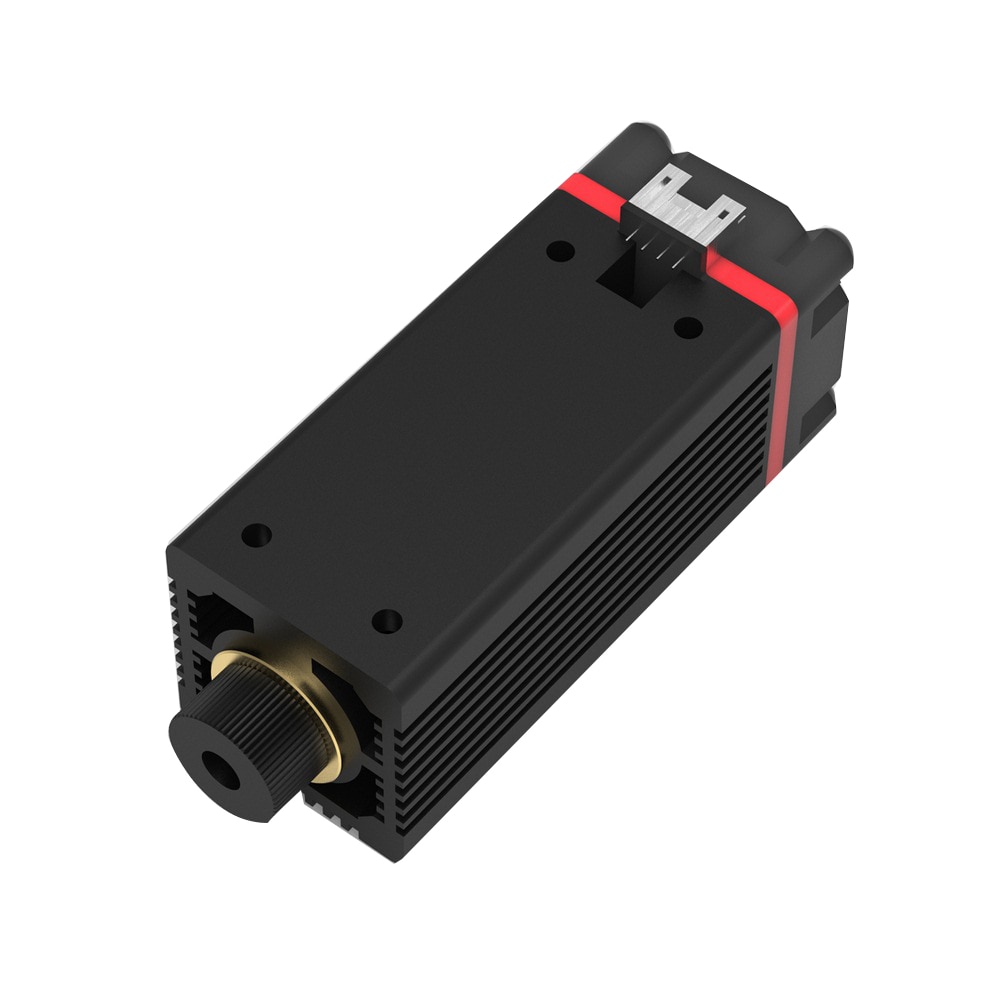

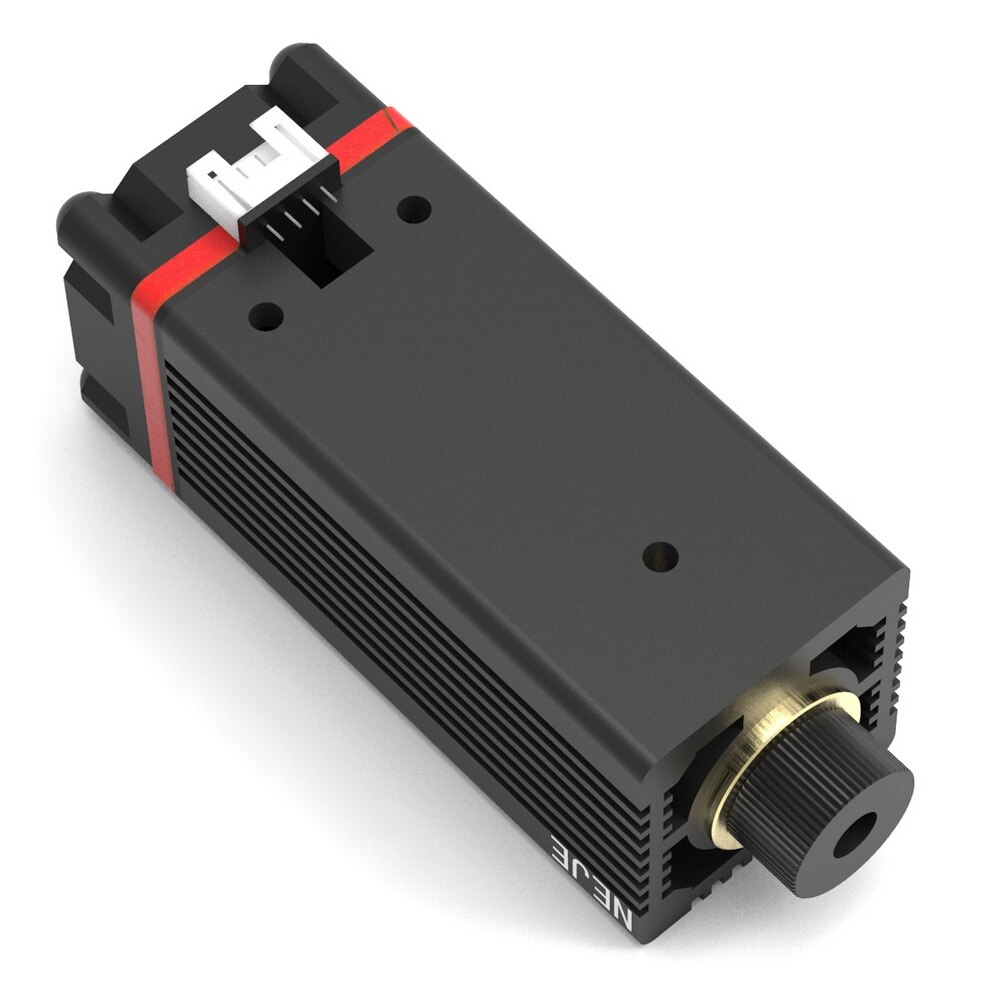

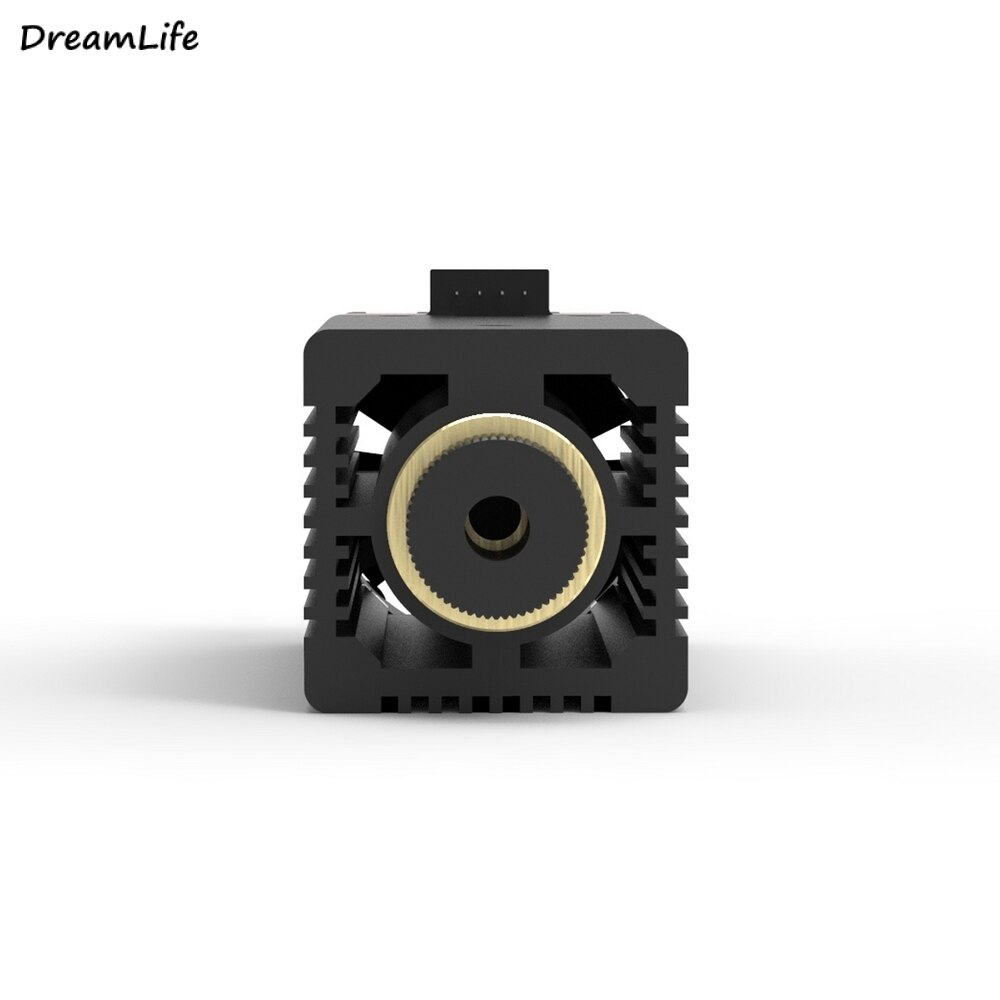

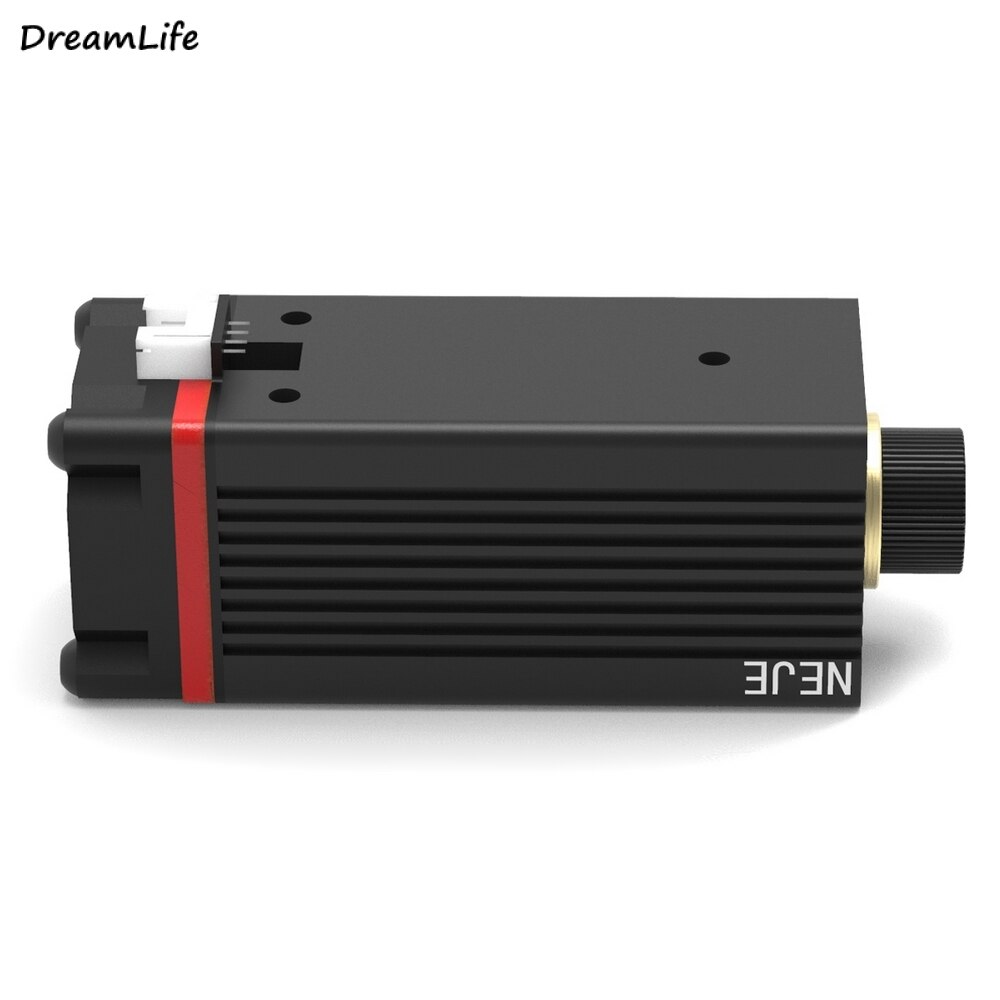

Nozzle Laser Head 7W 20w 450nm Fiber Laser Head Module Suitable for NEJE MASTER Laser Depth and Metal Engraving Machine DIY Tool
Specification:

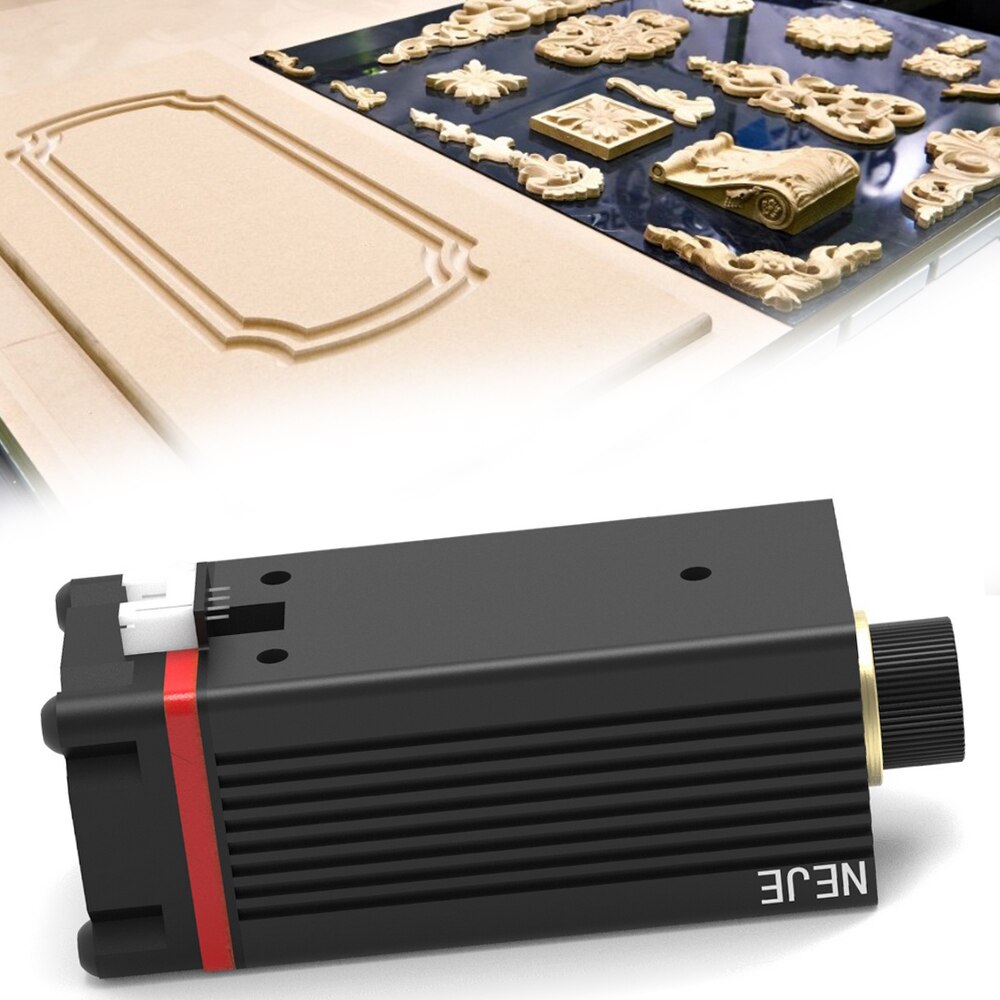

- Main applications: metal carving, deep carving, simple cutting, etc.
- Wavelength: 450nm
- Radiator size: 30 * 60mm
- Material: Copper + Aluminum
- Weight: 116g/210g (20w)

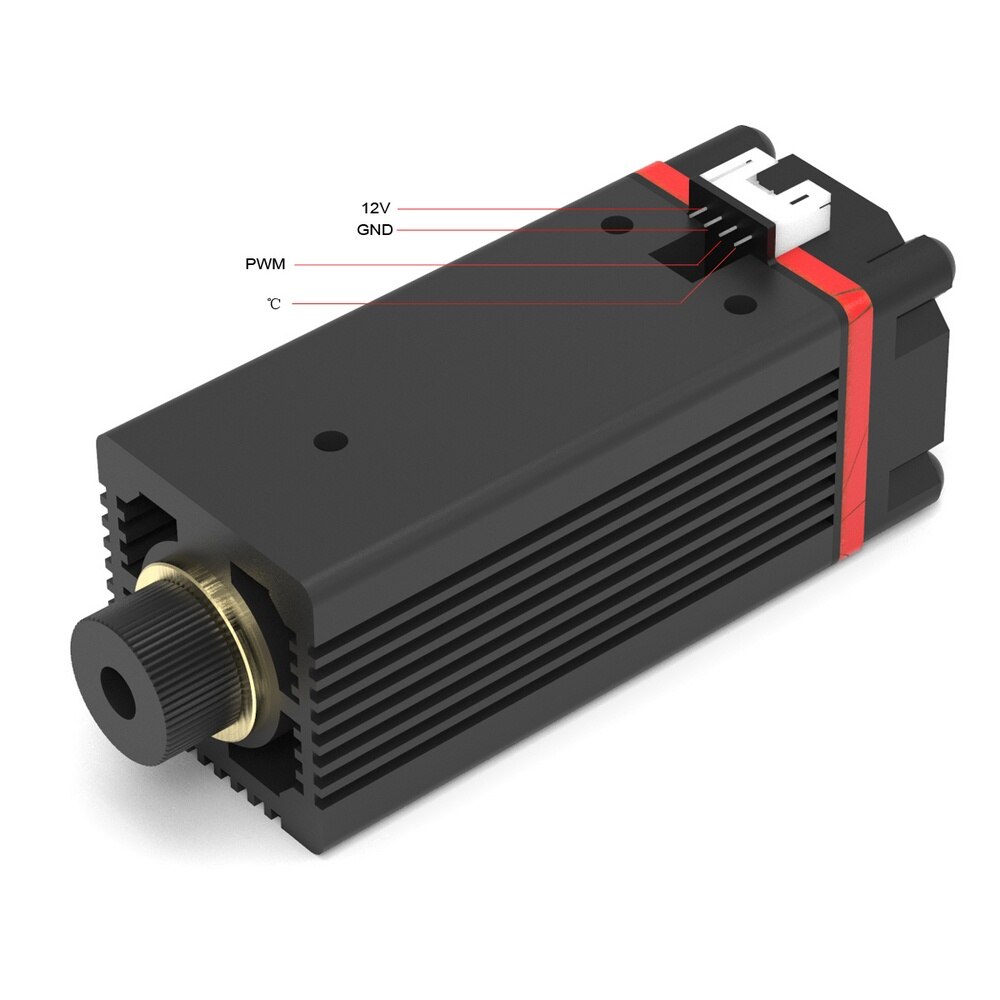

- Interface specifications: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
- Drive position: built-in

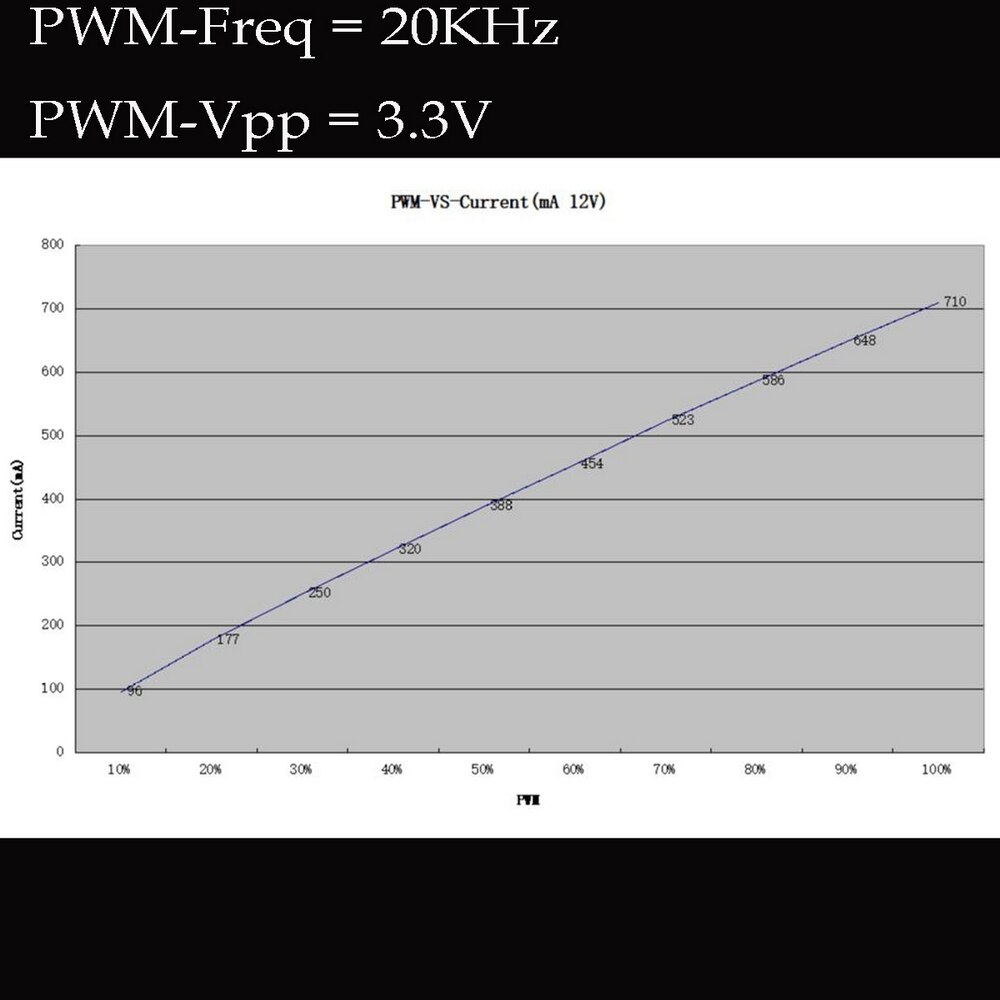

- Adjustable power: PWM adjustable
- Drive protection: surge protection, overvoltage protection
- Input power: about 12V, 750ma does not include fan power
- Cable length: 300mm
- Control line installation method: pluggable
- Fan size: 30 * 10mm
- Fan speed: 10,000 rpm/15,000rpm
- Controllable temperature: less than 60 degrees Celsius
- Focus range: 5-50mm
- Best focal length: 10mm from the light exit
- Safety warning: Please apply this module under the premise of safety protection!
- Recommended application machine: NEJE Master
Packing list:
- 1 module
- 2 screws
- 2 x gasket
- 1 x control line
