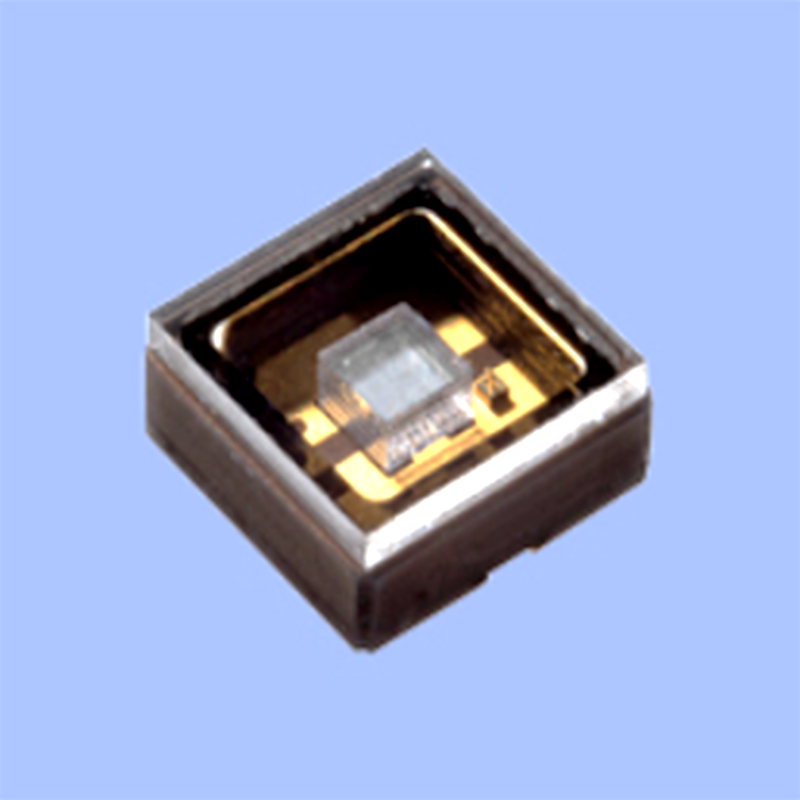

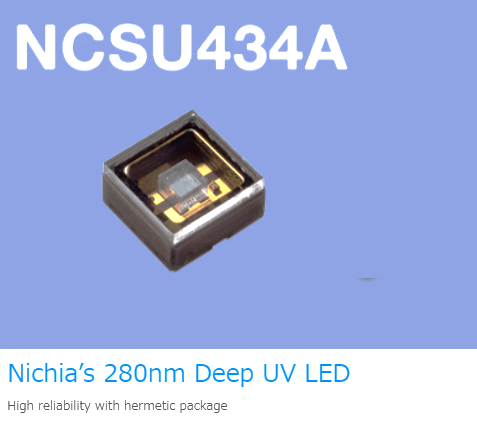

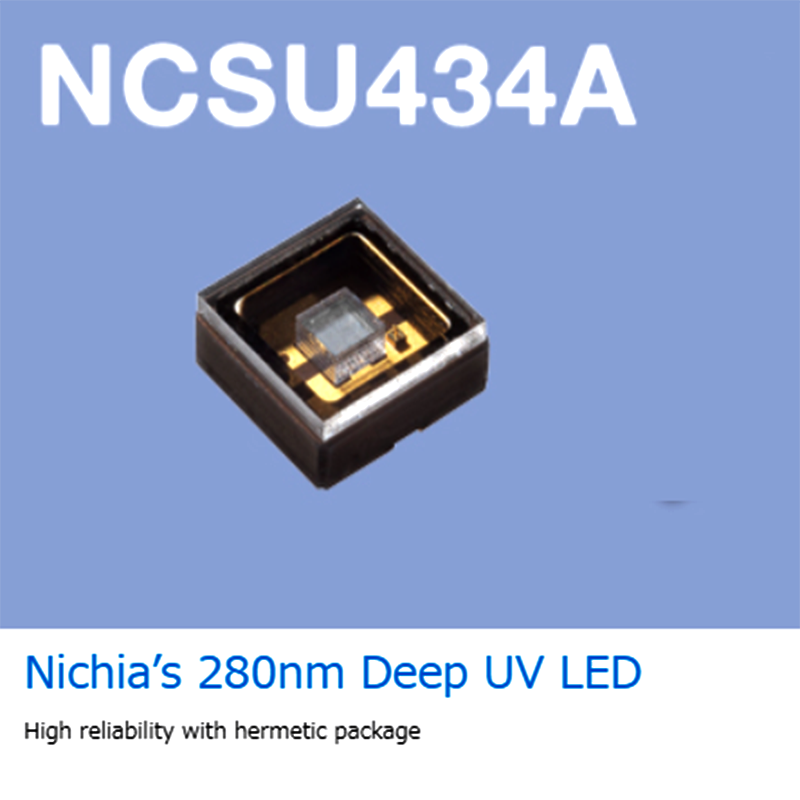

NICHIA NCSU434A UVC LED 280nm Deep Ultraviolet Light Emitting Diode UVC Lamp Beads SMD UV Chips

  • Home
  • NICHIA NCSU434A UVC LED 280nm Deep Ultraviolet Light Emitting Diode UVC Lamp Beads SMD UV Chips
Sale!

NICHIA NCSU434A UVC LED 280nm Deep Ultraviolet Light Emitting Diode UVC Lamp Beads SMD UV Chips

$429.00

1000 in stock

SKU: 1005003323051592 Category:

Description

  • Brand Name: napolun
  • Origin: JP(Origin)
  • Item Type: BALL
  • Model Number: NCSU434A
  • Wavelength: 280nm
  • Size: 3.5mm x 3.5mm x 1.7mm
  • Intensity: 17.5 mW/cm2

NICHIA has also launched the mid-power NCSU434A UVC LED emitter, which produces a lower radiant output of 17.5mW at a drive current of 100mA and a forward voltage of 5.3V. Smaller than the NCSU334B, the NCSU434A is supplied in a package which measures 3.5mm x 3.5mm x 1.7mm.

W : leduvcuring.com

P : +86-18924372460 Jennifer

Same as WhatsApp/Skype.

If necessary, please contact us for detailed specifications and parameters.

Applications of 280nm NCSU434A UVC UV LED Light Bead:

Industrial equipment

Water purifiers

HVAC systems

Features of NICHIA Deep UVC Ultraviolet LED:

10nm spectrum half-width

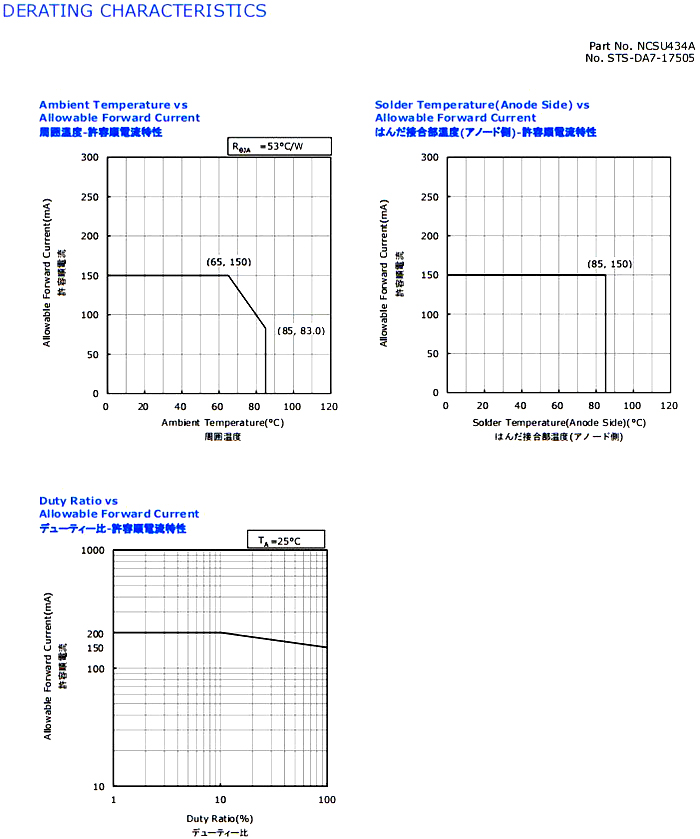

110°C maximum junction temperature

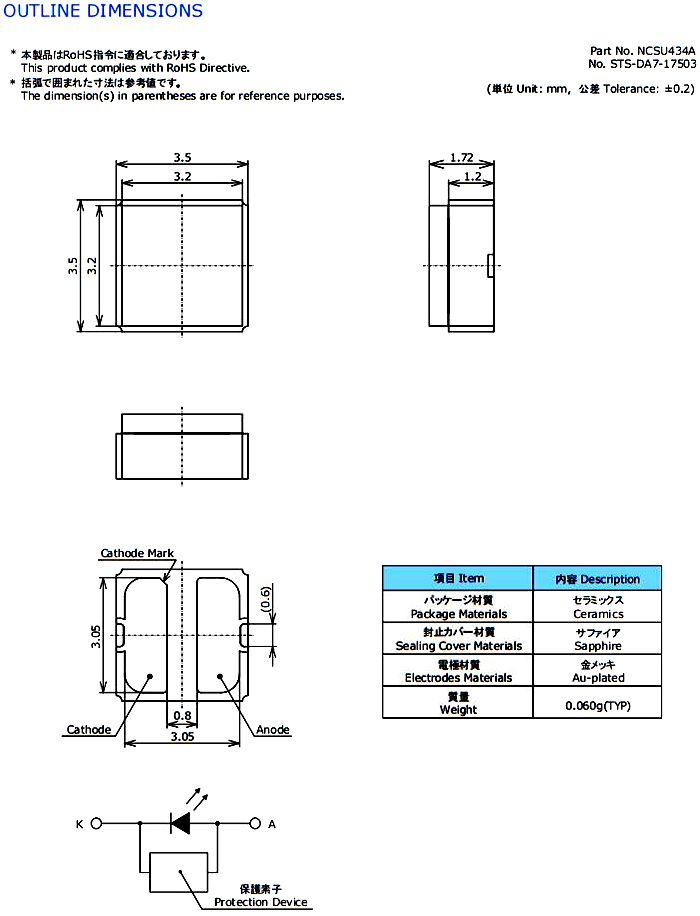

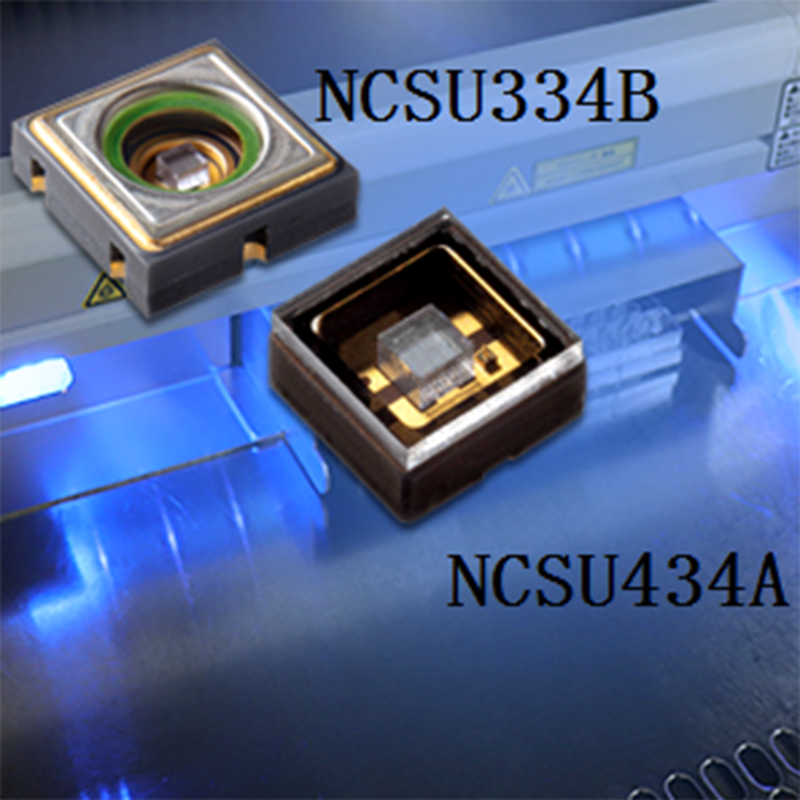

Package specifications:

NCSU334B: 6.8mm x 6.8mm x 2.1mm surface-mount package

NCSU434A: 3.5mm x 3.5mm x 1.7mm surface-mount package

NICHIA NCSU434A UV LED Disinfection:

Ultraviolet light technology is a hot topic in the lighting industry today, as UV light is capable of disinfecting and killing biological impurities. In particular, UV-C LEDs are said to revolutionize sterilization and disinfection, improving the safety of health facilities specifically, which is a much needed development in the current pandemic situation.

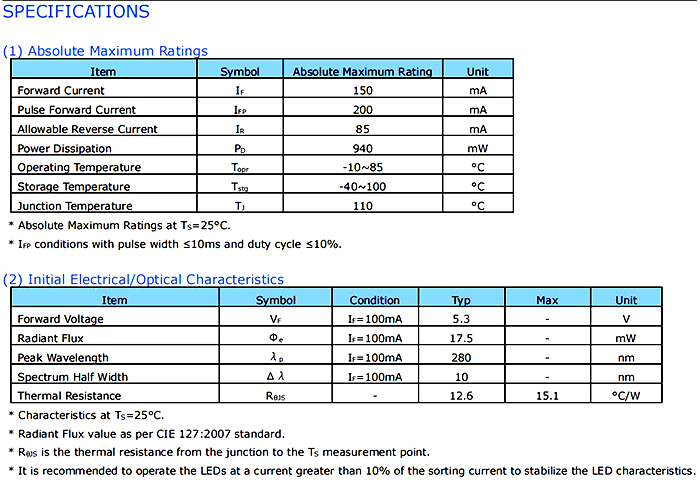

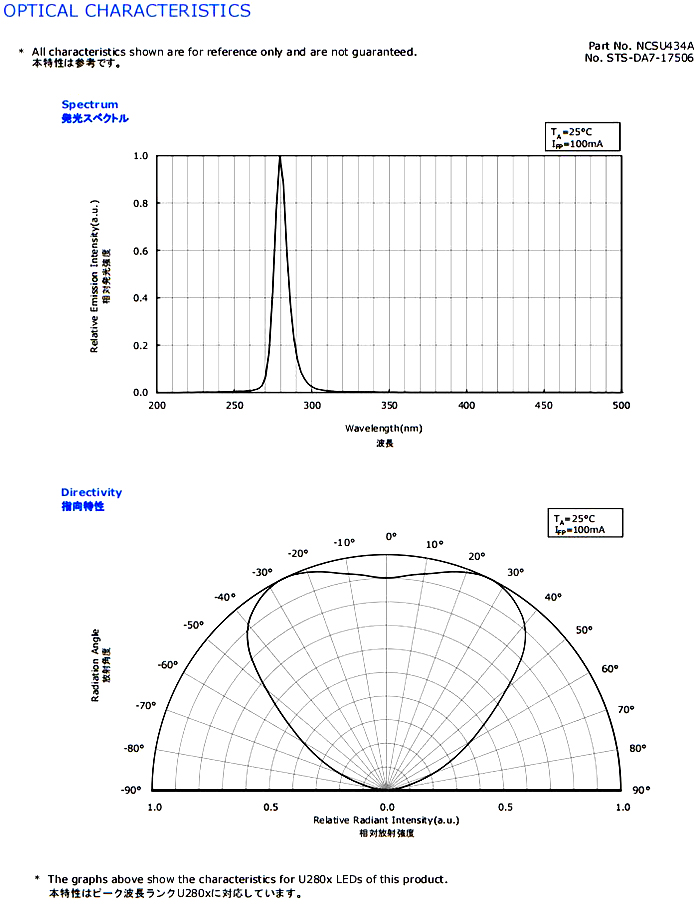

Peak Wavelength λp

Typ.(nm)

280

Radiant Flux ΦE

Typ.(mW)

62

17.5

Forward Voltage VF

Typ.(V)

5.7

5.3

Max.(V)

6.5

6.0

Directivity 2θ ½

Typ.(degree)

110

IF

(mA)

350

100

Size

LxWxH (mm)

3.5×3.5×1.72
