Description
Nichia LED NCSU434A UVC 17mW 280nm 0.5W Japan Original

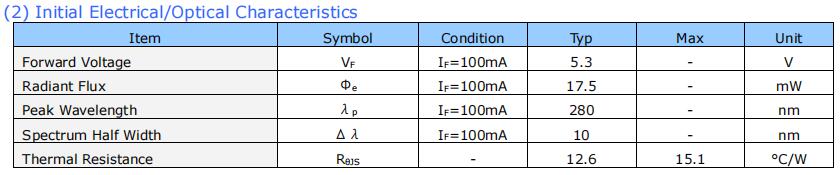

High performance UV-C NCSU434A SMD LED with 280nm and 17.5mW typical radiant power
Typical voltage 5.3V, current 100mA
Typical power consumption: 0.5W
120 deg viewing angle
Dimensions (LxWxH): 3.5×3.5×1.72mm
Application areas： Disinfection， Sterilization
Weight (g) 1.000000
LED Installation Package Emitter
Color UVC Ultraviolet
Viewing Angle 120°
Forward Current Typ 350ma
Forward Voltage Typ (V) 5.3
Power (W) 0.5
Wavelength (nm) 280
Manufacturer Product Code NCSU434A UV-C
