Nichia BDR-S06J 12X 5.6mm Blue-violet 405nm 700mW Laser Diode

$79.00$99.00

SKU: 1005004135223119 Category:

Description

Nichia BDR-S06J 12X 5.6mm Blue-violet 405nm 700mW Laser Diode



  • Origin: JP(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: BDR-S06J
  • Certification: NONE
  • Center wavelength: 405nm
  • Pulse power: 700mW
  • Can Type/ Diameter: 5.6mm
  • New/Soldered: Soldered
  • Operating current: Max 400mA
  • Operating voltage: 5V
  • Working life: More than 10,000H
  • Operating temperature: 0 ~ 65 ℃
  • Storage temperature: -40 ~ 85 ℃
Features:
Brand: Nichia
Model No.: BDR-S06J
Center wavelength: 405nm
Output power: 700mW+

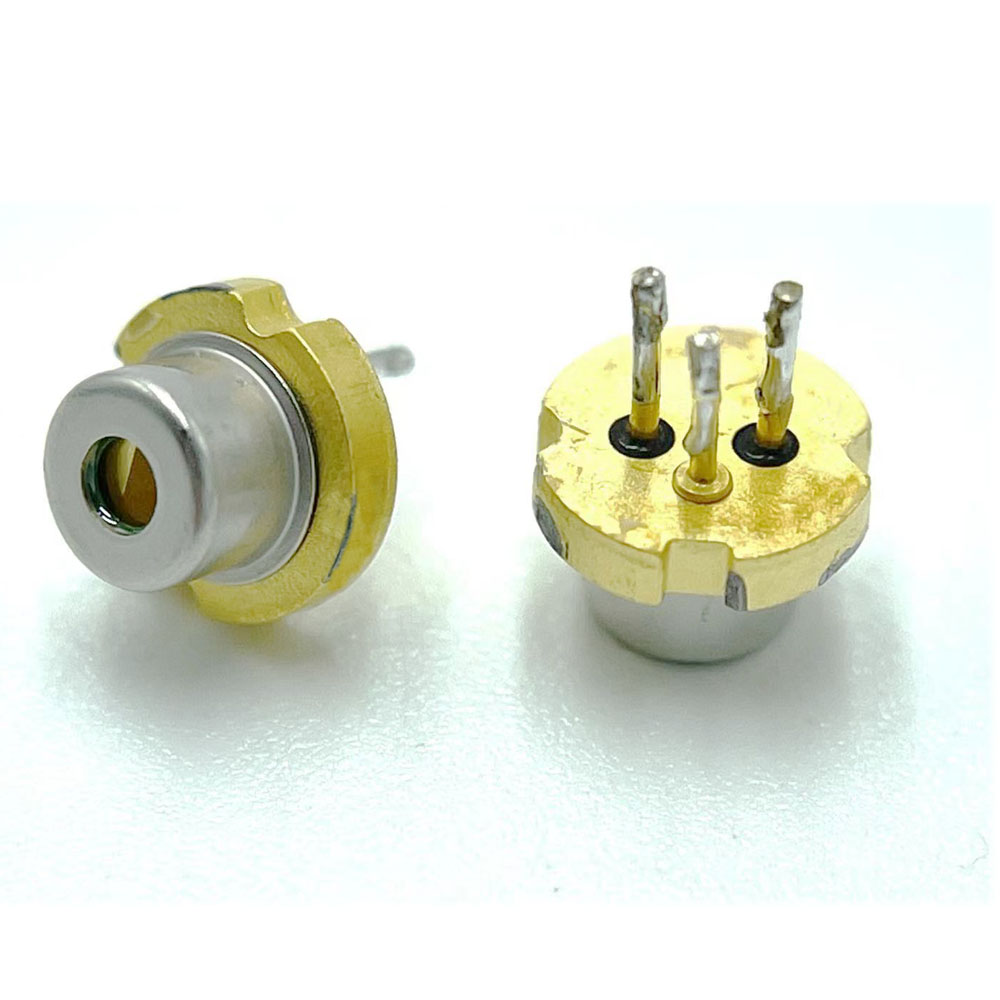

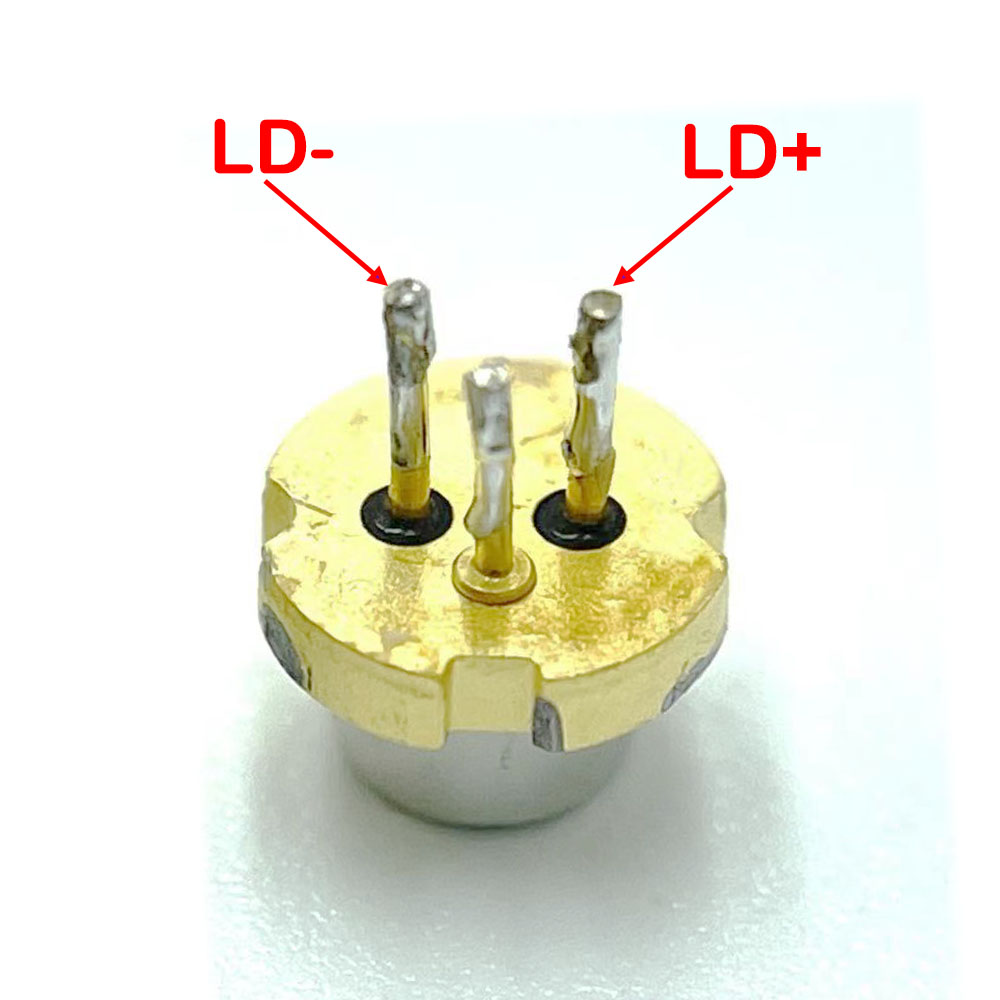

Can type: TO18-5.6mm
Operating current: Max 400mA
Operating voltage: 5V-6V DC
Operating temperature: 0 ~ +65 ℃
Storage temperature: -40 ~ +85 ℃
