Newest Handheld UNI-T UTi260B IR Thermal Imaging Camera Thermal Camera Infrared Thermal Imager

  • Home
  • Newest Handheld UNI-T UTi260B IR Thermal Imaging Camera Thermal Camera Infrared Thermal Imager
Sale!

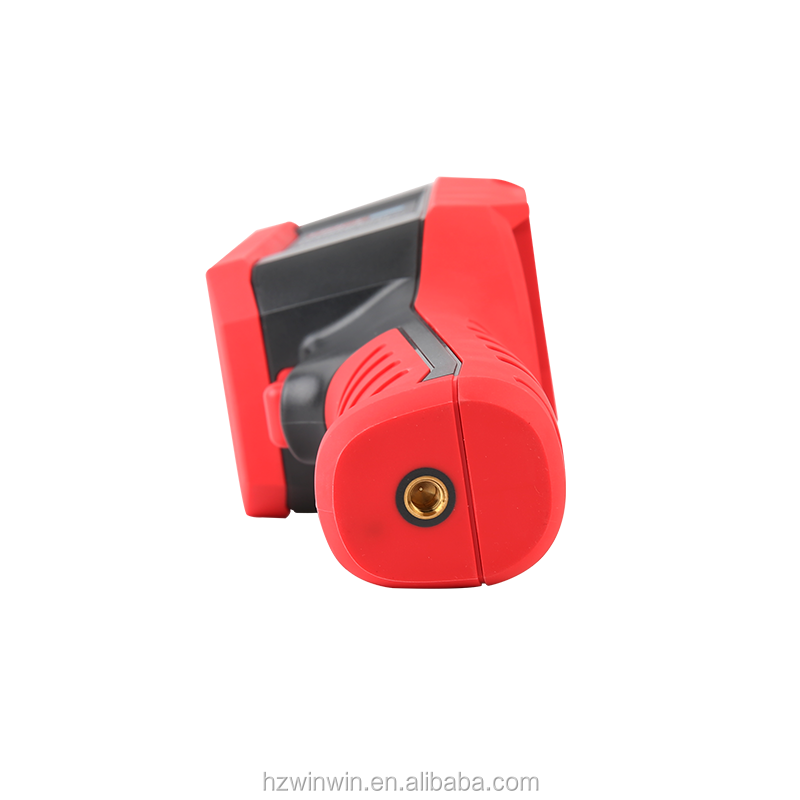

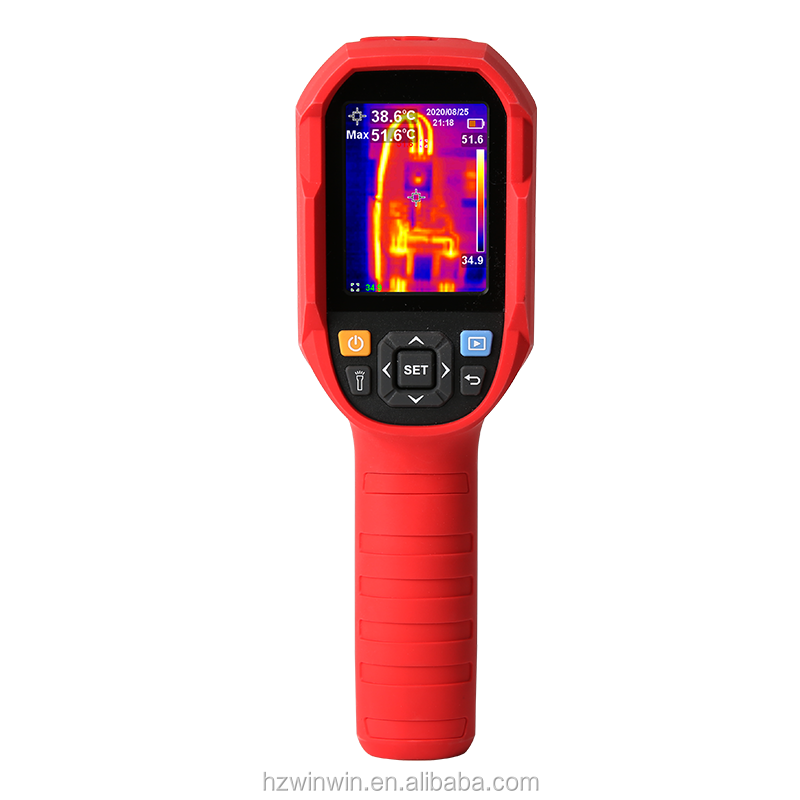

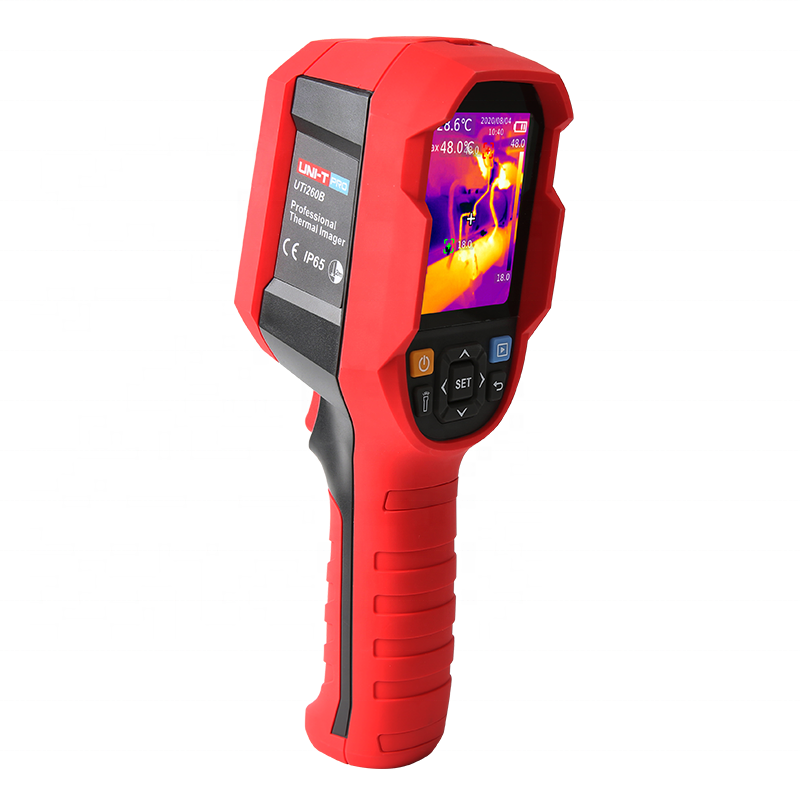

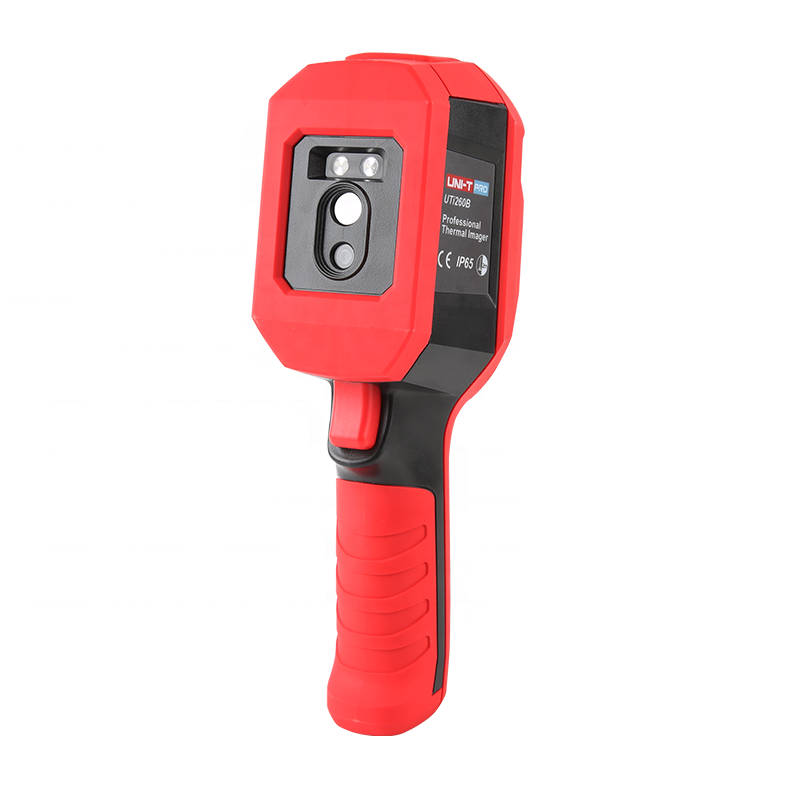

Newest Handheld UNI-T UTi260B IR Thermal Imaging Camera Thermal Camera Infrared Thermal Imager

$625.90

SKU: 1005004235851189 Category:

Description

  • Brand Name: NoEnName_Null
  • Certification: CE
  • Origin: CN(Origin)
  • Shape: angel
  • Customized support: OEM
  • Place of Origin: Guangdong, China
  • Brand Name: UNI-T
  • Model Number: Uti260B
  • Display: 2.8″LCD
  • Frame rate: <9Hz
  • Color: red /gray
  • IR resolution: 256 192 pixels
  • Product Size: 236mm x 75.5mm x 86mm
  • Field of view: 56° 42°
  • Spatial resolution: 3.8mrad
  • Temperature range: -15~550℃
  • IP rating: IP65
  • Thermal sensitivity (NETD): ≤150mk (0.15℃)
Product Description

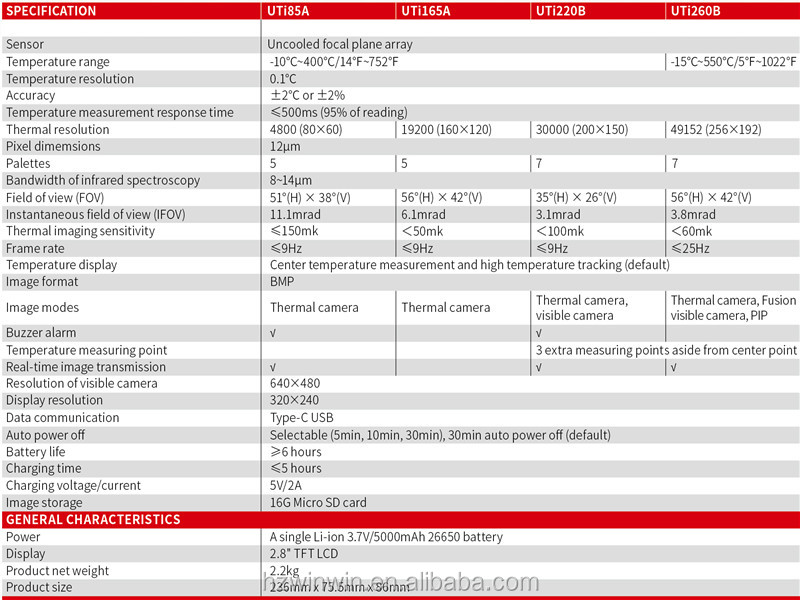

Specifications
Model UTi260B
IR resolution 256×192 pixels
Field of view (FOV) 56°×42°
Thermal sensitivity (NETD) ≤150mk (0.15℃)
Temperature range  -15~550℃
Spatial resolution (IFOV) 3.8mrad
Frame rate <25Hz
Measurement accuracy ±2℃ or ±2% whichever is greater
Focus Focus free
Display modes Thermal
Display 2.8″LCD
Auto capture of Hi/Lotemperature
Measurement modes
WIFI
PC analysis software
Drop proof 2m

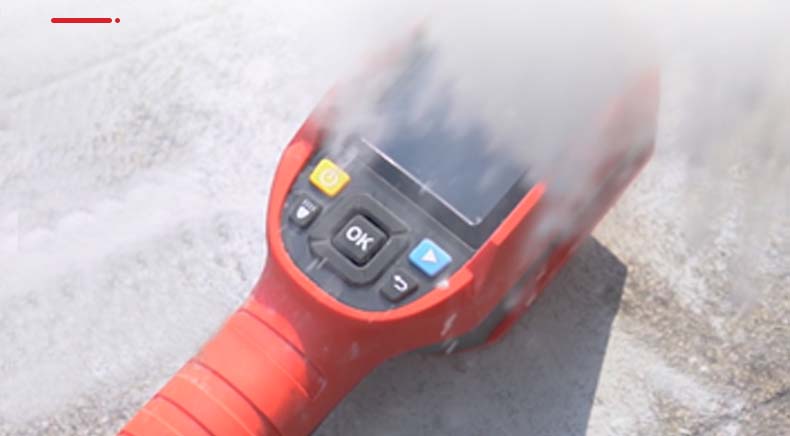

IP rating IP65
General Characteristics
Power Li-ion battery (3.7V 5000mAh)
Product color Red and grey
Product net weight 455g
Product size 236mm x 75.5 mm x 86mm
Standard accessories micro USB cable, micro SD card, Type-C USB cable
Standard individual packing Blister, gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 610*345*305
Standard carton gross weight About 9.4kg

Advantages

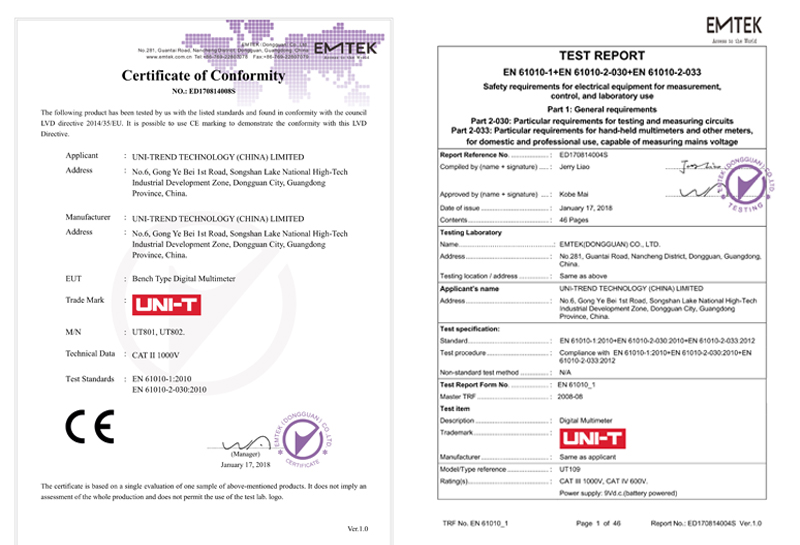

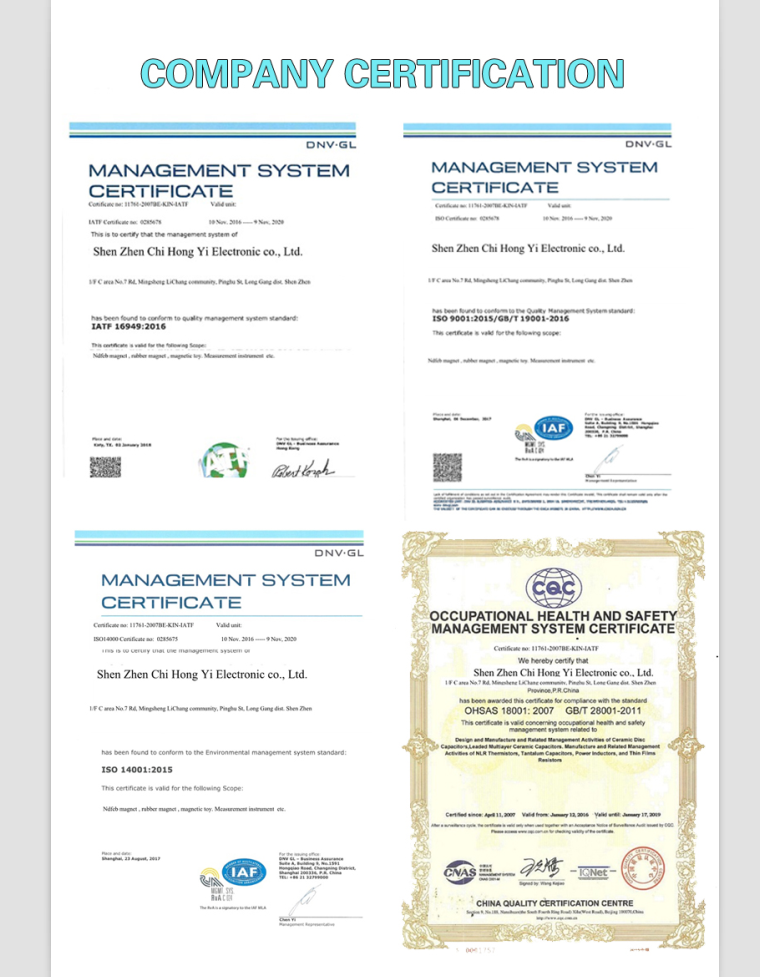

Certifications





Packaging & Shipping









Our Services



We provide 30 days warranty counting from the arrival date of the item.

If the parts you purchased from us are not of perfected quality or they don’t work, please simply return them to us for replacement or refund.

If the part is defective, please notify us within 3 days after arrival.

Any parts must be returned in their original condition to qualify for a refund or replacement.

Company Information







FAQ




A: We are UNI-T Original factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
