Description

Newest CNC1610 15W Wood Router Laser Engraving Machine Blue Laser 500mw 1500mw 5500mw 15000mw PCB Metal Wood Carving Machine

Advantage:if you buy from our EU warehouse or AU warehouse,you will not pay customs tax or other extra fee.we will pay it.please don’t worry.

Product Display:

working area	260x240x220mm
Frame size	160 x 100 x 40mm
Mesa	16×10cm
Spindle	775 spindle motor(12-36V)24V:10000r/min
Step motor	Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M
Power supply	24V 5A

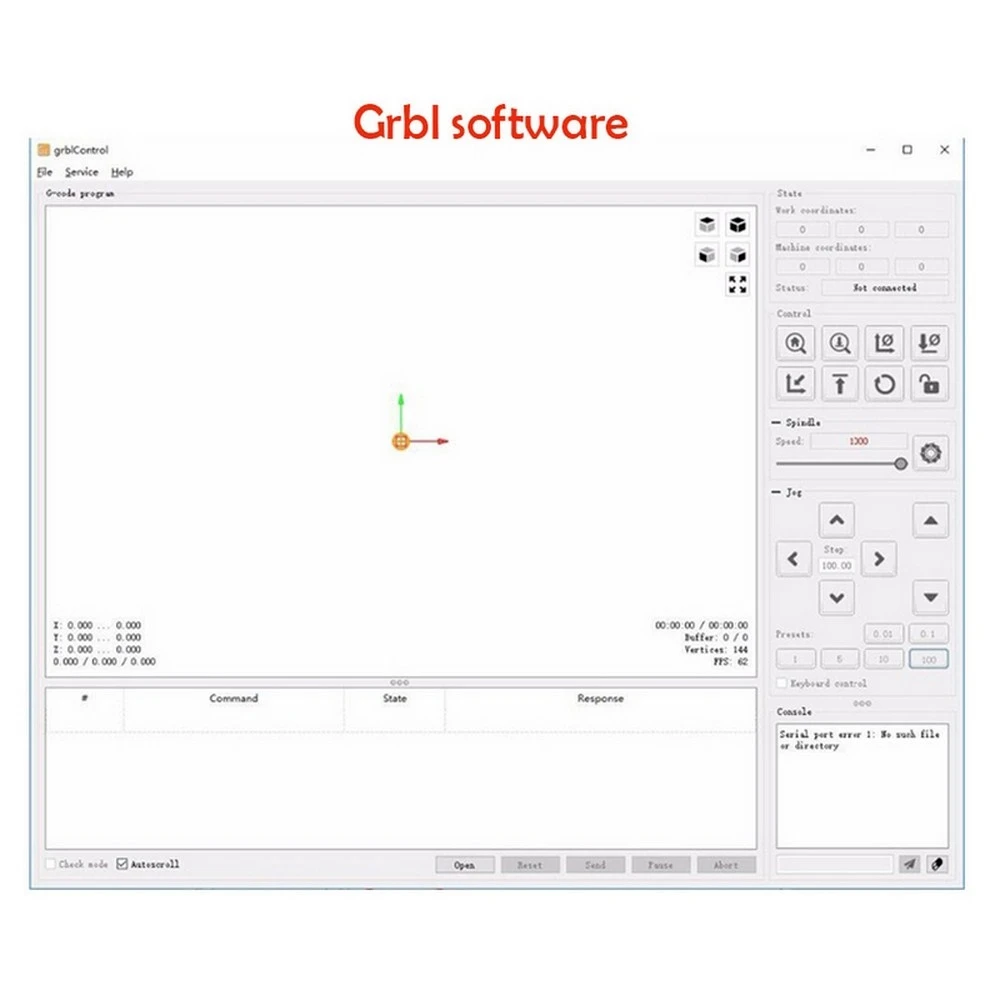

Software	GRBL controller (Firmware GRBL v1.1)
supported system	Windows(Do not support Mac)
Drill bits	Free 10pc drill bit
clamps	Free 4pcs

The latest laser, blue laser, is more stable! ! !

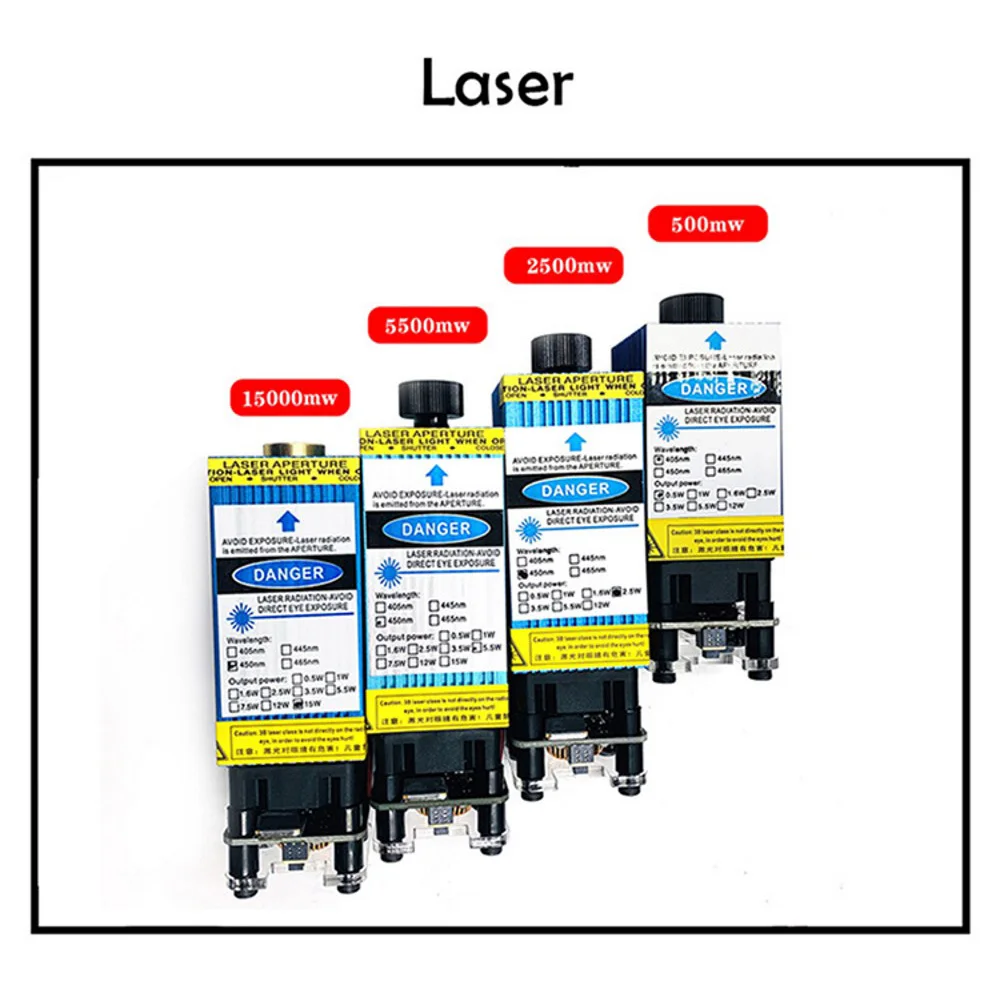

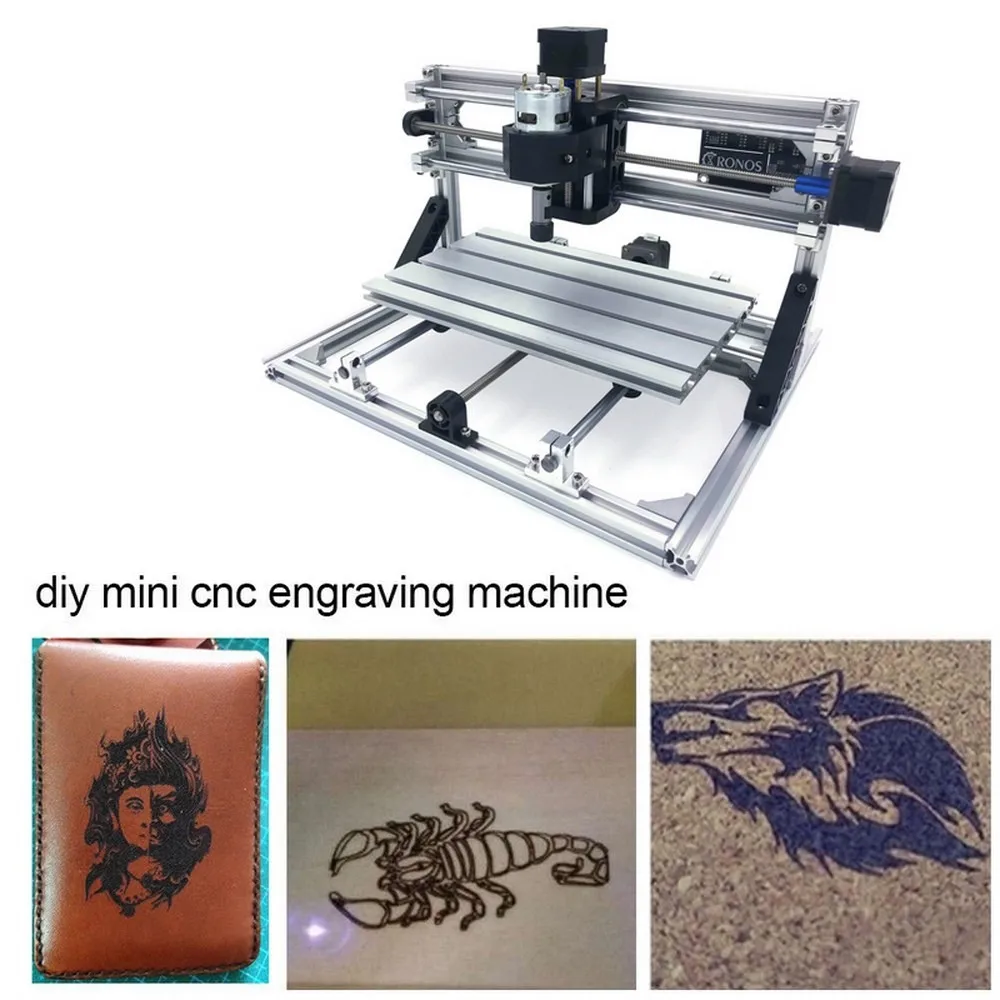

1,Disassembled pack mini CNC 1610 laser head CNC engraving machine 500MW/2500MW/5500MW/15000mw Milling Machine Wood Carving machine DIY MINI CNC router with GRBL control

2,NEW CNC Firmware GRBL v1.1 control Diy mini cnc machine,3 Axis pcb Milling machine,Wood Router laser engraving,with offline controller

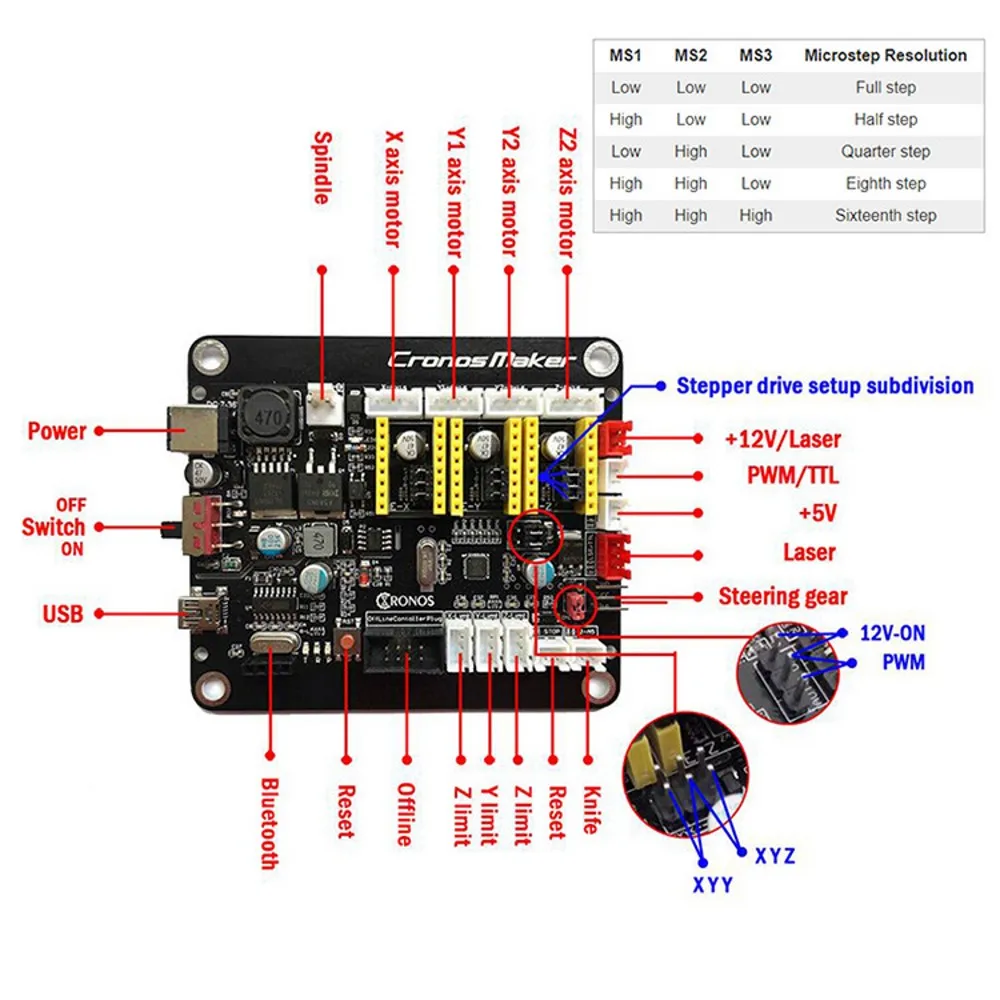

3,The Firmware GRBL v1.1 control is easy to operate and supports offline. The control panel with supports 2P or 3P lasers. Equipped with a laser with a 33mm acrylic blue size.Customers who purchase the standard can install 33mm 2P 3P lasers.

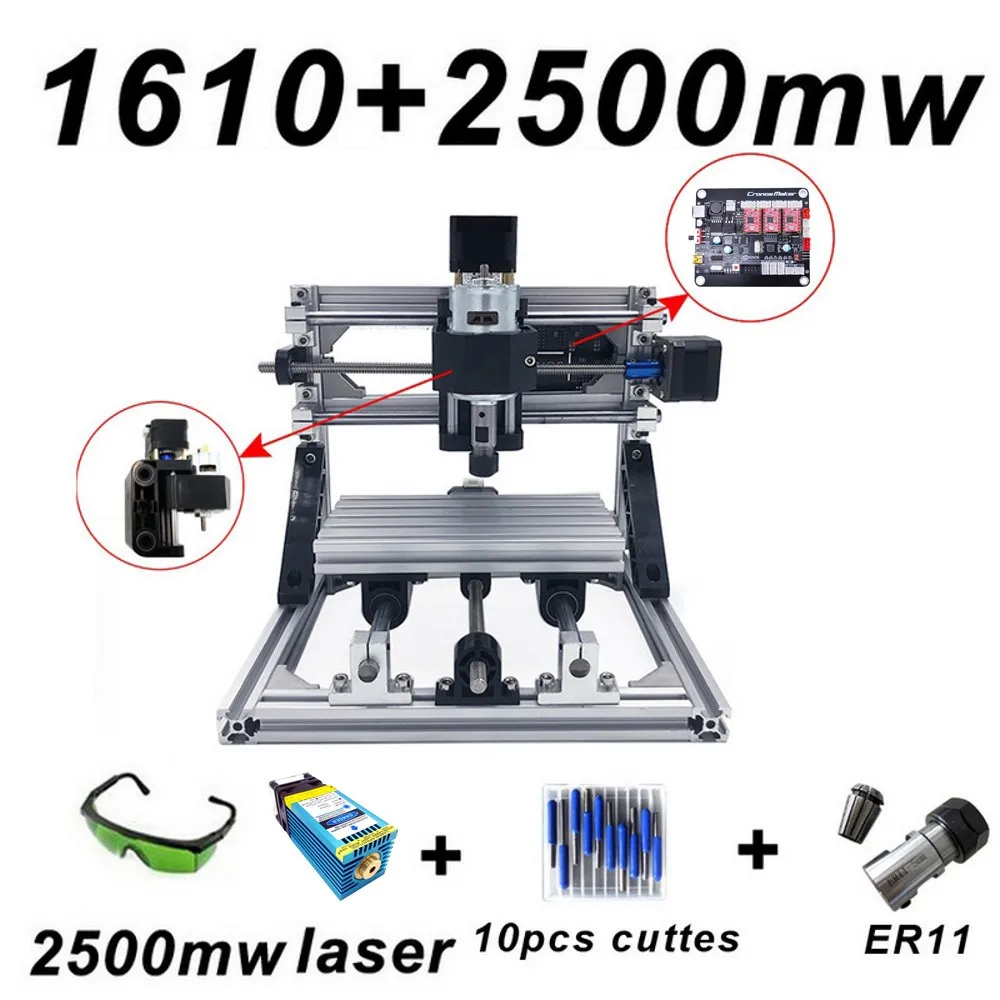

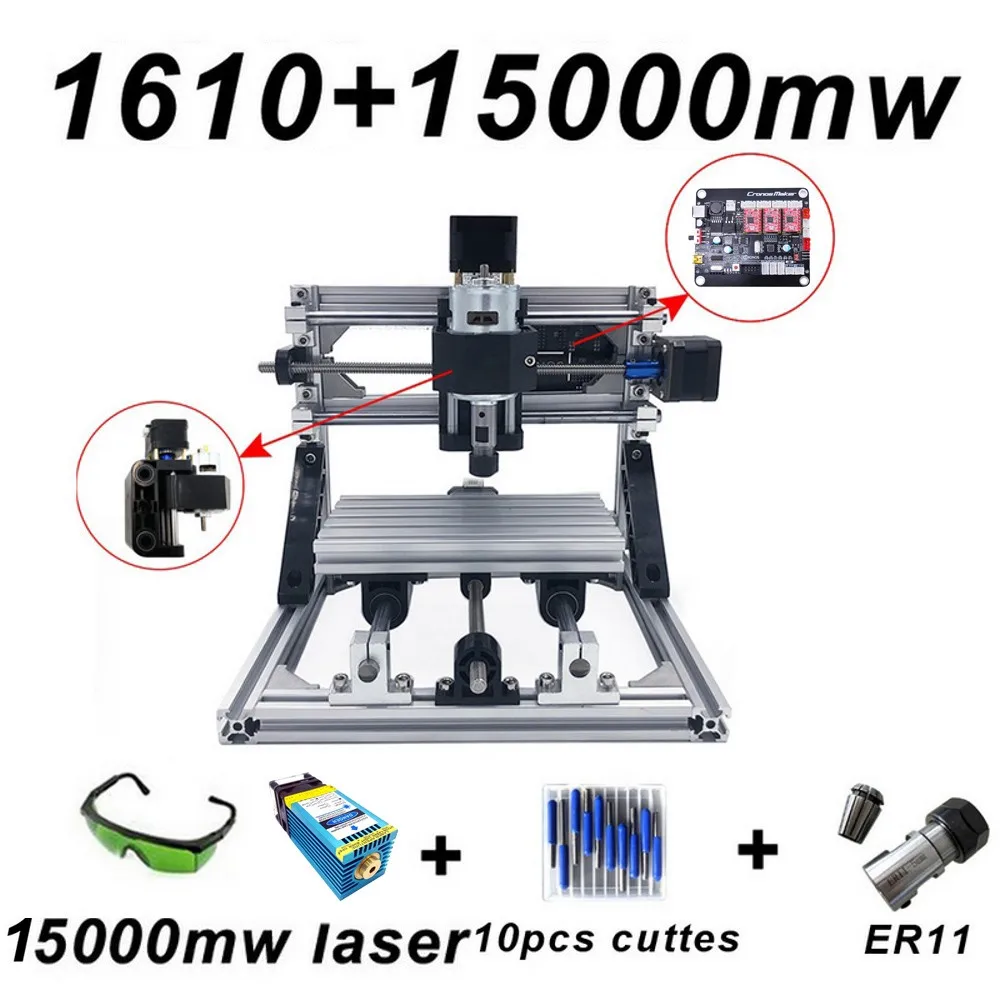

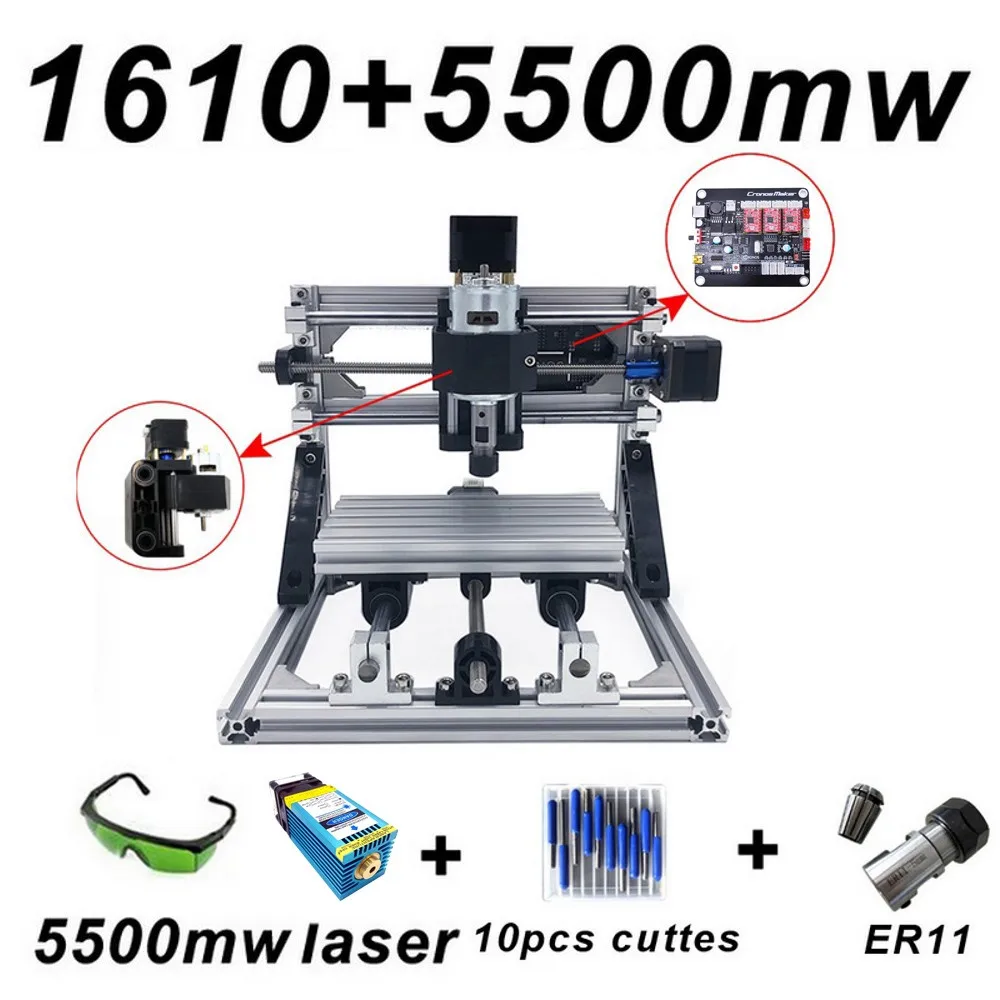

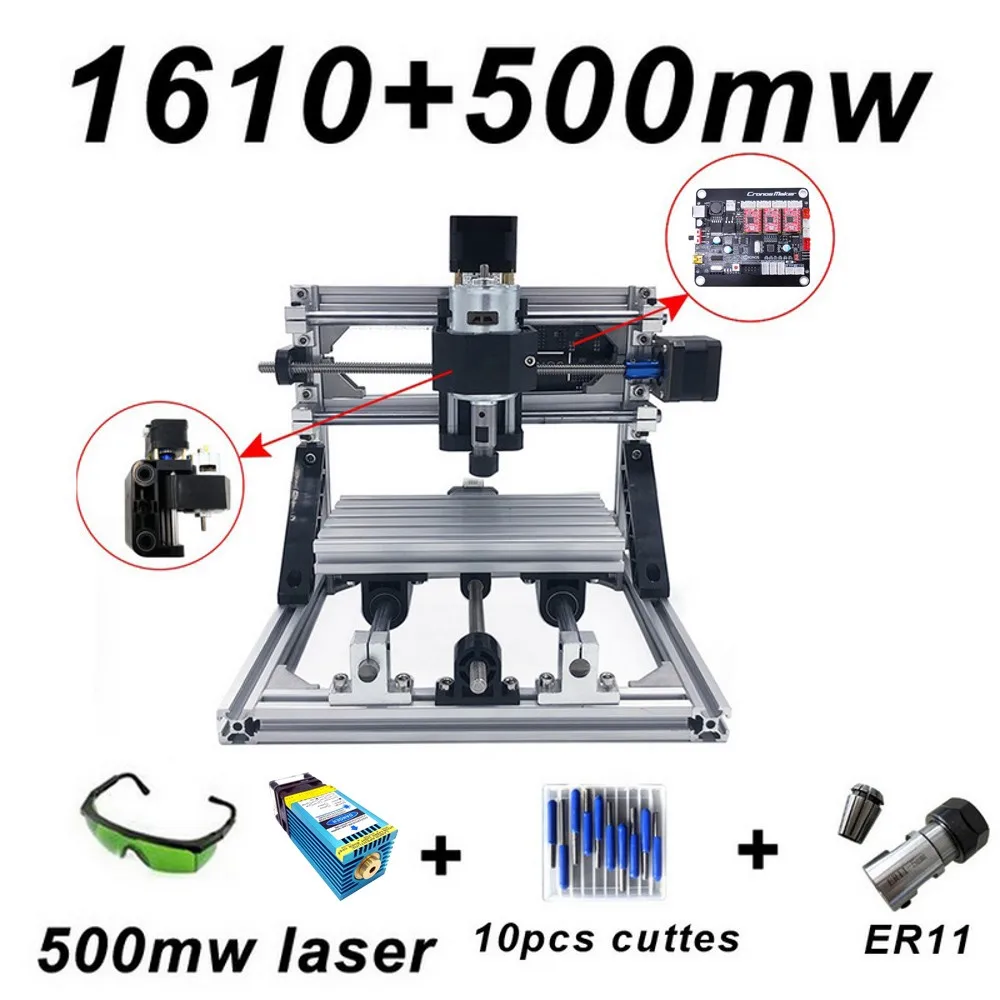

Package inclued:

1pcs Full set engraving machine

Free gift:

20 degree knife x 10

ER11 Kit x 1

Mini clamp x 4

Specification:

• Material:stainless steel and acrylic
• Size: 260x240x220mm (XYZ does not include motor protrusion)
• Stroke: 160 x 100 x 40mm

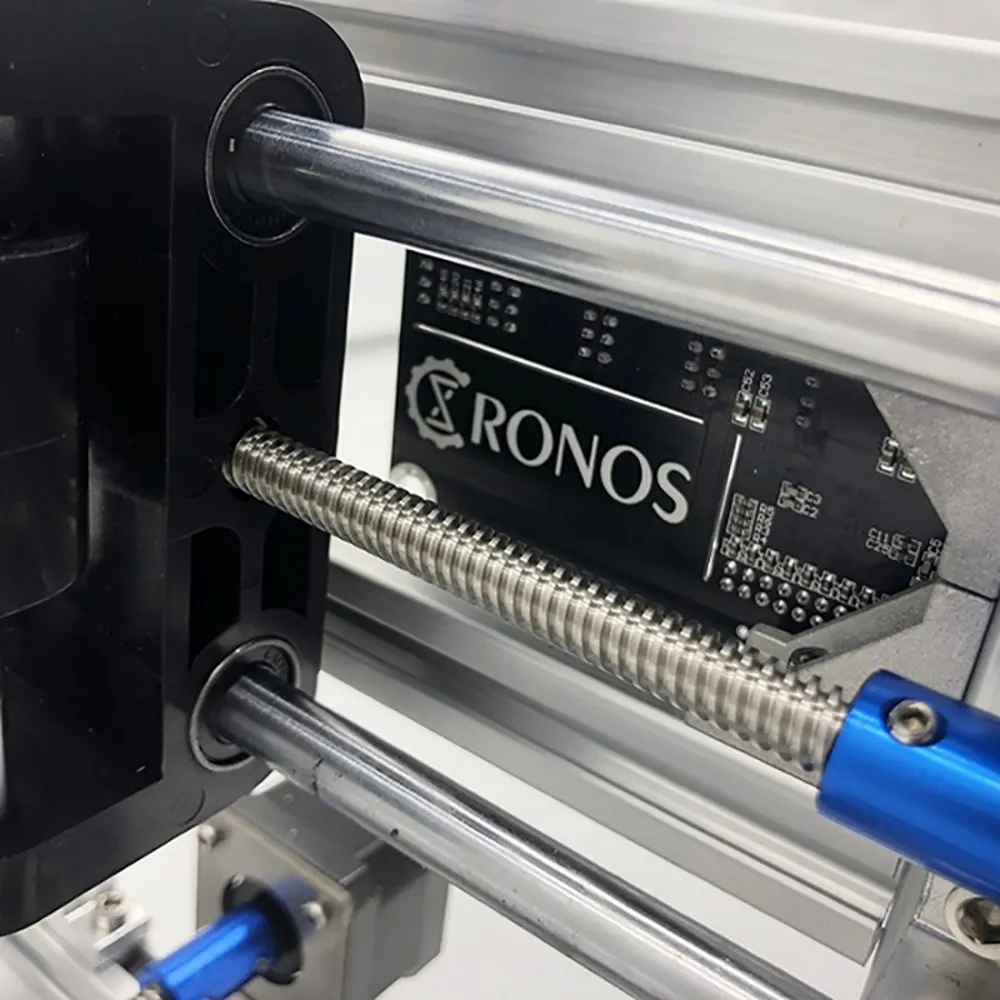

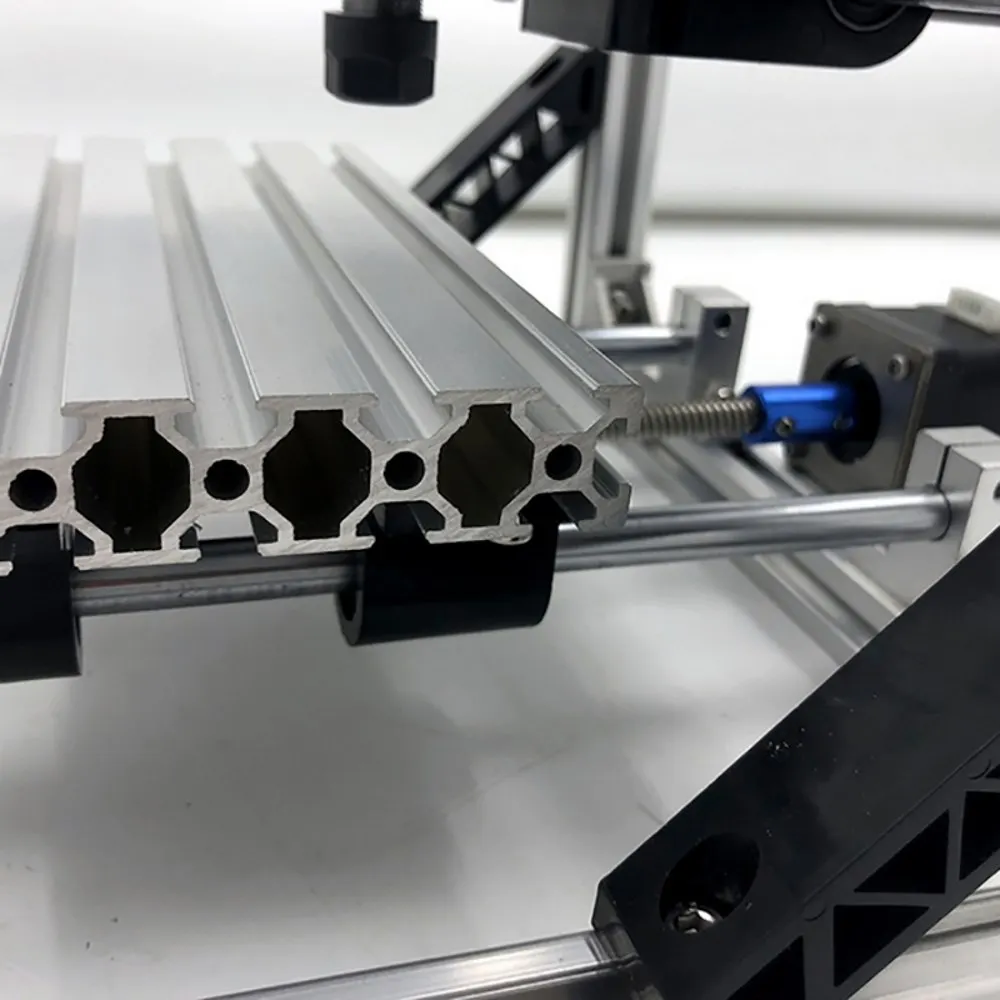

• Screw: Professional T8 screw, lead 4mm, double copper nuts eliminating backlash
• Stepper motor: 12V, 1.3A, 2.1Ω, 0.25N.m

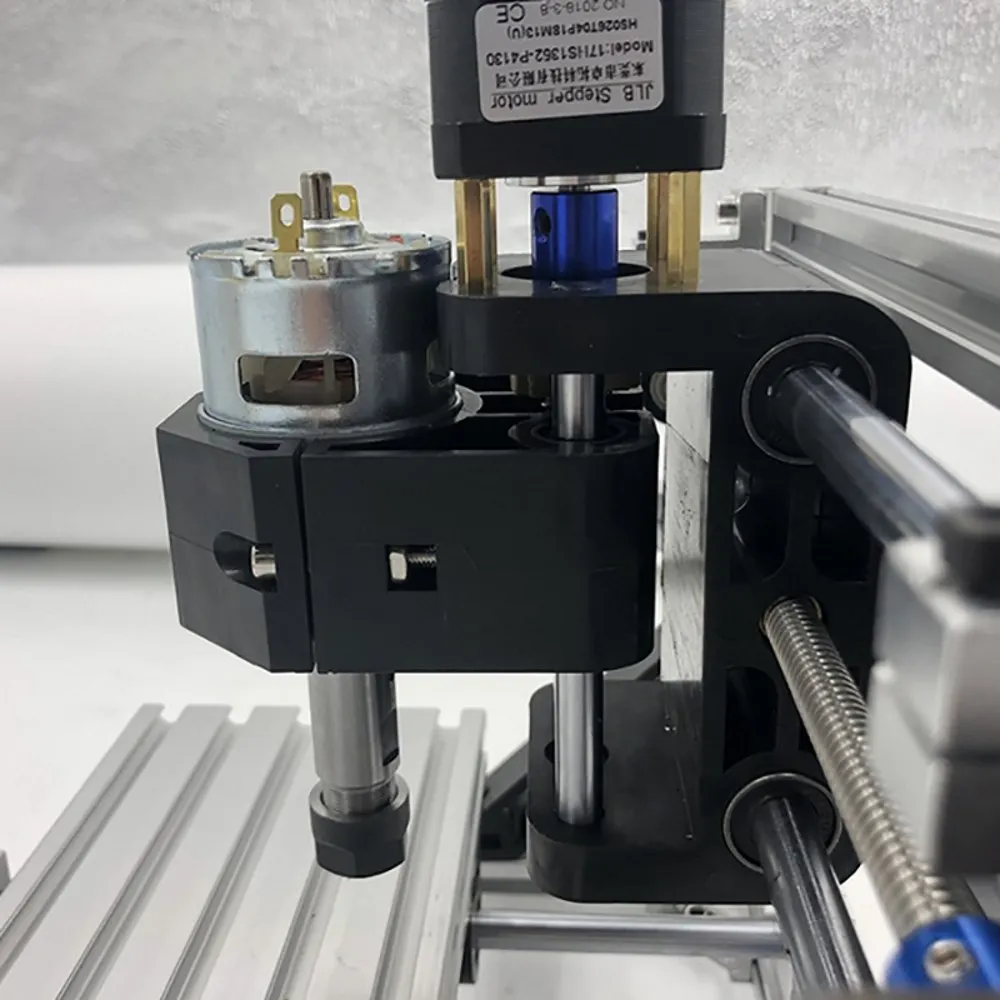

• Spindle: 12-36V 7000r / min
• Power: stepper motor (12V 3A), the spindle (24V 5A)
• Countertops: 100X180mm
• Software: GRBL controller, usb port
• Support system: WIN7/8/10/XP
• Standard :The complete set of the parts and tools

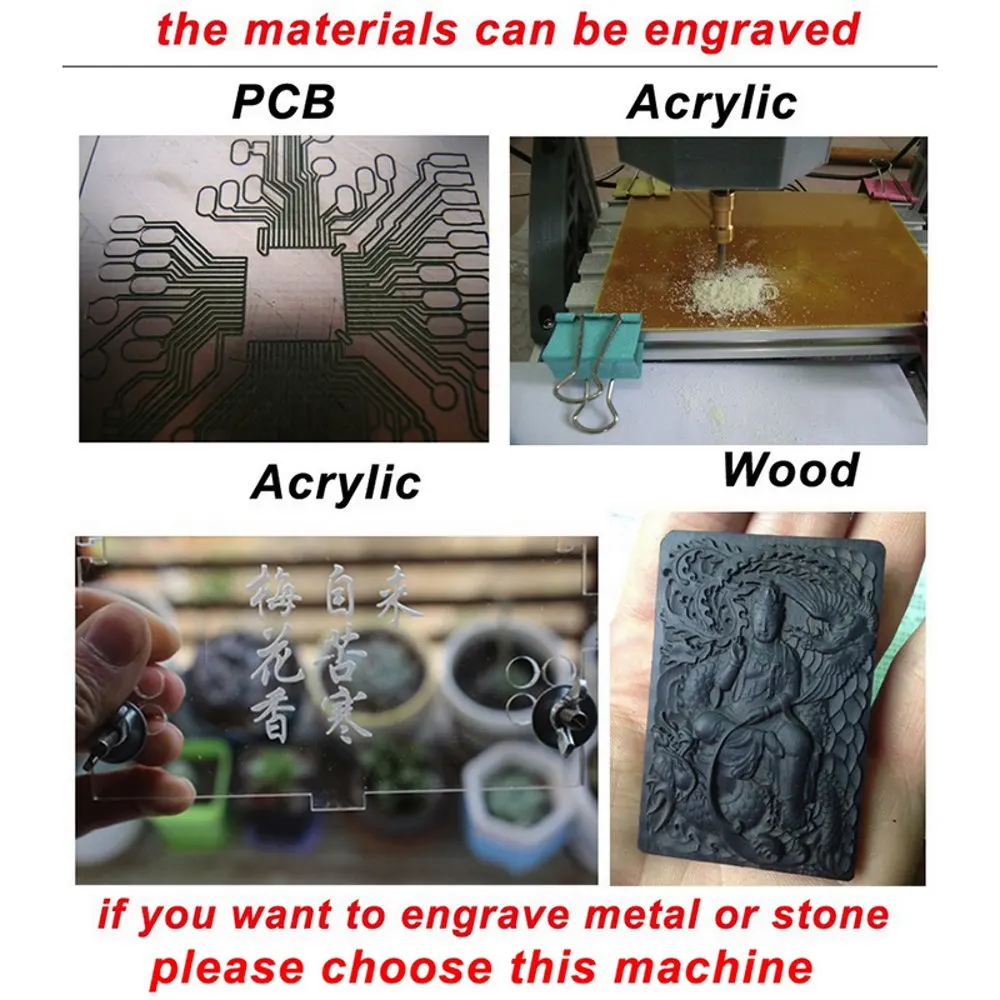

500mw/2500mw/5500mw engraved material: Plastic, wood, acrylic, PVC, PCB and other soft materials

Cuttable material: paper, wood board within 3MM (slow speed, need to cut repeatedly), leather, cloth, etc.

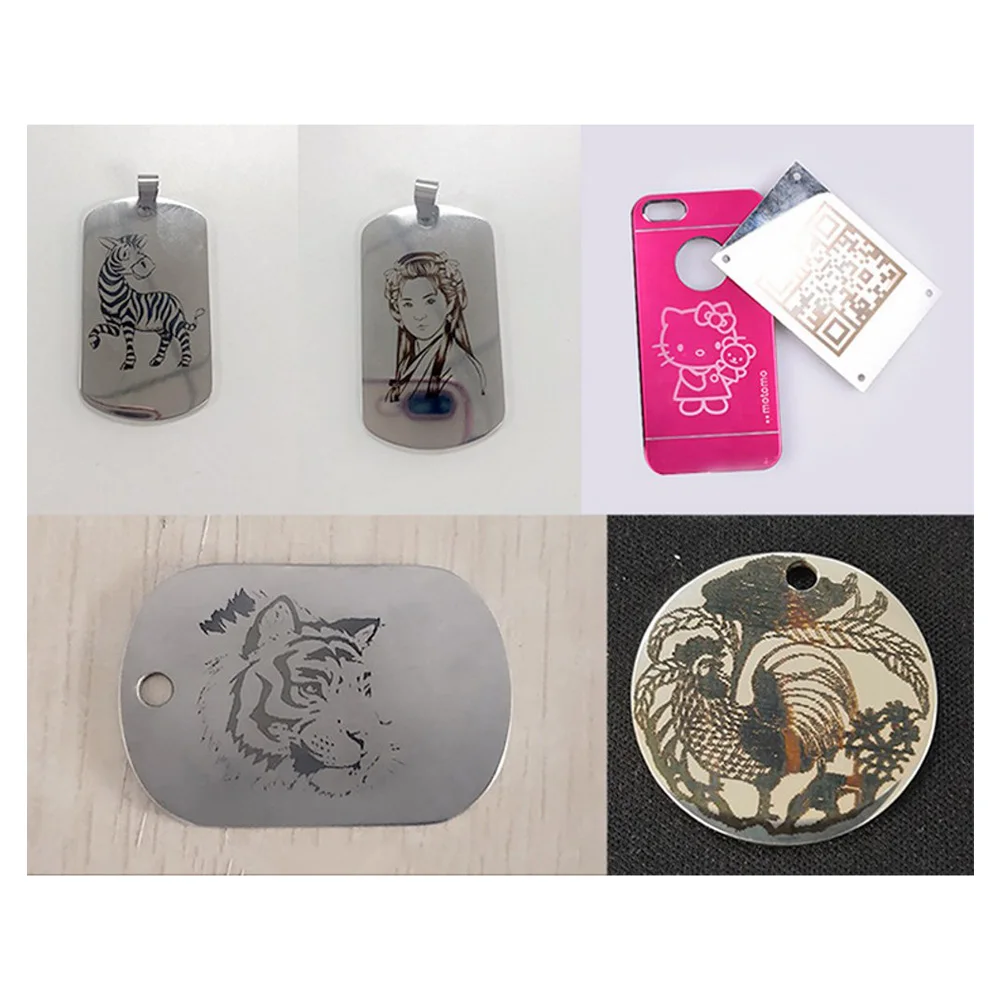

The 15W can also be engraved on the stainless steel surface and the anode colored aluminum alloy surface on the basis of 5500mw. (When drawing the surface of the 304 stainless steel, please use a large pen to blacken the surface and then engrave)

Anything transparent and translucent and silver reflective can’t be cut!!!

Important Notice:

1. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to enjoy minus tolerance to the spindle so you cannot put it on directly.

2. Contact us for more details.

!In the process of using, please wear professional protective glasses

!Forbid children to play

!Suggested that the laser light in the case of focus, the power is too strong, do not use strong

light to illuminate the skin

!Avoid the use of flammable objects or gases in order to avoid causing a fire or explosion

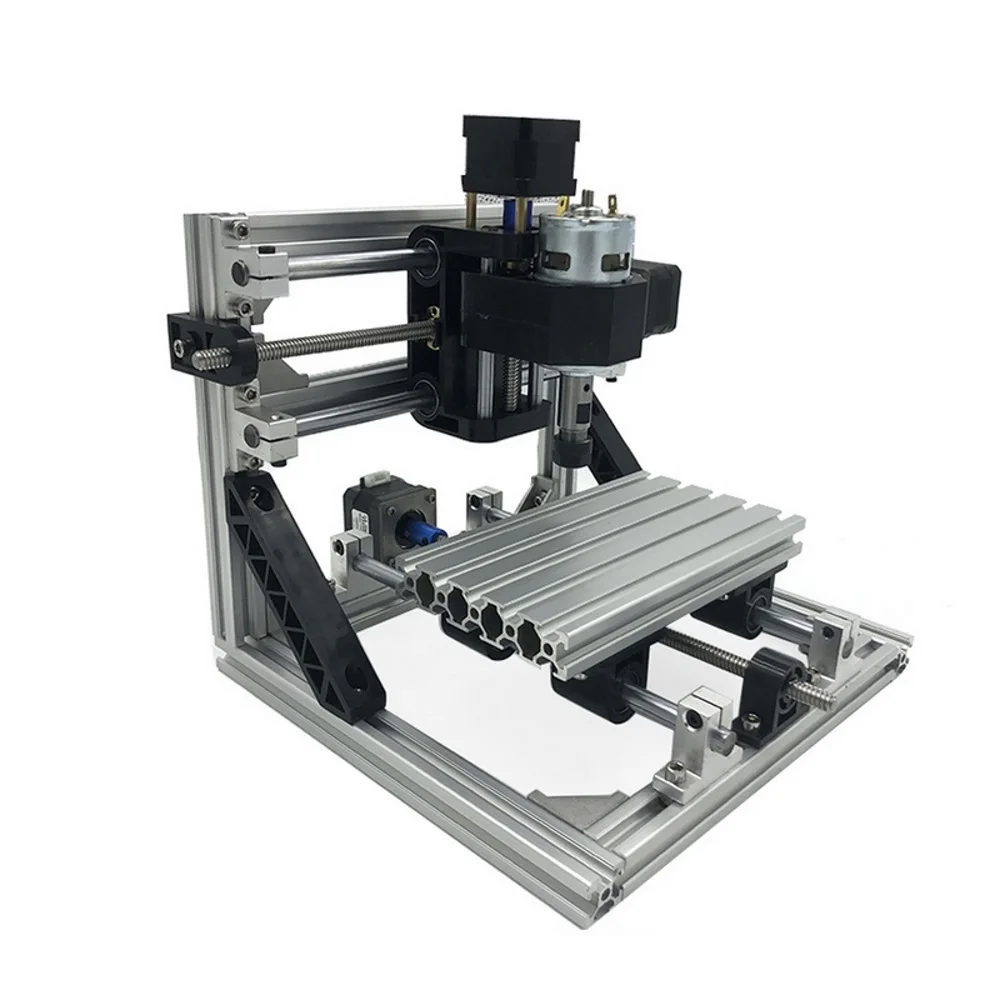

Product Display:

Package list:

As picture showes!

Important Notice:

1. All the light utilized on this CNC machine cannot work on any metal. The light cannot cut plywood.

2. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to enjoy minus tolerance to the spindle so you cannot put it on directly.

3. Contact us for more details.
