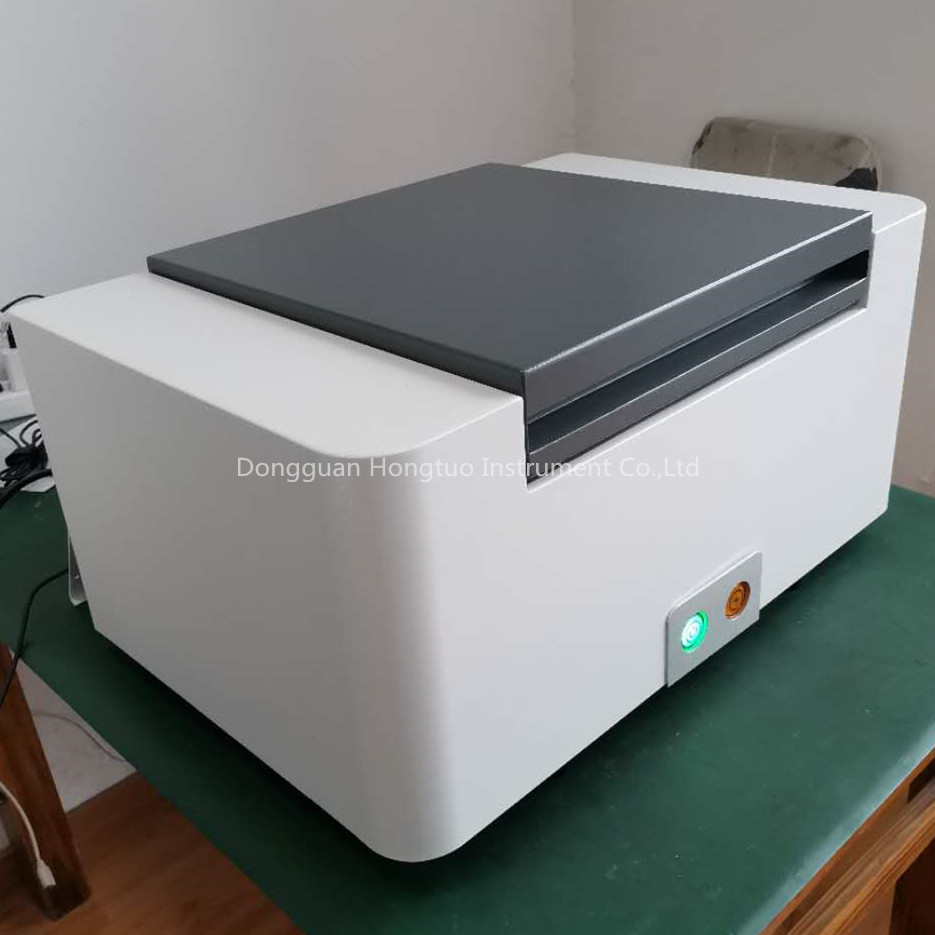

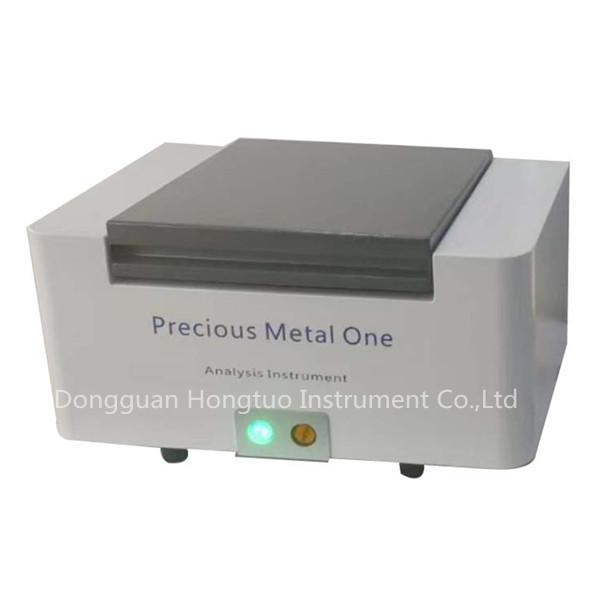

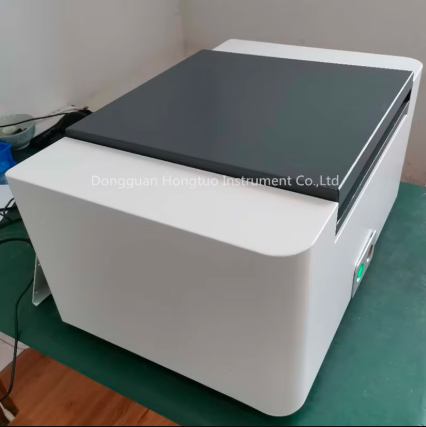

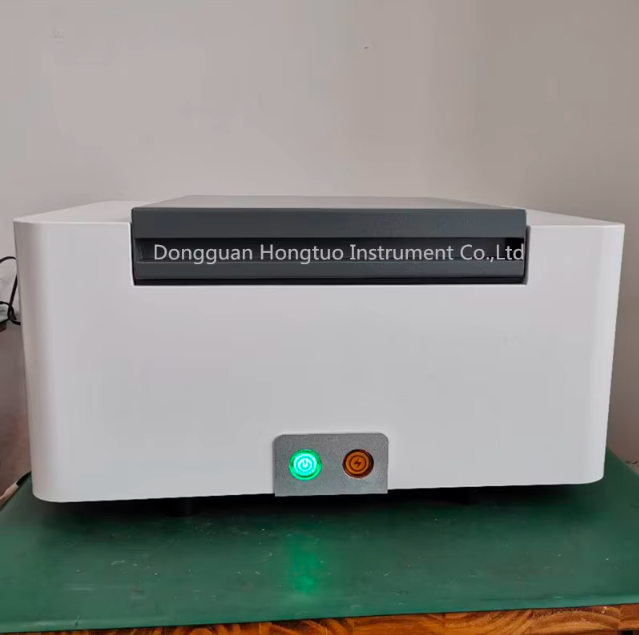

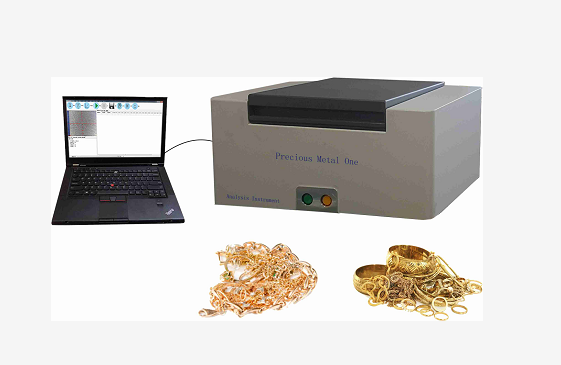

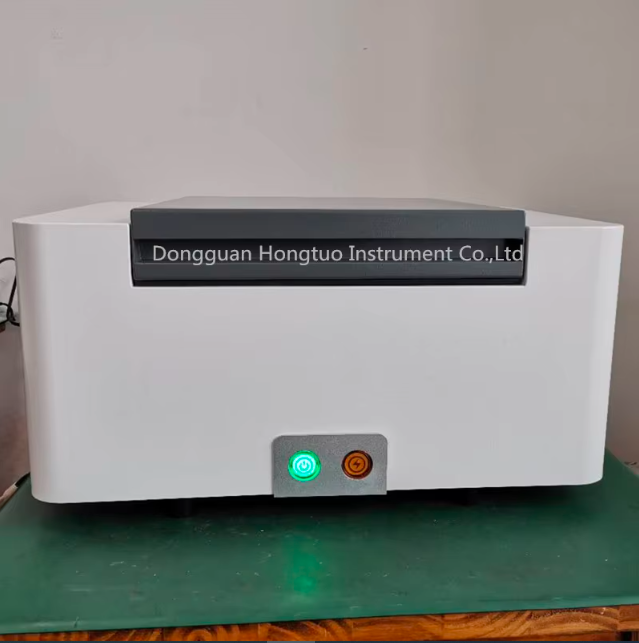

New XRF Gold Testing Machine Price Analyzer Spectrometer With High Quality
Analysis of Precious Metals and Identification of Carats
At present, the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used, extremely popular, and supported by national standards, and reliable methods. The use of XRF for the analysis of precious metals is a faster and more economical method of multi-element detection than spark test and chemical reagent testing.
The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no need to inspect the tool into the material of the sample being tested, or damage the sample. The chemical composition information of the alloy can be obtained.thus determines the carat rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision. In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.
Advantages and Characteristics of Analysis
Ø Ultra-high resolution, ultra-clear camera, ultra-easy operation, ultra-fast detection speed, superhuman interface
Ø Easy to use, one-button operation, you can get the analysis results of carat grade and composition
Ø Innovative features that help identify gold-plated samples
Ø The structure of the fuselage is small and strong, and the shape is very beautiful, suitable for placement in the exhibition room
Ø Accurate results on the chemical composition and carat rating of the sample within seconds of pressing the button

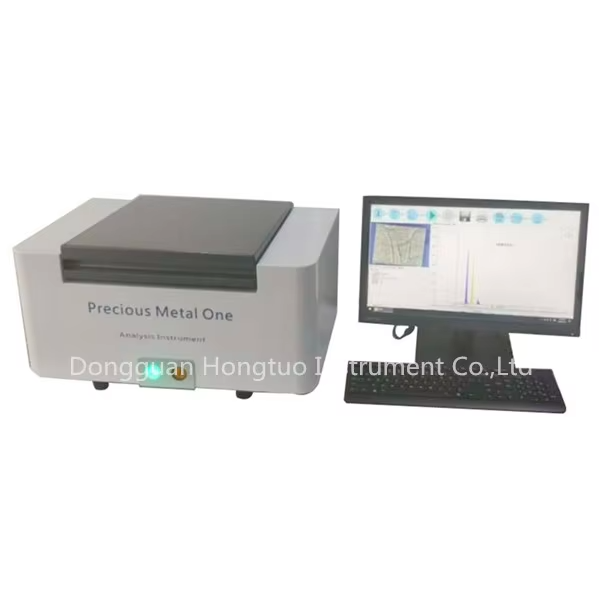

Ø Quick and easy to produce test results certificate for samples by using PC and software
Ø Through the camera and the cabin lighting system, the user can see the test position of the sample and improve the user’s confidence in the test
Ø Instrument model analyzer test data can be downloaded and uploaded to the network,and the test results are easy to view and share

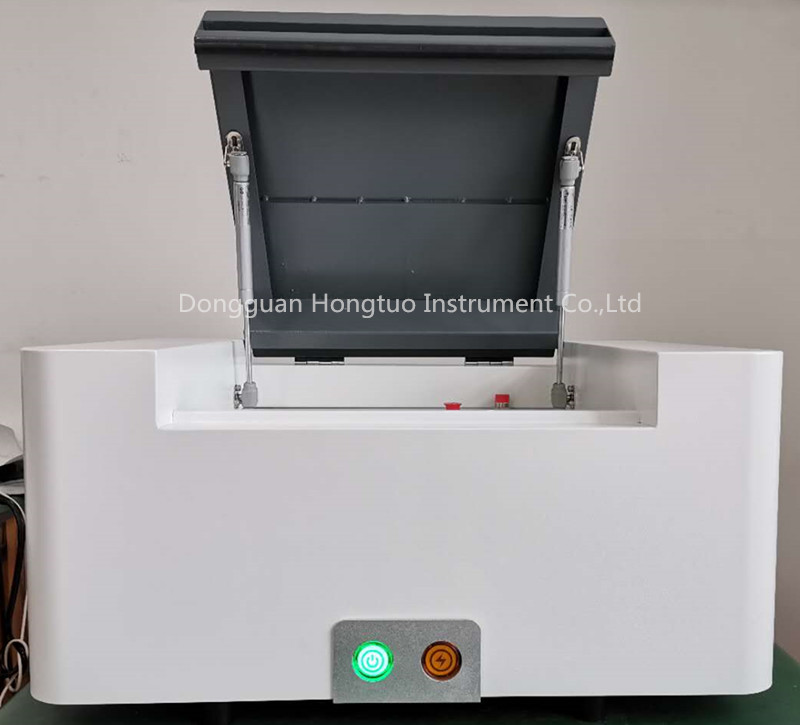

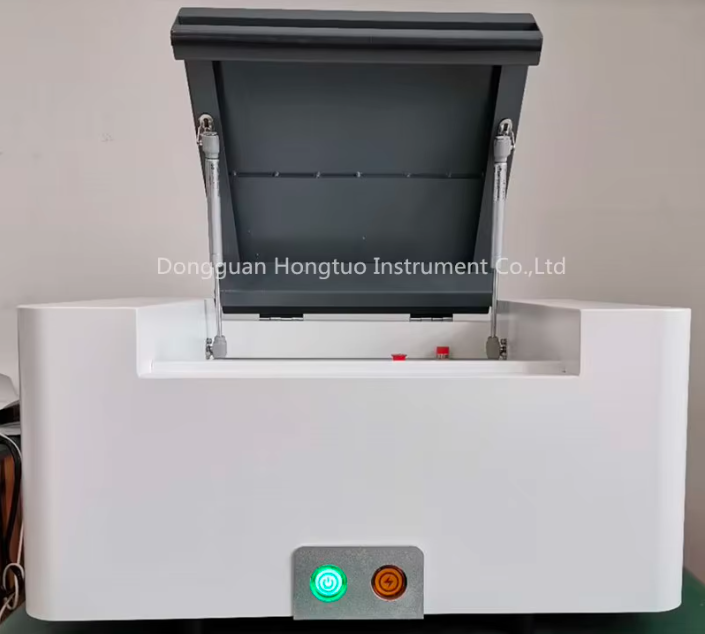

Ø X-ray protection lock, X-ray emission only in the closed state, safe and reliable to ensure customer use
Application and Examples
Accurate analysis of precious metals Au, Pt, Ag, Pd
On-site gold level identification of gold: 0-24 kt
Check the gold content in scrap metal
Identifying impurity materials
Identify unknown metals
Hardware Performance and Advantages
High-resolution, high-definition camera, convenient operation, fast detection speed, user-friendly interface
Instrument Performance and Configuration
Analysis range:1ppm to 100 %
Accuracy:RSD≤0.05% Au≥90%
Physical state of the test sample:Solid, powder, liquid
Elements of interest Precious metals:
Au, Ag, Pt, Pd, Ru, Rh, W, Os, Ir, etc (etc.).
Basic metals Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc (etc.).
Light pipe voltage:5KV ~ 50KV
High voltage power supply:0 ~ 50KV Spellman (USA)
Light pipe flow:0μA ~ 1000μA
HD camera
Filters:Choose from a variety of custom switches
Detector:Si-pin/SDD (optional)
Resolution Si-pi:160±5eV/SDD135±5eV
Multichannel analyzer:DMCP

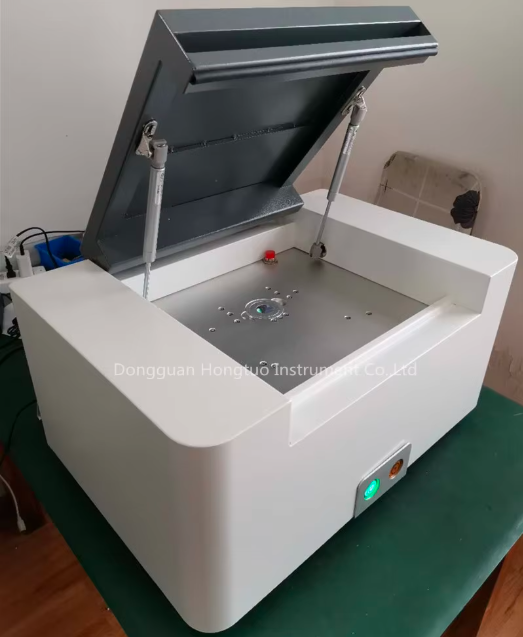

Sample chamber size:310*280*60(mm)
Test time:30sec ~ 100sec
Instrument Environment Requirement
Ambient temperature:15 ° C ~ 30 ° C
Relative humidity:35% ~ 70%
Power Requirement:AC 220V±5V, 50/60HZ
Analysis software:FP qualitative and quantitative analysis software
External dimension:380*372*362(mm)
Weight:31Kg
