Description

The VL53L1X is a state-of-the-art, Time-of-Flight
(ToF), laser-ranging sensor, enhancing the ST
FlightSense product family. It is the fastest
miniature ToF sensor on the market with accurate
ranging up to 4 m and fast ranging frequency up to
50 Hz
Housed in a miniature and reflowable package, it
integrates a SPAD receiving array, a 940 nm
invisible Class1 laser emitter, physical infrared
filters, and optics to achieve the best ranging
performance in various ambient lighting conditions
with a range of cover window options.
Unlike conventional IR sensors, the VL53L1X uses
ST’s latest generation ToF technology which allows
absolute distance measurement whatever the target
color and reflectance.
It is also possible to program the size of the ROI on
the receiving array, allowing the sensor FoV to be
reduced.

Fully integrated miniature module
Size: 4.9×2.5×1.56 mm
Emitter: 940 nm invisible laser (Class1)
SPAD (single photon avalanche diode)
receiving array with integrated lens
Low-power microcontroller running advanced
digital firmware
Pin-to-pin compatible with the VL53L0X
FlightSense ranging sensor
Fast and accurate long distance ranging
Up to 400 cm distance measurement
Up to 50 Hz ranging frequency
Typical full field-of-view (FoV): 27 °
Programmable region-of-interest (ROI) size on
the receiving array, allowing the sensor FoV to be
reduced
Programmable ROI position on the receiving
array, providing multizone operation control from
the host

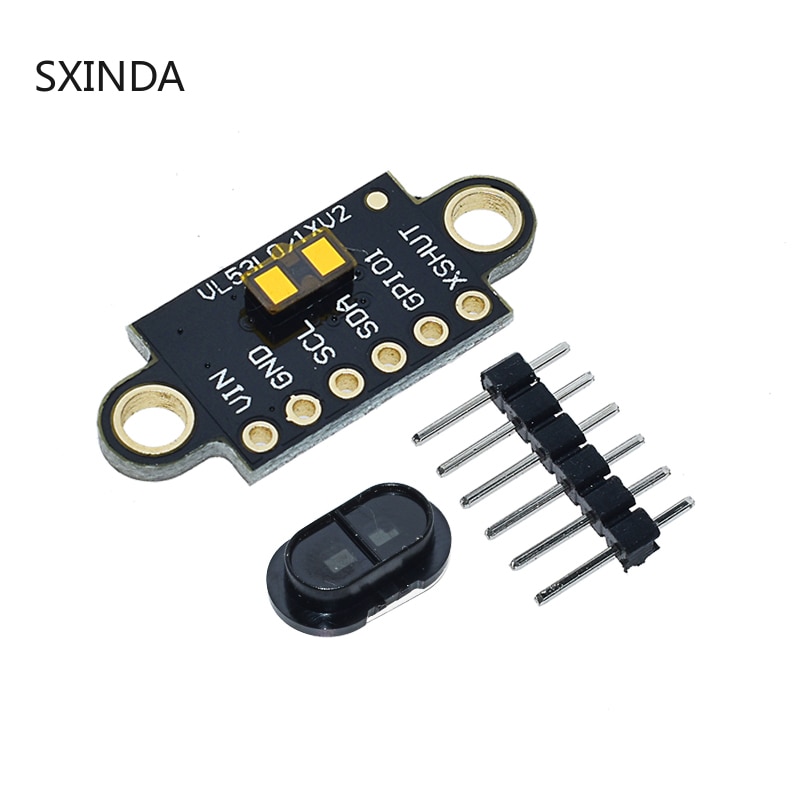

Easy integration
Single reflowable component

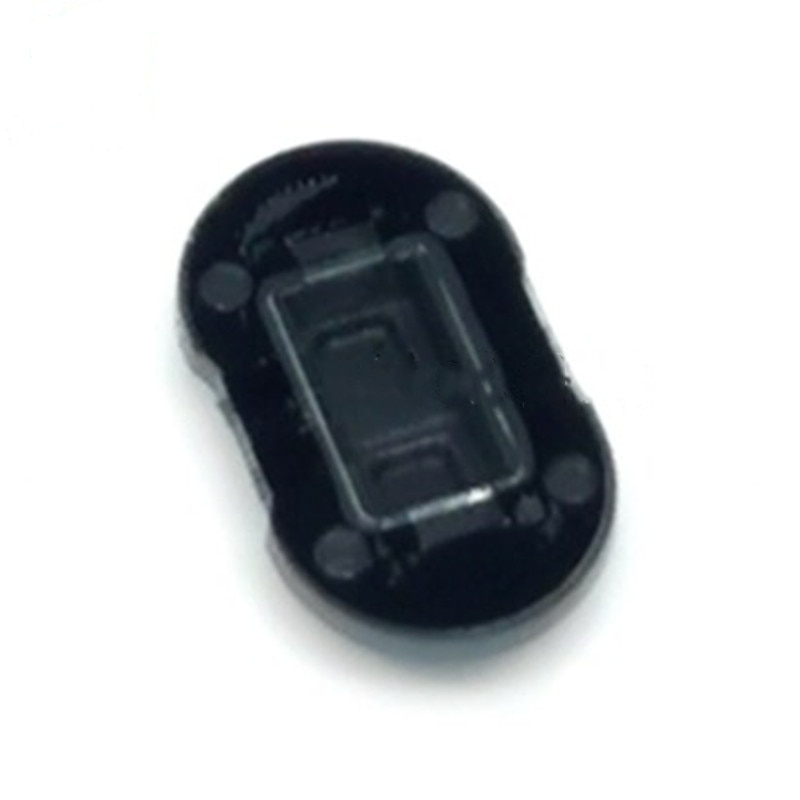

Can be hidden behind many cover window
materials
Software driver and code examples for
turnkey ranging
Single power supply (2v8)
I²C interface (up to 400 kHz)
Shutdown and interrupt pins
