New Upgraded Blue laser 500mw/2500mw/5500mw 15W Mini CNC1610 with ER11,mini cnc laser engraving machine,Pcb Milling Machine

This product is currently out of stock and unavailable.

SKU: 32900353163 Category:

Description

  • Brand Name: Nakupenda
  • Condition: New
  • Model Number: CNC 1610
  • CNC or Not: CNC
  • Certification: CE
  • Working area: 160*100*40mm
  • Spindle Collet type: ER-11 1-7mm
  • Spindle: Air Cooling Spindle
  • Spindle Power: 80W








New Upgraded Blue laser 500mw/2500mw/5500mw 15W Mini CNC1610 with ER11,mini cnc laser engraving machine,Pcb Milling Machine


Upgraded

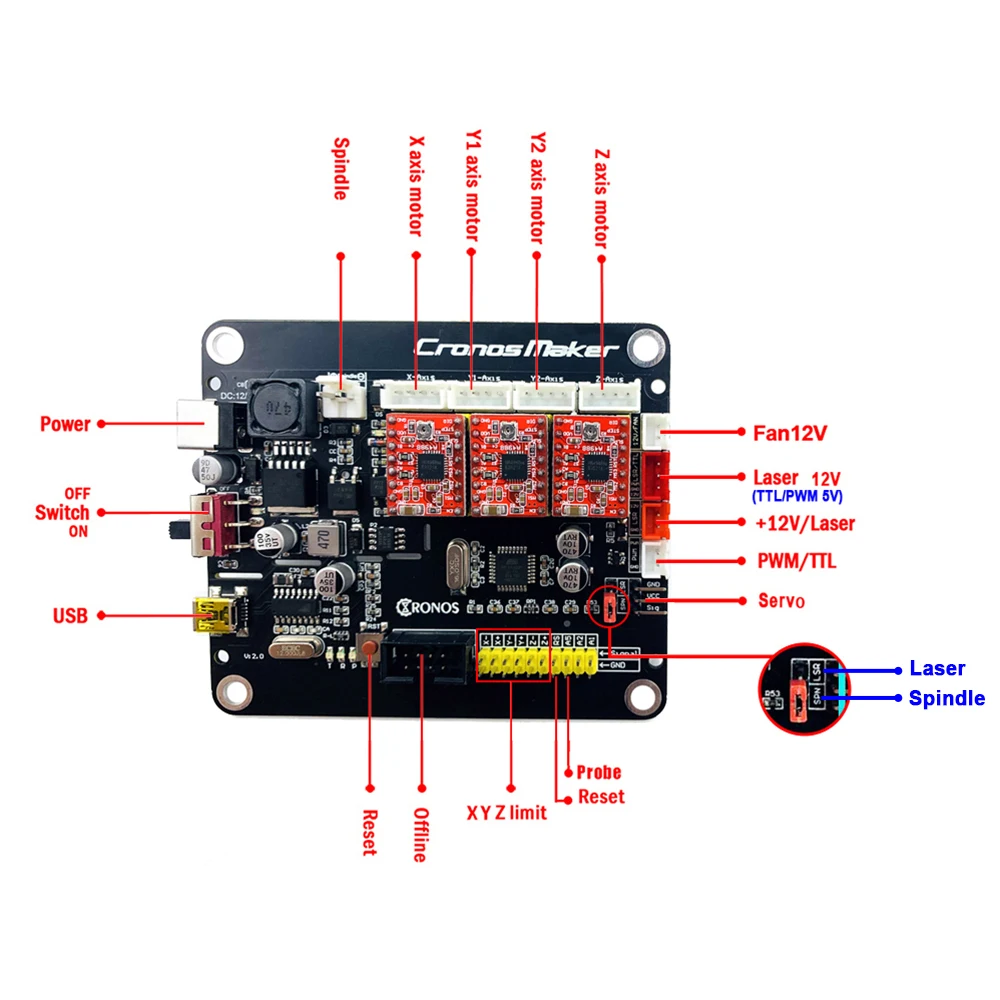

  • Control board:Three-axis drive, dual Y-axis
  • Laser:Support offline laser output 2P / 3P, Support PWM TTL function
1

Friendly reminder:
The 15W can be used in engraving on stainless steel(sus304 etc) surface and aluminum alloy surface.



Applications

1. Three-axis CNC engraving: wood, plastic, PCB, acrylic, plywood, etc.

2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.

3. 15W laser can engrave metal materials such as SUS 304 stainless steel.


Warranty service

One-year’s warranty,all your after-sales problems under protection.

15-day’s part free warranty,any parts damaged within 15 days after receiving the product will be replaced.

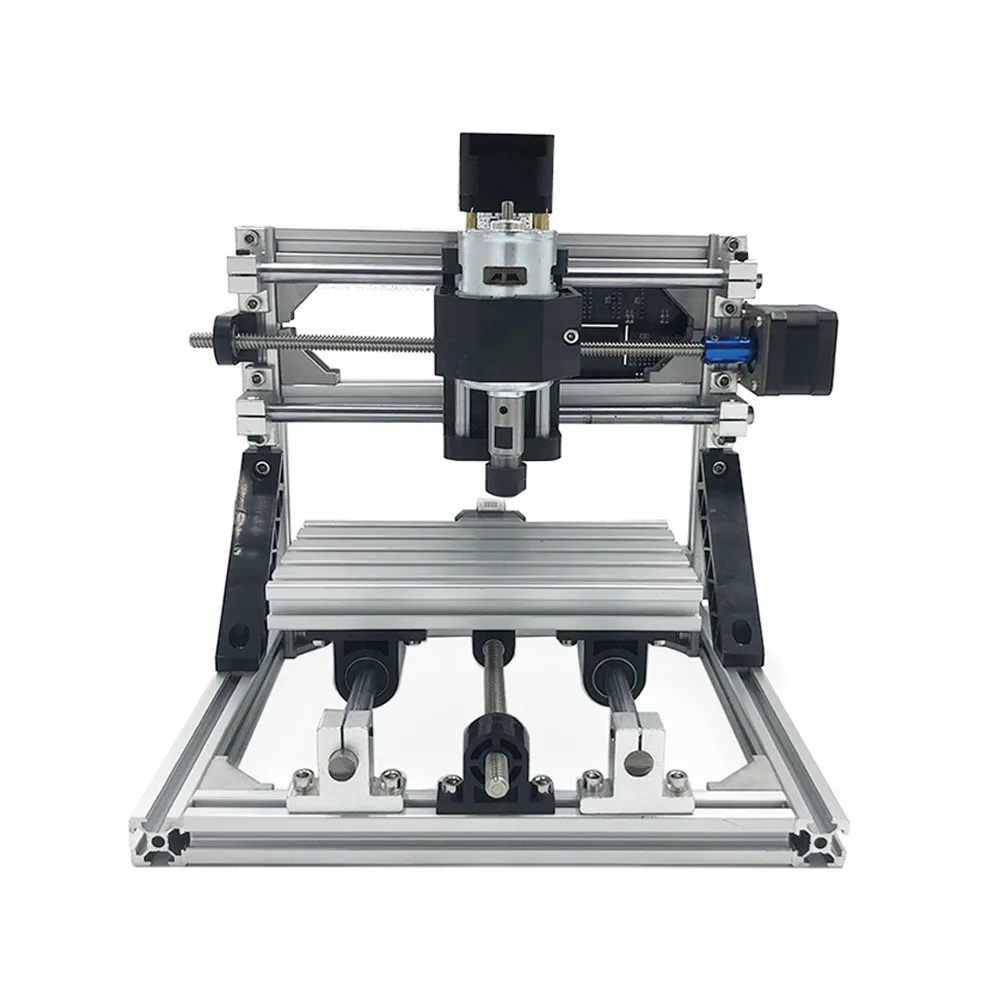

Brief introduction



A. What area it can used for?

CNC 1610 router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.



B. What materials it can used for?

It can work for Wood, acrylic,plastic, PCB ,PVC Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.



C. Samples







1610 2

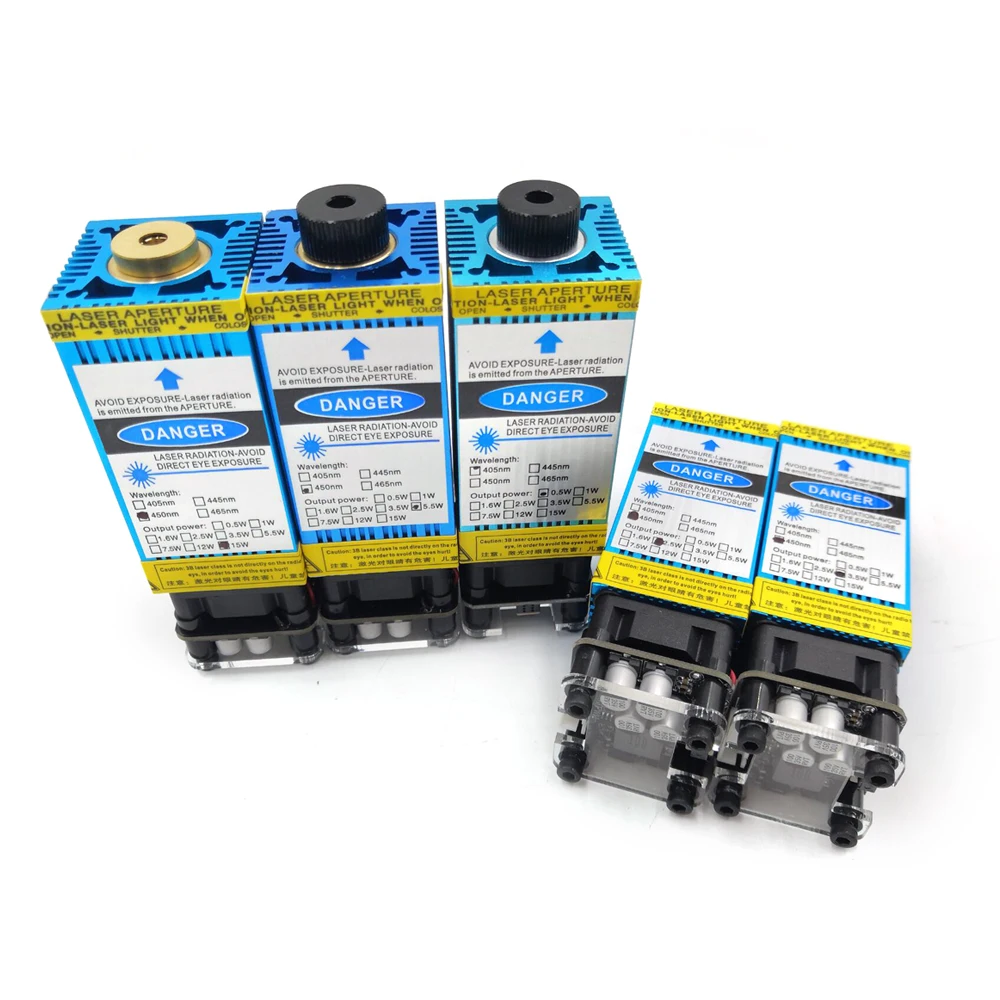

  • Upgraded 500mW/ 2500mW/ 3500mW / 5500mW/ 15W Laser Module
  • Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.
  • Laser wavelength: 445nm-450nm blue laser
  • Drive mode: external ACC constant current drive
  • Cooling method: forced air cooling
  • Operating voltage: 12V  DC
  • Control interface: 2 * 2.54 (TTL control switch, PWM control power)
  • Shell material: aluminum, surface anodized

1610 11



1610 61610 8

About software and instructions

A 4GB USB Flash Drive includes software and installation instructions along with the package.

You can also download from our Web Cloud Disk(We’ll send you after shipment).

Or tell me your email address, we’ll send you the software and installation instructions.

Our Customers





34







Shipping Methods:



1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.

    2)Air/Sea Shipment: Please provide us your air port information.

2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.

3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days     will be needed for some remote place.



Shipment Time:



1. For samples within 1-3 workdays

2. Wholesales Orders : 2-5 workdays according to different quantities

3. OEM orders:7-10 days after receiving your sample confirmation and payment.



Problem and Feedback:



Please contact us first when you have problem

Give us the opportunity to resolve any problem

We will try our best to help you to solve the problem.



Your satisfaction is very important for our store,

So please contact us before you want to leave a negative feedback.

Thanks very much in advance.



Refund:



If you are not satisfied with our package like the products is damage,

Please  contact us immediately,well help you r refund if its our mistake .

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
