Description
- Origin: Mainland China
- Item Type: BALL

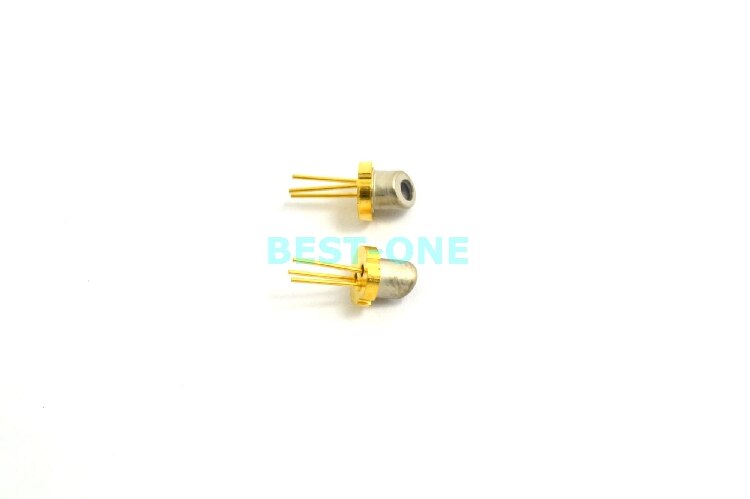

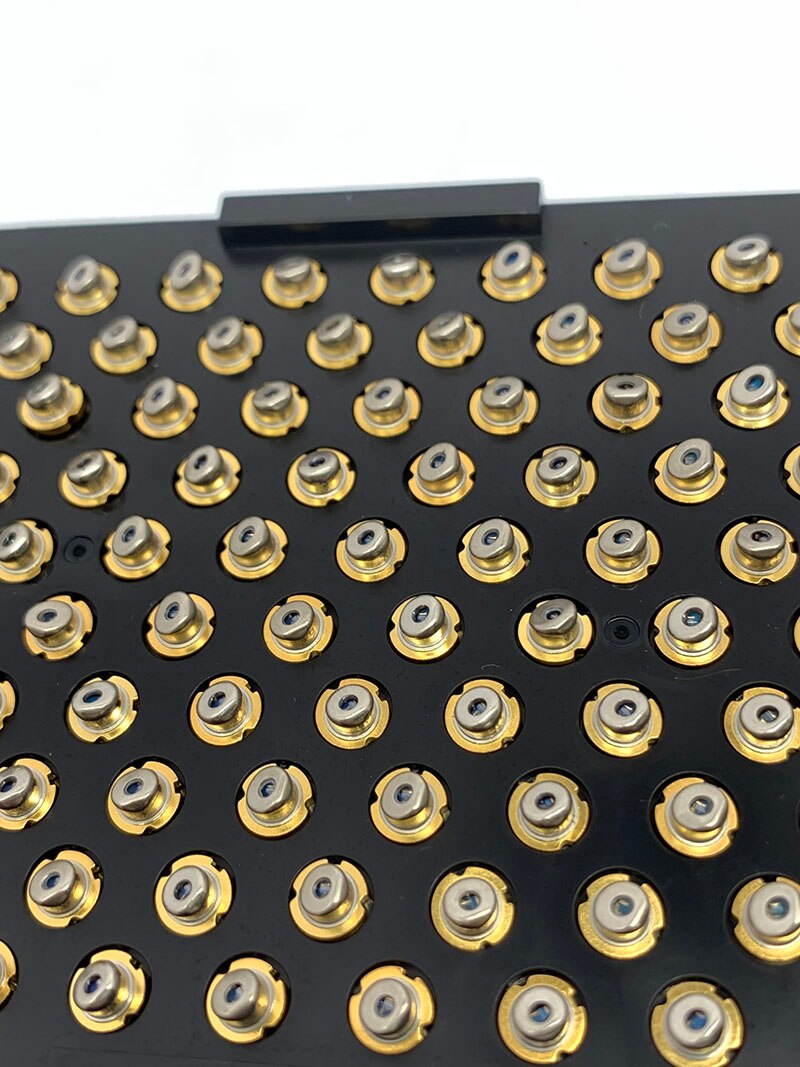

New SONY KSS-151A 780nm 790nm 5mW laser diode /780nm 790nm 304 6FN CD laser diode
Specifications:
Wavelength:780nm
Light Output: 3-5mW CW
Package Type:TO-18(Φ5.6mm)
Absolute Maximum Ratings(Tc=25℃)
Parameter |
Symbols |
Ratings |
Units |
Optical Output(功率) |
Po |
3 |
mW |
Reverse Voltage(电压) |
Vr |
2 |
V |
Operating Temperature(工作温度) |
Top |
– 10 ~ 50 |
℃ |
Storage Temperature(储存温度) |
Tstg |
– 40 ~ 85 |
℃ |
Electrical and Optical Characteristics(Tc=25℃)
Parameter |
Symbols |
Typ. |
Unit. |
Threshold Current(阈值电流) |
Ith |
mA |
|
Operating Current(工作电流) |
Iop |
mA |
|
Operating Voltage(工作电压) |
Vop |
2.3 |
Volt |
Slope Efficiency (斜率效率) |
η |
0.5 |
mW/mA |
Monitor Current (峰值电流) |
Im |
0.1 |
mA |
Beam Divergence(水平方向) |
θ// |
8 |
deg. |
(FWHM) (垂直方向) |
θ⊥ |
30 |
deg. |
Central wavelength(中心波长) |
λ |
780 |
(±10-15)nm |
and θ⊥ are defined as the angle within which the intensity is 50% of the peak value.
