New Products OHSP350M Spectrometer for Lumen Tester

$845.00$3,900.00

SKU: 3522187018651 Category:

Description

Product Description

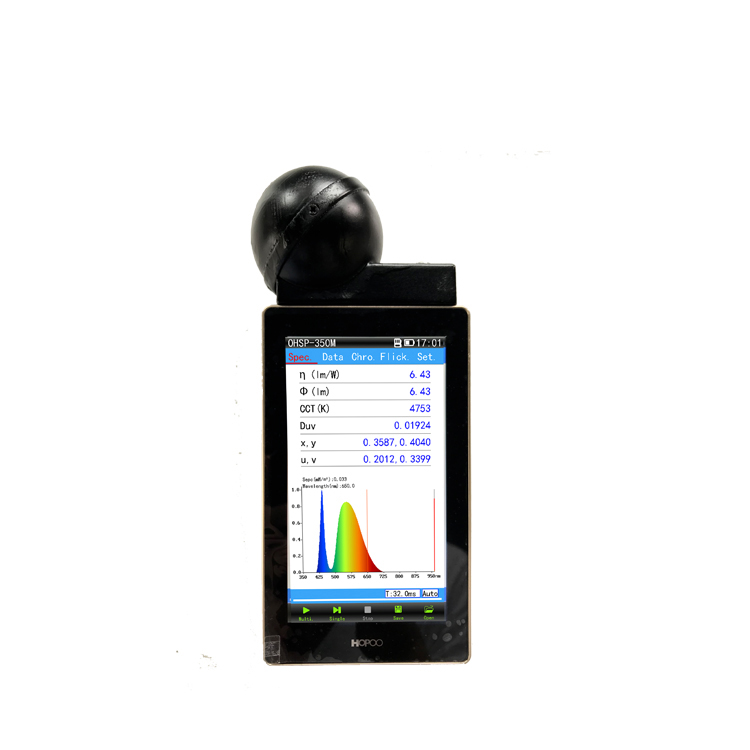

OHSP350M Luminous Flux Meter Irradiance Meter Par Meter Spectrometer

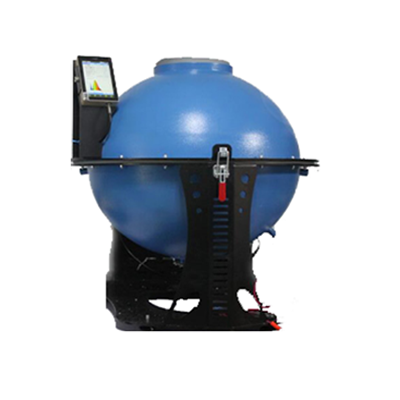

OHSP350M: 380-780nm; The Luminous Flux Meter with Integrating Sphere for lumen Test, can test Lux and Luminous flux in one, Suitable for measuring the luminous flux of single light source or whole LED lamp. Also good for field test .

OHSP660T Light Spectrum Analyzer Test CCT, L*A*B, Transmittance

OHSP660T: 350-950nm; Spectral Transmittance Tester, integrated Spectrum,Transmittance,L*A*B in one, can test material and lens immediately. Wavelength range: 350-950nm, customized wave range is ok too.

OHSP350C Spectrum Lux Meter

OHSP350C: 380-780nm; not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. But have no PC software.

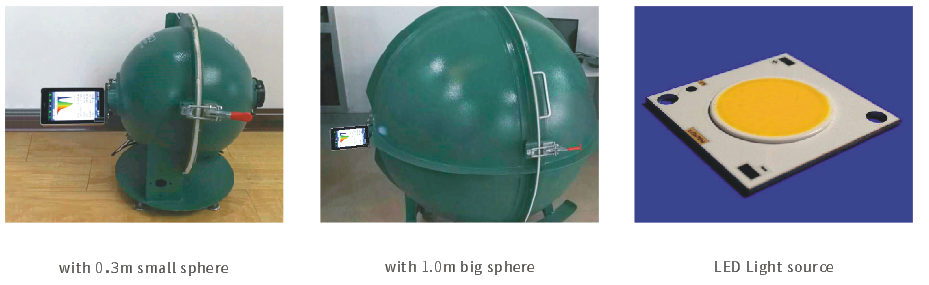

Products Show

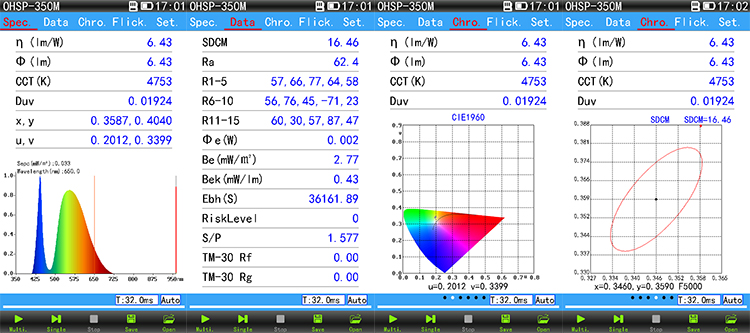

Meas parameters   Wave range:380-780nm

Luminous flux(lm) CRI Ra Flicker index Flicker freq (Hz)
illuminance E(lx) CCT(K) Spectral Distribution S/P
irradiance Ee(W) TM-30-2015 Rf modulation depth(%) Grow light parameters par ppfd
PPF(umol/s) TM-30-2015 Rg Flicker percent(%) OHSP350 basic paramters



Application


TEST PARAMETER

Model OHSP350M Luminous Flux Version
Wavelength range

380nm ~780nm

Light Splitting Mode

long focal cross section

Sensor

High precision CCD

Spectral Bandwidth (FWHM)

2nm

Spectral Resolution

0.2nm  X, Y repetitive ±0.0005

Wavelength Accuracy

+ 0.5nm

Illuminantion Accuracy

(±4% Reading +1 Digital)

Integrating Time

50μs~10000ms

Chromaticity Coordinate Accuracy

±0.0025.

CCT Range

1,000K~ 100,000K

Stray Light

≤0.3%



TEST INTERFACE


Additional information

Measurement Range

OHSP350C, OHSP660T, OHSP350M
