Description
- Weight: 700g
- Brand Name: DANSTLEE
- Measurement Range: L: 0 to 100
- Focal Length: 40mm
- Wavelength Range: 400nm-700nm
- Type: Split Beam Spectrometers
- Size: 199x68x90mm
- Model Number: WF30
- Model Number: WF30
- Measuring Caliber: Diameter 8mm
- Display Mode: CIELAB,CIELCH
- Light Source: LED blue excitation
- Measurement Range: L: 0 to 100
- Storage Capacity: 100 standard samples and 20000 test sample
- Language Patterns: English/ Simplified Chinese
- Repeated Accuracy: E<0.05
- Measurement Interval: 0.5 Sec.
- Battery Charging Time: 8 hrs

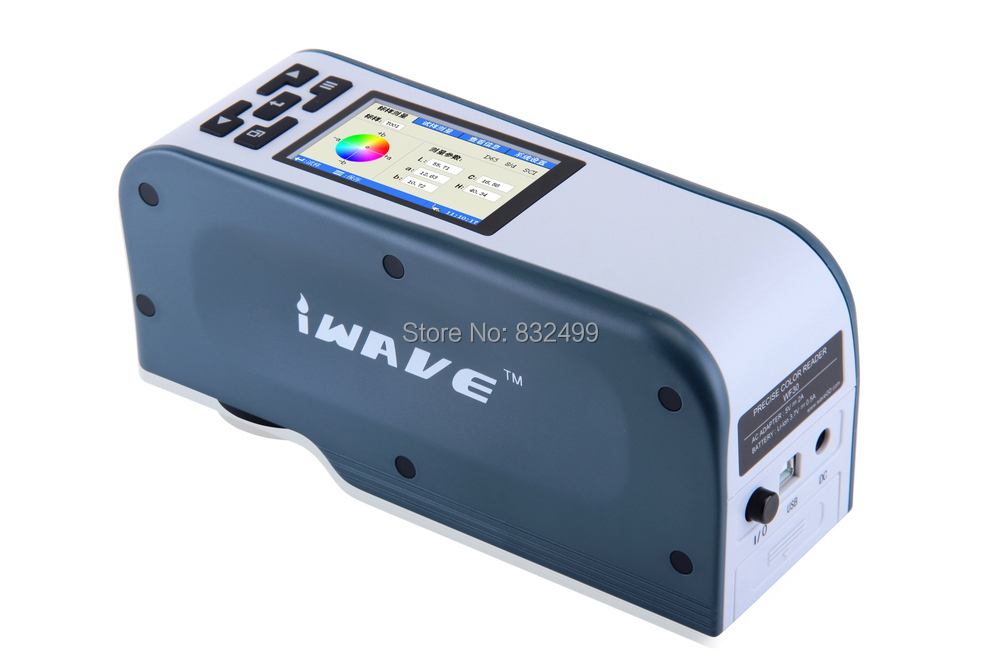

New Portable precise WF30 8mm Color meter
Description:
Precision colorimeter is a professional R & D and production of national standards based on the relevant standards of the International Commission on Illumination CIE colorimeter. The chromatic meter adopts the brand-new imported key components, through elaborate design, stable precision, simple operation and easy to understand, economical and practical characteristics.
The colorimeter used in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments,paints, inks, printing, metal, photography, toys, etc. The color quality control, color control, color analysis, sample testing,production-line testing, is also suitable for injection molding, ink, paint, spraying auxiliary colors.WF30 precision colorimeter 8mm caliber version is a universal colorimeter, considering all walks of life and general method of detecting the color to apply customary and considered a variety of materials in the measurement of the measurement aperture size requirements and developed. WF30 precision colorimeter 8mm caliber version of its versatility and its own tiny difference between units, measurement stability for all sectors for the industry, cross-industry color exchange offer great convenience and trustworthy and reliability.
WF30 Precise Colorimeter |
|
Model Number |
WF30 |
Display mode |
CIELAB,CIELCH |
Color difference formula |
ΔE *ab |
Illumination Condition |
CIE Recommendation:8/d |
Light Source |
The LED blue light excitation |
Sensor |
Photodiode array |
Measuring Aperture |
Φ8mm |
Measuring Condition |
Observer:CIE 10° Standard observer Light source: D65 D50 F11 (TL84) Contain light way:SCI SCE |
Measuring Range |
L:0-100 |
Repeated Accuracy |
ΔE<0.05(take the deviation average after 30 times measuring the whiteboard) |
Table Difference |
ΔE <0.2 |
Measurement Time |
0.5 second |
Storage Capacity |
100 standard samples and 20000 test sample |
Battery Power supply |
Li-ion battery, 5000 times Measurement |
Lifetime of Bulb |
5years more than 160 million measuring |
Display screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400×240 |
Interface of External |
USB2.0 (USB-B)-DATA communication with “color analysis system” software RS-232 (115200bps)- connected with micro printer |
Working Temperature Range |
0°C-40°C (32°F-104°F) |
Storage Temperature Range |
-20°C-50°C (-4°F-122°F) |
Humidity Range |
Relative humidity less than 85%,without condensation |
Net Weight |
700g |
Dimension |
199x68x90mm |
Demension after package |
400x240x340mm |
Standard Accessory |
3000mAH Li-ion battery/AC adapter/User manual/Warranty card |
Optional Accessory |
Flour measuring device/Liquid measuring device/Micro printer |
Feature:
1.Through the SCM test
2.Simple, accurate, easy-to-use, convenient
3.Analysis the best assistant of the color, the simplest operation chromatic meter
4.Chromaticity diagram, color difference bias Figure directly imply larger font display, be clear at a glance
5.The design of human engineering mechanics
6.High repeat accuracy: ΔE <0.05
7.Through National Metrology (SCM)
8.Advanced Power Management
Advantage
1. Built-in whiteboard automatic correction function (patent No.: 201220680846.0)
2. Measurements port positioning function (Patent No.: 201220680847.5)
3. New optical structure to achieve a more stable measurement (Patent No.: 201220680441.7)
4. Existing market colorimeter most intuitive, fast and simple operation interface
5. Design in line with industry norms, good feel, easy to grasp, Steady body.
6. Clear and bright screen, large font display, intuitive chromaticity diagram,
color difference bias figure shows color simulation.
7. The number of independent national innovation patent intellectual property rights, to ensure that the instrument’s leading position in the domestic color difference measurement, and to catch up with the international brand strength.
8. Advanced Power Management
9. High stability
10. High accuracy
Application :The colorimeter is applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments, paints, inks, printing, metal, photography, toys, and other industry color quality control, color control, color analysis, sampletesting, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color
