Description
- Type: Other
- Origin: CN(Origin)

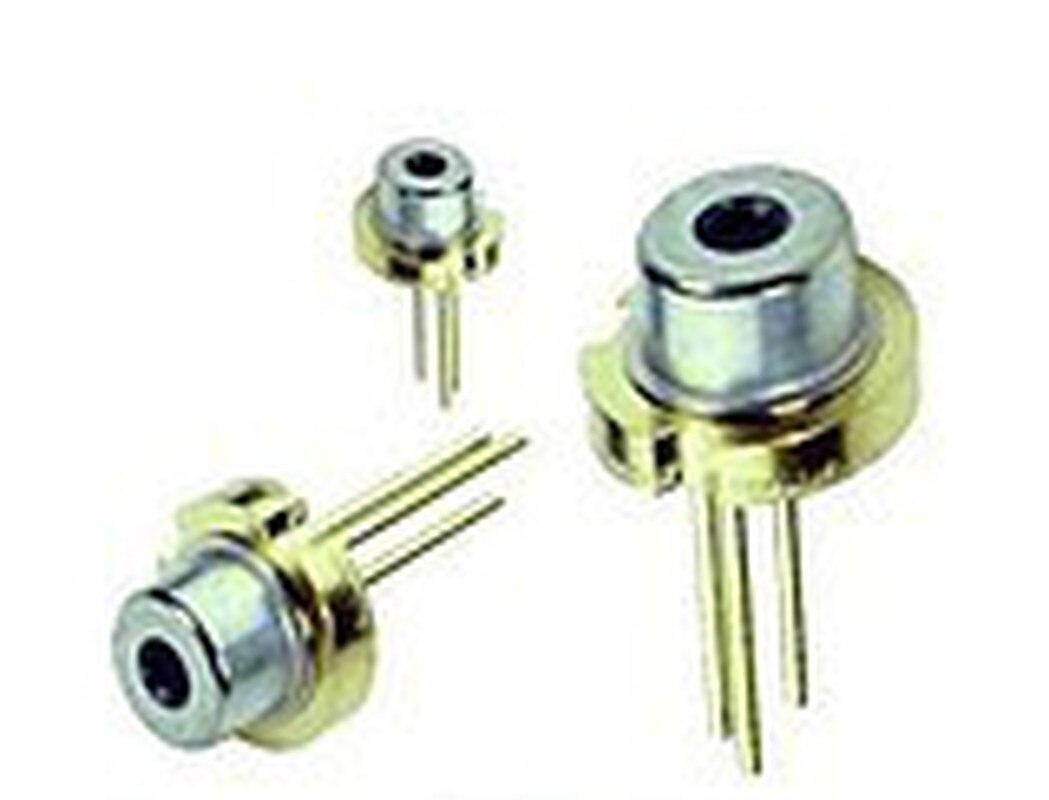

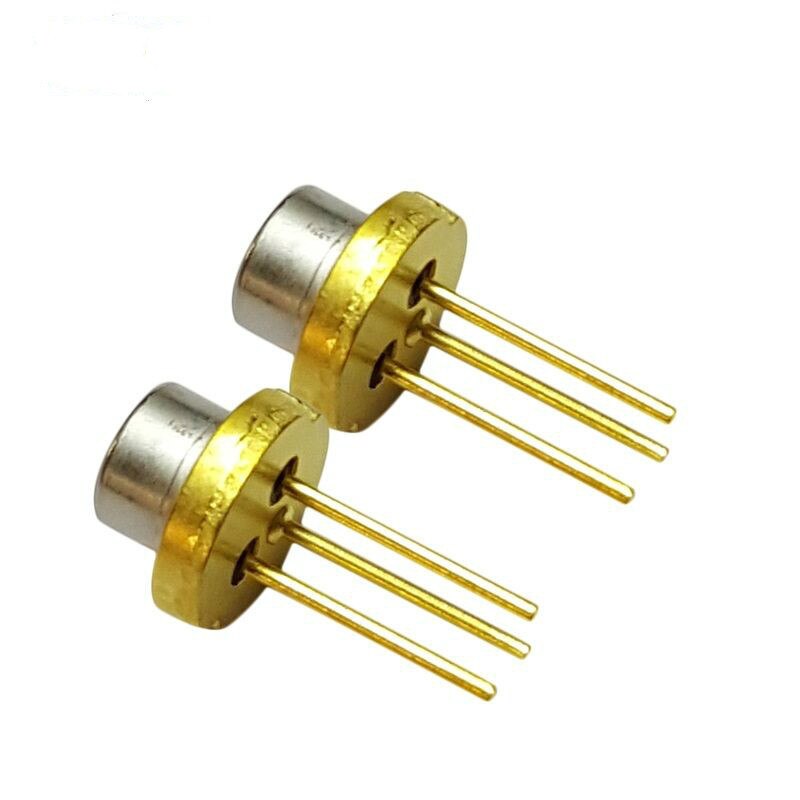

* product name: 635NM5MW laser diode
Product model: sld635005tn-a
Operating voltage: 2.2V.
Output wavelength: 635+/-5NM
Maximum current: & lt; 45mA
Recommended current value: around 33 MA
Maximum output power: <: 6MW
Closure form / size: T0-18 / ∮ & nbsp; 5.6mm

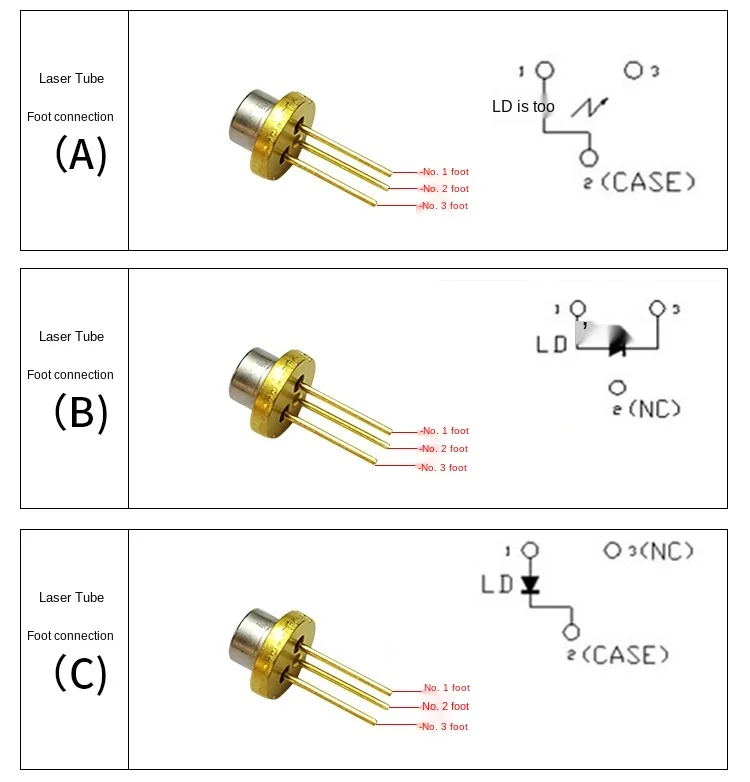

Laser pin alignment: Figure E( housing alignment)
Service life: & gt; 10000 hours
With or without PD: Yes
Shell material: Metal
Surface treatment: gold plating
Working temperature: – 10 ~ 40 ℃
Storage temperature :-40~85℃
