Description
- Origin: CN(Origin)
- Certification: CE
- Certification: FDA
- Condition: New
- Model Number: 2020
- CNC or Not: CNC
- Is Smart Device: YES
- Name: Laser marking machine
- Working area: 100*100mm
- Laser power: 20w
- Motor and Driver: Stepper motor and driver
- Control Software: JCZ
- Marking speed: 7000mm/s-12000mm/s
- Marking depth: 0.01-1mm
- Cooling Mode: Air Cooling
- Laser Source: Raycus
- Power supply: 220v/50hz
- Weight: 130KGS

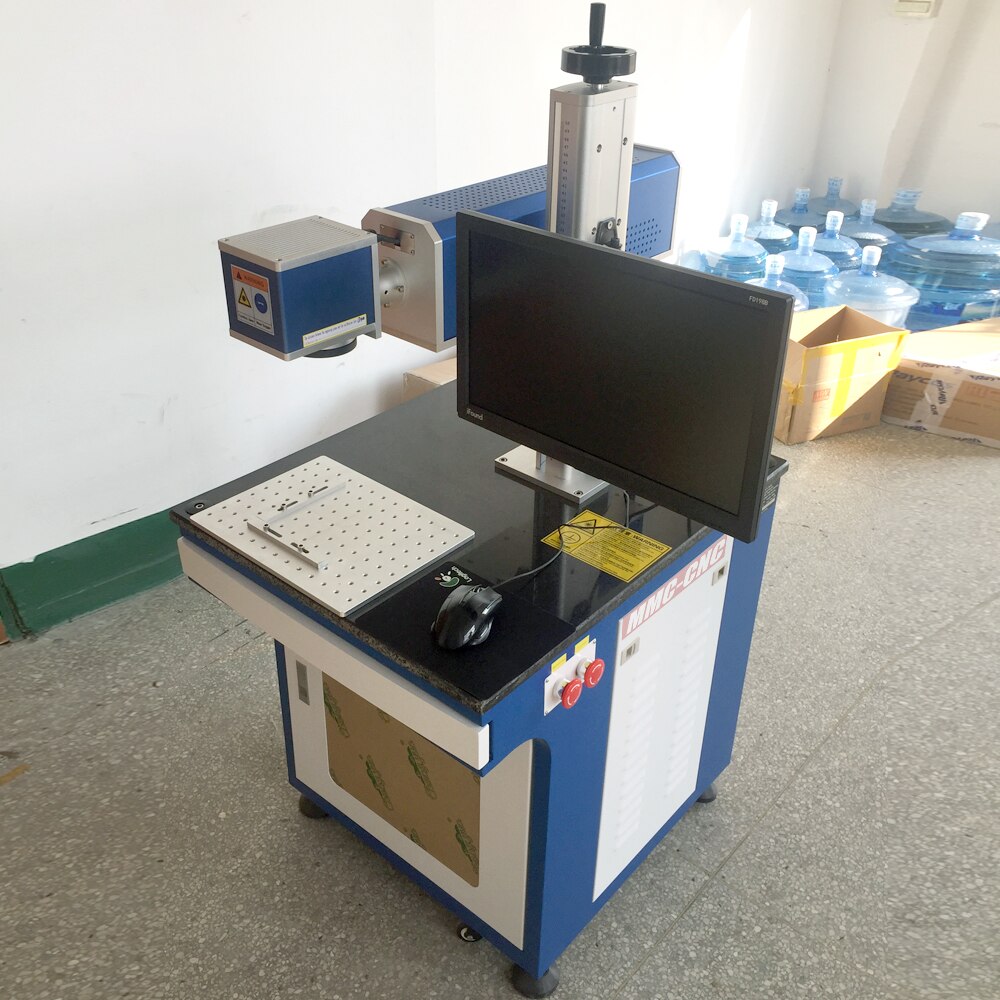

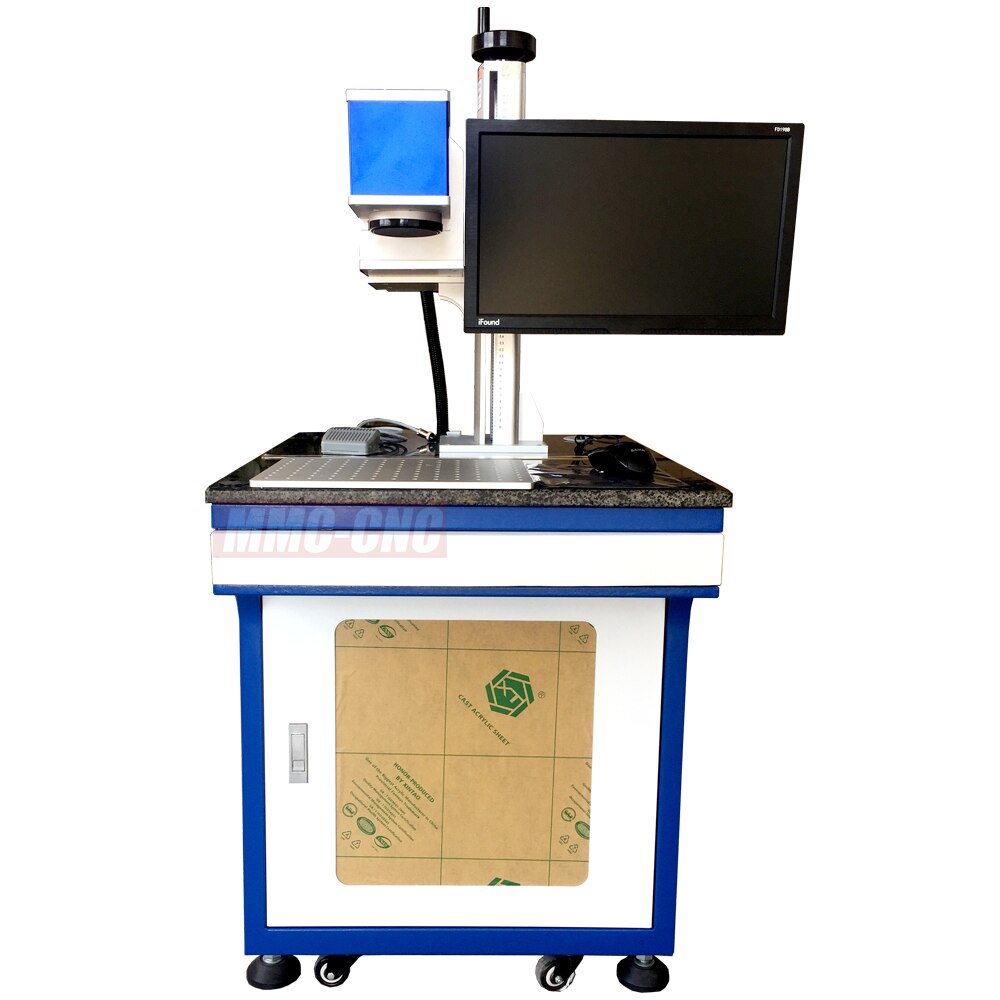

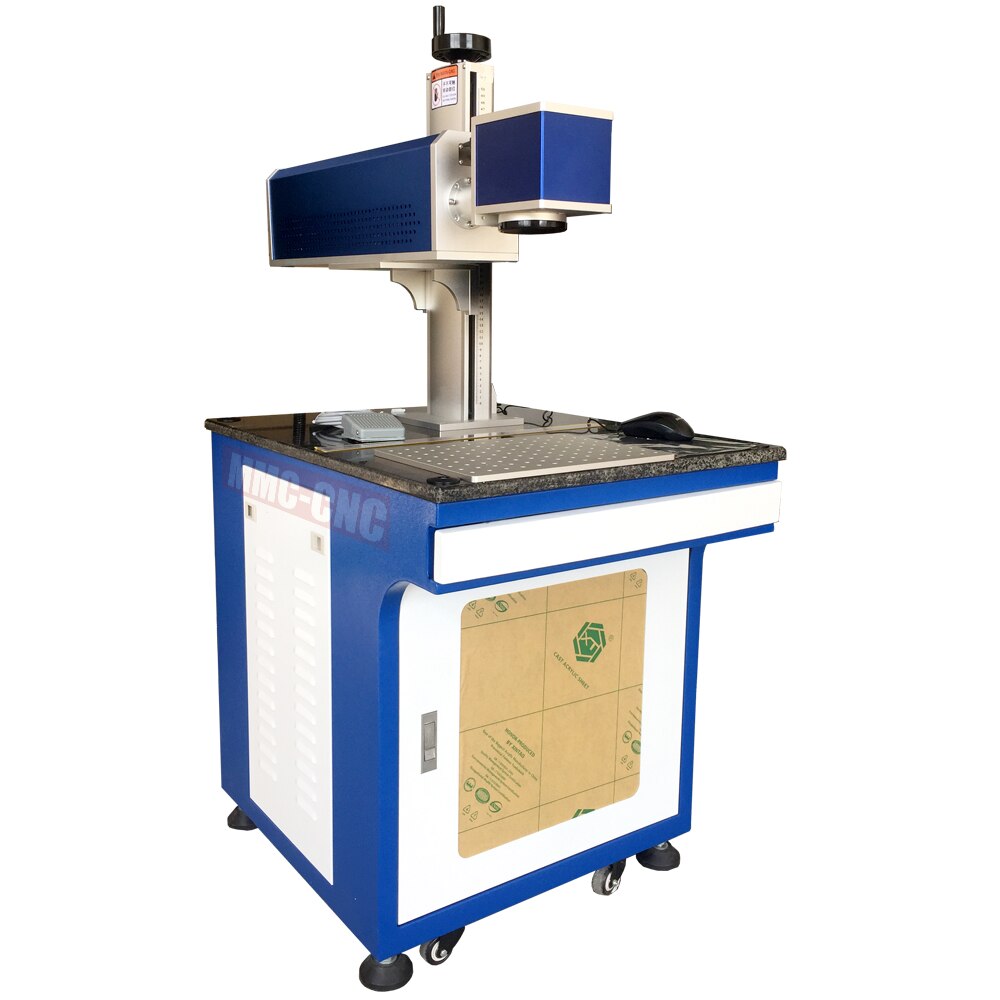

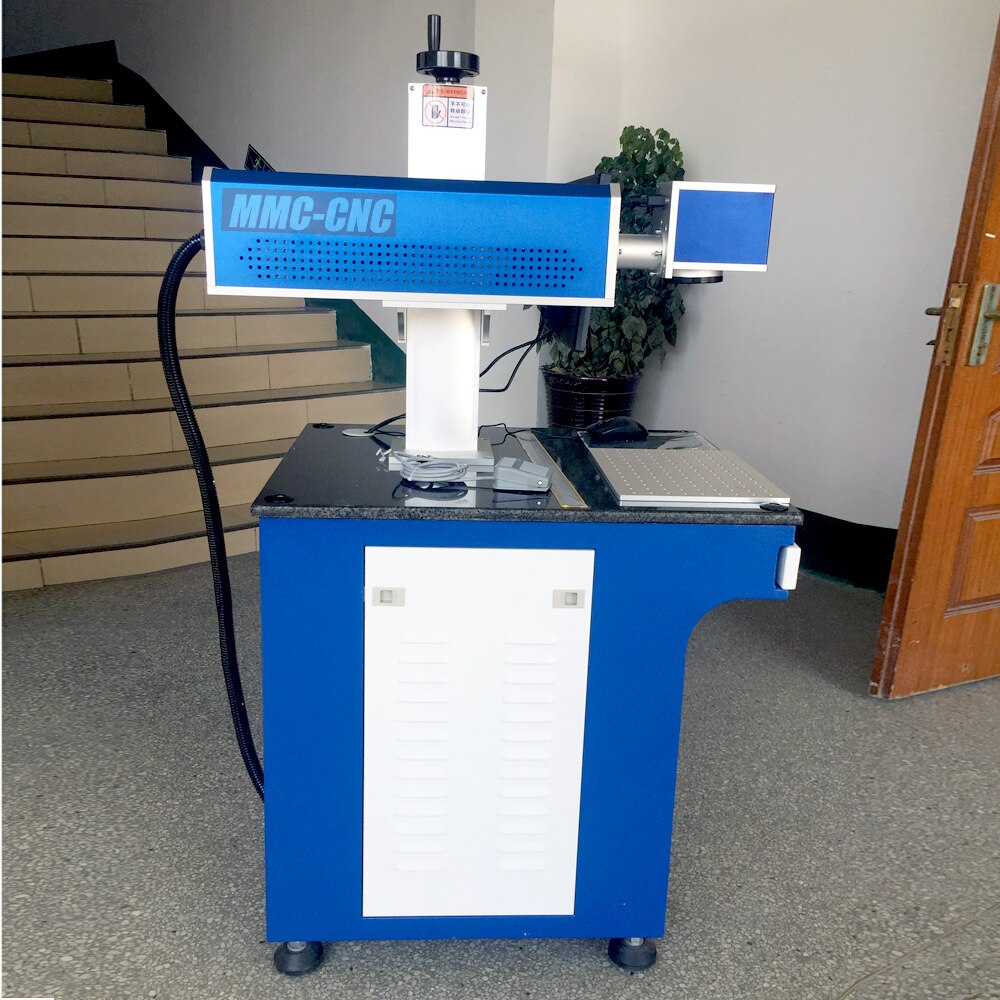

New Model Raycus 20W 30W 50W Laser Engraving For Metal Acrylic Stainless Steel Glass Fiber Laser Metal Marking Machine
Laser cutting machine Configurations(whatsapp/Wechat:+86 15335443323)Working area:100*100mm
Laser source: Raycus
Laser power: 20w
Marking depth: 0.01-1mm
Packaging: Wooden box
Packaging size: 880*870*1270mm
Gross weight: 130KGS
Model |
MMC-1010F |
Laser source |
Raycus/JPT |
Laser power |
20W/30W/50W/100W |
Weave length |
1064 nm |
Marking area |
100*100mm,150*150mm,220*220mm,300*300mm,500*500mm |
Laser repetition frequency |
20KHZ-80KHZ |
Beam quality |
M²:1.5 |
Marking speed |
7000-12000mm/s |
Marking depth |
0.01-1mm |
Repetition Precision |
0.01mm |
Minimum Line Width |
0.017mm |
Minimum Character |
0.2mm |
Cooling Style |
Air cooling |
Positioning Way |
Red light |
Control software |
JCZEZCAD 2.12 Professionalfiberlasermarkingsoftware |
Supported Format |
PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC |
Control board |
JCZ |
Operating Voltage |
AC220V/50HZ/2A |
Gross Power |
≤800W |
Supported Windows |
Windows XP,7,8,10 |
Certificate |
ISO, CE |
Material can be processed |
all metal material and part of non-metal material,such as hard plastic |
Others |
USB cable for connection, Flash drive with software and Englishmanuals. |
After-sales Service |
Warranty for 3 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training. When you have any questions, no matter machine or operate, you can contact us directly. If any parts broken, we will replace a new one for you in free. After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken. |
Packaging |
Wooden box |
PackagingDimension |
880*870*1270mm |
Gross weight |
130KGS |
FIBER LASER MARKING MATERAILS |
|
METALS |
NON-METALS |
Gold |
Wood |
Silver |
cloth |
Brass |
acrylic |
Copper |
Coating film |
Carbon Steel |
rubber |
Stainless Steel |
paper |
Aluminum |
plastic |
Anodized Aluminum |
leather |
titanium |
PVC |
chrome |
ABS |
silicon wafer |
|
ceramics |
|
plastic |
|
epoxy resin |
