Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: DSO4204B
- Max Waveform Capture Rate: 30,000wfm/s
- Display Size: 7 Inches & Above
- IS Battery Demountable: No
- Digital Channels: 2
- Real Time Sampling Rate: 1GSa/S
- Band Width: 100-349MHz
- Record Length: 64K
- Display Resolution: 800*480 Pixels

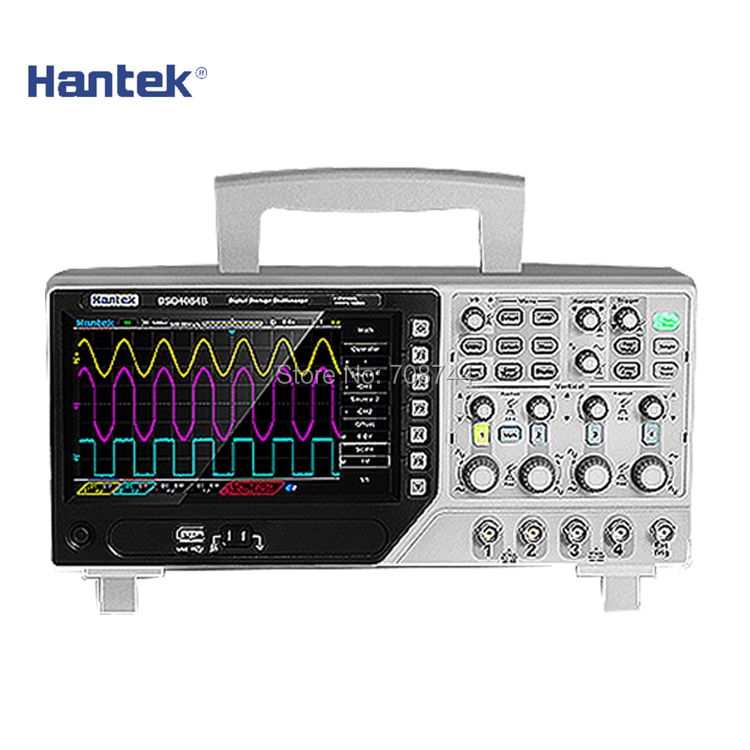

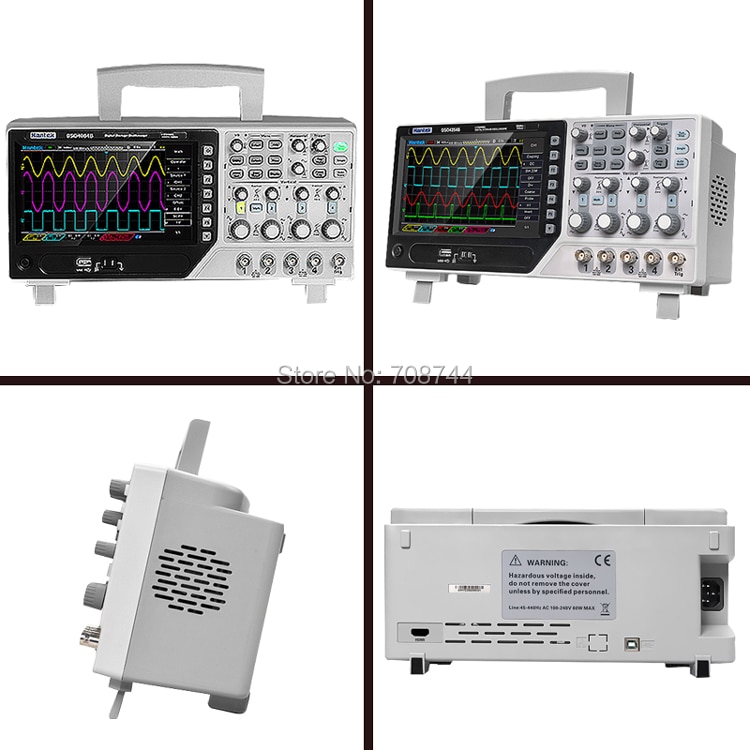

New Items Original Hantek DSO4204B USB Storage Oscilloscope 4 Channel Digital Oscilloscope 200MHz bandwidth 1GSa/s AC110-220V
Features:
- 4CH oscilloscope+EXT+DVM+auto range function
- 80-250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate.
- Over 32 types of auto measurement function
- Advanced digital trigger system, high trigger sensitivity.
- Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
- Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
- Support a variety of SCPI remote control command
- Support optional RS232 port, LAN port, HDMI port, touch screen, WIFI communication, SD card storage
- Stable and reliable quality, sturdy and durable.
Specification:
Model | DSO4254B | DSO4204B | DSO4104B | DSO4084B | |
Bandwidth | 250MHz | 200MHz | 100MHz | 80MHz | |
Horizontal |
|||||
Sample Rate Range | 1GS/s | ||||
Waveform Interpolation | (sin x)/x | ||||
Record Length | Maximum 64K samples per single-channel; | ||||
Maximum 32K samples per dual-channel (4K, 32K optional) | |||||
SEC/DIV Range | 2ns/div~100s/div | ||||
1, 2, 5 sequence | |||||
Sample Rate and Delay Time Accuracy |
±50ppm | ||||
Delta Time Measurement Accuracy (Full Bandwidth) |
Single-shot, Normal mode ± (1 sample interval +100ppm × reading + 0.6ns) |
||||
>16 averages ± (1 sample interval + 100ppm × reading + 0.4ns) |
|||||
Sample interval = s/div ÷ 200 | |||||
Vertical | |||||
AD Converter |
8-bit resolution, each channel sampled simultaneously |
||||
VOLTS/DIV Range | 500μV/div to 10V/div at input BNC | ||||
Position Range | 500μV/div~20mV/div, ±400mV | ||||
50mV/div~200mV/div, ±2V | |||||
500mV/div~2V/div, ±40V | |||||
5V/div~10V/div, ±50V | |||||
Selectable Analog Bandwidth Limit, typical | 20MHz | ||||
Low Frequency Response (-3db) | ≤10Hz at BNC | ||||
Rise Time at BNC, typical | DSO4254B | DSO4204B | DSO4104B | DSO4084B | |
<1.4ns | ≤1.8ns | <3.5ns | ≤4.4ns | ||
DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div | ||||
±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div | |||||
Note: Bandwidth reduced to 6MHz when using a 1X probe. | |||||
Acquisition |
|||||
Acquisition Modes | Normal, Peak Detect, Average and HR | ||||
Acquisition Rate, typical | Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement) | ||||
Single Sequence | Acquisition Mode | Acquisition Stop Time | |||
Normal, Peak Detect |
Upon single acquisition on all channels simultaneously | ||||
Average | After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128 | ||||
Trigger |
|||||
Mode | Auto, Normal | ||||
Level | CH1~CH4 | ±4 divisions from center of screen | |||
EXT | 0~3.3V | ||||
Holdoff Range | 20ns ~ 10s | ||||
Trigger Level Accuracy | CH1~CH4 | 0.2div × volts/div within ±4 divisions from center of screen | |||
EXT | ± (6% of setting + 40mV) | ||||
Edge Trigger | |||||
Slope | Rising, Falling, Rising&Falling | ||||
Source | CH1~CH4/EXT | ||||
Pulse Width | |||||
Polarity | Positive, Negative | ||||
Condition(When) | <, >, ≠, = | ||||
Source | CH1~CH4 | ||||
Width Range | 8ns ~ 10s | ||||
Resolution | 8ns | ||||
Video Trigger | |||||
Signal Standard | NTSC, PAL | ||||
Source | CH1~CH4 | ||||
Sync | ScanLine, LinrNum, OddField, EvenField and AllField | ||||
Slope Trigger | |||||
Slope | Rising, Falling | ||||
Condition(When) | <, >, ≠, = | ||||
Source | CH1 ~ CH4 | ||||
Time Range | 8ns ~ 10s | ||||
Resolution | 8ns | ||||
Overtime Trigger | |||||
Source | CH1~CH4 | ||||
Polarity | Positive, Negative | ||||
Time Range | 8ns ~ 10s | ||||
Resolution | 8ns | ||||
Window Trigger | |||||
Source | CH1~CH4 | ||||
Pattern Trigger | |||||
Pattern | 0: Lower level; 1: High level; | ||||
Level | CH1~CH4 | ||||
Interval Trigger | |||||
Slope | Rising, Falling | ||||
Condition(When) | <, >, ≠, = | ||||
Source | CH1~CH4 | ||||
Time Range | 8ns ~ 10s | ||||
Resolution | 8ns | ||||
Under Amp | |||||
Polarity | Positive, Negative | ||||
Condition(When) | <, >, ≠, = | ||||
Source | CH1~CH4 | ||||
Time Range | 8ns ~ 10s | ||||
Resolution | 8ns | ||||
UART Trigger | |||||
Condition(When) | Start, Stop, Data, Parity Error, COM Error | ||||
Source(RX/TX) | CH1~CH4 | ||||
Data format | Hex | ||||
Condition(When) | <, >, ≠, = | ||||
Data Length | 1 byte | ||||
Data Length | 5 bit, 6 bit, 7 bit, 8 bit | ||||
Parity Check | None, Odd, Even | ||||
Idle Level | High, Low | ||||
Baud Rate(Selectable) | 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s | ||||
Baud Rate (Custom) | 300bit/s~334000bit/s | ||||
LIN Trigger | |||||
Condition(When) | Interval Field, Sync Field, Id field, Sync Id Error, Identifier, Id and Data | ||||
Source | CH1~CH4 | ||||
Data format | Hex | ||||
Baud Rate (Selectable) | 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s | ||||
Baud Rate (Custom) | 300bit/s~334000bit/s | ||||
CAN Trigger | |||||
Condition(When) | Start Bit, Remote Frame, Data Frame Id, Frame Id, DataFrame Id A, Error Frame, All Error, Ack Error, Overload Fram | ||||
Source | CH1~CH4 | ||||
Data format | Hex | ||||
Baud Rate (Selectable) | 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 | ||||
Baud Rate (Custom) | 5kbit/s~1Mbit/s | ||||
SPI Trigger | |||||
Source (CS/CLK/Data) | CH1~CH4 | ||||
Data format | Hex | ||||
Data Length | 4, 8, 16, 24, 32 | ||||
IIC Trigger | |||||
Source (SDA/SCL) | CH1~CH4 | ||||
Data format | Hex | ||||
Data Index | 0~7 | ||||
When(Condition) | Start, Stop, No Ack, Address, Data, Restart | ||||
Inputs | |||||
Input Coupling | DC, AC or GND | ||||
Input Impedance, DC coupled | 20pF±3 pF,1MΩ±2% | ||||
Probe Attenuation | 1X, 10X | ||||
Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X | ||||
Overvoltage Category | 300V CAT II | ||||
Maximum Input Voltage | 300VRMS (10X) | ||||
Measurements | |||||
Cursors |
Voltage difference between cursors: △V Time difference between cursors: △T Reciprocal of △T in Hertz (1/ΔT) |
||||
Automatic Measurements | Frequency, Period, Average, Pk-Pk, RMS, PeriodRms, Min, Max, RiseTime, FallTime, + Width, – Width, + Duty, – Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, PeriodAvg, FOVShoot, RPREShoot, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR and LFF | ||||
General Specifications | |||||
Display | |||||
Display Type | 7 inch 64K color TFT (diagonal liquid crystal) | ||||
Display Resolution | 800 horizontal by 480 vertical pixels | ||||
Display Contrast | Adjustable | ||||
Probe Compensator Output | |||||
Output Voltage, typical | About 2Vpp into ≥1MΩ load | ||||
Frequency, typical | 1kHz | ||||
Power Supply | |||||
Supply Voltage |
100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ 120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ |
||||
Power Consumption | <30W | ||||
Fuse | T,3.15A,250V,5x20mm | ||||
Environmental | |||||
Operating Temperature | 0~50 °C (32~122 °F) | ||||
Storage Temperature | -40~+71 °C (-40~159.8 °F) | ||||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | ||||
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | |||||
Cooling Method | Convection | ||||
Altitude | Operating and Nonoperating | 3,000m(10,000 feet) | |||
Random Vibration | 0.31gRMS from 50Hz to 500Hz, | ||||
10 minutes on each axis | |||||
Nonoperating | 2.46gRMS from 5Hz to 500Hz | ||||
10 minutes on each axis | |||||
Mechanical Shock | Operating | 50g, 11ms, half sine | |||
Mechanical | |||||
Dimension | 318 x 110 x 150mm(L x W x H) | ||||
Weight | 2900g |

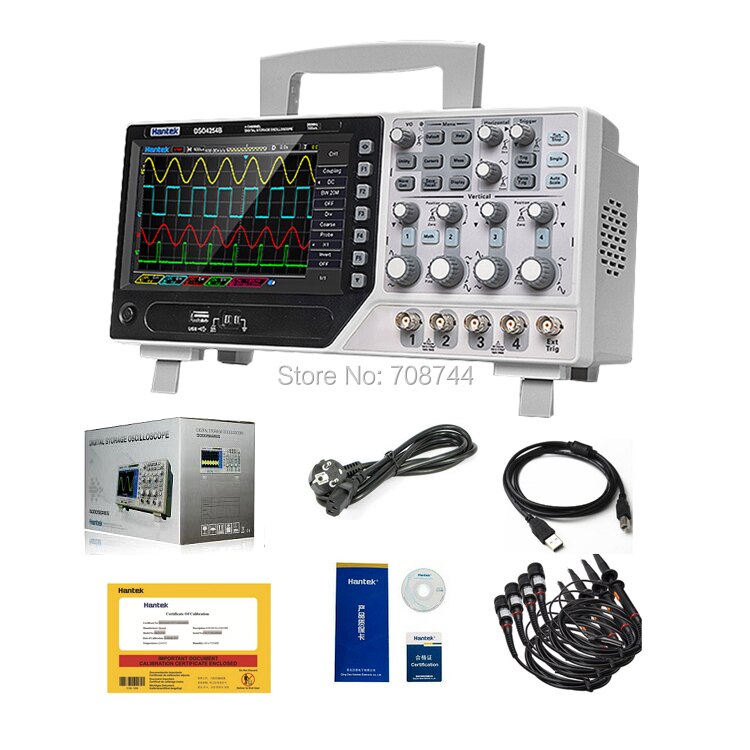

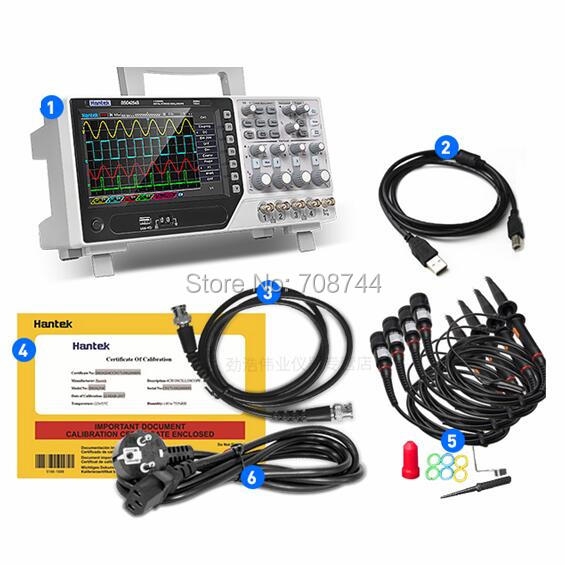

Package List:
1 * Digital Storage Oscilloscope
4 * Oscilloscope Probes
1 * USB Cable
1 * Power Cable
1 * CD
