Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKJ1530F
- CNC or Not: CNC
- Is Smart Device: No
- Product name: 1000w fiber laser metal cutting machine
- Laser power: 1000W / 2000W / 3000W
- Working table: Sawtooth Platform
- Driving system: Delta servo motor with driver
- Transmission: Ball screw tranmission
- Power supply: 380V/50HZ 220V/60HZ
- Guide rail: Taiwan Hiwin Linear Square Rails
- Cooling system: Water Chilller
- color: Opitional
- Keyword: 1000w fiber laser metal cutting machine

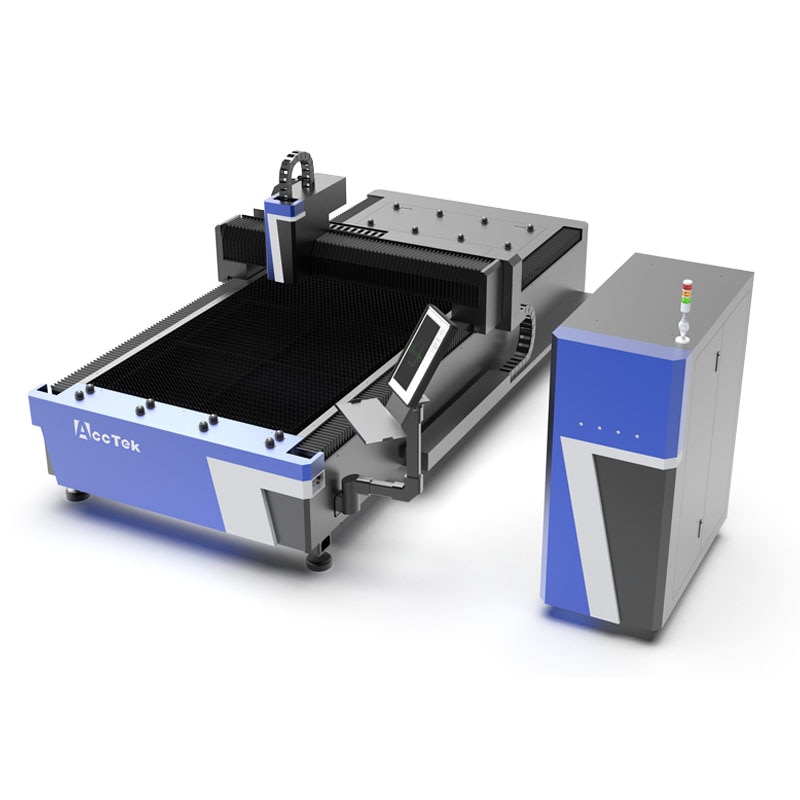

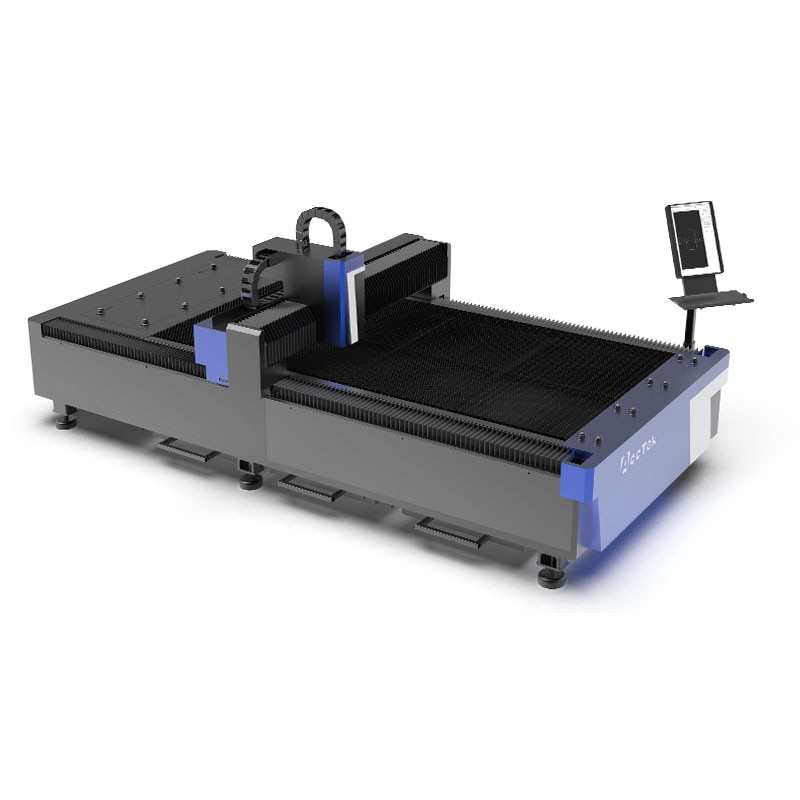

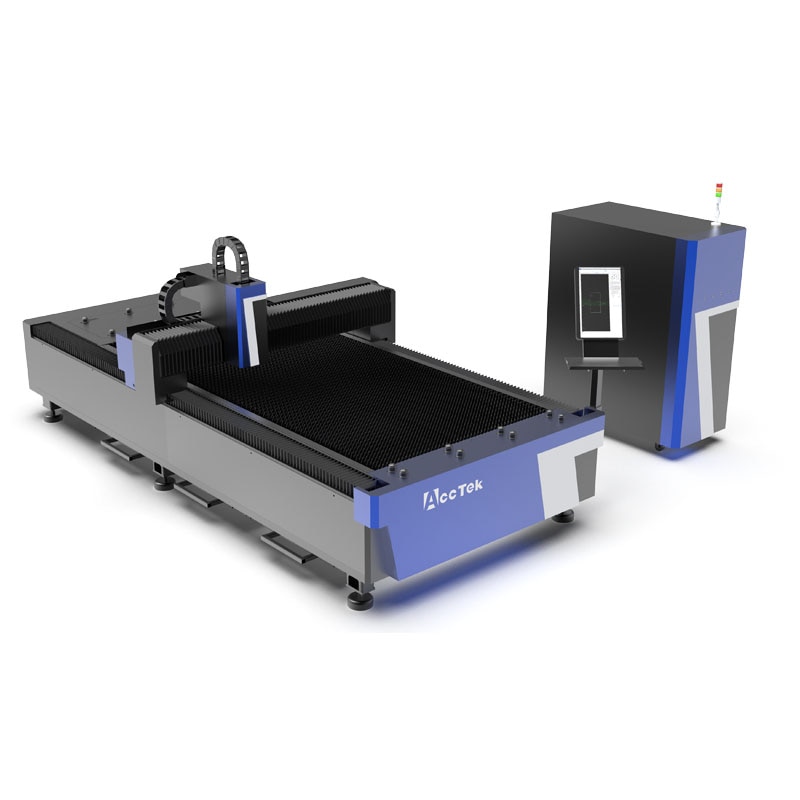

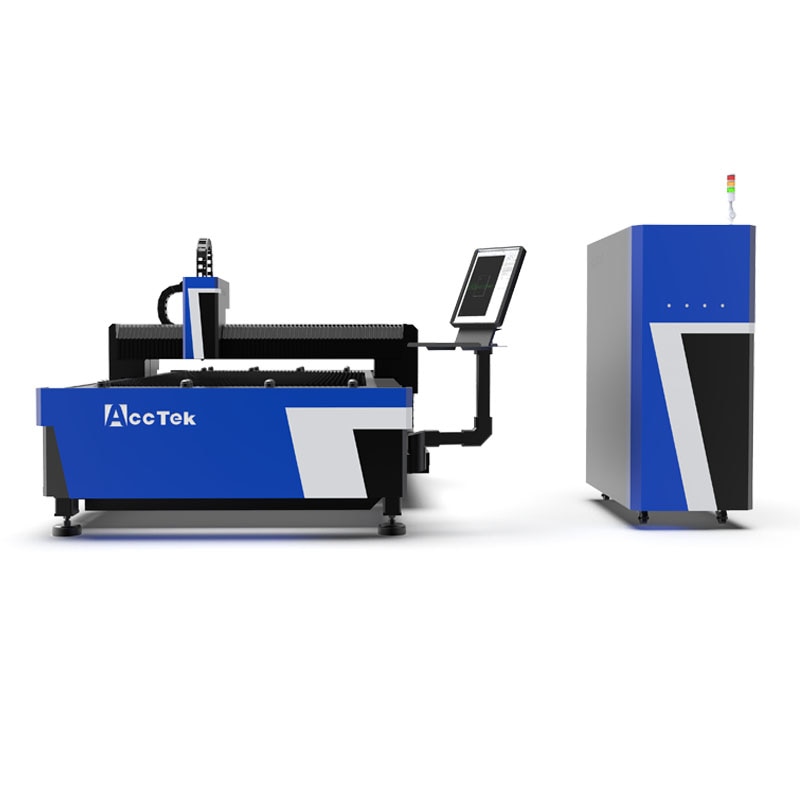

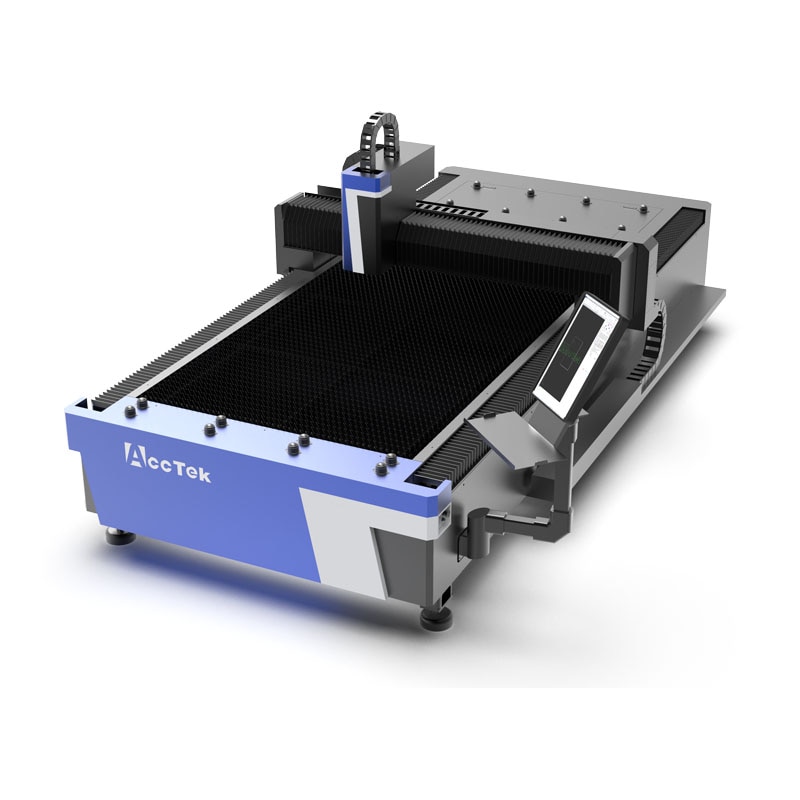

New Design 1000W 2000W 3000W Metal Stainless Steel CNC Fiber Laser Cutting Machine
Product Description
1530 fiber laser cutting machine
Laser source: IPG or Raycus fiber laser source
Fiber laser power : 1000W, 1500W, 2000W, 3000W (Optional)
Working size : 1500*3000mm
X and Y positioning accuracy : +-0.02mm
Transmission mode : X Y axis Gear rack tranmission
Rated voltage and frequency : 380V/50Hz/60Hz/60A
|
1-Configurations&technicalparameter |
||
|
Working area |
1500*3000mm |
|
|
Control System |
Au3tech controller with aut follow system |
|
|
Laser head |
Au3tech brand laser cutting head |
|
|
Guide rail |
Taiwan HIWIN linear guide rail 25mm |
|
|
Transmission |
Taiwan TBI Balls Screw transmission |
|
|
Electronic Components |
French Schneider |
|
|
Motor |
Taiwan Delta 750w servo motor |
|
|
Max Cutting Speed |
35m/min |
|
|
X axis max speed |
65m/min |
|
|
Y axis max speed |
70m/min |
|
|
Z axis max speed |
30m/min |
|
|
X axis max acceleration |
1G |
|
|
Y axis max acceleration |
1G |
|
|
Cooling Way |
Water Cooling |
|
|
Min line width |
0.1mm |
|
|
Power Requirements |
220V, 50/60Hz, 1phase |
|
|
Continuous Working Time |
24Hours |
|
|
2-Standardpartsofthe machine |
||
|
Name |
Specification |
Quantity |
|
Machine body |
1500*3000mm working area |
1 set |
|
Laser generator |
Standard |
1 set |
|
Water chiller |
cooling laser head and generator |
1 set |
|
Control box |
Au3techcontrol system |
1 set |
|
Laser cutting head |
Auto following function |
1 set |
|
Protective lens |
standard |
1 pc |
|
Focus lens |
standard |
1 set (2 pcs) |
Details of machine
Professional Au3tech cutting head for cutting metal
sawtooth table for cutting metal sheet
Raycus and IPG as optional 1000w/1500w/2000w/3000w etc
Industrial water chiller : CW6000 water chiller with cooling effect well
Samples
FAQ
1, I did not imported before, how should I do?
You only need pay to us, we will arrange all the things to you and teach you how to
do we will prepare all the documents for you, you don’t need worry, because we know what you need.
2, How about the documents
after shipment? We’ll send all original documents to you by DHL, for example: the Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3, How about the packing?
Free plywood box hello dear,is there anything else you would like to know about this machine?
4, MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us
your port name.There will be best shipping freight and machine price send to you.
