Description

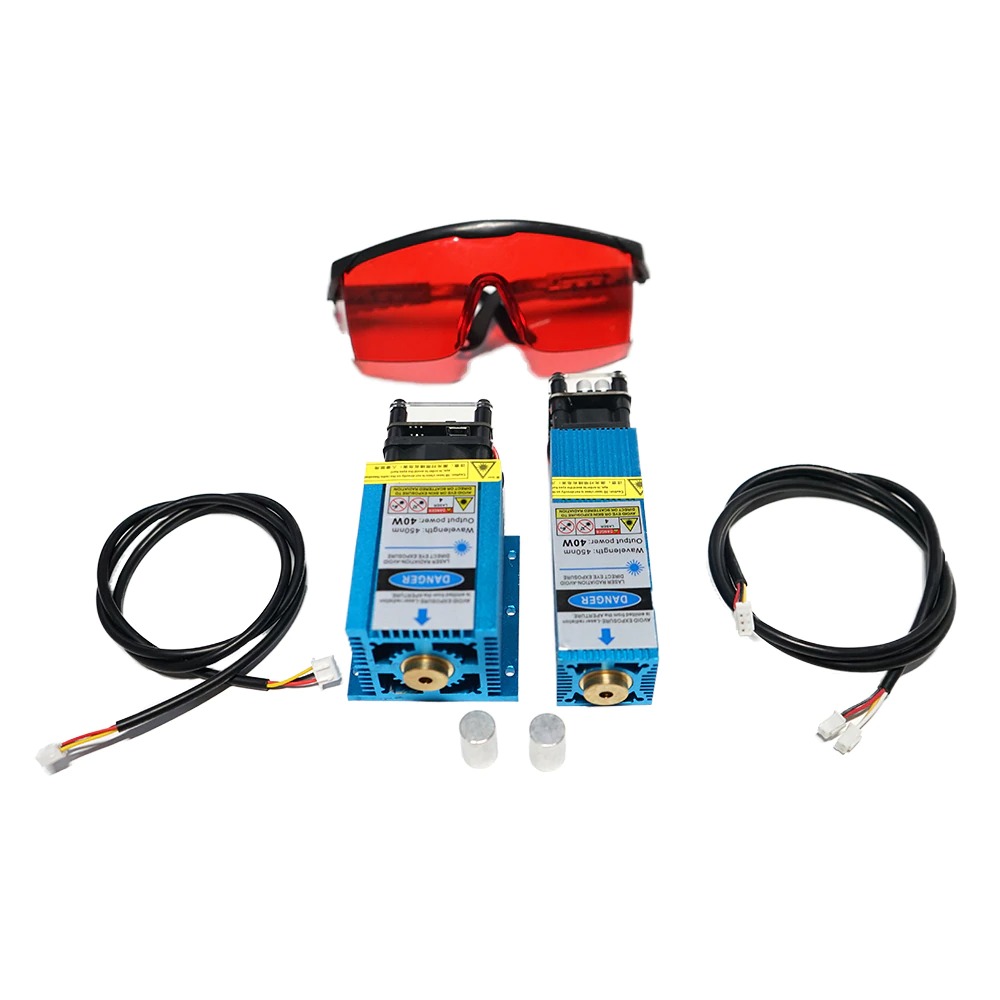

Packing list: 1*40W laser 1*Focusing column（2cm)
1* 3p-3p laser wire 1*3p-4p laser wire
1* protection Goggles
1* 3p-3p laser wire 1*3p-4p laser wire
1* protection Goggles
Product Description
|
Module Input：
|
40W
|
|
Optical power output：
|
15W
|
|
Wavelength：
|
450nm
|
|
Working Voltage：
|
DC 12V
|
|
Input Voltage：
|
DC12V 3-4A
|
|
PWM/TTL Input：
|
DC 5V
|
|
Safe temperature ：
|
<60 ℃
|
|
Life Time：
|
10000-20,000 hours
|
|

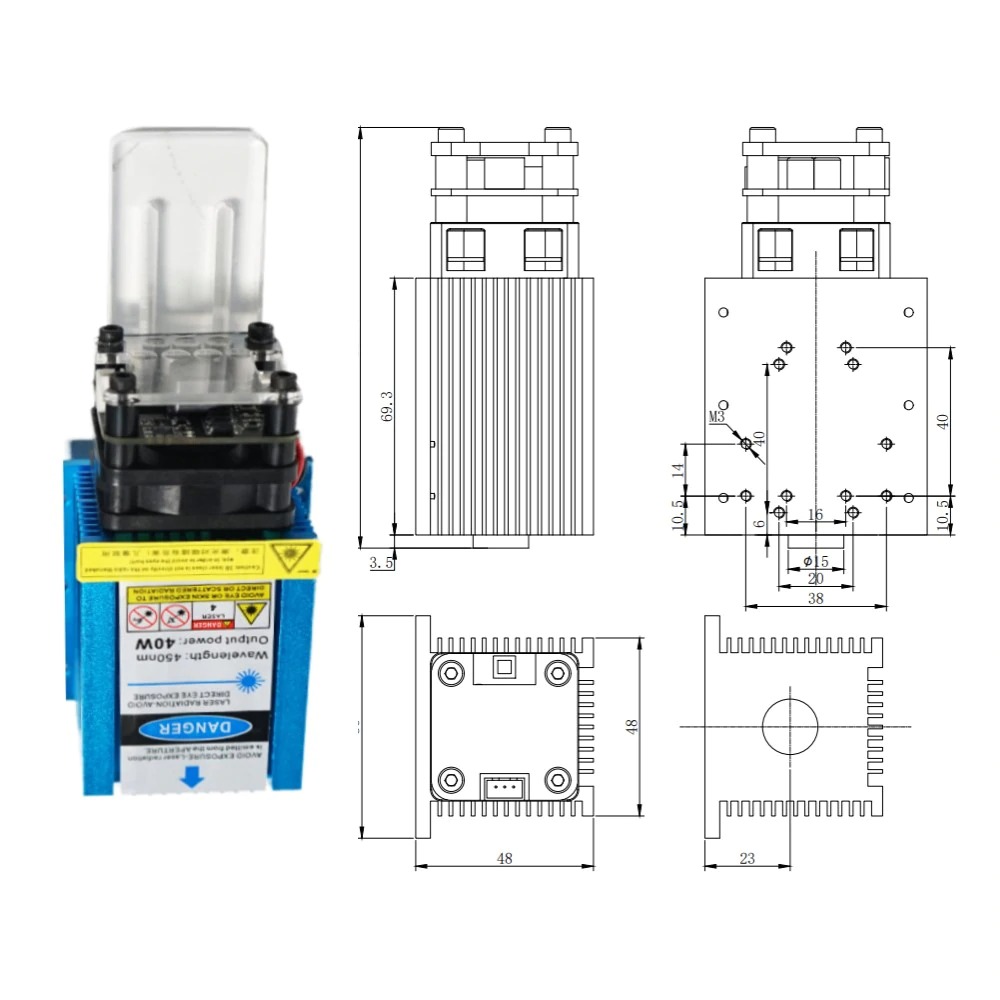

Laser Size:
|
33*33*120mm / 60*60*70mm
|
Product Details

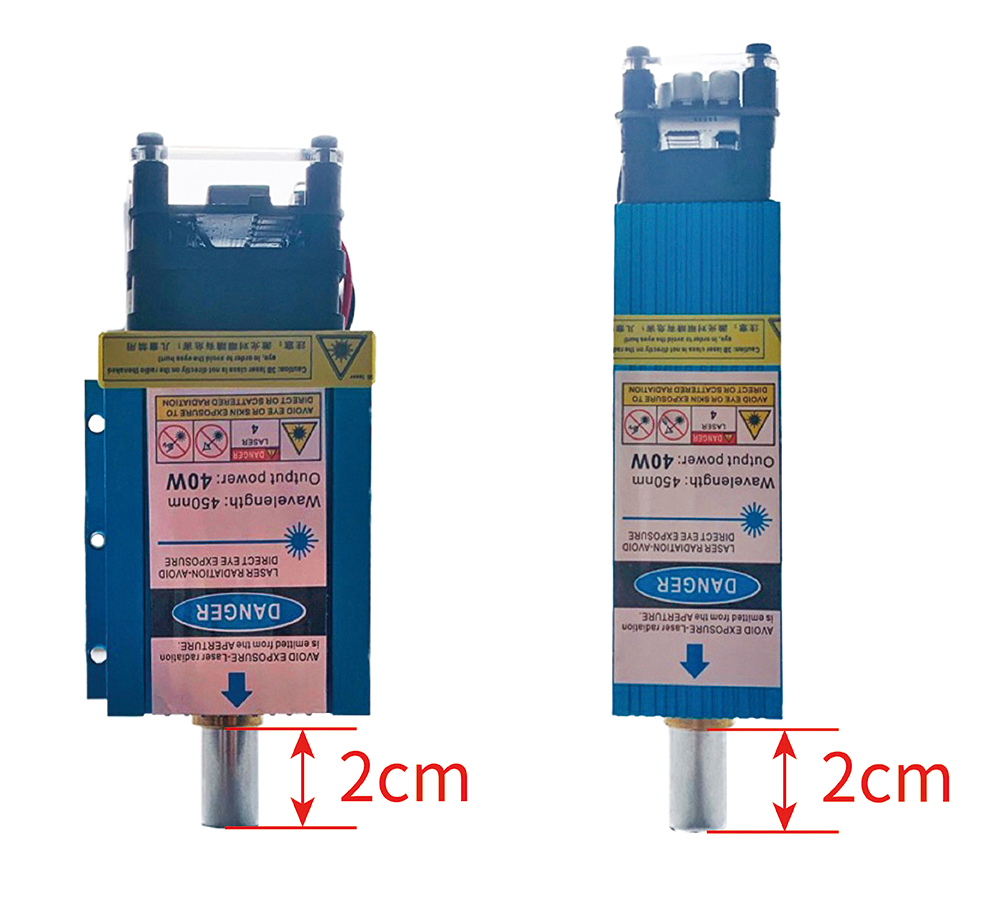

Engraving distance 2cm
3Pin laser connection diagram 2Pin-2Pin laser connection diagram
3pin wire: Red is 12V+, Black is 12V-, Yellow is PWM/TTL(0-5v)
4pin wire: Red is 12V+,Black is 12V-, Yellow is PWM/TTL+, White is PWM/TTL
4pin wire: Red is 12V+,Black is 12V-, Yellow is PWM/TTL+, White is PWM/TTL
Software
Product Effect
