Sale!

New ATOMSTACK X7 A10 S10 PRO Laser Engraving For Metal 50W CNC Eye Protection Desktop Acrylic Laser Marking Wood Cutting

$878.90$1,144.00

SKU: 1005003704161051 Category:

Description

  • Brand Name: ATOMSTACK
  • Model Number: S10 PRO-X7PRO-A10PRO
  • Origin: CN(Origin)
  • CE Certification: Yes
  • Certification: CE
  • Printing Speed: 1000mm/min
  • Language: multi-language
  • Maximum Printing Speed: 3000mm/min
  • Fliament: Acrylic, Leather, MDF, Metal, Paper, Plastic, Plywood, Rubber
  • Power Supply: AC100-240V
  • Precision: 0.01mm
  • Operating System: LaserGRBL, LightBurn
  • Auto Leveling: Yes
  • Maximum Print Size: 410mm*850mm
  • Molding Technology: LNNS
  • Interface Type: USB
  • Color Print Speed: 1000mm/min
  • Maximum Working Speed: 3000mm/min
  • Voltage: 110-220V
  • Laser Type: DIODE
  • Laser wavelength: 455±5nm
  • pulse width: 1ms
  • frequency: 1khz
  • Graphic Format: DXF, BMP, DXP, JPG
  • Laser output power: 10W-11W
  • Certification: CE FCC RoHS

Welcome to ATOMSTACK  Store

Delivery period:

1. Under normal shipping conditions, Asia/Europe/North America/Oceania countries can arrive 6-9 working days after shipment.

2. Under normal shipping conditions, South America/Africa/Antarctica can be reached within 15 working days after shipment. (As there is no dhl, fedex, tnt, ups to Russia, we will deliver to your door via Russian-Chinese special line, the delivery time is about 25 days)



Please note that!

1. free delivery does not mean duty free. It is well known that import duties are levied in each country/region on imported high value goods.

2. The seller ships via courier: such as DHL/UPS/FedEx.

About Maintenance:

1.All machines have13 monthswarranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you.

2.If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

Please feel free to contact customer service if you have any questions

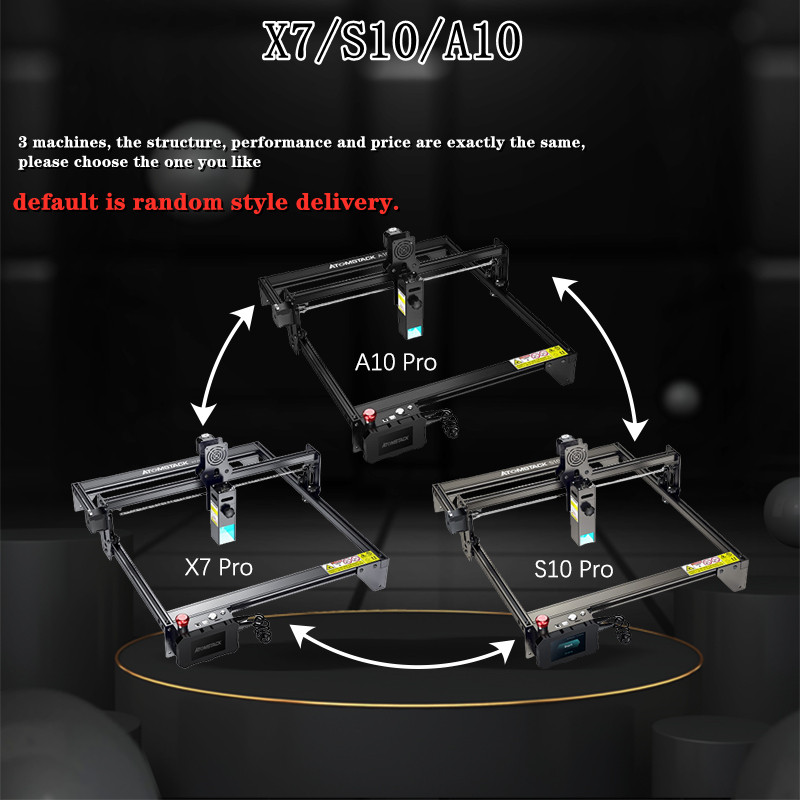

3 machines, the structure, performance and price are exactly the same, please choose the one you like, the default is random delivery.

Product Description:

1.The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.


2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.


3.Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.


4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.


5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

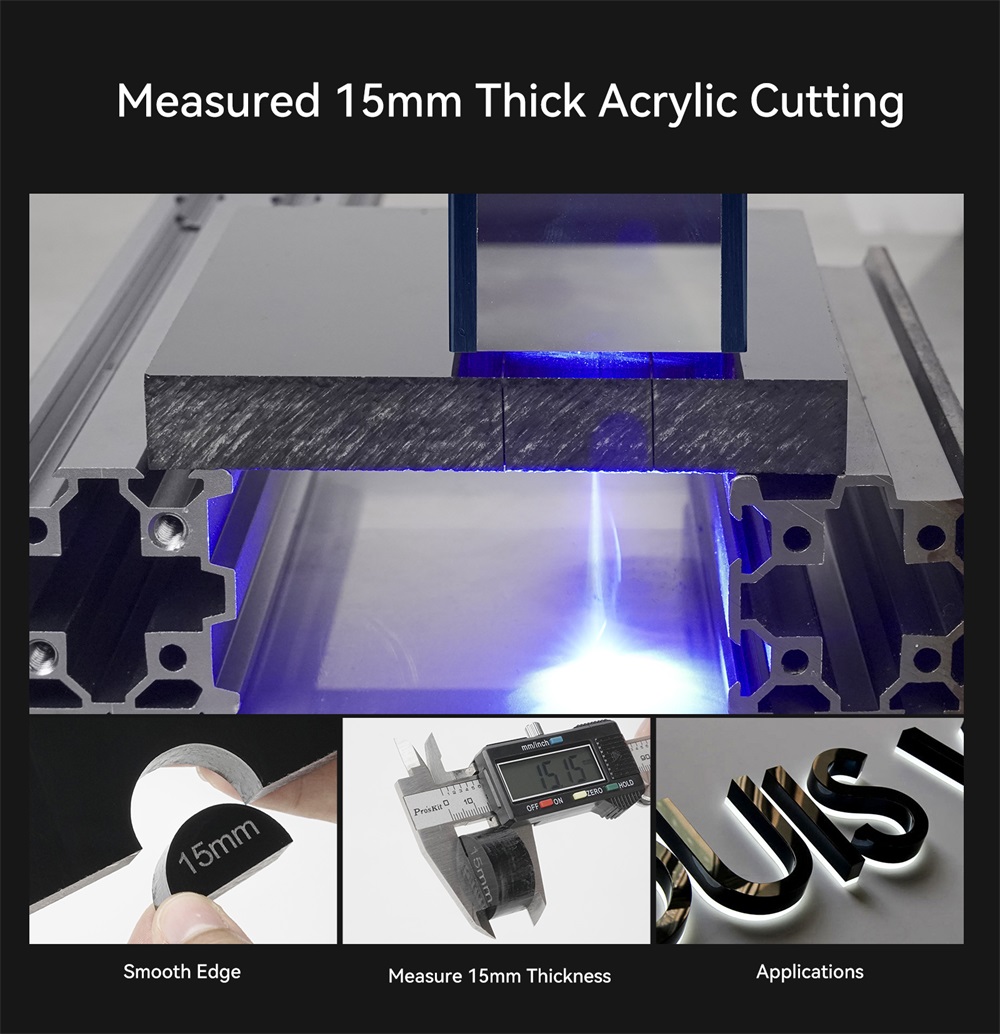

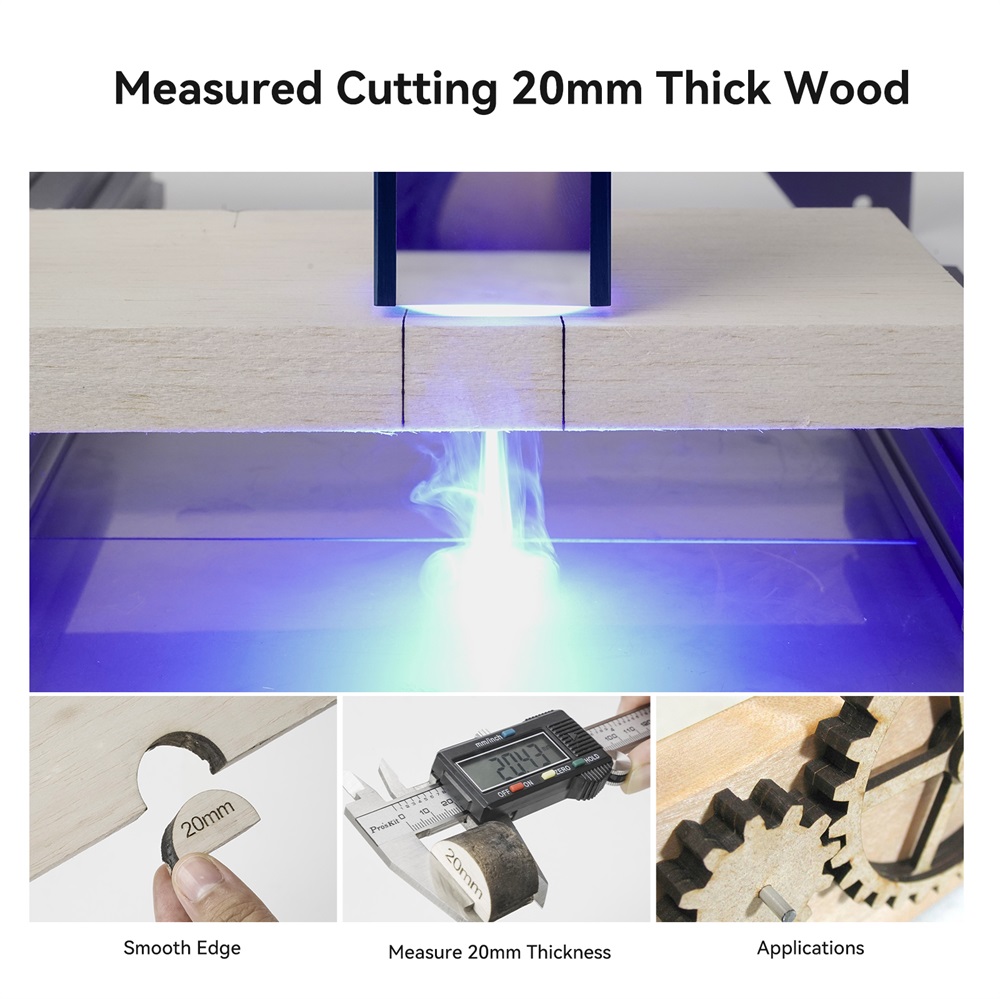

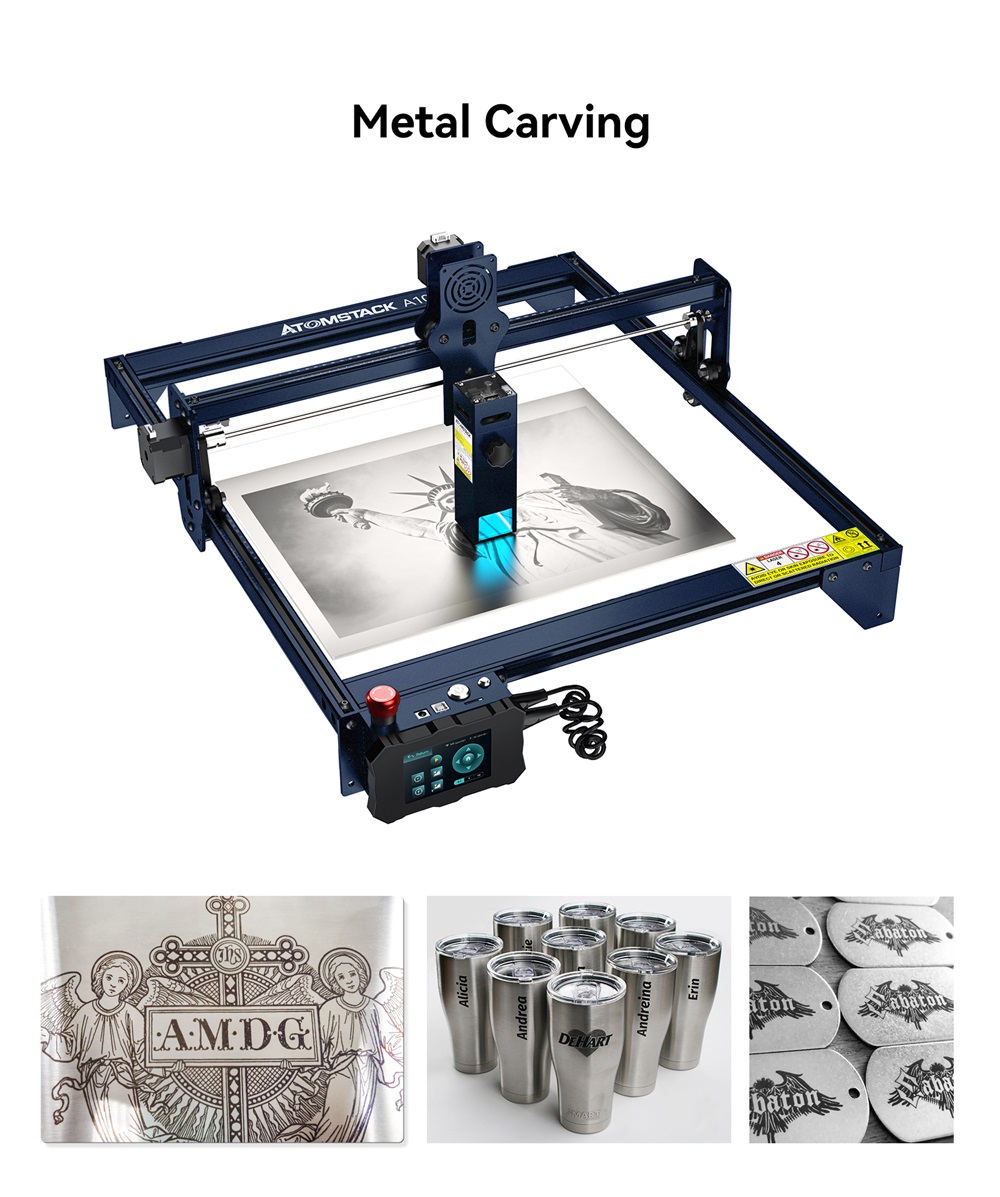

6.Double compression spot coupling technology: laser power is 10-11W, ultra-fine laser focus area is reduced to 0.08*0.15mm, high-density laser can easily cut 15-20mm thick wooden boards and 10-15mm thick black acrylic; it can directly engrave mirror stainless steel Metal, ceramic, glass, engraving & cutting speed is 40% higher than that of ordinary models.


7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.


8.New laser with knob: It is more convenient and quick to adjust the height of the laser.


9. Support offline engraving: A10 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.


10. The laser sintering temperature is up to 1200℃


11. Emergency stop button: Yes


12. Stopper: Yes


13. Reset switch: Yes


14. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get410*850mm super large engraving size

Item Model Number: ATOMSTACK S10PRO/A10PRO/X7PRO
Print Size: Recommend Print Size 410*400mm/410*850mm
Carving Objects: Wood, Bamboo, Cardboard, Plastic, Leather, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate
Cutting objects: cardboard, non-woven fabric, wood board, (non-transparent, non-white) acrylic, some thin plastic sheets, sponge
Electric Power:50W
Laser Output Power:10-11W
Wave Length:445 ± 5nm
Engraving Accuracy:0.01mm
Focusing Method:Fixed Focus Laser, No Need to Focus
Laser Protective Cover:Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating Software:LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format:NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method:USB Connection
Input Voltage:AC100-240V, 50/60Hz
Output Voltage:DC12V, 5A
Certification:CE FCC RoHS FDA PSE

Product Certifications

Applicable materials

Packing & Delivery

By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 6-10days by DHL, UPS, FedEx, Aramex and 10-20 days by EMS.

Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 6days to your
local airport.

By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.

FAQ

Q:How’s the cut and carving? The machine’s new, but I don’t know how to handle it
A:hello. You can contact our online customer service for detailed consultation.

Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free express shipping,about 6-10 days to door.

Q: Can I adjust the laser power?
A: yes ,can adjustable.

Q:New ATOMSTACK A10 PRO 50W Laser in the description informs 10W-11W, wouldn’t it be 50W?
A :The total power of the machine is 50W, and the laser power is 10W-11W.

Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.

Q:I can’t assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.

Q:Hello, does she cut acrylic? If so, what’s the maximum thickness she cuts?
A:Yes. about 10mm Acrylic. Cutting Times about 5 min.

Note

*Do NOT operate laser without eye protection 。

*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。

*Please set up laser engraver in the fireproofing area, with good ventilation。

*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。

*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。

*Please avoid strongly impact on the machine。

*Use the laser engraver in a room that can be closed by a door and ensure that neither laser beams nor stray light can penetrate through the windows。

*While using the laser engraver, use door signs or a warning light on the door that indicates the laser engraver is in operation。

*Please do not touch the heat sink, when the laser engraver just stop working, it may scald your hands。
