Description
Product Certifications：
Have CE ,FCC,ROHS certifications, High quality guarantee, purchase without any worries

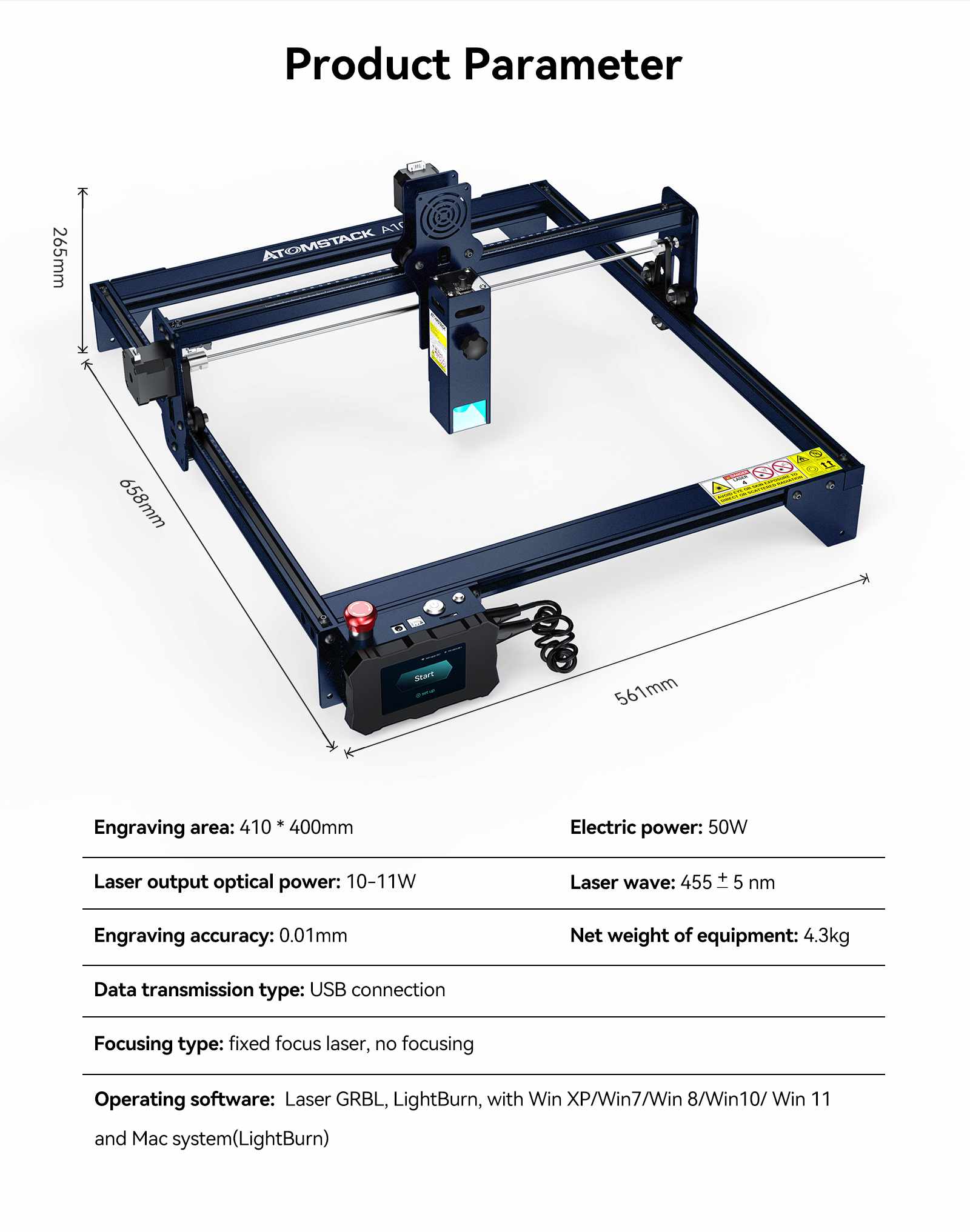

Specification
|
Item model number
|
ATOMSTACK A10 PRO
|
|
Print Size
|
Recommend Print Size 410*400mm
|
|
Carving Objects
|
wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel etc
|
|
Cutting Objects
|
cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather etc
|
|
Laser power
|
50W
|
|
Laser output power
|
9.5-10W
|
|
Wave Length
|
445 ± 5nm
|
|
Engraving accuracy
|
0.01mm
|
|
Focusing method
|
fixed focus laser, no need to focus
|
|
Laser protective cover
|
Protect the user’s eyes and prevent pets from grabbing the laser spot.
|
|
Operating software
|
LaserGRBL, LightBurn,
|
|
Support system
|
support Win XP / Win 7 / Win 8 / XP / Win 10 system
|
|
Input Format
|
NC, BMP, JPG, PNG, DXF, etc.
|
|
Data transmission method
|
USB connection
|
|
Input Voltage
|
AC100-240V, 50/60Hz
|
|
Output Voltage
|
DC12V, 5A
|
|
Package weight
|
4kg
|
|
Equipment size
|
600*570*270mm
|
|
Packing size
|
600*350*140mm
|
|
Certification
|
CE FCC RoHS PSE
|
Product Description
Features:

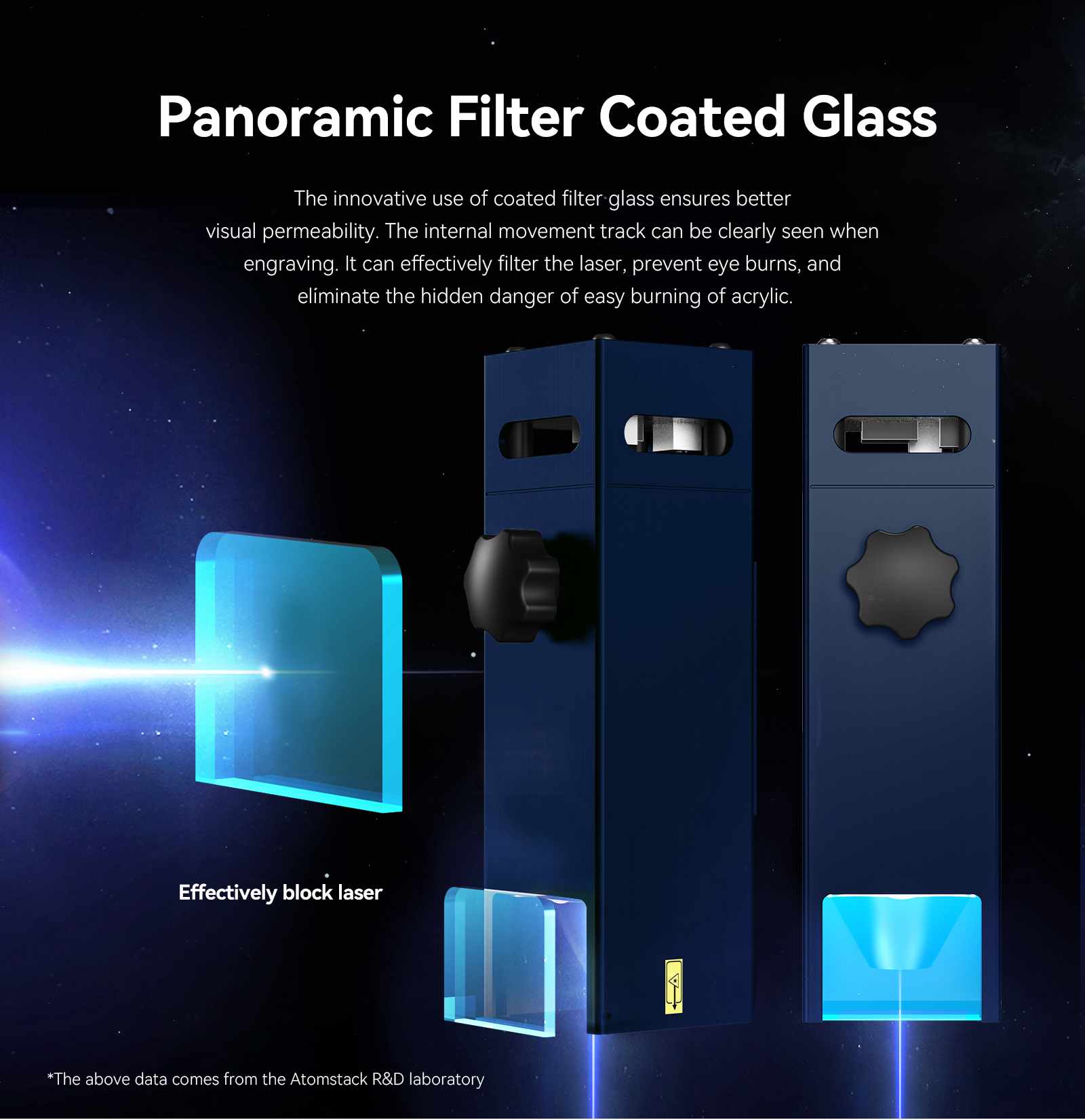

1. The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very important role in protecting your eyes, and are able to filter 97% of the ultraviolet light. Therefore, you and people around you do not need to wear goggles, you can also watch the process of laser engraving. The new laser engraver can reduce the cost of your goggles and the inconvenience of wearing goggles.
2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable,and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded high-performance fixed-focus laser: There is no need to adjust the focus before engraving. The focal spot area of the new laser is only one third of the spot area of other ordinary lasers. The new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and it also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. The large area engraving interval of 410x400mm can meet your various engraving needs.

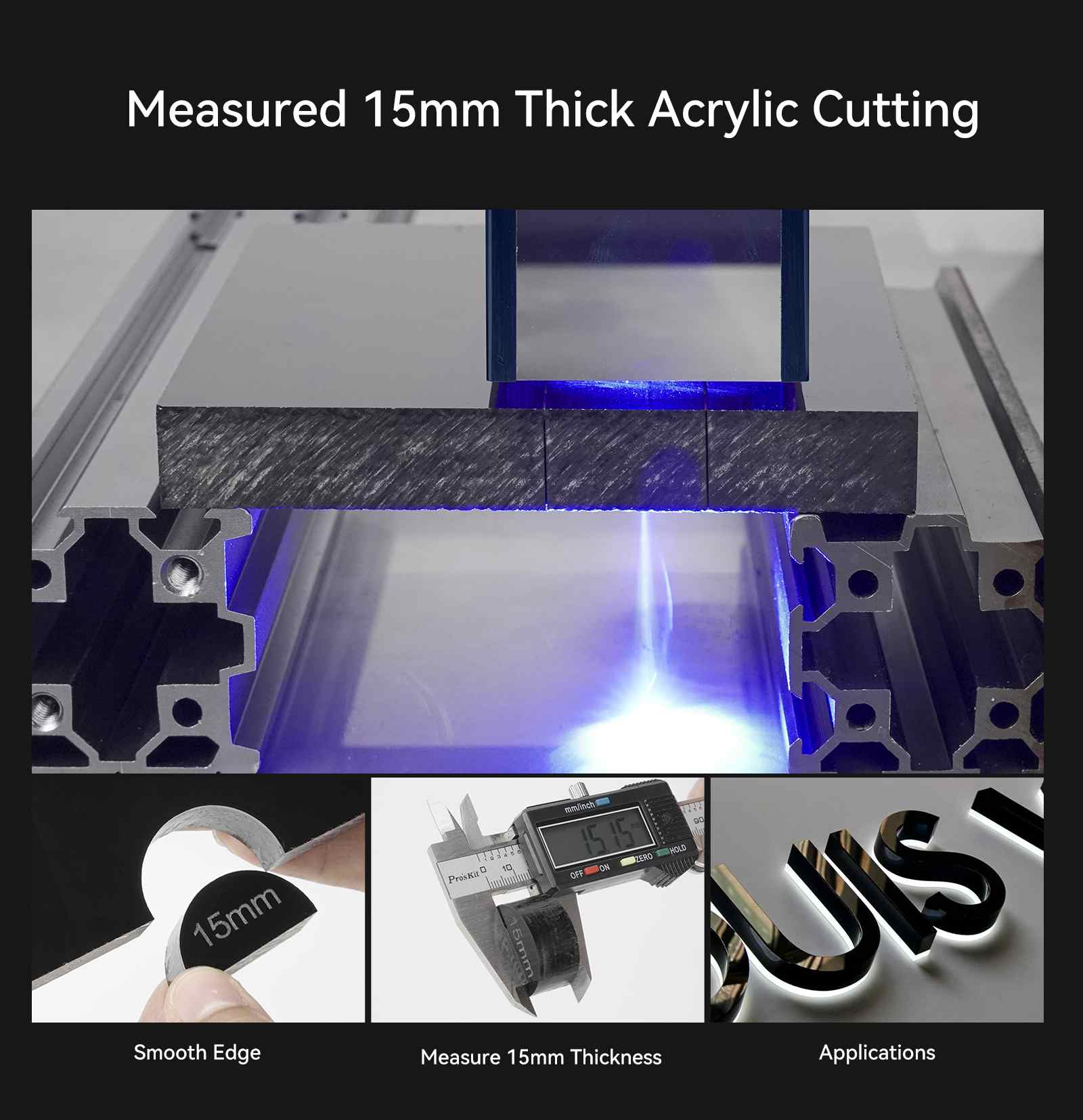

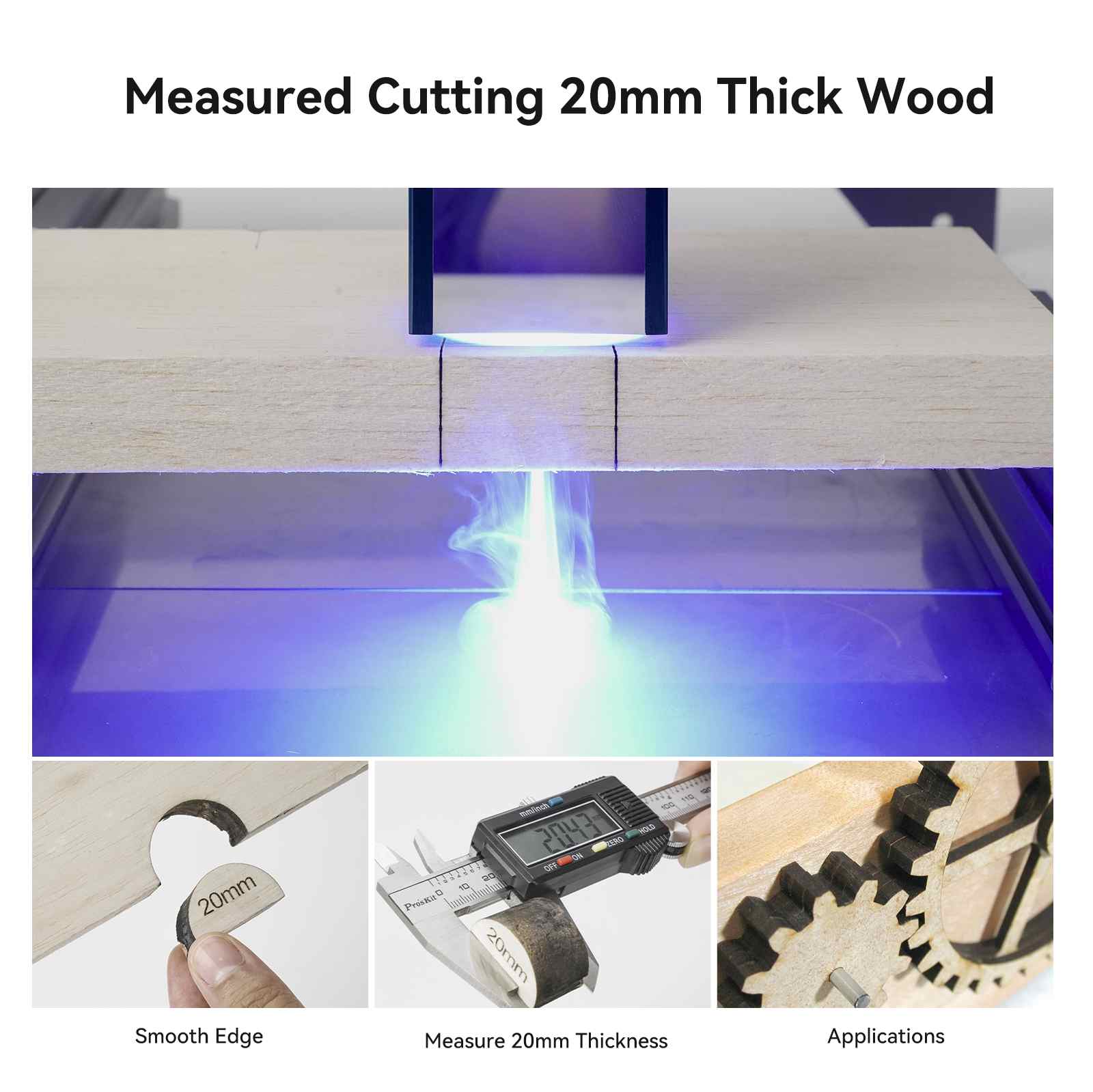

6. Double compression spot coupling technology: laser power is 9.5~10W, the ultra-fine laser focus area is reduced to 0.08*0.15mm. High-density laser can easily cut 10mm thick wooden boards and 6-8mm thick black acrylic. It can directly engrave mirror stainless steel Metal, ceramic glass. The engraving and cutting speed is 40% higher than that of ordinary models.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9. Support offline engraving: X7 PRO is equipped with the terminal control panel, which supports offline engraving. You can carry out engraving work anytime and anywhere without being restricted by the computer.
10. The new laser engraver is equipped with a horizontal gyroscope: In order to ensure your safety, the new laser engraver will stop working immediately when it is tilted.
11. The laser sintering temperature is up to 1200℃.
12. Emergency stop button: Yes
13. Stopper: Yes
14. Reset switch: Yes
1. The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very important role in protecting your eyes, and are able to filter 97% of the ultraviolet light. Therefore, you and people around you do not need to wear goggles, you can also watch the process of laser engraving. The new laser engraver can reduce the cost of your goggles and the inconvenience of wearing goggles.
2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable,and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded high-performance fixed-focus laser: There is no need to adjust the focus before engraving. The focal spot area of the new laser is only one third of the spot area of other ordinary lasers. The new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and it also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. The large area engraving interval of 410x400mm can meet your various engraving needs.
6. Double compression spot coupling technology: laser power is 9.5~10W, the ultra-fine laser focus area is reduced to 0.08*0.15mm. High-density laser can easily cut 10mm thick wooden boards and 6-8mm thick black acrylic. It can directly engrave mirror stainless steel Metal, ceramic glass. The engraving and cutting speed is 40% higher than that of ordinary models.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9. Support offline engraving: X7 PRO is equipped with the terminal control panel, which supports offline engraving. You can carry out engraving work anytime and anywhere without being restricted by the computer.
10. The new laser engraver is equipped with a horizontal gyroscope: In order to ensure your safety, the new laser engraver will stop working immediately when it is tilted.
11. The laser sintering temperature is up to 1200℃.
12. Emergency stop button: Yes
13. Stopper: Yes
14. Reset switch: Yes
Shipping Ways:
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country. DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
