Description
- Brand Name: CRONOS
- Model Number: 2500MW

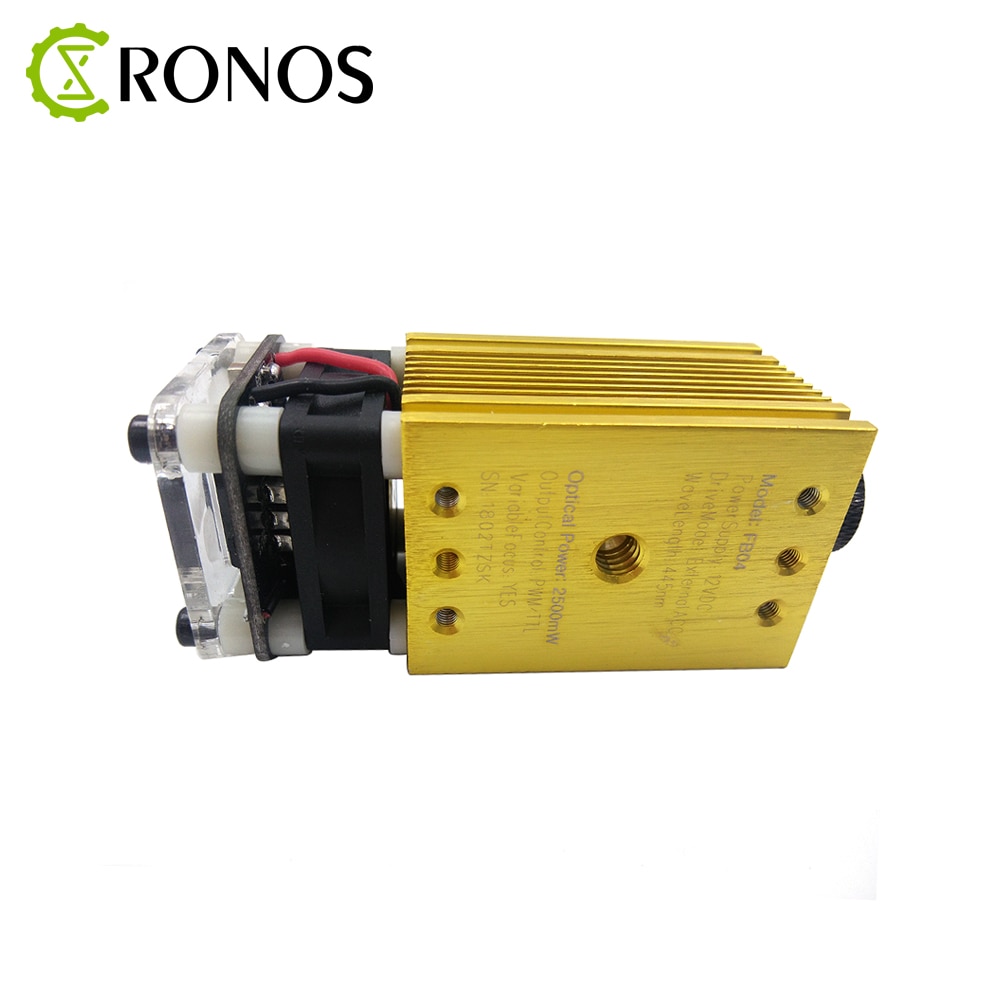

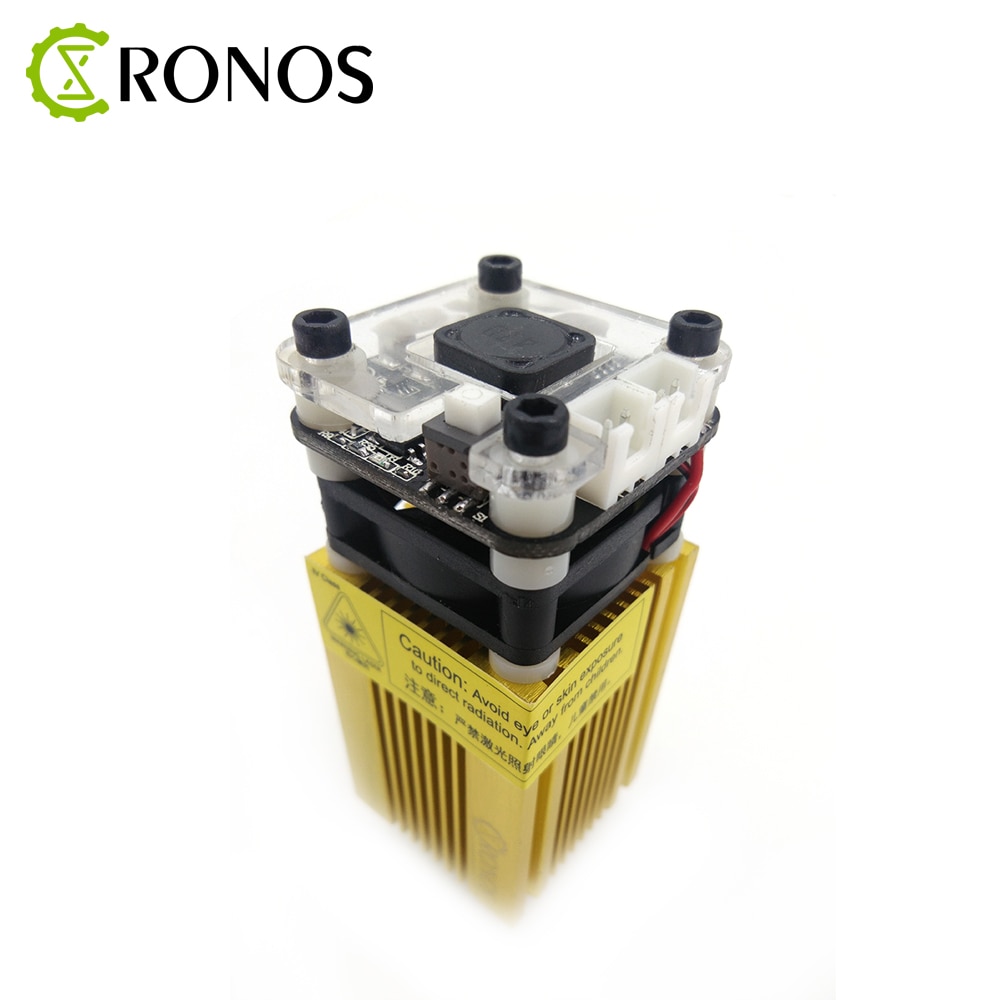

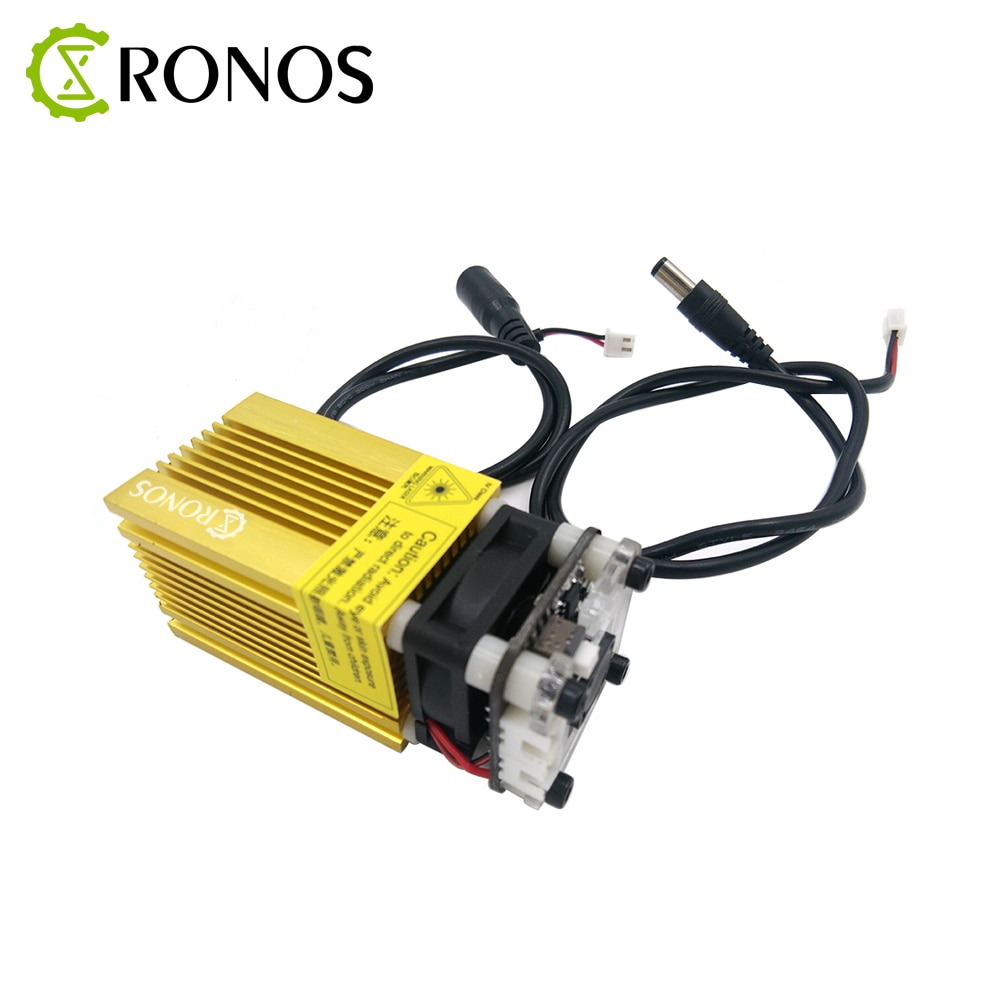

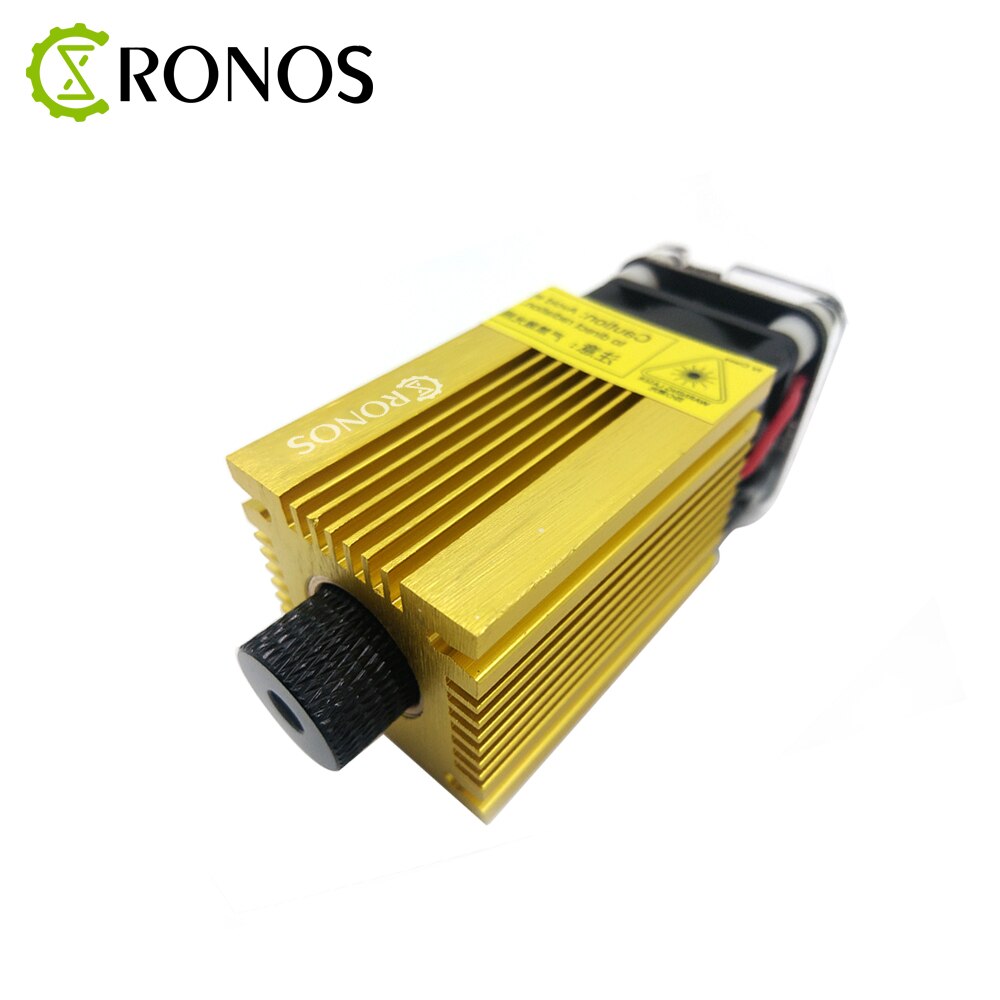

NEW 445nm-2500mw Gold Module Laser DI Messa A Fuoco Blue Laser Incisione Laser Testa, 2.5W Tubo Del Laser Diode 2p Port
This 445nm 2500mW focusable blue laser module is equipped with constant-current
driver board, aircraft aluminum heat sink and cooling fan ideal for DIY laser cutter
equipment usage with stable out put power and long lifetime.
User must read:
1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
2. Do not use in flammable and gas atmospheres to avoid fire and explosion
3. Prohibit children from exposure to this laser product.
4. Do not open the module to avoid damage.
–Can notprocessed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent
material.
–Carving wood / bamboo / paper / plastic / leather / rubber / horn.
–Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.
–Laser wavelength: 445nm (blue viole)
–Spot type: Dotted (adjustable)
–Light power: 2.5Watts (2500mw)
–Drive mode: external ACC constant current drive
–Cooling method: Forced Air Cooling
–Operating voltage: 12V DC
–Power supply interface: 2 * 2.54
–Control interface: 2 * 2.54 (TTL control switch, PWM control power)
–Shell material: Aluminum, Surface Anodized
–Module material: Copper
1.Input power: 12V DC(8-15V), Curren:2A.
2.PWM/TTL Rear-Time Control, it can adjust 0.1%-100%.
3.Weak Light Button, used for laser’s test.
1.Diode used Copper Jacket.
2.Shell used Aviation Aluminum Anodizing.
Industrial design, heat dissipation, control integrated structure.
FAQ:
Q : How To Focus The Laser ?
Q：Where is the TTL port? I can only see the PWM?
A：TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module’s PWM port
to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q：How can I connect this module to the my engraver?
A:If you don’t need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
–Do not use in flammable and gas atmospheres to avoid fire and explosion.
–Prohibit children from exposure to this laser product.
–Do not open the module to avoid damage.
