New 40W Laser Head 450nm Blue Laser for Laser Engraving Machine,wood acrylic and leather cutting

$171.50

SKU: 3456234018651 Category:

Description

Product Show


New 40W Laser Head 450nm Blue Laser for Laser Engraving Machine,wood acrylic and leather cutting

Fast heat dissipation, strong power




Product Features

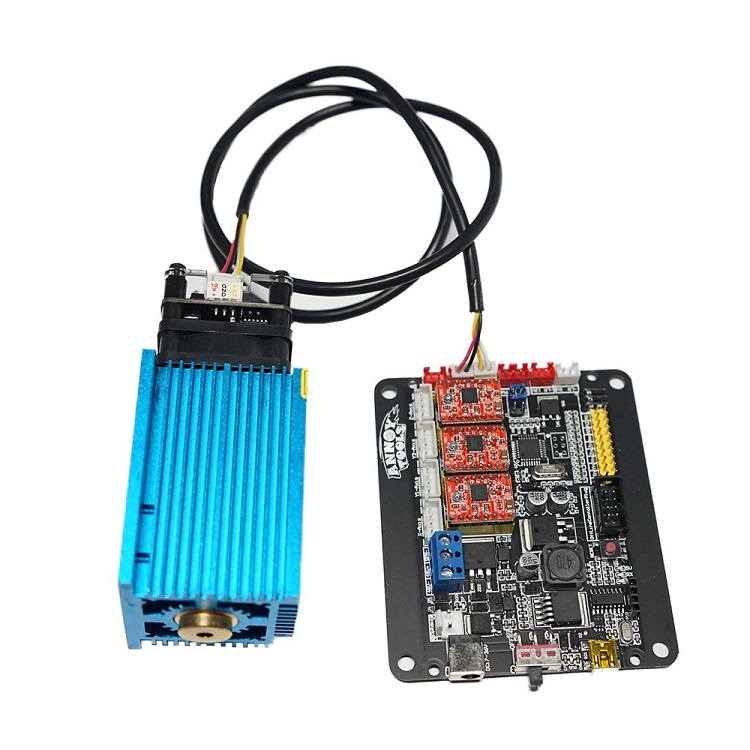

* Designed for laser engraver, 3D printer, CNC milling machine, arduino project.

* 15W optical power output, 1-step 4mm plywood (200 speed), 1-step 3mm black acrylic board, capable of engraving stainless steel,no need for focus adjustment.

* More safety, built-in protective glass to protect your eyes! Even without wearing protective glasses, the operation is more comfortable.

* The quietest smart unit adjusts the speed of the cooling fan based on the laser temperature.

* A slide mount accessory is provided to facilitate focus adjustment.

Product Details

If you already have a laser engraving machine, 40w laser will be the best choice for upgrading. Please consult before buying, we will choose the best fit for you!!

Parameters

* Module input: 40W
* Optical power output: 15W
* Wavelength: 450nm
* Beam shape: Dot (Fixed focues)
* Operating voltage: DC 12V
* TTL and PWM modulation: Yes, Compatible with TTL and PWM modulation
* Input voltage: DC12V 3-4A
* PWM / TTL input: DC 5V
* Input interface: 3Pin (+ -PWM / TTL) 2Pin + 2Pin (+ -) + (PWM / TTL.-)
* Safe temperature range: <60 ℃
* Module weight: 202g (the lighter the weight, the smaller the inertia of motion, the better the performance)
* Life time: 10000-20,000 hours

Product Effects

Your satisfaction is our relentless pursuit,start your DIY engraving adventure!

Additional information

Model Number

40w laser
