New 405nm 20mw-55mw Violet Laser Diode 3.8mm TO38 ld-light NDV1342

$14.30

999 in stock

SKU: 1005001883750178 Category:

Description

  • Brand Name: ZRHF
  • Certification: RoHS
  • Origin: JP(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: NDV1342
  • Light Output: 20mW
  • Operating Voltage: 4.4V
  • Operating Current: 30mA

Features

1. Absolute maximum ratings:55mW (CW)
2. Φ3.8mm package,Floating Mounted

Electrical and Optical Characteristics(Tc=25℃)

Lasing Wavelength:405nm
Optical Output:20mW
Threshold Current:16mA
Operating Current:30mA
Operating Voltage:4.4V
Operating Temperature:-10 to +80℃

Beam Divergence(FWHM)
Parallel:9deg
Perpendicular:19deg

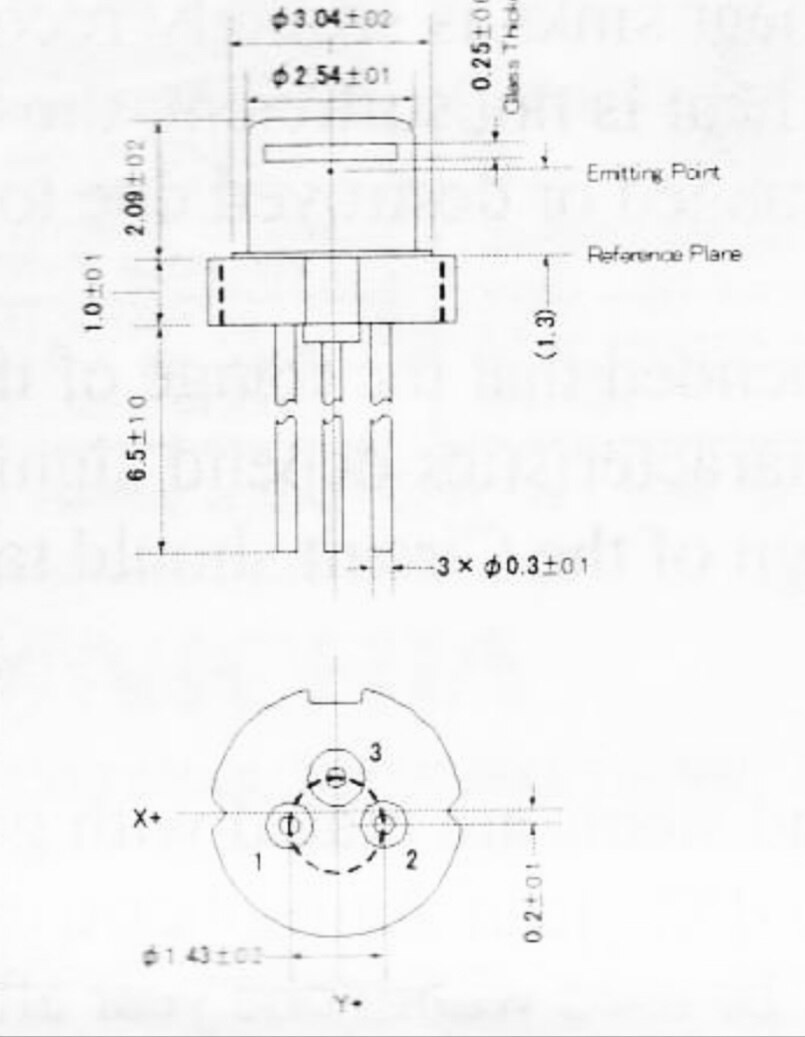

External dimensions(Unit : mm)

Pin Description

Pin1 LD Anode
Pin2 LD Cathode
Pin3 NC(case)
