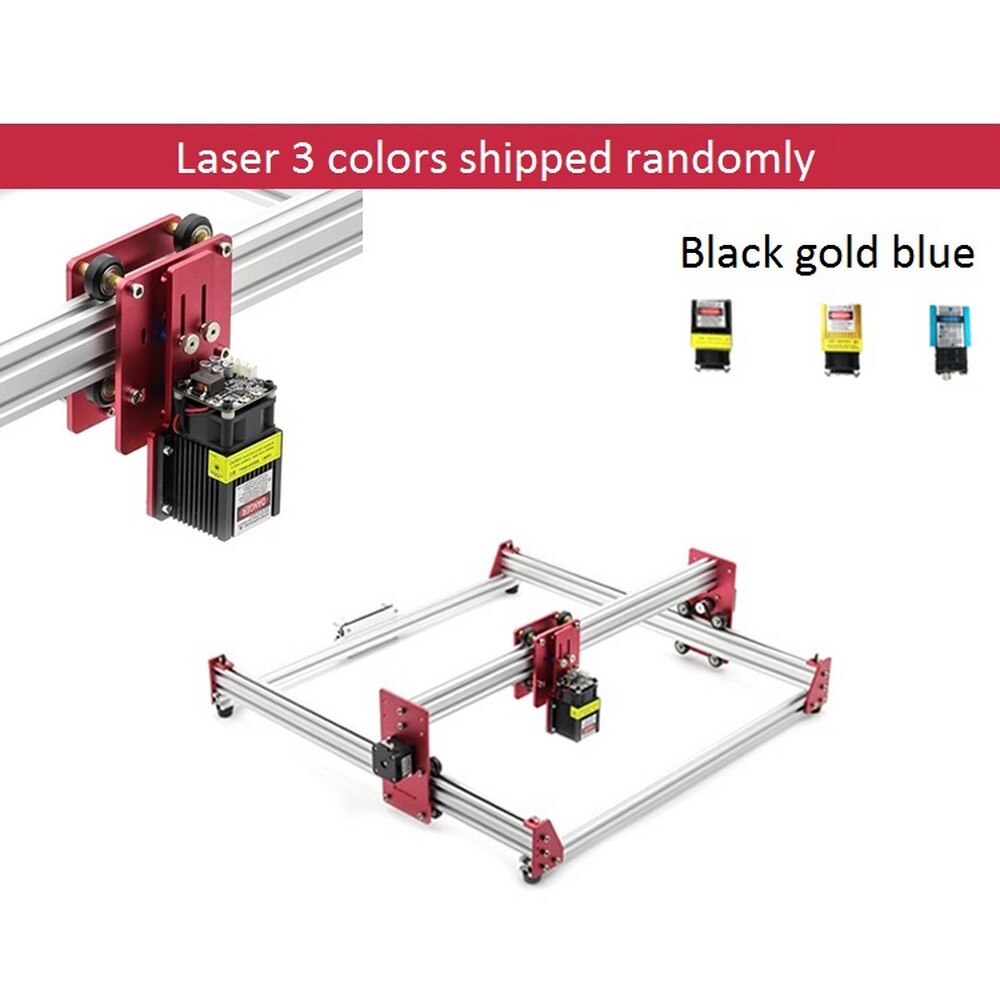

All Metal 45*45cm 5500mW/ 15000mw  Wood Laser Engraver Cutter Engraving DIY Machine Mini CNC Printer PWM,GRBL EleksMaker

Features:

• 45X45cm ultra large engraving area,gantry shape design,
• no engraving height limitation.
• Three stepper motor drive providing faster moving speed.
• Laser module with heatsink, high laser engraving power and long term available.
• can print any pictures easily

General Specification:

• Material :Aluminum Profile
• Packaging Size:68x40x12cm / 26.77×15.75×4.72inch (L*W*H)

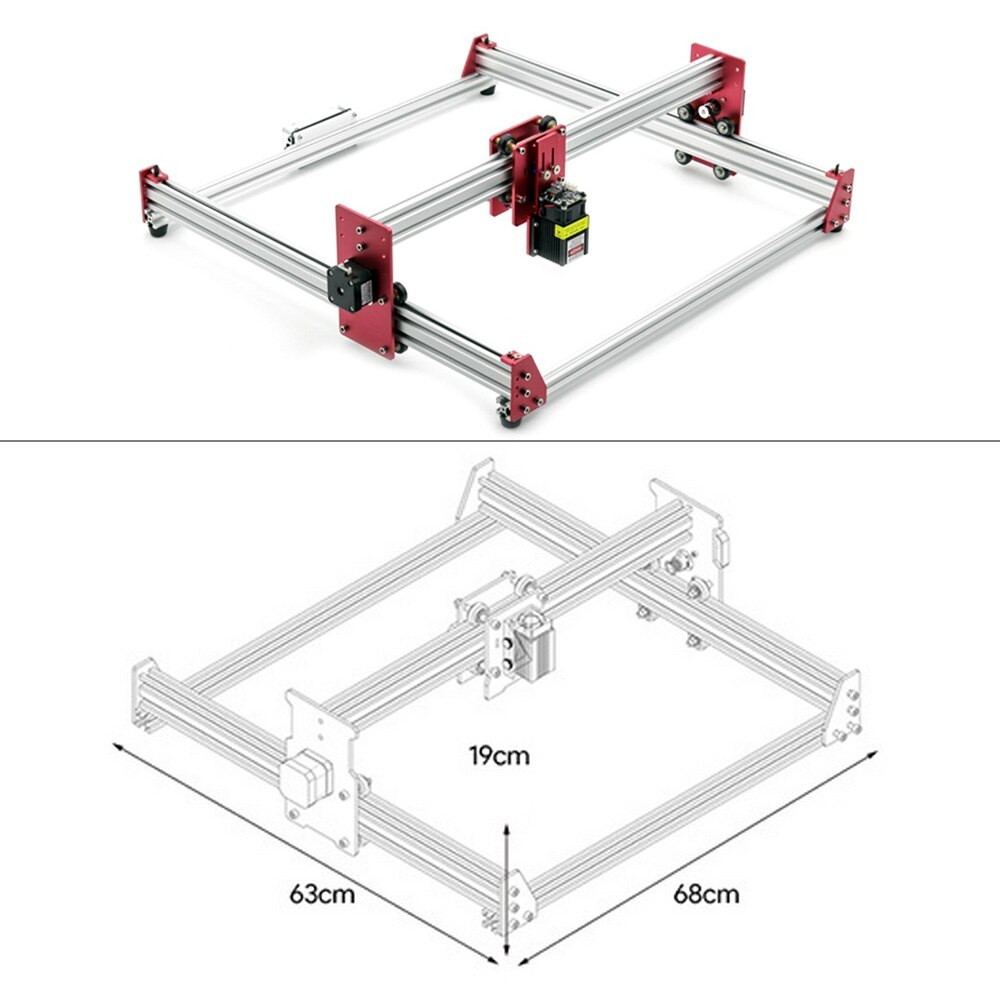

• Assembled Product Size:68x63x19cm / 26.77×24.80×7.48inch (L*W*H)
• Package Weight :6.50kg
• Can Engrave:Determined by laser module power
• Certifications :CE, FCC, FDA (Please contact us if you need them)
• Technical Parameters
• Laser Power:5500mW/15W
• Laser Wavelength:455nm (blue-violet light)
• Laser focal length is not adjustable, focal length is 2cm

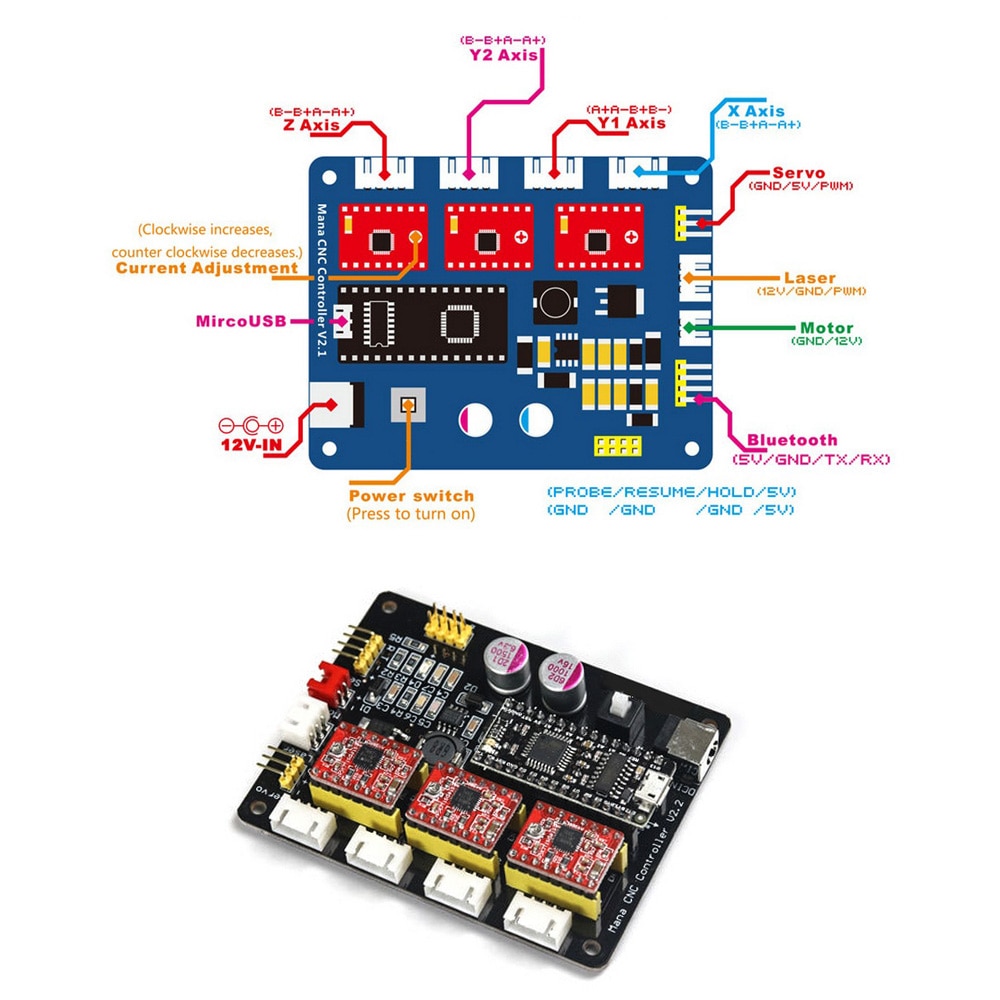

• Control Board:EleksMana SE
• Working area: 45×45cm
• Data interface: USB
• Laser Quick Replace :Support
• Stepper Motor:17HS1352-P4130
• Power Input:AC100-240V
• Working Voltage :DC 12V
• Working Current :DC 4-5A
• System Support:Win XP/7/8/10
• Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
• Supported Formats:jpg, bmp, svg, G-code
• Control Software System:EleksCam, T2-Laser, GrblController, LiteFire, Laser GRBL, etc.   (Can NOT use Benbox)
• Engraving Accuracy :0.01mm
• Engraving Area:45x45cm / 17.72 x 17.72inch (maximum)
• Engraved Object Height limitation:No Limitation

Function:

Ideal for amateur laser engraving usage, equipped with low light

positioning and freedom positioning functions.

5500mw:

Product parameters

Laser wavelength: 450nM

Spot mode: point adjustable focus

Focal length: less than 3 cm

Supply voltage: DC 12 V.

Power interface: XH2.54 * 3 P.

Drive mode: external ACC constant current drive

Shell material: module copper, shell aluminum anode black

Cooling method: forced air cooling

Other function interface: can be selected by TTL or PWM interface by button

Engravable materials: wood, plastic, paper, brushed surface 304 stainless steel (please use black pen to polish the surface before engraving)

Other metals and transparent and translucent and silver reflective materials cannot be engraved

Cuttable material: paper, wood board within 3MM (slow speed, need to cut repeatedly), leather, cloth, etc.

Any metal and transparent as well as translucent and silver reflective can not be cut!!!

Then a 15W fixed-focus laser can be engraved on the stainless steel surface and on the anode colored aluminum alloy surface.

Package List:

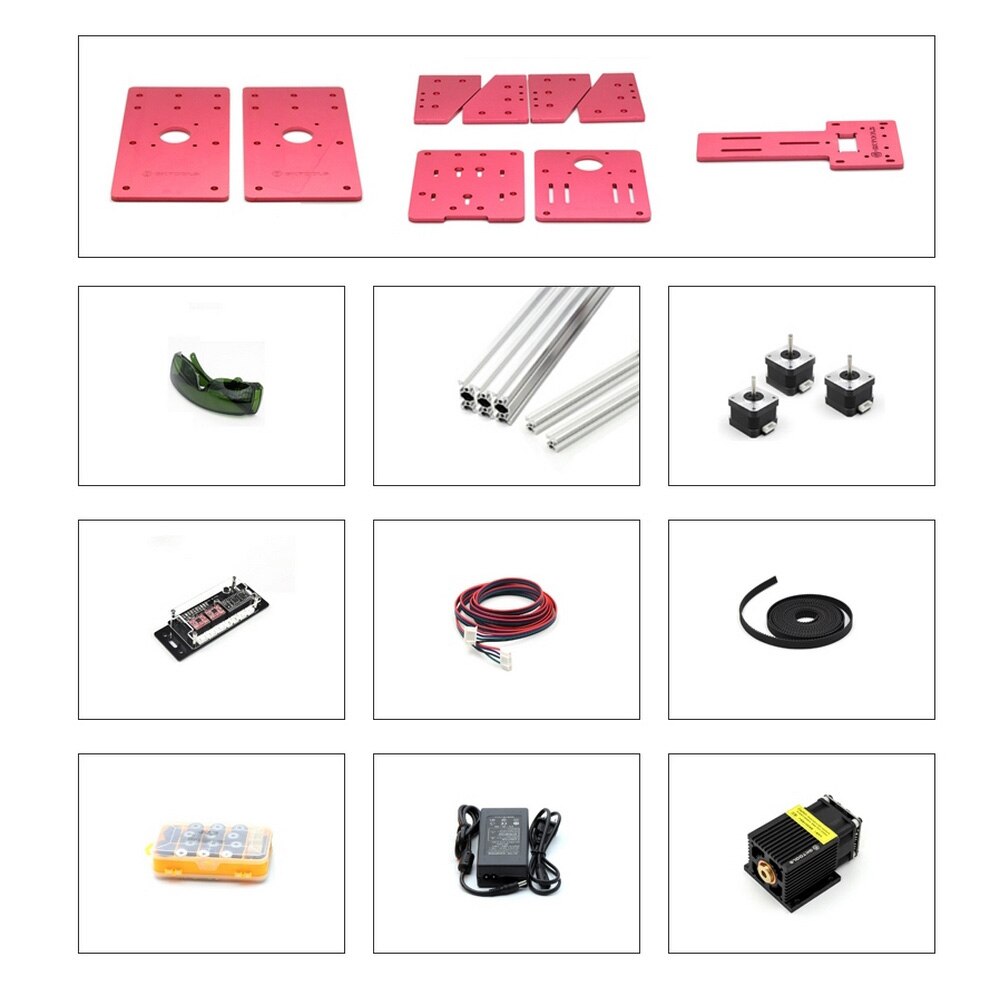

1 Set x GK4545Pro Laser Engraving Machine(Need to be assembled by you)

Tips:

Laser machine installation, software download, software settings, operating instructions in the installation of the CD.

Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

2. The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect to the ManaSE board correctly!

3. The laser module can not be used continuously for more than 30 minutes at a time. If there are any other quality problems (except for damage caused by improper use of the laser), please feel free to contact our customer service.

4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.

5. If you have any quality problems with the machine, please do not initiate a dispute immediately, please feel free to contact us. Many operational issues can be resolved, you can send your problem description to us via image or video. Thank you in advance.
