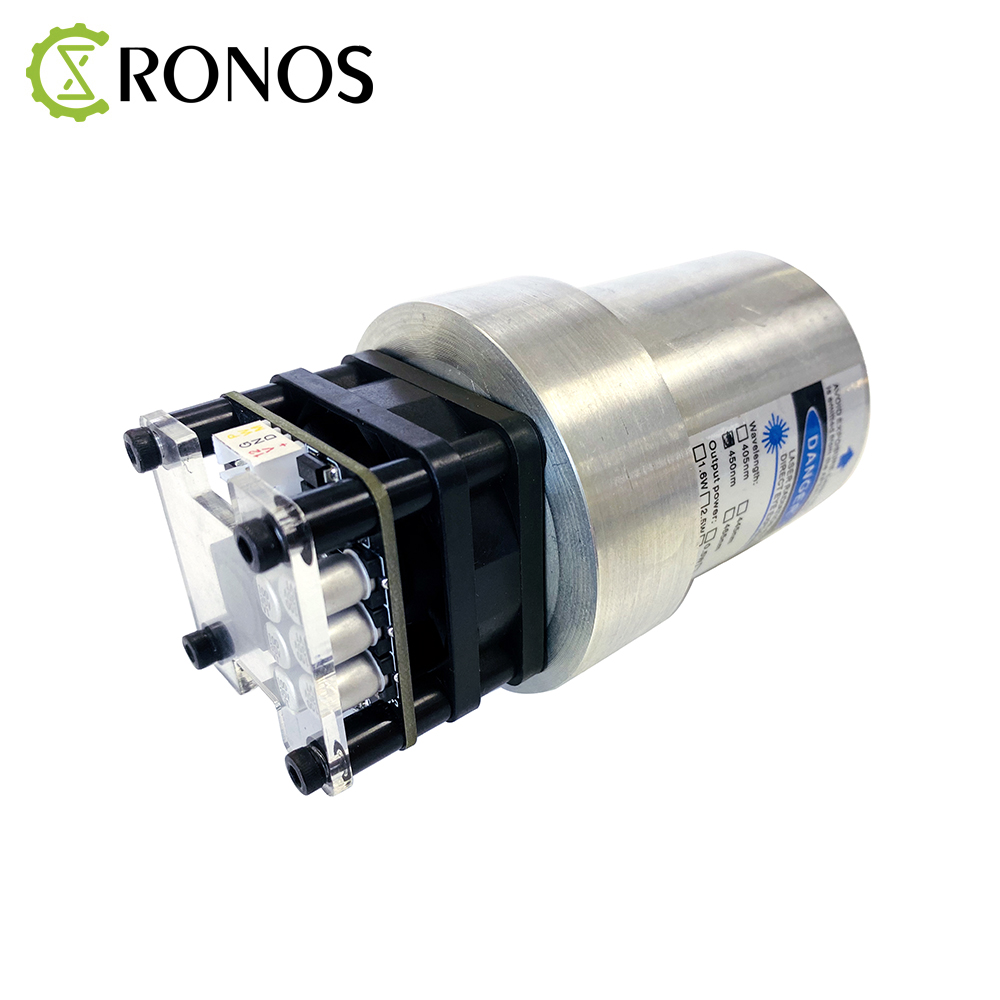

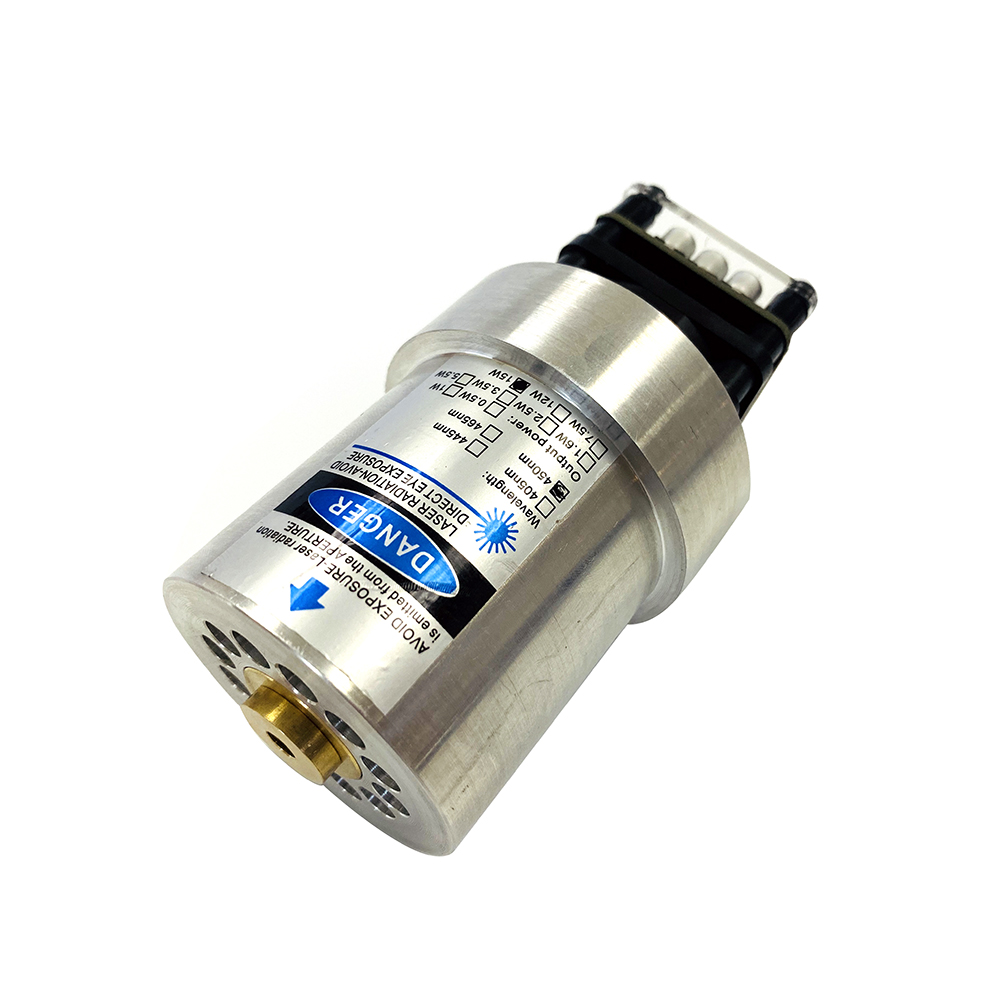

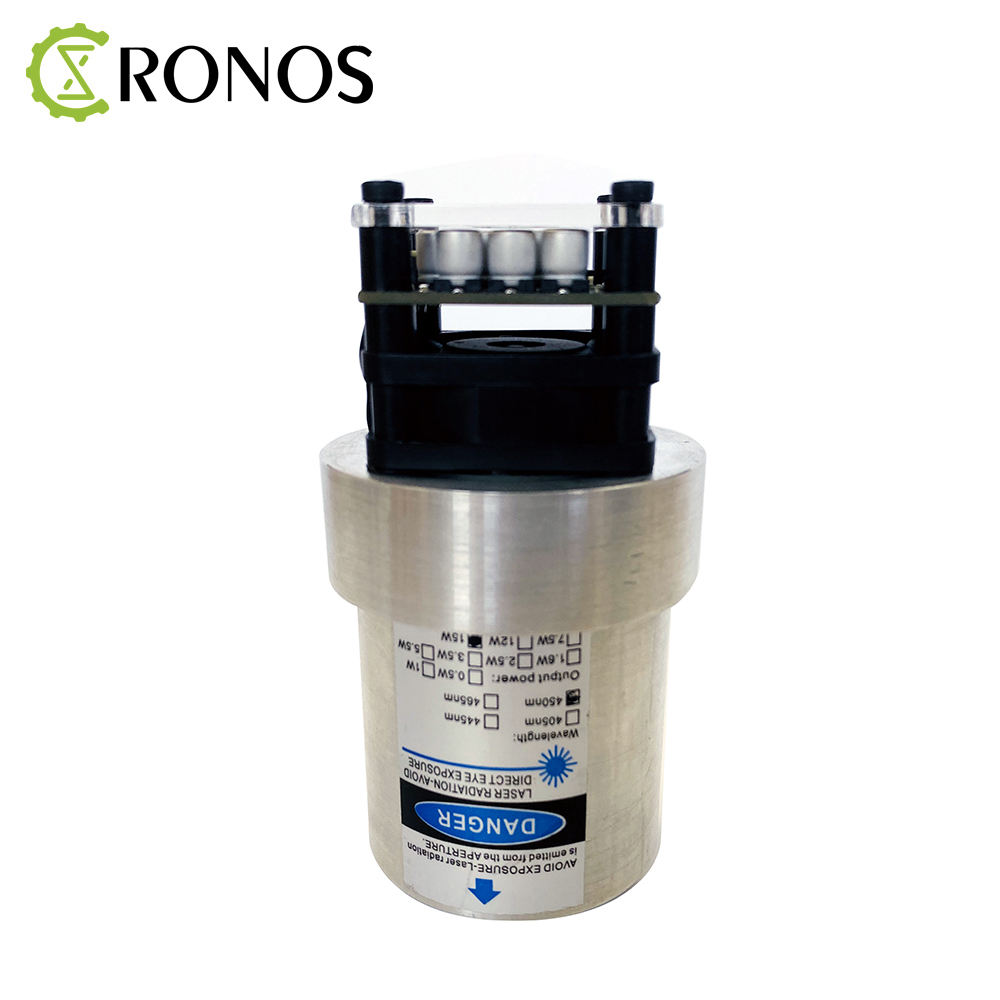

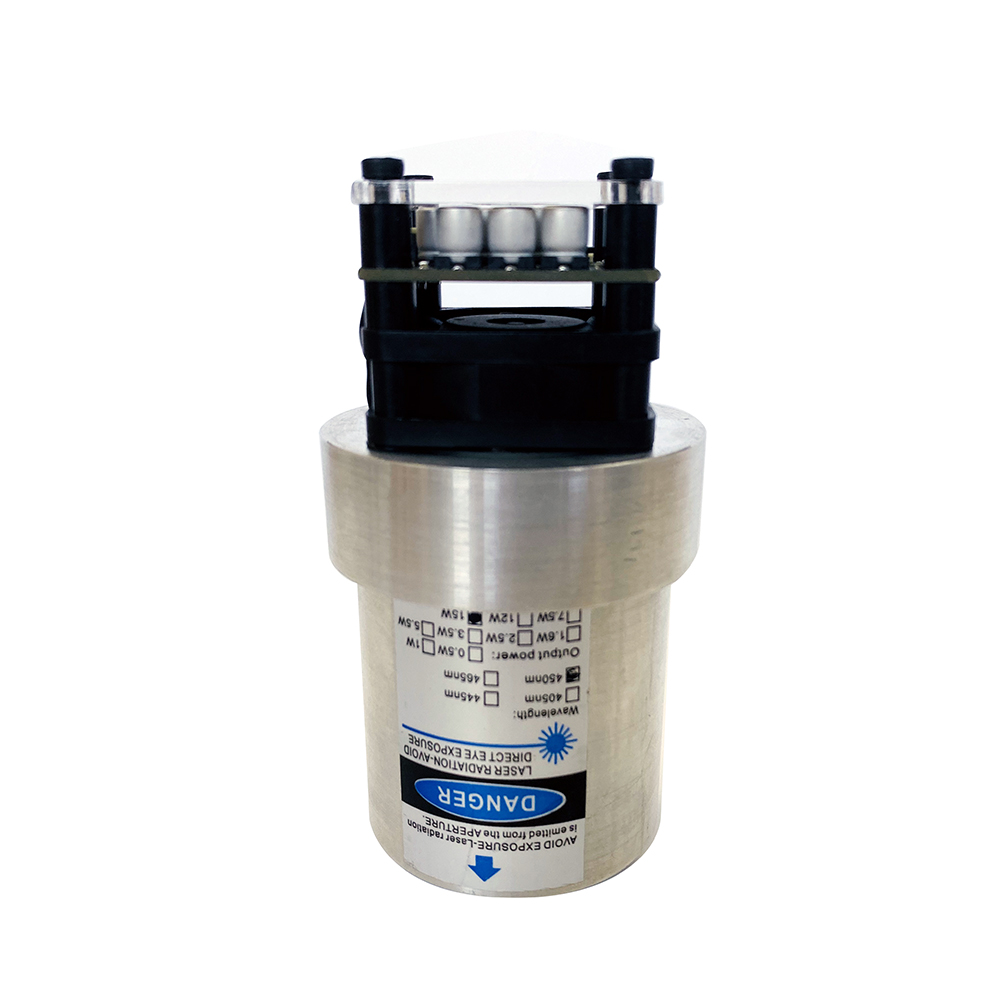

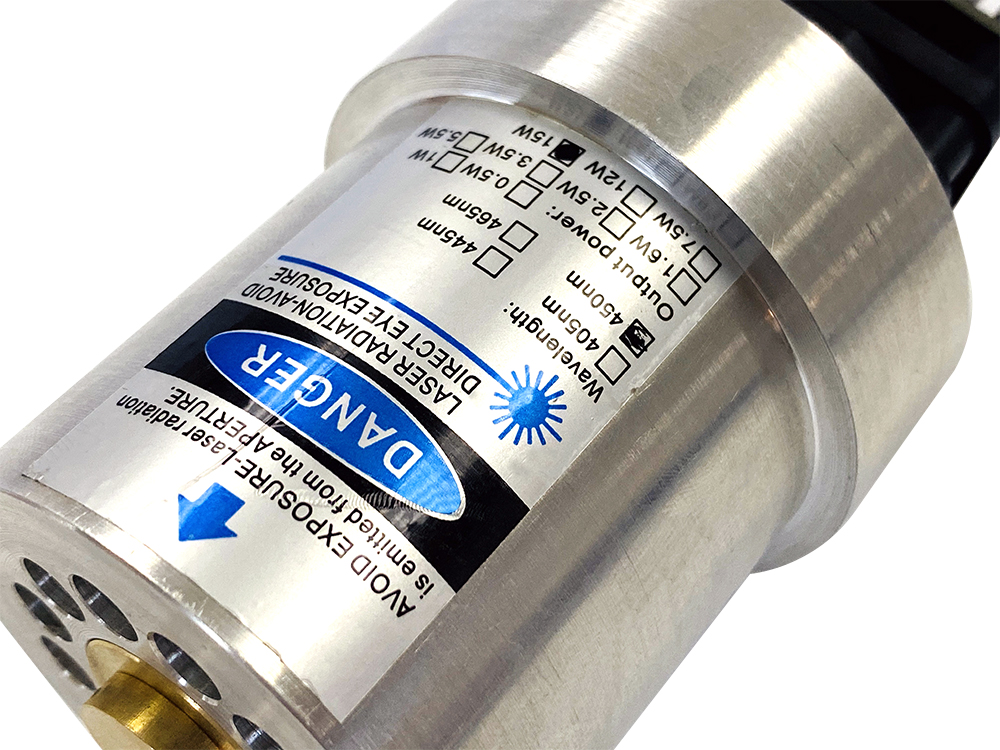

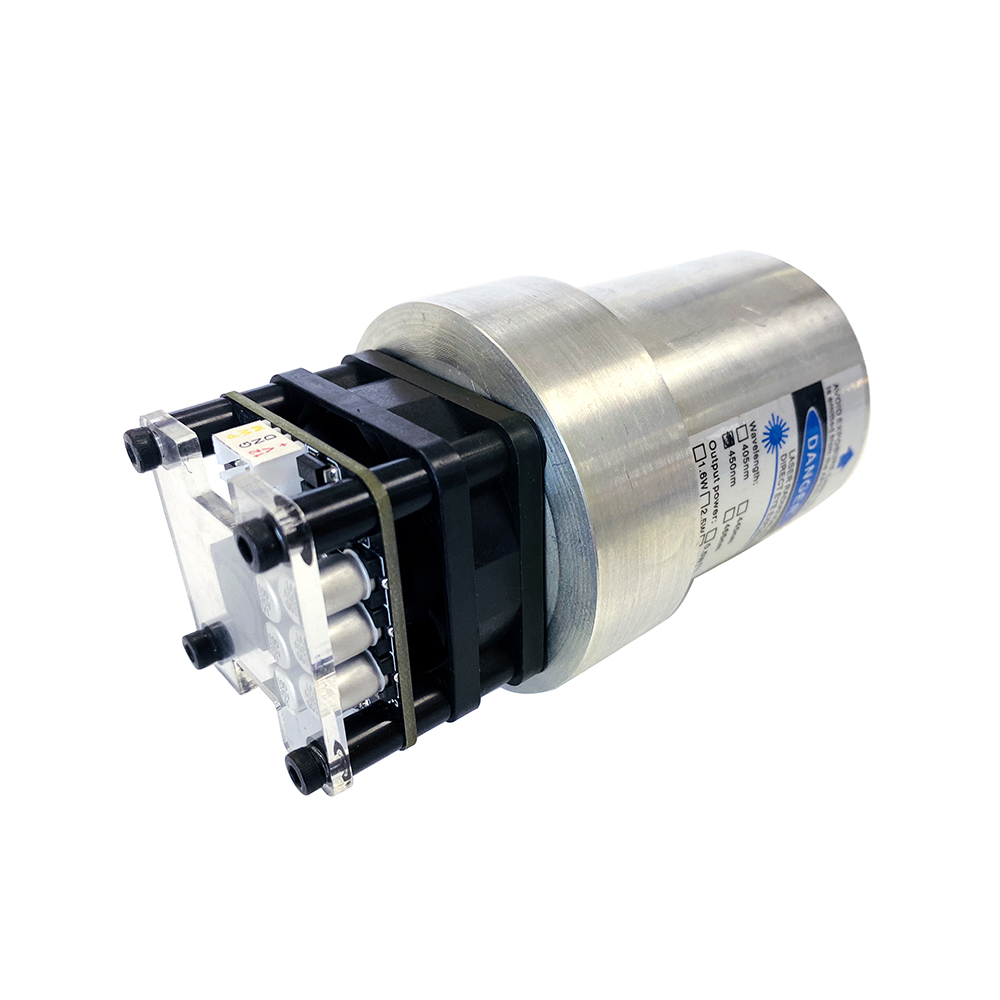

New 15W Fixed-Focus 52mm Cylinder Laser Module Can Engrave on stainless steel 15000mw DIY Carving Engraver Accessory With PWM



Tips:This product has applied for a utility model patent, and the infringement will be investigated.

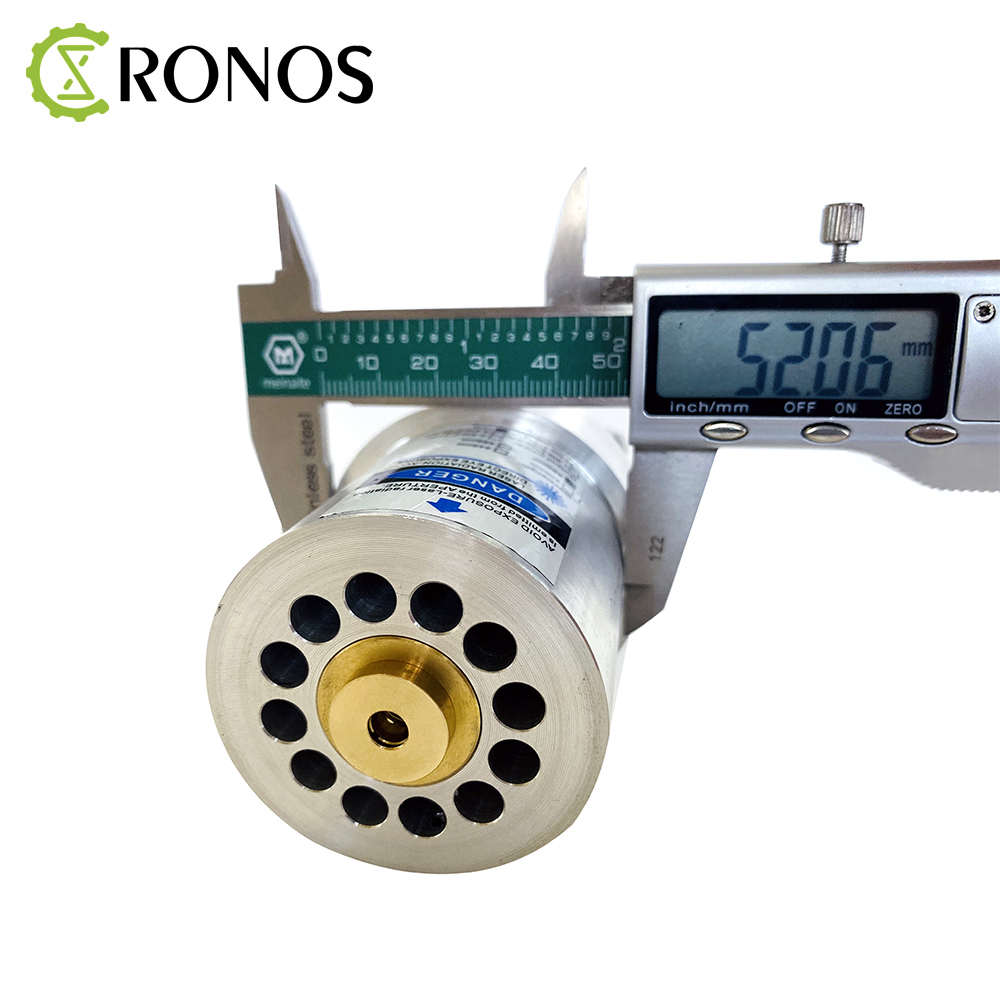

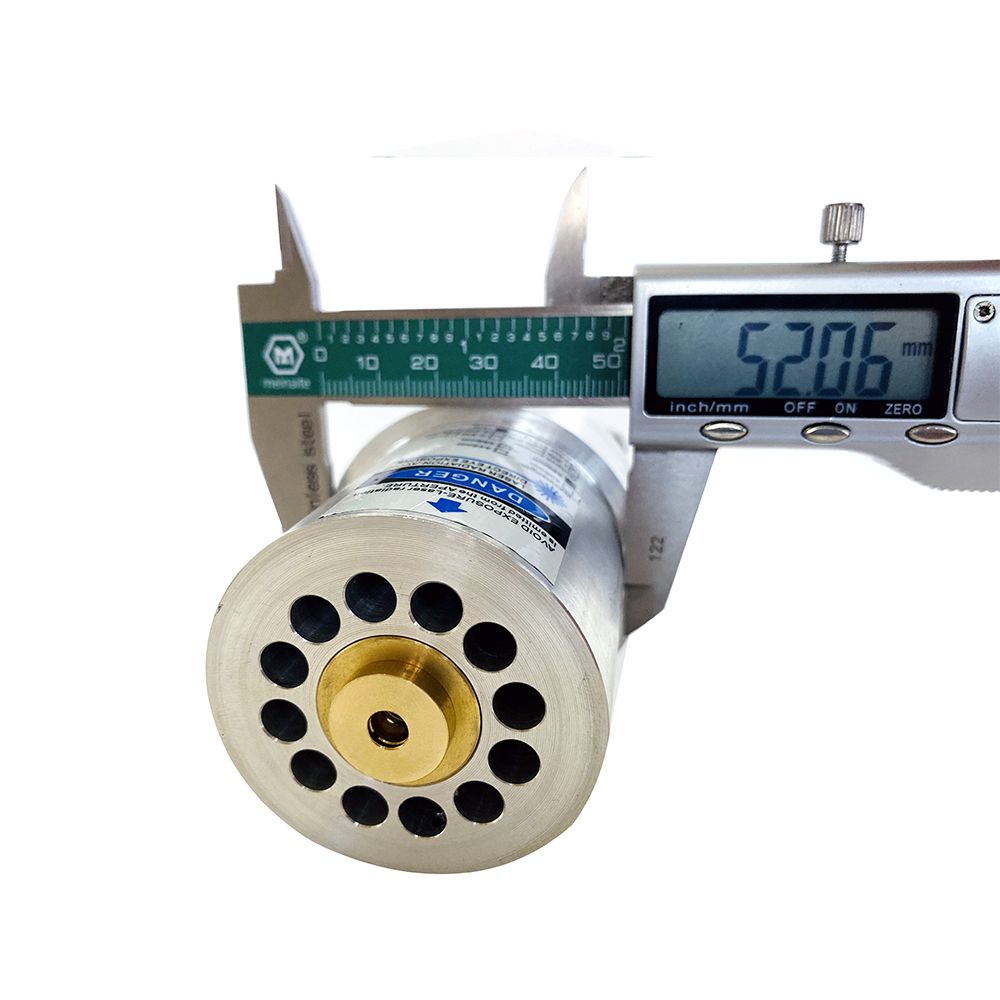

–Cylindrical laser, width 52mm

–Laser wavelength: 450nm (blue viole)

–Spot type: Dotted (adjustable)

–Light power: 15 Watts (Average power is 8W.)

–Drive mode: external ACC constant current drive

–Cooling method: Forced Air Cooling

–Operating voltage: 12V DC

–Shell material: Aluminum, Surface Anodized

–Module material: Copper

–Life Time:8,000hours

–Working temperature:-40-75Celsius

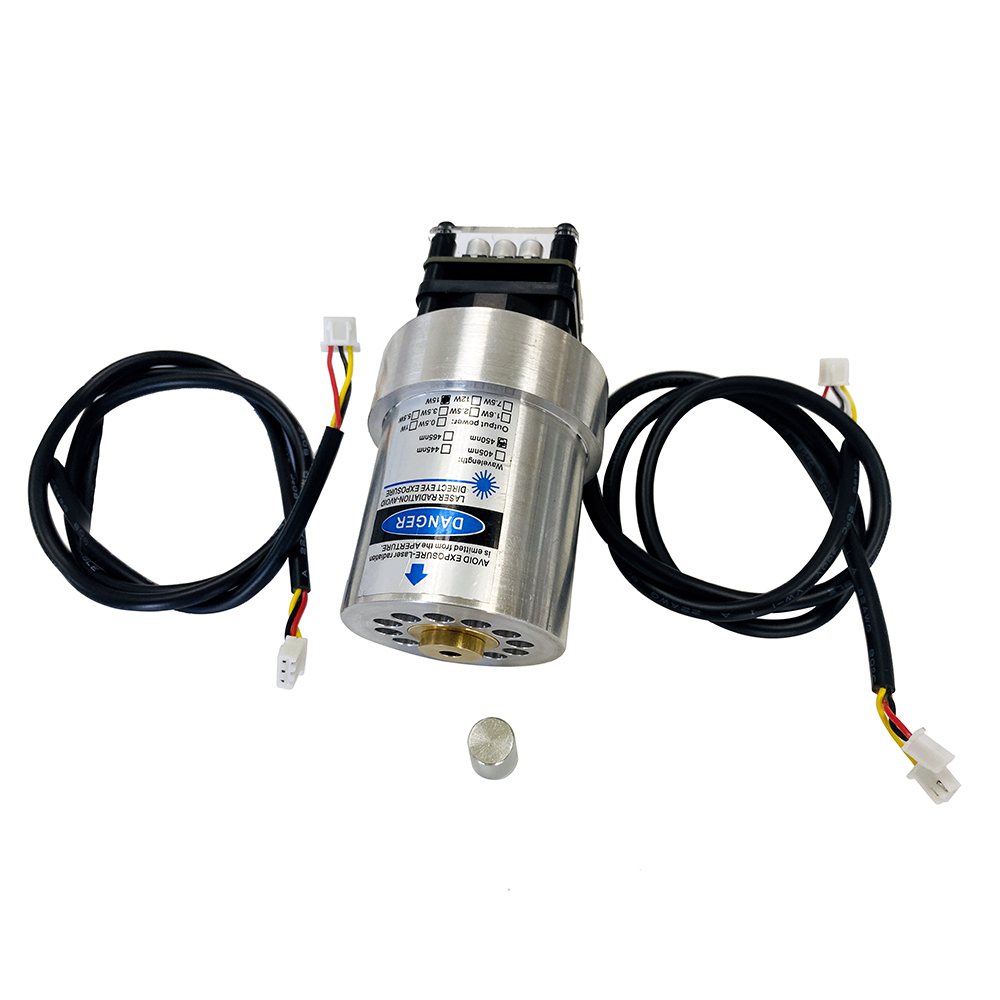

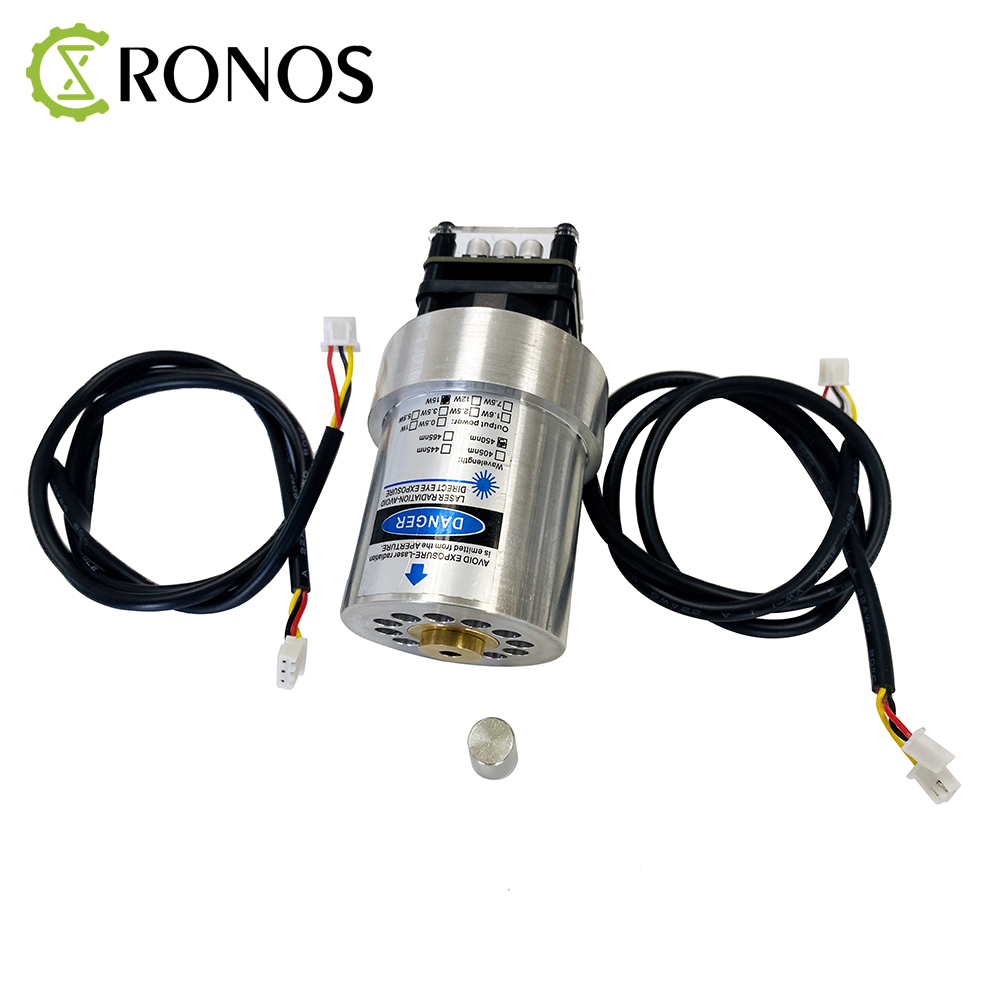

Packing List:

1*Laser

1*3pin Cable

1*4Pin Cable



Friendly Reminder:

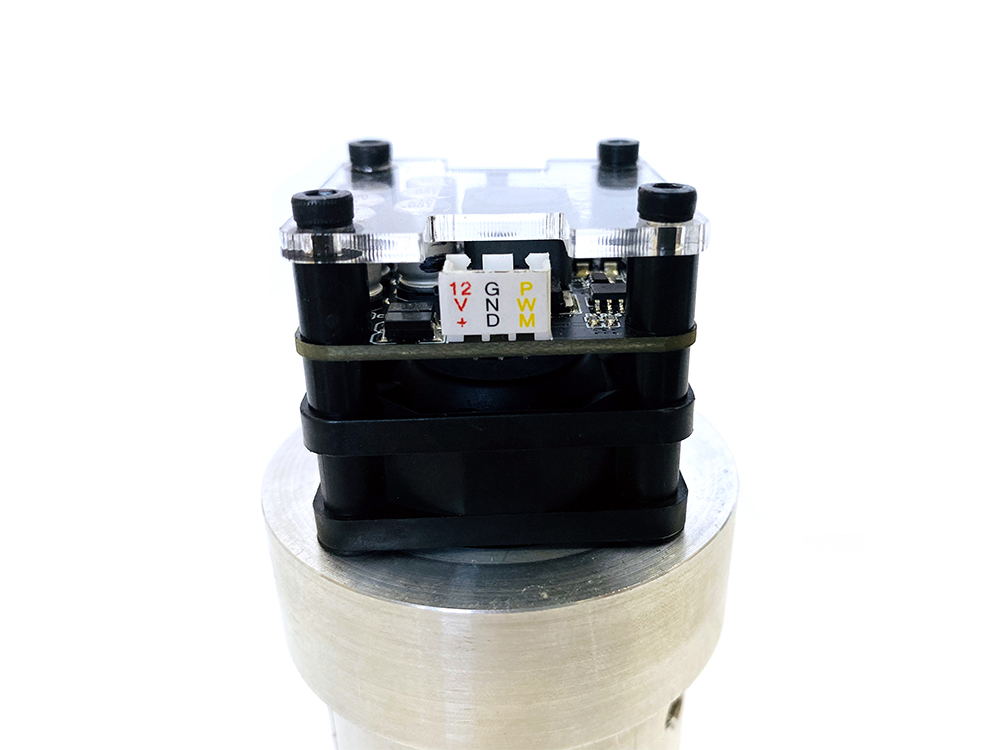

Please pay attention to red is +,black is -,yellow is PWM. If the wires connected wrong, it will damage the diode and the

driver board.Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens.

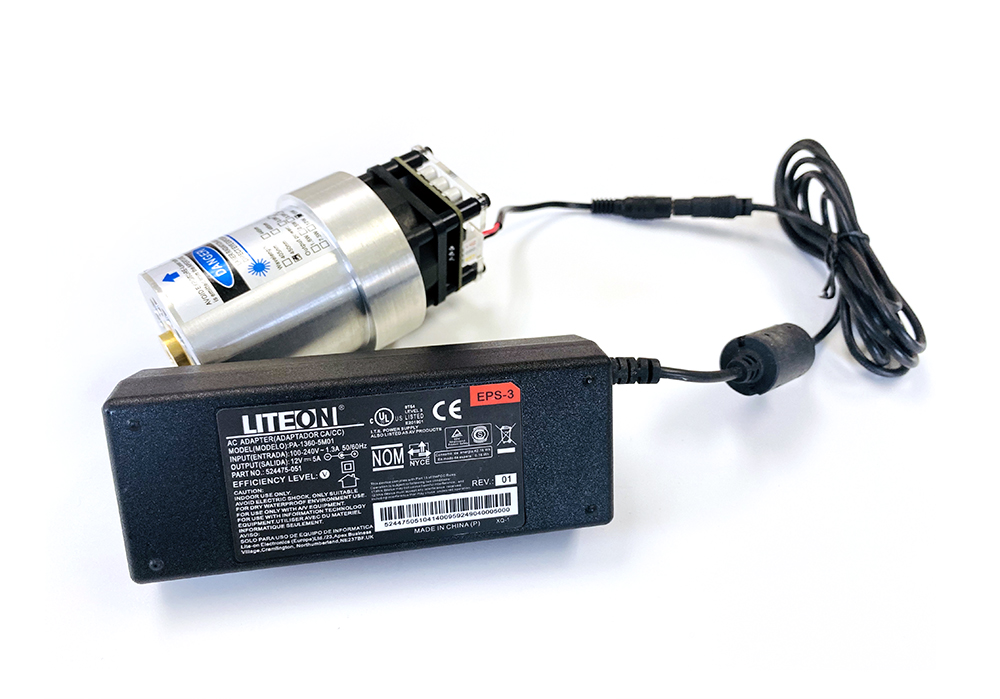

Test Laser,Connect 12V 3A-5A Power Supply:
