Red Laser Dot Diode Module 650nm 658nm 30mW TTL 0-20KHZ

$39.60

Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+. When the TTL signal is connected, the higher the frequency is , the less brighteness the laser will have. when it is >20KHZ, the laser cannot be seen.

956 in stock

SKU: 32278685848 Category:

Description

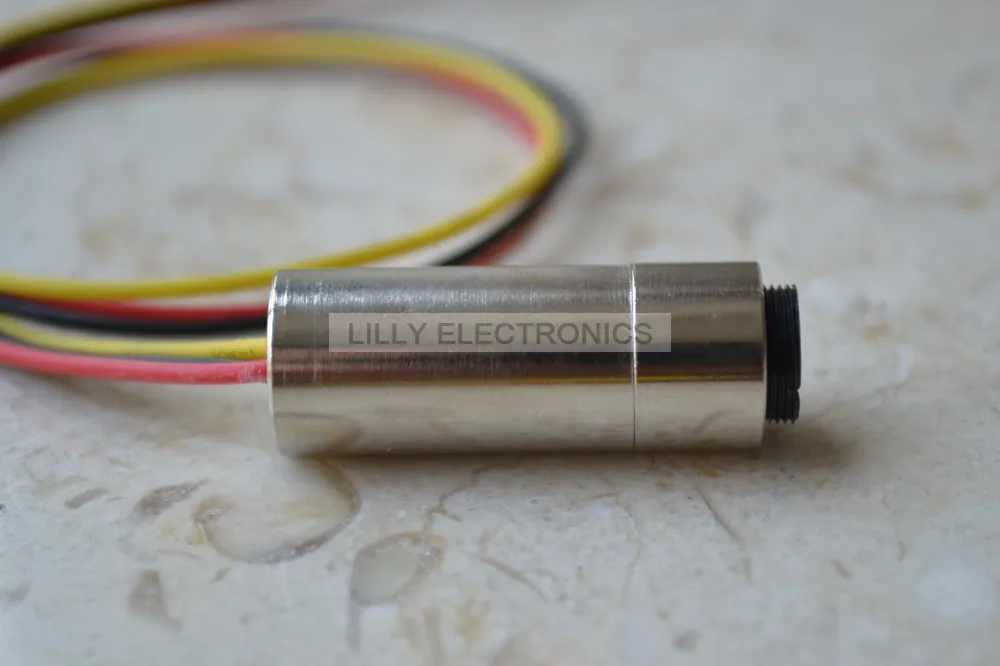

NEW 12x40mm Red Laser Dot Diode Module 650nm 658nm 30mW with TTL 0-20KHZ

Features:                                                                             .

Output Power 30mw
Wavelength 650nm 658nm
Working Voltage 5.0VDC
Working Current: 30mhA
TTL modulation Voltage 0-5V Off low, high open, normal status open
TTL frequency 0-20KHz
Focusable Yes
Three-wire input, the red line is positive, black line is negative,  TTL signal yellow line is positive
Working Temperature -10 ~ +40 degree C

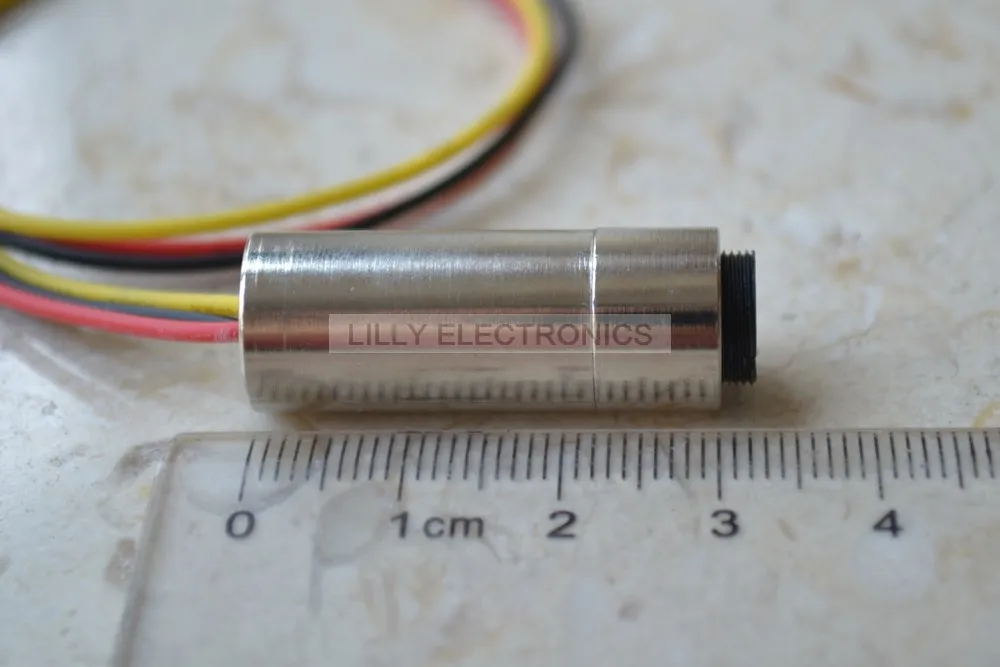

Dimensions 12mm*40mm (or sometimes 12x35mm depending on factory production)

Detail:

This is  650nm 30mW Red Laser Dot Diode Module with TTL 0-20KHZ

Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+. When the TTL signal is connected, the higher the frequency is , the less brighteness the laser will have. when it is >20KHZ, the laser cannot be seen.

Package:

1 x New 650nm 658nm 30mW Red Laser Dot Diode Module w/ TTL 0-20KHZ
