NEJE Nozzle Laser Head 7W 20w 450nm Fiber Laser Head Tube Module NEJE Master Accessories Laser Machine DIY Tools

$162.03$318.03

SKU: 1005002395201892 Category:

Description

  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: NEJE
  • Wavelength: 450nm
  • Radiator size: 30 x60mm
  • Adjustable power: PWM adjustable
  • function 1: Nozzle laser head

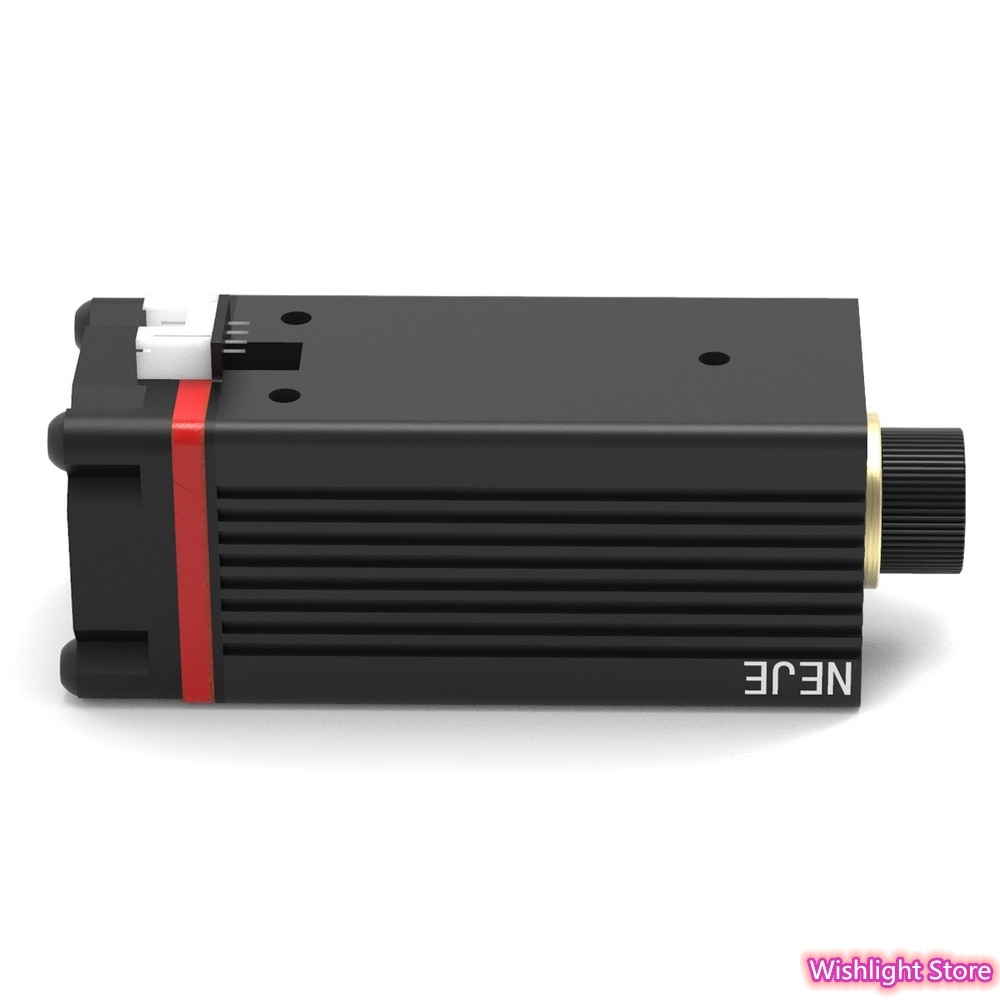

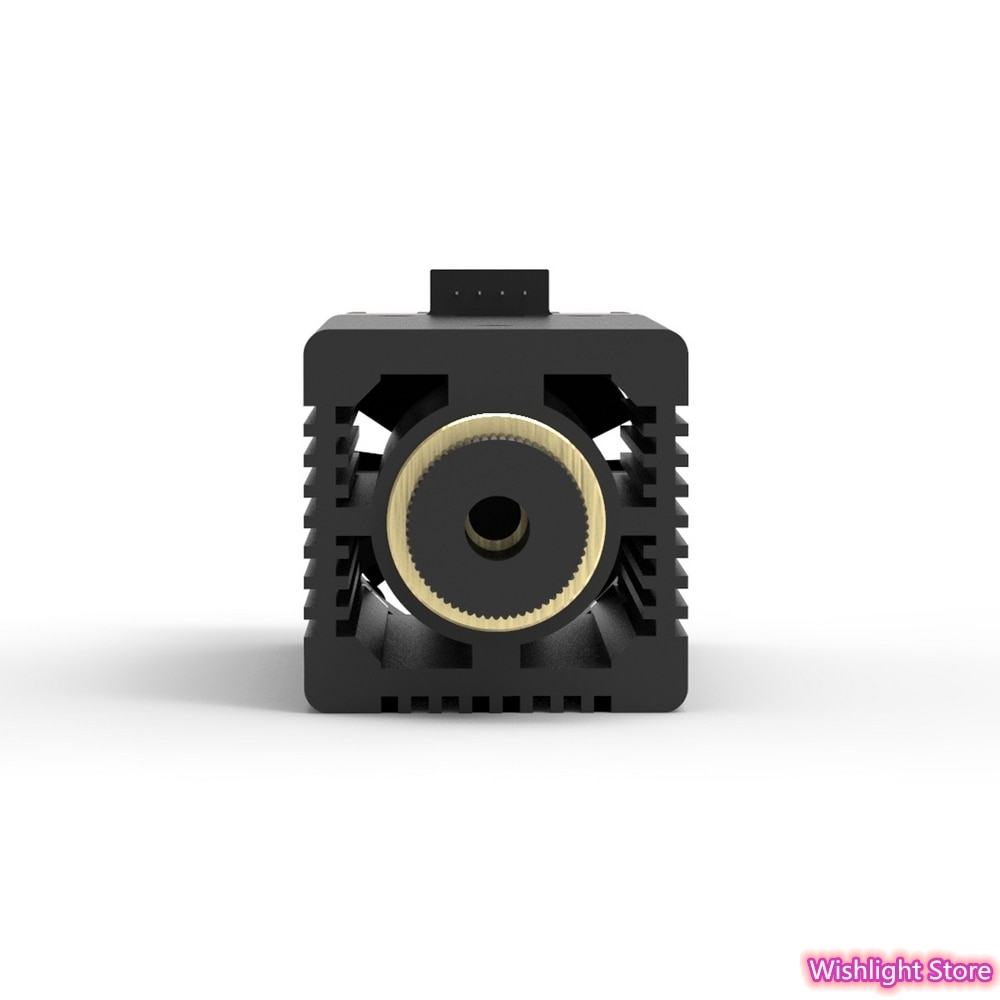

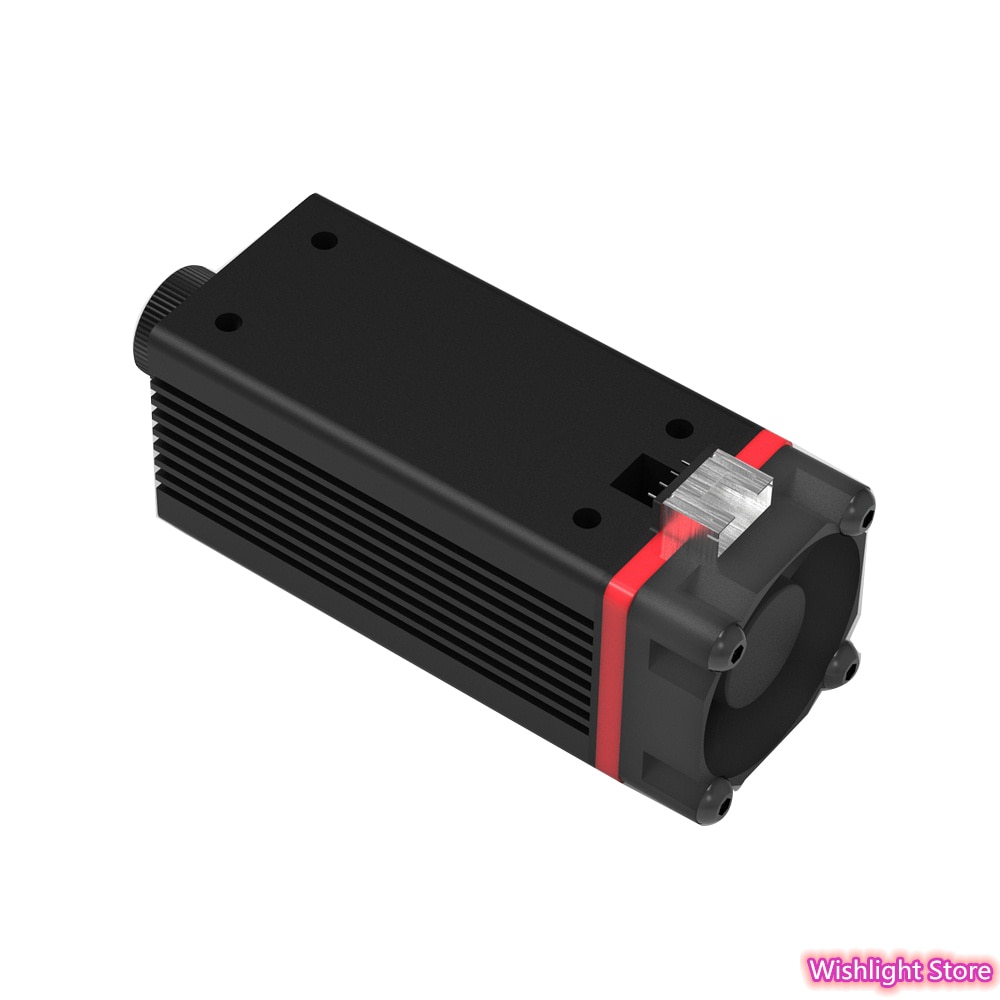

NEJE Nozzle Laser Head 7W 20w 450nm Fiber Laser Head Tube Module NEJE Master Accessories Laser Machine DIY Tools

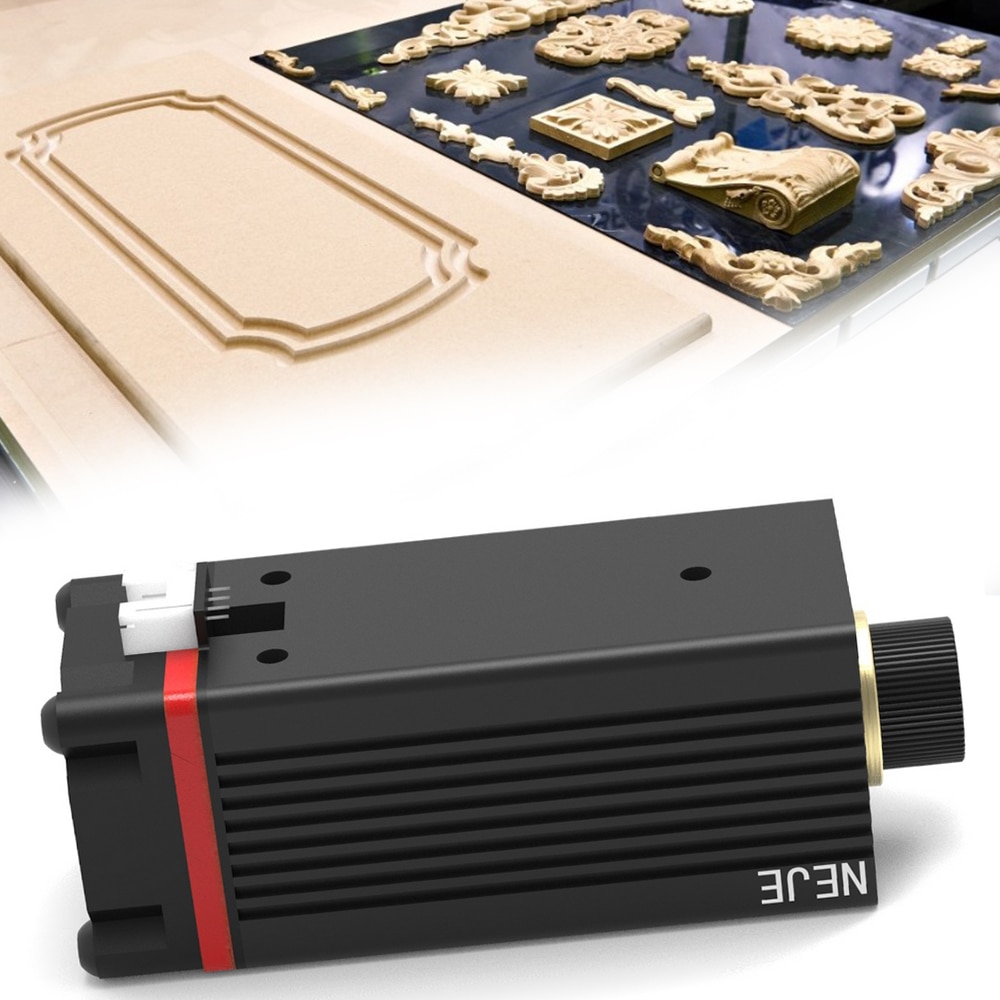

Main applications: metal carving, deep carving, simple cutting, etc.

Wavelength: 450nm


Radiator size: 30 * 60mm


Material: Copper + Aluminum


Weight: 116g/210g (20w)

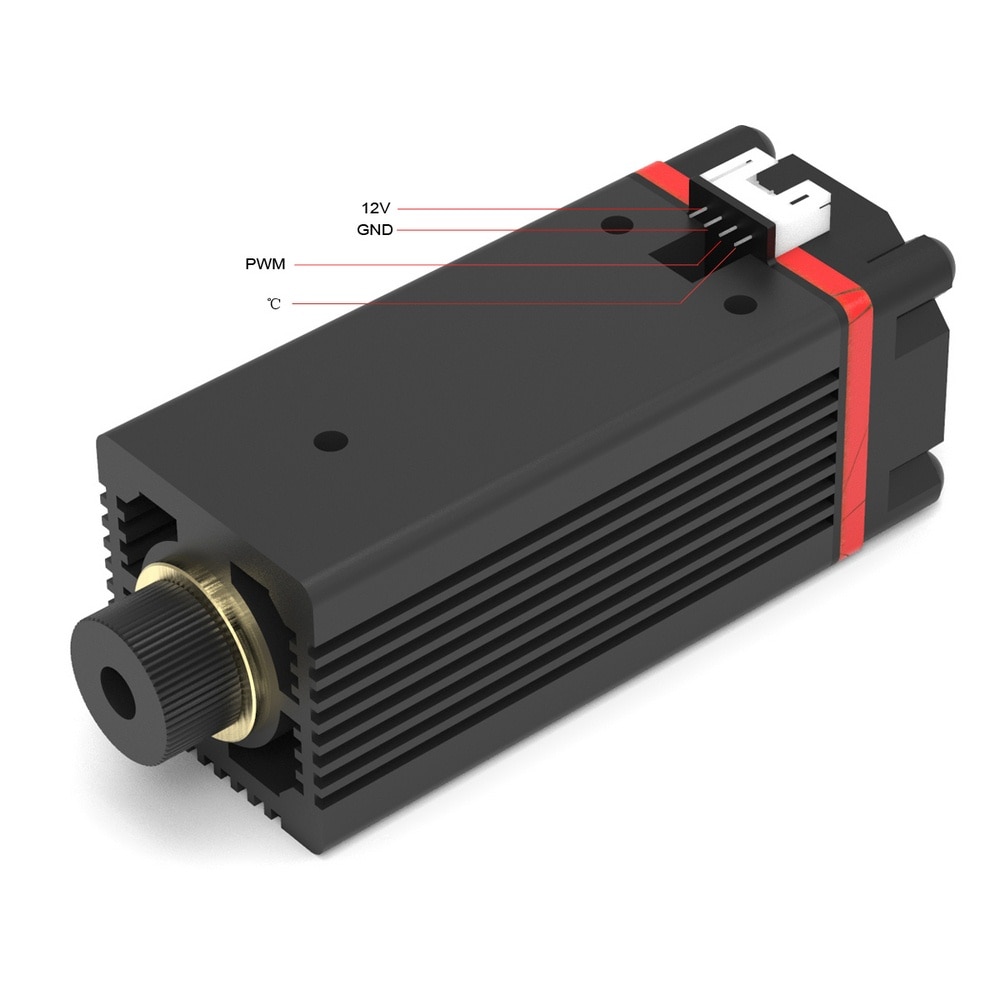

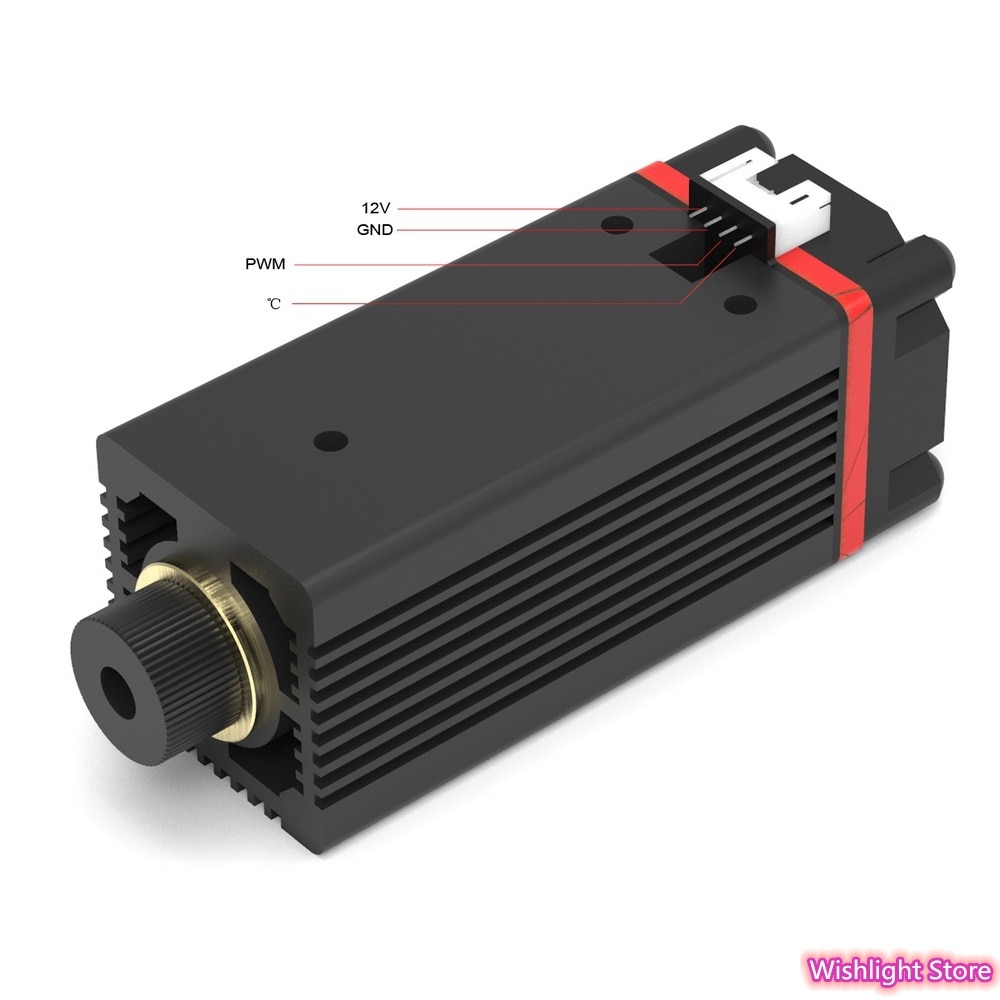

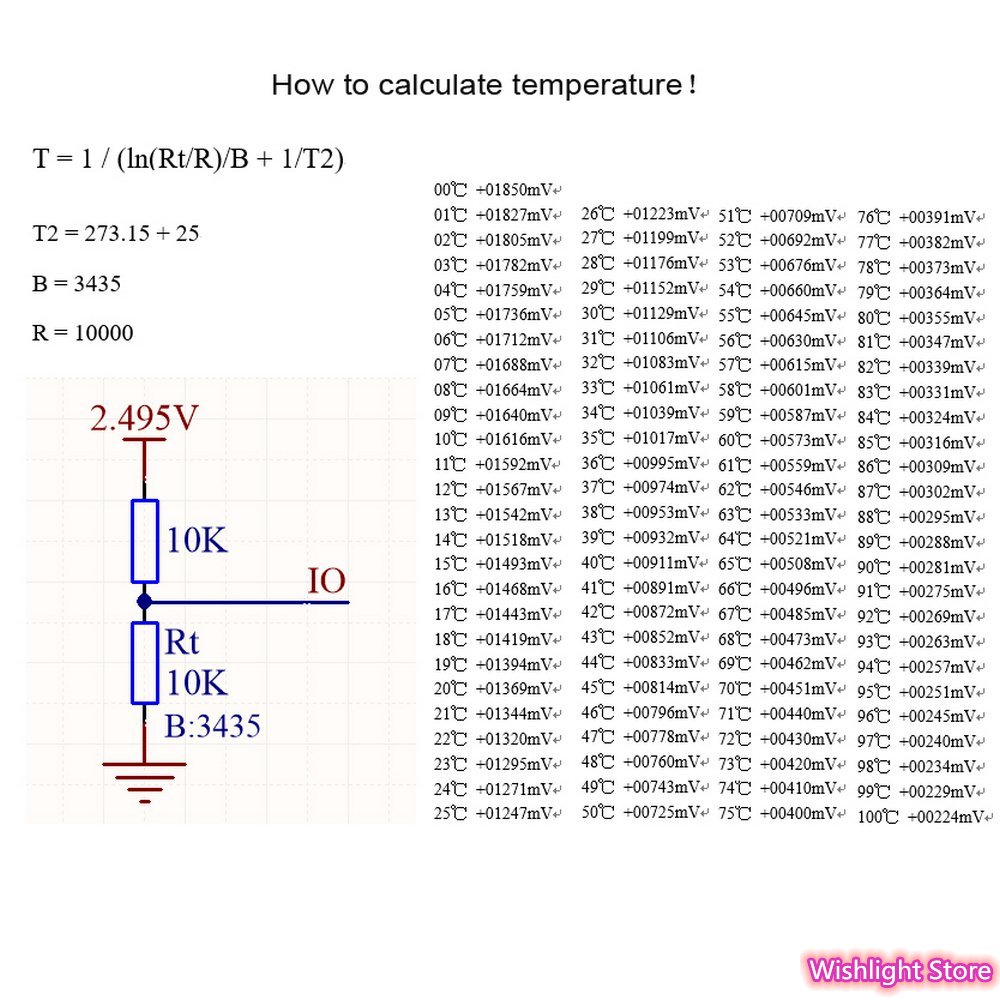

Interface specifications: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)


Drive position: built-in


Adjustable power: PWM adjustable


Drive protection: surge protection, overvoltage protection


Input power: about 12V, 750ma does not include fan power


Cable length: 300mm


Control line installation method: pluggable


Fan size: 30 * 10mm


Fan speed: 10,000 rpm/15,000rpm


Controllable temperature: less than 60 degrees Celsius


Focus range: 5-50mm


Best focal length: 10mm from the light exit


Safety warning: Please apply this module under the premise of safety protection!


Recommended application machine: NEJE Master

Packing list:

1 module


2 screws


2 x gasket

1 x control line
