Main applications

Main applications: deep engraving, drawing, simple cutting, etc.
Especially good at depth engraving （0.5-1.5mm wood）, Can cut 1mm, unable to engrave metal. Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, pcb, paint metal etc.

Specifications:

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green:
temperature signal)
Radiator size: 30*60mm
Wavelength: 450nm
Material: copper + aluminum
Weight: 128g
Drive position: built-in

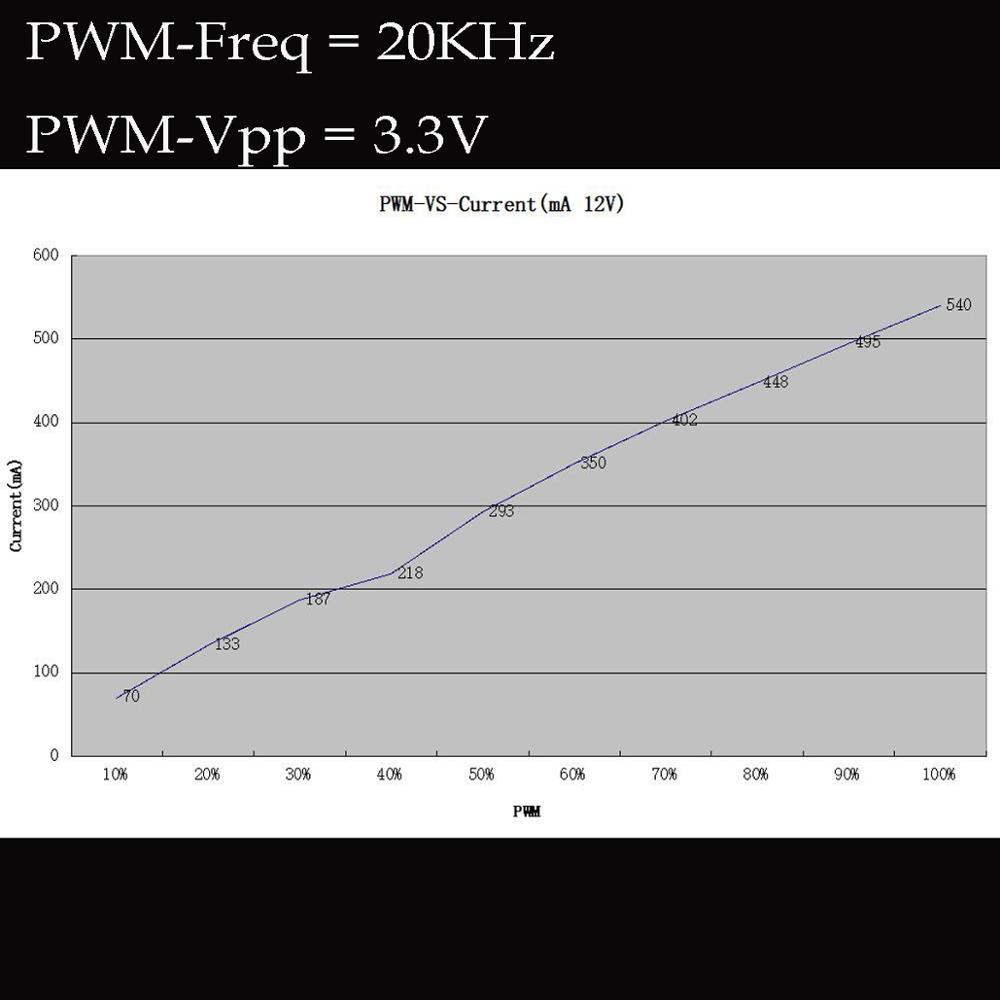

Is the power adjustable: PWM can be adjusted
Drive protection: surge protection, overvoltage protection
Input power: approx. 12V550ma (without fan power)
Line length: 300mm
Line length material: sports silicone
Control line installation method: integrated
Fan size: 30*10mm
Fan speed: 10,000 rpm
Controllable temperature: less than 60 degrees Celsius
Focus range: 10-100mm (best focus: 50mm from the light exit)
Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master

packing list:
1 x module
2 x screw
2 x gasket
