NEJE Master 2S PLUS Wood MDF Leather Laser Engraver Cutter with 20W/30W/40W Laser Modules

$341.86$588.86

SKU: 3466189018651 Category:

Description

NEJE Master 2S PLUS Wood MDF Leather Laser Engraver Cutter with 20W/30W/40W Laser Modules






Features:

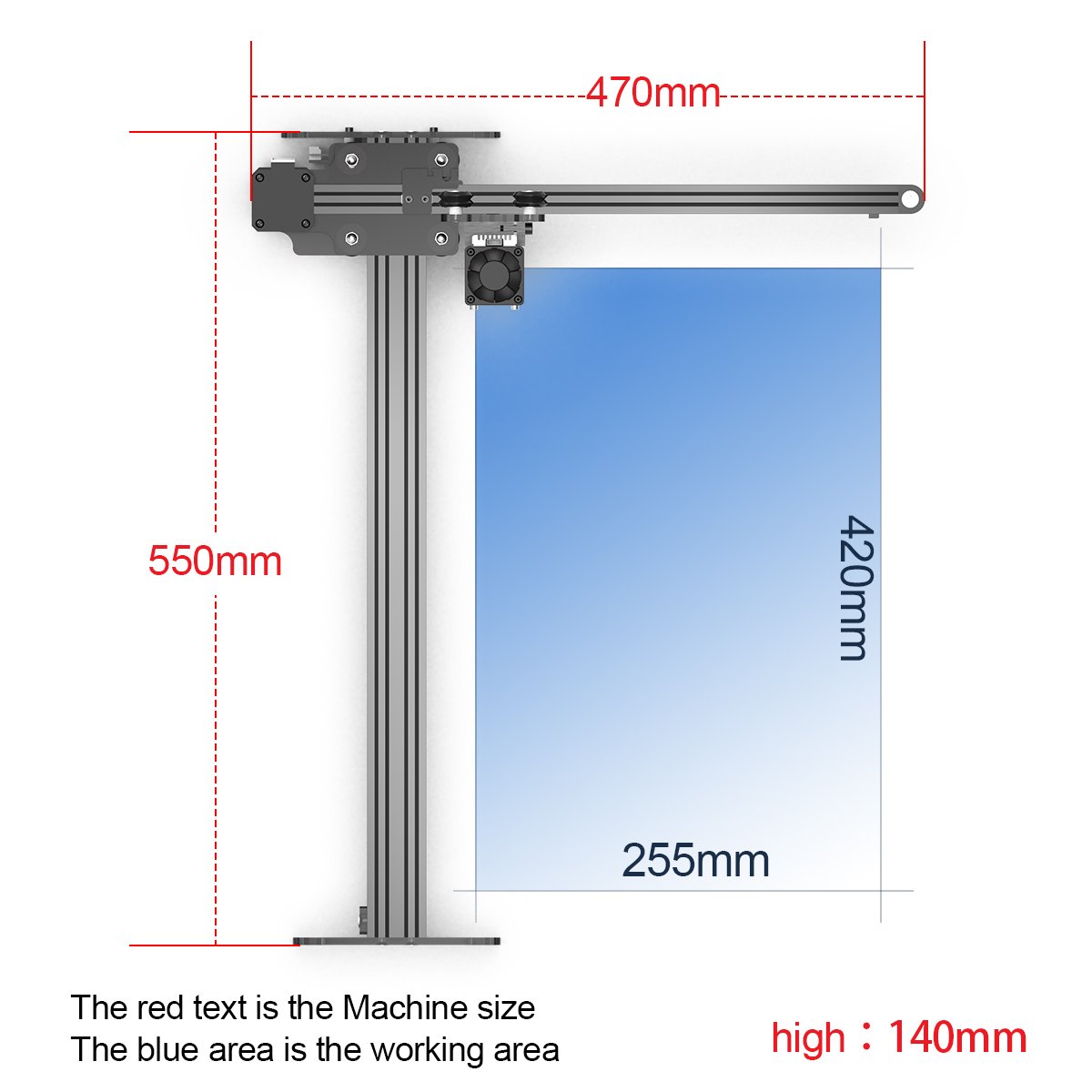

-[420 x 255 mm]Just fit on a desktop with a width of 600mm, and the left side of the machine is not limited by the size of the material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels, engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the installation.

-[Advanced laser module] The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

-[More materials, clearer] Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs air-assisted cutting once (A40640), and the cutting is very clean. Can directly engrave stainless steel, glass, transparent acrylic and so on.

-[Portable professional control software]32-bit control system, the fastest speed can reach 200,000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS), you can change it by taking photos with your mobile phone or selecting images from the album To complete the work quickly, NEJE provides free software upgrade services.

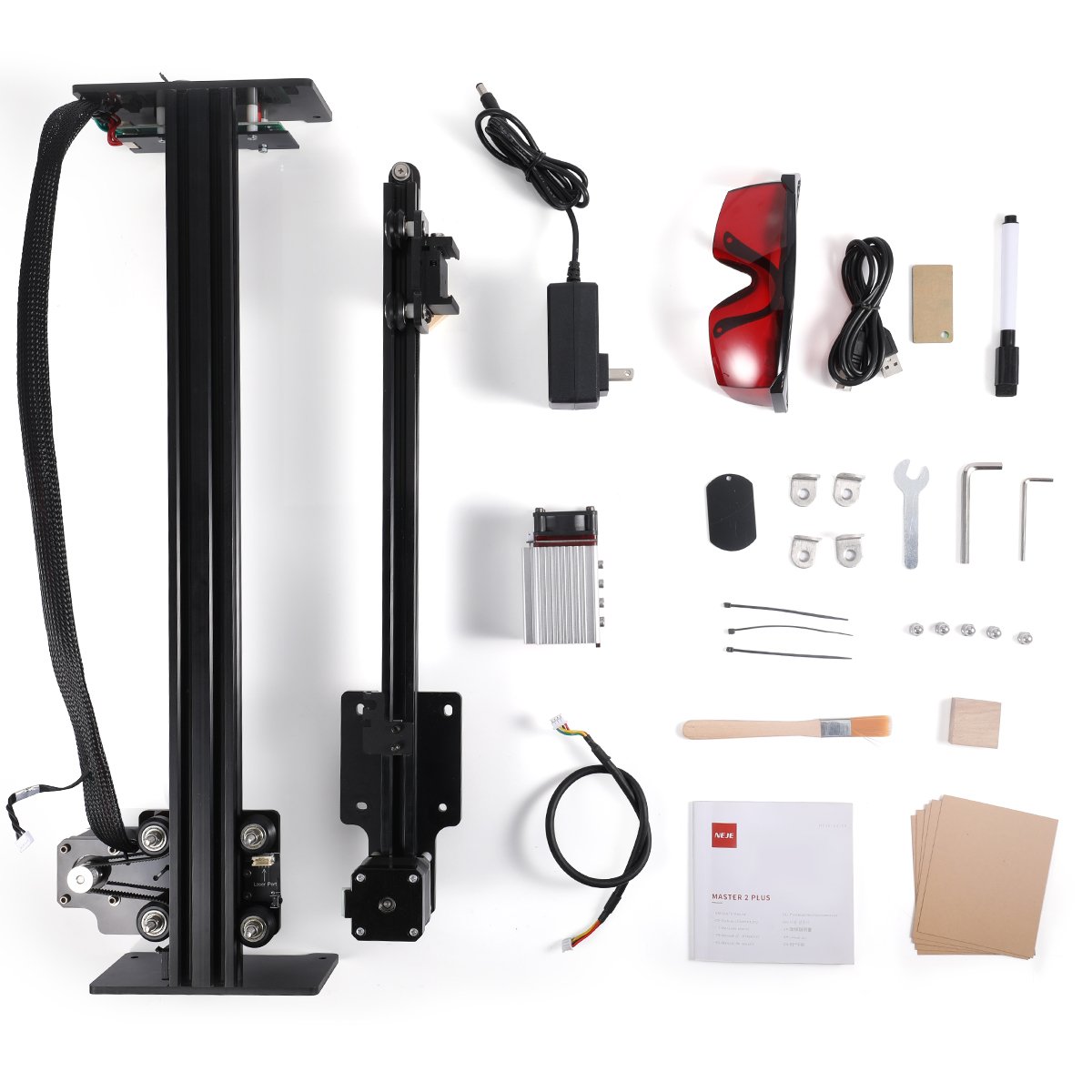

Packing List

Laser engraving machine 1
A40640/A40630/N40630/N40620 laser module 1(Just one laser module based on different models)
12V4A power supply 1
Manual 1
Red glasses 1
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)

Product picture

product picture

2S PLUS 40WA40640 62S PLUS 40WA40640 32S PLUS 40WA40640 7A40640 8A40640 9A40640 10A40640 11A40640 12A40640 13A40640 14A40640 15A40640 16A40640 17A40640 18A40640 19A40640 20

paste-pic-dp_uuid_0dfgspaste-pic-dp_uuid_tn17ypaste-pic-dp_uuid_j8ikk

Trade Assurance

Additional information

Model Number

2S PLUS 30W N40630, 2S PLUS 20W N40620, 2S PLUS 40W Dual Beam A40640, 2S PLUS 40W Single Beam A40630

Power

20W 30W 40W
