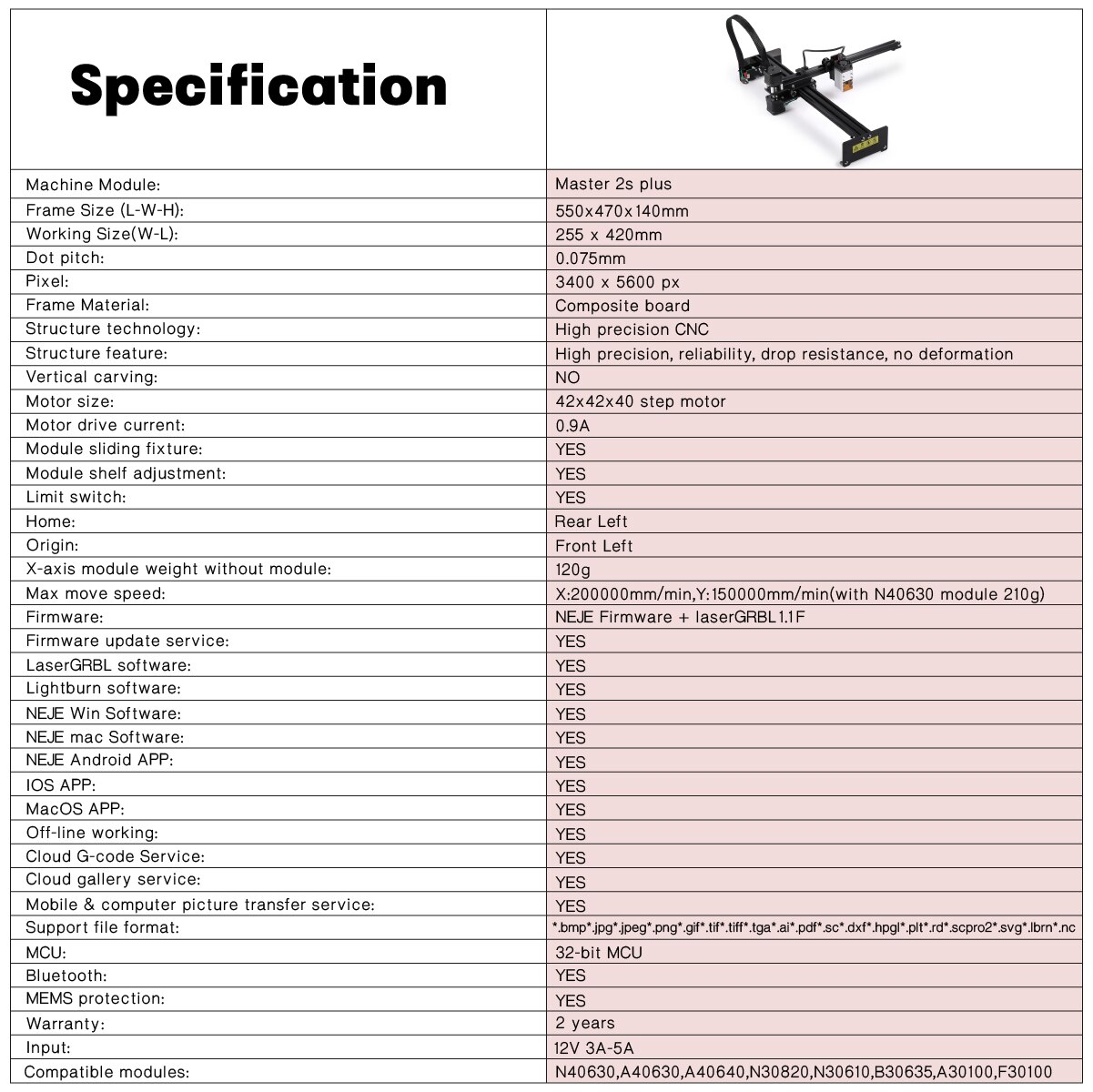

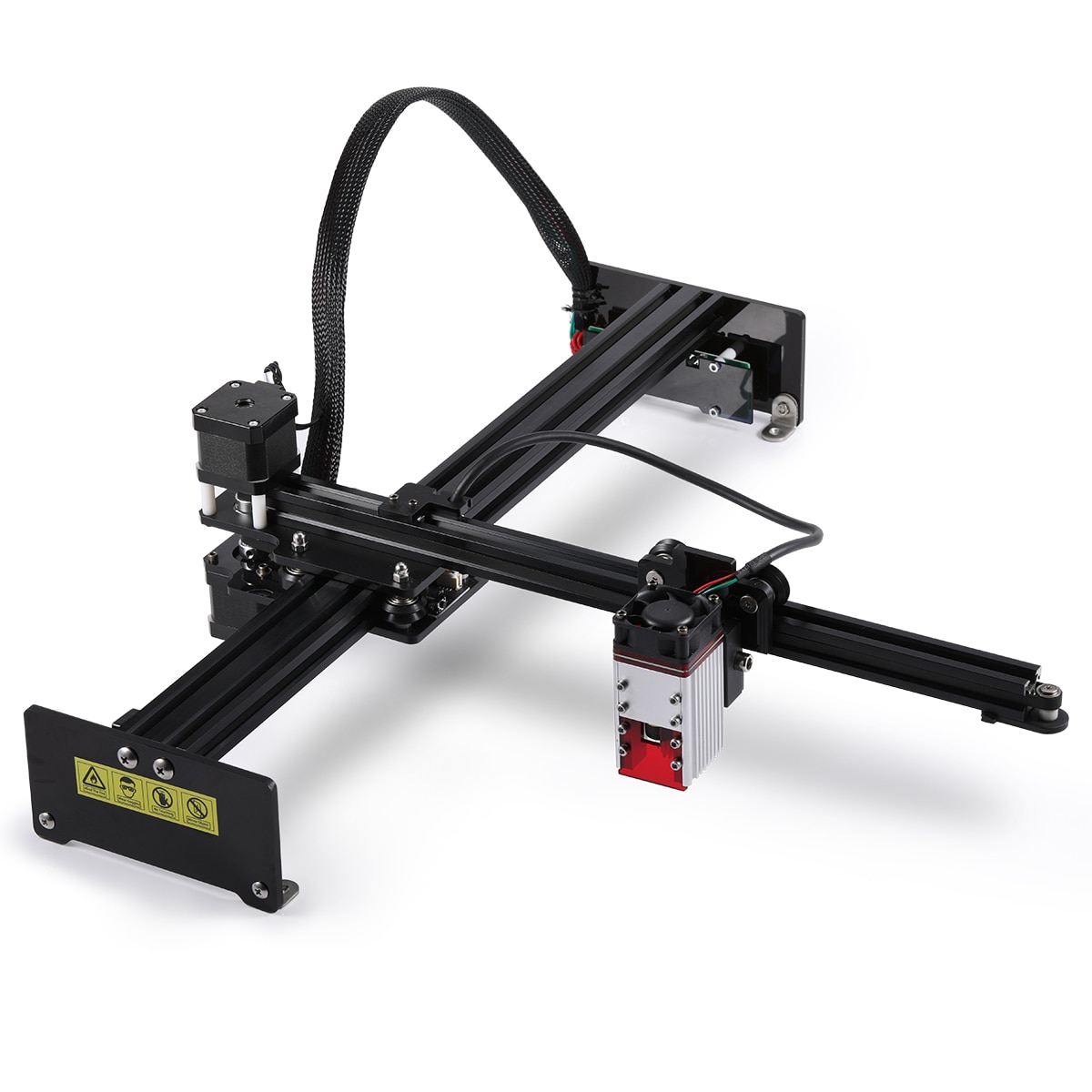

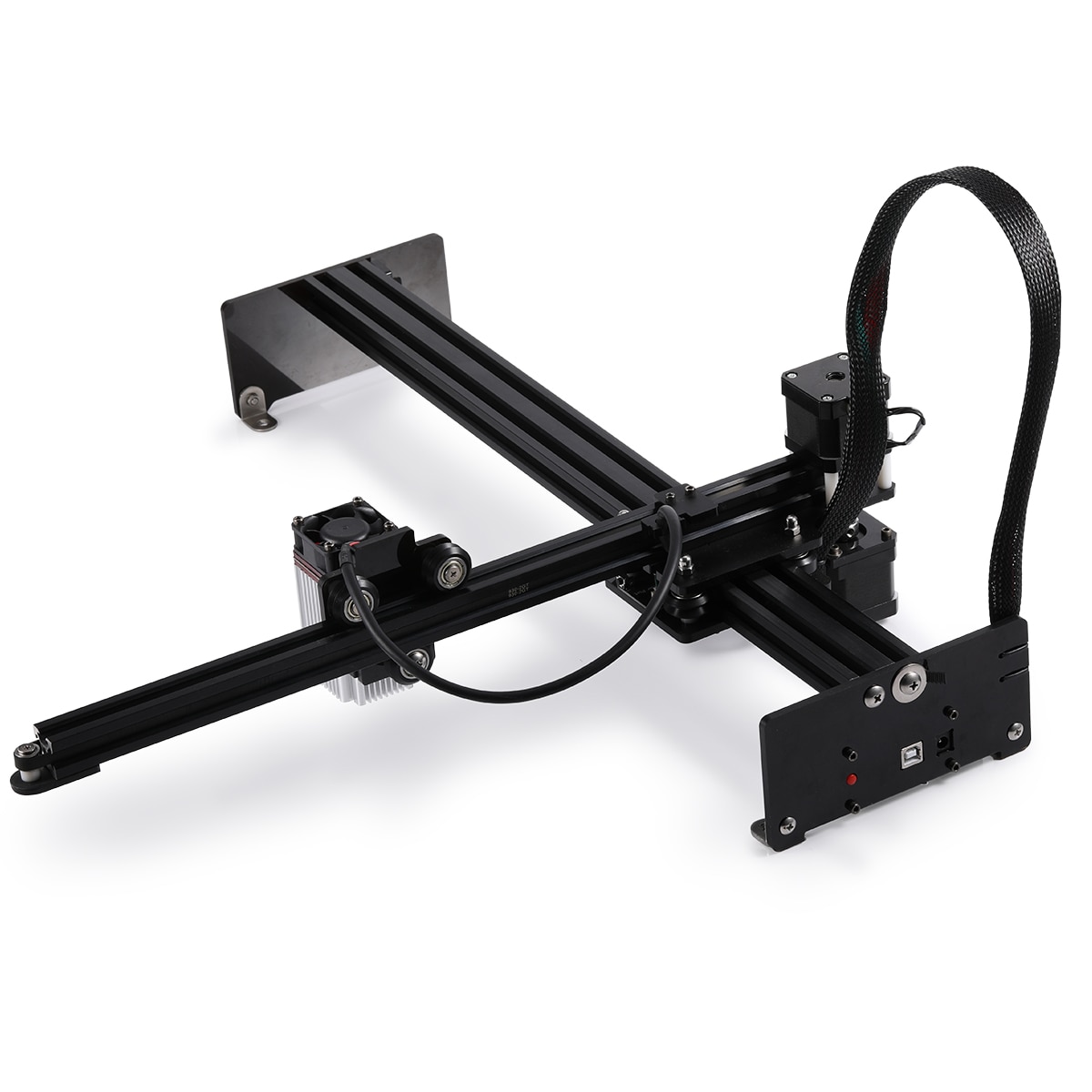

NEJE Master 2S Plus N40630 Product Specifications

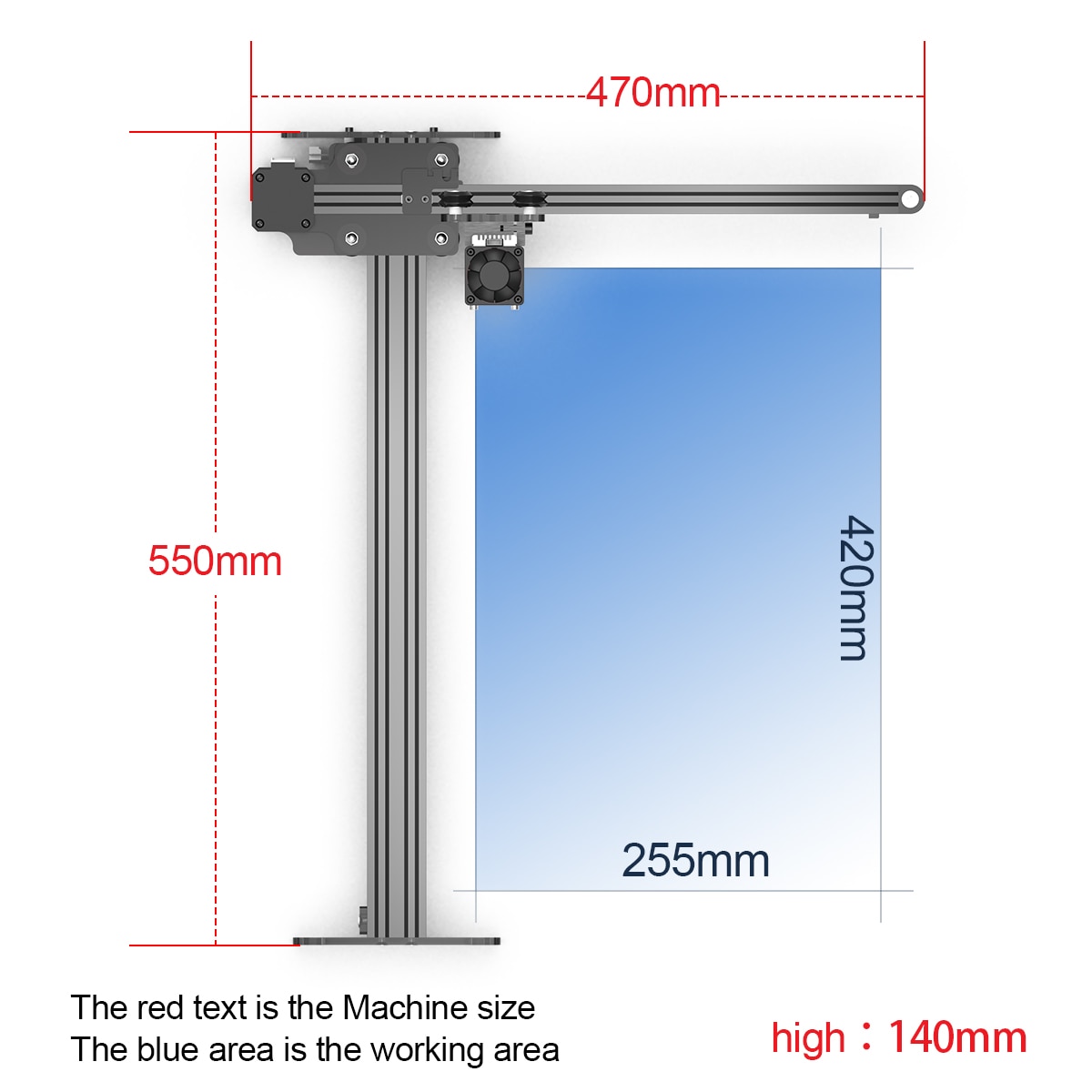

1. Larger area, 255 x 440 mm engraving and cutting area

2. 30W power module, optical power output 7.5W, focal point 0.01mm, support engraving and cutting.

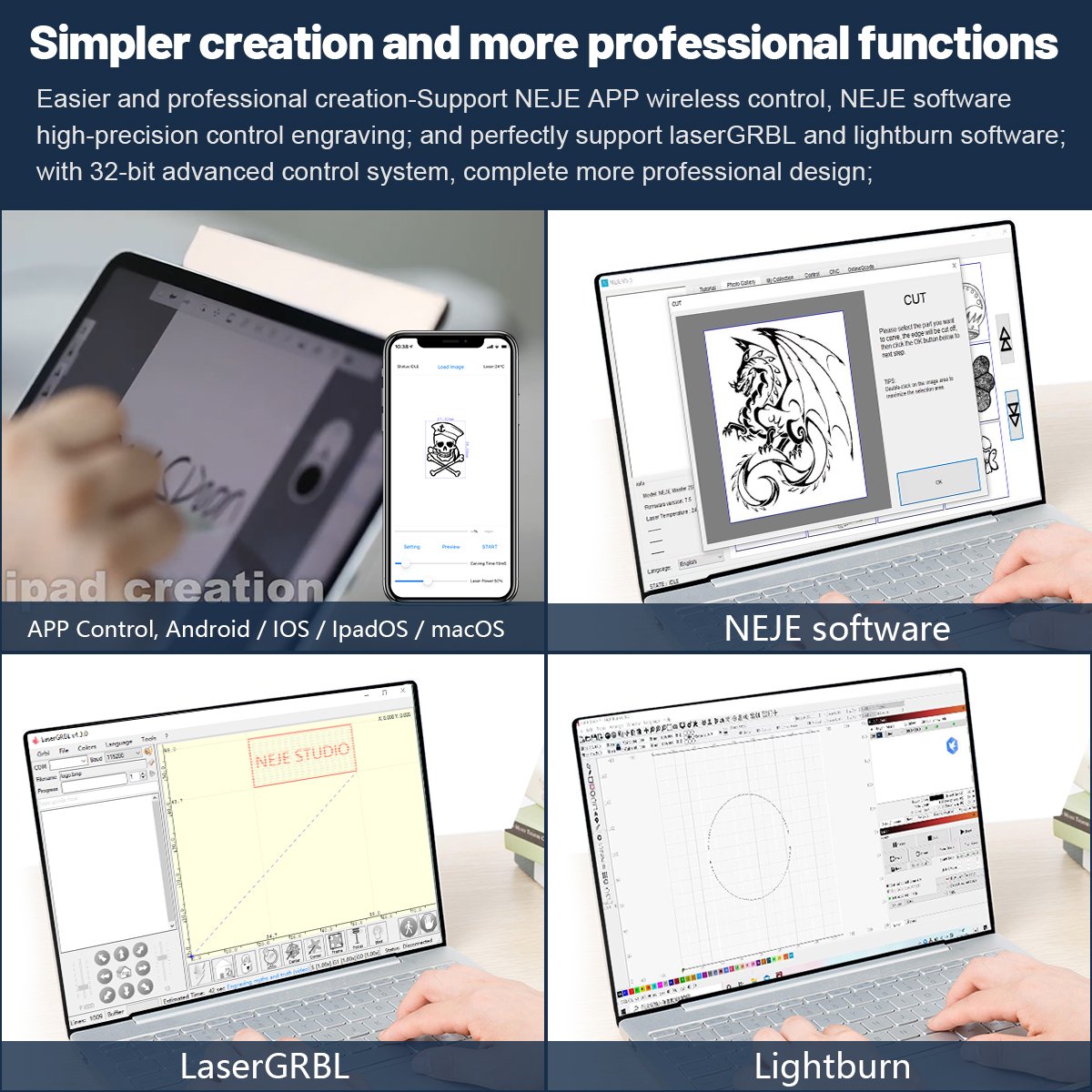

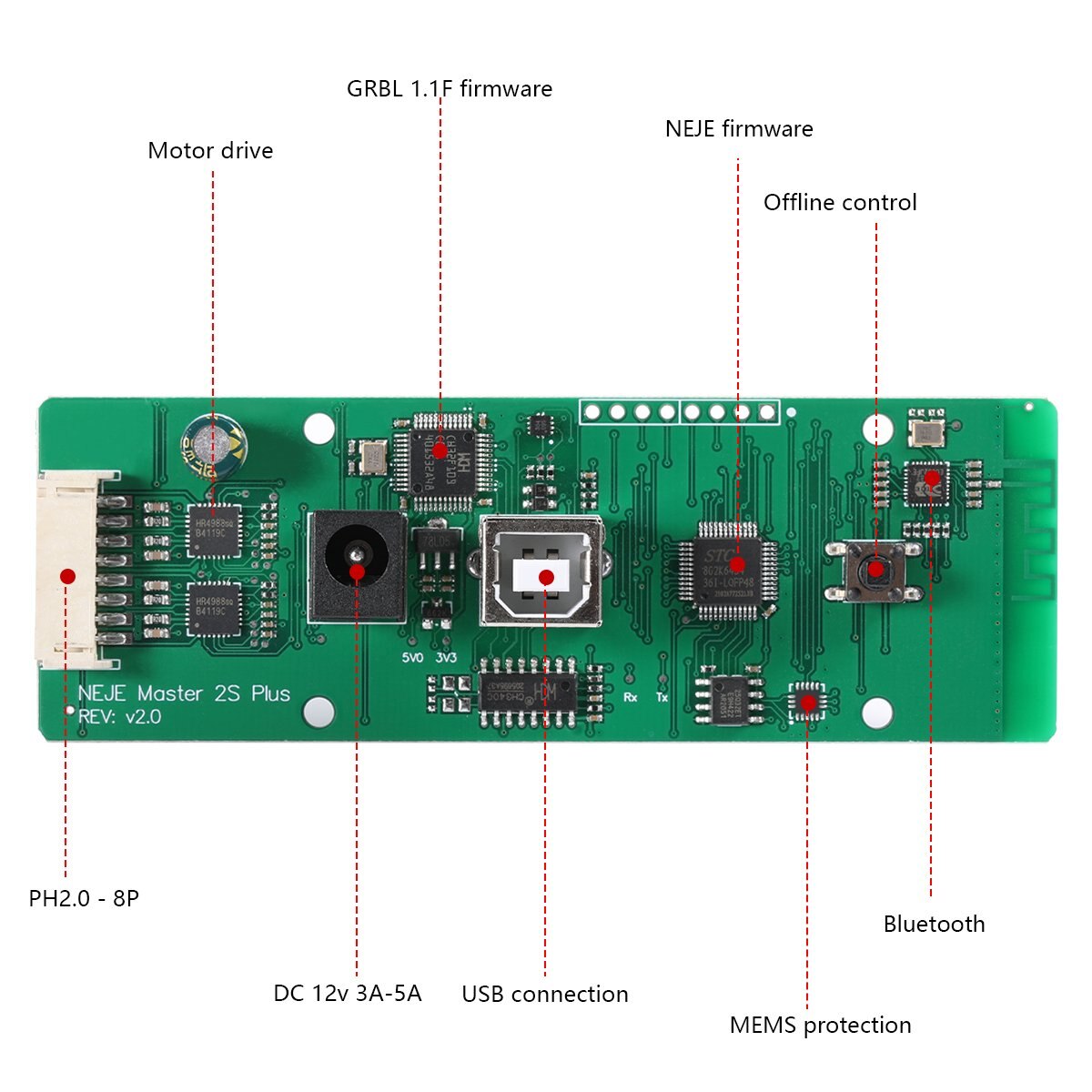

3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

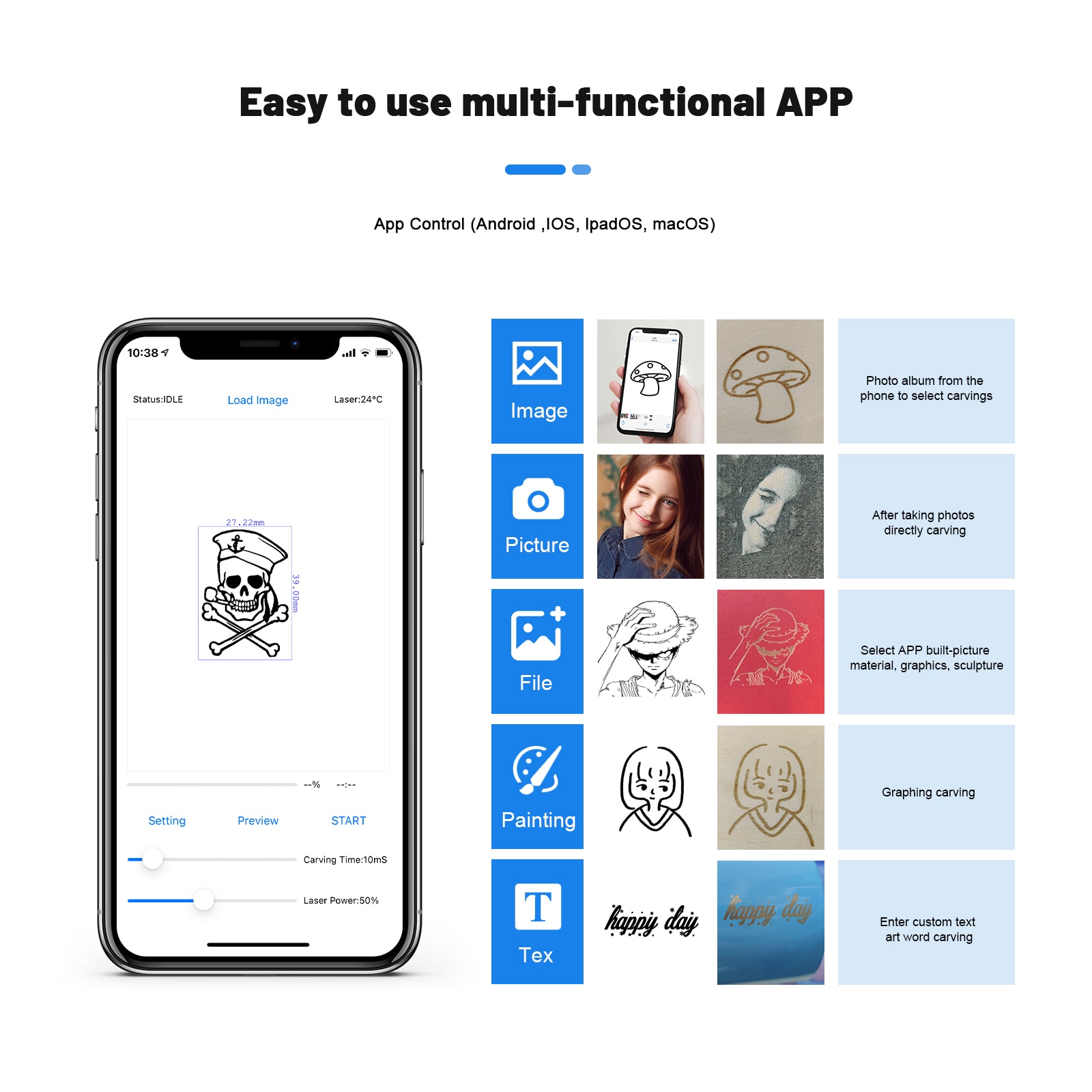

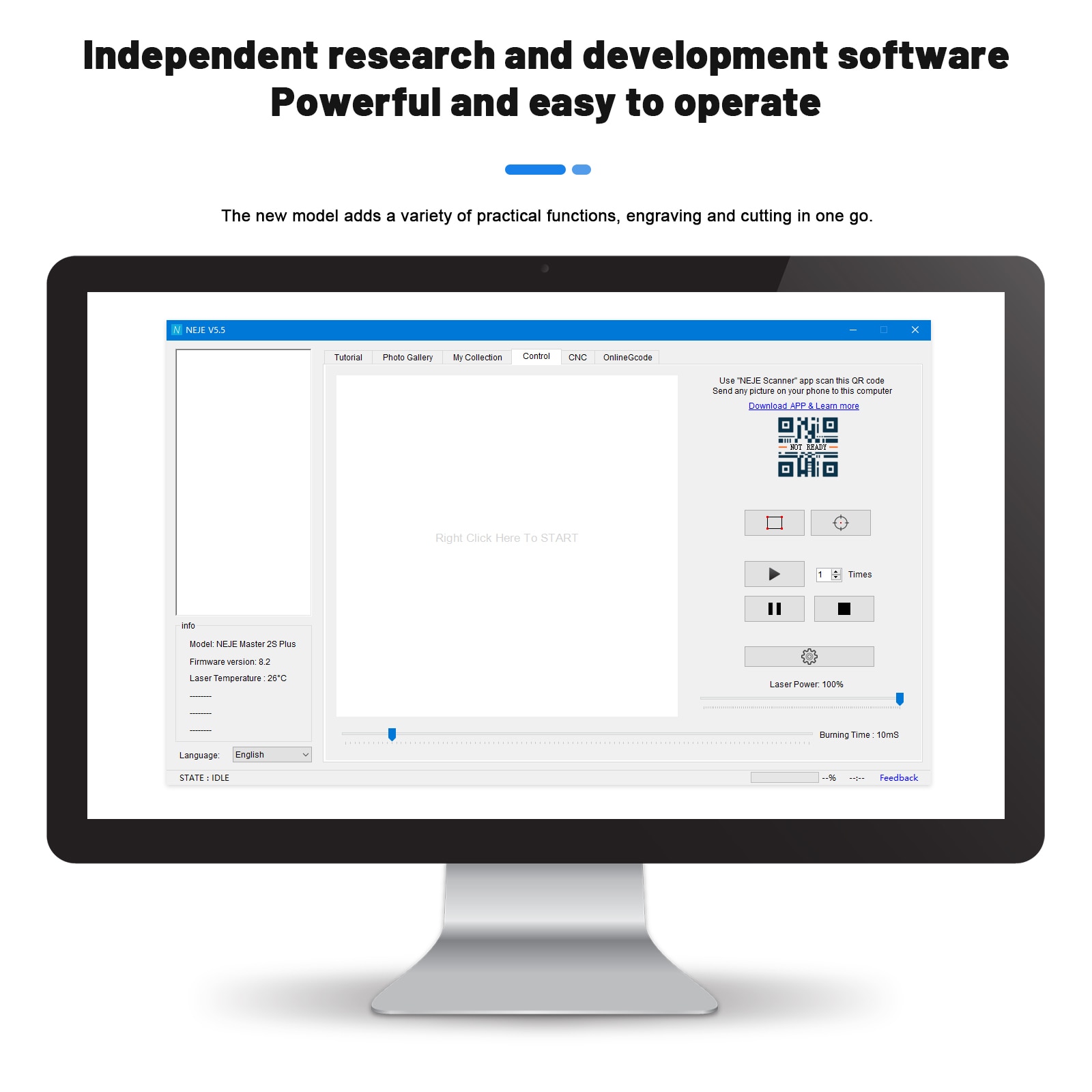

4. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

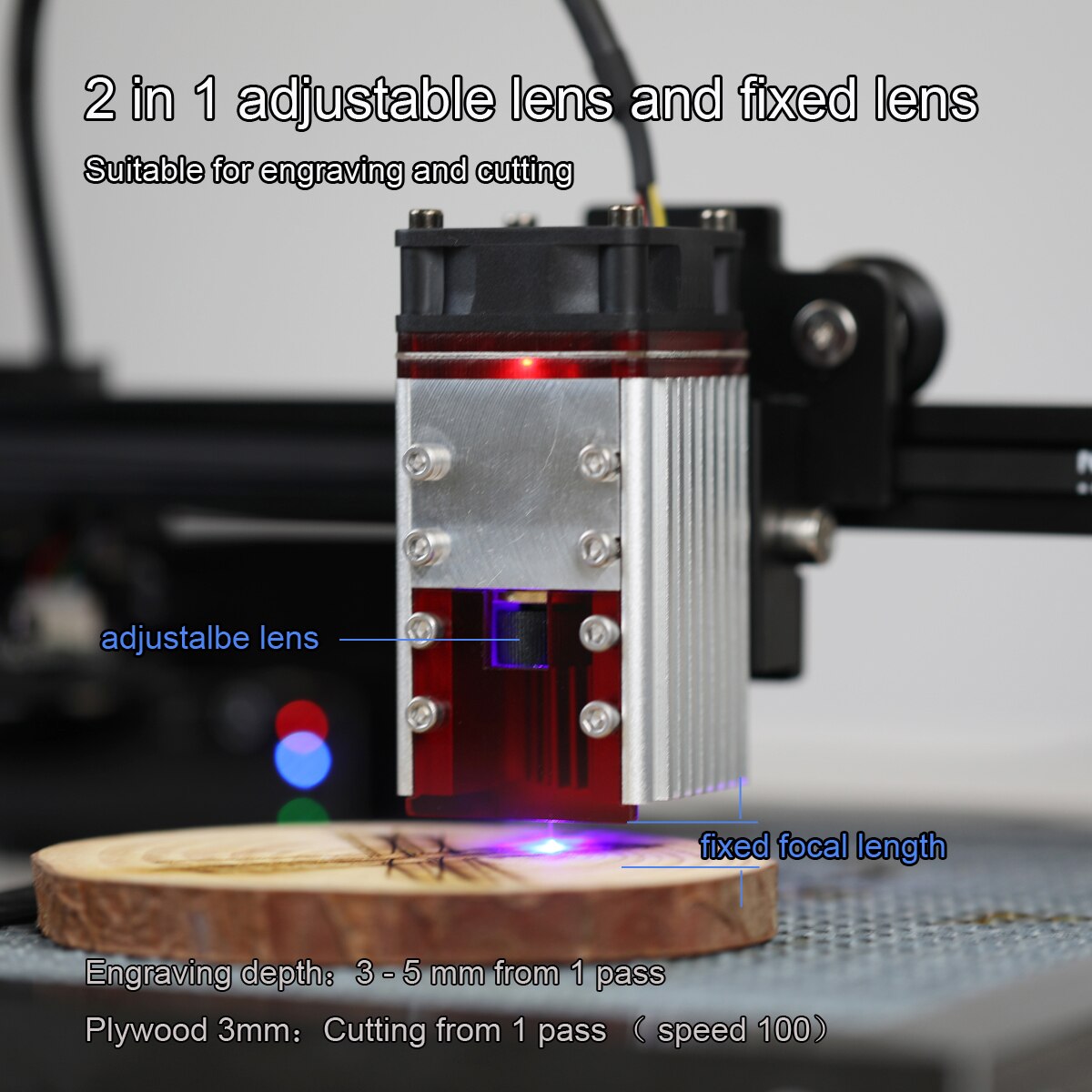

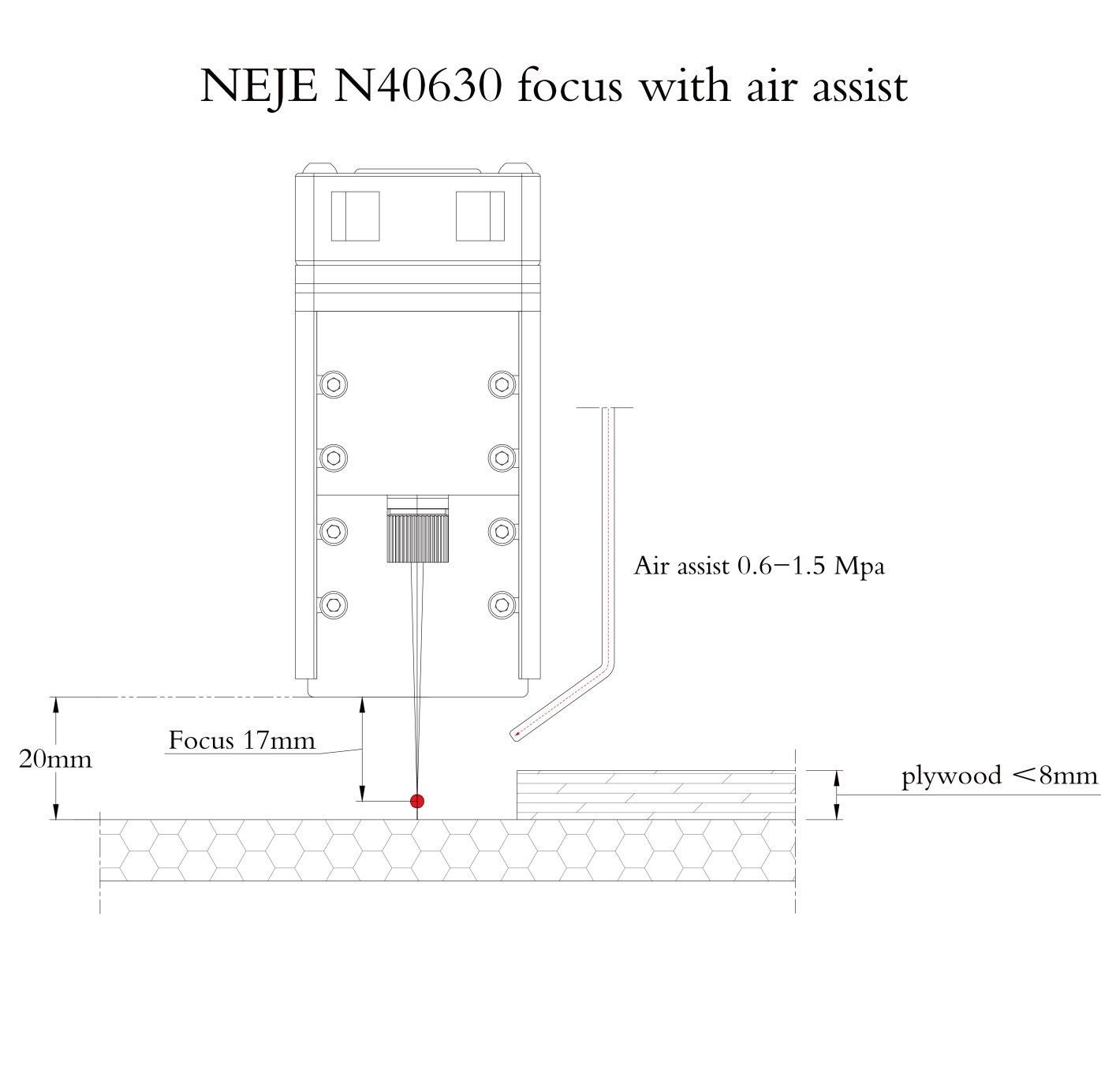

7. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

8. Support NEJE 4pin interface series modules, including 3500mw, 7W, 15W,20W, 30W, 40W, 50W,80W etc.

9. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty!

NEJE N40630 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.7.5W Optical power output, 3mm acrylic from 1 pass(speed 100)

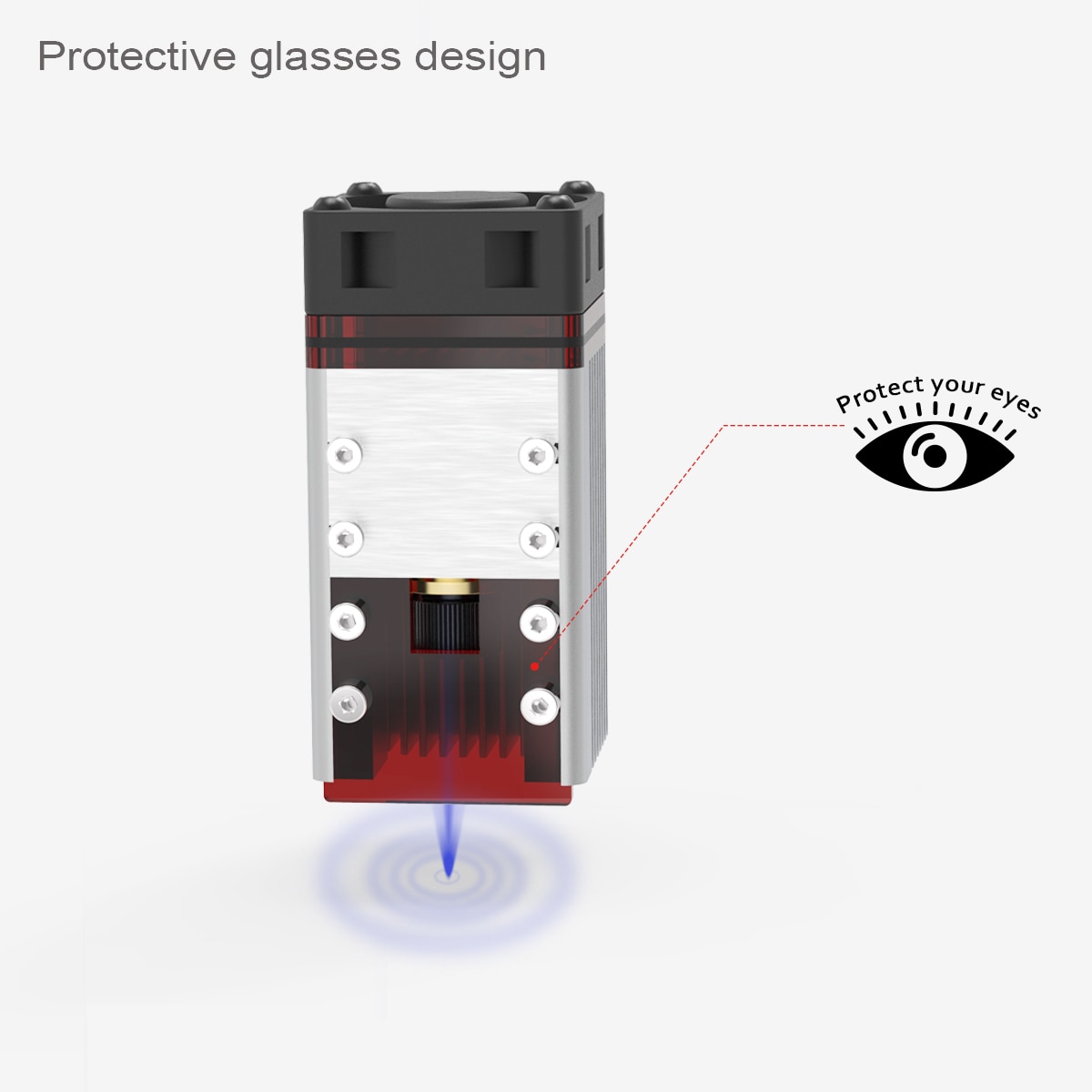

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.Slidable mounting fixture is provided for easy adjustment of focus.

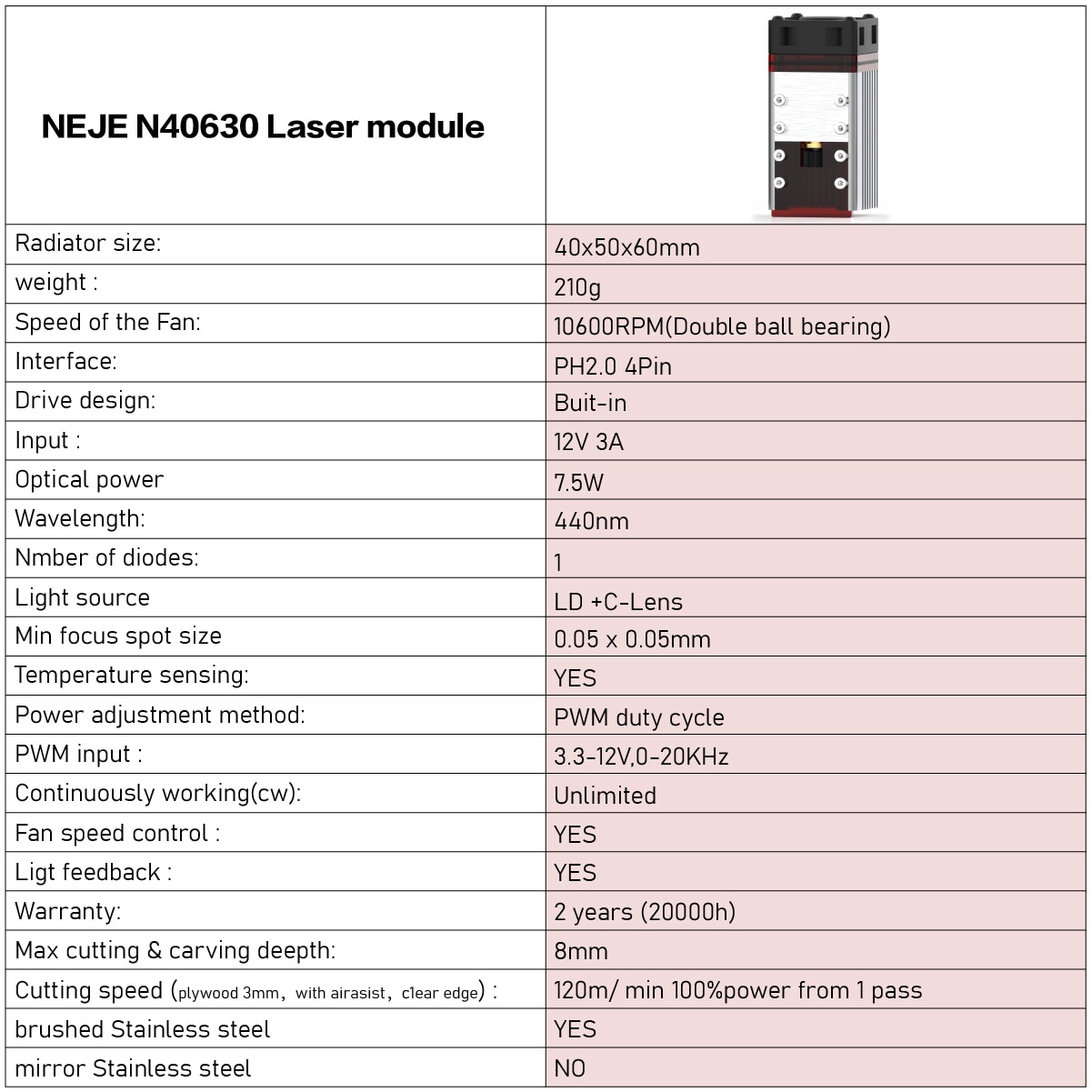

NEJE N40630 Product Specification

Model：NEJE Module N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

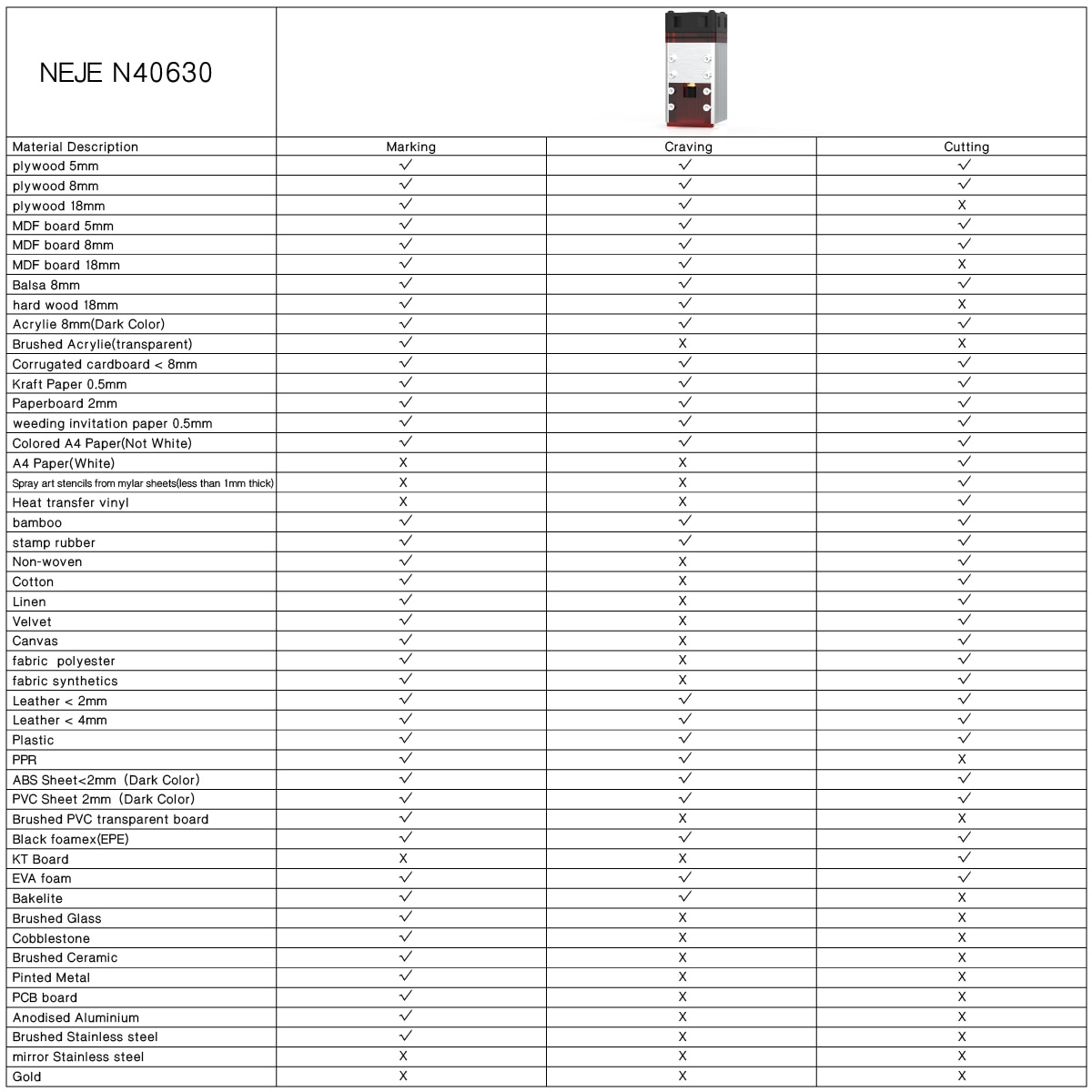

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：30W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

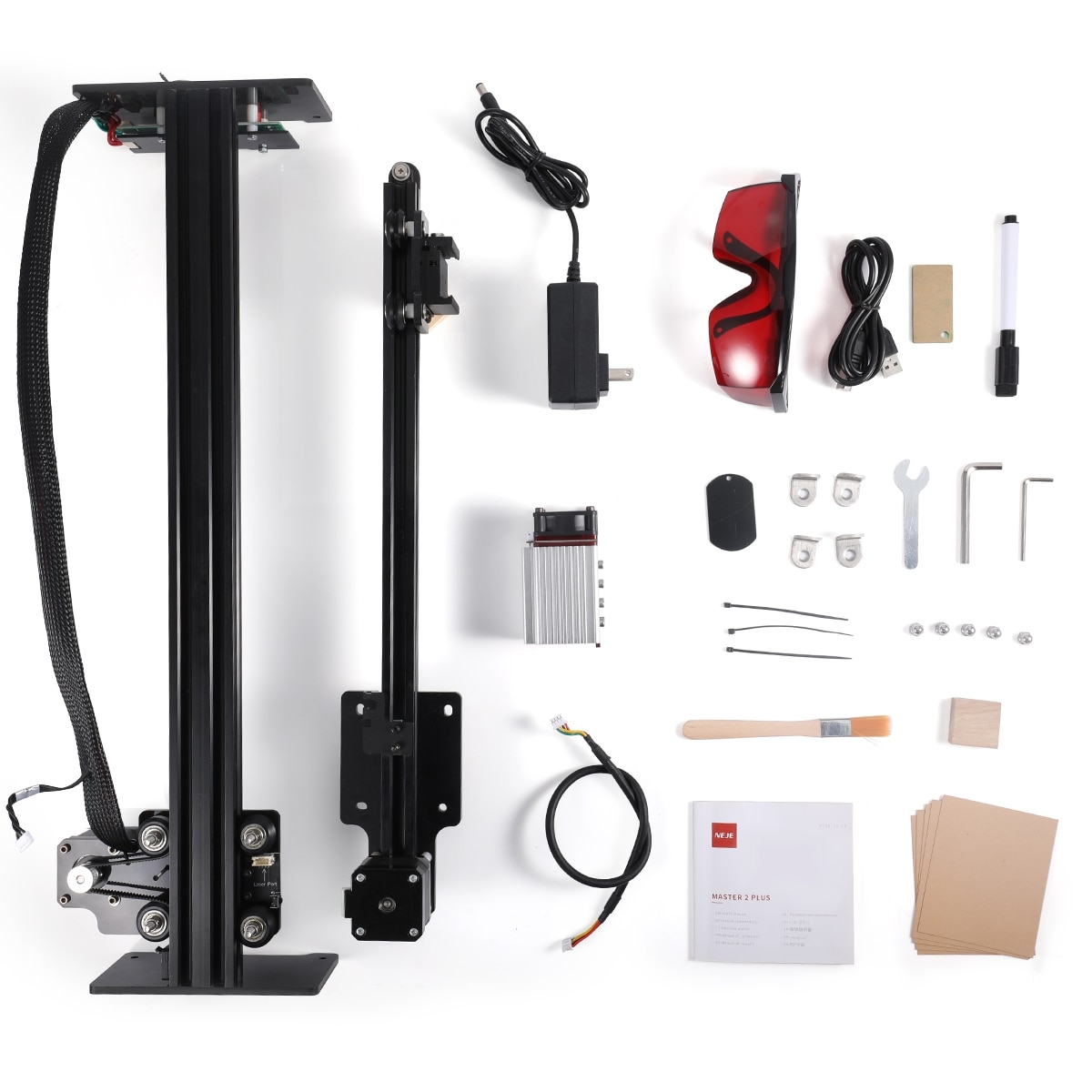

Package List

1* Laser engraving machine

1* N40630 module

1* 12V3A power supply

1* European standard adapter

1* Manual

1* Red glasses

1* Data cable

1* wooden board

1* alumina film

1* pen

1* brush

1* focusing film

1* large hexagon wrench

1* small hexagon wrench

1* Open wrench

3* cable tie

4* angle iron

5* nut

5* paper
