Description
- Brand Name: NEJE
- Origin: CN(Origin)
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: UL
- Condition: New
- Model Number: Plus A40640
- CNC or Not: CNC
- Is Smart Device: YES
- brand: NEJE
- laser module: A40640
Please note:
Hello friends, because glasses are antiepidemic supplies, Brazilian customs strictly control them. According to local customs regulations, products shipped from Brazilian warehouses do not come with goggles. Thank you for your understanding!

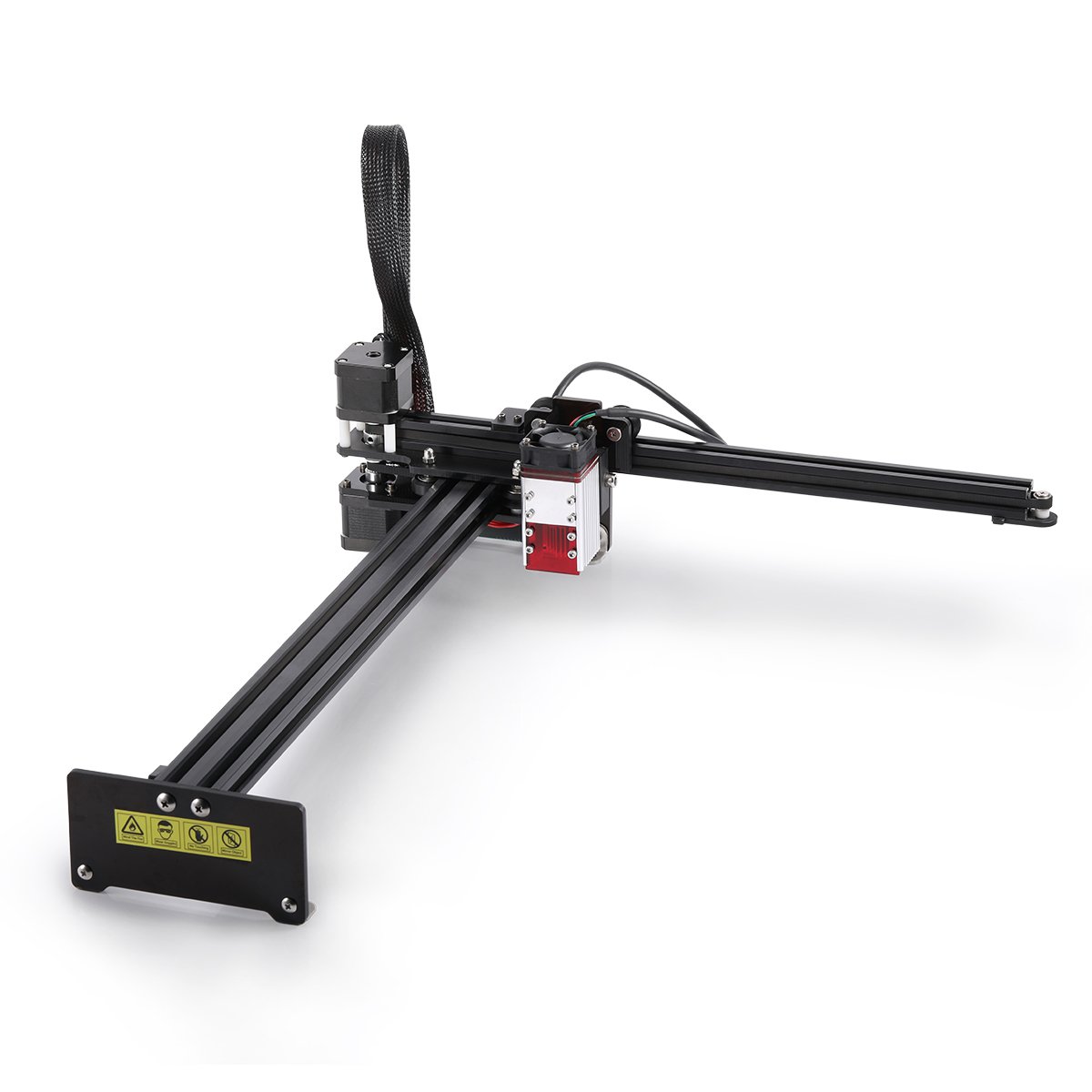

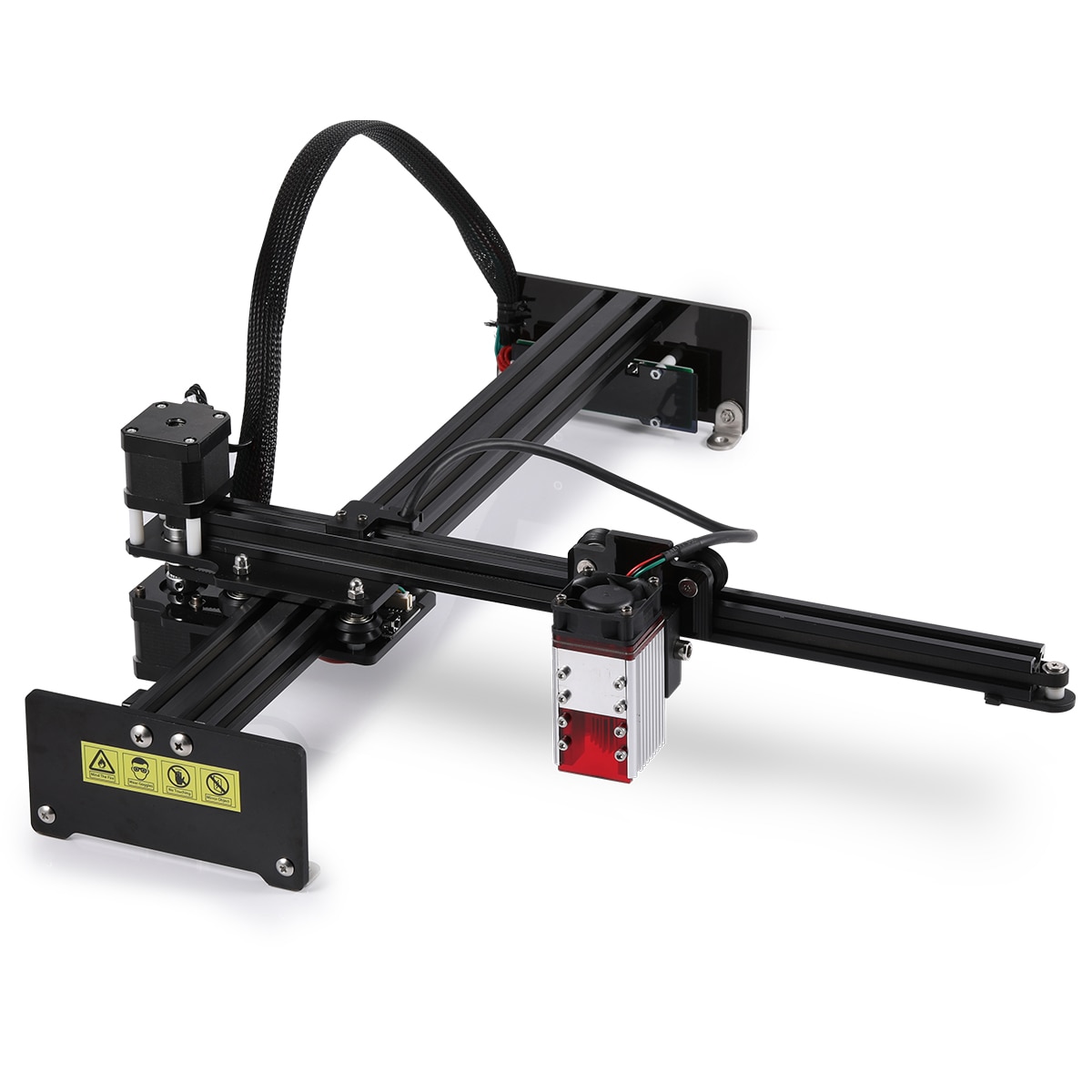

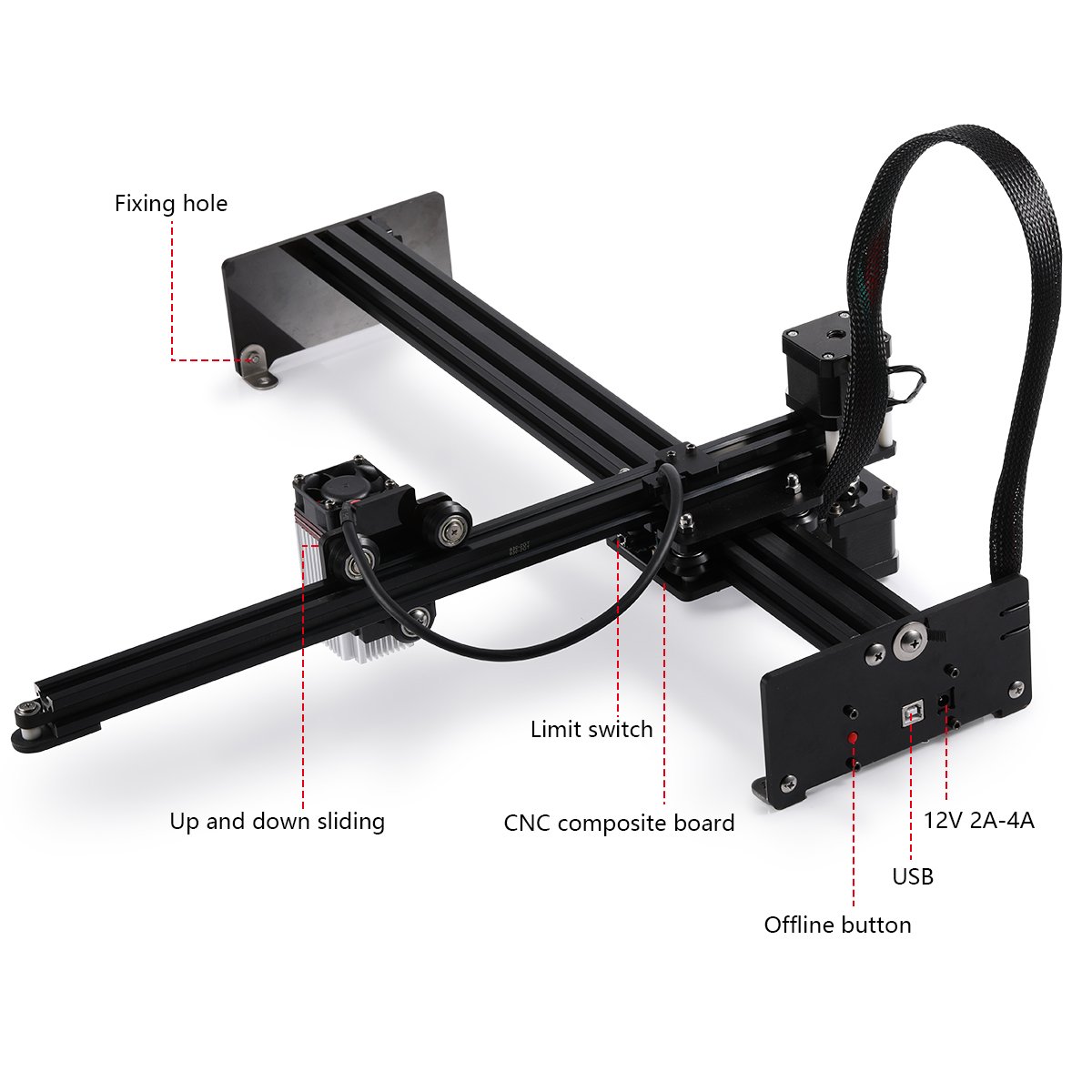

Master 2s Plus 80W Features

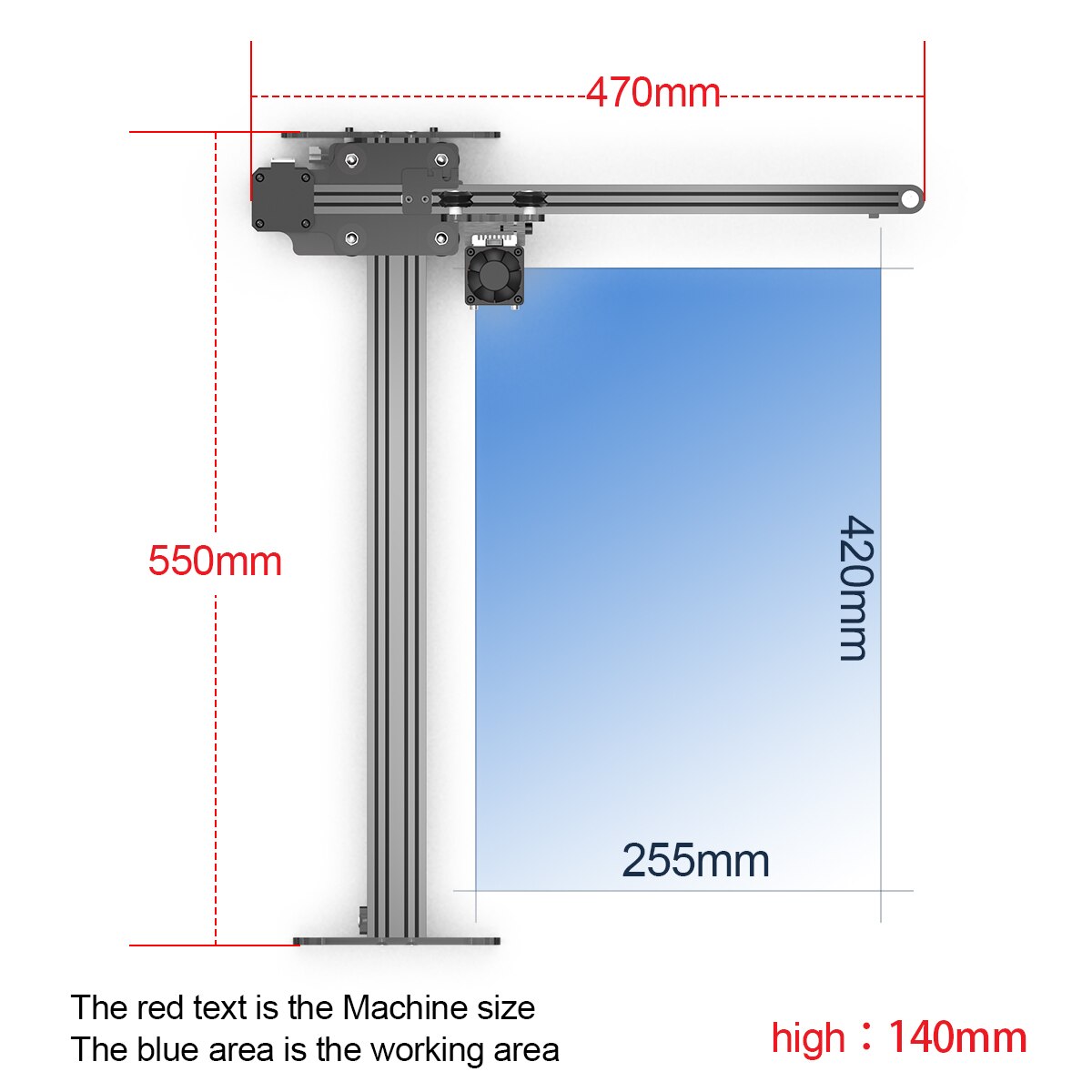

1. Larger area, 255 x 440 mm engraving and cutting area
2. 40-80W power module, optical power output 15W, focal point 0.01mm, support engraving and cutting.

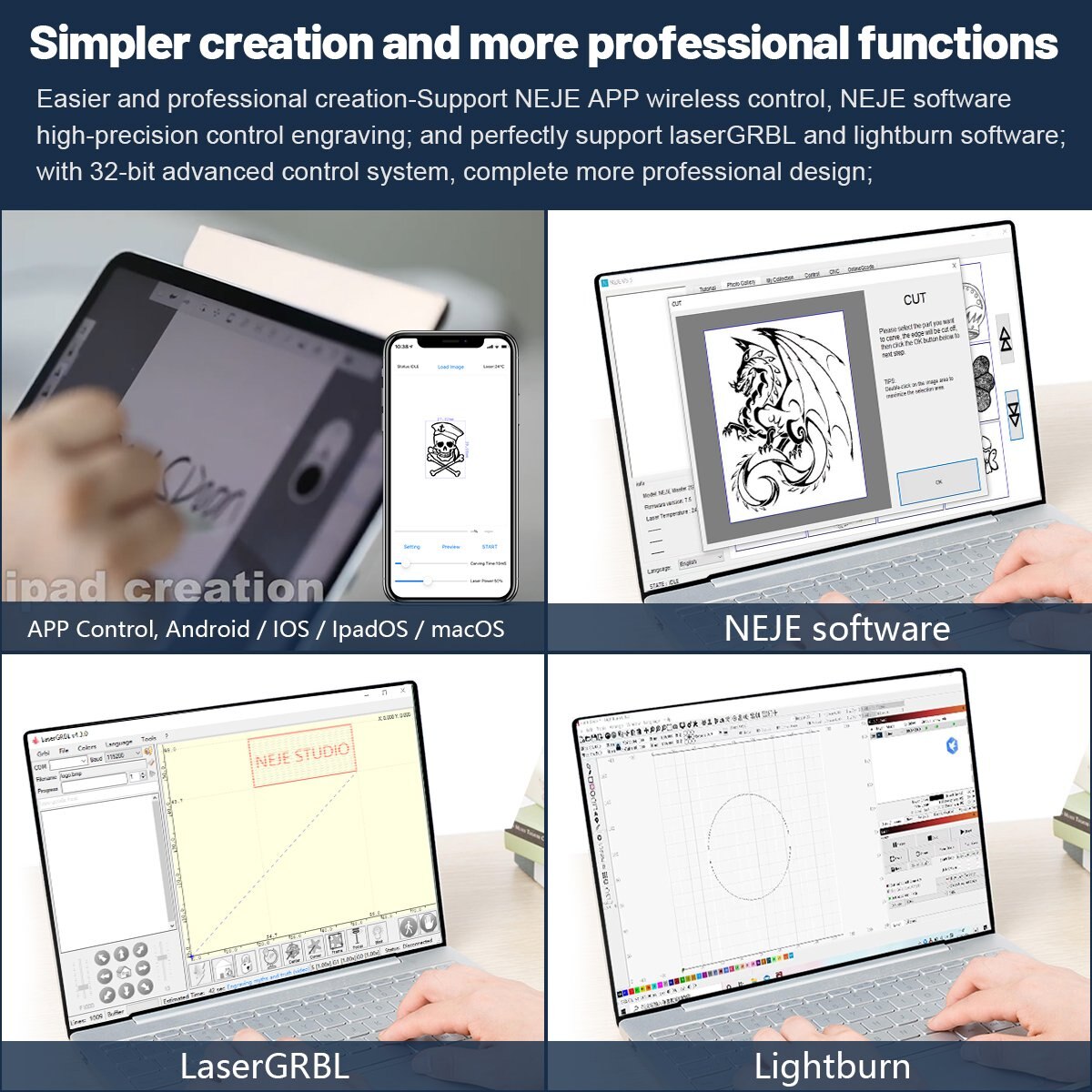

3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.
4. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.
6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.
7. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.
8. Support NEJE 4pin interface series modules, including , 10W, 20W, 30W, 40W,80W etc.
9. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty!
80W (A40640) Laser Moudle Feature
1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
2.15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
6.slidable mounting fixture is provided for easy adjustment of focus.
80W A40640 Product Specification
Model：NEJE Module 80W (A40640)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：40-80W
Optical power output：15W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20000 hours

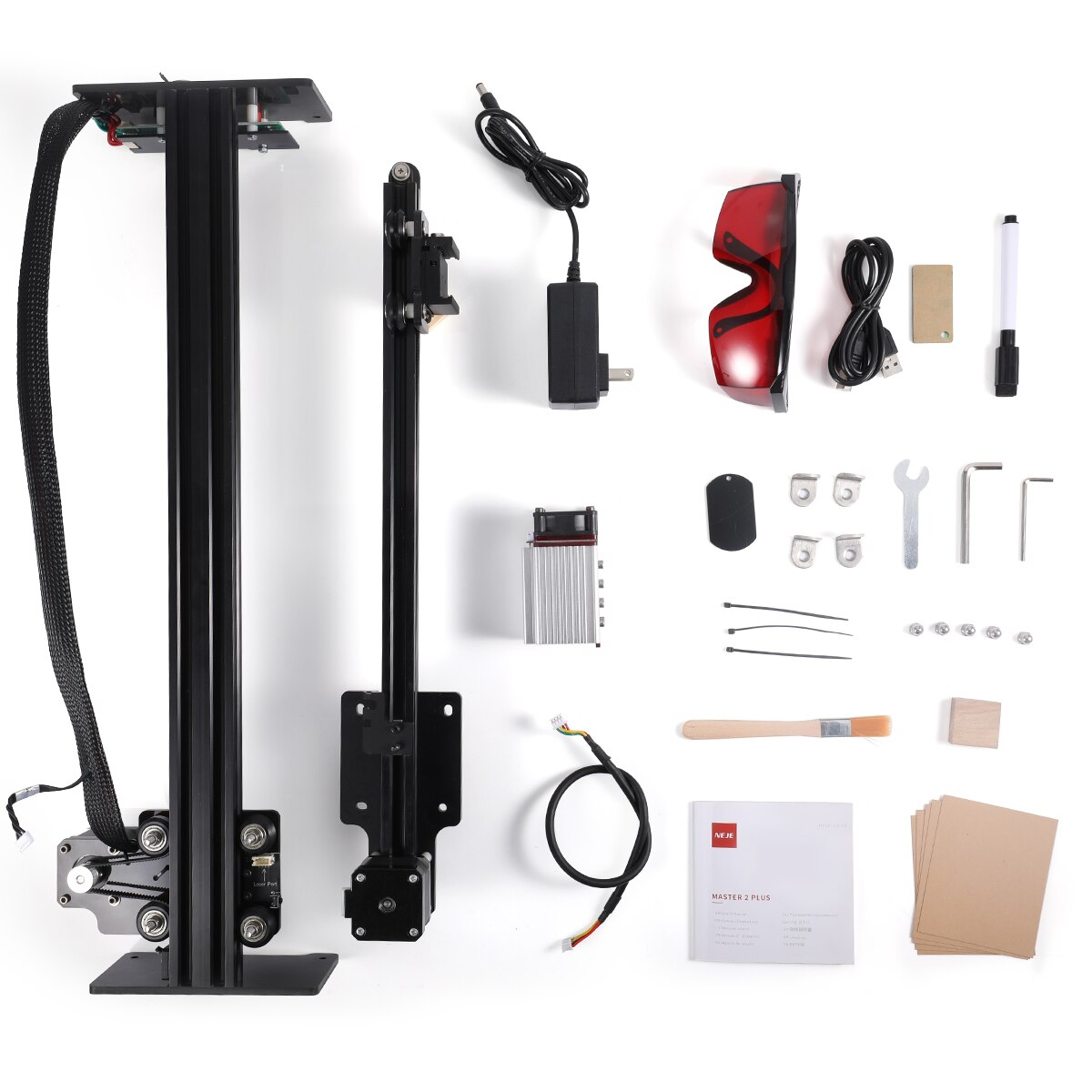

Package List
1* Laser engraving machine
1* A40640 module
1* 12V4A power supply
1* European standard adapter
1* Manual
1* Red glasses
1* Data cable
1* wooden board
5* paper
1* pen
1* brush
1* focusing film
4* angle iron
1* alumina film
3* cable tie
5* nut
1* large hexagon wrench
1* small hexagon wrench
1* Open wrench
