Description
- Brand Name: NEJE
- Origin: CN(Origin)
- Certification: CE
- Certification: FCC
- Condition: New
- Model Number: plus 7w
- CNC or Not: CNC
- Is Smart Device: YES
Very important, please read before ordering
Please notice that our price doesn’t include the customs tax, it charged by your customs, we don’t accept dispute or negative feedback for this reason. Thank you for your kindly understanding.
Parcels from Poland warehouse to EU Union countries will no tax and customs problem.
we provide 2-year warranty for the laser module for non-human damage, so if your module has problem, please do not leave negative feedback or open dispute, contact with our customer service, we will help you to solve the problem.
Features:
2s series motherboard will update the GRBL 1.1f of ATMEL chip to brand new GD32 MCU.Which has improved 50% performance compare with STM32 chip.
* Large working area: 255 x 440 mm engraving area, wider application.
* It supports more than 10 different function modules, the NEJE module has excellent optical design and reliable work performance, which is the best and the most guaranteed service currently. NEJE series module provides 2 years free warranty for non-human damage.
* Specialized Motherboard with GD32 MCU
* It could preprocess 32 instructions, support baud rate as high as 2,000,000 compared to STM32 desktop laser engravers, which only has 921,600, more powerful!
* Engraving speed could be as high as 42,000 millimeters/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1200millimeters/Sec. ); compared to stm32 desktop laser engravers, which only has 3000 millimeters/Min, more powerful!
* The Most Advanced 32Bits Laser Engraver Firmware NEJE laser master firmware, smarter, faster, higher precision and easier to use. NEJE also provides firmware upgrade services (please contact with the customer service for the website link)
* Laser power range could be S0 – S1000, NEJE Laser Master could control laser beam more accurately, could even use the high power laser unit to”draw” a picture on paper, to match with NEJE series module can achieve the more accurate effect.
* Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
* Laser Beam Safety Guard
If your computer system halted or a USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire.
* Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case the motor stopped moving, to prevent fire.
* NEJE software ( free software ) supports windows 7, 8, 10. Mac OS.NEJE APP including android, iOS macOS, NEJE team develops it which is for beginner, it can provide high precision carving and CNC creation’s software, the operating procedures are automatic and simple, safe use. Especially the current engraving software, NEJE team keeps upgrade and optimization, also provides free upgrade services, you can get free upgrade services inwiki.nejetool.com
* 2s version doesn’t support Benbox
* Laser GRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser Laser GRBL for engraving and cutting.
* LightBurn ( paid software, lightburnsoftware.com ) supports Windows,Mac OS, and Linux. It’s the most popular paid carving software in the world, very easy to use.

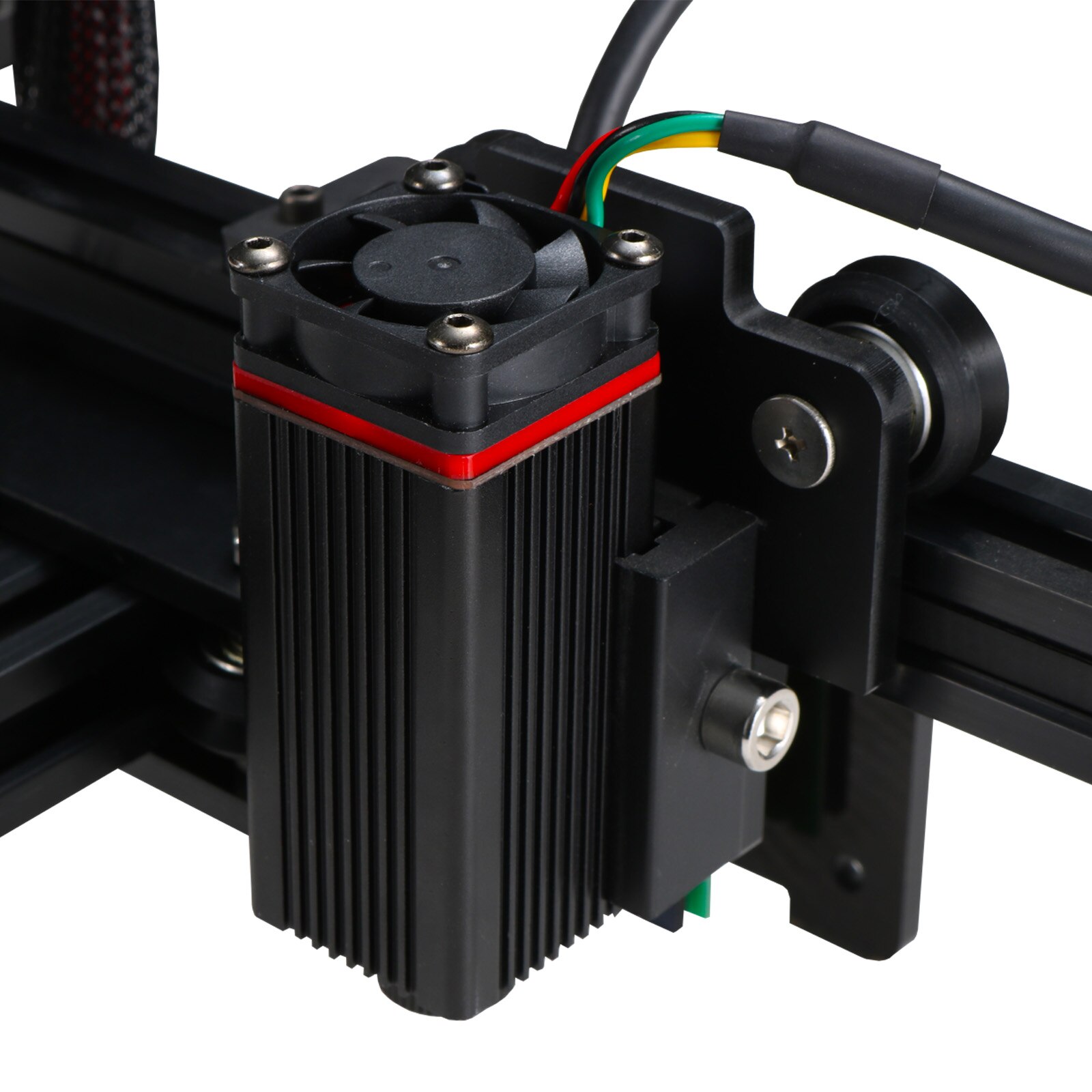

* NEJE module supports PWM control and temperature sensing, the module can adjust the focus by up and down, it also supports zoom module’s and focuses module’s installing.
* Pre-assembled parts, it just has to install 6 screws, need 1 minute to install the machine.
* Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance, NEJE structure is different from other acrylic main structure, NEJE machine is using high-strength composite mostly.It also uses CNC art craft, to make sure pulley and aluminum material without any gap. Besides, it won’t deformation for a long time, which means it is robust and reliable.
* Synchronizing shaft mechanical structure, avoid out-sync on two Y-axis rails, during full speed engraving.
Function:
1. Supports Bluetooth, can operate the machine via APP (compatible with iPhone / MAC / Android phone.)
2. OFF-Line Working.
3. NEJE software supports lightburn , benbox and laser GRBL function.
4. Support BMP,NC(G-code),DXF(CAD), etc… files.
5. Cloud Gallery Service.
Specifications:
* Software: NEJE software / APP
* Mainboard: 2 MCUs (GD32 MCU + STC)
* Laser Power: 7W ( Laser input: 12v 0.75A ) / 20w / 3500mw (405nm, for portrait engraving)
* Luminous Color:Blue
* Laser Wave Length: 450nm
* Image Format:.nc .dxf .bmp .jpg .png etc..
* Image Size:2000 * 2000 pixels / 0.075mm point distance
* Support System: Windows 7 (Need to install the .net 4.8 software environment), Windows 8.1, Windows 10 and above ( Does not support windows XP )/ Macbook/iOS/ Android(NEJE wireless)
* Machine Supply Voltage: 12V 2A
* Safety Warning: Please apply this module under the premise of safety protection!
Items can be carved including: alumina oxide, mahogany, bamboo, paper cards, leather, flammable plastic, PCB, etc.
Can Not Engrave:Metal/Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material
Package list:
1 * Engraving Machine with Module
1 * 12V 2A Power Supply (US or EU plug)
1 * User Manual
1 * Protective Glasses
1 * USB Cable
1 * Wood Block
5 * Paper
1 * Brush
1 * Focusing Pad
4 * Angle Iron
1 * Anodized Aluminum Tag
3 * Tie
5 * Nut
1 * Small L-shaped wrench
1 * Big L-shaped wrench
1 * Open-end wrench
If you need for logo, words, cartoon, numbers or other lines engraving, please choose 7w or 20w, if you need for portrait engraving, please choose 3500mw.
![](https://www.laserse.com/wp-content/uploads/2021/07/Hb9ea0398b80a47fdabdf3f4154ddbc0fR.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H7fa85faeb13244bfa8c381ed35cc4c68X.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H17b8126a28ff42979398f5051f1b460bk.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hb12da67d9f304da08e82f4c6dbc80006N.jpeg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hca786980d40d43ae994ea5c40b89044bA.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hdb06afb5535e453087244a3a2db9d48eE.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H7f5b014b897c475bb1b1b5d93bd14238d.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/08/Hc78d6fff939e41ec964765c66feb2cec4.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H8b19dae3704f4cc58d4aa22f1829722ce.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hbb10c5dd3de34f0eae7684298696cfear.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/He105e720f0fe4324b12c6aa680901126w.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H19ea726beab84a37b2d5535e6de3f399G.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H04b3f8187d614370bddc6756b8d8b37aA.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H8af38d4adfaa42518a1b74d4bccb5620k.jpeg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hc52b751029674fe6973bb4761ce0e38f7.jpeg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H5cd1171458024adaba64b710ac68df06Y.jpeg)
