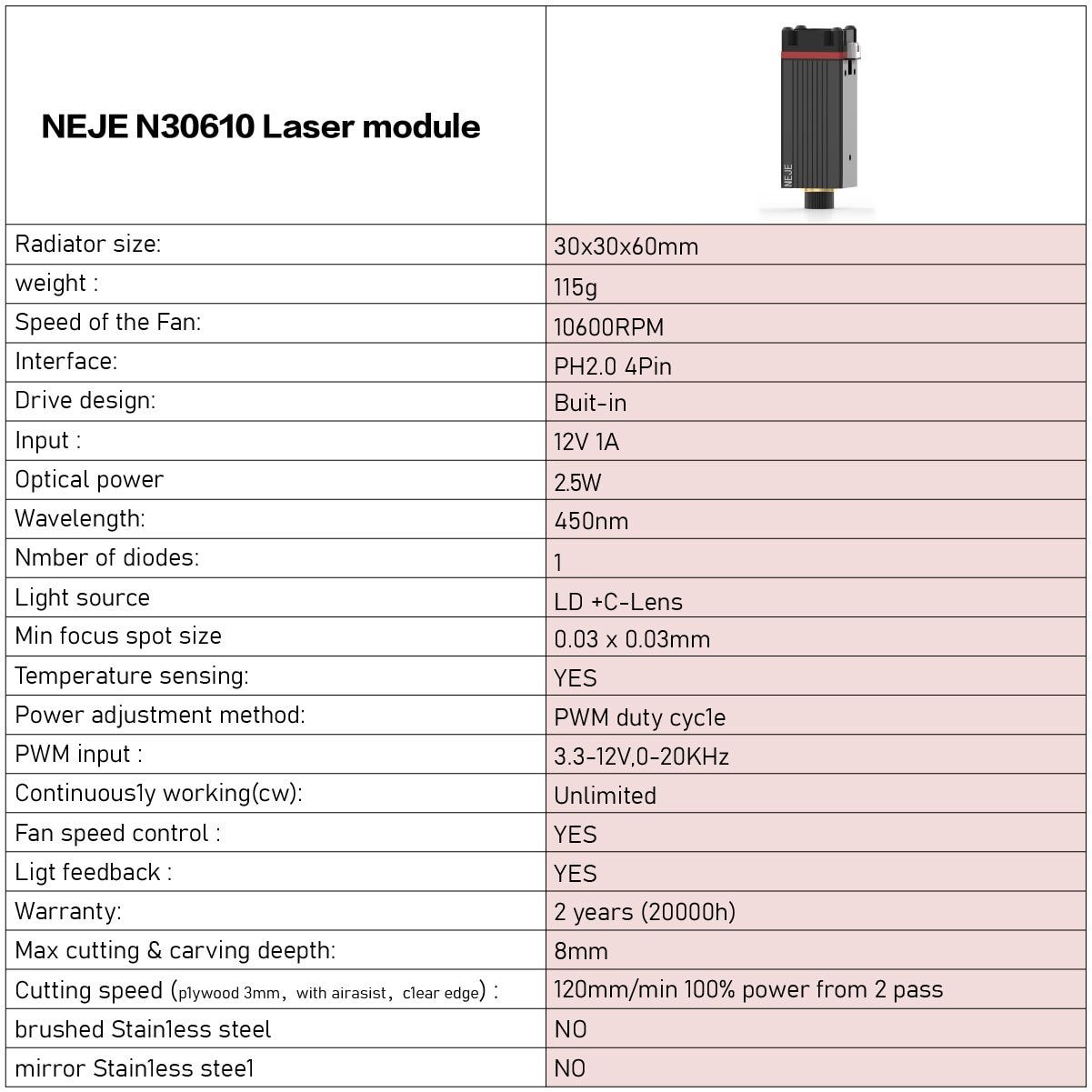

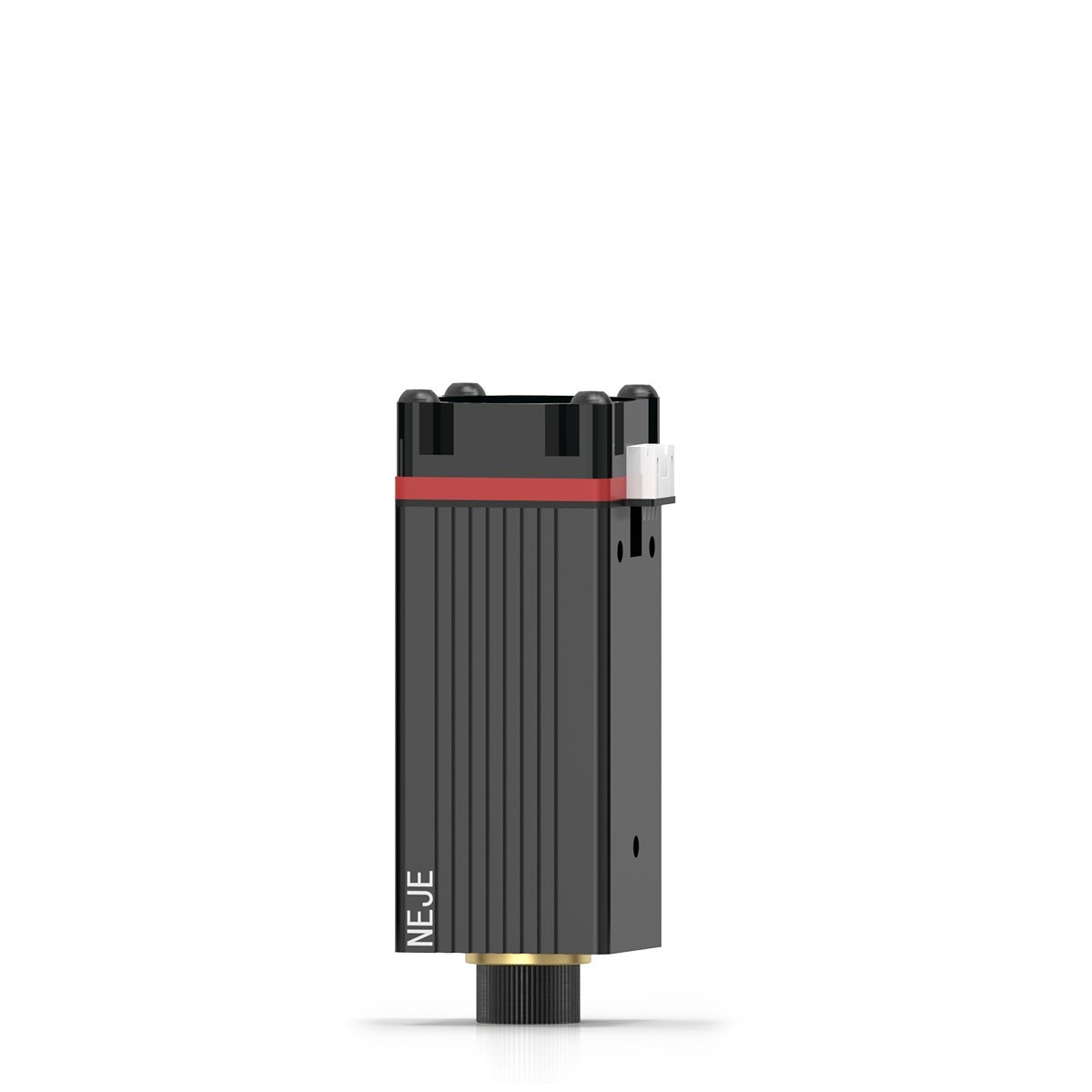

NEJE Master 2s N30610 Specification

Model： NEJE Master 2s N30610

Input Power：15W

Optical Power: 450nm 2.5W

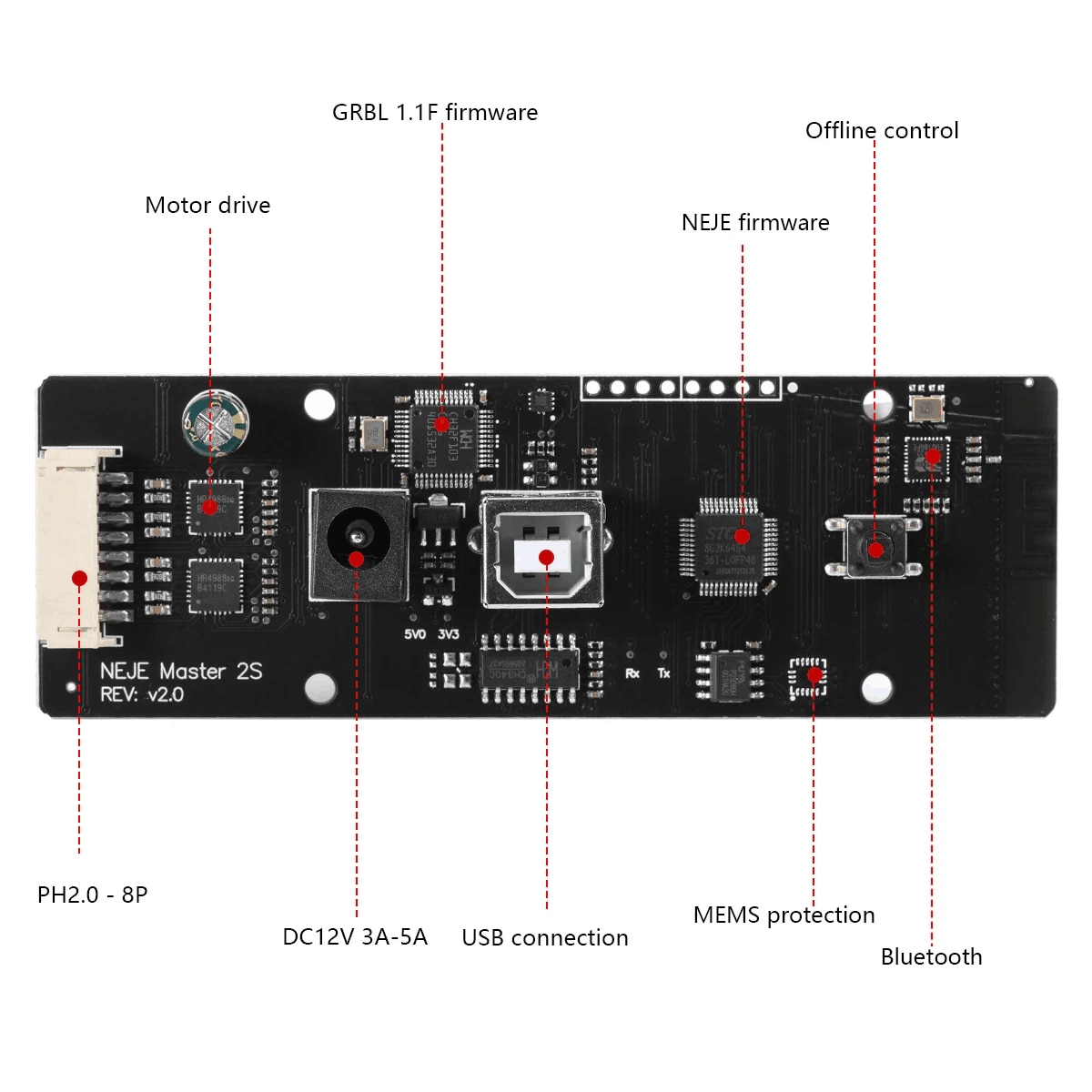

Control Board: 2 x MCU + Wireless control + MEMS

Satety Protection: MEMS

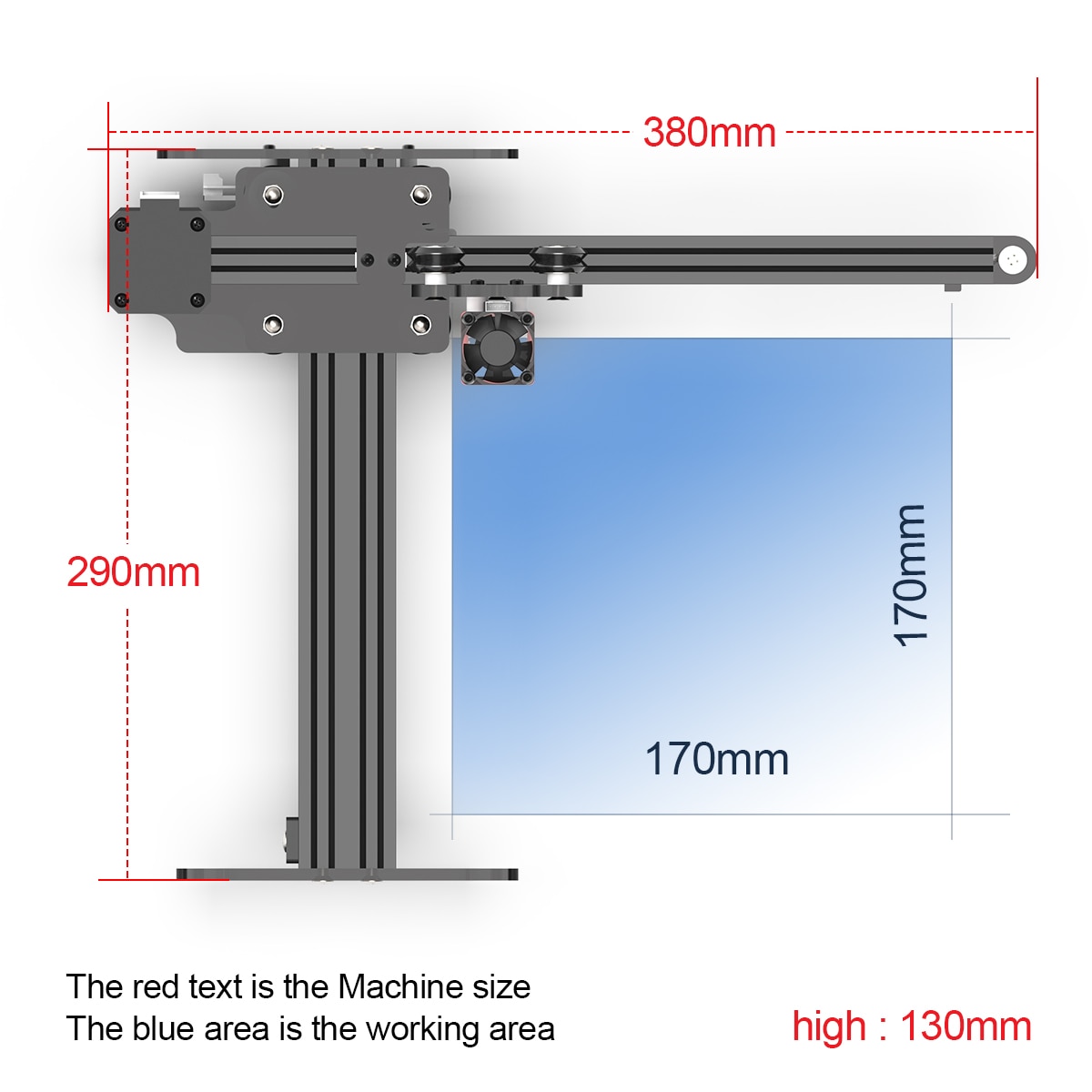

Working Size: 170 x 170 mm

Pixel: 2266 x 2266 px

Dot pitch: 0.075mm

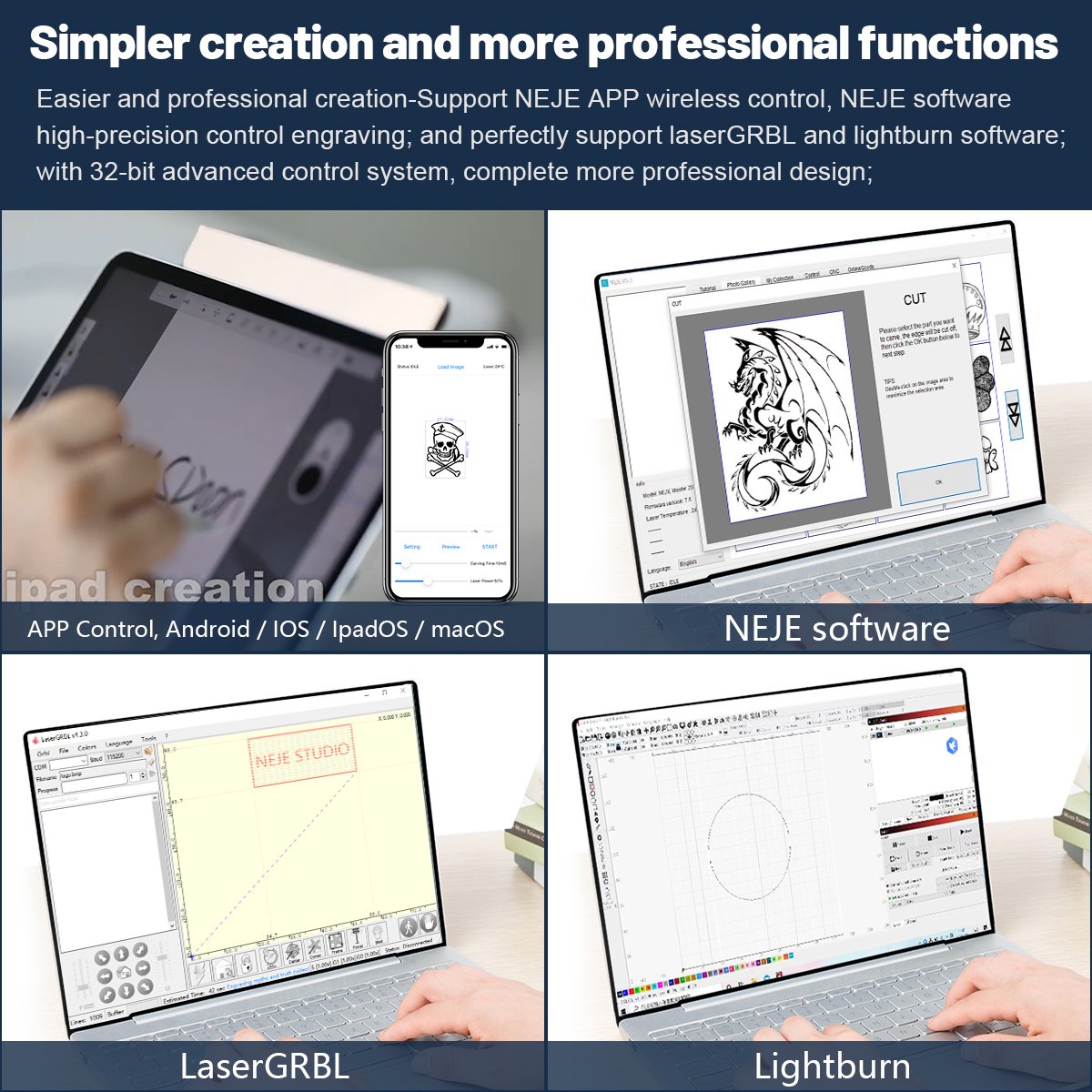

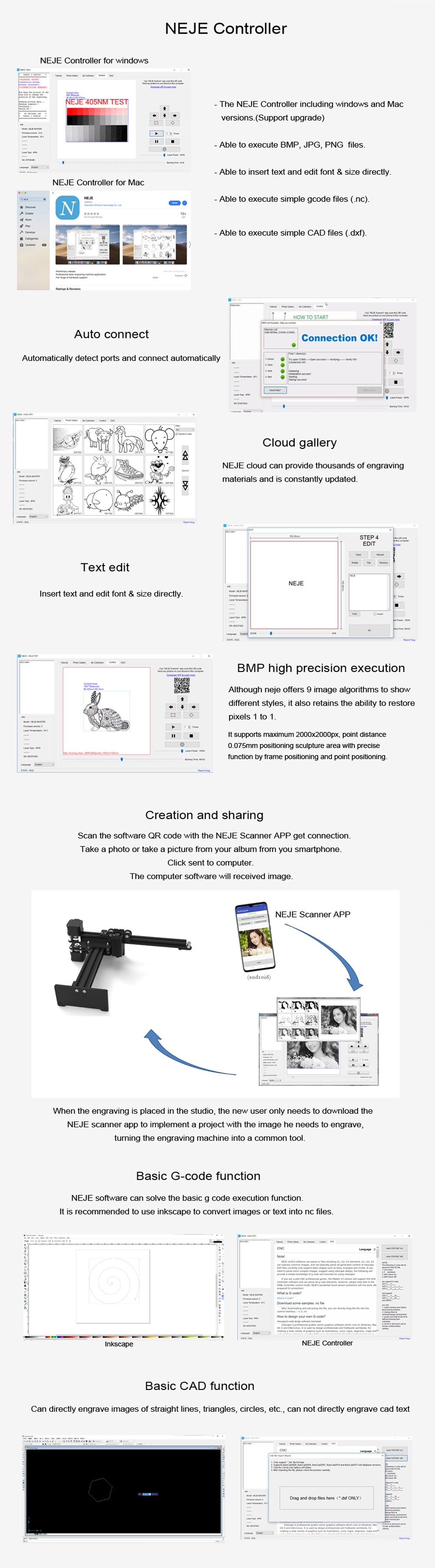

Software: NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.

LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux

NEJE Software Upgrading Service: YES

NEJE Cloud Gallery: YES

NEJE Scanner function: YES

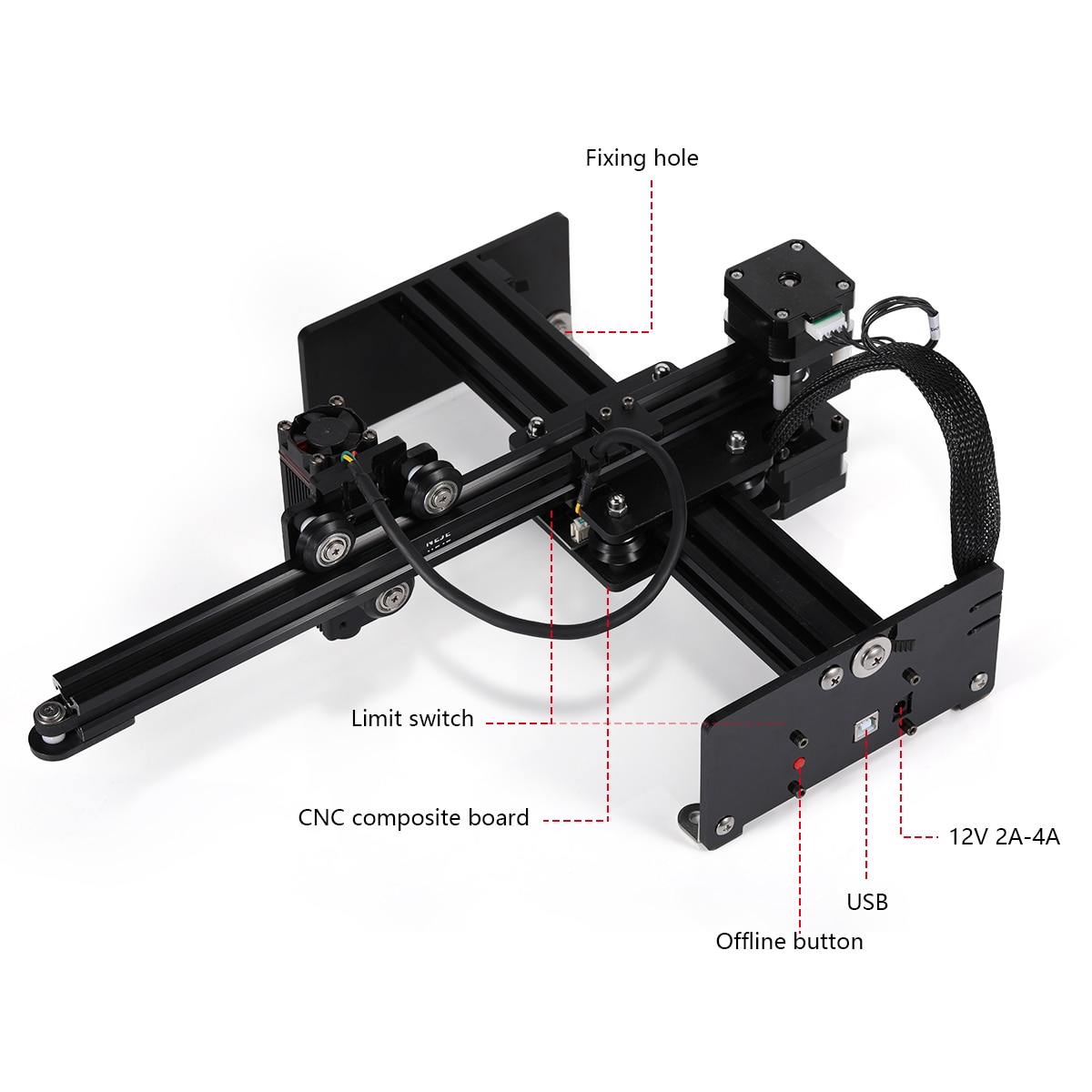

Frame material: CNC Cutting Composite plate, aluminum alloy, acrylic.

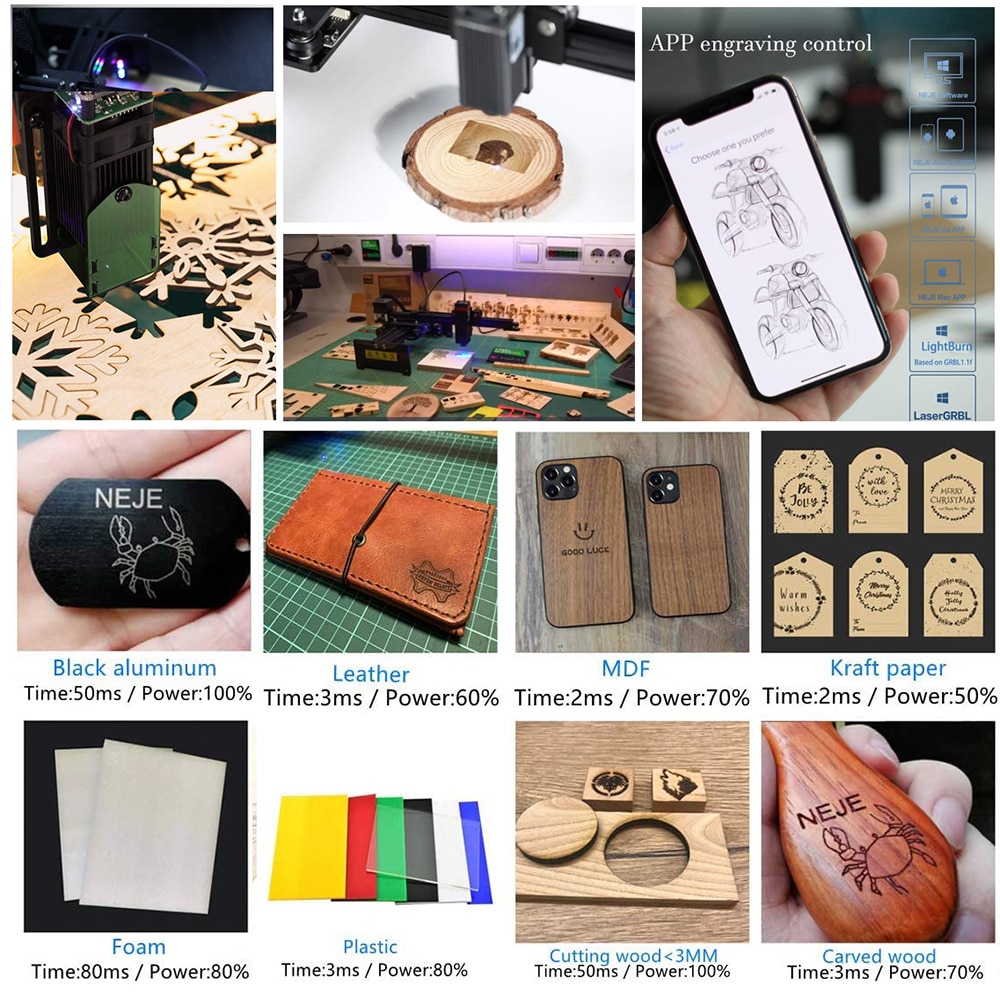

Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Continue working: Unlimited

Wavelength： 450nm

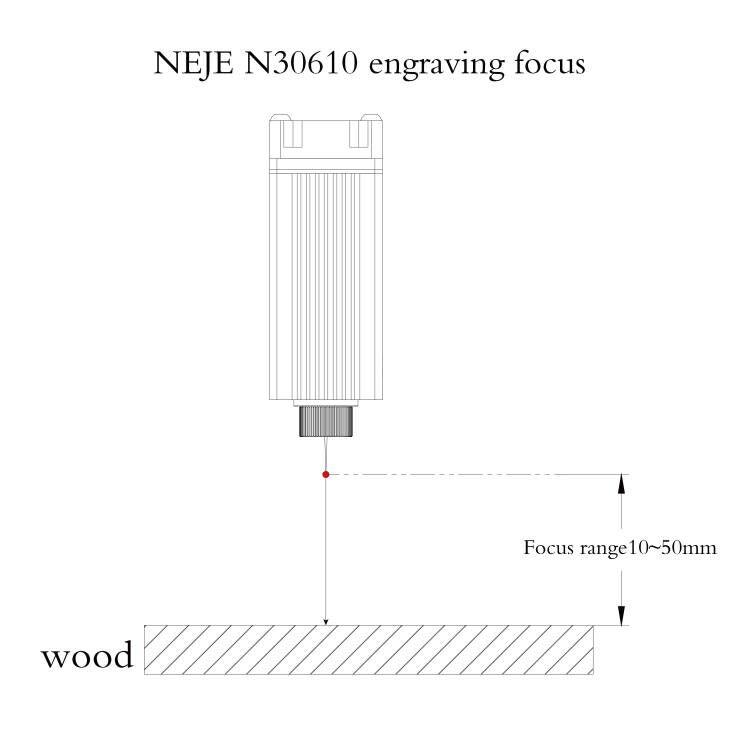

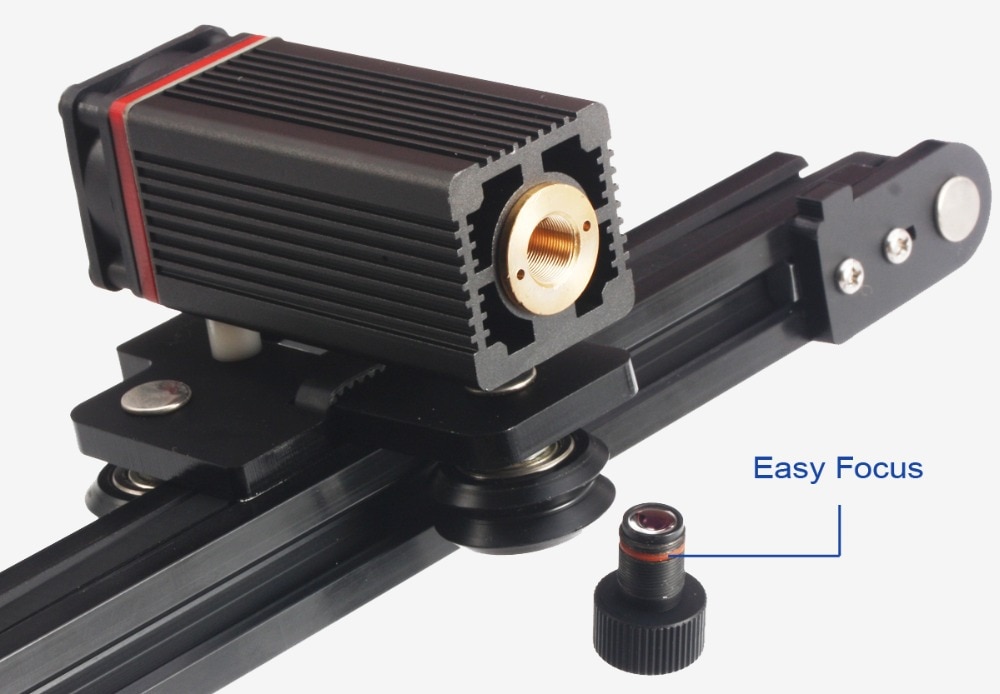

Beam Shape： Dot (Focusable)

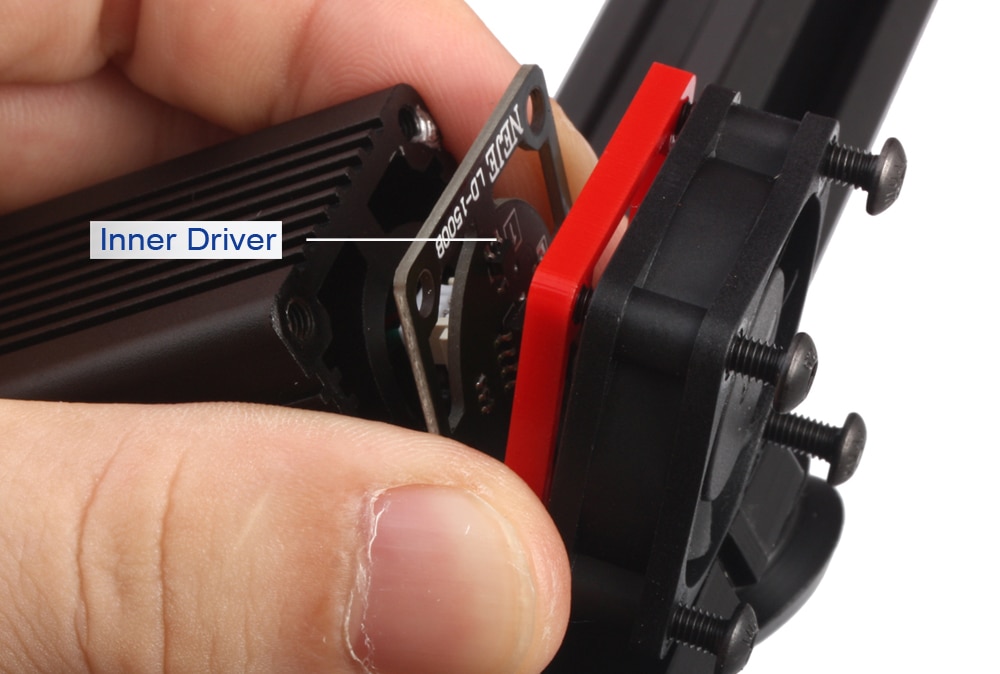

Drive: Built-in

Lens Material: D-ZK3

Heatsink Material： Aircraft Aluminum + Brass Shell

Luminous Color： Blue

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 2A

Image Format: .bmp .jpg .png .nc .dxf etc..

Plug Type: EU / US (Optional)

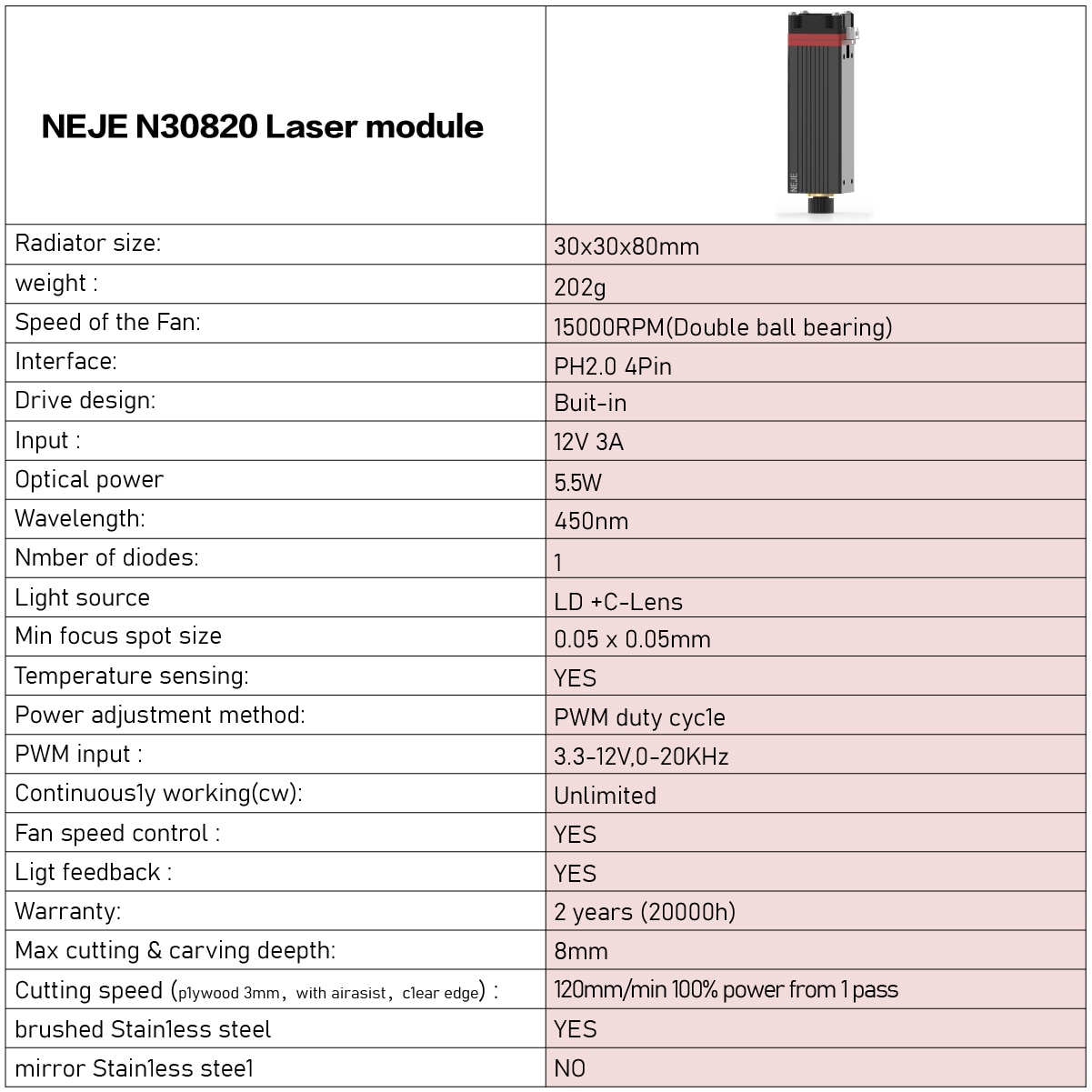

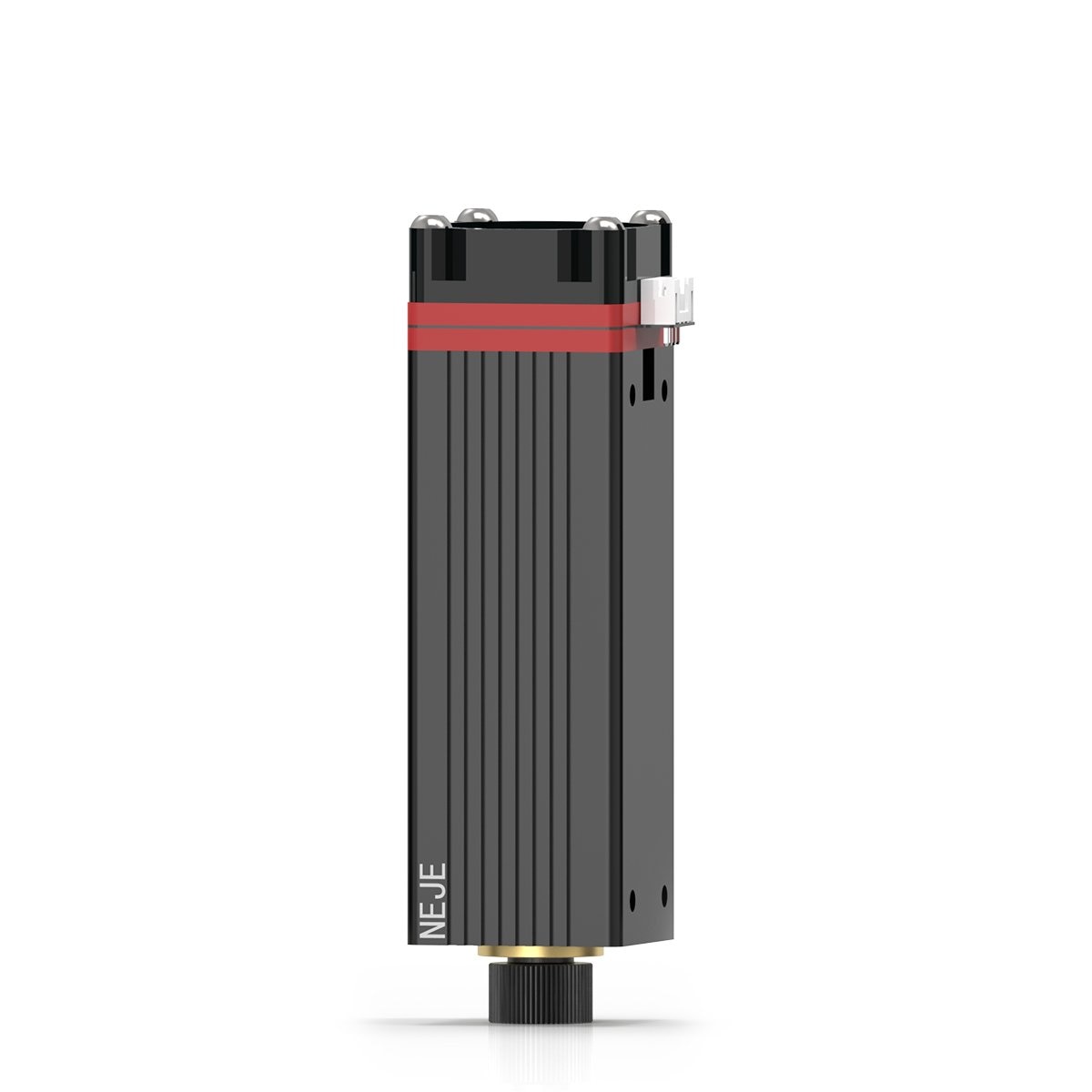

NEJE Master 2S N30820 Specification

Model： NEJE Master 2S N30820

Input Power：20W

Optical Power: 450nm 5.5W

Control Board: 2 x MCU + Wireless control + MEMS

Satety Protection: MEMS

Working Size: 170 x 170 mm

Pixel: 2266 x 2266 px

Dot pitch: 0.075mm

Software: NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.

LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux.

NEJE Software Upgrading Service: YES

NEJE Cloud Gallery: YES

NEJE Scanner function: YES

Frame material: CNC Cutting Composite plate, aluminum alloy, acrylic.

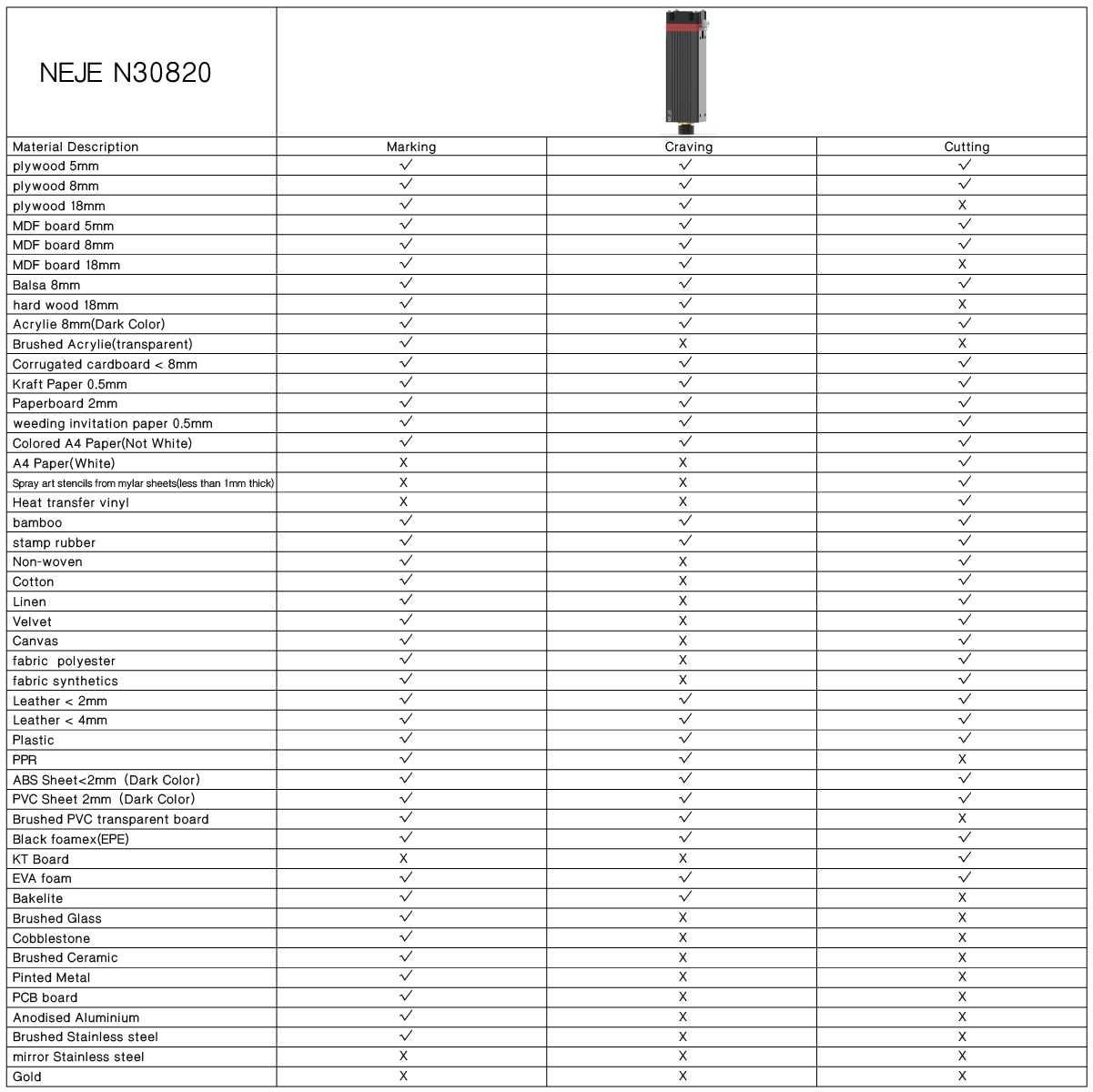

Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Continue working: Unlimited

Wavelength： 450nm

Beam Shape： Dot (Focusable)

Drive: Built-in

Lens Material: D-ZK3

Heatsink Material： Aircraft Aluminum + Brass Shell

Luminous Color： Blue

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 3A

Image Format: .bmp .jpg .png .nc .dxf etc..

Plug Type: EU / US (Optional)

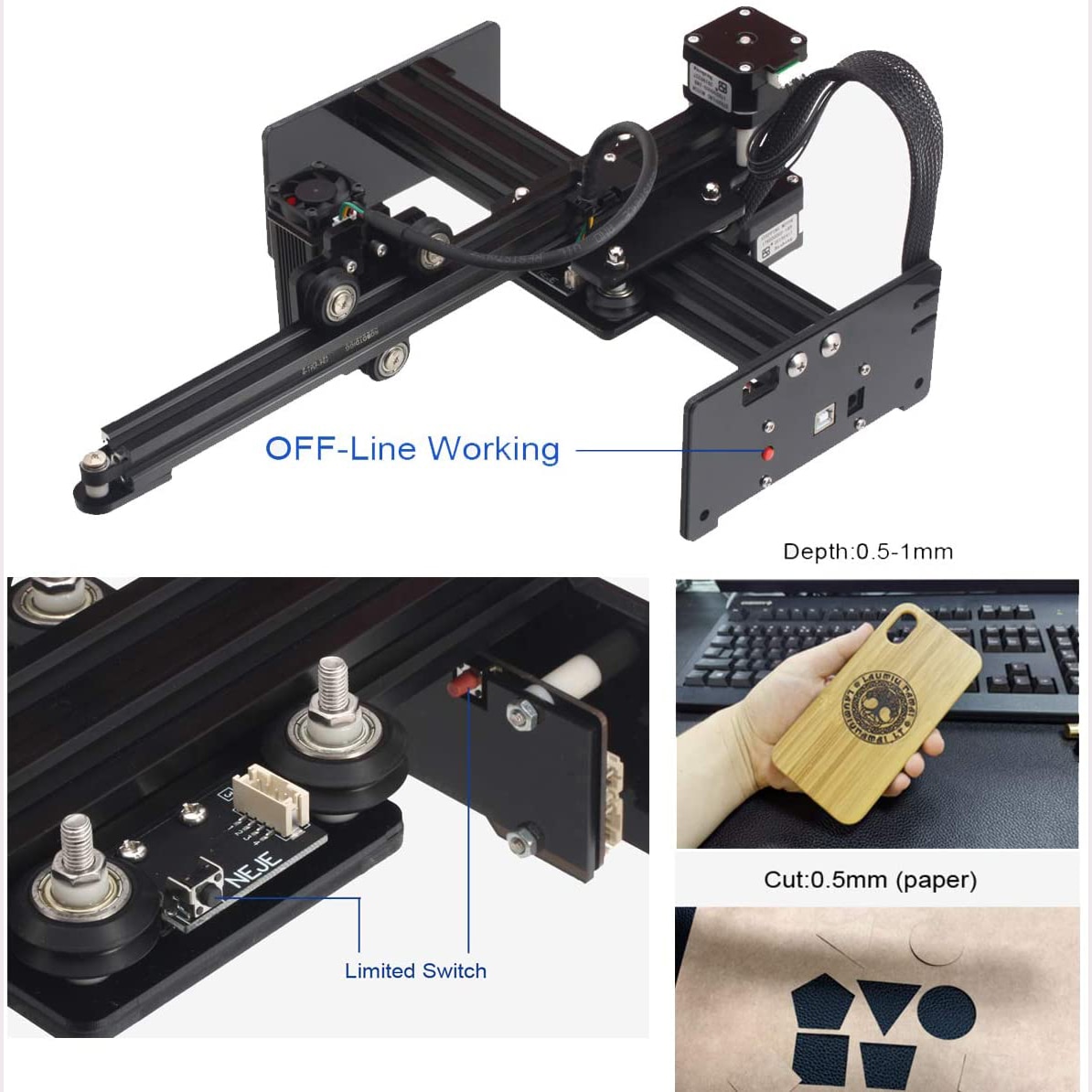

NEJE Master 2S N30610/N30820 Features

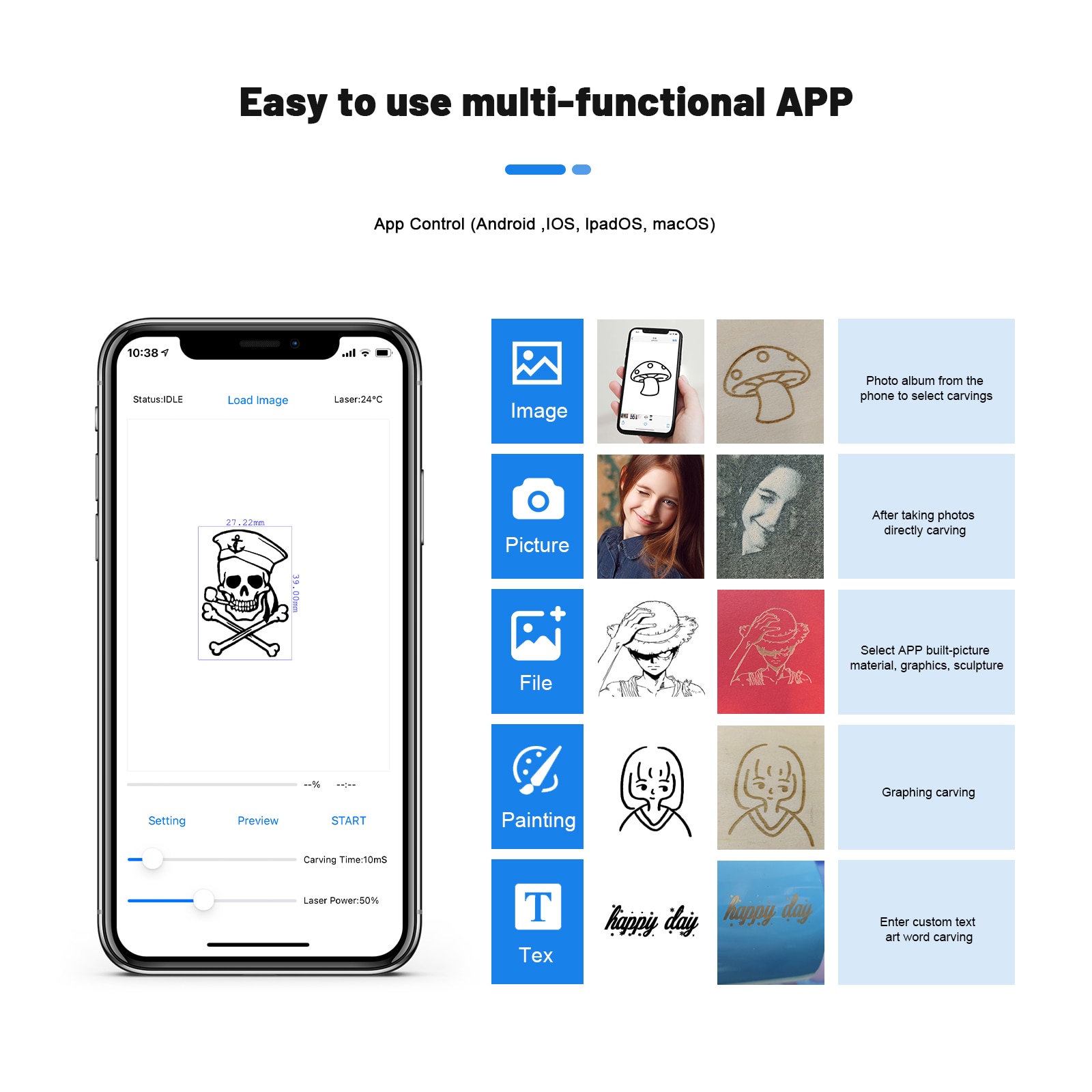

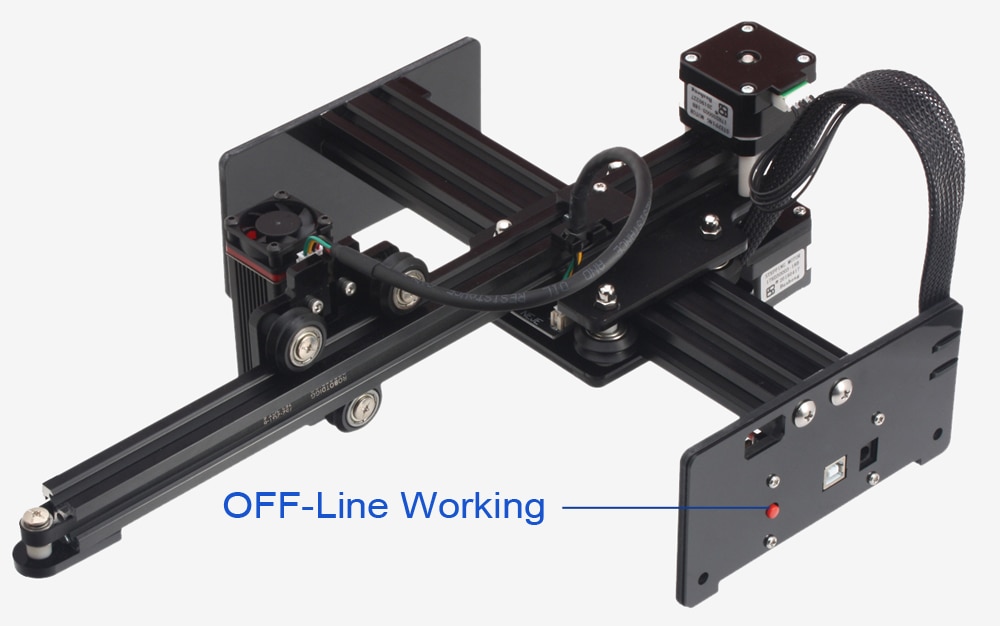

【More Convenient】Off-line and APP Wireless Control. NEJE Scanner Wireless Transfer. Cloud Gallery and Online Gcode Makes Creation Easier.

【Professional CNC software】Benbox , LaserGRBL. 170 x 170 mm Engraving Range. Operating System: windows 7/10 / android / iOS / macOS. Picture format: BMP / PNG / JPG / NC / DXF,etc.”

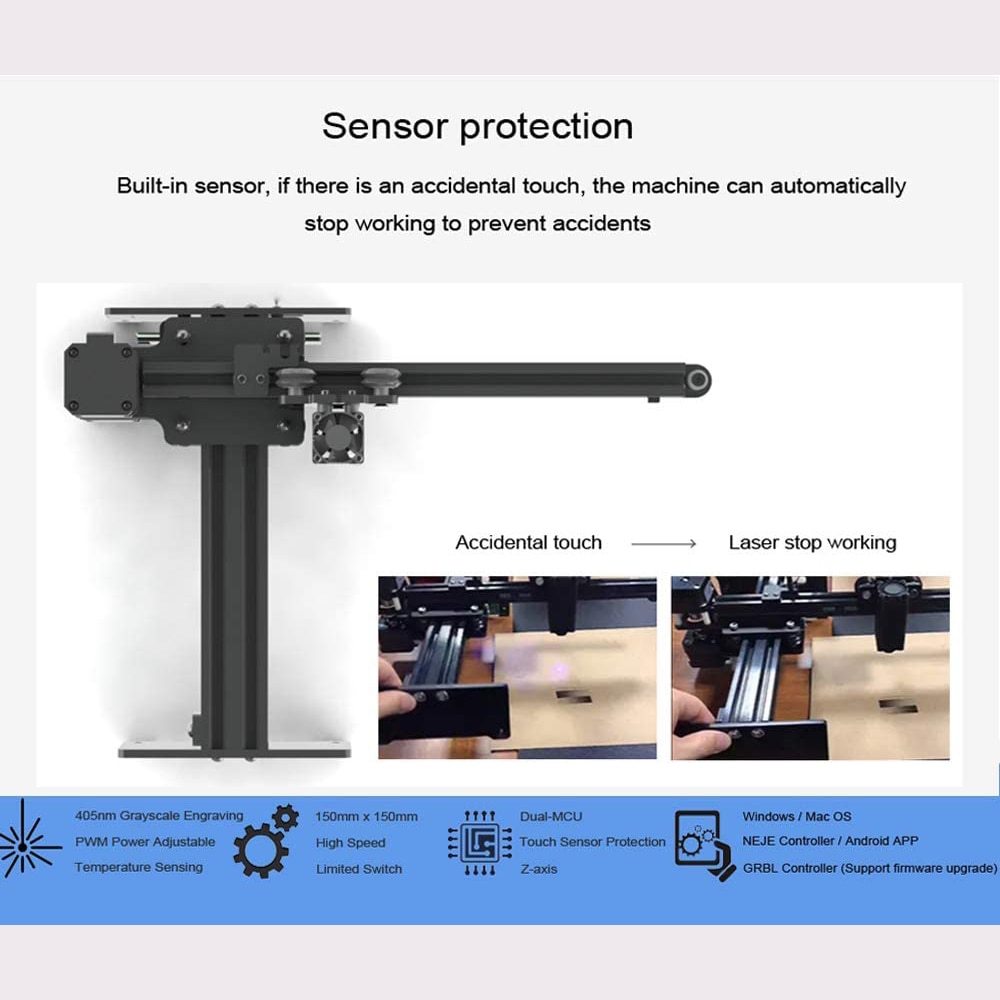

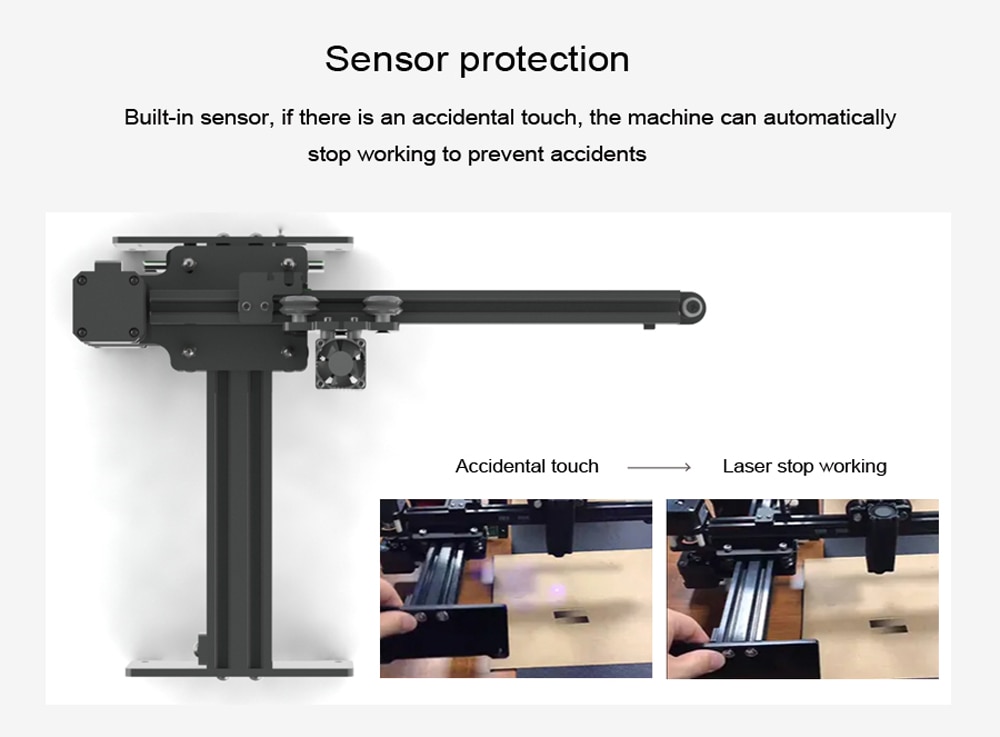

【Safe To Use】Built-in MEMS sensor protection, when accidentally touched, the machine will automatically stop working.

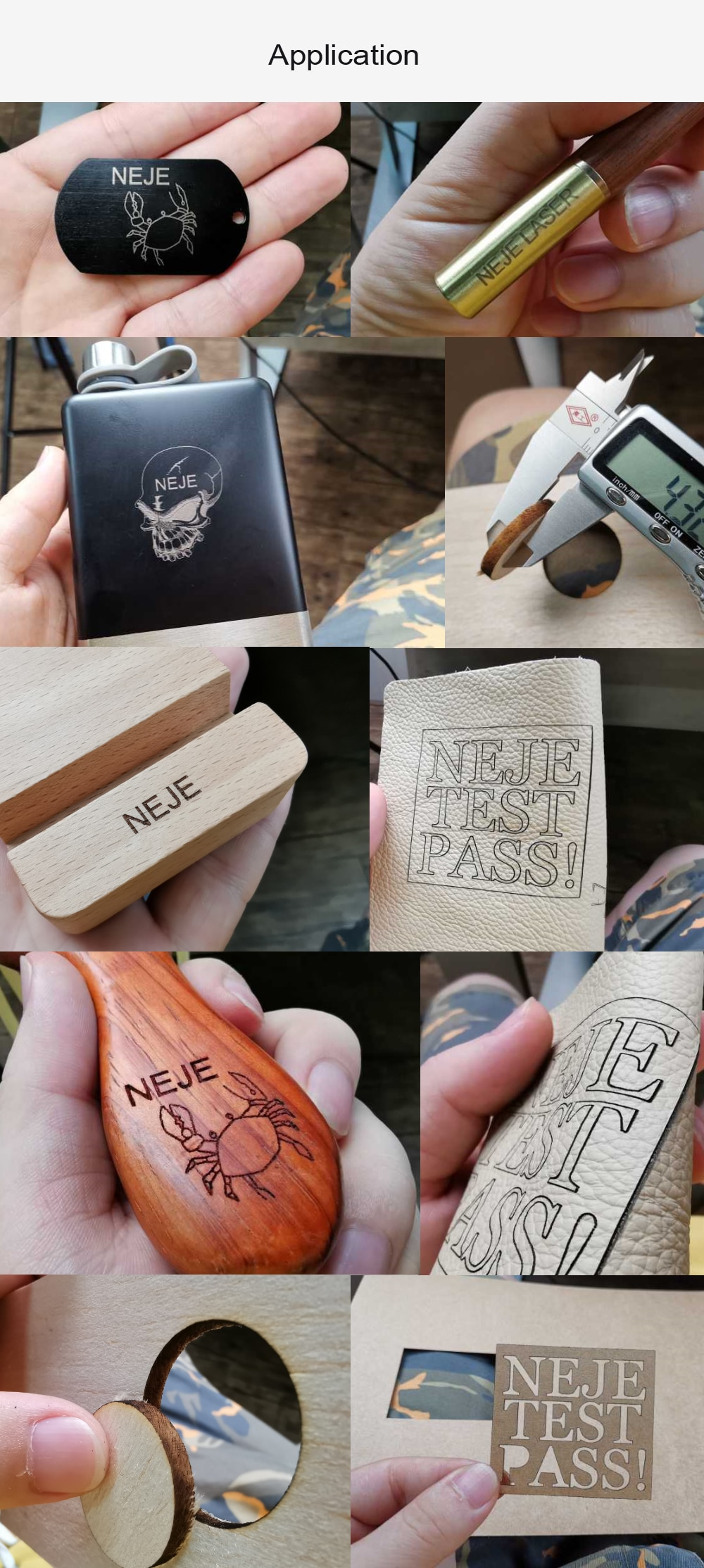

【Carved Material】It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)”

【NEJE Service】We provided 2 years warranty, and full life customer service. If you have any questions about this engraving machine, please contact us, we will reply to you in 24 hours.

Note(Please pay attention)

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！

3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.

4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.

5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.

6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.

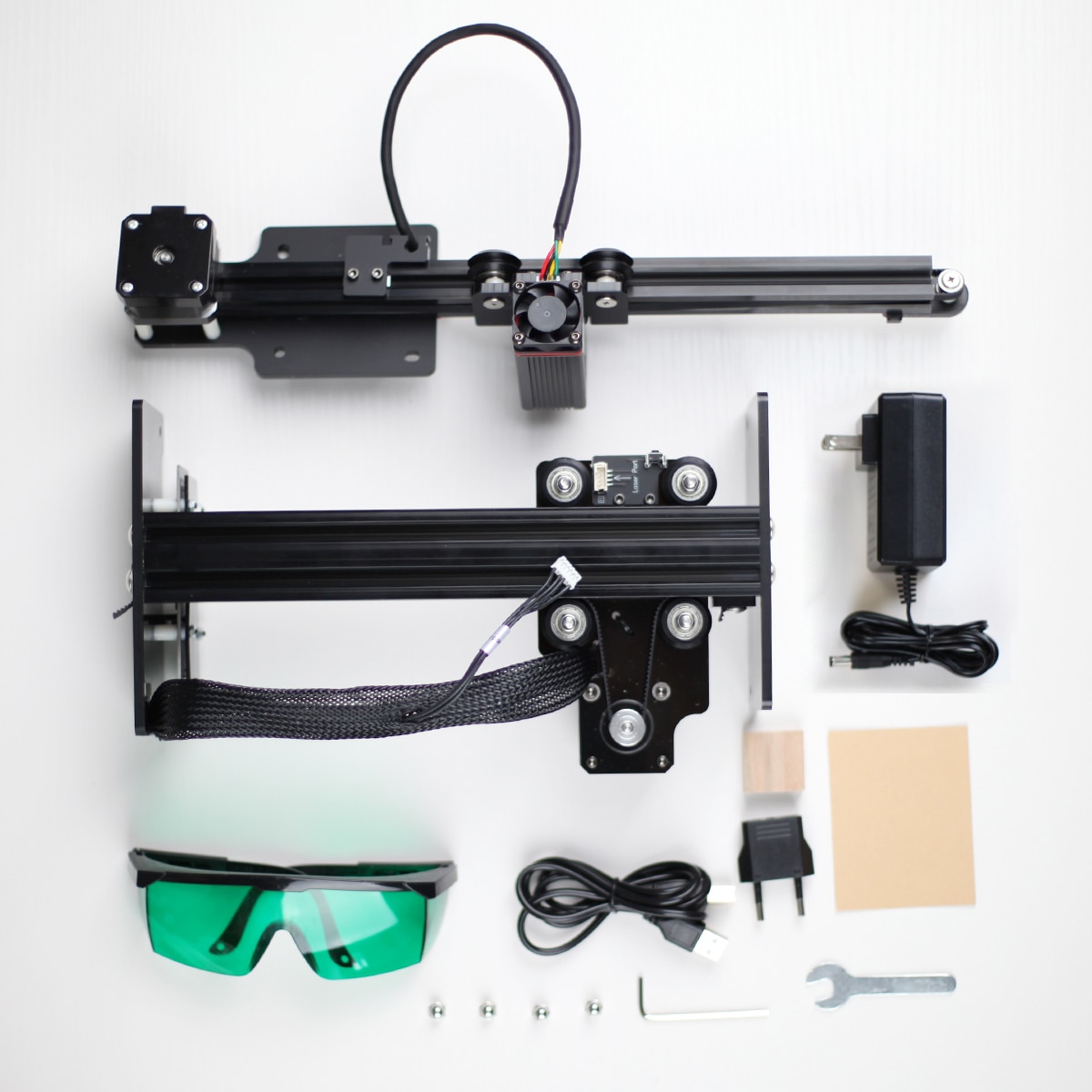

Package Included

1 x Master 2S Laser Engraving Machine

1 x N30610 N30820 Laser Module

1 x goggle

1 x L-shaped wrench

1 x USB Cable

1 x Small wrench

1 x 12V2A/3A Power Adapter

1 x Eu adapter

1 x Small Wooden block

1 x Test Paper

4 x Nuts
