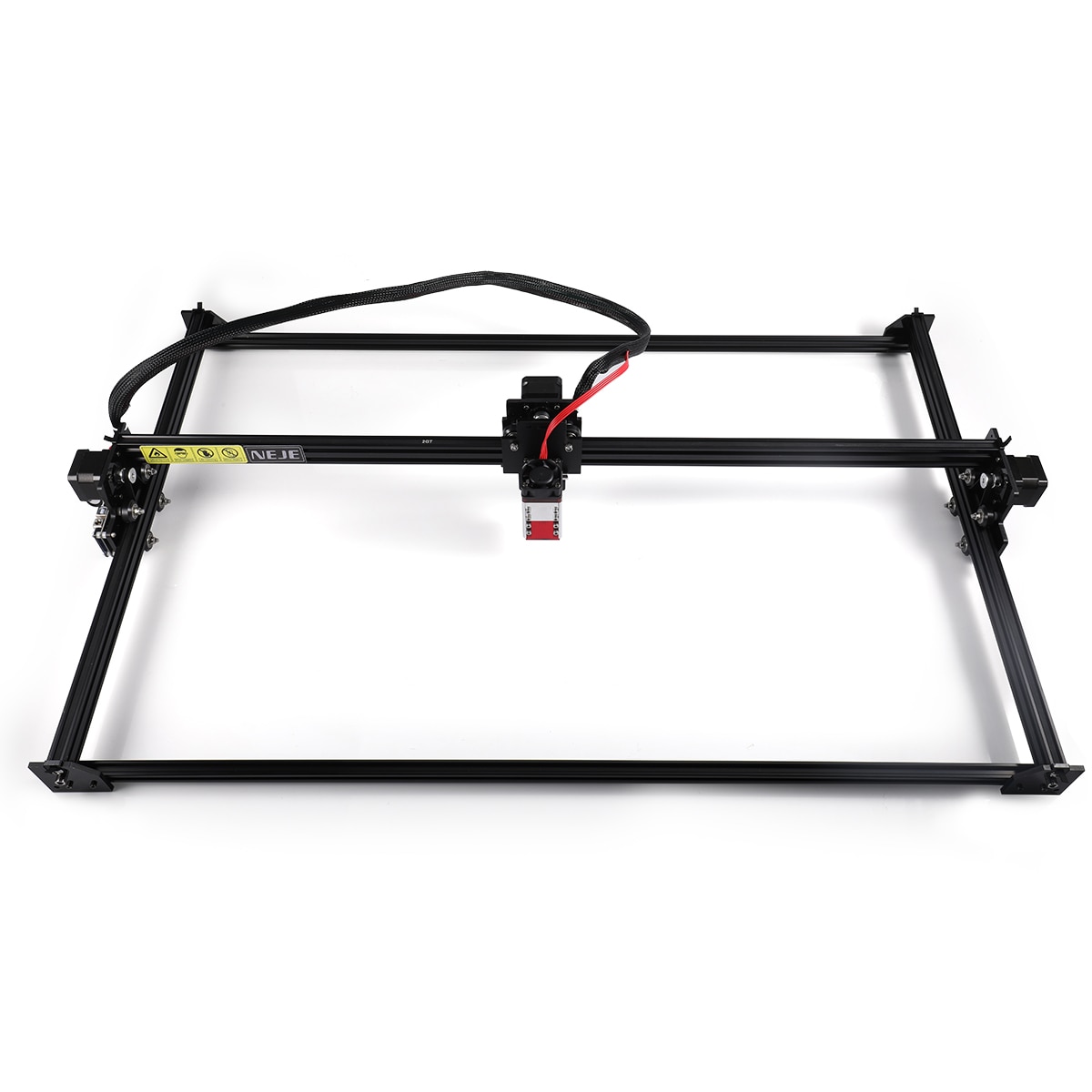

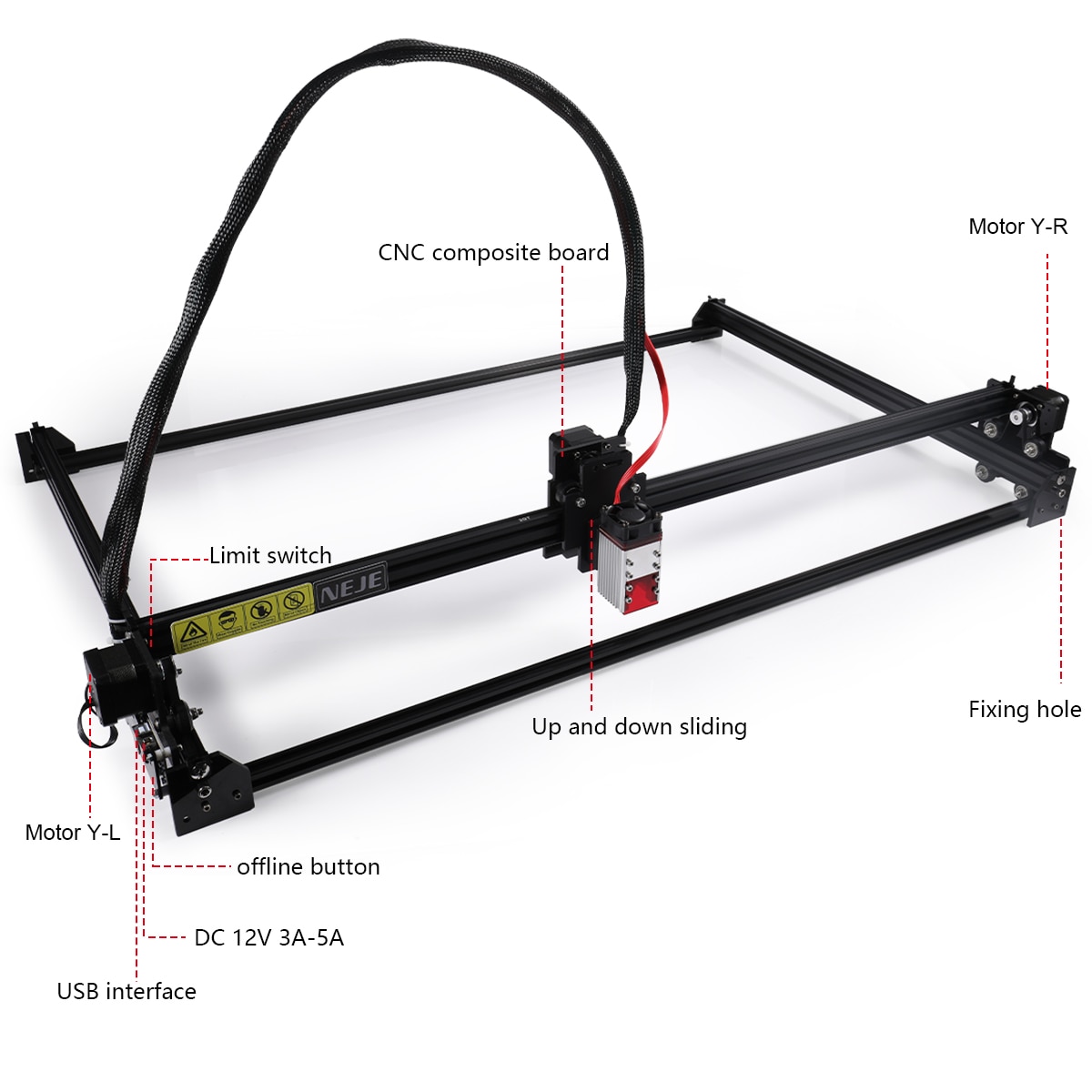

Master 2S Max A40640/N40630 80W CNC Laser Engraving Machine Cutter Engraver for Wood Metal Mark App Control Lightburn GRBL

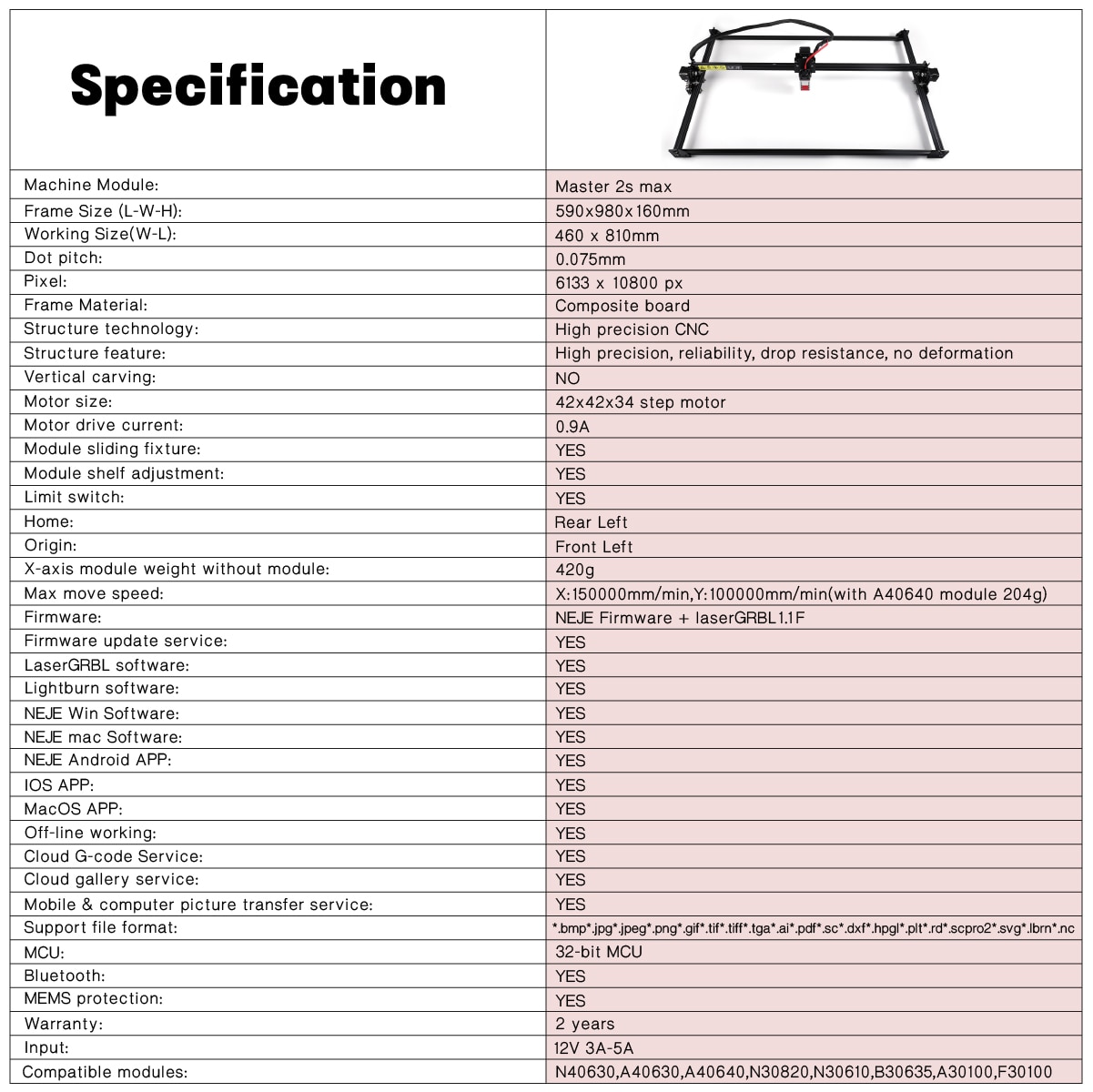

Master 2S Max Product Specifications

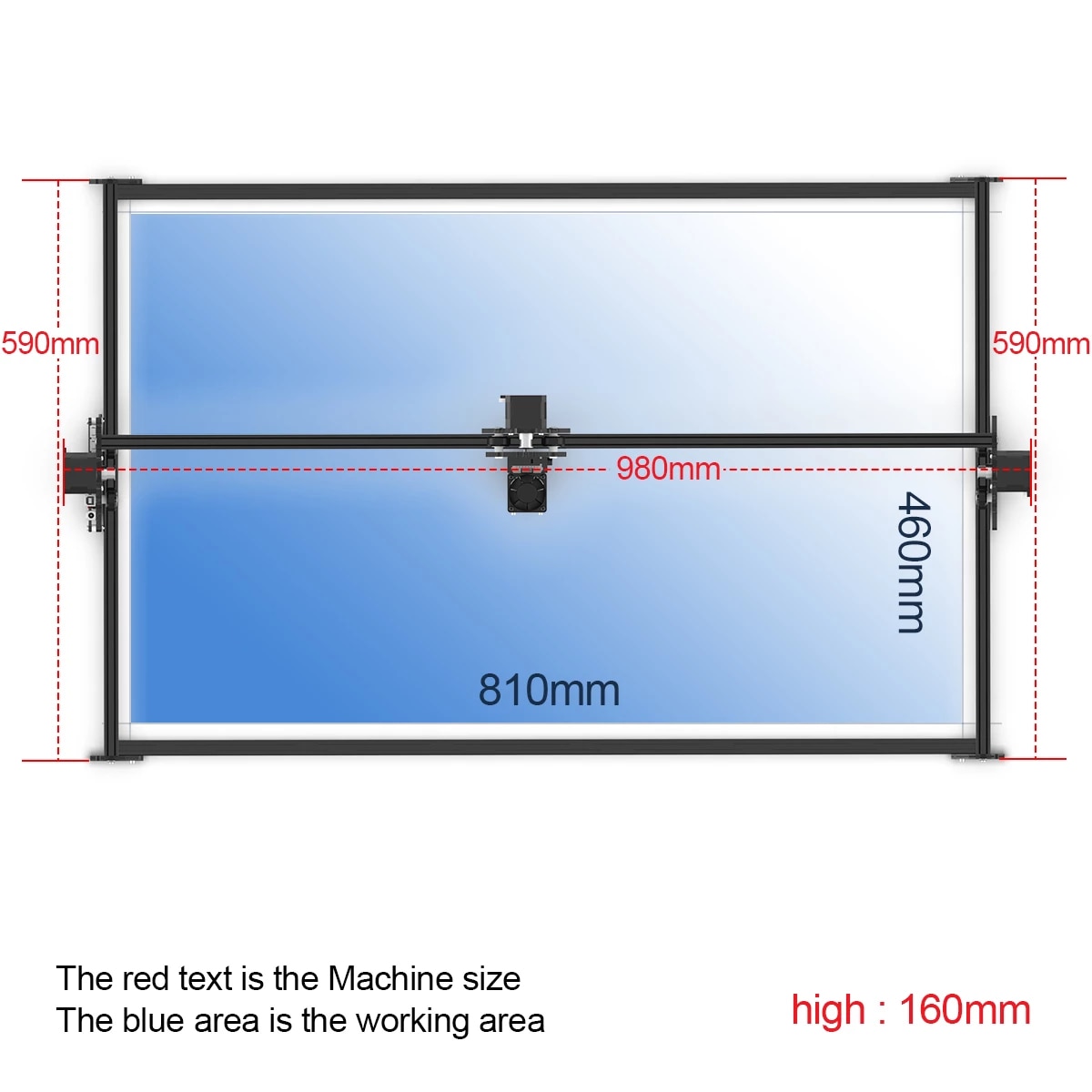

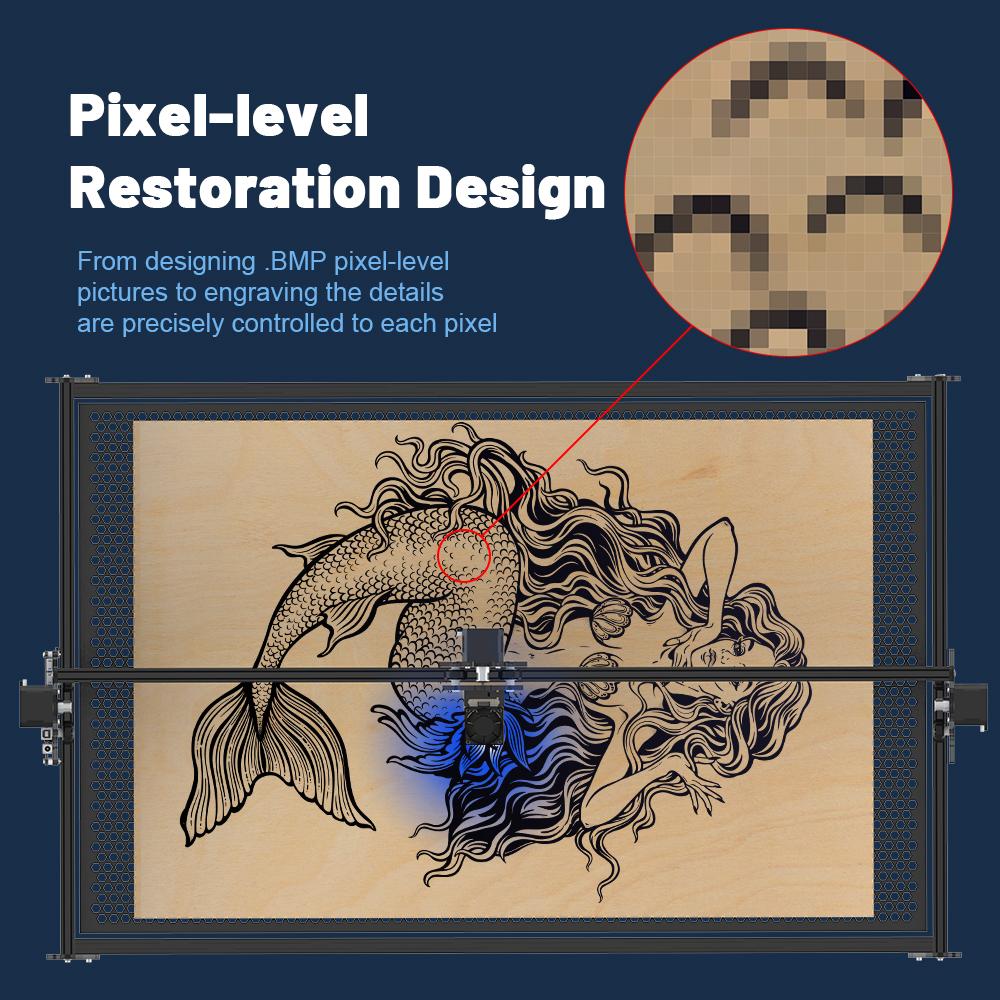

~ Larger area, 460 x 810 mm engraving and cutting area

~80W power module, optical power output 15W, focal point 0.1mm, support engraving and cutting.

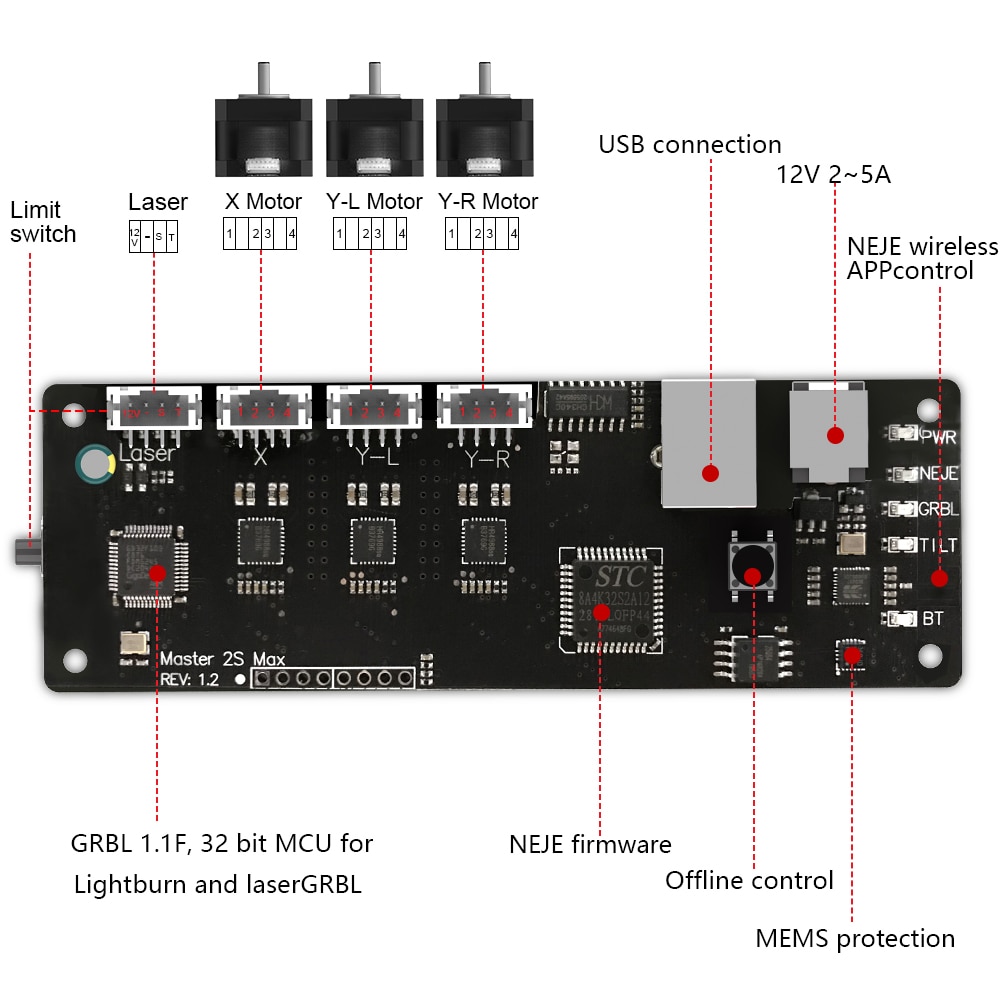

~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

~ Support NEJE 4pin interface series modules, including 3500mw, 7W, 20W, 30W, 40W, etc.

~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!



FAQs:

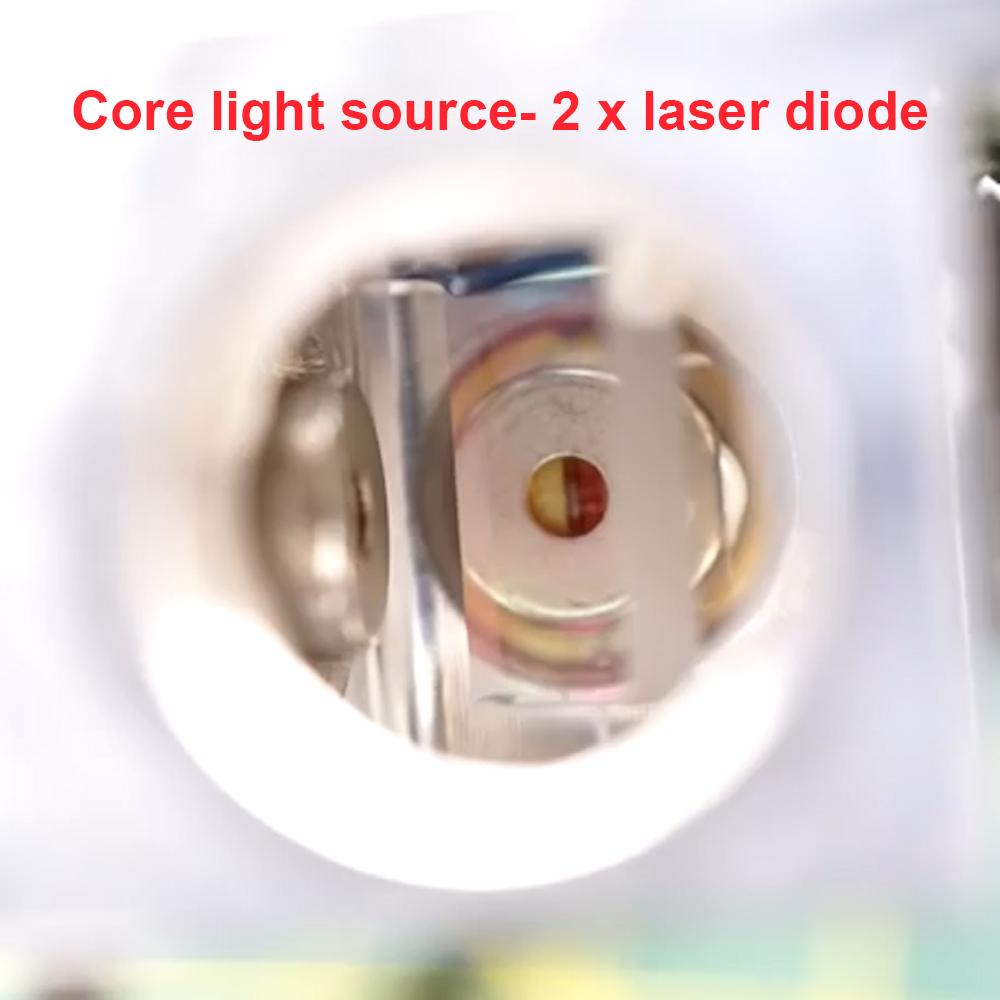

【What is an 40W Laser Module?】Currently, the so-called 40W pro(Lasertre*) and ATOMSTAC* 40W on the market is a single laser diode, The power is similar to NEJE N30820 and N40630 module, At present, the maximum power of a single blue laser diode technology can achieve 5.5-7.5W, and the most reliable is Nichia brand, NEJE modules are all Nichia’s highest power laser diodes.

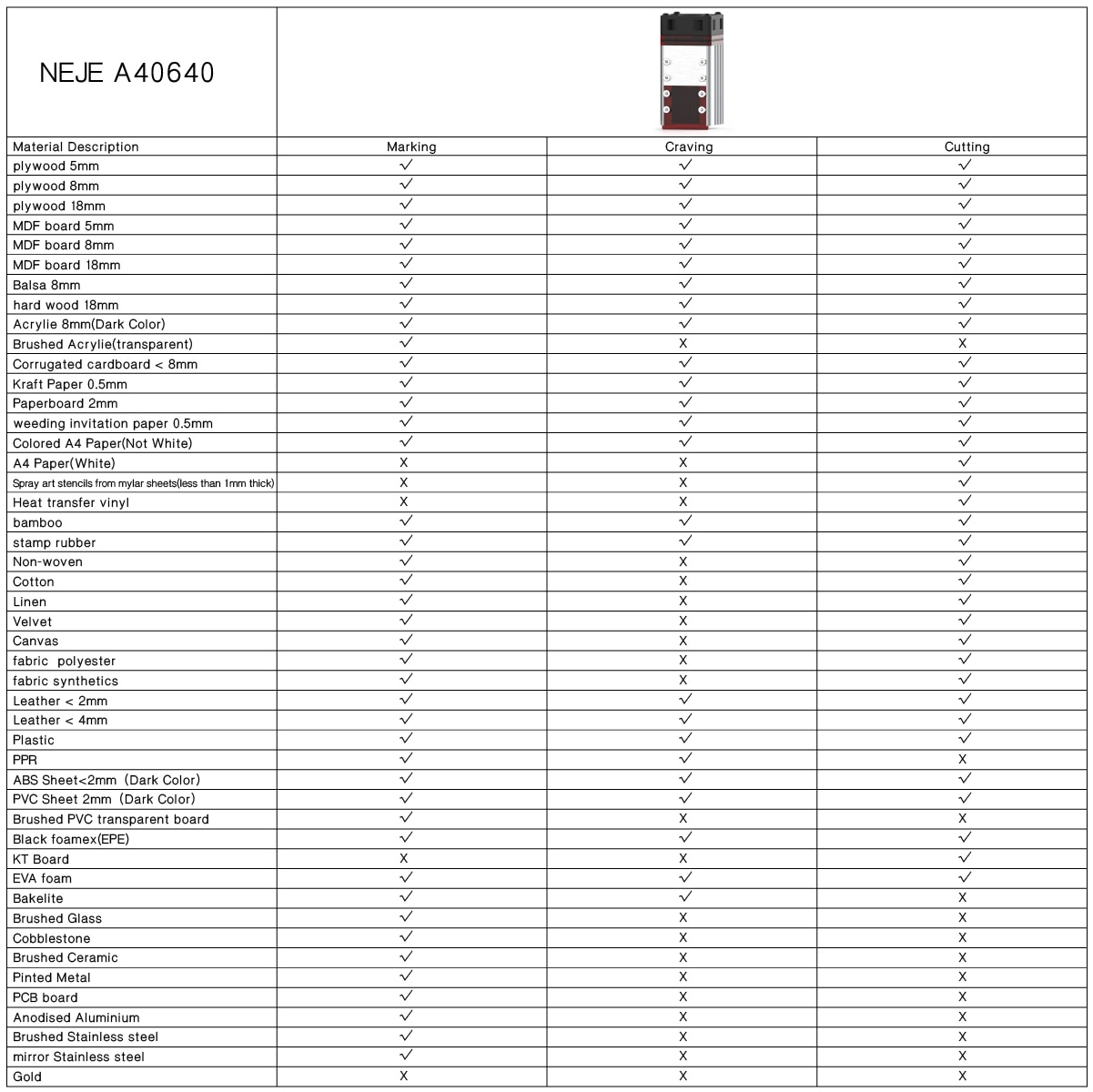

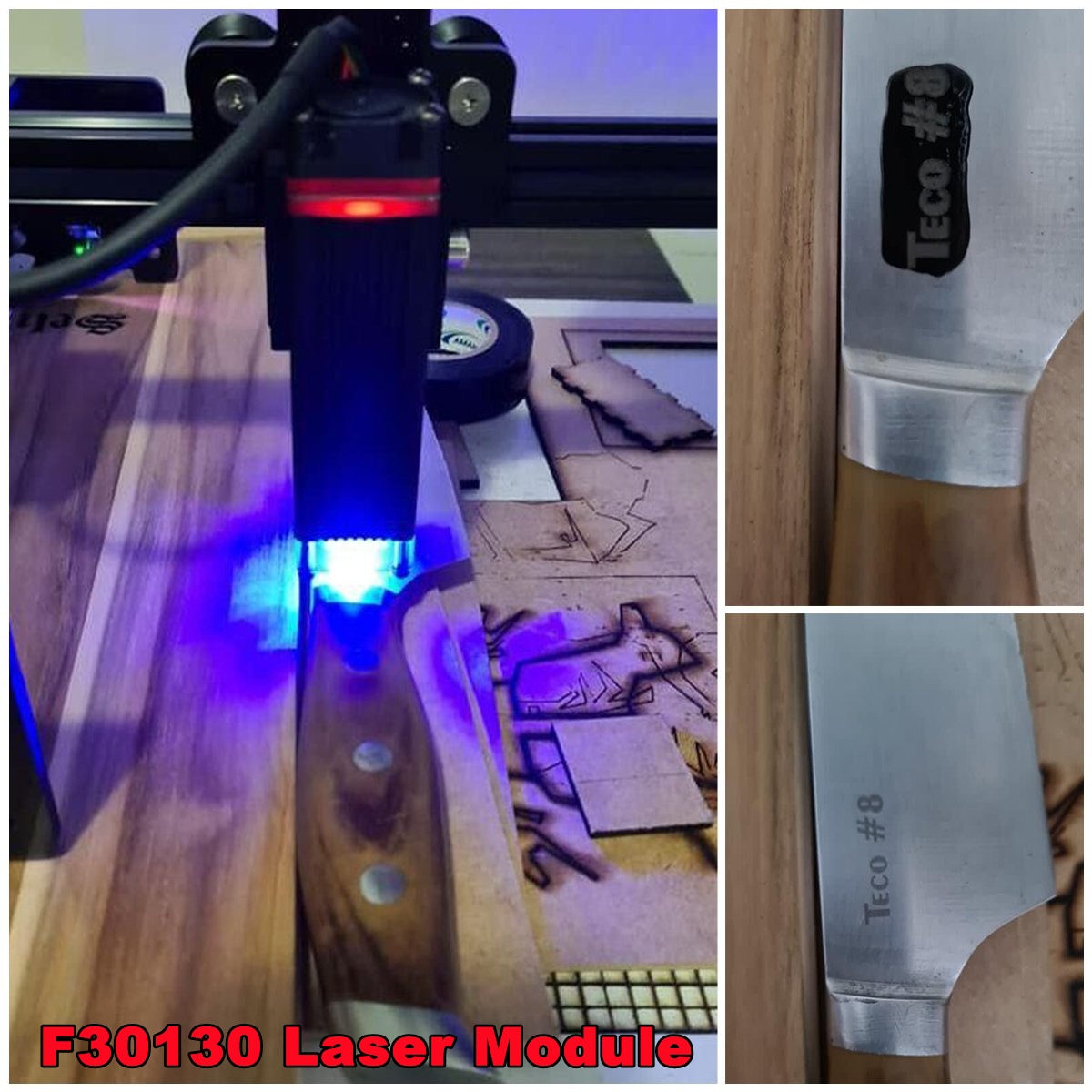

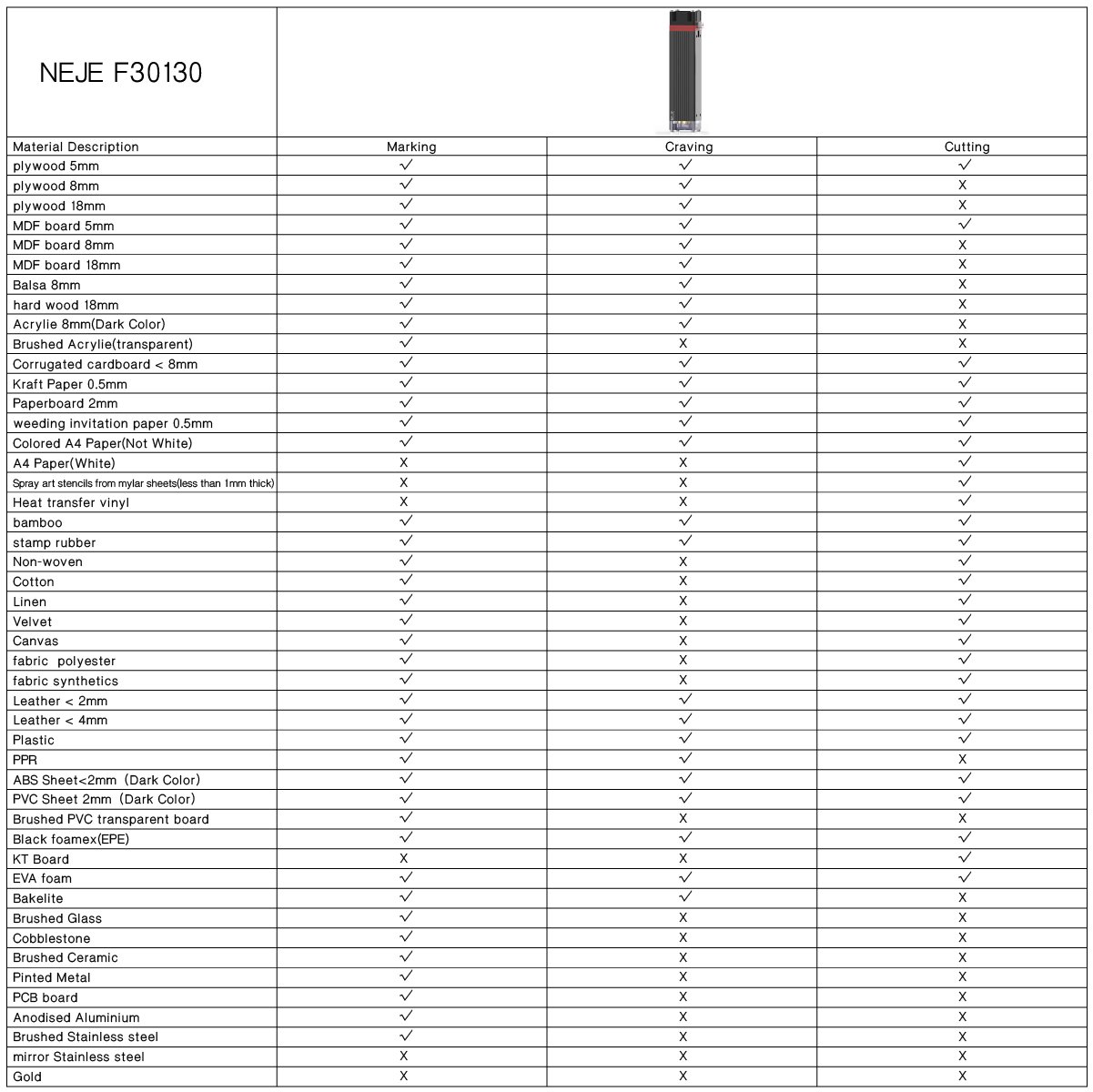

【Stainless Steel Engraving】Engraving stainless steel only needs a small enough focus point and enough light power, F30130, A40640, A40630 and A30130 module can directly engrave stainless steel, and N30820 and N40630 modules can engrave stainless steel by painted.

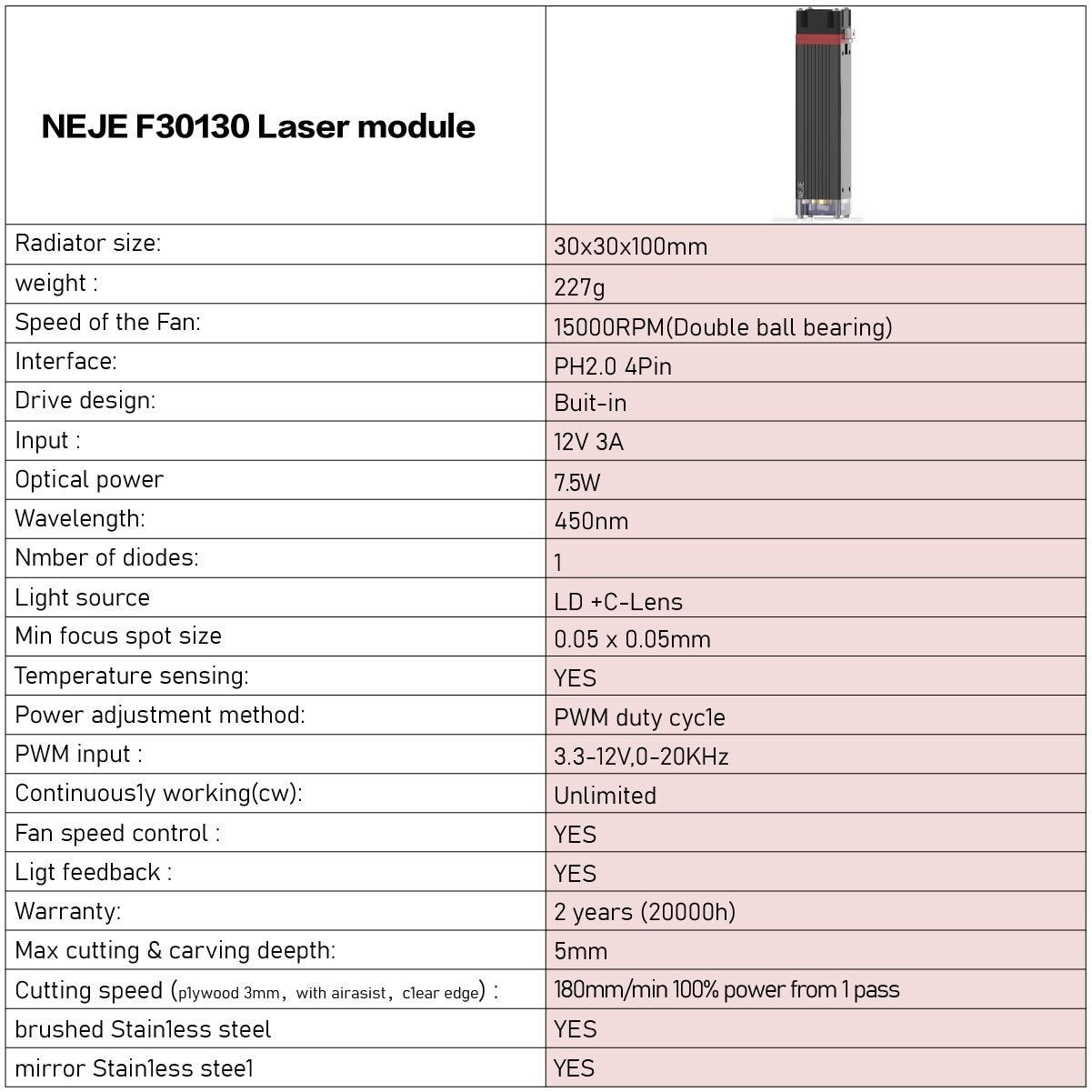

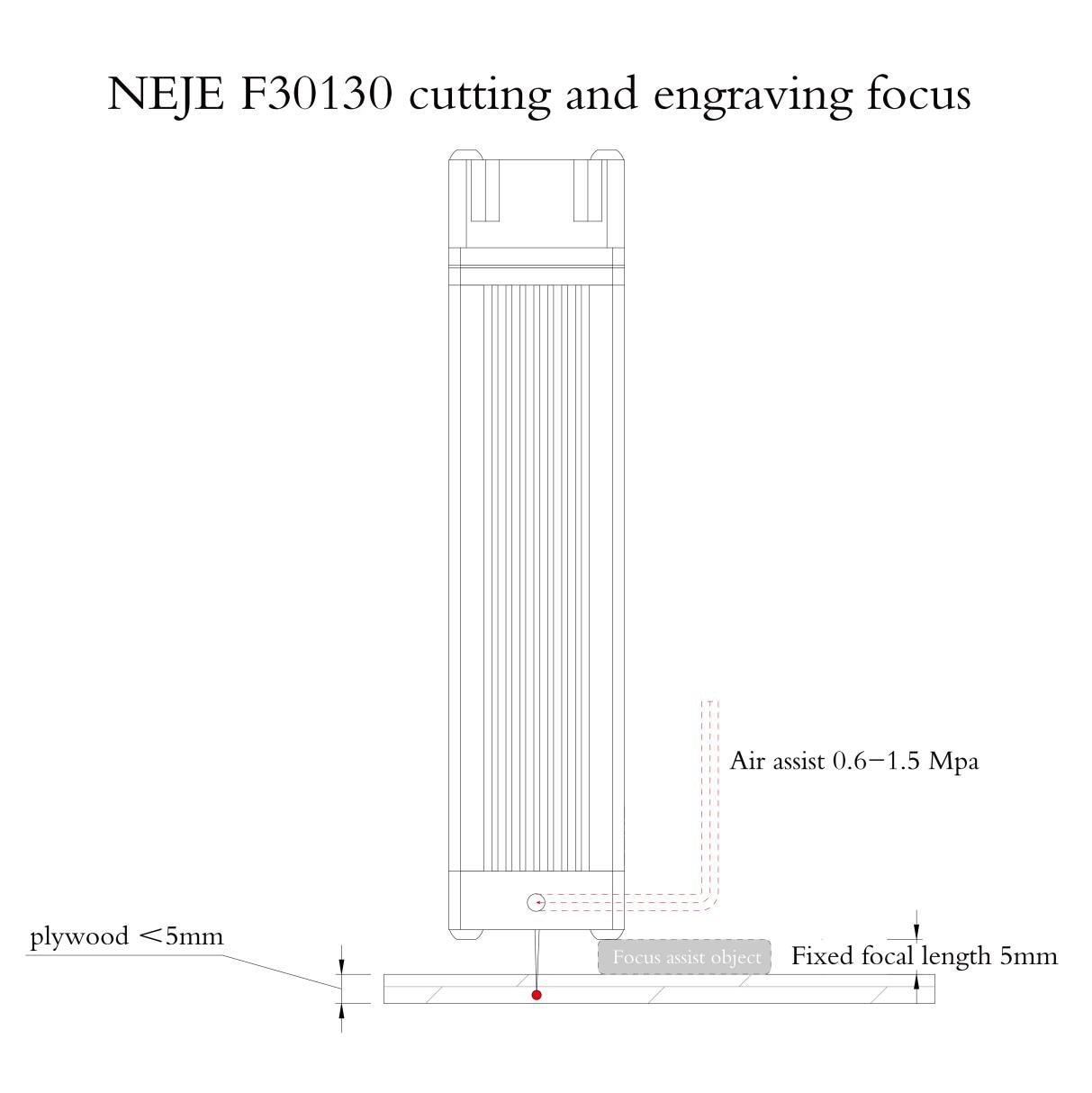

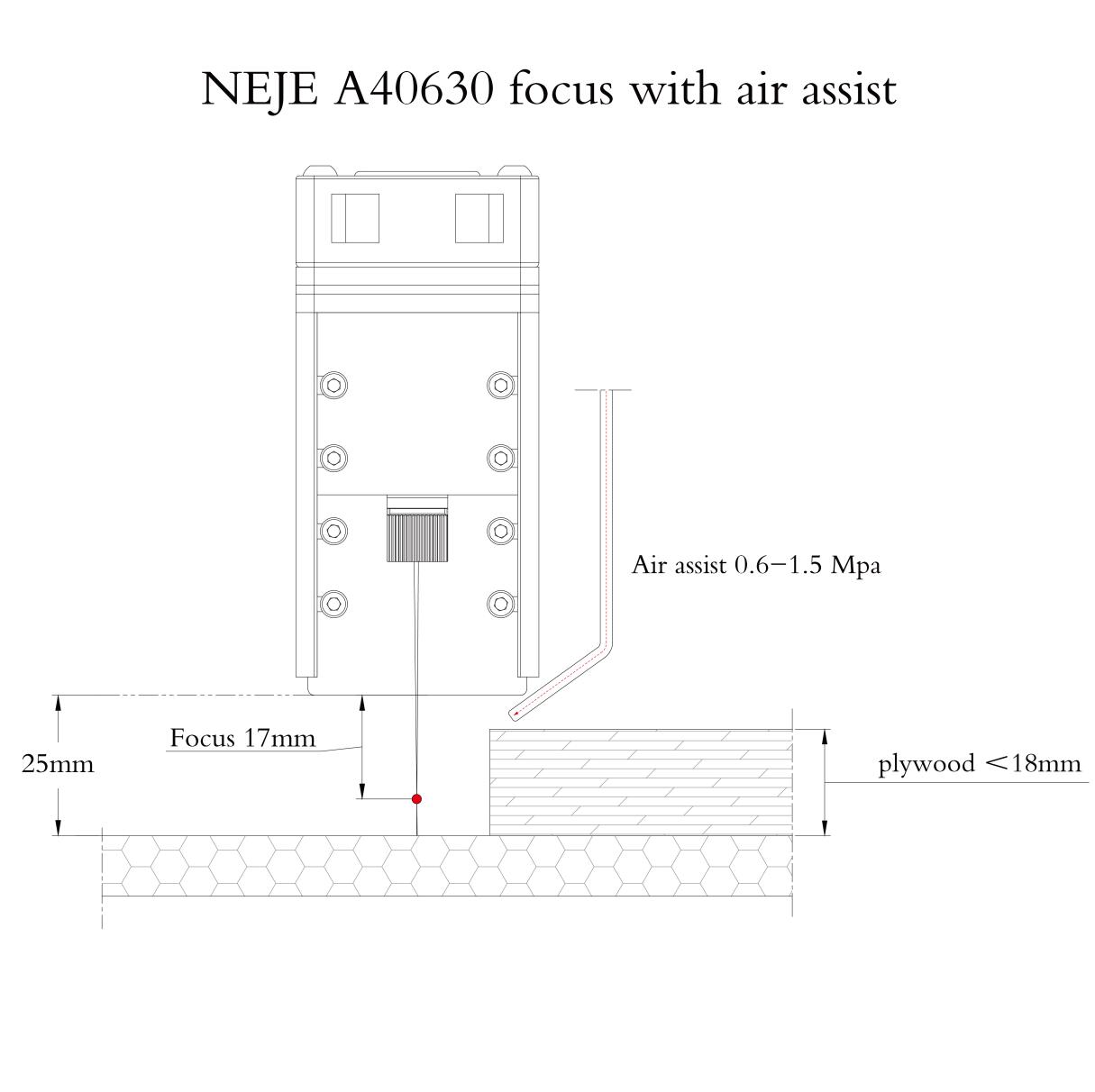

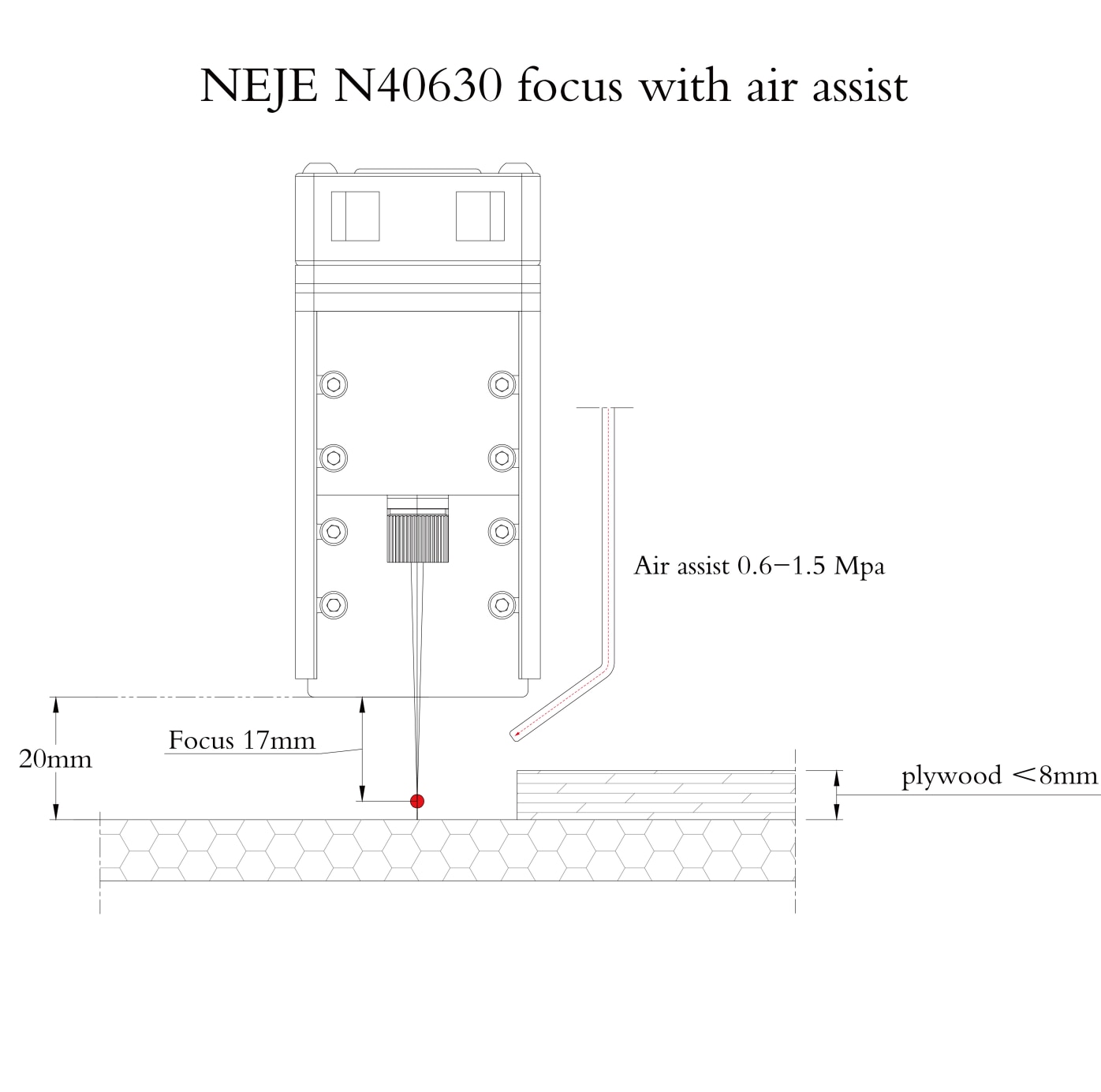

【Fixed Focusing】 F30130 module can adjust the focusing to through a 5mm small plate directly , other modules are adjustable focusing mode. The adjustable focusing module can be a fixed position by adjusting, after passing a fixed thickness the material is assisted, the focal length is fixed and used.

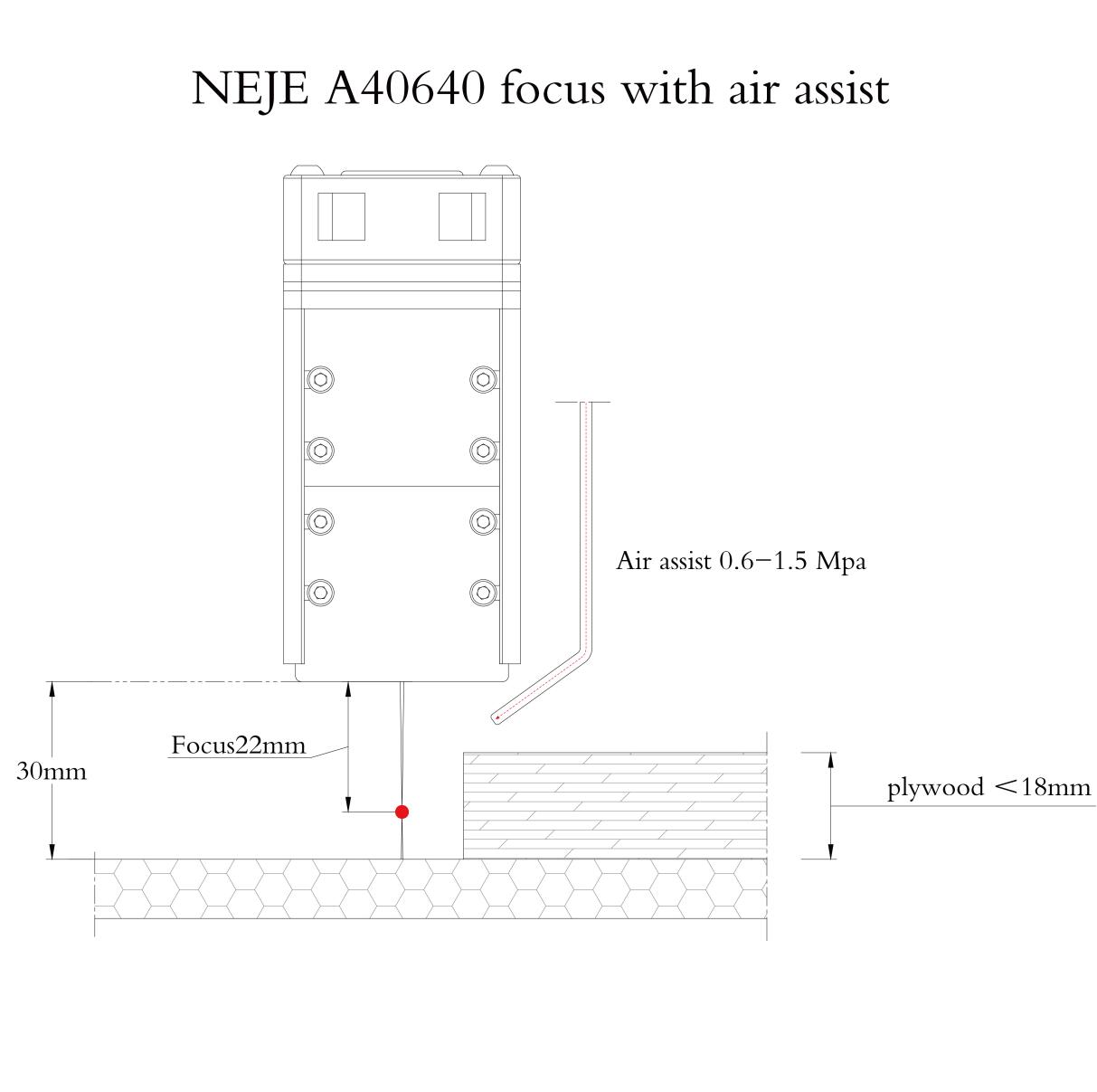

【Air Assist Sets】 provide 2 types of air assist sets. One is specially designed for F30130 modules and requires a dry air compressor to provide support, the other is a fixed stainless steel tube that can support other NEJE modules. NEJE 3D printing drawings are provided, which can be downloaded at neje.wiki. These 2 air assist sets support 1.5mpa pressure, which can greatly improve the depth of engraving and cutting.

【What Does Standard for a Reliable Laser Module Have?】Laser modules need to undergo an aging test to determine whether the heat dissipation of the module can match the requirements. The  module has a built-in temperature sensing inside, and the 60mm threaded copper is attached with high thermal conductivity silicone grease, which can quickly export heat to make sure the temperature is controlled to keep a safe range. If the temperature and heat dissipation of the module cannot match the requirements, it can be screened out in the production process. At present, there is no module with temperature for sensing function to ensure a reliable service life in this industrial.

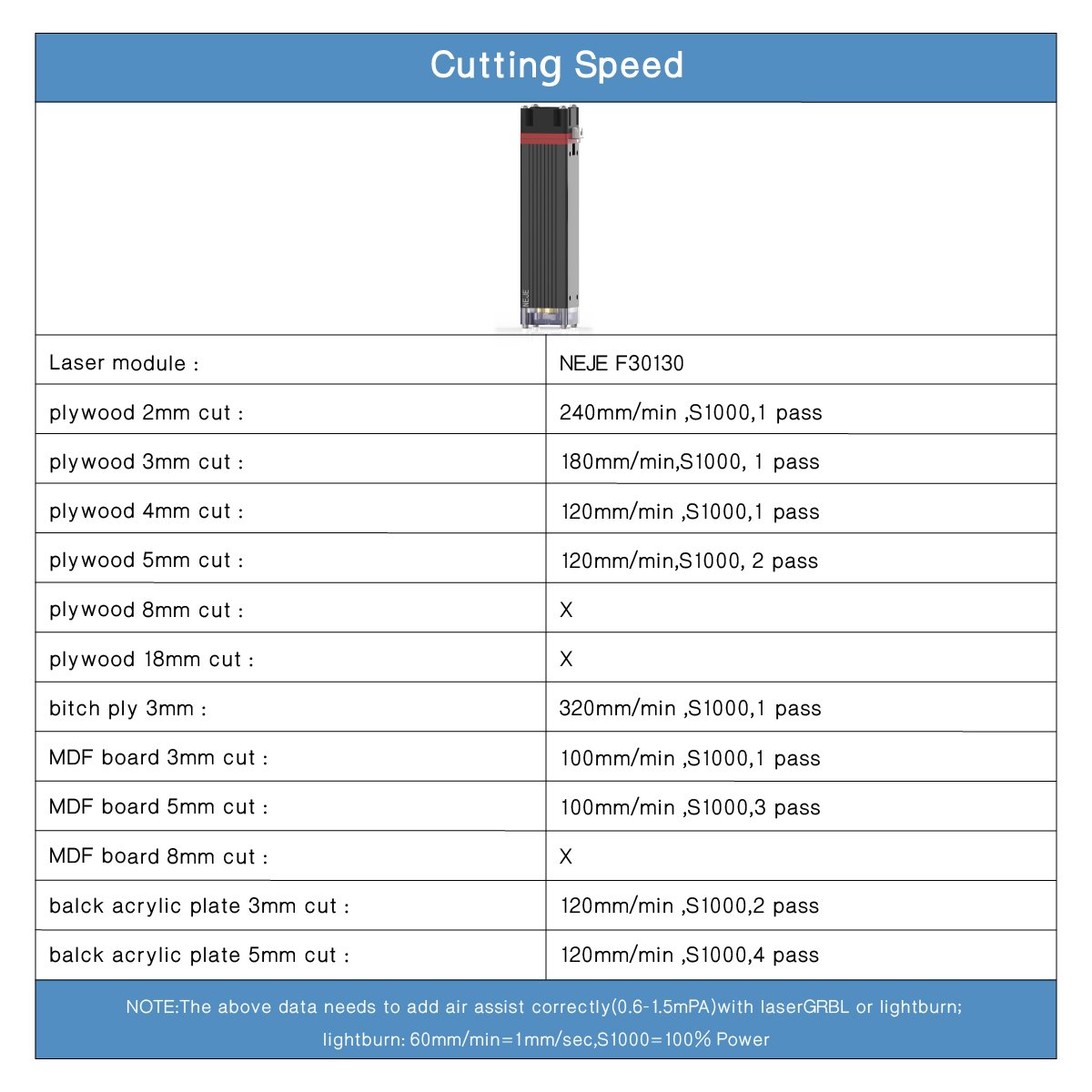

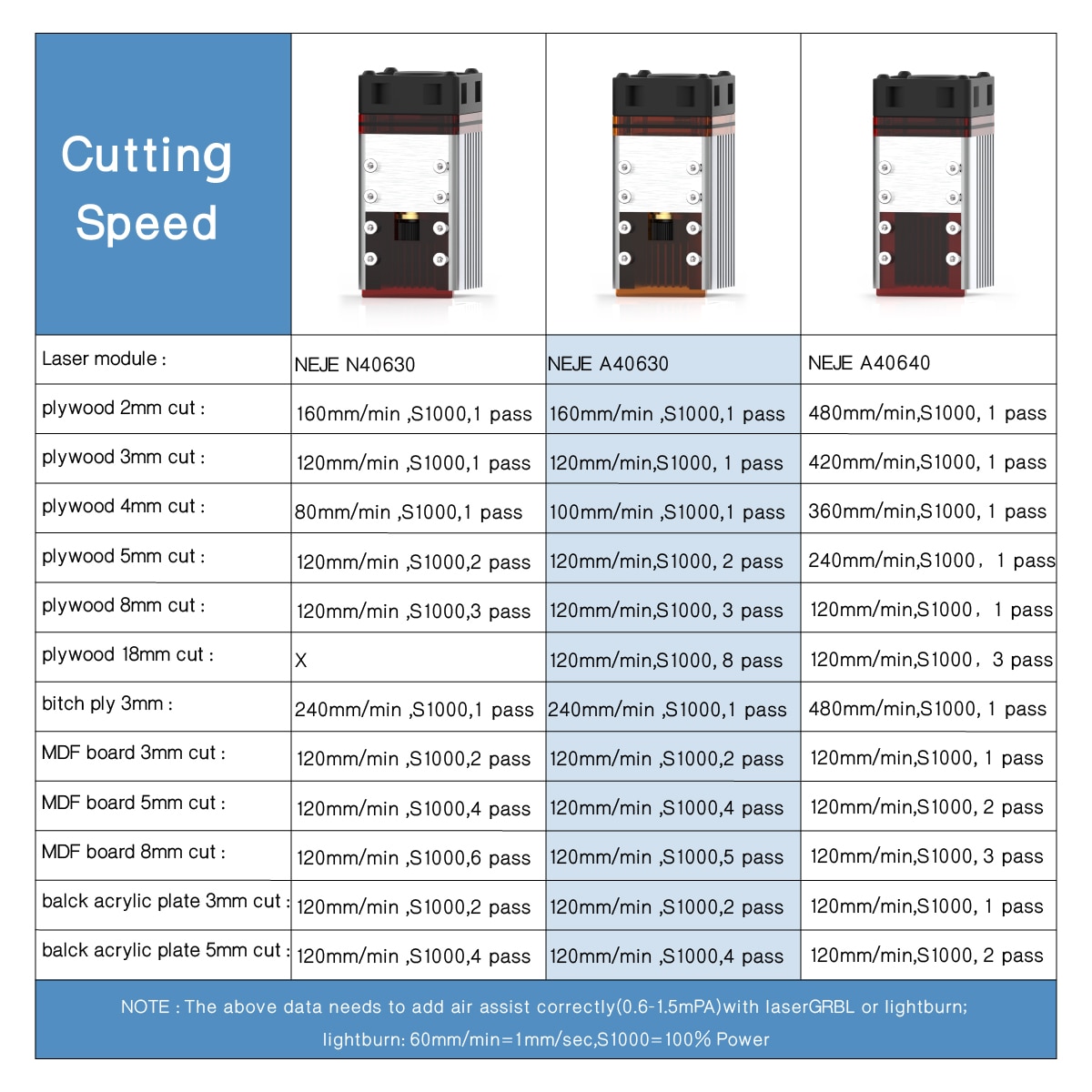

【How to Choose a Module?】Cutting – If you are only cutting applications within 8mm, NEJE recommends N30820 and N40630 are nice choice. These two modules can cut 3-4mm plywood under air assist mode. If you want to cut 8-20mm, you can choose A40630 and A30100 and A40640 module. If there is a requirement for cutting of speed, the A40640 module is recommended, F30130 is suitable for users who have requirements for work efficiency and air compressor equipment. This module can cut 4mm plywood at a time with a maximum thickness of 5mm, It adopts a very simple focusing method. The focal length of 5mm can block more than 95% of the light and safe to use. If you often engrave portraits, you just need one of the NEJE B40635 405mm modules, this module is the current 405mm maximum optical power module, the 405mm module has a very good grayscale outcome. If you are just for a simple engraving, N30610 or B30635 will perfect match for you.

【100% Satisfaction】 factory are proud to provide the process of 48-hour temperature control for aging test to ensure the quality of each module and guaranteed 2 years (20,000 hours) free warranty.

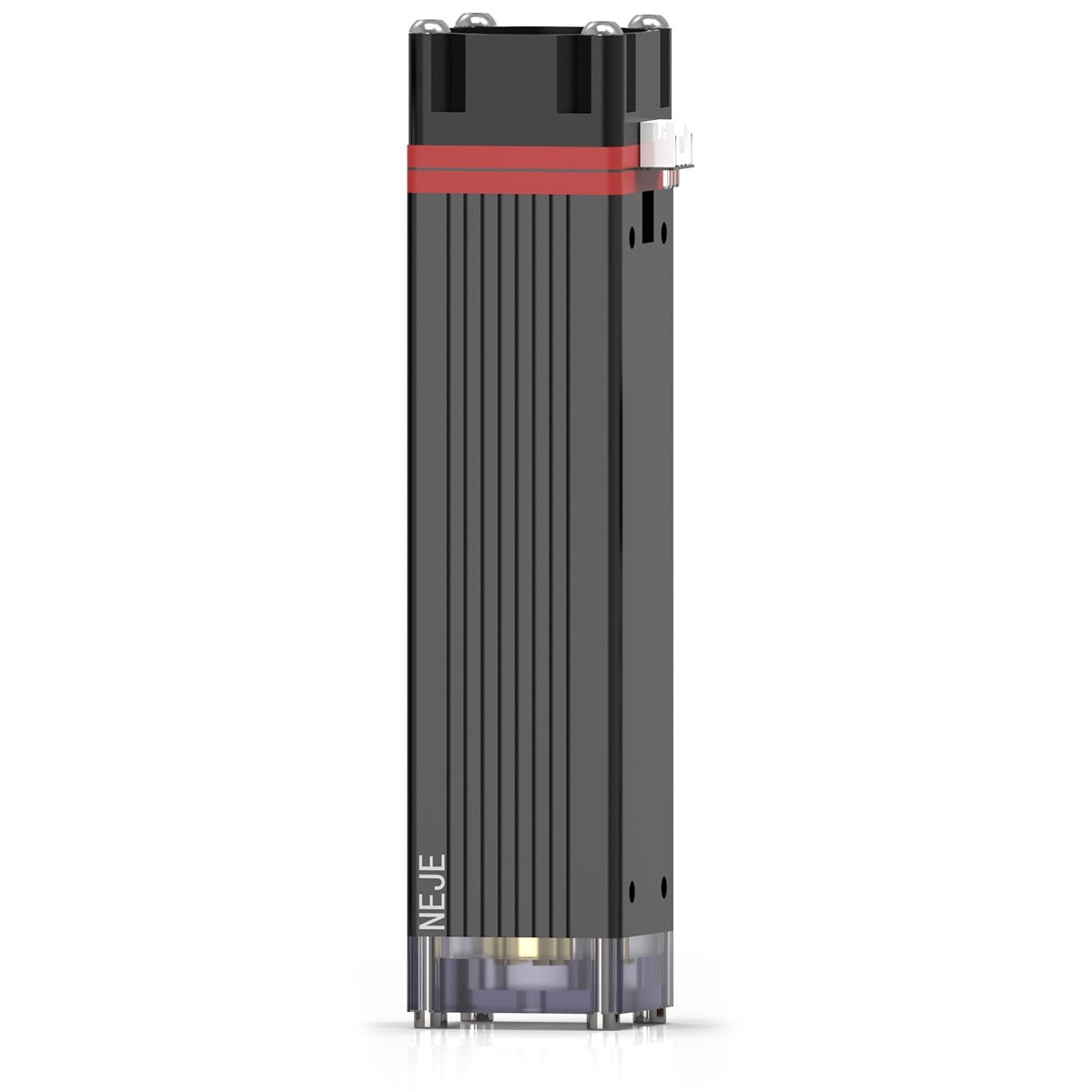

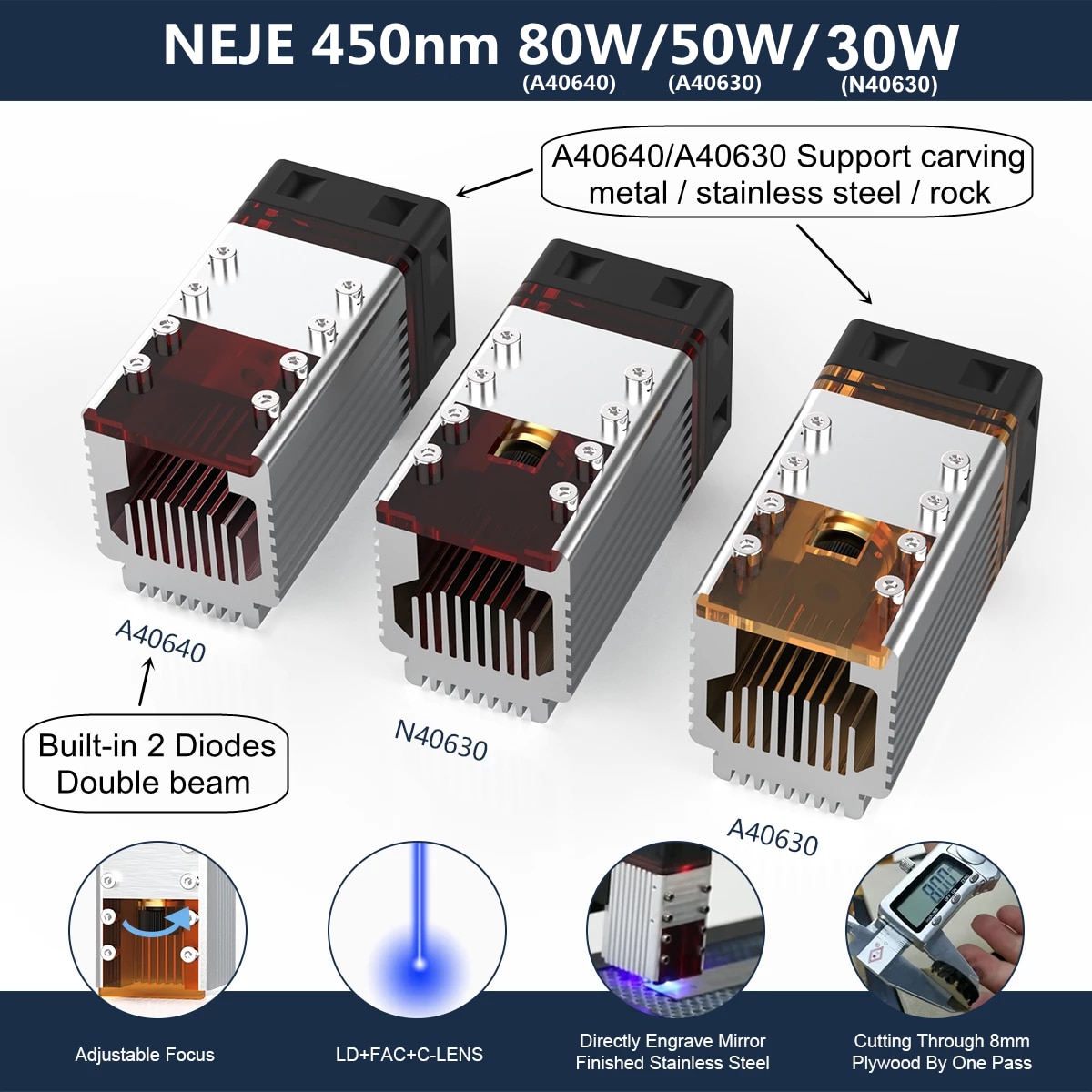

Master 2S Max N40630 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.7.5W Optical power output, 3mm acrylic from 1 pass(speed 100)

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.Slidable mounting fixture is provided for easy adjustment of focus.

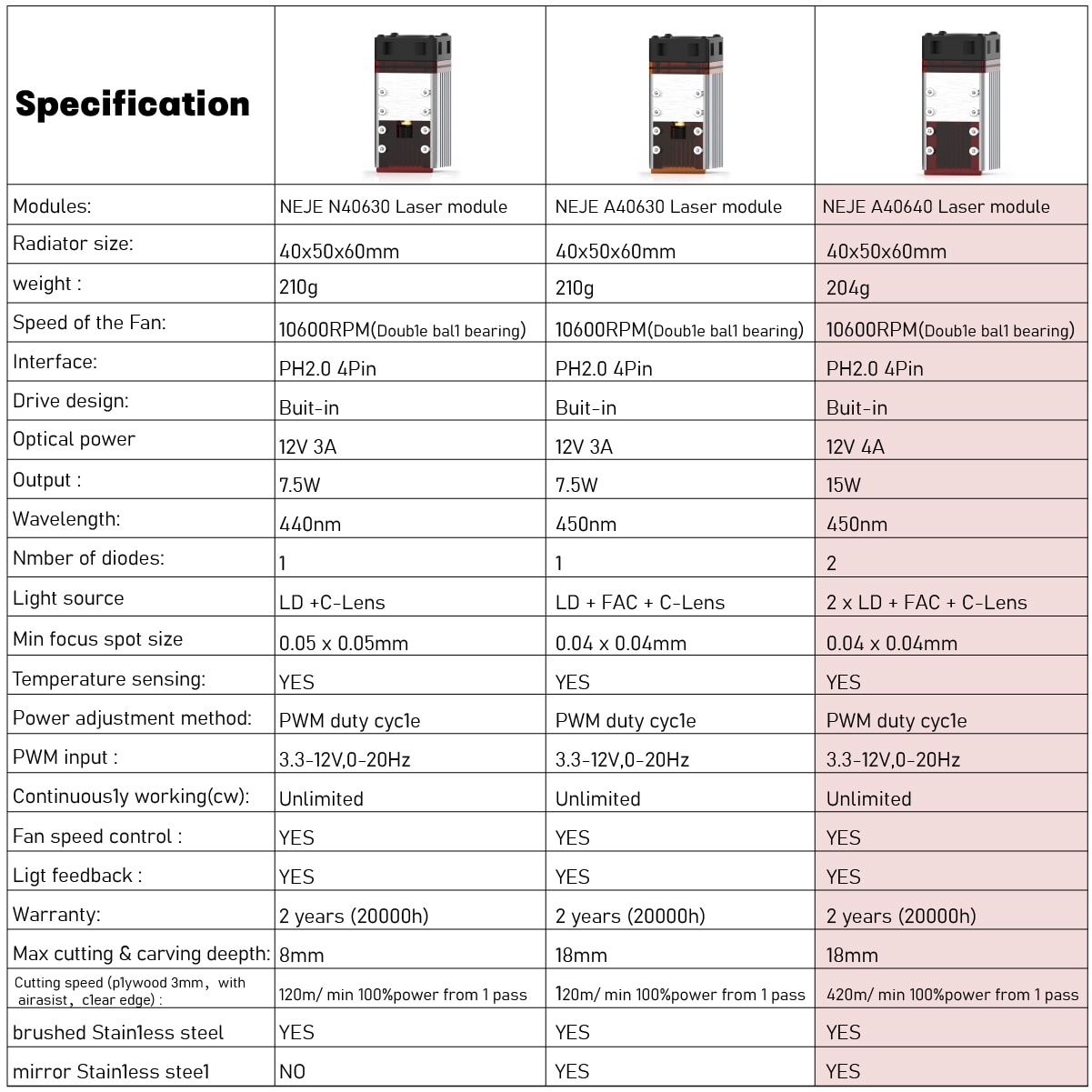

Master 2S Max N40630 Product Specification

Model：NEJE Module N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

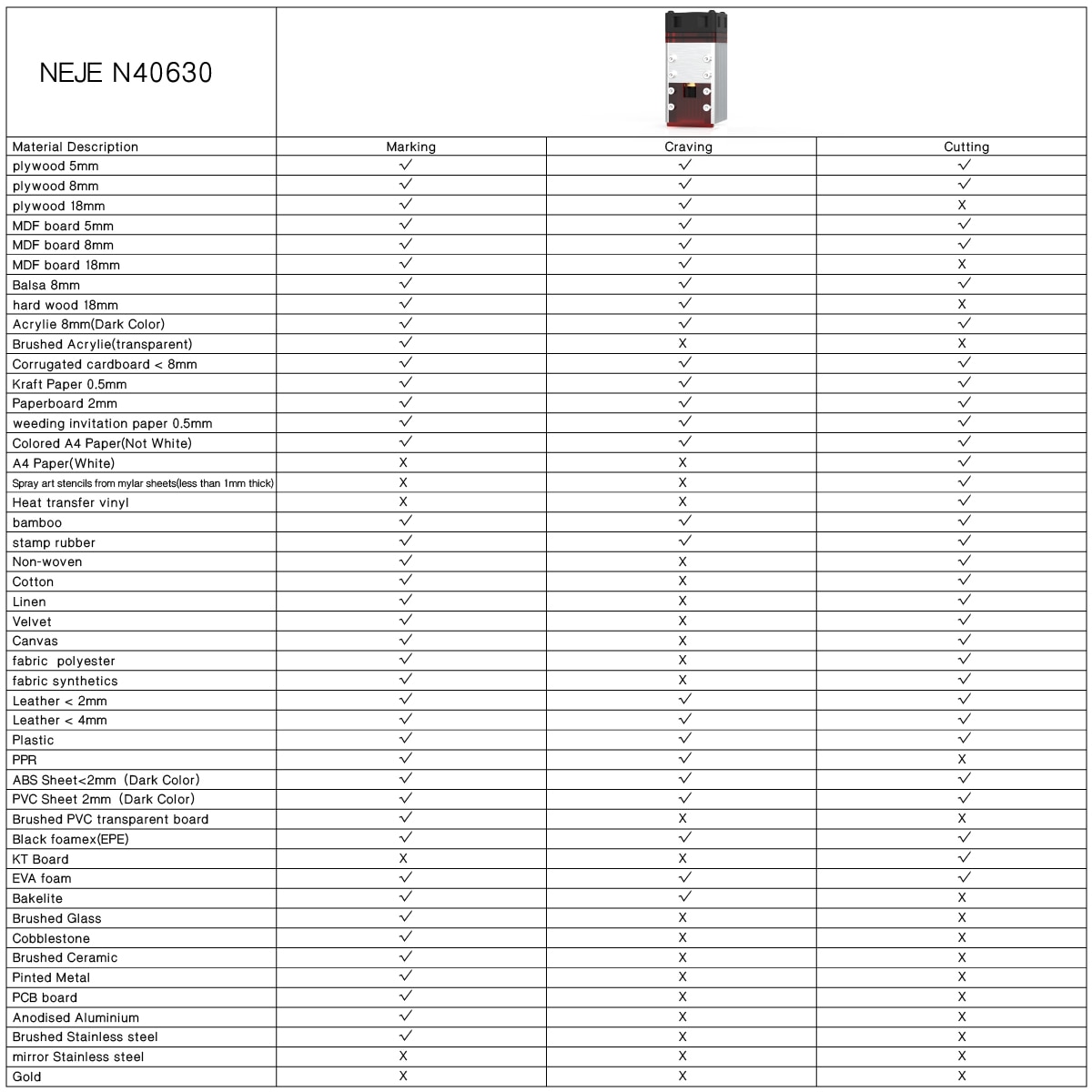

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：30-40W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours



New NEJE A40630 50W General Specification:

Model：NEJE Module 50W （A40630）

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：30-50W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

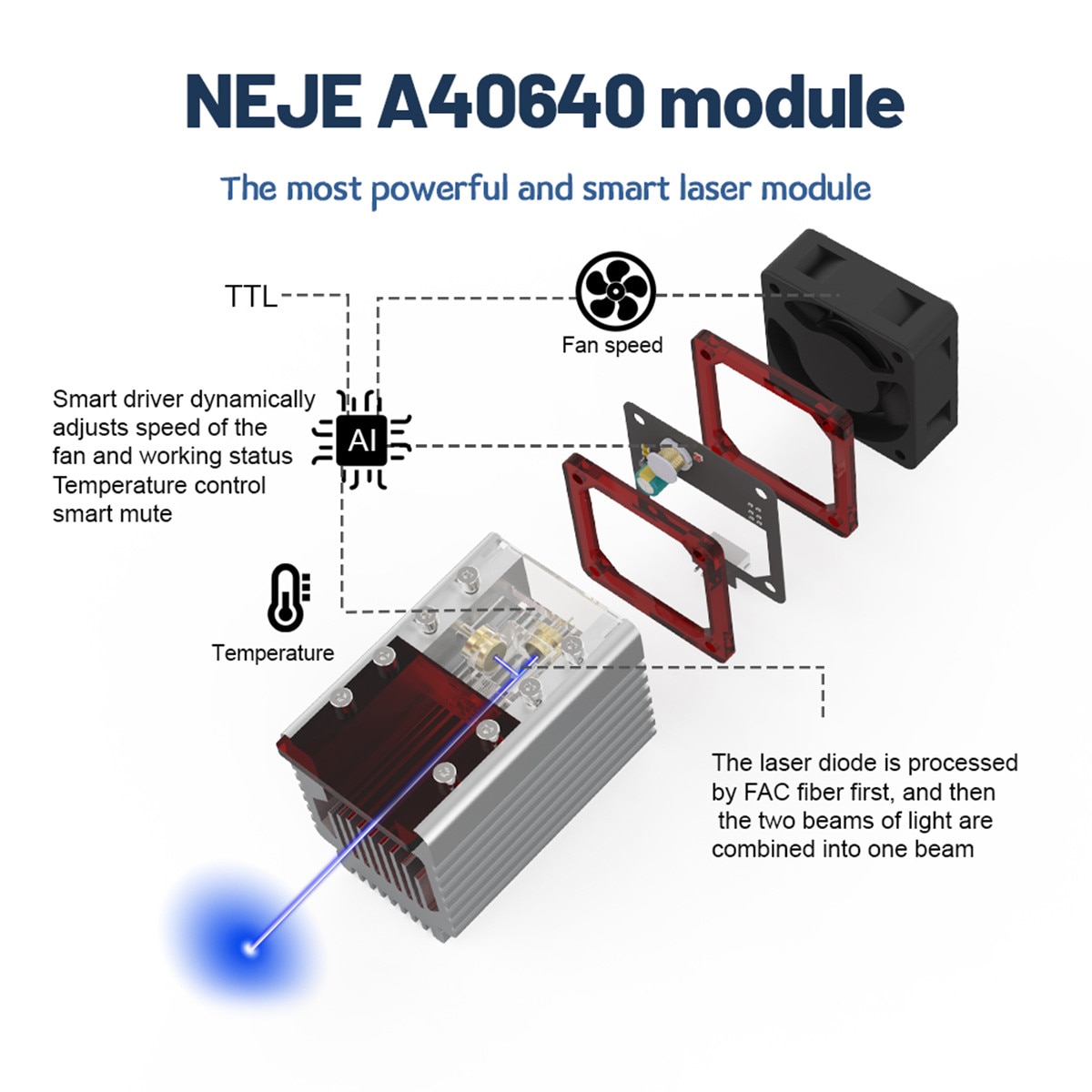

Master 2S Max 80W A40640 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.slidable mounting fixture is provided for easy adjustment of focus.

Master 2S Max 80W Product Specification

Model：NEJE Module 80W （A40640）

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：40-80W

Optical power output：15W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3-4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20000 hours

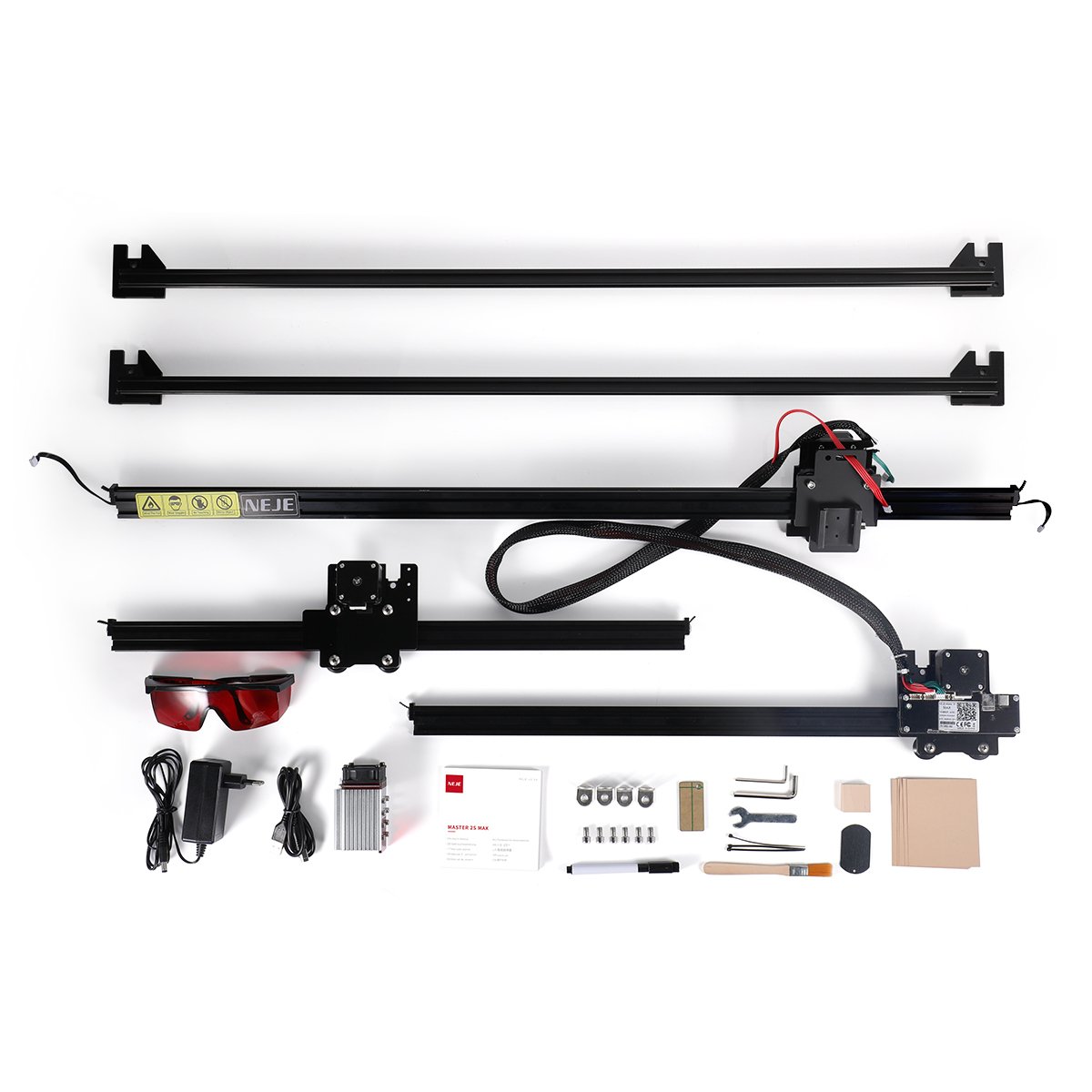

Package List

1* Laser engraving machine

1* N40630/A40640/A40630/F30130 module

1* 12V 4A/3A power supply

1* European standard adapter

1* Manual

1* Red glasses

1* Data cable

1* wooden board

1* pen

1* brush

1* focusing film

1* alumina film

3* cable tie

4* angle iron

5* paper

5* nut

1* large hexagon wrench

1* small hexagon wrench

1* Open wrench
