NEJE Master 2S Max A40640/F30130 CNC Engraver Cutter Wood Mark GRBL

$418.75$838.80

SKU: 1005003140558654 Category:

Description

NEJE Master 2S Max A40640/F30130 80W/40W CNC Laser Engraver Cutter Wood Engraving Cutting Mark Machine Lightburn GRBL Bluetooth

  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: Master 2s Max
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Brand: NEJE
  • Laser Model: A40640,F30130,N40630



Features

– 【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

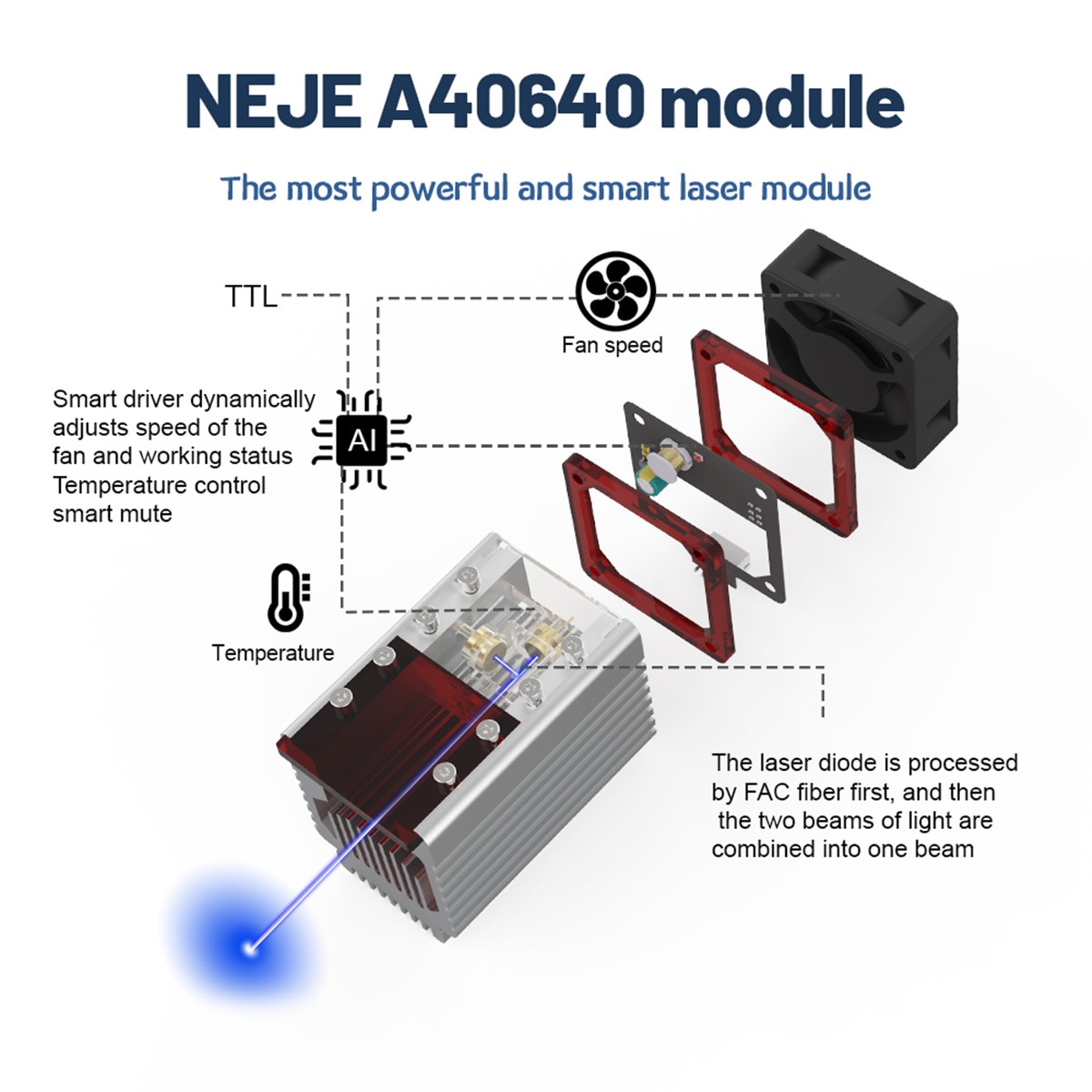

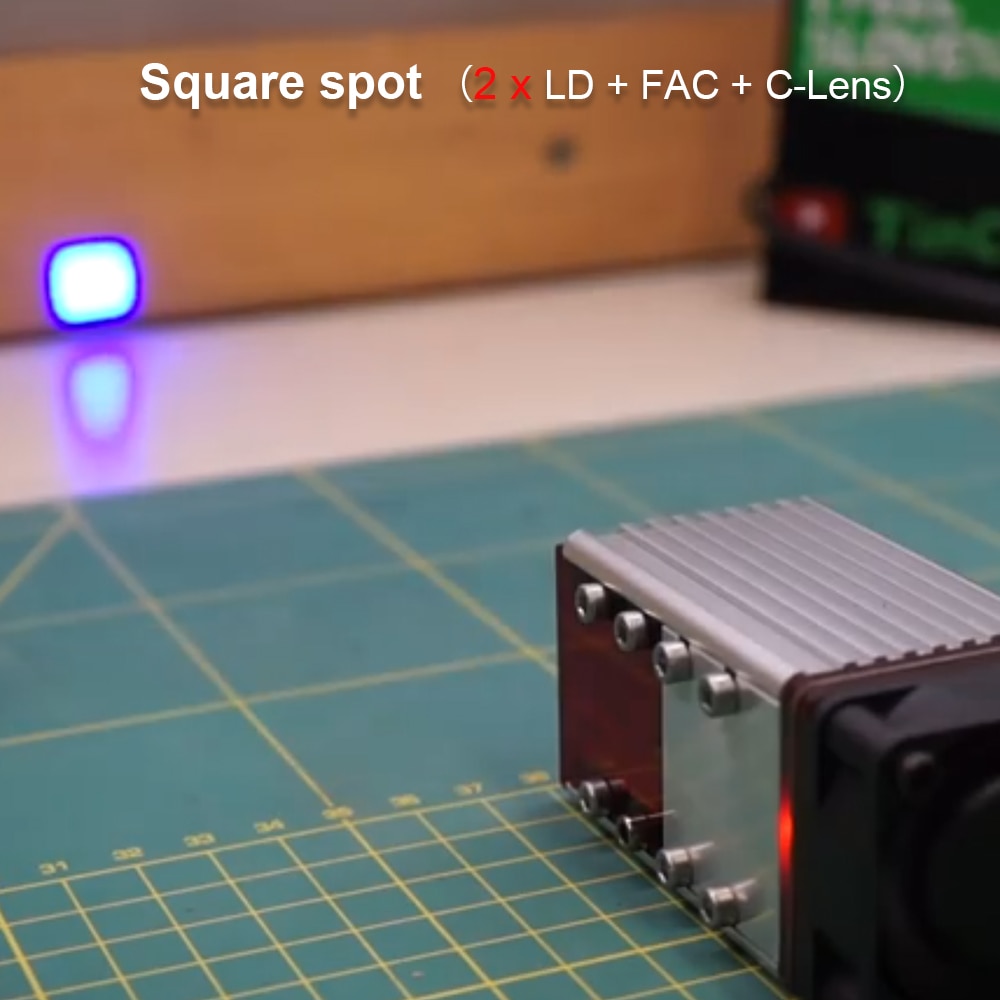

– 【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

– 【More materials and more clear】 Wood, MDF, leather, paper, cotton etc. are all supported, 8mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

– 【Portable professional control software】 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

– 【Perfect after-sales service】 free 2-year warranty for the whole machine ( laser module: 2 years 20,000 hours warranty ), and 24 hours shipment of vulnerable parts worldwide.

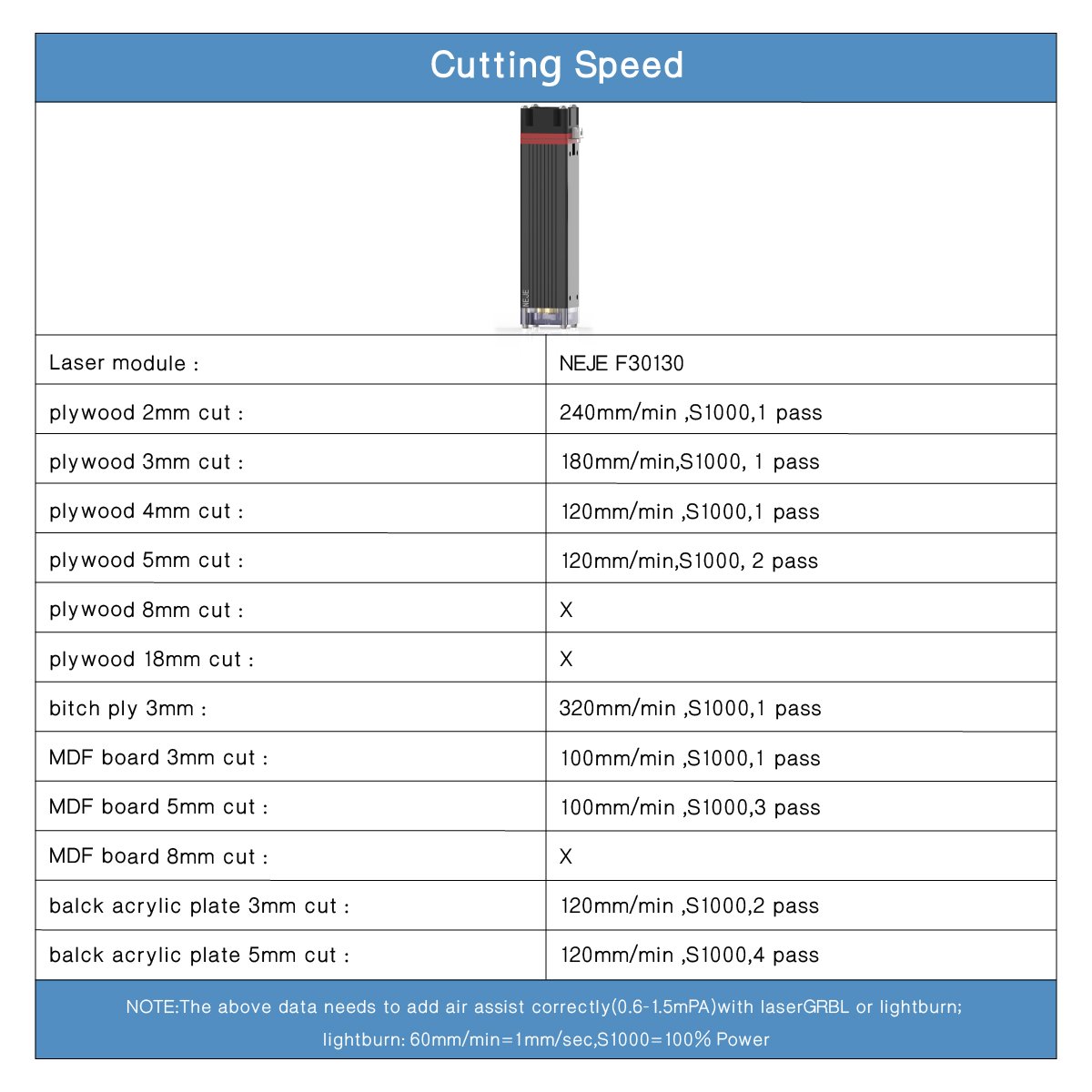

NEJE F30130 40W Pro Features

– 【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

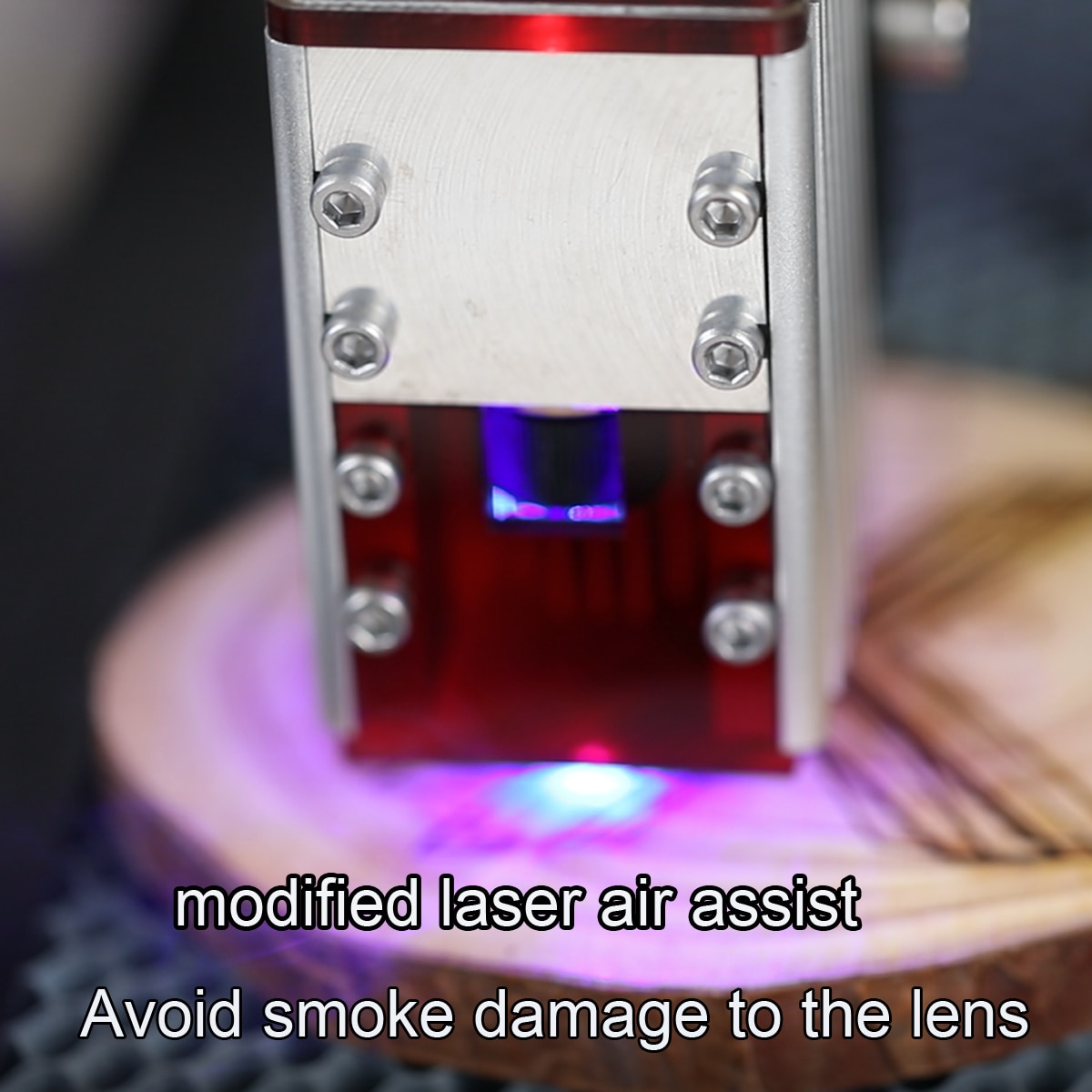

– 【Advanced laser module】 Fixed focus mode, you can focus directly through a 5mm spacer. Short focal length, can directly engrave stainless steel. With NEJE MF14 air-assisted kit, it can easily cut 4mm plywood once; the perfect structure design can block 95% of the light , Very portable to use. Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

– 【More materials and more clear】 Wood, MDF, leather, paper, cotton, etc. are all supported, 4mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

– 【Portable professional control software】 32-bit control system, the fastest speed reaches 1000mm/s, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

– 【Perfect after-sales service】 free 2-year warranty for the whole machine ( laser module: 2 years 20,000 hours warranty ), and 24 hours shipment of vulnerable parts worldwide.

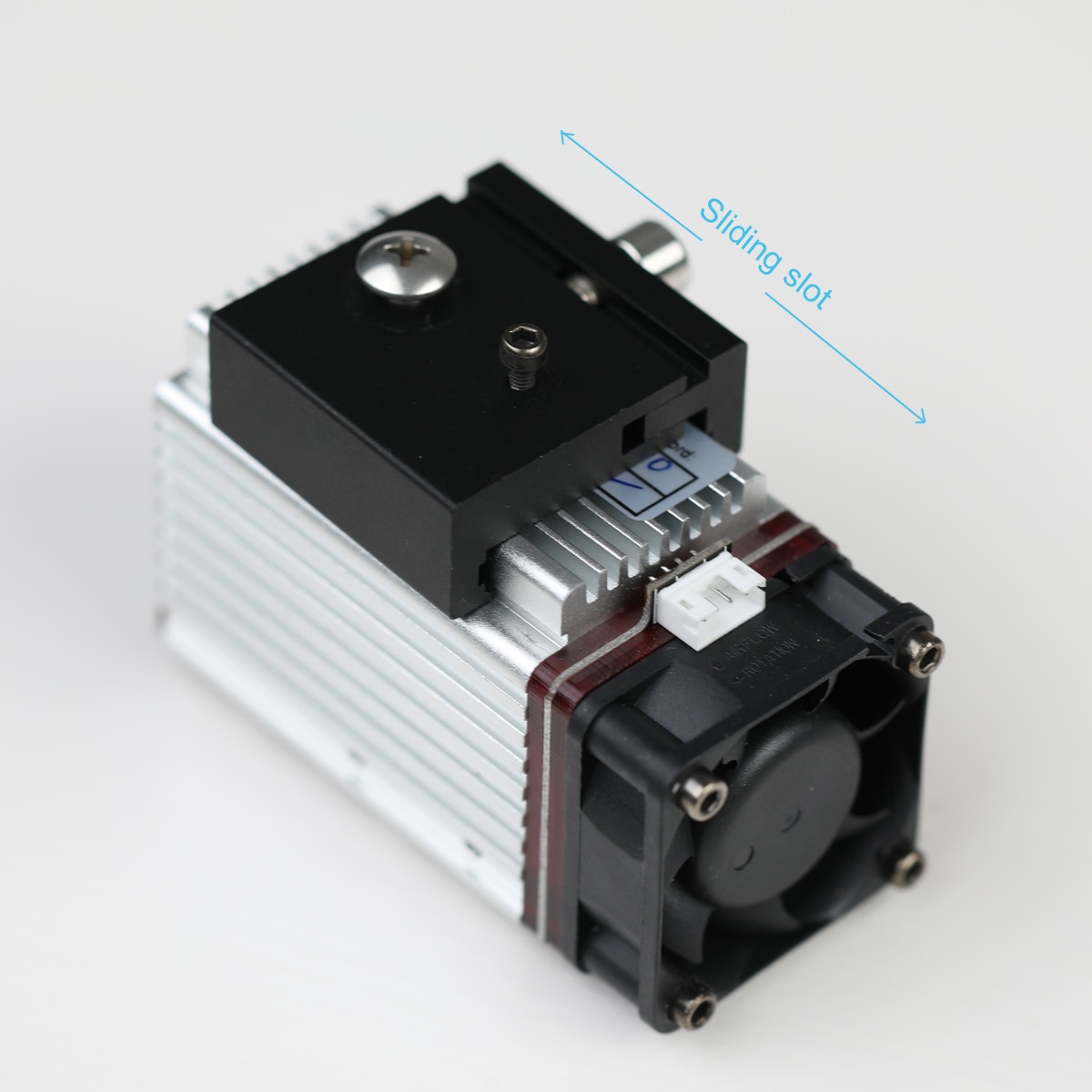

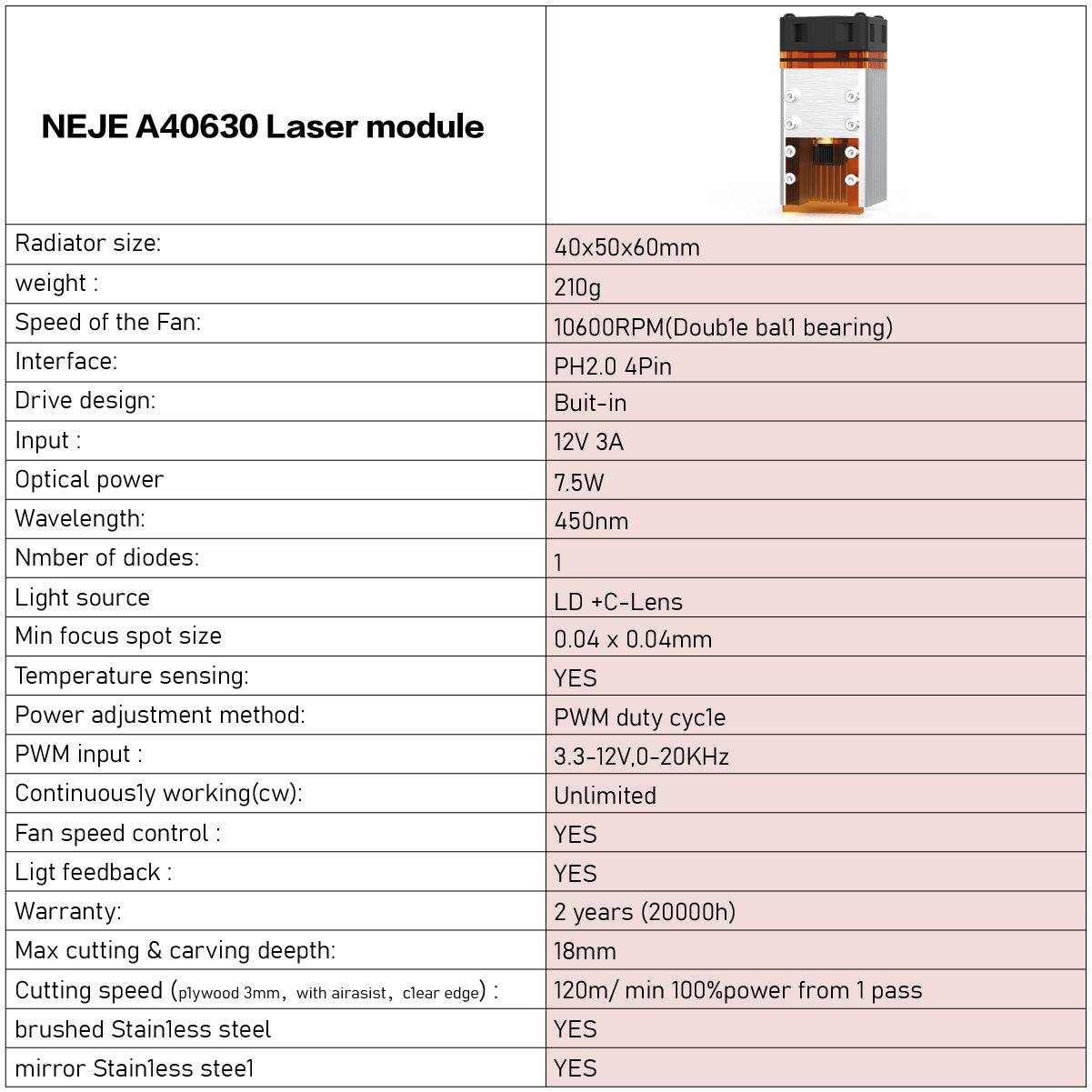

New NEJE A40630 50W General Specification:

Model:NEJE Module 50W (A40630)

Heatsink Material:Aircraft Aluminum + Brass Shell

Luminous Color:Blue

Section Size:40mm x 40mm

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension:60 * 40 * 40mm

Adapter Plug:5.5 2.1 port

Can Engrave:Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave:Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters:

Module Input:30-50W

Optical power output:7.5W (7500mW)

Wavelength:445-450nm

Beam Shape:Dot (Focusable)

Working Voltage:DC 12V

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

Input Voltage:DC12V 4A

PWM/TTL Input:DC3.3V-12V

Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode:External ACC

Safe temperature range:<60 ℃

Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time:10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

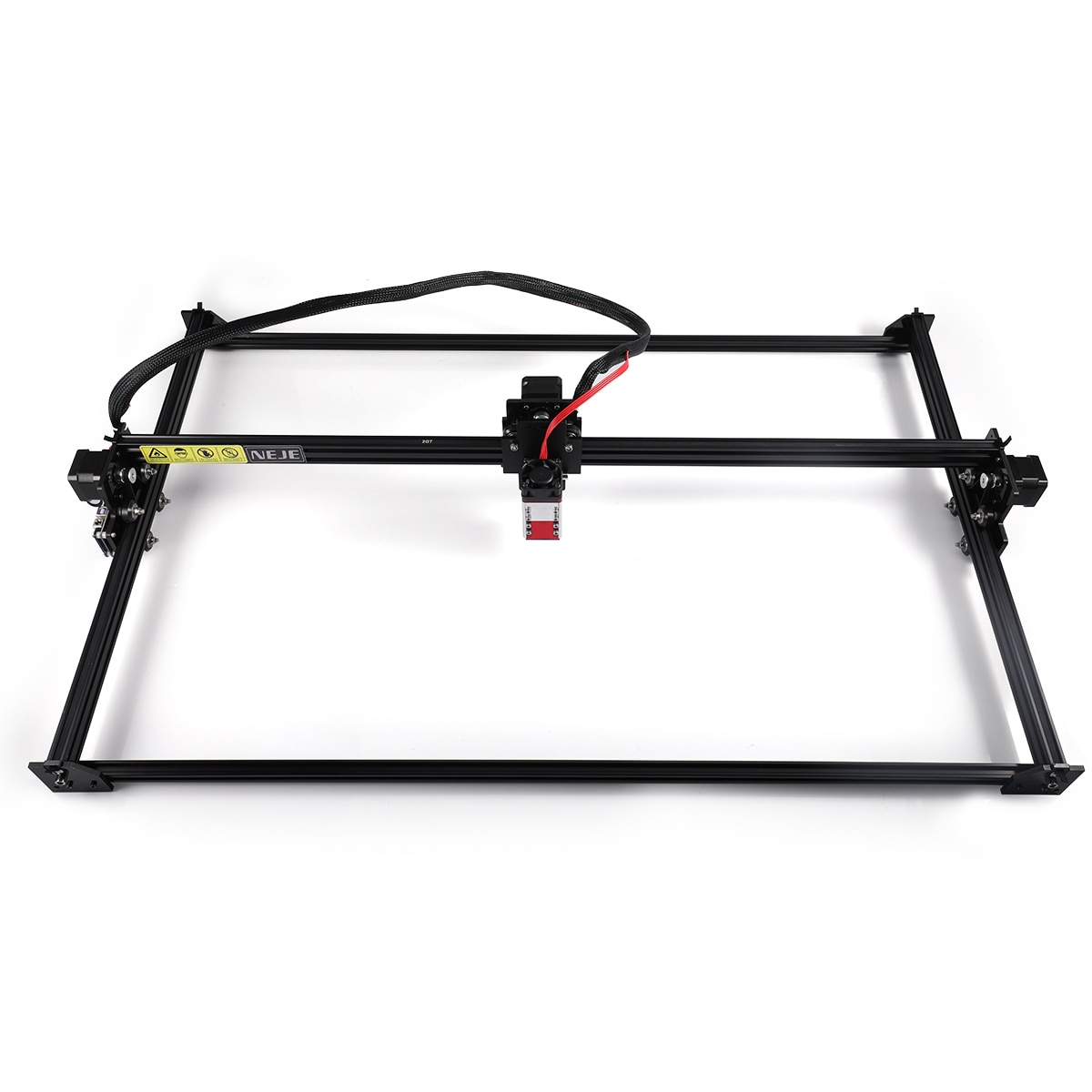

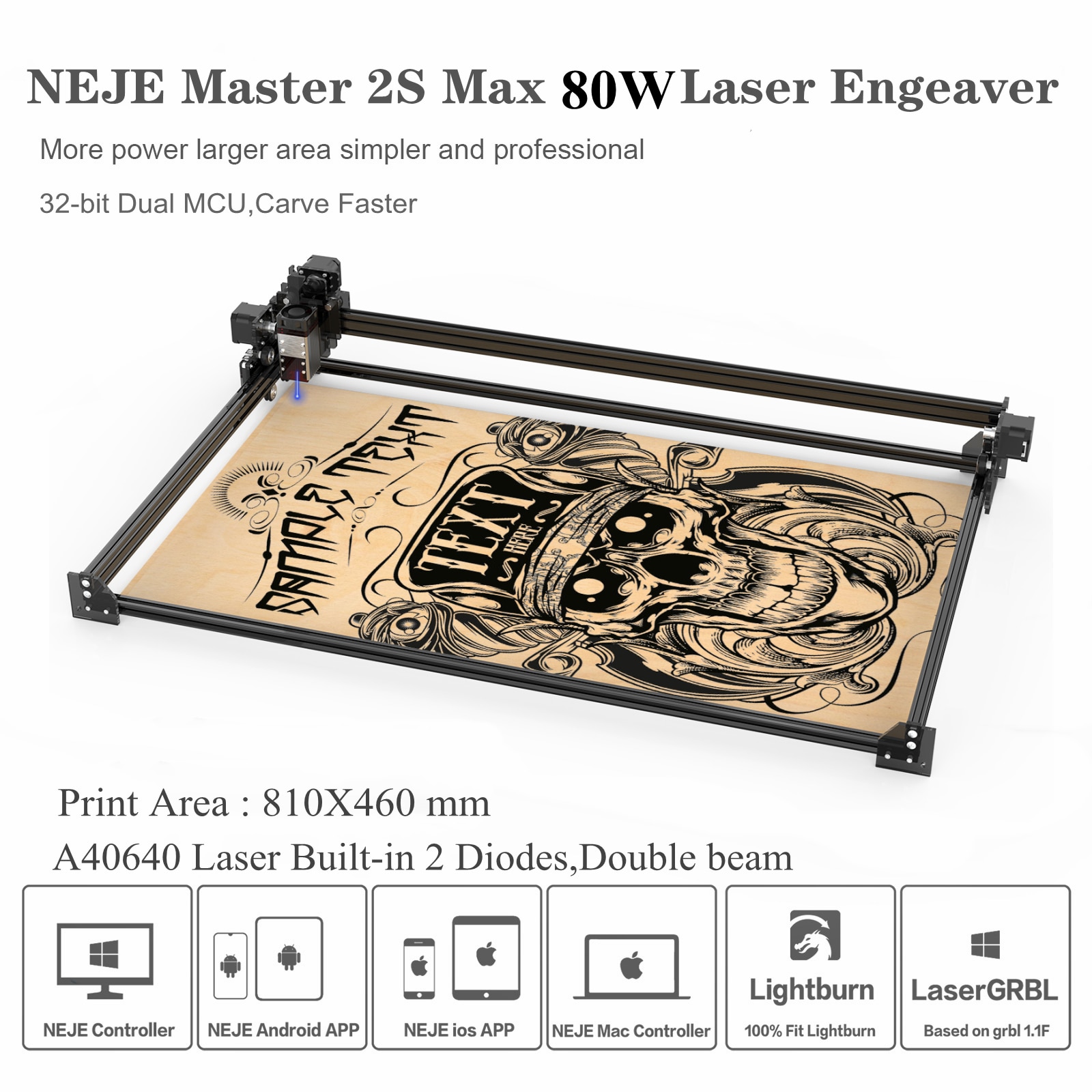

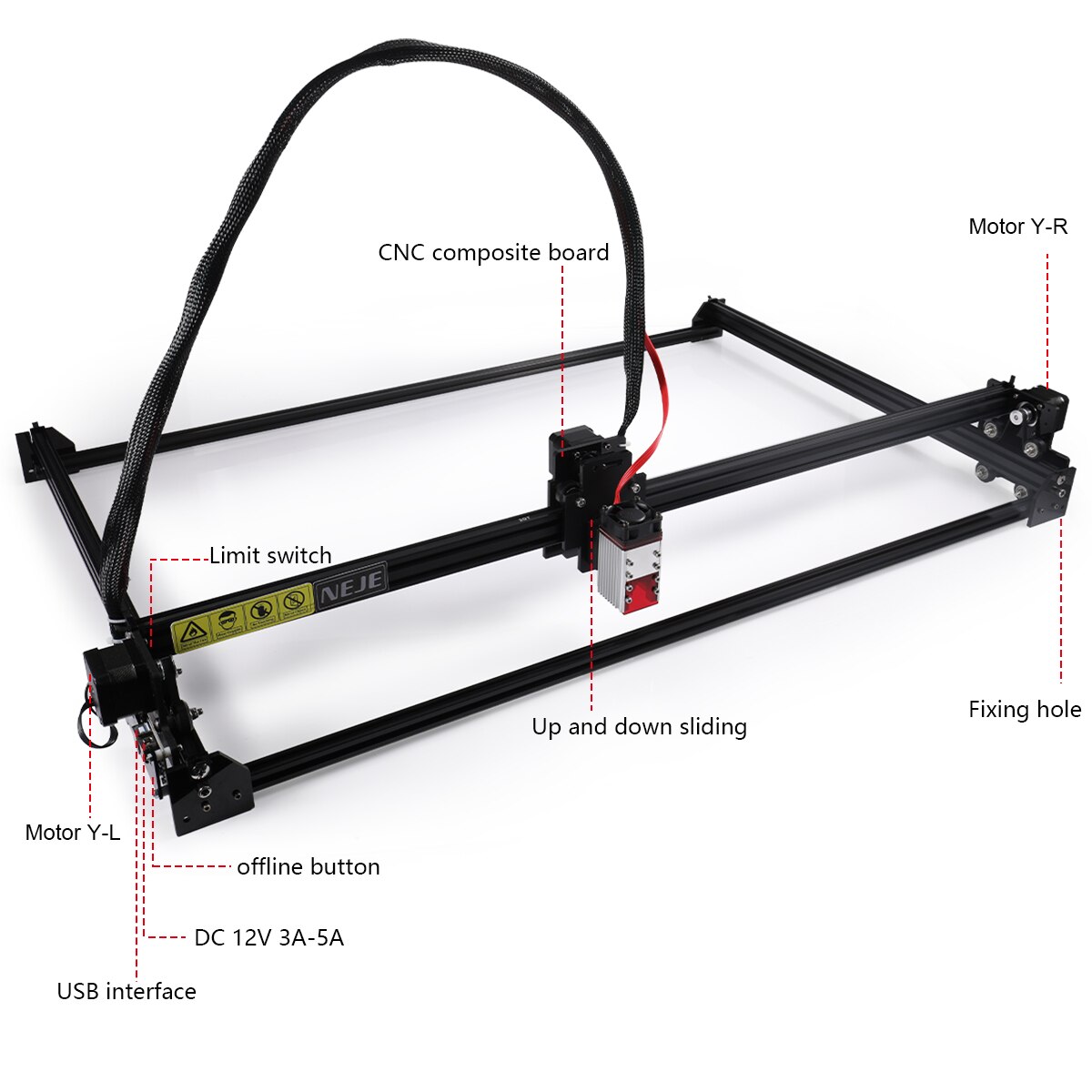

NEJE Master 2S Max 80W CNC Laser Cutting Machine Product Specifications

~ with Bluetooth App Control Lightburn LaserGRBL

~ Built-in 2 Diodes

~ Larger area, 460 x 810 mm engraving and cutting area

~80W power module, optical power output 15W, focal point 0.1mm, support engraving and cutting.

~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

~ Support wireless Bluetooth connection

~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

~ Support NEJE 4pin interface series modules, including 3500mw, 7W, 20W, 30W, 40W, etc.

~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!

NEJE Master 2S Max 80W Product Specification

Model:NEJE Module 80W (A40640)

Heatsink Material:Aircraft Aluminum + Brass Shell

Luminous Color:Blue

Section Size:40mm x 40mm

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension:60 * 40 * 40mm

Adapter Plug:5.5 2.1 port

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters:

Module Input:40-80W

Optical power output:15W

Wavelength:445-450nm

Beam Shape:Dot (Focusable)

Working Voltage:DC 12V

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

Input Voltage:DC12V 4A

PWM/TTL Input:DC3.3V-12V

Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode:External ACC

Safe temperature range:<60 ℃

Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time:10000-20000 hours

Package Include

Laser engraving machine 1,
A40640/A40630/N40630/F30130 module 1,
12V4A/3A power supply 1,
European standard adapter 1,
Manual 1,
Red glasses 1,
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)
