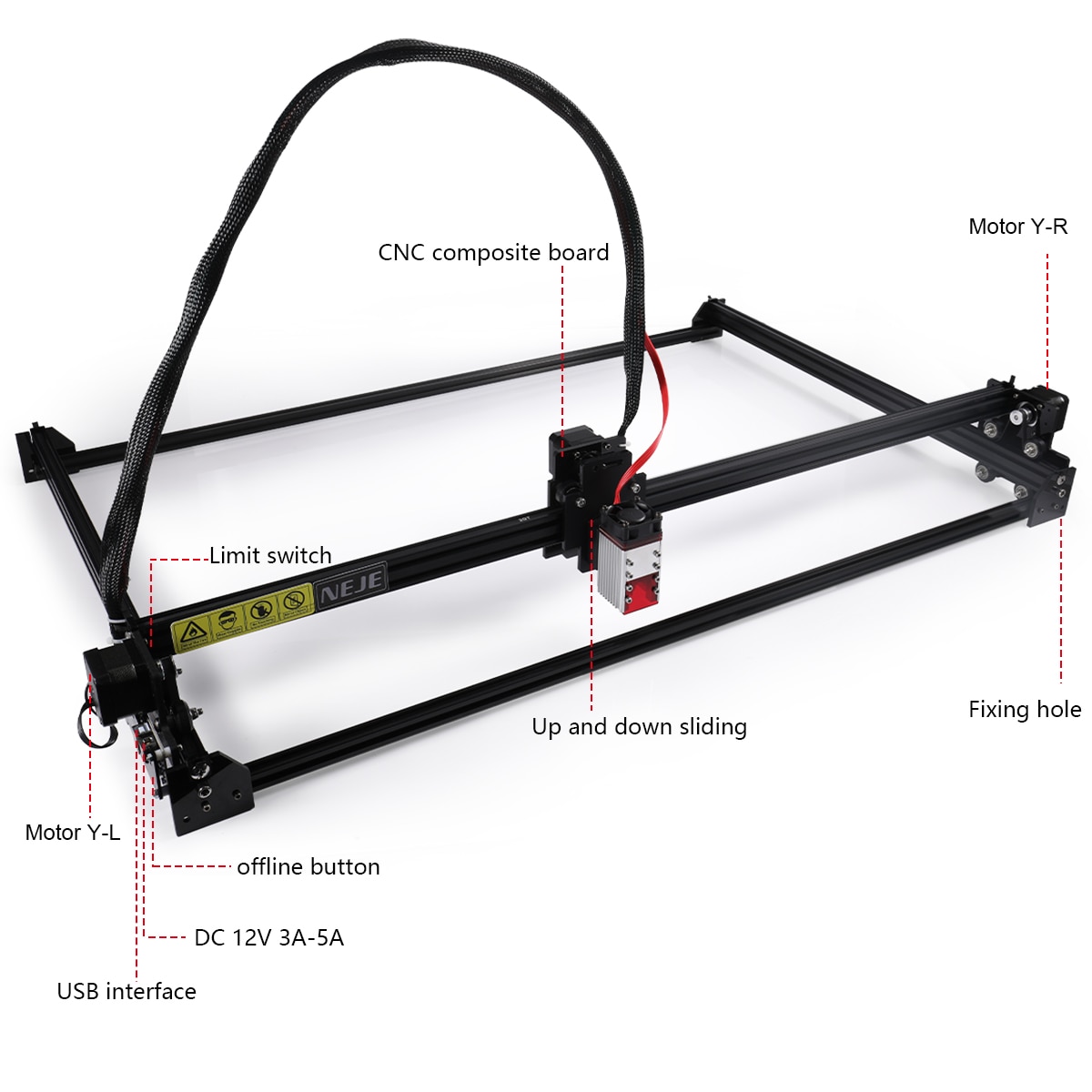

Features

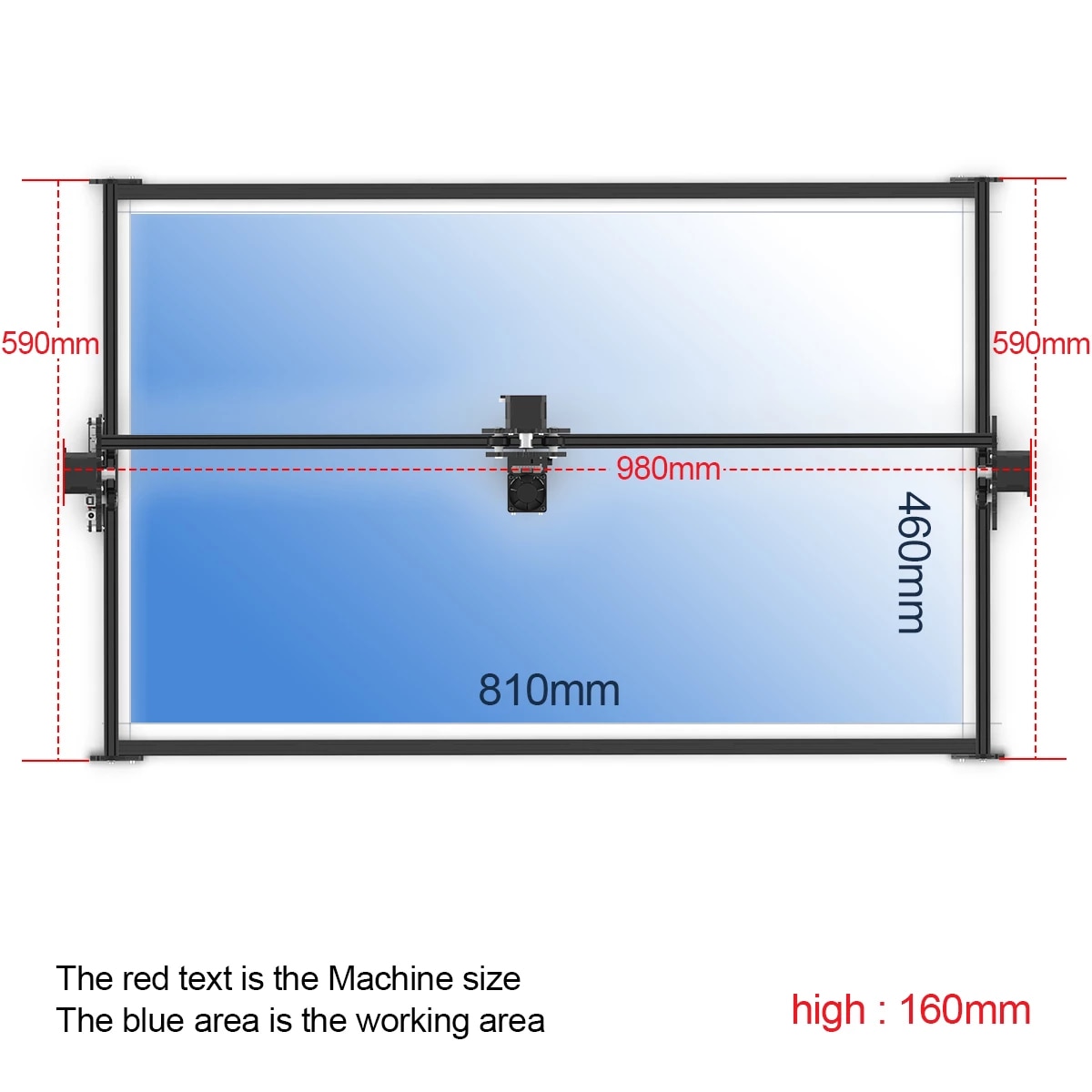

– 【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

– 【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

– 【More materials and more clear】 Wood, MDF, leather, paper, cotton etc. are all supported, 8mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

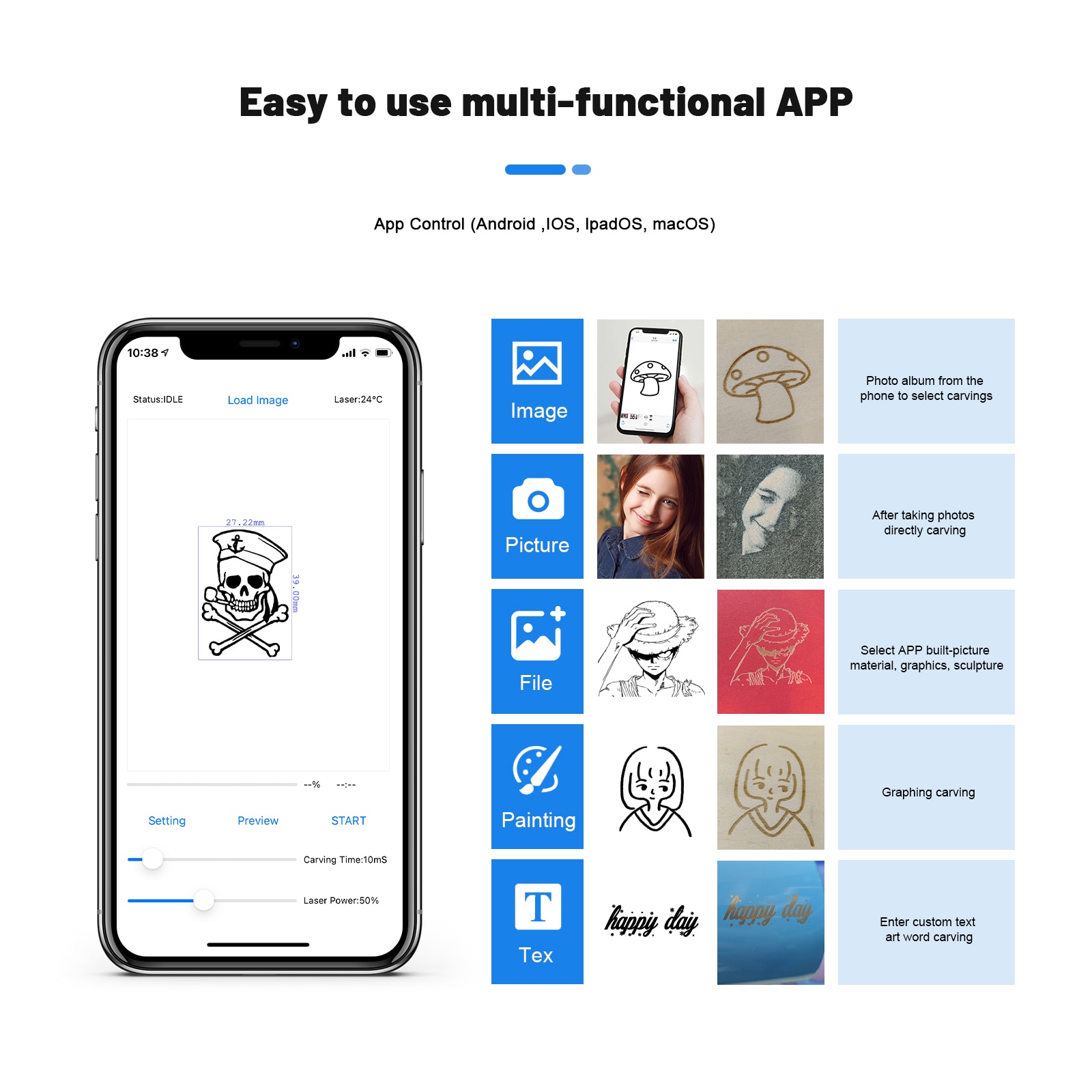

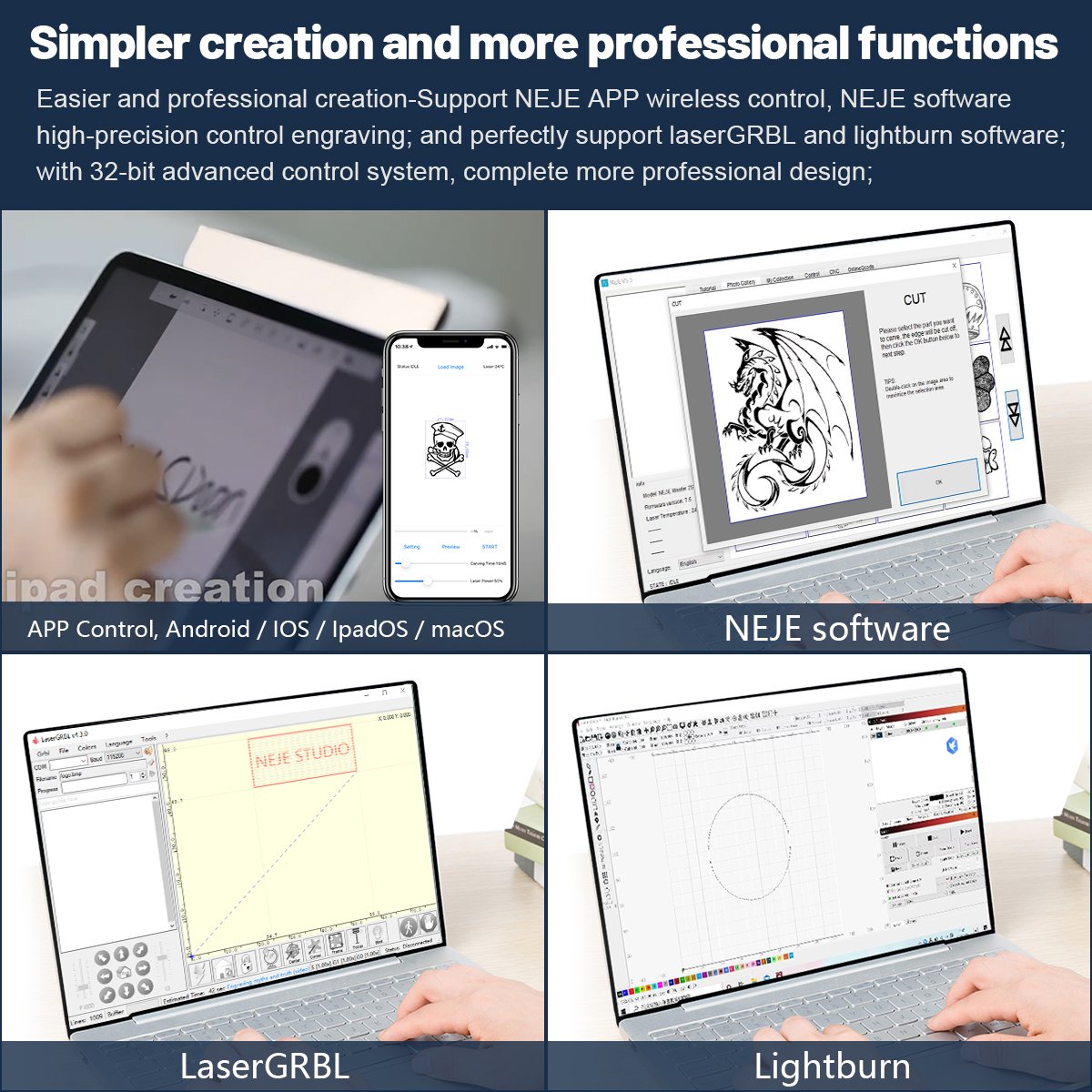

– 【Portable professional control software】 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

– 【Perfect after-sales service】 free 2-year warranty for the whole machine ( laser module: 2 years 20,000 hours warranty ), and 24 hours shipment of vulnerable parts worldwide.

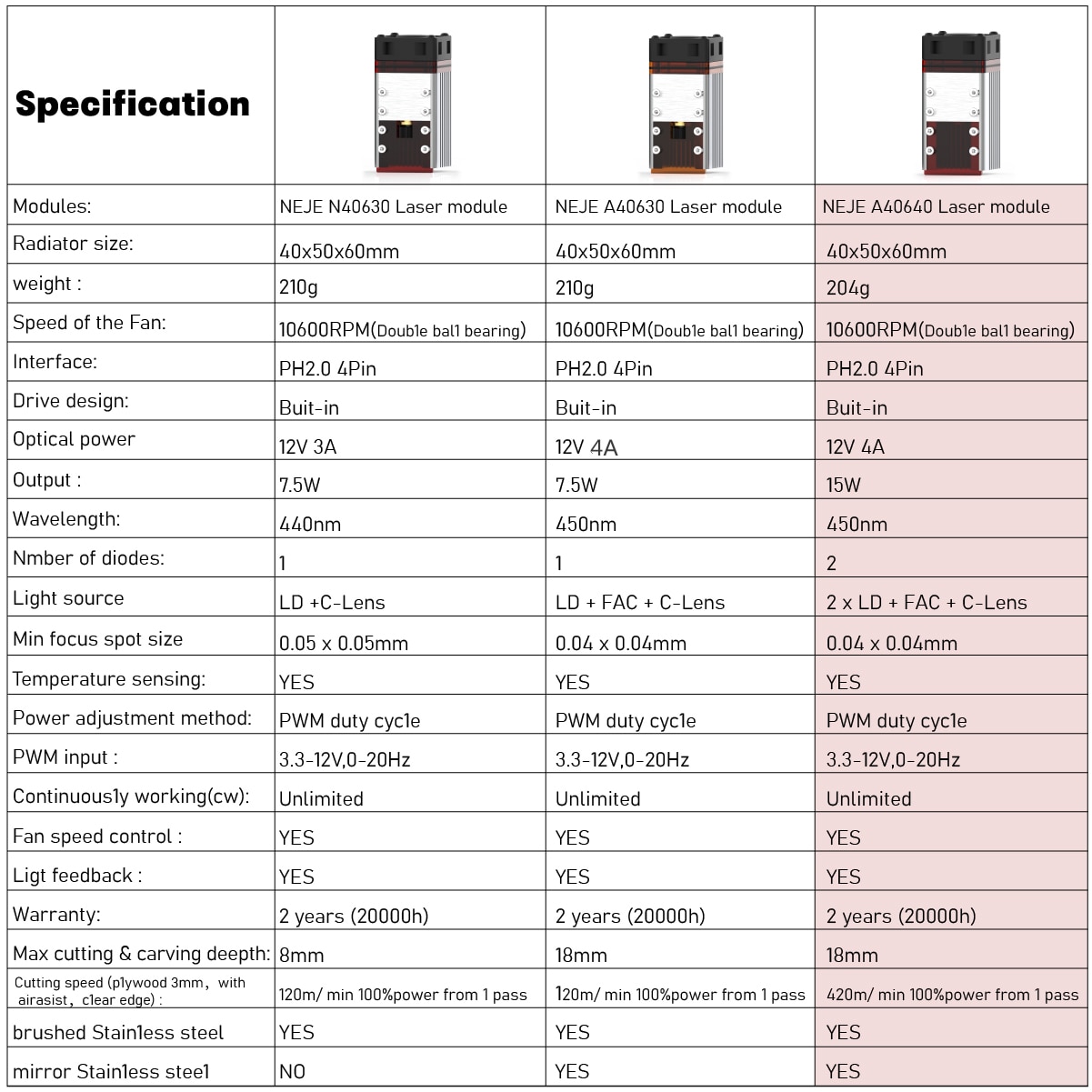

A40640 Module Product Specification

Model：NEJE Module 80W (A40640)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：Metal/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：40-80W
Optical power output：15W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20000 hours

80W (A40640) Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

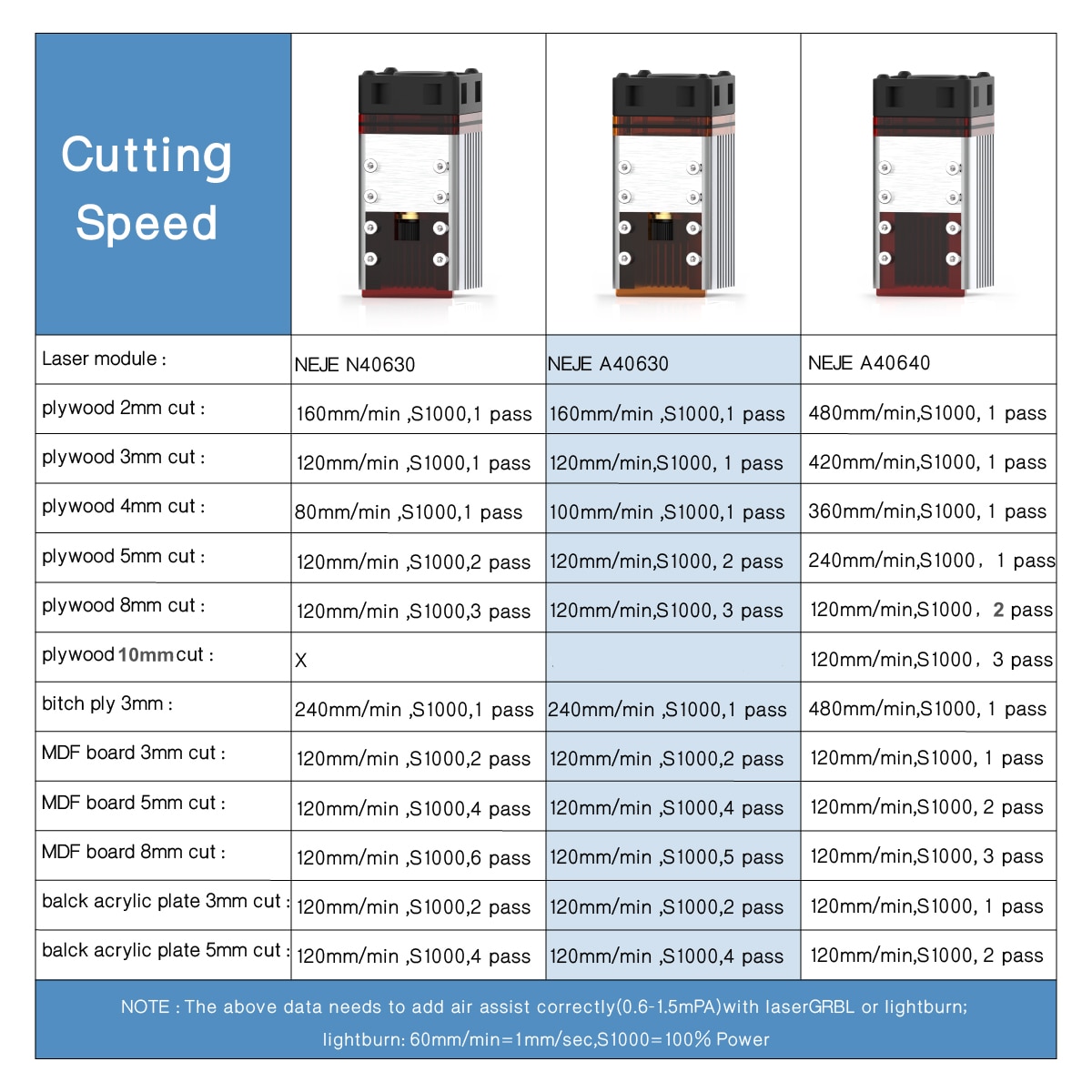

2.15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel,        but it needs good focus adjustment.
3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

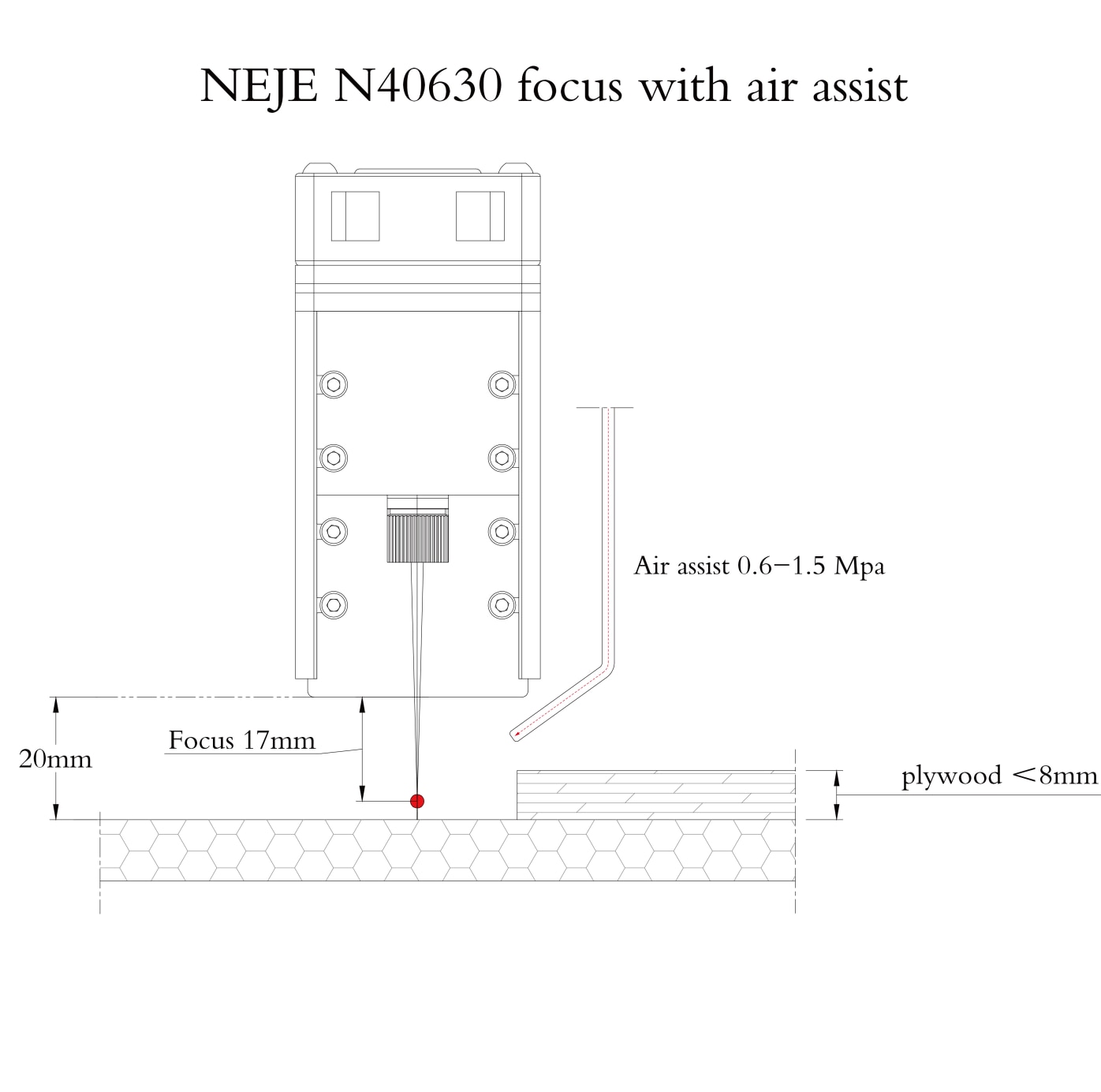

6.slidable mounting fixture is provided for easy adjustment of focus.

NEJE Master 2S Max F30130 Caractéristiques

-【 810×460 mm】 grande zone de gravure. 6133×10800 px, précision de gravure: pas de points de 0.075mm, 339 points/pouce. La machine entière est testée et expédiée, et seulement 6 vis sont nécessaires pour terminer l’installation.

-【Module laser avancé 】 mode de mise au point fixe, vous pouvez faire la mise au point directement via une entretoise de 5mm. Distance focale courte, peut graver directement l’acier inoxydable. Avec le kit d’assistance à l’air NEJE MF14, il peut facilement couper du contreplaqué de 4mm une fois; La conception de la structure parfaite peut bloquer 95% de la lumière, très portable à utiliser. Lecteur intelligent rapide intégré, le retour de température peut être en temps opportun et ajuster intelligemment la dissipation thermique du ventilateur. Sûr et silencieux à utiliser.

-【Plus de matériaux et plus clair 】 le bois, le MDF, le cuir, le papier, le coton, etc. sont tous pris en charge, le contreplaqué de 4mm ne doit être coupé qu’une seule fois avec de l’air, la coupe est très propre. Gravure directe en acier inoxydable. Le verre, l’acrylique transparent et d’autres matériaux peuvent être gravés d’une certaine manière.

-【Logiciel de contrôle professionnel portable 】 système de contrôle 32 bits, la vitesse la plus rapide atteint1000 mm/s, Supporte LaserGRBL, Lightburn, logiciel NEJE, NEJE APP (Android, iOS, ipadOS, macOS).

-【Service après-vente parfaité】 garantie gratuite de 2 ans pour l’ensemble de la machine (module laser:2 ans 20,000 heures de garantie), Et 24 heures d’expédition des pièces vulnérables dans le monde entier.

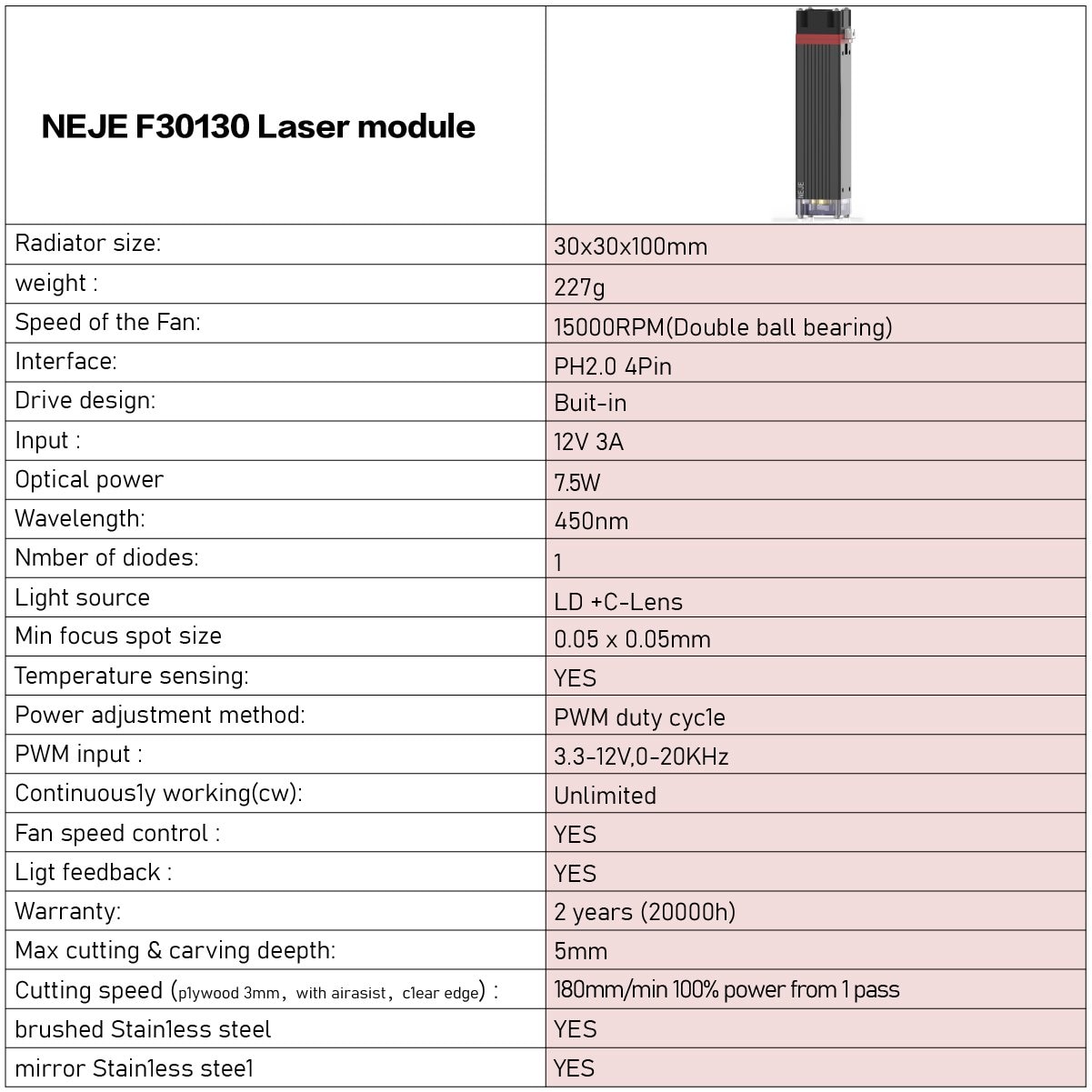

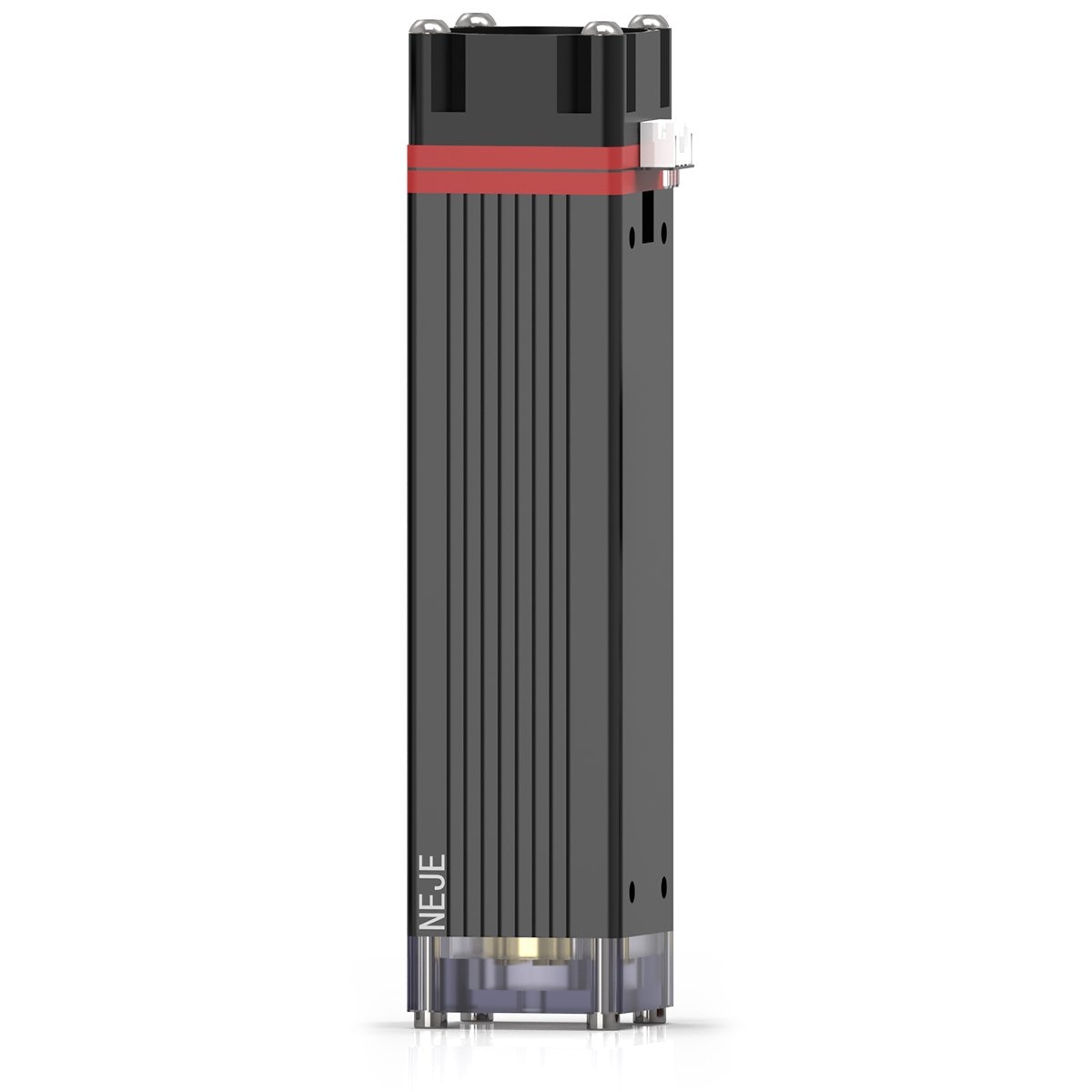

Caractéristiques du Module Laser NEJE 40W Pro F30130

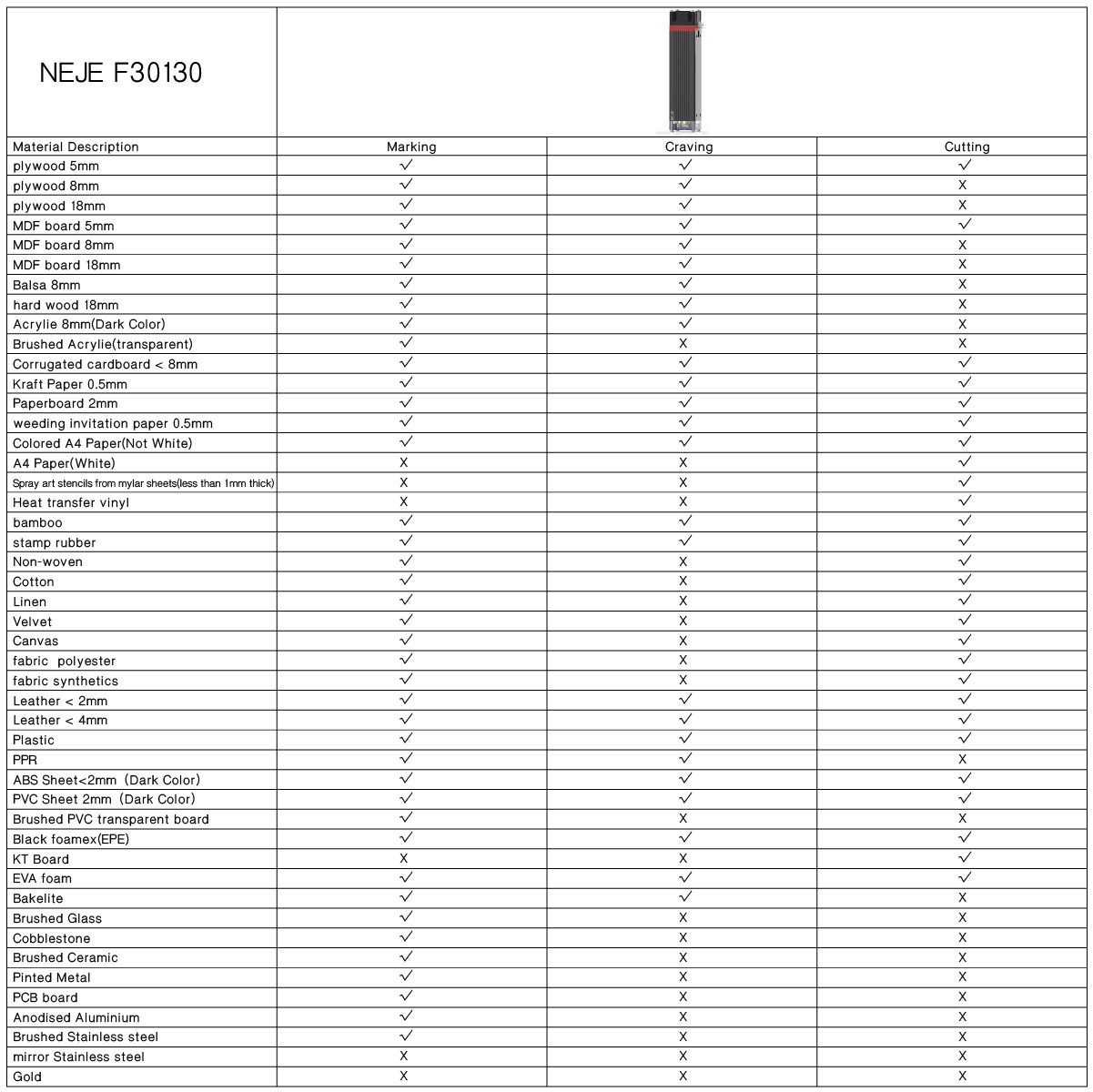

~Peut graver: métal/acier inoxydable/MDF/Balsa/papier/bois/tissu/plastique/cuir/contreplaqué/papier mousse/aluminium anodisé

~ Conçu pour machine de gravure laser NEJE, autre découpe laser, imprimante 3D, Arduino et équipement CNC.

~ 3.3-12V TTL puissance réglable.

~ Large application, 3 conceptions d’interface d’entrée, DC12V + TTL, interface 3 broches 2.54, port de connexion 3 broches.

Puissance de sortie optique ~ 7.5W, peut être directement mis à niveau sur la base de NEJE Master2 20W, si elle est de 7W et 3500mw, les clients doivent remplacer l’adaptateur d’alimentation 12V3A.

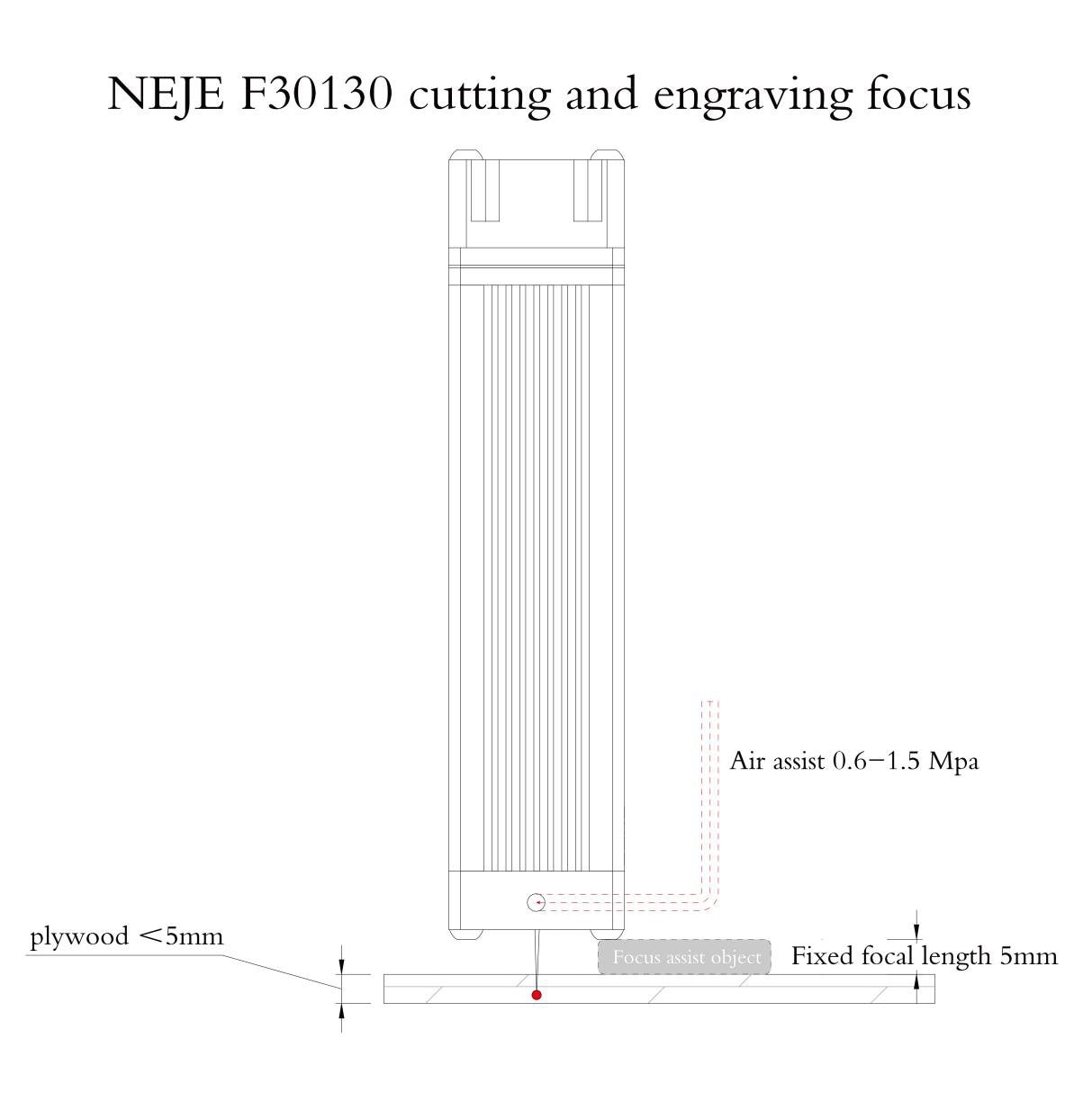

~ Conception de mise au point fixe, il suffit de placer une entretoise de 6mm sur le fond et de verrouiller la vis pour régler la mise au point.

Taille ~ 30mm, n’affecte pas la zone de gravure de NEJE Master2.

~ Protection de la vue.

~ Assistance à l’air au laser modifié.

~ Lecteur Intelligent, capable de détecter la température et de régler dynamiquement la vitesse du ventilateur, le rendant plus silencieux lorsqu’il n’est pas utilisé.

Ventilateur haute vitesse à double boule ~ 15000 rpm, performance de dissipation thermique plus forte

Noyau de cuivre fileté intégré de ~ 60mm, ajout de graisse de silicone de dissipation thermique, contrôle sûr de la température, test de vieillissement NEJE de 48 heures.

~ 2 ans de garantie, remplacement gratuit.

NEJE N40630 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.7.5W Optical power output, 3mm acrylic from 1 pass(speed 100)

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.Slidable mounting fixture is provided for easy adjustment of focus.

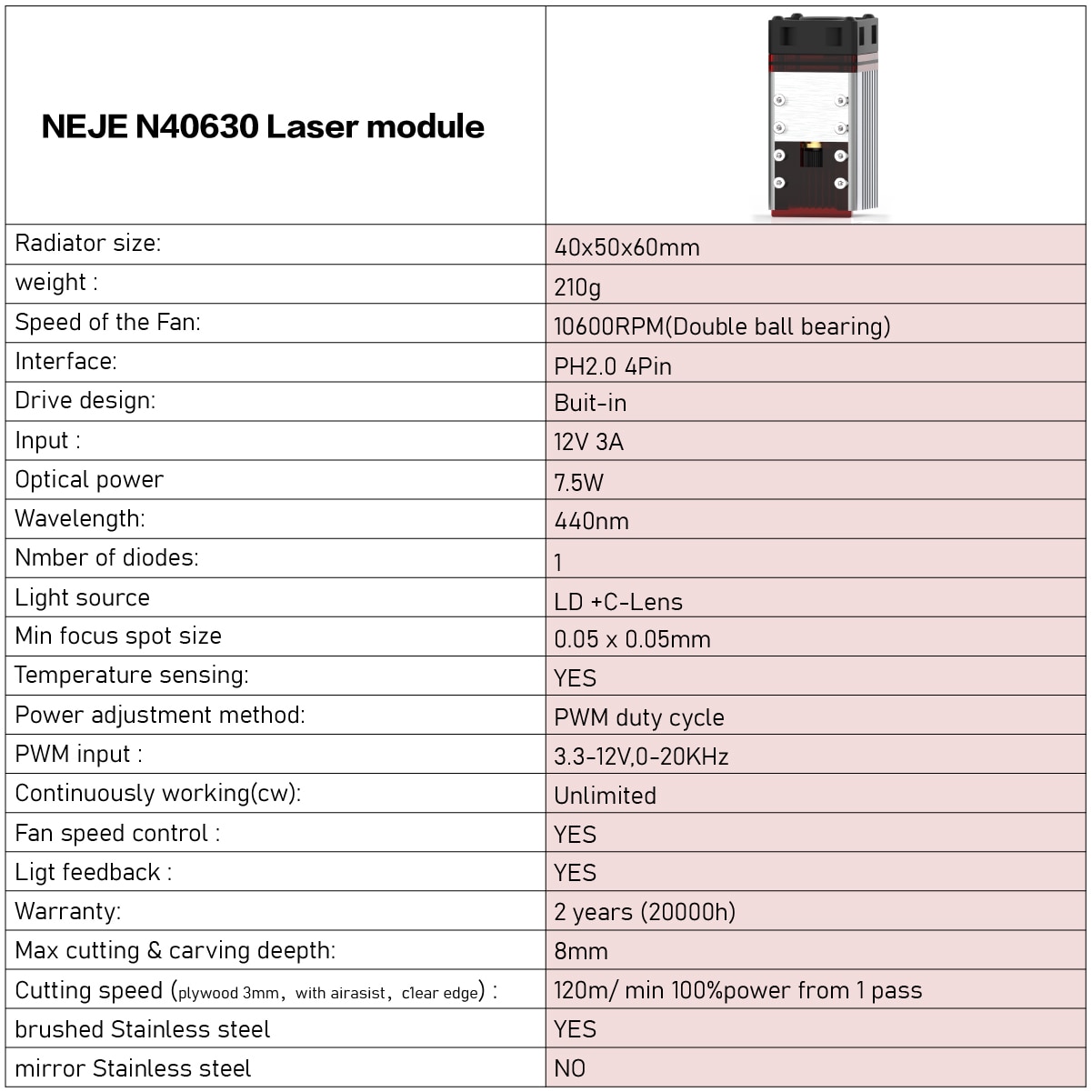

NEJE N40630 Product Specification

Model：NEJE Module N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

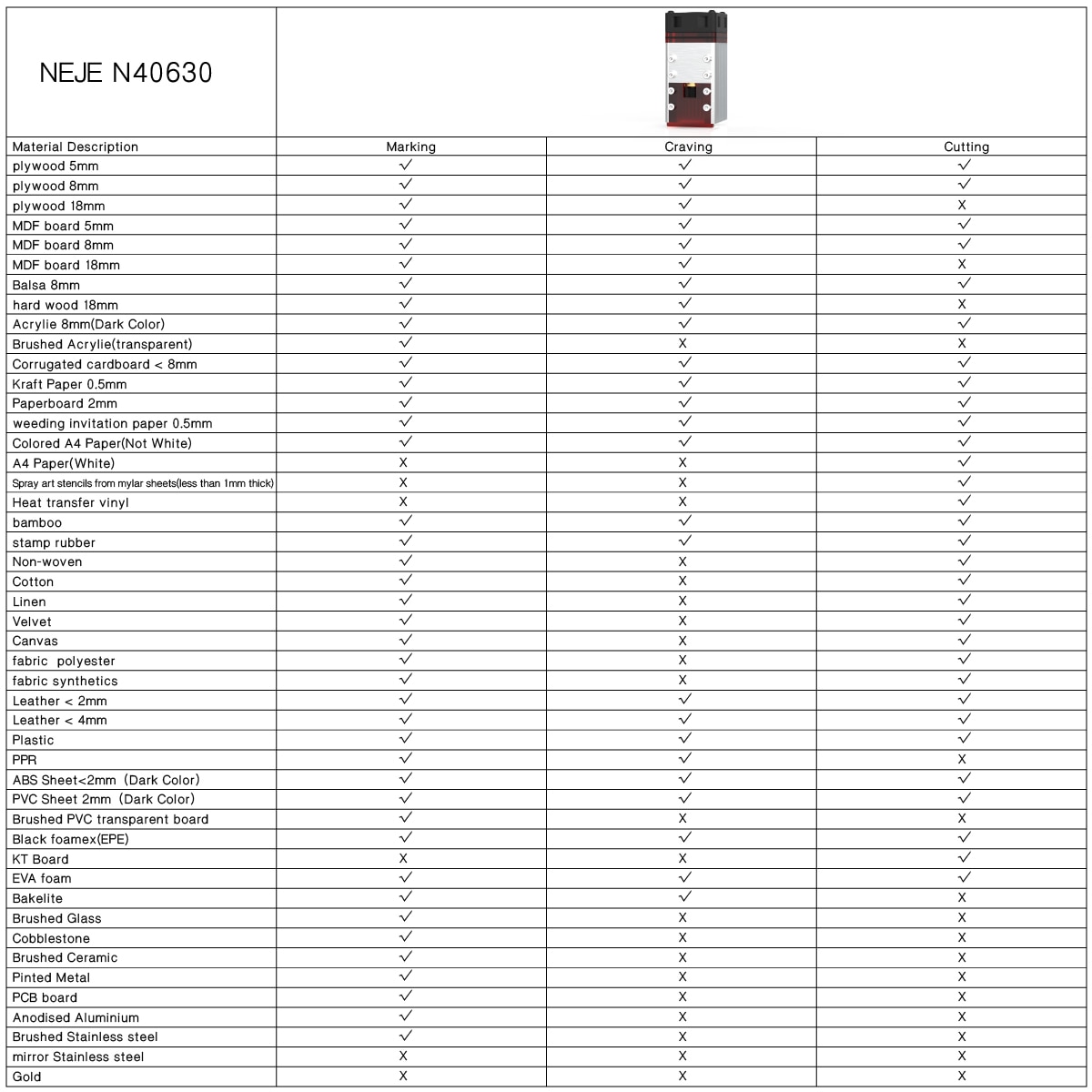

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：30-40W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

Protective Glasses Design

Protective panel blocks light
No need to protect glasses again
Protective plate can be removed

Modified air assist

Avoid smoke damage to the lens
When working at high power, the smart fan will speed up the heat dissipation according to the power.

2 ni 1 adjustable lens and fixed lens

The aluminum structure design high-power engraving module is safer and better than the old engraving module.

Can be replaceable modules

MAX 80W engraving machine

Not only has a larger working area

It has been upgraded to can use new and old engraving modules.

Give you more space to combine modules with different power.

Realize more of your creative works.

With Great Motherboard

The NEJE original motherboard allowing your machine to continue to maintain the latest and best performance. We will update the firmware on the official website from time to time to improve the performance of the machine.

Factory Quantity Control

Our NEJE factory ensures product quality safety & stability.
Safety test for 48 hours.
Ensure the engraving module to work more safely at high power.

Package List

1* Laser engraving machine
1* A40640/A40630/N40630 module
1* 12V4A/3A power supply
1* Adapter
1* Manual
1* Red glasses

Add More:
1* Data cable
1* wooden board
5* paper
1* pen
1* brush
1* focusing film
4* angle iron
1* alumina film
3* cable tie
5* nut
1* large hexagon wrench
1* small hexagon wrench
1* Open wrench

Please Note
