NEJE Master 2S Max 80W A40640 CNC Wood Laser Engraver Cutter Cutting Engraving Machine Router Lightburn LaserGRBL App Control

$658.80$838.79

SKU: 1005001671282895 Category:

Description

  • Brand Name: NEJE
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: Master 2S Max
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Brand: NEJE
  • Laser Model: A40640

Caros compradores brasileiros, devido à nova epidemia da coroa, a alfândega brasileira fiscaliza rigorosamente a importação de vidros. Os produtos que estão no armazém brasileiro não vêm com vidros. Obrigado pela compreensão!


Todos os produtos no armazém brasileiro foram tributados. Se você optar por enviar do armazém brasileiro, não precisará mais pagar impostos ~~ kkk ~~ Como você sabe, os costumes brasileiros são muito rígidos e os estoques brasileiros muitas vezes ficam fora de estoque . Por favor, compre e pague o mais rápido possível, obrigado!

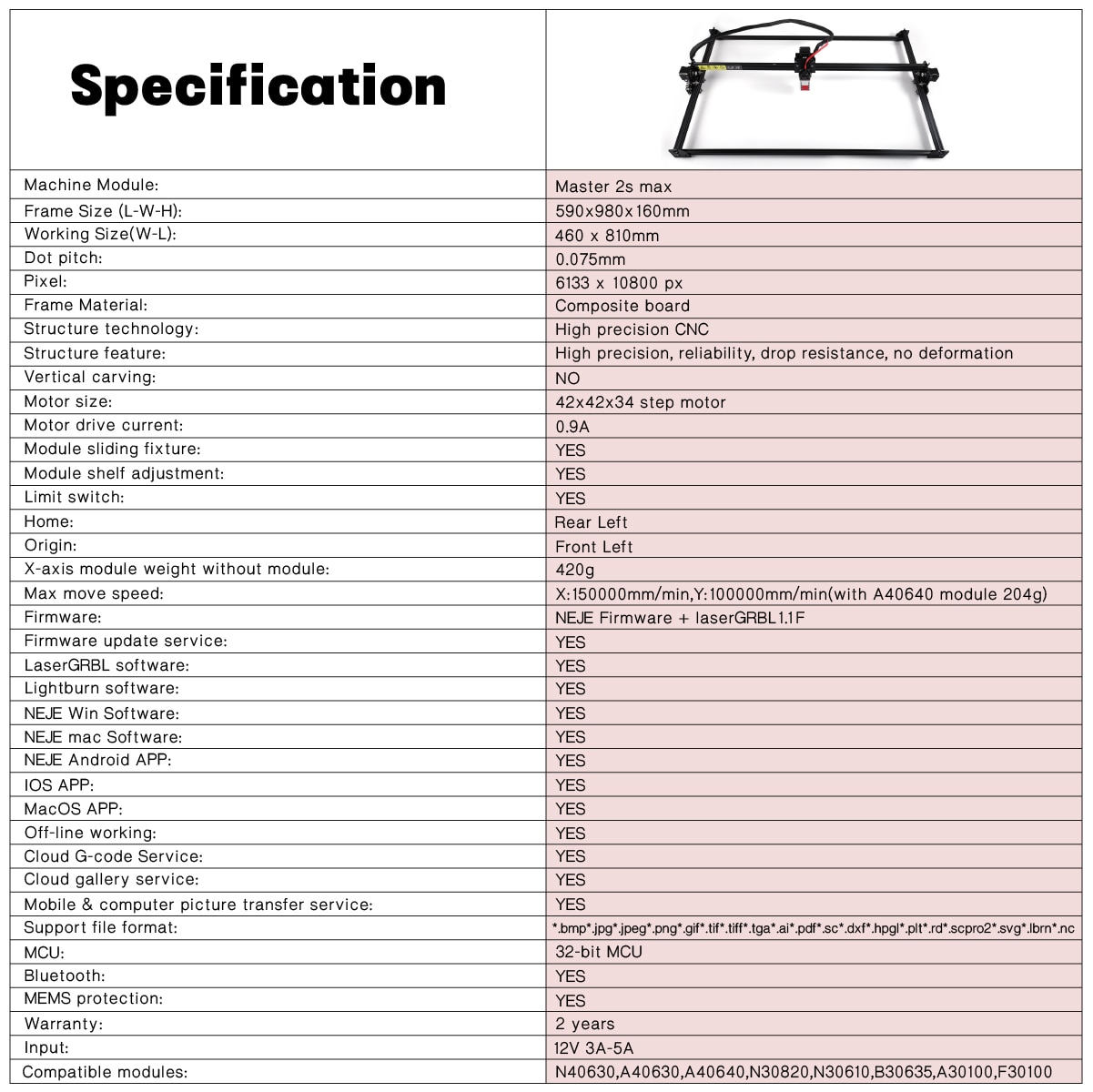

Product Specifications

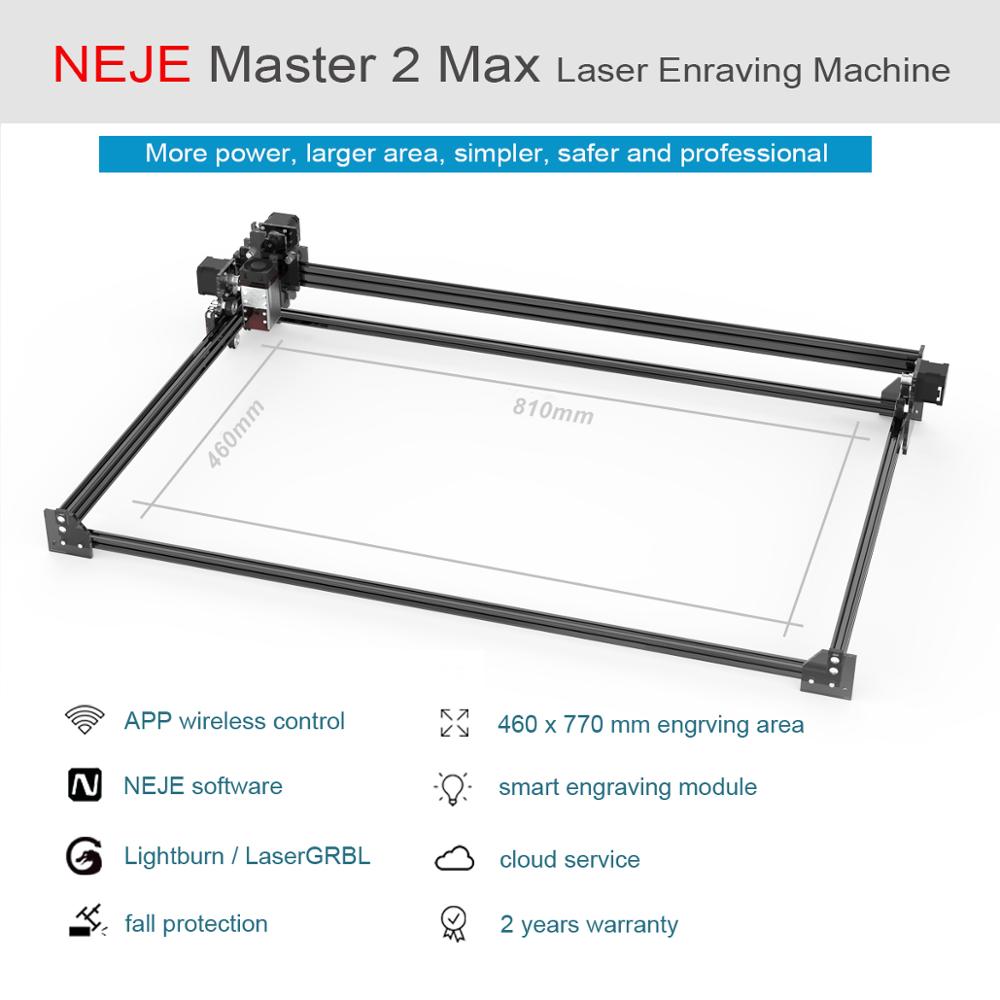

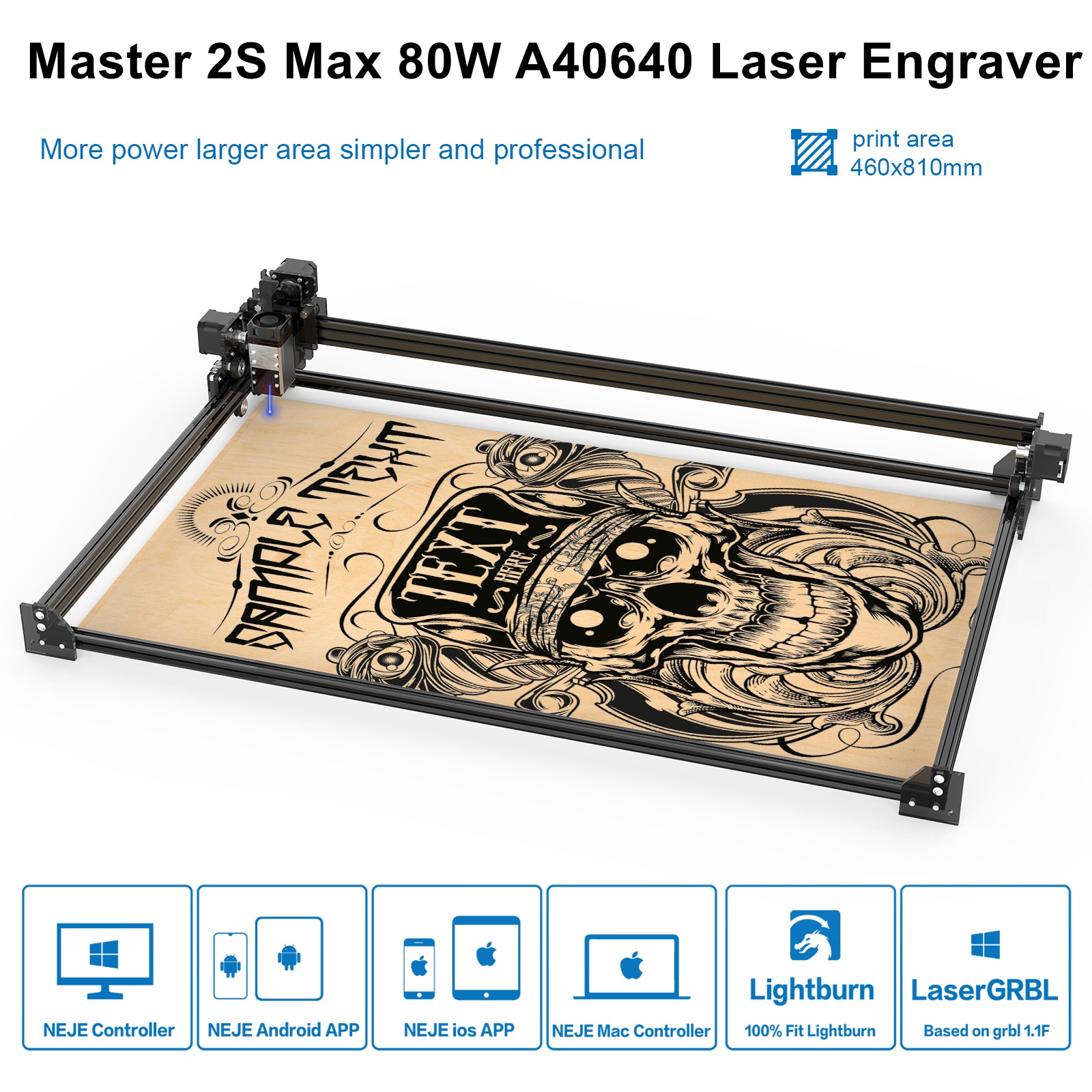

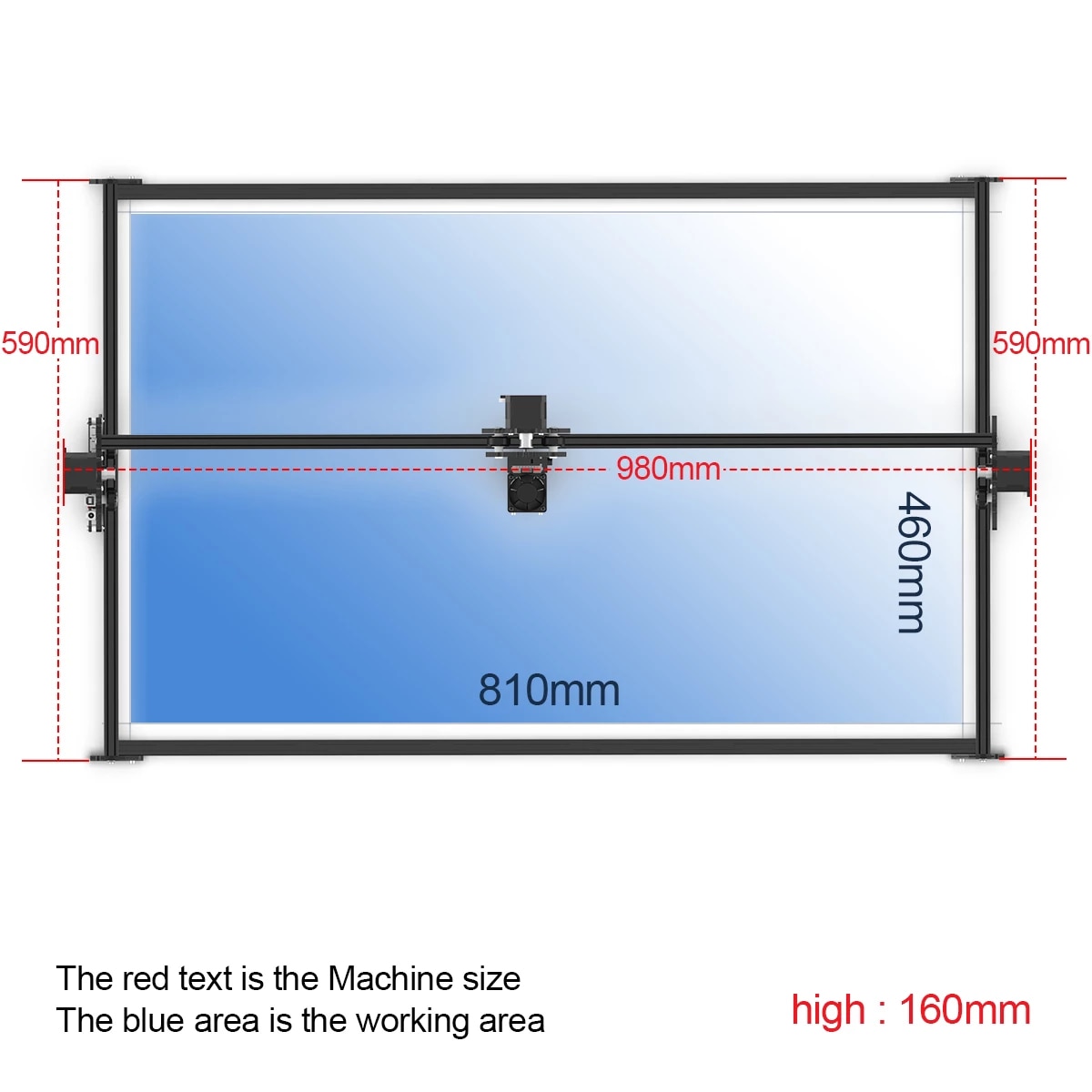

~ Larger area, 460 x 810 mm engraving and cutting area
~80W power module, optical power output 15W, focal point 0.1mm, support engraving and cutting.
~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

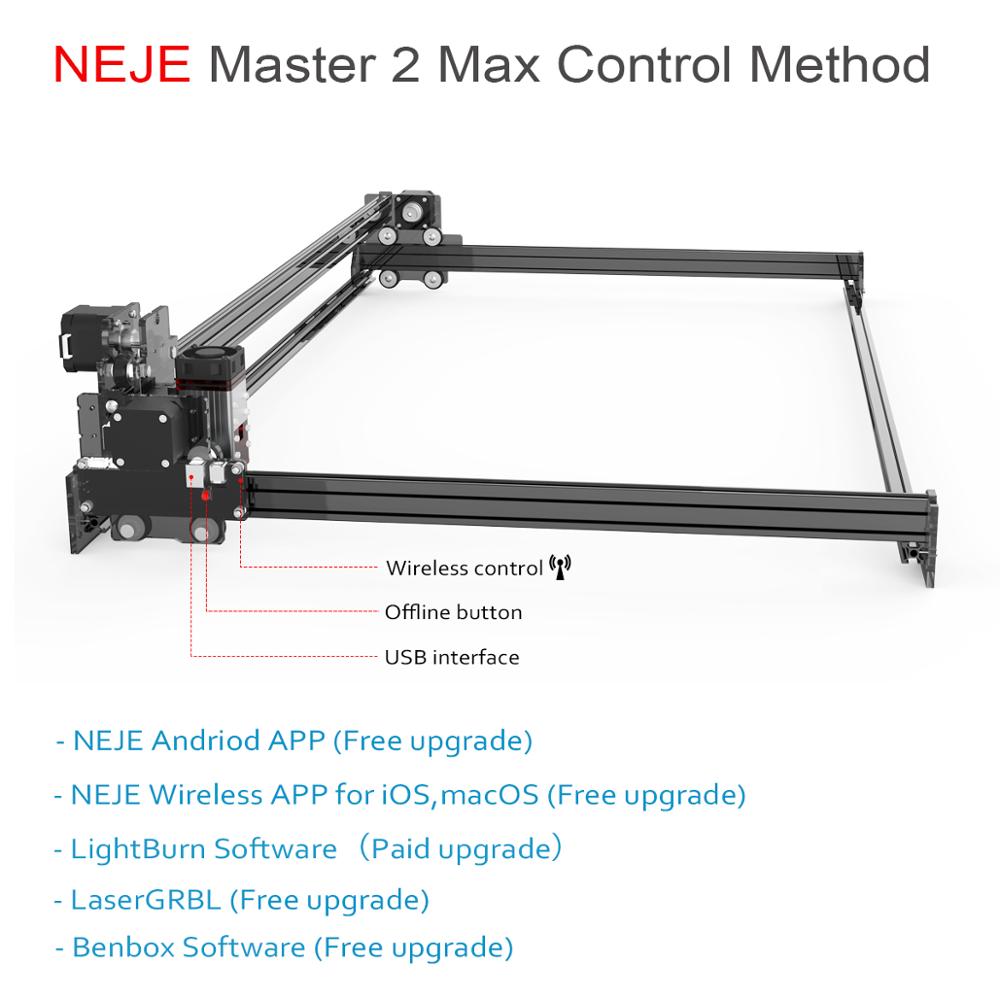

~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

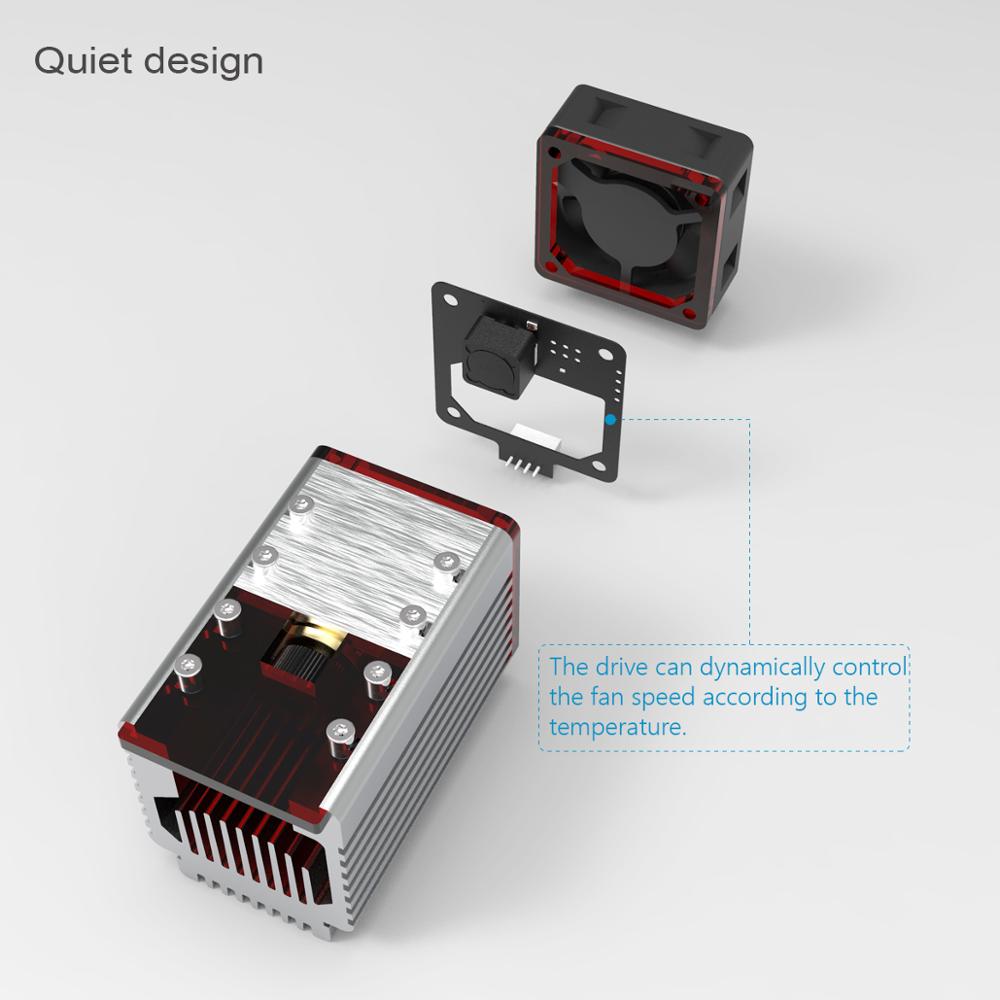

~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.
~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.
~ Support NEJE 4pin interface series modules, including 15mw, 20W, 30W, 40W, 50W, 80W,etc.
~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!

A40640 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

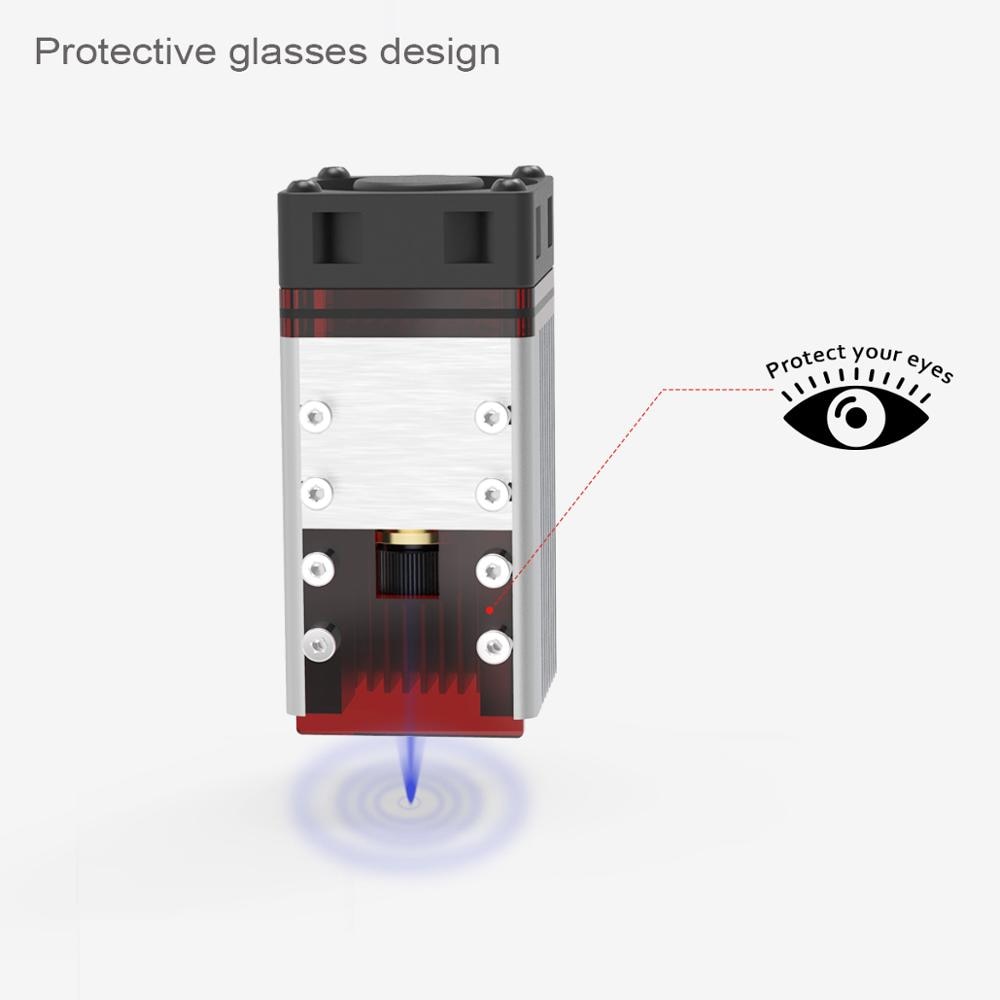

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.slidable mounting fixture is provided for easy adjustment of focus.

A40640 Module Product Specification

Model:NEJE Module 80W

Heatsink Material:Aircraft Aluminum + Brass Shell

Luminous Color:Blue

Section Size:40mm x 40mm

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension:60 * 40 * 40mm

Adapter Plug:5.5 2.1 port

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters:

Module Input:40-80W

Optical power output:15W

Wavelength:445-450nm

Beam Shape:Dot (Focusable)

Working Voltage:DC 12V

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

Input Voltage:DC12V 3-4A

PWM/TTL Input:DC3.3V-12V

Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode:External ACC

Safe temperature range:<60 ℃

Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time:10000-20000 hours


Package List

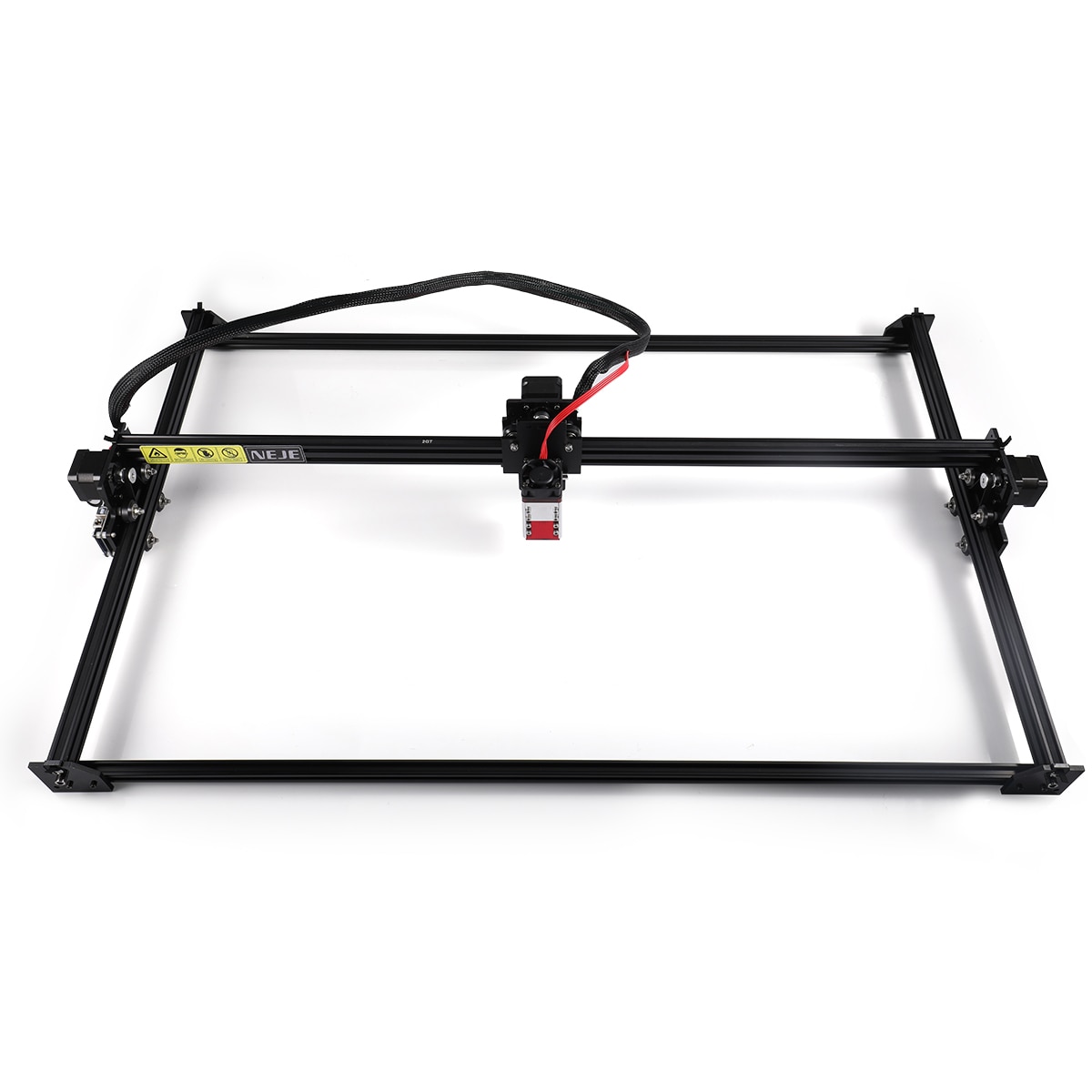

1* Laser engraving machine
1* A4060 module
1* 12V4A power supply
1* European standard adapter
1* Manual
1* Red glasses
1* Data cable
1* wooden board
5* paper
1* pen
1* brush
1* focusing film
4* angle iron
1* alumina film
3* cable tie
5* nut
1* large hexagon wrench
1* small hexagon wrench
1* Open wrench
Please Note
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.
